USER MANUAL
GAS FIRE PIT
EQODHGS
EDODHLR
WARNING: FOR OUTDOOR USE IN WELL VENTILATED AREAS ONLY.
DO NOT USE INDOORS.
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE
0063-20

2
CONTENTS
SAFETY
3
FEATURES
4
ASSEMBLY
4
PARTS LIST
5
ASSEMBLY
6
OPERATING INSTRUCTIONS
7
GAS REQUIREMENTS
7
CONNECTING TO A GAS CYLINDER
7
SECURING A GAS CYLINDER
8
LEAK TESTING
8
BATTERY REPLACEMENT
9
LIGHTING THE PILOT
9
MAINTENANCE
10
STORAGE
10
TROUBLESHOOTING
11
TECHNICAL SPECIFICATIONS
12
SUPPORT
12

3
IMPORTANT SAFETY INFORMATION
Please read this user manual before using this heater and keep it safe for future reference.
•Read the following instructions carefully and be sure your patio heater is properly installed,
assembled and cared for. Retain the instructions for future reference.
•Failure to follow these instructions may result in serious bodily injury and/or property damage.
•WARNING - Risk of Suffocation! Gas heaters must be used outdoors and must not be used in
enclosed areas such as sheds or marquees!
•Read the instruction manual before using the appliance.
•WARNING: Accessible parts may be very hot. Keep young children away.
•This appliance must be kept away from flammable materials during use.
•Do not move the appliance during use.
•The appliance should be secured to the ground when in use.
•Turn off the gas supply at the gas cylinder after use.
•Do not modify this appliance.
•If you have any questions concerning assembly or operation, consult the retailer or Bottled Gas
Company.
•Always place the appliance and cylinder on flat level ground.
•Turn off the gas cylinder if gas leak is suspected.
•Parts sealed by the manufacturer must not be altered by the user. No modifications should be made
to any part of this heater and repairs and maintenance should only be carried out by a registered
Gas Safe service engineer.
•Use only regulator and hose approved for LP Gas at the correct pressures and gas type.
•The regulator should comply with the standard EN16129 and current regulations in the country
where it is installed, which may be found at your nearest retailer of gas items.
•Refer to the technical data. It is strictly prohibited to use adjustable pressure.
•The life expectancy of the regulator is estimated as 10 years. It is recommended that the regulator
is changed within 10 years of the date of manufacture or the national conditions require it.
•The type of replaceable hose should be compliant with EN16436-1.
•The hose used must conform to the relevant standard for the country of use.
•The length of the hose must be 0.7 meters (minimum) and 1.5 meters (maximum).
•A worn or damaged hose must be replaced. Ensure that the hose is not obstructed or kinked. It is
recommended that the hose is changed within 1 year of the date of manufacture or as the national
conditions require.
Outdoor use in well ventilated areas only, do not use indoors.
•Use only in a well-ventilated area. This must have a minimum of 25% of
the surface area open.
•The surface area is the sum of all walls’ surface areas.
•The use of this appliance in enclosed areas can be dangerous and is
PROHIBITED.
•Children and adults should be aware of the high operating temperatures
of areas above the post when operating this heater. Children should be
carefully supervised when in the vicinity of the heater.
NEVER hang anything, including clothes or any other flammable items, on
this heater.
DO NOT operate this heater unless it is fully assembled.
Respect the minimum clearances from combustible materials.

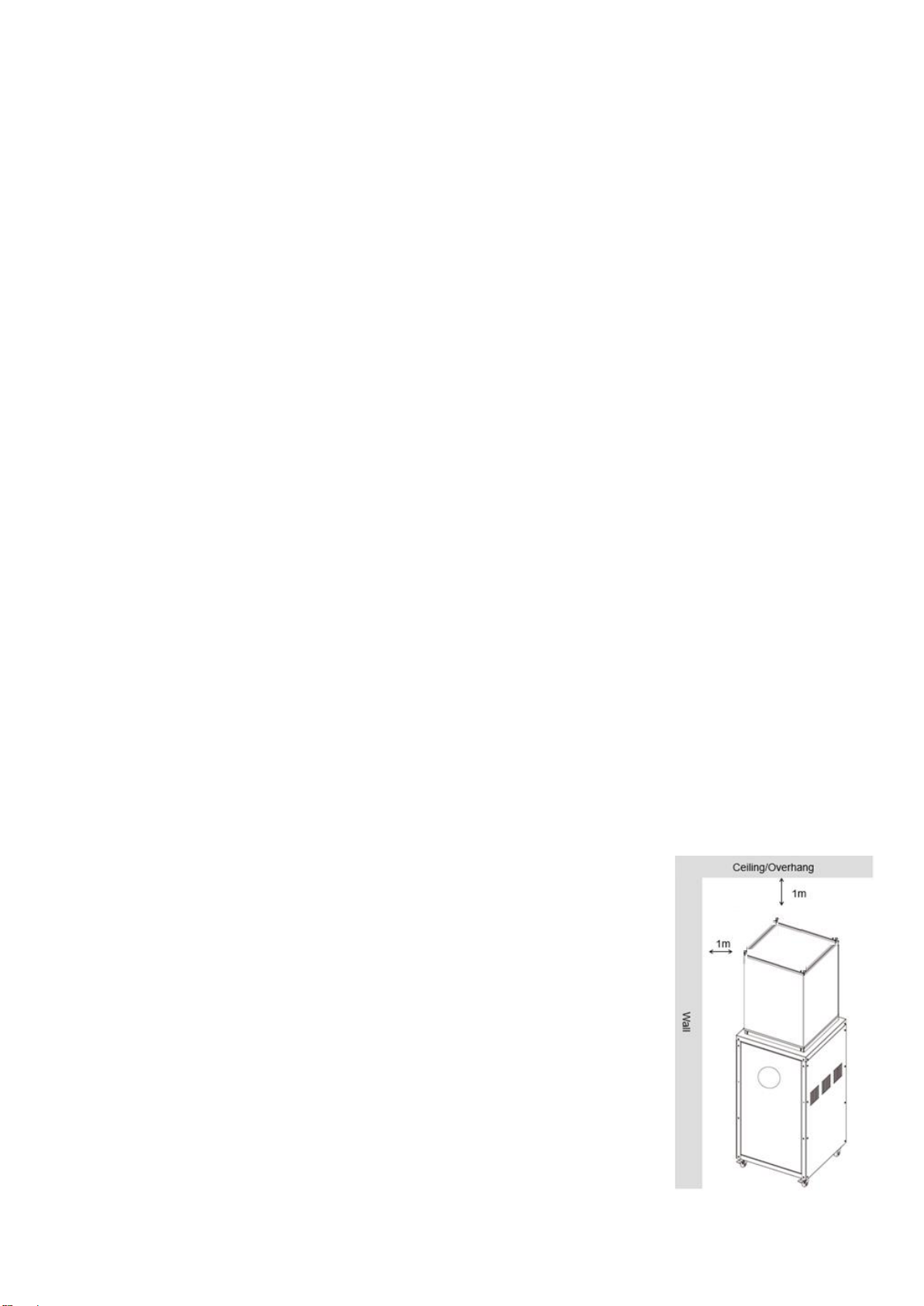

Minimum clearance from combustible surfaces

4

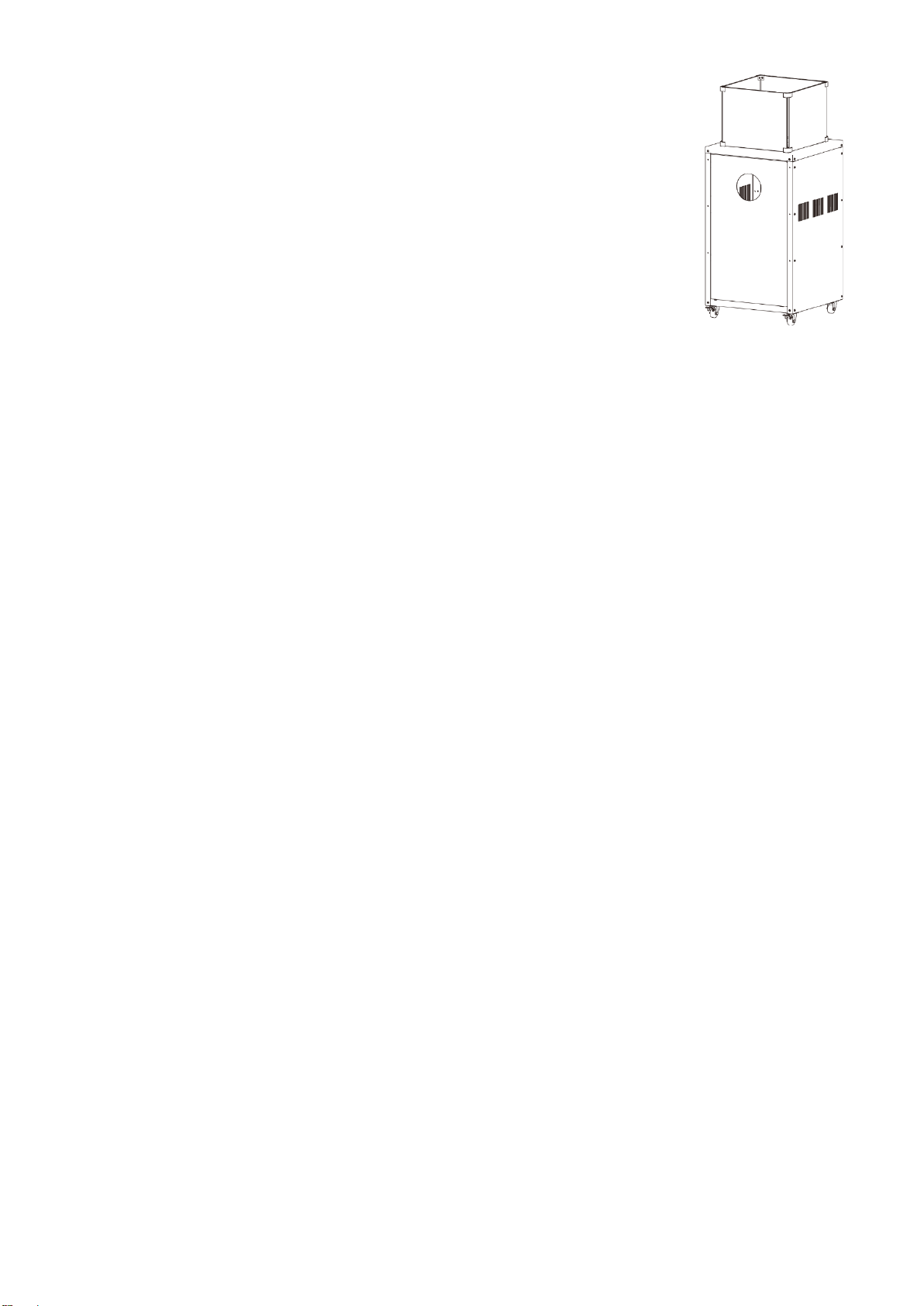

FEATURES OF YOUR GAS PATIO HEATER
Congratulations on the purchase of your electriQ heater. This appliance has the
following features:
•Gas source: propane, butane and mixtures (LPG).
•Effective source of illumination and heat.
•Fire visible from all sides.
•Tempered glass protection.
•Electric ignition.
•Tilt switch and flame failure safety devices.
•Lockable wheels.
GENERAL INFORMATION FOR SUCCESSFUL
ASSEMBLY
Please read the assembly instructions carefully and follow the safety precautions. Allow sufficient time
for assembly. Before starting assembly, clear an area measuring approximately two to three square
meters. Remove the item from the packaging and lay out all of the parts and any necessary tools so that
they are within easy reach.
Only tighten all of the screw connections firmly when you have finished assembly or are instructed to
within the manual. Otherwise this can result in unwanted tension and instability.
NOTE: Gas supply sold separately.
NOTE: Your patio heater is designed to be used with a gas cannister of a maximum size
of 13kg.

5
PRODUCT OVERVIEW AND PARTS LIST
Note: Some of the fittings may be provided pre-attached to the unit.
#
DESCRIPTION
1
M5x20 screws
2
Glass Window
3
Edge Protectors
4
M5x30 screws
5
Burner & Tank Housing
Assembly
6
Door
7
Bracket A for Door
8
Bracket B with Belt for
Door
9
Insulation Board
#
MODEL
DESCRIPTION
10
EQODFGS
Glass Stones
11
EQODHLR
Lava Rocks and 4 x Logs
10
11

6
ASSEMBLY
CAUTION:
•The glass parts reach very high temperatures, do not touch while it is working!
•In the case of hotplate glass breakage, shut off all burners and any heating elements and isolate
the appliance from the power supply.
•Do not touch the appliance surface.
•Always check for leaks before using the appliance.
•Do not block the pilot box and burner when filling glass stones or lava rocks/logs.

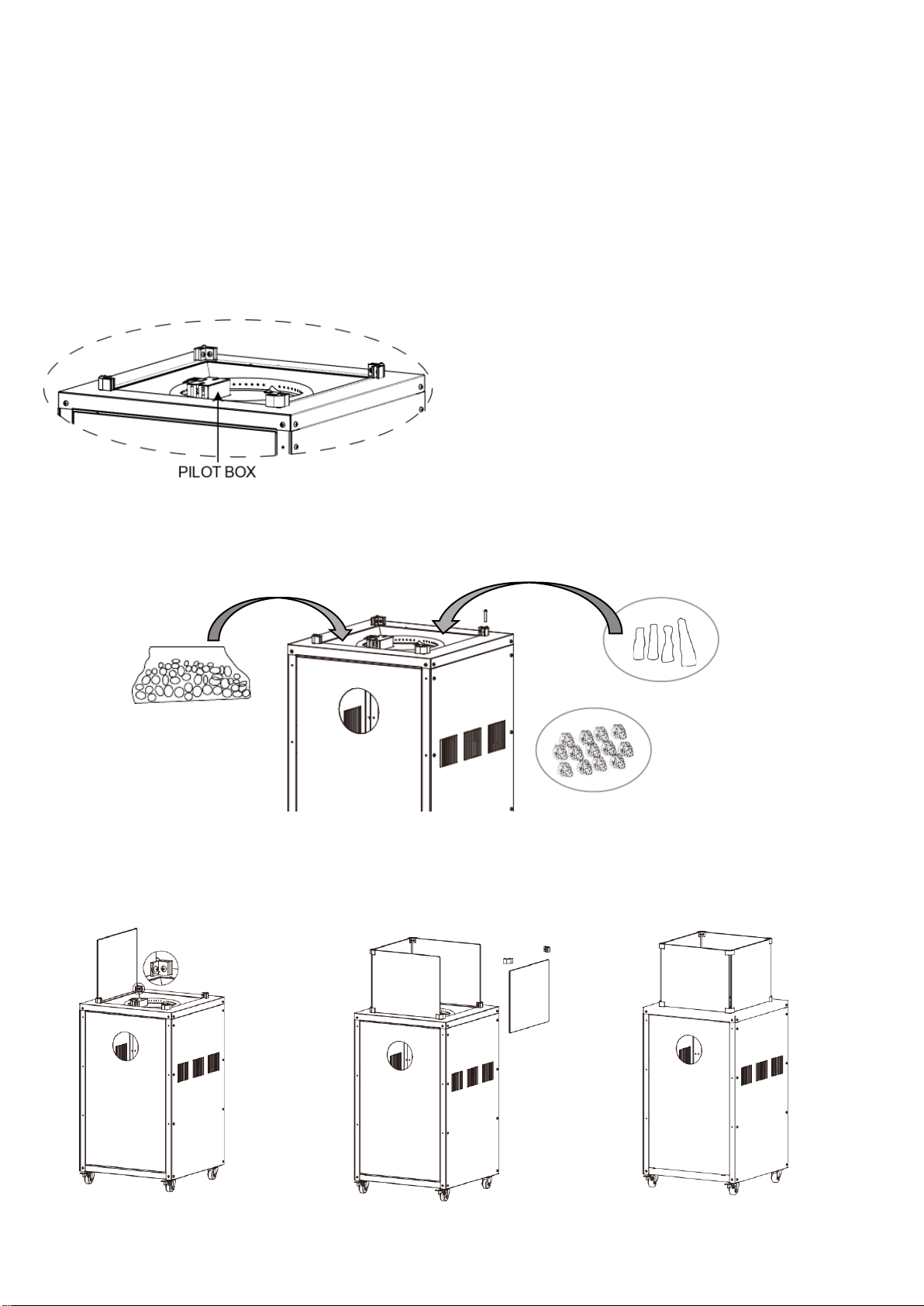

ASSEMBLY STEPS
1. Install 4 x edge protectors (3) onto the top of tank housing using 4 x M5x30 screws (4). Add
glass stones or lava rocks/logs onto the burner.
2. Fix the 4 x glass windows (2) to the edge protectors (3) using 8 x M5x20 screws (13) carefully.
3. Fix the 4 x large edge protectors on the top corner between each glass window using 8 x M5x20
screws.

7
OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM
MUST BE PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL DIAL ANTI-
CLOCKWISE TO THE PILOT SETTING. PRESS THE DIAL IN AND HOLD FOR 1 MINUTE BEFORE
ATTEMPTING IGNITION.
GAS REQUIREMENTS
•The pressure adjuster should comply with the standard EN16129 and current regulations in the
country where it is installed, which may be found at your nearest retailer of gas items.
•Refer to the technical date. It is strictly prohibited to use adjustable pressure.
•The life expectancy of the regulator is estimated as 10 years. It is recommended that the regulator is
changed within 10 years of the date of manufacture or the national conditions require it.
•The type of replaceable hose should meet the standard of EN16436-1.
•The length of the hose must be 0.4 meters (minimum) and 1.0 meters (maximum). Worn or damaged
hose must be replaced. Ensure that the hose is not obstructed nor kinked. It is recommended that
the hose is changed within 1 year of the date of manufacture or the national conditions require it.
•Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas tank
may be hazardous and should be checked out by a gas supplier.
•Always perform a leak test on gas connections whenever a cylinder is connected. If bubbles form in
the leak test solution, do not use. Never use a flame to test for leaks.
•Never connect this appliance to an unregulated gas source.
•Use only regulator and hose approved for LP Gas at the correct pressures and gas type.
•Using 30mbar butane regulator for butane of I3B/P(30) or butane of I3+.
•Using 30mbar propane regulator for propane or butane/propane mixture of I3B/P(30).
•Using 37mbar propane regulator for propane of I3P(37).
•Using 50mbar butane regulator for butane of I3B/P (50).
•Using 50mbar propane regulator for propane or butane/propane mixture of I3B/P (50)
CONNECTING TO A GAS CYLINDER
•Use max 13kg gas cylinder. Please refer to your gas supplier for suitable gas
cylinder.
•Refer to your gas supplier for instructions on the use of your gas cylinder.
•Only change gas cylinders outdoors or in a well-ventilated area away from
naked flames and any other source of ignition.
•The gas cylinder must always be used in an upright position.
•Close the appliance control dial by turning fully clockwise.
•Close the gas cylinder tap and then attach the regulator onto the gas cylinder.
•Tighten all connections firmly and with a spanner where appropriate. The
cylinder should be located on the cylinder base.
•Check for leaks at all joints using soapy water. If a leak is found, tighten the
joint and then re-test.

8

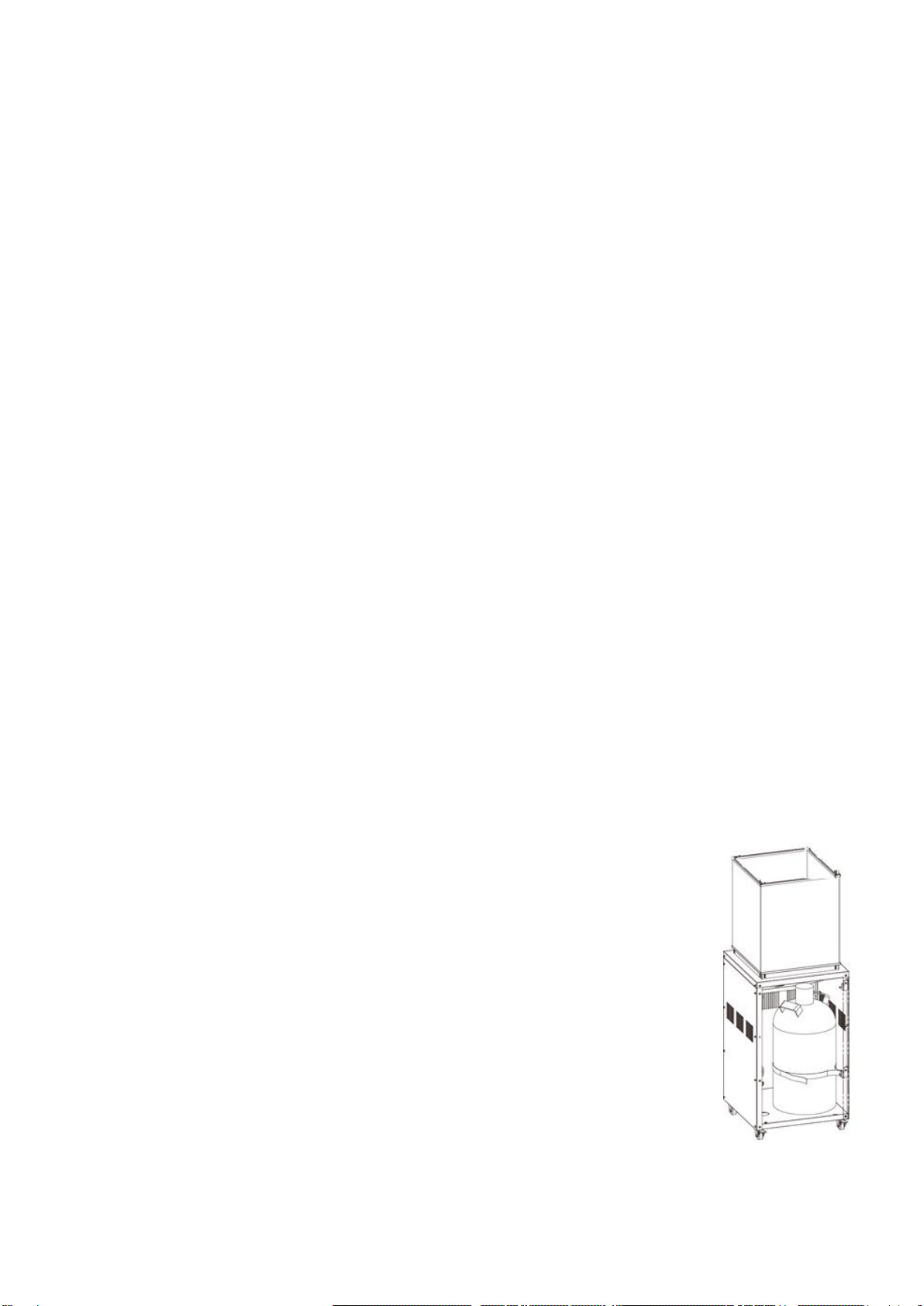

SECURING A GAS CYLINDER
1. Position a gas cylinder inside the tank housing.
2. Stick cylinder restraint straps together as RIGHT photo illustrated.
The straps must be in a proper tightness for the gas cylinder.
Caution: Please take care that the cylinder restraint straps. DO NOT strain the regulator assembly.
LEAK TESTING
NEVER USE A NAKED FLAME TO CHECK FOR LEAKS.
NEVER LEAK TEST WHILE SMOKING.
The gas connections on this appliance are leak tested at the factory prior to shipment.
This appliance needs to be periodically checked for leaks and an immediate check is required if the
smell of gas is detected.
•Make a soap solution using 1 part of liquid washing-up liquid to 3 parts water. The soap solution can
be applied with a soap bottle, brush, or rag to the leak tested points shown in the figure.
•The valve of the gas cylinder should be in the OFF position at this point of the leak test. Once the
soapy solution is applied to the gas connections, the valve of the gas cylinder needs to be turned to
the ON position.
•Soap bubbles will begin to form in the soapy solution if a leak is present.
•In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and
recheck.

9
OPERATING INSTRUCTIONS
BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM
MUST BE PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL DIAL ANTI-
CLOCKWISE TO THE PILOT SETTING. PRESS DIAL IN AND HOLD FOR ABOUT 2 MINUTES
BEFORE ATTEMPTING IGNITION.
BATTERY REPLACMENT
Remove impulse ignition cap from below Ignition by turning cap counterclockwise. Install 1 AAA battery.
The negative end of battery goes in first, then replace the pulsed ignition cap by turning clockwise.

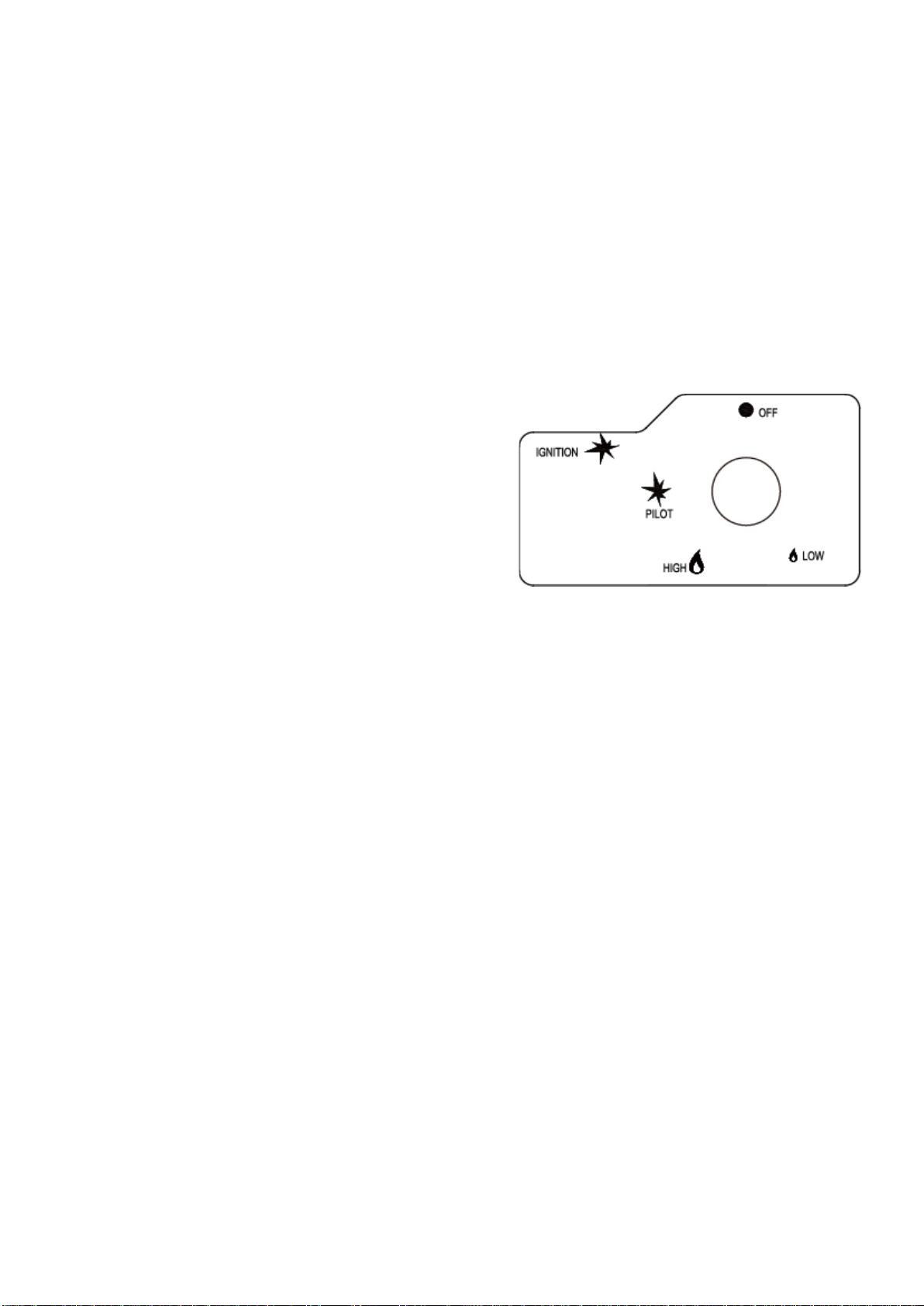

TO LIGHT THE PILOT
•Check all connections prior to each use.
•Turn on main gas supply at source.
•Press to turn control dial anti-clockwise to PILOT.
•Hold the dial down, press IGNITION button repeatedly
until pilot flame is lit, then continue to hold the dial
down for 20 seconds until the pilot remains it after
releasing dial.
•If pilot fails to ignite or alight, press to turn dial
clockwise to OFF and repeat.
TO LIGHT THE APPLIANCE
•The pilot should be lit and the dial set to PILOT.
•Hold the dial down gently and turn anti-clockwise to HIGH.
•When the appliance lights, turn dial clockwise from HIGH to LOW as needed.
RE-LIGHTING
•Turn Control Dial to OFF.
•Wait at least 5 minutes to let gas dissipate before attempting to re-light pilot.
•Repeat the “Lighting” steps.
TO EXTINGUISH
•Hold dial down and turn the dial clockwise to 'OFF'
•Close the valve of the gas cylinder or the regulator after use.
•Close the gas bottle and allow this appliance to cool before moving the appliance.
Note: Close regulator after use, allow the appliance to cool before moving.
Note: When the appliance is not in use, turn the gas cylinder OFF.

10
MAINTENANCE
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
•Keep exterior surfaces clean.
•Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
•While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. If the gas control is exposed to water in any way, DO NOT try to use it. It must be replaced.
•Airflow must be unobstructed. Keep controls, burner and circulation air passageways clean. Signs
of possible blockage include:
•Gas odour with extreme yellow tipping of flame.
•Heater does NOT reach the desired temperature.
•Heater glow is excessively uneven.
•Heater makes popping noises.
•Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater
and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed
air may help clear away smaller particles.
•Carbon deposits may create a fire hazard. If any carbon deposits develop, clean the dome and
burner with warm soapy water.
Note: In environments with a high salt content (such as near the sea), corrosion occurs more
quickly than normal. Frequently check the corroded areas and repair them.
SERVICING
•Please consult your supplier for servicing this appliance and replacement of its parts. The servicing
of the appliance shall be carried out only by authorised personnel.
•Do not use unauthorised parts or components for this appliance, only use original equipment
replacement parts and components. The use of unauthorised parts or components will void the
warranty and can create unsafe condition.
STORAGE
There is no limitation on the storage of the appliance indoors provided that the cylinder is
disconnected and removed from the appliance.
Between uses or before storage:
•Turn the control dial OFF
•Turn the gas cylinder OFF
•Disconnect the gas bottle.
Store the heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris). If desired, cover to protect exterior surfaces and to prevent build up
in air passages.
Note: Wait until heater is cool before covering.

11
TROUBLESHOOTING
PROBLEM
CONDITION
FIX
Burner won’t light
Cylinder valve is closed
Open valve
Blockage in orifice or pilot tube
Clean or replace orifice or pilot tube
Air in the gas line
Open gas line and bleed it (pressing
control dial in) for not more than 1-
2 minutes or until you smell gas
Low gas pressure
Gas cylinder low or empty
Burner won’t stay lit
Dirt build up around the pilot
Clean dirt from around the pilot
Connection between the
gas valve and pilot assembly is loose
Tighten the connection and perform a
leak test
Bad thermocouple
Replace the thermocouple
Burner flame is low
Note: Do not operate
heater below 5 ℃ (40°F)
Gas pressure is low
Replace the gas cylinder
Tank is almost empty.
Replace the gas cylinder
Supply hose is bent or kinked
Straighten hose and perform leak test on
the hose
Control dial is fully " ON"
Turn control dial to "OFF", let it cool to
room temperature and check burner and
orifices for blockage
Emitter glows uneven
Note: Bottom 2.5cm of
emitter does not
normally glow
Gas pressure is low
Replace the gas cylinder
Base is not on a level surface
Place heater on a level surface
Heater not level
Level the heater
Carbon build-up
Dirt or film on the burning system
Clean the burning system
Thick black smoke
Blockage in burner
Turn the control dial to the OFF position, let
it cool to room temperature and remove
blockage and clean burner inside and
outside.

12
TECHNICAL SPECIFICATIONS
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0330 390 3061 or complete the online form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Model
Height (mm)
Width (mm)
Depth (mm)
EQODHGS /
EQODHLR
1090
469
469
Country Code
BE-CY-CH-CZ-FR-
ES-GB-GR-IE-IT-PT
-SK-SI-TR
PL
BG-HR-CH-CY-DK-EE-FI-
GR-HU-IT-IS-LT-LV-MT-NL-
NO-PT-SE-SI-SK-RO-TR
AT-CH-DE
Category
 I3+(28-30/37)
 I3P(37)
 I3B/P(30)
 I3B/P(50)
Gas
G30
G31
G31
G30/G31
G30/G31
Gas type
Butane
Propane
Propane
Butane/Propane
Butane/Propane
Pressure(mbar)
28-30
37
37
30
50
Heat input
8kW
8kW
8kW
8kW
7.5kW
Consumption
599g/h
576g/h
576g/h
599g/h
531g/h
Gas injector
1.4mm
1.4mm
1.4mm
1.4mm
1.15mm
Injector Marking
1.4
1.4
1.4
1.4
1.15
Warning
Read the instructions before using this appliance.
The appliance must be installed in accordance with instructions and local regulations.
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
For use outdoors or in amply ventilated areas.
An amply ventilated area must have a minimum of 25% of the surface area open.
The surface area is the sum of the walls surface.
0063-20
0558/22
