Electro-Voice CO100 User manual

Description
The CO100 is a miniature, omnidirectional
back-electret lavalier microphone designed
specifically for broadcast and sound rein-
forcement applications where acoustic feed-
back problems are minimal. (The EV CS200
unidirectional lavalier microphone is de-
signed for live sound applications where
feedback is a problem.) The frequency re-
sponse of the CO100 microphone provides
a full-range, well-balanced sound character
for clean and accurate sound reproduction.
The microphone’s omnidirectional polar
characteristic provides a uniform output re-
gardless of the direction of the sound. The
CO100 is designed to attach to the per-
former’sclothingusingthe supplied tie clasp
or the optional 390 dual-microphone tie
clasp. Supplied with each microphone is a
foamwind or pop screen to reduce unwanted
breath and wind noise. The microphone ele-
ment is attached to the electronics module
by a 3.1-meter (10-foot) length of black,
durable miniature cable.
Powering the CO100
The battery/electronics module is con-
structed of steel tubing to form an extremely
durable housing assembly for long reliable
use and superior emi/rfi attenuation. The
CO100 may be powered by either an inter-
nal 1.5-volt AAA alkaline battery or exter-
nal 9- to 52-volt phantom power. If desired,
the CO100 can be operated in a dual mode
employing both battery and phantom power.
The advantage of this configuration is the
insurance against loss of signal should the
phantom voltage fail. When phantom volt-
age is present, the battery is deactivated;
however, should the phantom voltage fail,
thebatterywillautomaticallypowertheelec-
tronics module. The AAA alkaline battery
will power the microphone for a minimum
of 1000 hours.
Operation
To operate the CO100 by the simplest
method,internalbatterypower, first open the
battery compartment by turning the sleeve
counterclockwise. Insert the AAA-size bat-
tery into the battery compartment, checking
for correct polarity (see Figure 3). Close the
compartment by turning the sleeve clock-
wise. Be sure to screw the sleeve firmly to
avoid mechanical noise.
To operate the CO100 by phantom power:
using high-quality balanced cable with XLR
connectors, connect the electronics module
to the mixer input which is providing the
phantom power. The connecting cable used
should be standard two-conductor shielded
type; the shield is used as ground return and
must be connected properly to avoid electri-
cal noise.
Battery
Because the current drain on the battery is
sosmall(approximately 150 microamps) the
battery may be left on continuously with a
useful life expectancy of approximately
1000 hours. The battery may remain within
the electronics module when phantom power
is used.
Battery Replacement Guide
Duracell MN2400
Eveready E92
Bright Star 7526
Burgess B24A
Ray-O-Vac 824
Panasonic AM4
Varta 4003
Architects’ and Engineers’
Specifications
The microphone shall be a miniature, back-
electret condenser with an omnidirectional
polar pattern. The microphone shall be used
CO100
Miniature Electret
Condenser
Omnidirectional
Microphone
• Microphone capsule measures
less than 1 inch in length
• Durable 10-foot miniature cable
provides excellent flex life
• Dual-power configuration (both
phantom and/or battery) insures
against signal loss
25 mm
(0.99 in.)
10.5 mm
(0.41 in.)

CO100 Miniature Electret Condenser Omnidirectional Microphone
CO100MiniatureElectretCondenserOmnidirectionalMicrophone
2

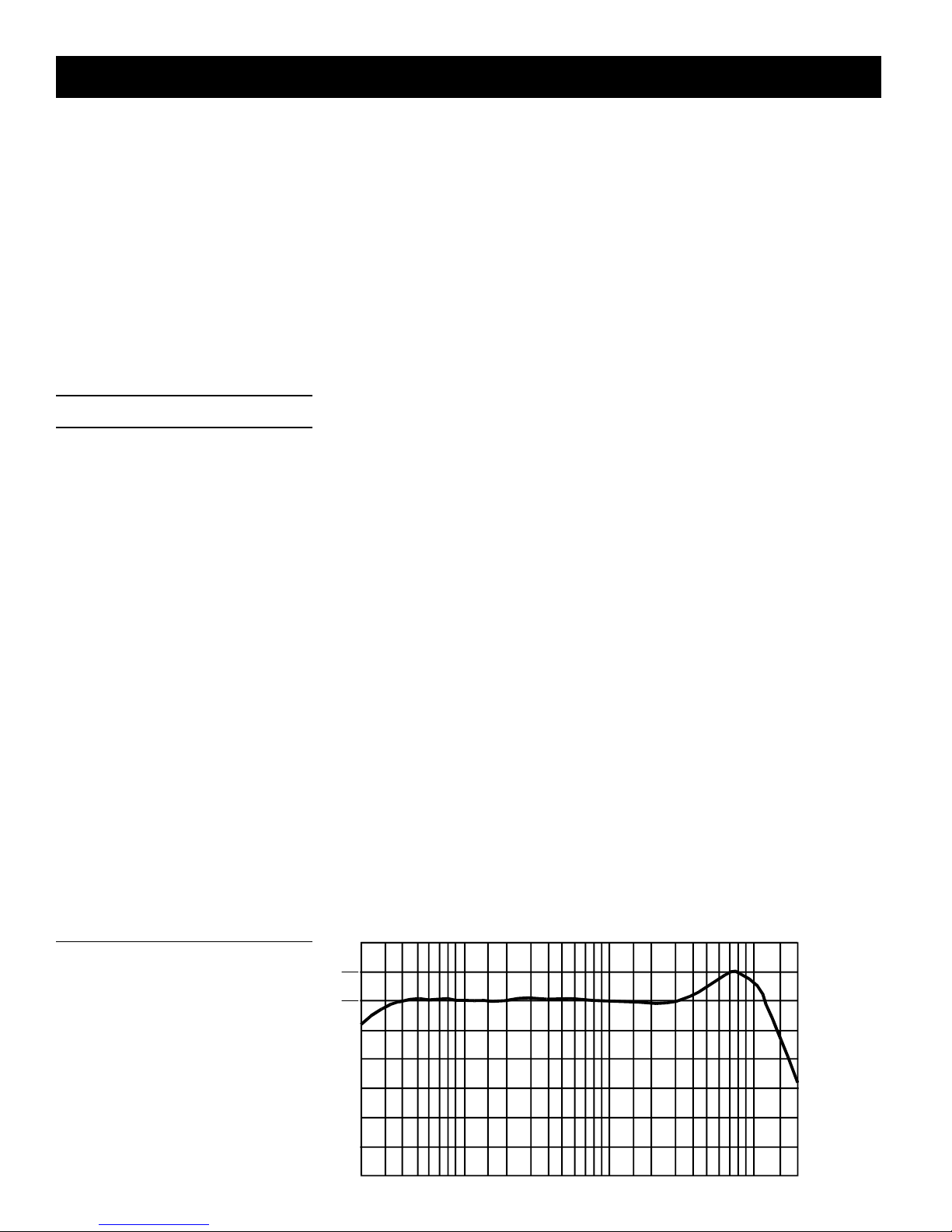

Figure 1—Frequency Response
in the manner of an ordinary tie clasp. The
microphone shall have a frequency response
from 30 Hz to 15 kHz. The unit shall have a
balance output with a 150-ohm nominal im-
pedance. The open-circuit output voltage
shall be 2.0 mV/pascal. The microphone
capsule shall be made of brass; the electron-
ics module shall be made of steel. The mi-
crophone shall be permanently connected to
its electronics module with a 3.1-m (10-ft)
length of rugged, two-conductor, shielded,
miniatureaudiocable. Themicrophoneshall
be supplied with a windscreen, tie clasp and
storage pouch. The CO100 is specified.
Limited Warranty
Electro-Voice products are guaranteed
against malfunction due to defects in mate-
rials or workmanship for a specified period,
as noted in the individual product-line
statement(s)below,orintheindividualprod-
uct data sheet or owner’s manual, beginning
with the date of original purchase. If such
malfunction occurs during the specified pe-
riod, the product will be repaired or replaced
(at our option) without charge. The product
will be returned to the customer prepaid. Ex-
clusions and Limitations: The Limited
Warranty does not apply to: (a) exterior fin-
ish or appearance; (b) certain specific items
described in the individual product-line
statement(s)below, or in the individual prod-
uct data sheet or owner’s manual; (c) mal-
function resulting from use or operation of
the product other than as specified in the
product data sheet or owner’s manual; (d)
malfunction resulting from misuse or abuse
of the product; or (e) malfunction occurring
at any time after repairs have been made to
the product by anyone other than EVI Audio
Service or any of its authorized service repre-
sentatives.ObtainingWarrantyService: To
obtain warranty service, a customer must
deliver the product, prepaid, to EVI Audio
Service or any of its authorized service rep-
resentatives together with proof of purchase
of the product in the form of a bill of sale or
receipted invoice. A list of authorized ser-
vice representatives is available from
EVI Audio Service at 600 Cecil Street,
Buchanan,MI49107(800/234-6831orFAX
616/695-4743). Incidental and Conse-
quential Damages Excluded: Product re-
pair or replacement and return to the cus-
tomer are the only remedies provided to the
customer. Electro-Voice shall not be liable
for any incidental or consequential damages
including, without limitation, injury to per-
sons or property or loss of use. Some states
do not allow the exclusion or limitation of
incidental or consequential damages so the
above limitation or exclusion may not apply
to you. Other Rights: This warranty gives
you specific legal rights, and you may also
have other rights which vary from state to
state.
Electro-Voice Wired Microphones are
guaranteed against malfunction from any
causefortwo(2)years from the date of origi-
nal purchase. In addition, the Limited War-
ranty for the acoustic system contained in
these microphones shall apply for the life of
the product, defined as a period of ten (10)
years from the date that the manufacture of
the specific microphone has been discontin-
ued. Any and all active electronics incorpo-
rated in these microphones are guaranteed
against malfunction due to defects in mate-
rials or workmanship for a period of three
(3) years from the date of original purchase.
The Limited Warranty does not extend to
cables, cable connectors, or switches. Addi-
tional details are included in the Uniform
Limited Warranty statement.
For warranty repair or service informa-
tion, contact the service repair department
at: 616/695-6831 or 800/685-2606.
Fortechnical assistance, contact Technical
Support at 800/234-6831 or 616/695-6831,
M-F, 8:00 a.m. to 5:00 p.m. Eastern Stan-
dard Time.
Specifications subject to change without
notice.
20 30 50 100 200 500 1000 2000 5000 10000 20000
FREQUENCY IN HERTZ
RESPONSE IN dB 5 dB

CO100MiniatureElectretCondenserOmnidirectionalMicrophone
CO100 Miniature Electret Condenser Omnidirectional Microphone
3
Figure 2—Dimensions
Figure 3—Battery Compartment
Figure 4—Polar Response
Figure 5—CO100E Schematic
25 mm
(0.99 in.)
10.5 mm
(0.41 in.)
19 mm
(0.75 in.)
21.3 mm
(0.84 in.)
127 mm
(5.00 in.)
+
-
300
o
270
o
240
o
330
o0
o
30
o
60
o
90
o
120
o
210
o
150
o
180
o
100 Hz to
5 dB PER
DIVISION
5 kHz
10 kHz
POWER MODULE
TRANSDUCER
SHIELD
RED
WHITE
-
+
1.5V
AAA
BROWN
GREEN BLUE
BLACK
RED
3
2
1
CO100
FET AMP
CABLE
CO100E

CO100 Miniature Electret Condenser Omnidirectional Microphone
CO100MiniatureElectretCondenserOmnidirectionalMicrophone
4
MICROPHONES—Condensers Part Number 531682 — 9806
600 Cecil Street, Buchanan, MI 49107
616/695-6831, 616/695-1304 Fax
©EVI Audio 1998 • Litho in U.S.A.
Specifications
Generating Element:
Condenser, back electret
Frequency Response (see Figure 1):
30-15,000 Hz
Polar Pattern (see Figure 4):
Omnidirectional
Sensitivity,
Open-Circuit Voltage:
2.0 mV/pascal at 1,000 Hz
Power level:
–51 dB at 1,000 Hz
(0 dB = 1mW/pascal)
Dynamic Range:
117 dB
Equivalent Noise:
24 dB SPL, typical, A-weighted
(0 dB = 20 micropascals)
Impedance:
150 ohms at 1,000 Hz
Maximum SPL, 1% Distortion
139 dB SPL
Power Requirements,
Battery:
1.5 V dc AAA internal (not
supplied)
Phantom:
9-52 V dc
Current Consumption:
150 microamps
Battery Life:
Approximately 1000 hours
Case Color:
Nonreflecting black
Cable Color:
Nonreflecting black
Case Material,
Microphone Capsule:
Brass
Electronics Module:
Steel
Dimensions (see Figure 2),
Electronics Module,
Length:
127 mm (5.0 in.)
Body Diameter:
21.3 mm (0.84 in.)
Connector Diameter:
19 mm (0.75 in.)
Capsule Diameter:
10.5 mm (0.415 in.)
Cable Length:
3.1 m (10 ft.), permanently attached
Net Weight:
173.5 g (6.1 oz)
Shipping Weight:
376 g (13.3 oz)
Furnished Accessories:
Windscreen
Tie clasp
Storage pouch
Optional Accessories:
390 dual-microphone tie clasp
POSITIVE VOLTAGE WITH RESPECT TO GROUND
NEGATIVE VOLTAGE WITH RESPECT TO GROUND
Figure 6—CO100E Typical Wiring
Diagrams
