Electro-Voice F.01U.361.344 User manual

ELX200 Passive Loudspeakers
en Installation manual

ELX200 Passive Loudspeakers Table of contents | en 3
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
Table of contents
1Safety 4
1.1 Important safety instructions 4
1.2 Suspension 4
1.3 Precautions 4
1.4 Notices 5
2Description 6
2.1 Short information 6
2.2 System features 7
3Tripod and floor monitor operation 9
3.1 Tripod or pole mount 9
3.2 Floor monitor 11
4Suspension 12
5Recommended configurations 15
5.1 Basic stereo system using full-range systems 15
5.2 Using full-range systems as stage monitors 16
5.3 Stacking full-range systems with subwoofers 17
6Troubleshooting 18
7Technical data 19
7.1 Dimensions 20
7.2 Frequency response 21

4en | Safety ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
1 Safety
1.1 Important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with a dry cloth.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
1.2 Suspension
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
!
Warning!
Do not suspend this product in any other manner than explicitly described in this manual, or
Electro-Voice installation guides. Do NOT use handles to suspend the loudspeaker. Handles
on Electro-Voice loudspeakers are intended to only be used for temporary transport by
people. Items, such as fiber rope, wire rope, cables, or other types of materials cannot be
used to suspend loudspeaker from the handles.
1.3 Precautions
!
Do not use Electro-Voice loudspeakers in an environment where temperatures
are below 0°C (32°F) or exceed +40°C (104°F).
!
Never expose an Electro-Voice loudspeaker to rain, water, or high moisture.

ELX200 Passive Loudspeakers Safety | en 5
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
!
Electro-Voice loudspeakers are easily capable of generating sound pressure
levels sufficient to cause permanent hearing damage to anyone within normal
coverage distance. Caution should be taken to avoid prolonged exposure to
sound pressure levels exceeding 90 dB.
1.4 Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.

6en | Description ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
2 Description
Thank you for choosing an Electro-Voice passive loudspeaker system. Please take time to
consult the manual to understand all the features built into your EV system and fully utilize its
performance capabilities.
ROCK SOLID SOUND: Electro-Voice ELX200 portable loudspeakers
The ELX200 series is the newest member of the best-selling Electro-Voice portable
loudspeaker family. Positioned above ZLX and below the EKX series, the ELX200 series
features ten models (five powered and five passive), including 10-inch, 12-inch and 15-inch
two-way models, and 12-inch and 18-inch subwoofers.
The ELX series is designed to deliver an unprecedented combination of sound quality,
portability and durability at its price point. All-new custom components—tested to levels far
exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-
world abuse and professional applications beyond the capability of competitors’ products in
its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical,
electrical and mechanical components all work together seamlessly. The full-range models
feature a low profile form factor designed with a high-spec composite enclosure to balance
weight, manageability, as well as structural integrity. The subwoofers pack powerful low-
frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood
enclosures with a premium top-coat finish. The proprietary features that have made the other
members of the EV portable speaker family a go-to for best-in-class performance are also
present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and
meaningful specs, resulting in components that deliver accurate, linear response at the
system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified
in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is
established as the new benchmark for toughness - both acoustically and physically; maximum
efficiency with maximum toughness.
2.1 Short information
The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.
CTN Description
ELX200-10 10" 2-Way passive speaker
ELX200-12 12" 2-Way passive speaker
ELX200-15 15" 2-Way passive speaker
ELX200-12S 12" passive subwoofer
ELX200-18S 18" passive subwoofer
ELX200-10-W 10" 2-Way passive speaker, white
ELX200-12-W 12" 2-Way passive speaker, white

ELX200 Passive Loudspeakers Description | en 7
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
CTN Description
ELX200-15-W 15" 2-Way passive speaker, white
ELX200-12S-W 12" passive subwoofer, white
ELX200-18S-W 18" passive subwoofer, white
2.2 System features
ELX200-10 — 10" two-way passive loudspeaker system
– 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of
abuse testing and endurance testing to 4x typical industry practices.
– 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-
frequency response.
– High-output EVS-10M woofer designed to exacting specifications for superior durability
and exceptional low-frequency reproduction.
– EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise
and consistent coverage, minimal distortion, and maximized acoustical loading.
– Professional-grade hardware: three M10 threaded mounting points for forged eyebolts,
integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
ELX200-12 — 12" two-way passive loudspeaker system
– 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of
abuse testing and endurance testing to 4x typical industry practices.
– 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-
frequency response.
– High-output EVS-12M woofer designed to exacting specifications for superior durability
and exceptional low-frequency reproduction.
– EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise
and consistent coverage, minimal distortion, and maximized acoustical loading.
– Professional-grade hardware: three M10 threaded mounting points for forged eyebolts,
integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
ELX200-15 — 15" two-way passive loudspeaker system
– 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of
abuse testing and endurance testing to 4x typical industry practices.
– 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-
frequency response.
– High-output EVS-15M woofer designed to exacting specifications for superior durability
and exceptional low-frequency reproduction.
– EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise
and consistent coverage, minimal distortion, and maximized acoustical loading.
– Professional-grade hardware: three M10 threaded mounting points for forged eyebolts,
integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

8en | Description ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
ELX200-12S — 12" passive subwoofer system
– 1600 W (peak), 129 dB peak SPL utilizing high-sensitivity transducer designed and
engineered by EV for maximum punch.
– High-output EVS-12L woofer designed to exacting specifications for superior durability
and exceptional low-frequency reproduction.
– System reliability verified with over 500 hours of abuse testing and endurance testing.
– Ideal for portable and installed applications. Lightweight, compact 15 mm wood
enclosure with internal bracing with durable polyurea top-coat finish.
– Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle
design for easy lifting.
ELX200-18S — 18" passive subwoofer system
– 1600 W (peak), 133 dB peak SPL utilizing high-sensitivity transducer designed and
engineered by EV for maximum punch.
– High-output EVS-18L woofer designed to exacting specifications for superior durability
and exceptional low-frequency reproduction.
– System reliability verified with over 500 hours of abuse testing and endurance testing.
– Ideal for portable and installed applications. Lightweight, compact 15 mm wood
enclosure with internal bracing with durable polyurea top-coat finish.
– Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle
design for easy lifting.

ELX200 Passive Loudspeakers Tripod and floor monitor operation | en 9
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
3 Tripod and floor monitor operation
3.1 Tripod or pole mount
ELX200-10, ELX200-12, and ELX200-15 loudspeakers mount on a tripod stand or on a pole
above a subwoofer.
Mounting a loudspeaker on a tripod stand
Figure3.1: Full-Range models on a tripod stand
!
Caution!
Tripod is not evaluated for safety with this loudspeaker. Check the specifications of the tripod
stand to be certain it is capable of supporting the weight of the loudspeaker.
!
Caution!
We recommend that two or more persons lift and place heavier loudspeakers. Single person
lift and placement of heavier loudspeakers could cause injury.
To mount a loudspeaker on a tripod stand, do the following:
1. Place the tripod stand on a level and stable surface.
– Fully extend the legs on the tripod stand.
– Do not compromise the tripod stands structural integrity by trying to make the stand
taller.
– Do not attempt to suspend more than one loudspeaker on a stand designed for a single
loudspeaker.
2. Using two hands lift the loudspeaker.
3. Set the pole cup located on the bottom of the loudspeaker onto the pole.
4. Tighten the thumb screw (A) to secure the loudspeaker to the pole.
The thumb screw is only available on the 12" and 15" full-range loudspeaker models. The
10" full-range loudspeaker does not have a thumb screw.
A

10 en | Tripod and floor monitor operation ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
Mounting a loudspeaker on a pole
!
Caution!
We recommend that two or more persons lift and place heavier loudspeakers. Single person
lift and placement of heavier loudspeakers could cause injury.
To mount a loudspeaker on a pole, do the following:
1. Place the subwoofer on a level and stable surface.
2. Insert the M20 threaded pole into the combo pole cup on the top of the subwoofer.
3. Turn the M20 threaded pole clockwise to secure the pole to the subwoofer.
4. Using two hands lift the loudspeaker.
5. Set the pole cup located on the bottom of the loudspeaker onto the pole.
6. Tighten the thumb screw to secure the loudspeaker to the pole.
The thumb screw is only available on the 12" and 15" full-range loudspeaker models. The
10" full-range loudspeaker does not have a thumb screw.

ELX200 Passive Loudspeakers Tripod and floor monitor operation | en 11
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
3.2 Floor monitor
ELX200-10, ELX200-12, and ELX200-15 loudspeakers may be used as a floor monitor by
placing the loudspeaker on the integral monitor angle.
To set up a loudspeaker as a floor monitor, do the following:
1. Place the loudspeaker on a level and stable surface.
2. Safely route cables to prevent injury to performers, production crew, and audience
members.
i
Notice!
Secure cables with wire ties or tape whenever possible.
90°
50°
60°
OPTIMAL
COVERAGE
OPTIMAL
COVERAGE

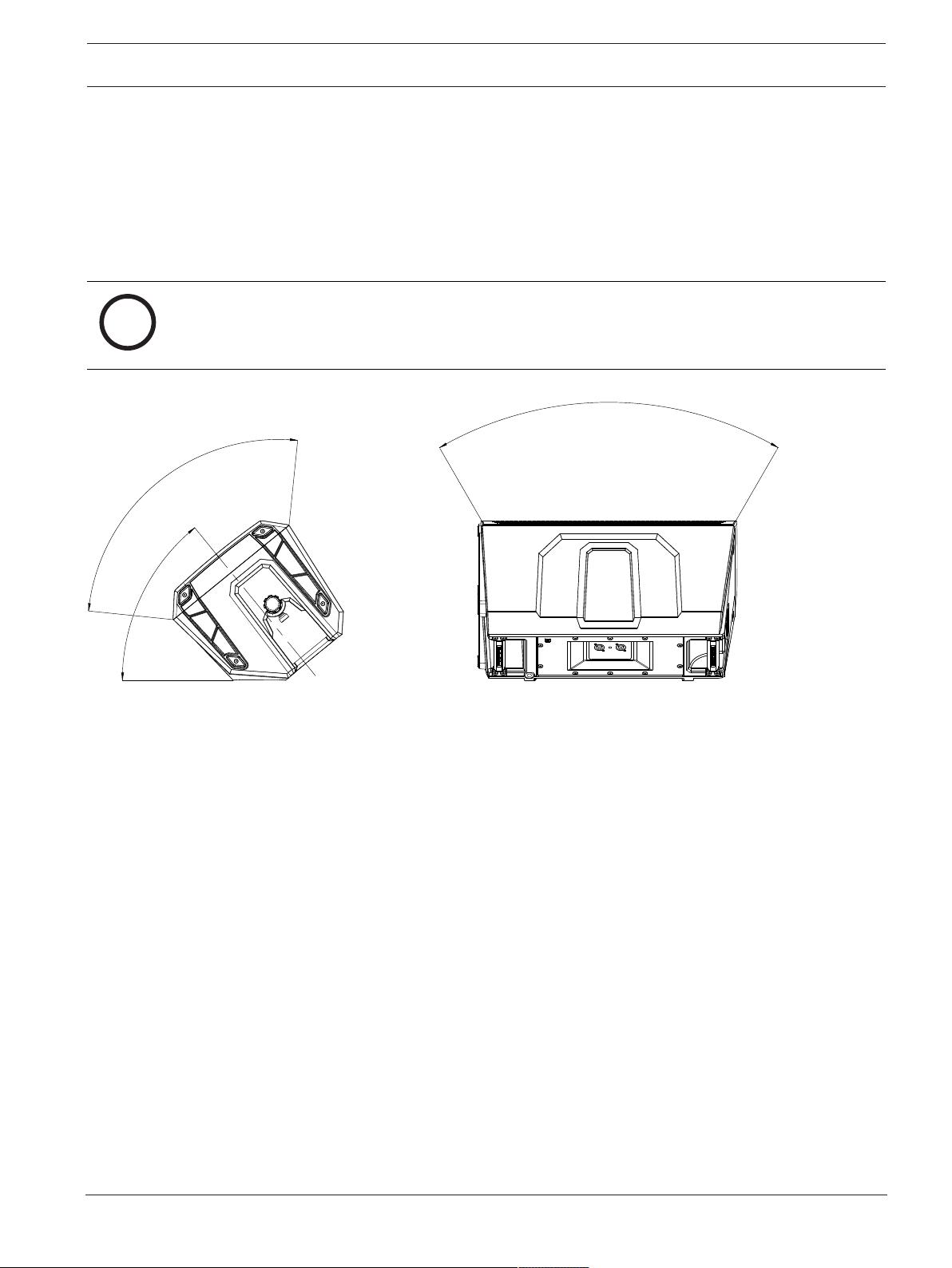

Figure3.2: Optimum coverage in monitor position (side view left and front view right)

12 en | Suspension ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
4 Suspension
The ELX200 enclosures have three M10 threaded points; two points on top of the enclosure
and one point on the bottom. Forged shoulder eyebolts rated for overhead suspension may be
used to suspend an individual loudspeaker, such as the EBK1-M10-3PACK accessory.
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.

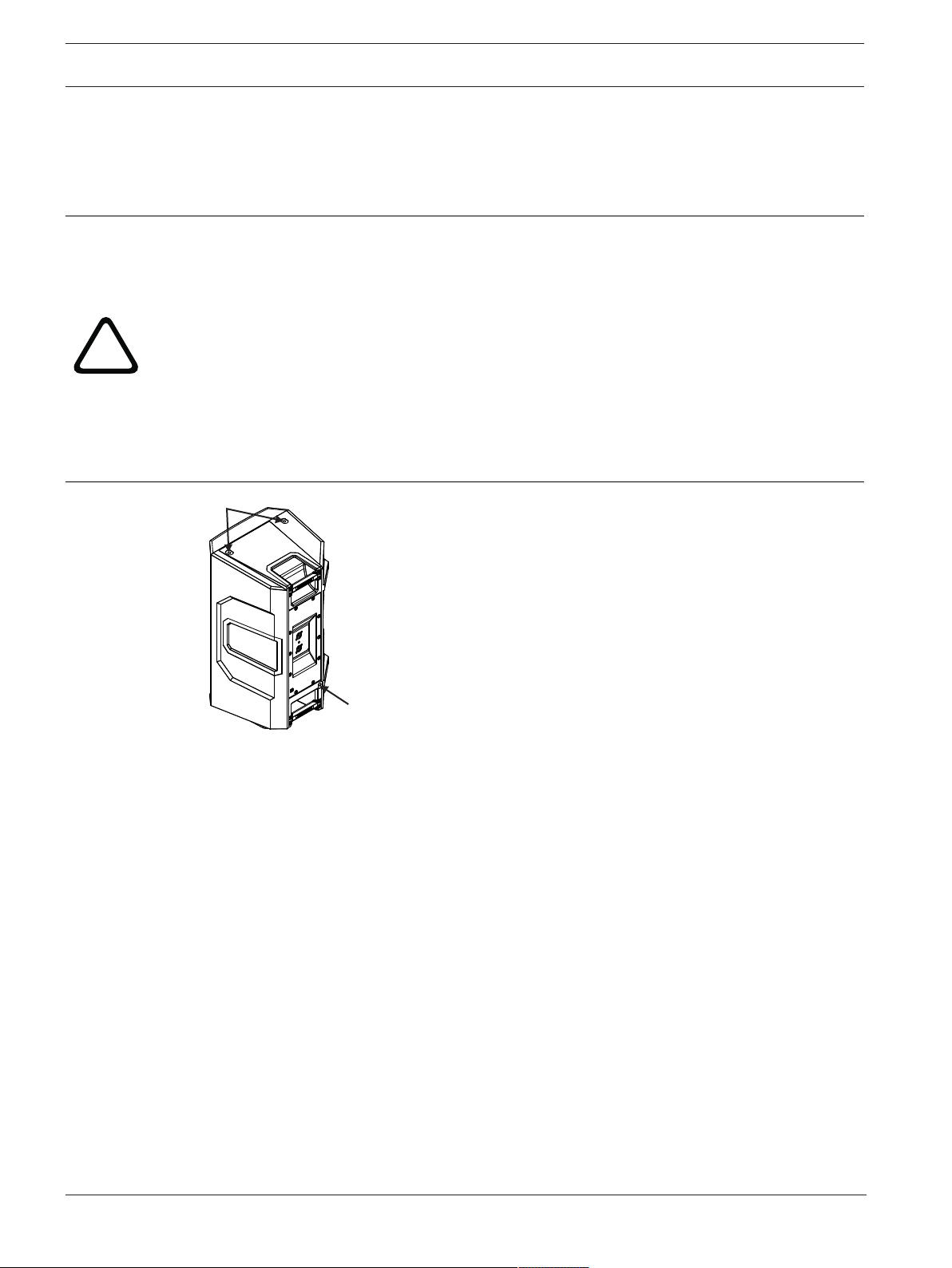

A
B
Figure4.1: Suspension points (A top, B bottom)
Prior to use, inspect the suspension points and associated hardware for any cracks,
deformations, broken welds, corrosion, missing or damaged components which could reduce
the suspension points strength. Replace any damaged hardware. Never exceed the limitations
or maximum recommended load intended for the suspension points. As an added safety
measure, it is suggested the user install an extra suspension point back to the building
structural supports. This redundant safety point should have as little slack as possible (less
than one inch is preferable). Prior to each use, inspect the loudspeaker enclosures for any
cracks, deformations, missing or damaged components, which could reduce enclosure
strength. Replace any loudspeaker systems that are damaged or missing hardware.

ELX200 Passive Loudspeakers Suspension | en 13
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
Installing the eyebolts
To install the eyebolts, do the following:
1. Remove the three fly point covers from the suspension points.
2. Install M10 eyebolts and washers into the suspension points.
!
Warning!
Eyebolts must be fully seated and oriented in the plane of pull. Always use washers under the
eyebolt to distribute the load on the enclosure.
B
A
Figure4.2: Eyebolt shown with washers (A) and without washers (B)
Figure4.3: Eyebolts shown orientated in the plane of pull (left correct, right incorrect)

14 en | Suspension ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
!
Warning!
Never exceed the limitations or maximum recommended working load for Electro-Voice
loudspeakers.
Disregarding this warning could result in serious injury or death.
5° MAX
5° MAX
5° MAX
5° MAX
90°
10°
90°
Figure4.4: Maximum working load - vertical orientation 50 lb per suspension point
!
Warning!
Never suspend ELX200 Series loudspeakers in a vertical column array.
Disregarding this warning could result in serious injury or death.
Figure4.5: Loudspeaker vertical suspension (Correct, left; Incorrect, right)

ELX200 Passive Loudspeakers Recommended configurations | en 15
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
5 Recommended configurations
5.1 Basic stereo system using full-range systems
Basic stereo system using ELX200-10, ELX200-12 or ELX200-15 loudspeakers (ELX200-15
versions shown).
Input A
Input B
Mixer
Amplifier
Output 1
Output 2
ELX200-10,
ELX200-12,
or
ELX200-15
NL4 Pin Configuration
Pin 1+ and 1- Used
Pin 2+ and 2- Not used
!
Caution!
Do not exceed the maximum load rating of the amplifier.
Amplifier Load (per Output Channel)
# of Speakers Nominal Minimum
1 8 Ohms 7.2 Ohms
2 4 Ohms 3.6 Ohms
3 2.7 Ohms 2.4 Ohms
4 2 Ohms 1.8 Ohms

16 en | Recommended configurations ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
5.2 Using full-range systems as stage monitors
Multiple ELX200-10, ELX200-12 or ELX200-15 loudspeakers in monitor position (ELX200-15
versions shown).
Amplifier
Mixer
Output 1
Output 2
Input B
Input A
NL4 Pin Configuration
Pin 1+ and 1- Used
Pin 2+ and 2- Not used
!
Caution!
Do not exceed the maximum load rating of the amplifier.
Amplifier Load (per Output Channel)
# of Speakers Nominal Minimum
1 8 Ohms 7.2 Ohms
2 4 Ohms 3.6 Ohms
3 2.7 Ohms 2.4 Ohms
4 2 Ohms 1.8 Ohms

ELX200 Passive Loudspeakers Recommended configurations | en 17
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890

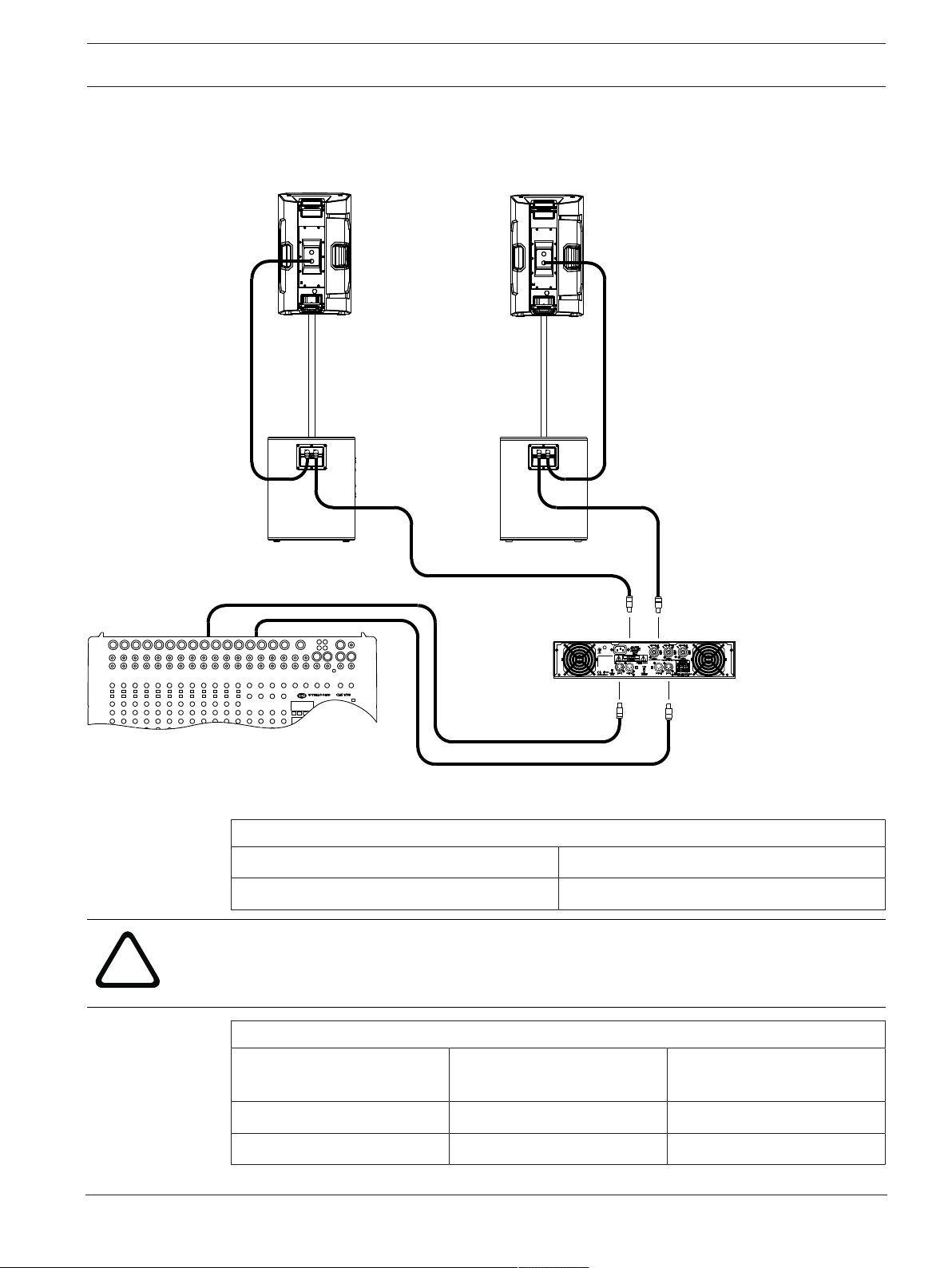

5.3 Stacking full-range systems with subwoofers
This configuration allows a user to increase the low frequency performance without using
additional amplifier channels (ELX200-15 and ELX200-18S versions shown).
Mixer
Output 2
Input A
Input B
Output 1
ELX200-10,
ELX200-12,
or
ELX200-15
ELX200-12S
or
ELX200-18S
Amplifier
NL4 Pin Configuration
Pin 1+ and 1- Used
Pin 2+ and 2- Not used
!
Caution!
Do not exceed the maximum load rating of the amplifier.
Amplifier Load (per Output Channel)
# of Subwoofer/Full-Range
Combinations
Nominal Minimum
1 4 Ohms 3.8 Ohms
2 2 Ohms 1.9 Ohms

18 en | Troubleshooting ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
6 Troubleshooting
Problem Possible Cause(s) Action
1. No sound Amplifier Connect a known working test loudspeaker to the
amplifier outputs. If there is no sound, verify all the
electronics are on, the signal routing is correct, the
source is active; the volume is turned up, etc.
Correct/repair/replace as necessary. If there is sound,
the problem is in the wiring.
Wiring Verify you have connected the correct cables to the
amplifier. Play something at a low level through the
amplifier. Connect the test loudspeaker in parallel with
the malfunctioning line. If the sound level is gone or is
very weak, the line has a short in it (possibly a severe
scrape, pinch, or a missed connection). Using the test
loudspeaker, move down the line and test each
connection/junction until you find the problem and
correct it. Observe proper polarity.
2. Poor
Low-Frequency
Response
Loudspeakers wired
out-of-polarity
When two loudspeakers are connected out of polarity,
the low frequencies will cancel each other acoustically.
Carefully observe the wire markings or tracers on your
loudspeaker wires. Verify the amplifier (+) terminal is
connected to pin 1+ of the NL4 connector and the
amplifier (-) terminal is connected to pin 1-of the NL4
connector.
3. Intermittent output
such as cracking or
distortion
Faulty connection Check all connections at amplifier and loudspeakers to
ensure they are all clean and tight. If the problem
persists, check the wiring. See problem 1.
4. Constant noise
such as buzzing,
hissing or humming
Defective source or
other electronic
device
If noise is present, but no program material is playing,
evaluate each component as necessary to isolate the
problem. Most likely there is a break in the signal path.
Poor system
grounding or ground
loop
Check and correct the system grounding, as required.
If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or
Electro-Voice distributor.

ELX200 Passive Loudspeakers Technical data | en 19
Electro-Voice Installation manual 2019-04 | 02 | F.01U.326.890
7 Technical data
ELX200-10, ELX200-12, and ELX200-15
ELX200-10 ELX200-12 ELX200-15
Freq. response (-3 dB)1: 65 Hz - 20 kHz 77 Hz - 17 kHz 77 Hz - 16 kHz
Freq. range (-10 dB)1: 49 Hz - 22 kHz 51 Hz - 20 kHz 52 Hz - 19 kHz
Axial sensitivity1: 90 dB 93 dB 95 dB
Maximum SPL1,2: 127 dB 128 dB 130 dB
Recommended high-pass
freq.:
55 Hz 50 Hz 42 Hz
Coverage (H x V): 90˚x 60˚
Power handling: 300 W Continuous, 1200 W Peak
LF transducer: EVS-10M 254 mm
(10 in)
EVS-12M 300 mm
(12 in)
EVS-15M 381 mm
(15 in)
HF transducer: DH-1L 1-inch titanium compression driver
Crossover freq.: 2 kHz 1.7 kHz 1.6 kHz
Nominal impedance: 8 Ω
Minimum impedance: 7.2 Ω 7.5 Ω 7.0 Ω
Connectors: Dual NL4
Enclosure: Polypropylene
Grille: 18 AWG steel with powdercoat
Suspension: (3) M10 suspension points
Color: Black or white
Dimensions (H x W x D):
mm (in)
531 x 330 x 319
(21.0 x 13.0 x 12.6)
629 x 363 x 344
(24.8 x 14.3 x 13.6)
710 x 423 x 384
(28.0 x 16.6 x 15.1)
Net weight: 13.4 kg (29.6 lb) 15.2 kg (33.4 lb) 18.7 kg (41.2 lb)
Shipping weight: 15.3 kg (33.7 lb) 17.1 kg (37.7 lb) 21.4 kg (47.2 lb)
1Full-space measurement.
2Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating.

20 en | Technical data ELX200 Passive Loudspeakers
2019-04 | 02 | F.01U.326.890 Installation manual Electro-Voice
ELX200-12S and ELX200-18S
ELX200-12S ELX200-18S
Freq. response (-3 dB)1: 42 Hz - 220 Hz 45 Hz - 200 Hz
Freq. range (-10 dB)1: 33 Hz - 300 Hz 28 Hz - 300 Hz
Axial sensitivity1: 93 dB 94 dB
Maximum SPL1,2: 129 dB 133 Hz
Recommended high-pass
freq.:
42 Hz 35 Hz
Power handling: 400 W Continuous, 1600 W Peak
LF transducer: EVS-12L 300 mm (12 in) EVS-18L 457 mm (18 in)
Nominal Impedance: 8 Ω
Minimum impedance: 6.9 Ω 7.2 Ω
Connectors: Dual NL4
Enclosure: 15 mm plywood with durable polyurea top-coat finish
Grille: 18 AWG steel with powdercoat
Color: Black or white
Dimensions (H x W x D):
mm (in)
397 x 445 x 457
16.7 x 17.6 x 18.0
600 x 507 x 574
23.7 x 20.0 x 22.6
Net weight: 17.2 kg (38.0 lb) 26.6 kg (58.7 lb)
Shipping weight: 20.2 kg (44.6 lb) 30.5 kg (67.3 lb)
1Half-space measurement.
2Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating.

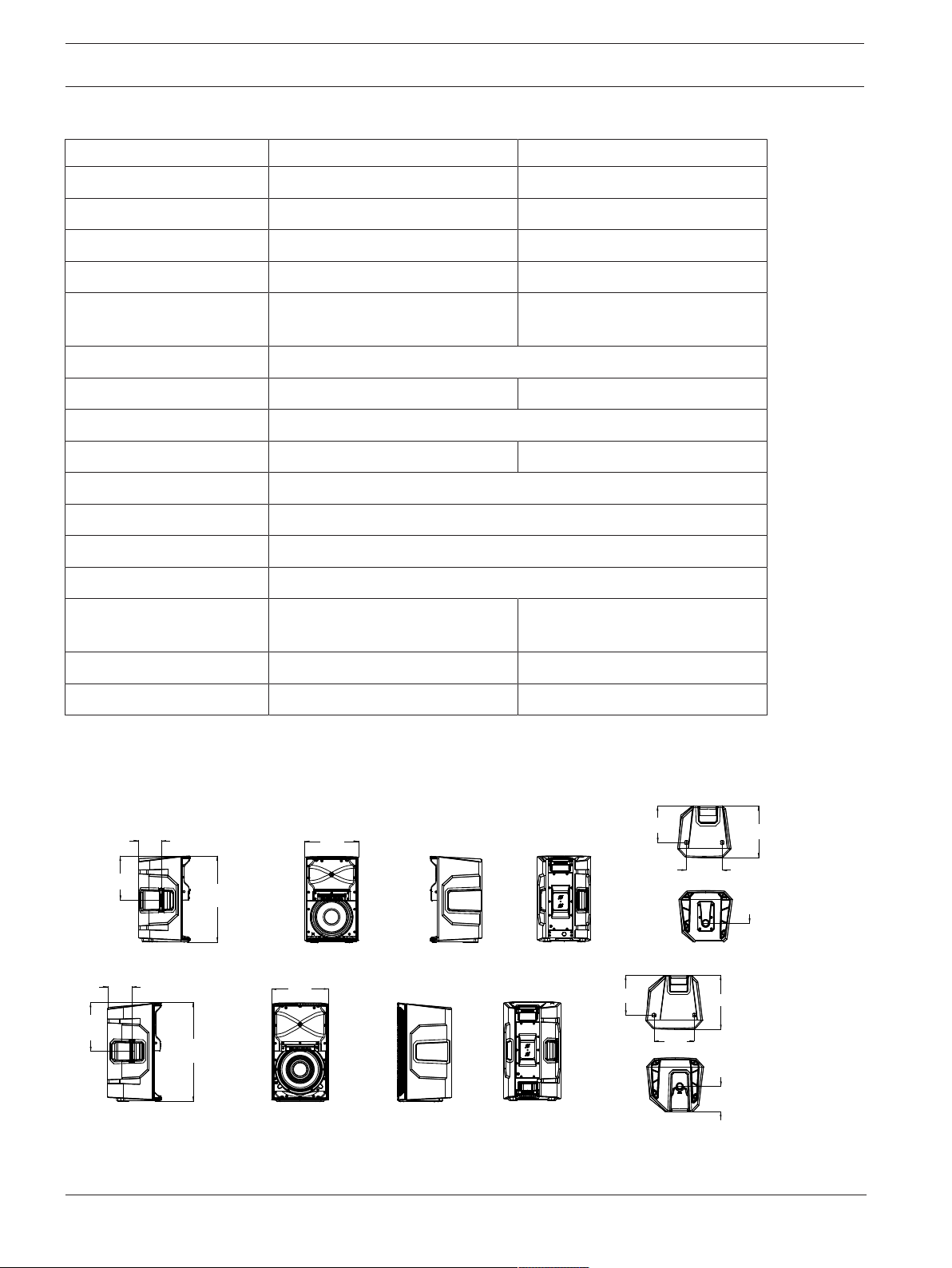

7.1 Dimensions
330 mm
[13 in]
273 mm [11 in]
140 mm [6 in]
531 mm
[21 in]
226 mm [9 in]
220mm
[9 in]
319 mm [13 in]
118 mm [5 in]
Figure7.1: ELX200-10 dimensions
363 mm
[14 in]
311 mm
[12 in]
155 mm [6 in]
629 mm
[25] in
253 mm [10 in]
256 mm
[10 in]
344 mm [14 in]
163 mm
[6 in]
Figure7.2: ELX200-12 dimensions
