Electrohome EANOS700 User manual

Thank you for your purchase of this Electrohome product. Please read this instruction manual carefully before
using product to ensure proper use. Keep this manual in a safe place for future reference.
www.electrohome.com
INSTRUCTION MANUAL
SIGNATURE MUSIC SYSTEM
EANOS700

- 2 -
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESSTHE BLADES CAN BE FULLY INSERTEDTO PREVENT BLADE EXPOSURE.TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSETHIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not t into you outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and point
where they exit from the apparatus.
11. Only use attachments / accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and no object lled with liquids such as vases shall
be placed on the apparatus.
15. Do not overload wall outlet. Use only power source as indicated.
16. Use replacement parts as specied by the manufacturer.
17. The product may be mounted to a wall only if recommended by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.
The lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sucient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
WARNING:TO REDUCETHE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK), NO USER
SERVICEABLE PARTS INSIDE REFER
SERVICINGTO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

- 3 -
CLASS 1
LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURETO BEAM
• Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric
heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas,
places subject to constant vibration and/or humid or moist areas.
• Do not attempt to clean this unit with chemical solvents as this might damage the nish. Use a clean dry cloth.
• Operate controls and switches as described in the manual. Before turning on the power, make certain that power
cord is properly installed.
• Store your CDs in a cool area to avoid damage from heat.
• When moving the set, be sure to rst disconnect the power cord.
FCC INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference toradio communications. However, there isno guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT
Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit o when not in use
or move it away from the aected radio/television tuner.
NOTE:This digital apparatusdoes not exceed the ClassB limits for radionoise emissions fromdigital apparatus asset out in
the Radio Interference Regulations of Industry Canada.These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with
theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television operation
(which can be determined by turning the equipment o), the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS

- 4 -
Important Safety Instructions ..................................................................................................................... 2
What’s Included ........................................................................................................................................... 4
Buttons and Connections ............................................................................................................................. 5
Preparation for Use ...................................................................................................................................... 7
Unpacking and Setup........................................................................................................................... 7
Power Source ....................................................................................................................................... 7
Battery installation for Remote Control................................................................................................ 7
Raising and Lowering the Lid............................................................................................................... 8
Protect Your Furniture .......................................................................................................................... 8
Operation..................................................................................................................................................... 8
Powering on the Unit........................................................................................................................... 8
AUX IN Operation ................................................................................................................................. 8
Inserting and Playing a CD................................................................................................................... 9
USB Operation...................................................................................................................................... 9
Removing the USB ..............................................................................................................................10
Playing in MP3 Mode .........................................................................................................................10
Memory Function................................................................................................................................10
Listening to the Radio.........................................................................................................................11
Playing Records...................................................................................................................................11
Recording............................................................................................................................................11
Deleting les from the USB Device......................................................................................................12
Care and Maintenance.................................................................................................................................12
Tone Arm Adjustment.................................................................................................................................15
ElectrohomeWarranty ................................................................................................................................16
WHAT’S INCLUDED
• Retro Music Player
• Remote Control
• 3ft 3.5mm Auxiliary Cable
• 45 Adapter
• Instruction Manual
• 1YearWarranty
• Lifetime Customer Support
TABLE OF CONTENTS

- 5 -
MAIN UNIT
CONTROL PANEL
BUTTONS AND CONNECTIONS
1
3
2
4 6 7 8
11
5 10
12
13
2318
161514 17 19
2625
24
2221
20
927
1. Phonograph Lid
Lift to reveal turntable
2. Phonograph Lid Support
Bracket
Lift and clip into place to
hold up lid
3. Speakers
Plays sounds from radio, cd,
or record
4. USB input
5. Volume Control
Control the volume of playback
6. Power ON/OFF button
7. Record Button
8. Function Button
9. LCD Display
10. Remote Control Sensor
11. Power Indicator
12. FM ST. Indicator
Indicates FM stereo is ON
13. AM Button
14. FM Button
15. CD/USB Button
16. AUX IN Button
Connect your MP3 player or
smartphone to play to music
17. Phono Button
18. FM Dial Scale
Indicates the FM channels
19. AM Dial Scale
Indicates the AM channels
20. CD Drawer
Holds the CD in the unit
21. Play/Pause Button
Plays/Pauses playback
22. Stop Button
Stops playback
23. DN/F-R Button
24. Tuning Control
Indicates which station is
being played
25. UP/F-F Button
26. PLAY-MODE Button
27. OP/CL Button
Opens and closes the CD tray

- 6 -
All of the buttons on the remote control have the same function as the buttons on the main unit.The
remote is used in CD/MP3 and USB mode.
28. Service Sticker
Access to adjusment screw
29. AUX IN Input
Connect your MP3 player or
smartphone to play to music
30. FM Antenna Wire
Improves FM reception
31. AC Power Cord
Plug AC power cord into any
wall outlet
32. Turntable
Place vinyl record here
33. 45 RPM Adapter
Place in centre of turntable to
accomodate 45 RPM records
34. Transit Screw
Tighten during transportation
35. Cue Lever
Raise or lower tone arm
36. Speed Selector
(33/45/78 RPM)
Select record play speed
37. Tone Arm Lock
Locks stylus arm
38. Tone Arm with Stylus
Plays records
39. Open/Close Button
Opens and closes the CD tray
40. Repeat Button
Repeat 1 or all songs on a CD
41. DB/FB (Skip Reverse)
Button
Skip back one track
42. Stop Button
Stops playback
43. Track - 10 Button
44. Random Button
Shue and play songs
randomly
45. Record Button
Record from CD, Album or MP3
to USB
46. Play/Pause Button
Plays/Pauses playback
47. UP/FF (Skip Forward)
Button
Skip to next track
48. Track +10 Button
49. Delete Button
50. Program Button
Program a set of songs
NOTE:All of the buttons on the
remote control have the
same function as the
buttons on the main unit.
BUTTONS AND CONNECTIONS
AUX IN
29
30 31
BACK OF UNIT
TURNTABLE
REMOTE
43
44
50
39
42
41
40
45
48
47
46
49
32
33
34
38
36
35
37
28

- 7 -
UNPACKING AND SETUP
• Carefully remove the unit from the display carton
and remove all packing material from the unit
• Unwind the AC power cord and extend it to its
full length
• Unwind the FM Antenna wire and extend it to its
full length
• Place the unit on a stable, level surface, close to
an AC outlet, out of direct sunlight, and away from
sources of excess heat, dust, moisture, humidity,
or strong magnetic elds
• Raise the lid to expose the phonograph.The
phonograph has been secured for shipment with a transit screw. Use a coin or screwdriver toTURNTHE
TRANSIT SCREW CLOCKWISE.This will allow the turntable to“oat”and turn freely.
• Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it in the direction
of the arrow.
• Discard the stylus cover.
• Remove the twist-tie that was used to secure the tone
arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to your AC outlet, as shown below.
PREPARATION FOR USE
POWER SOURCE
This system is designed to operate on normal 120V
60Hz AC only. Attempting to operate this system
from any other power source may cause damage to
the system, and such damage is not covered by
your warranty.
Note: This system is equipped with a polarized
AC power plug having one blade wider than the
other. This is a safety feature. If this plug does not
t into your existing AC outlet, do not try to defeat
this safety feature by altering the wide blade to
make it t into your outlet. If this plug will not t
into your outlet, you probably have an outdated
non-polarized AC outlet. Have the obsolete outlet
changed by a qualied licensed electrician.
BATTERY INSTALLATION OF REMOTE CONTROL
• The remote control requires one CR2025 (3V)
lithium battery.
• Hold level pressing the clasp with the
thumb in the right direction of the arrow
in the illustration, and take out the battery
compartment by sliding with forenger in
the direction to yourself. Take out the battery
compartment from the remote control.
Install a lithium battery (CR-2025) in the
compartment with the positive polarity
turned up. Hold level and push the battery
compartment into the remote control lightly.
It is okay once you hear a click.
Transit Screw
Tone Arm
Lock Lever
Stylus
Cover

- 8 -
TO AVOID DAMAGING THE CABINET ORTHE LID, NEVER FORCETHE LID CLOSED. ALWAYS RAISE THE LID
TO RELEASE THE LID SUPPORT BRACKET.
RAISING AND LOWERING THE LID IMPORTANT:
To open the lid, raise it as far as it will go until the lid support bracket‘locks’in the open position. To close the
lid, lift it upward slightly until the lid support bracket‘unlocks’, and then gently lower the lid.
PREPARATION FOR USE
OPERATION
AUX IN
POWERING ON THE UNIT
1. Press the POWER button on the front panel, and set the volume to a low level.The POWER indicator
lights up.
2. Press the FUNCTION selector buttons(AM/FM/CD/USB/AUX IN PHONO) to select your desired function.
3. Start to adjust the volume by using the VOLUME control.
4. When you have nished using the system, press the POWER button again to turn o the unit.The
POWER indicator will turn o.
AUX IN OPERATION
Listen to music via the AUX IN input by connecting your MP3 player or smartphone. Press the AUX IN
button to select AUX MODE. Insert the audio cable into the corresponding AUX IN Input at the back of your
system. Connect the other end of the cable to your device. Adjust the volume
using theVolume Control knob on the system’s control panel.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber‘feet’to prevent the product from moving when you operate
the controls.These‘feet’are made from non-migrating rubber material specially formulated to avoid
leaving any marks or stains on your furniture. However, certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber‘feet’to soften, and leave marks or a rubber residue
on the furniture.To prevent any damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and
apply these pads to the bottom of the rubber‘feet’before you place the product on ne wooden furniture.

- 9 -
OPERATION
INSERTING AND PLAYING A CD
1. Press the POWER button on the front panel to turn the system ON, set the
volume to a low level. Press the CD/USB button.
2. Press the OP/CL button to open the CD drawer. Place a CD in the tray, with
the printed label facing up. Press the OP/CL button again to close the CD
drawer.
3. The disc will spin for a few seconds while the player is reading the disc
and the total track number will appear in the display.The unit will start
playing the rst track of the disc. Adjust theVOLUME control to set the
volume as desired.
4. To skip forward or backward through the tracks on the disc, press the
UP/F.F or DN/F.R buttons.
5. Press the PLAY/PAUSE button to pause playback.The PLAY/PAUSE indicator
will blink in the display. Press again to resume playback. When the disc is
through playing, it will stop rotating.
6. To stop playback entirely, press the STOP button.
USB OPERATION
7. Press the CD/USB button rst and the FUNCTION button second to enter
USB mode, the "- - -" and USB icon will appear on the LED screen.
8. Insert a USB device into the USB input.The player will begin to play the
rst song of the USB.
9. The MP3 icon will be shown while MP3 is detected.
10. The PLAY/PAUSE, DN/F.R/UP/F.F and STOP functions are the same as in CD play mode.
You may press the FUNCTION button on the unit or the PLAY/PAUSE button on the remote control to
change the playing mode between CD and USB.

- 10 -
REMOVING THE USB DRIVE
Make sure to stop the playback and turn the unit o before removing the USB drive to avoid damage to the
USB and the system.
PLAYING IN MP3 MODEUNDER CD/USB OPERATION
1. Press PLAY/PAUSE button to start or pause playback of the selected track in
the CD/USB mode.
2. While playing the song, the song number and folder number of your
selected track will be shown on the screen.The MP3 icon and ►icon will
be shown.
3. You can stop the playback at any time by pressing the STOP button.
TRACK SKIP AND HIGH SPEED TRACK SEARCH IN CD/USB MODE
During CD/USB playback, pressing the UP/F.F (Fast Forward) or the DN/F.R (Fast
Reverse) button repeatedly will skip to higher or lower tracks. Release the button
when the desired track number is shown.The disc will begin to play from your
selected track.
Press the DN/F.R or the UP/F.F button to select a track from a folder. Both "ALBUM" and "001", "002"
(folder name and song name) will ash. Press the PLAY.MODE four times or press the RANDOM button on
the remote control and you will see RANDOM on the LED screen. Press the DN/F.R or the UP/F.F button to
manually select tracks randomly.
OPERATION
Folders are only available when a USB is detected, not during CD playback.
You can store a total of 99 MP3 tracks and 20 CD tracks.
OPERATION
MEMORY FUNCTION IN CD/MP3 MODE
1. Press STOP then press PLAY.MODE on the unit or PROGRAM on the
remote control to program your tracks. Both "PROG" (ashing) and
"P01" will appear on the screen. Press the UP/F.F or DN/F.R button to
select your track then press the PLAY.MODE or PROGRAM button to
conrm your selection.
2. Press the PLAY.MODE or PROGRAM button to program the next track.
Repeat for all of your selected tracks.
3. To set the memory while in MP3 mode (CD/USB), repeat steps 1 and 2.
4. Press the PLAY/PAUSE button to play the stored tracks, press UP/F.F or DN/F.B to select a track in the
sequence saved.
5. Press the STOP button twice to exit the program mode.This will clear the memory of your previous
selections.

- 11 -
OPERATION OPERATION
LISTENING TO THE RADIO
1. Press the POWER button on the front panel to turn the system ON, set the volume to a low level. Press
the AM or FM button to select the band. The tuner backlighting will come on.
2. Rotate the tuning control to select a station.The backlight behind the AM/FM dial will light. If tuned
to a strong FM station, the FM Stereo indicator will light and the sound will be in stereo. If tuned to a
weaker FM station, the reception will automatically switch to mono.
AM RECEPTION
The AM antenna is inside the cabinet. If reception is unsatisfactory try repositioning the cabinet slightly for
the strongest signal.
FM RECEPTION
The wire antenna is located on the back cabinet. If necessary adjust the position and direction of this
antenna for the best reception.
PLAYING RECORDS
This system includes a full-size, 3-speed, belt-drive turntable that plays 33, 45 and 78 RPM records.
1. Press the POWER button on the front panel and set the volume to a low level. Make sure that you have
removed the stylus cover from the stylus and have released theTone Arm Lock.
2. Set the turntable speed switch to the appropriate speed: 33, 45, or 78 RPM. Set the record onto the
turntable. If you are playing 45 RPM singles, place the 45 RPM adapter on the center spindle.
3. Raise the cue lever to lift the tone arm o its rest. Move the tone arm to the edge of the record. The
turntable will start automatically. Use the cue lever to gently lower the tone arm onto the record.
4. Adjust theVOLUME control to set the volume as desired.
5. To turn the system OFF, press the POWER button again and the POWER indicator will turn o.
Do not turn or stop the turntable manually. Moving or jarring the turntable without securing the tone
arm clamp could result in damage to the tone arm or stylus.
RECORDING FROM A CD ONTO THE USB DEVICE
1. With the unit on and a USB drive inserted, press the CD/USB button and insert the desired CD; playback
will start automatically.
2. Select a track using the UP/F.F or DN/F.R buttons. Press the RECORD button twice to start recording; the
USB icon will ash in the display.
3. The song number and folder number of the recorded track will appear on the screen. Recording will
continue to until you press STOP.

- 12 -
PROGRAM RECORDING FROM A CD or MP3 DISC ONTO A USB DEVICE
1. Perform steps 1 through 3 on page 10 to program the memory. Press the PLAY/ PAUSE button to start
program playback.
2. Select a track using the UP/F.F or DN/F.R buttons. Press the RECORD button twice to start recording; the
USB icon will ash in the display.
3. The song number and folder number of the recorded track will appear on the screen. Recording will
continue to until you press STOP.
RECORDING FROM THE PHONOGRAPH ONTO A USB DEVICE
1. With the unit on and a USB drive inserted, press the PHONO button.
2. Place a record on the turntable and start playback.
3. Press the RECORD button twice to start recording; the USB icon will ash in the display. Recording will
continue to until you press STOP.
NOTES
• When recording (regardless of the source), the position of the volume will not aect the recording, as
the recording volume is preset.
DELETING FILES FROM THE USB DEVICE
1. Plug the USB drive into the USB input. Press the CD/USB button and press FUNCTION to select
USB mode.
2. Select a le to delete using the UP/F.F or DN/F.R buttons. Repeatedly press the FOLDER +/+10 or
FOLDER -/-10 buttons on the remote to skip to a higher or lower numbered folder (if folders are
recorded onto the USB drive).
3. Press the DELETE button on the remote once, DEL will appear on the display.
4. Press the DELETE button again to conrm that you want to delete the current track.
REPEAT/RANDOM FUNCTION IN CD/MP3 MODE
1. Press the PLAY.MODE button on the front of the unit or the REPEAT
button on the remote control ONCE to repeat the currently playing track
and display the REP icon on the track number display.
2. Press the PLAY.MODE button on the front of the unit or the REPEAT
button on the remote controlTWICE to repeat all of the tracks on the USB or
MP3 disc and display the REP icon on the track number display.
3. Press the PLAY.MODE button on the front of the unit or the REPEAT button on the remote control
THREE times to play all of the tracks on the USB or MP3 disc randomly and display the RANDOM icon
on the track number display.
OPERATION CARE AND MAINTENANCE

- 13 -
OPERATION CARE AND MAINTENANCE
IMPORTANT: Avoid touching the stylus itself.
REPLACING THE STYLUS:
1. Lift the tone arm o the tone arm rest.
2. At the front end of the tone arm, place the tip of your ngernail between the stylus holder and the
cartridge housing as shown, press down on the stylus holder until it separates from the
cartridge housing.
3. Completely remove the stylus holder with worn stylus and discard it.
4. Place the new stylus holder with stylus under the cartridge housing. First, press upward on the back
sideof the stylusholder, andthenpressuponthe frontedgeof the stylusholder until it snapsintoplace
on the cartridge housing.
IMPORTANT!
To protect the turntable from damage during transportation, a silver transit screw is located
at the upper right of the turntable platform.
1. Before playing, please use a screwdriver to turn the transit screw in
clockwise direction (screw going down) completely to unlock
the turntable.
2. To lock the turntable again for transportation, please turn screw in
counter-clockwise direction.

- 14 -
CARE AND MAINTENANCE

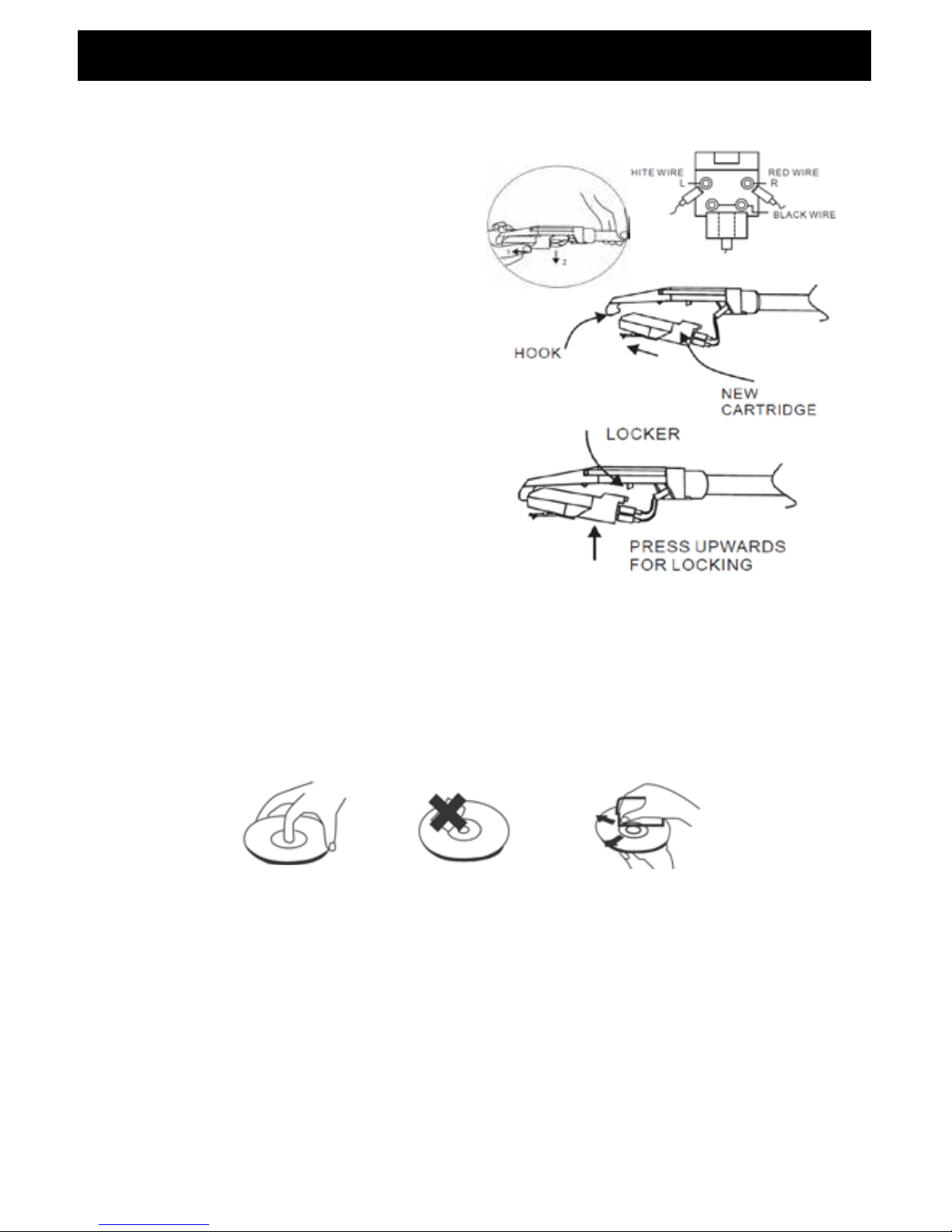

TO REPLACE THE CARTRIDGE FROM TONE ARM PLEASE FOLLOW THE PROCEDURES BELOW:
1. Gently lift the tone arm from the tone arm rest.
2. By using your left hand to hold the tone
arm and using your right hand to hold the
rear portion of the cartridge.Then push
the cartridge backwards and downwards
according to the direction as shown to the left
to separate the cartridge from the tone arm.
3. Using either a tweezer or your ngers, carefully
unplug the terminals from the cartridge.
4. Carefully connect the terminals to the new
cartridge (not included).
5. To re-install the new cartridge to the tone
arm. First please lock the front end of the new
cartridge on the hook of the tone arm.
6. Press the rear side of the new cartridge
upwards to lock it on to the tone arm.
CAUTION: Please do not damage the stylus when installing the new cartridge.
CARING FOR COMPACT DISCS
• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your ngers
to come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive
cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the compact disc, it is probably dirty or damaged
(scratched).
• Wipe in straight lines from the center of the compact disc to the outer edge of the compact disc.
Never wipe in circular motions.
• Compact Discs should be stored in their cases after each use to avoid damage.
• Do not expose compact discs to direct sunlight, high humidity, high temperatures or dust, etc.
Prolonged exposure or extreme temperatures can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing instruments, or the
ink, may damage the surface.

- 15 -
CARE AND MAINTENANCE
TONE ARM ADJUSTMENT
The auto-return point of the tone arm has been preset by the factory, however, if the tone arm auto-returns before
the end of the album please make the following adjustments. You will need a small Phillips screwdriver.Turn the
adjustment screw clockwise ¼ turn and test auto-return. Please make further adjustments as needed.
MAKING THE ADJUSTMENT
Raise the lid to expose the record player LockTone Arm
Clockwise turn = MovesTone Arm to center of album Counter-clockwise turn = MovesTone Arm to
outer-edge of album
Turn unit ON
Peel o the Service sticker
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
ON - OFF
MARCHE - ARRÊT
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Adjustment screw
Plug in unit
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Service
sticker
1
2

- 16 -
Thank you for choosing ELECTROHOME® Consumer Electronics Products!
ELECTROHOME gives the following express warranty to the original consumer purchaser or gift recipient for this ELECTROHOME
product, when shipped in its original container and sold or distributed by ELECTROHOME or by an Authorized ELECTROHOME Dealer:
ELECTROHOME warrantsthatthis productisfree,under normaluseand maintenance,fromanydefectsinmaterialand workmanship.
If any such defects should be found in this product within the applicable warranty period, ELECTROHOME shall, at its option, repair or
replace the product as specied herein. Replacement parts furnished in connection with this warranty shall be warranted for a period
equal to the unexpired portion of the original equipment warranty.
This warranty shall not apply to:
A. Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or
inappropriate use as outlined in the owner’s manual.
B. Any ELECTROHOME product tampered with, modied, adjusted or repaired by any party other than BlueTronics Group or
ELECTROHOME’s Authorized Service Centres.
C. Damage caused or repairs required as a result of the use with items not specied or approved by ELECTROHOME, including
but not limited to head cleaning tapes and chemical cleaning agents.
D. Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product
including but not limited to earphones, remote controls, AC adapters, batteries, stylus, trays, lters, cables, paper, cabinet,
cabinet parts, knobs, buttons, baskets, stands and shelves.
E. Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
F. Any damage caused by external or environmental conditions, including but not limited to transmission line/power line
voltage or liquid spillage.
G. Any product received without appropriate model, serial number and CSA /cUL /cULus /cETL /cETLus markings.
H. Any products used for rental or commercial purposes.
I. Any installation, setup and/or programming charges.
Should this ELECTROHOME product fail to operate during the warranty period, warranty service may be obtained upon delivery
of the ELECTROHOME product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized
ELECTROHOME Service Centre. In-home warranty service may be provided at ELECTROHOME’s discretion on any ELECTROHOME
television with the screen size of 40”or larger. This warranty constitutes the entire express warranty granted by ELECTROHOME and
no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of
ELECTROHOME.To the extent the law permits, ELECTROHOME disclaims any and all liability for direct or indirect damages or losses or
for any incidental, special or consequential damages or loss of prots resulting from a defect in material or workmanship relating to
the product, including damages for the loss of time or use of this ELECTROHOME product or the loss of information.The purchaser will
be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and
period of time described herein, constitute complete fulllment of all obligations and responsibilities of ELECTROHOME Electronics to
the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence,
strict liability or otherwise.
1 YEAR PARTS & LABOUR WARRANTY PERIODS
TO OBTAIN THE NAME AND ADDRESS OFTHE NEAREST AUTHORIZED ELECTROHOME SERVICE CENTRE OR FOR MORE
INFORMATION ON THISWARRANTY
Contact ELECTROHOME Support by:
• Support: www.electrohome.com/support
• Website: www.electrohome.com
• By mail: ELECTROHOME Customer Service, 4080 Montrose Road, Niagara Falls, ON L2H 1J9
ELECTROHOME is a registered trade-mark of CircusWorld Displays Limited 05.2014
WARRANTY

- 17 -
WARRANTY NOTES

- 18 -
NOTES

- 19 -
NOTES

- 20 -
NOTES
- 17 -
