Electrolux Professional Compass Pro WB6-13 User manual

Installation manual
Washer extractor
WB6–13, WB6–18
Compass Pro
Type W3...
Original instructions
438917594/EN
2022.08.12

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Symbols....................................................................................................................................6
2 Warranty terms and exclusions.............................................................................................................7
3 Technical data.....................................................................................................................................8
3.1 Drawing ....................................................................................................................................8
3.2 Barrier partition..........................................................................................................................9
3.3 Technical data .........................................................................................................................10
3.4 Connections ............................................................................................................................10
4 Setup ............................................................................................................................................... 11
4.1 Unpacking............................................................................................................................... 11
4.2 Unpacking for machines delivered on a base .............................................................................12
4.3 Recycling instruction for packaging ...........................................................................................16
4.4 Siting ......................................................................................................................................17
4.5 Mechanical installation .............................................................................................................18
5 Water connection ..............................................................................................................................19
6 Connection of external dosing systems ...............................................................................................20
6.1 Connection of the hoses...........................................................................................................20
6.2 Electrical connection of external dosing system..........................................................................20
6.2.1 Machine with connectors.................................................................................................21
6.2.2 Machine without connectors............................................................................................22
6.2.3 Outputs .........................................................................................................................23
6.2.4 Inputs ............................................................................................................................24
7 Drain connection ...............................................................................................................................25
8 Electrical connection..........................................................................................................................26
8.1 Electrical installation ................................................................................................................26
8.2 Electrical connections ..............................................................................................................26
8.3 Machine connection .................................................................................................................27
8.3.1 Single-phase connection.................................................................................................27
8.3.2 Three-phase connection .................................................................................................27
8.4 Functions for I/O-cards.............................................................................................................28
8.4.1 Outputs for detergent signals and inputs for pause signals, "empty" signal (2D)...................28
9 Steam connection .............................................................................................................................29
10 At first power up ................................................................................................................................31
10.1 Select language.......................................................................................................................31
10.2 Set time and date.....................................................................................................................31
11 Function check..................................................................................................................................32
12 Disposal information ..........................................................................................................................33
12.1 Disposal of appliance at end of life ............................................................................................33
12.2 Disposal of packing..................................................................................................................33
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• Only use detergent intended for water-wash of textiles. Never use dry cleaning agents.
• The machine shall be connected with new water hoses. Re-used water hoses must not
be used.
• The machine's door lock must under no circumstances be bypassed.
• If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, the instructions state that means for disconnection must be incorpo-
rated in the fixed wiring in accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.
• Maximum mass of dry cloth: WB6–13: 14 kg, WB6–18: 20 kg.
• A-weighted emission sound pressure level at working stations:
– Wash: WB6–13: <70 dB(A), WB6–18: <70 dB(A).
– Extraction: WB6–13: <70 dB(A), WB6–18: <70 dB(A).
• Maximum inlet water pressure: 1000 kPa
• Minimum inlet water pressure: 50 kPa
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– This appliance shall not be installed where the public has access.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
– This appliance is intended to be used in household and similar applications such as:
(IEC 60335-2-7) staff kitchen areas in shops, offices and other working environments,
farm houses, by clients in hotels, motels and other residential type environments, bed

6Installation manual
and breakfast type environments, areas for communal use in blocks of flats or in
launderettes.
1.1 General safety information
The machine is only intended for water-wash use.
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, high voltage
Read the instructions before using the machine

Installation manual 7
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

8Installation manual
3 Technical data
3.1 Drawing
2
A
D
C
T
11
12
13
B
14
1R
10
Q
P
S
4
9
H
4
8
E
9
J
K
F
M
O
N
LIG
65
7
3
14
13
11
11
U
fig.6813E
1 Operating panel
2 Detergent container
3 Liquid detergent supply

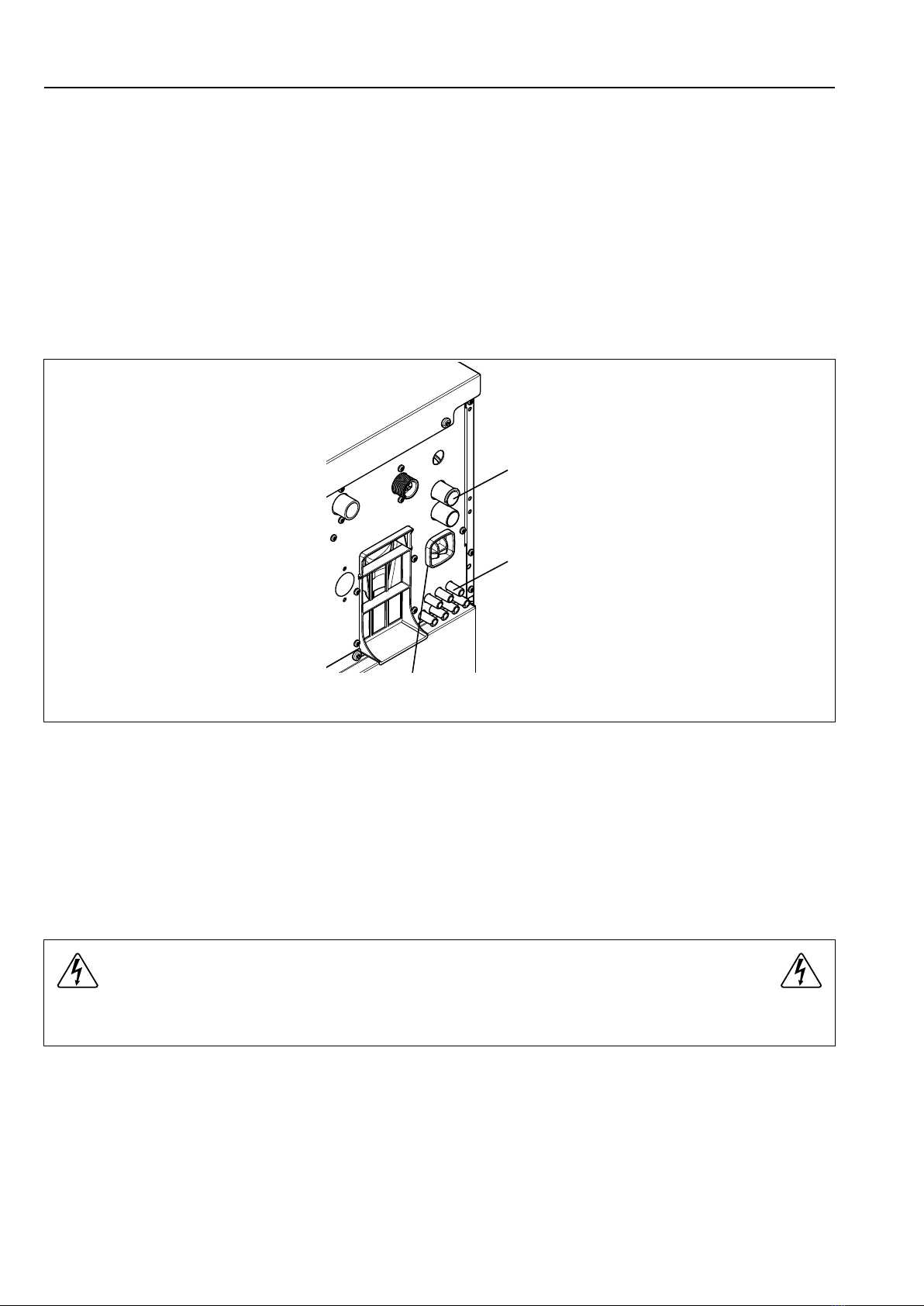

4 Electrical connection
5Cold water
6 Hot water
7Cold/hot water
8 Steam connection
9 Drain
10 Door opening, loading side: WB6–13: 280 x 280 mm, WB6–18: 320 x 280 mm
11 Door opening, unloading side: WB6–13: ⌀395 mm, WB6–18: ⌀435 mm
12 Plinth
13 Barrier frame
14 Barrier partition
mm A B C D E F G H
WB6–13 910 875 1325 435 1035 160 1245 215
WB6–18 970 975 1410 470 1120 150 1330 230
mm I J K L M N O P
WB6–13 1225 300 380 825 455 105 305 45
WB6–18 1330 315 395 1120 485 110 335 45
mm Q R S T U
WB6–13 390 345 575 285 100
WB6–18 390 385 610 200 100

Installation manual 9
3.2 Barrier partition
The barrier partition (3) shall be built before the installation of the machine.
Centre and align the machine with the barrier partition (3).
Mount the rubber seal (2) in the aluminium section (1).
Fasten the aluminium section (1) with screws in the barrier partition (3).
If machines are to be installed in an existing wall thicker than 100 mm please contact authorized service personnel.
4
C
B
A
3
D
3
5
1
2
fig.6822A
1 Aluminium section
2 Rubber seal
3 Barrier partition
4 Removable barrier partition
5 Minimum 70 mm, maximum 100 mm
mm ABCD
WB6–13 990 1650 150 40
WB6–18 1050 1650 150 40

10 Installation manual
3.3 Technical data
WB6–13 WB6–18
Weight, net kg 296 356
Drum volume litres 130 180
Drum diameter mm 650 725
Drum speed during wash rpm 49 44
Drum speed during extraction rpm 910 860
G-factor, max. 300 300
Heating: Electricity kW 13 18
Heating: Steam x x
Heating: Hot water x x
Frequency of the dynamic force Hz 15.2 14.3
Floor load at max extraction kN 3.4±0.5 2.9±1.0
A-weighted emission sound pressure level at working
stations (Wash)
dB(A) <70 <70
A-weighted emission sound pressure level at working
stations (Extraction)
dB(A) 79 85
Heat emission of installed power, max % 5 5
3.4 Connections
WB6–13 WB6–18
Water valves DN
BSP
20
3/4”
20
3/4”
Recommended water pressure kPa 200–600 200–600
Continuous operating pressure kPa 50–800 50–800
Capacity at 300 kPa l/min 20 60
Drain valve
⌀outer
mm 75 75
Draining capacity l/min 170 170
Steam valve connection DN
BSP
15
1/2”
15
1/2”
Recommended steam pressure kPa 300–600 300–600
Functioning limits for steam valve kPa 50–800 50–800

Installation manual 11
4 Setup
4.1 Unpacking
Note!
Two persons are recommended for the unpacking.

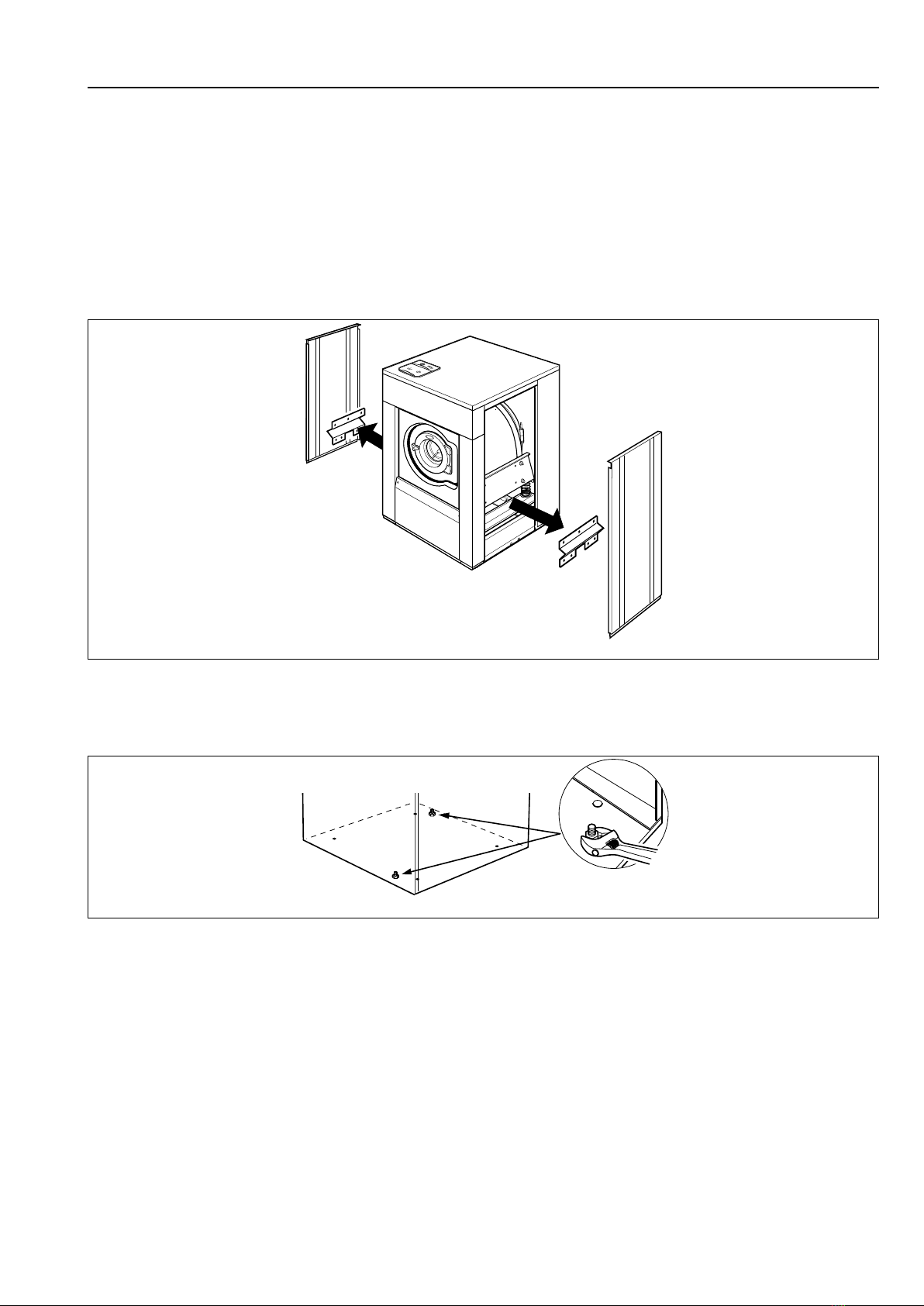

Remove the side panels.
Remove the transport supports. Save the transport supports if the machine needs to be moved in the future.
Note!
Once the transport supports have been removed, handle the machine carefully to avoid damage to the sus-
pension components.
fig.5341
Remove the front and rear panel.
Remove the bolts between the machine and pallet. There is one to the right in the front of the machine and another
diagonally opposed to it, at the back of the machine.
fig.7651
Remove the machine from the pallet.
Note!
When moving the machine, handle it with care.
Place the machine on its final position.
Mount the supporting feet.
Remount the panels.

12 Installation manual
4.2 Unpacking for machines delivered on a base
The machine is delivered complete with expander bolts, supporting feet etc.
The machine is delivered bolted onto the transport pallet and packed in a crate or box.
The machine is also delivered with cover panels that shall be used when the machine is delivered on a base.

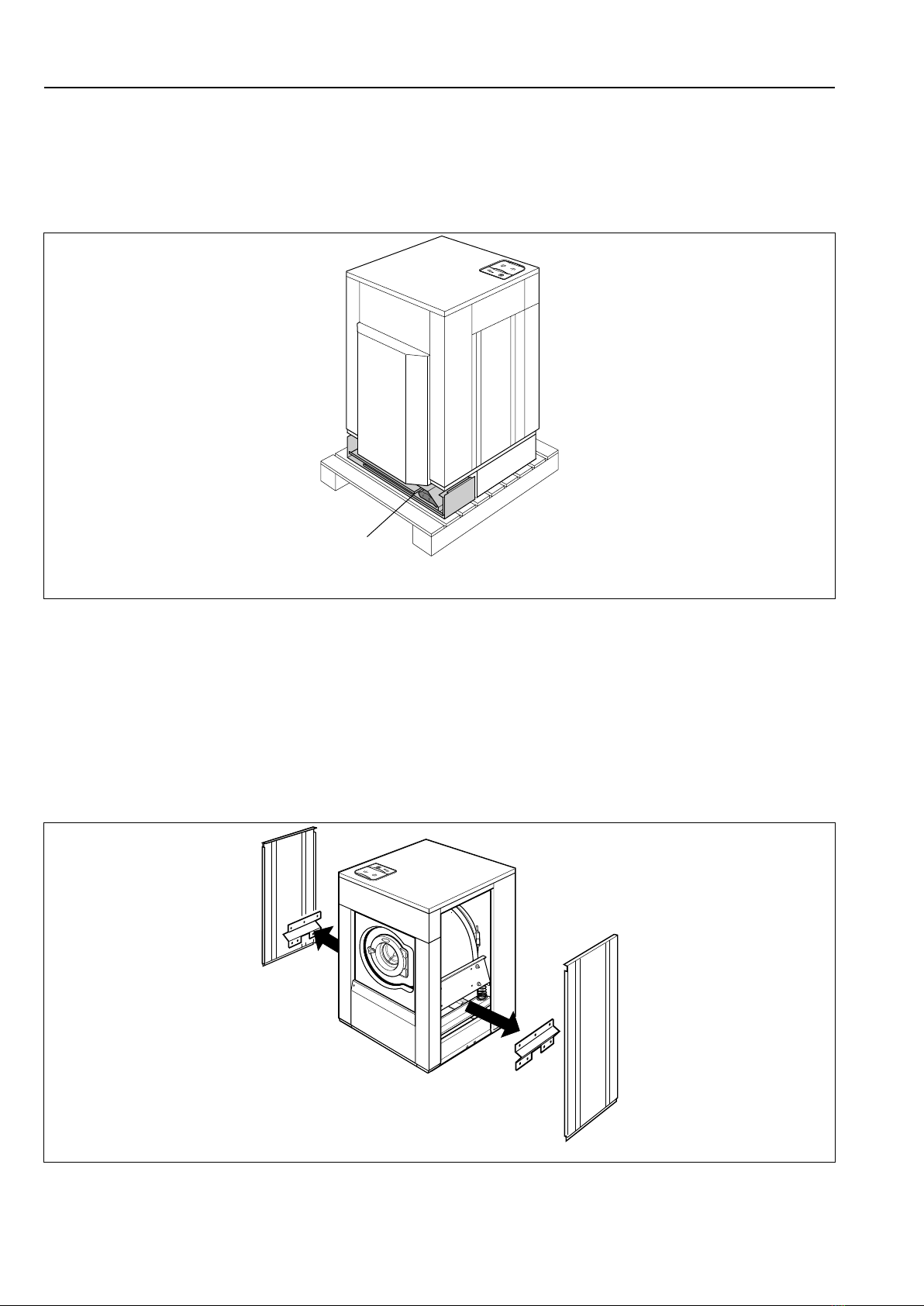

The cover panels and all additional equipment are placed at the rear of the machine (A).
A
fig.6941
Remove packing from the machine.
Remove the cover panels and the additional equipment from the rear of the machine.
Note!
Be careful when removing the cover panels so they do not get scratched.
Remove the side panels.
Remove the transport securities. Save the transport securities if the machine needs to be moved in the future.
Note!
Once the transport securities have been removed, handle the machine carefully to avoid damage to the sus-
pension components.
fig.5341

Installation manual 13
Remove the front and rear panel.
Remove the bolts between the machine and pallet. There is one to the right in the front of the machine and another
diagonally opposed to it, at the back of the machine.
fig.7651

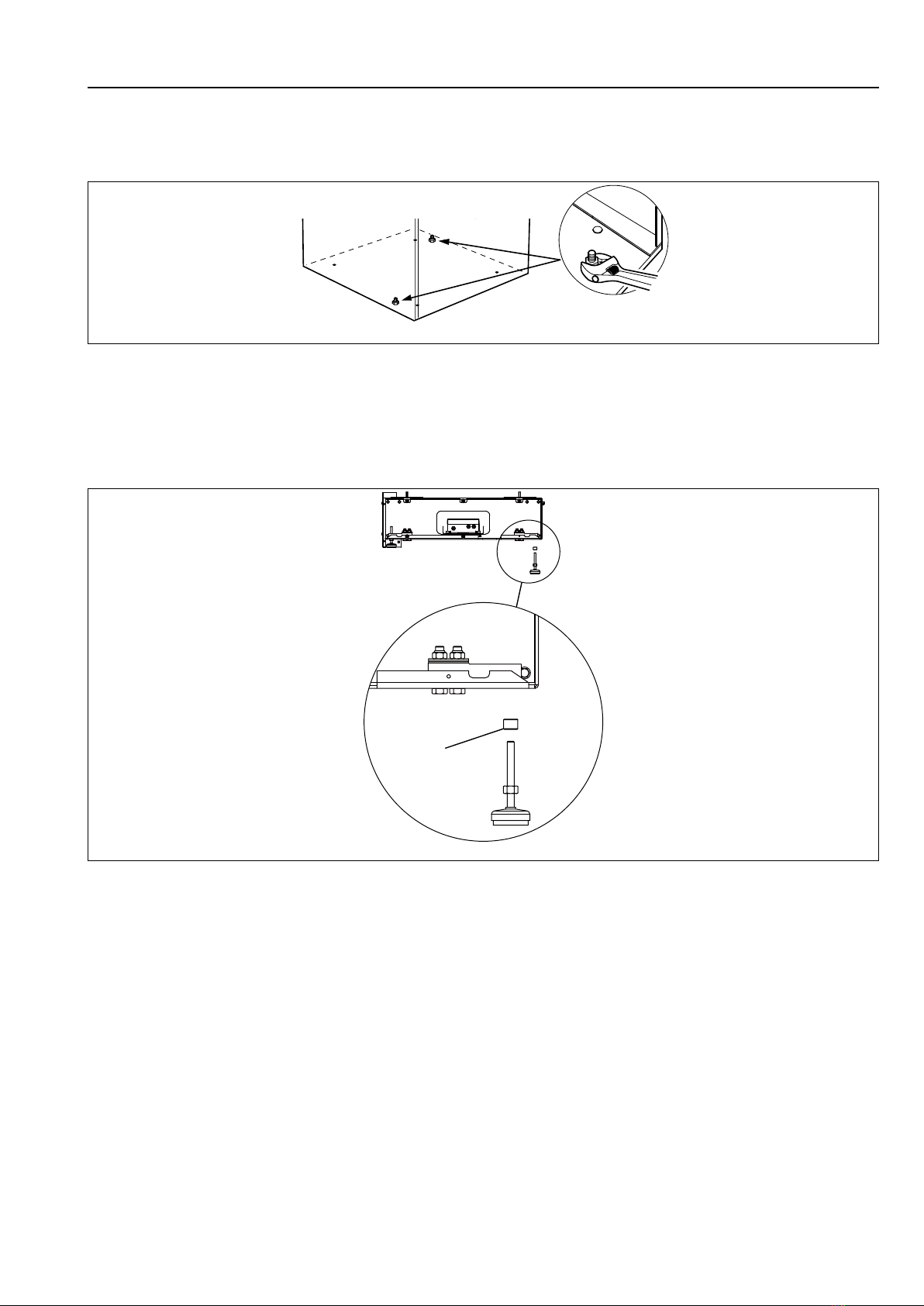

Mount the supporting feet.
If the machine is equipped with load cells:
Note the threaded holes for the feet.
The feet shall be mounted in the holes on the load sensor bridge.
B = Spacer
B
fig.6942A
Lift the machine and remove the transport pallet.

14 Installation manual
Mount the cover panels
Mount the screws and the plastic rings (delivered in a plastic bag) on the panels before mounting them on the
machine.
fig.W00218
The screws on the side panels (A) shall not be tightened all the way in.
Make sure the machine is in level before mounting the front cover panel.
Place the front cover panel on its position and fasten it, then the side cover panels and finally the rear cover panel.
1
23
2
fig.7803

Installation manual 15
The holes on the rear cover panel shall be placed on the screws (A) on the side cover panels and downwards in the
holes. Tighten the screws.
A
A
fig.6940
Place the machine on its final position.

16 Installation manual
4.3 Recycling instruction for packaging
4
6
5
7
3
1
2
fig.X02422
Fig. Description Code Type
1 Wrapping film LDPE 4 Plastics
2 Screw FE 40 Steel
3 Packaging FOR 50 Wood
4 Pallet FOR 50 Wood
5Screw FE 40 Steel
6 Washer FE 40 Steel
7 Plastic bag PET 1 Plastics

Installation manual 17
4.4 Siting
Install the machine close to a floor drain or open drain.
We strongly recommend to drain under the machine for hygiene and safety reasons. Make sure the drain connection
is tight. Otherwise the warm steam from the drainage water can damage the components
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.

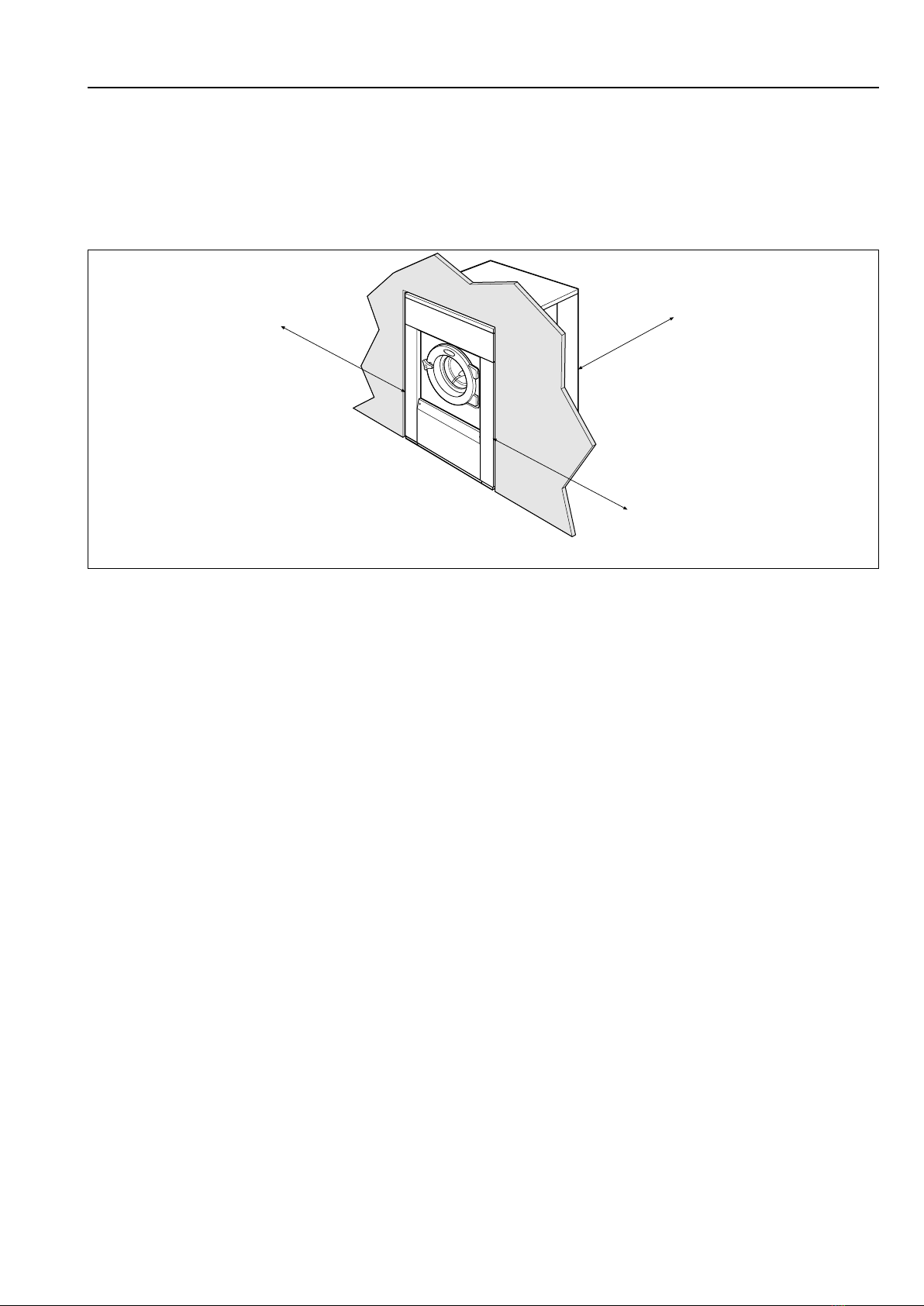

The figure shows minimum distance to a wall and/or other machines.
1000 mm / 39 3/8 inch
1000 mm / 39 3/8 inch 1000 mm / 39 3/8 inch
fig.6818

18 Installation manual
4.5 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor.

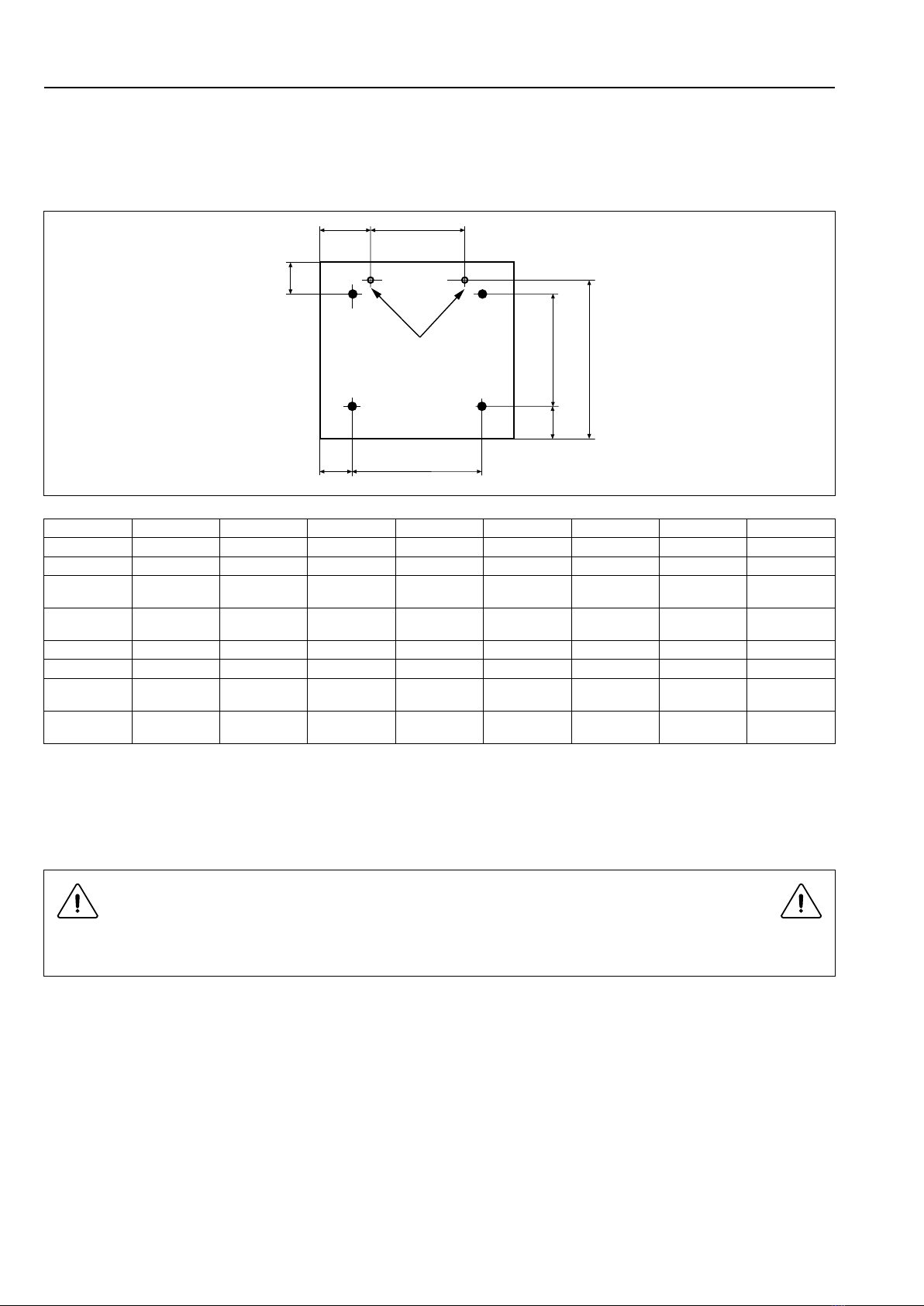

The table shows the correct drilling points.
Mark and drill two holes (⌀10 mm) about 50 mm deep in the positions shown.
FRONT
AC
B
H
G
EF
D
fig.6943
mm A B C D E F G H
WB6–13
Standard 730 515 90 260 515 195 680 110
Machine with
AS
815 515 50 260 515 195 680 110
Machine
without base
640 490 140 275 515 195 725 120
WB6–18
Standard 790 575 90 290 595 185 730 110
Machine with
AS
875 575 50 290 595 185 730 110
Machine
without base
715 545 125 300 595 185 810 120
Place the machine over the two drilled holes.
Level the machine with the feet of the machine. Screw in the feet as much as possible before starting to level the ma-
chine. This will make the machine stand steadier.
Insert the expansion bolts supplied into the holes drilled in the floor. Fit the washers and nuts and tighten well.
It is of the upmost importance that the machine is placed in level, from side to side as well as front to rear. If the
machine is not properly levelled, it may result in out-of-balance without a real out of balance in the drum.

Installation manual 19
5 Water connection
All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal-
lation and servicing.
Water pipes and hoses should be flushed clean before installation.
The machine shall be connected with new water hoses. Re-used water hoses must not be used.
Hoses are to be of an approved type and grade and comply with IEC 61770.
After installation hoses must hang in gentle arcs.
All connectors present on the machine must be connected. The table shows the possible connection options, which
will depend on the water types to be connected to the machine. Information is also available on the panel above the
connections.
Water type Water connection
2
1
WB6–13
• Cold and hot
WB6–13
1. Cold
2. Hot
2
13
WB6–18
• Cold and hot
WB6–18
1. Cold
2. Hot
3. Cold (for detergent container) / Hot
There is also an extra water valve which can be used for hard water if soft water is connected to 1.
This valve can also be used for water re-use from tank.
If pump is used, it is only a water connection without valve.
Water pressure:
Continuous operating pressure: 50–800 kPa (0.5-80 kp/cm2)
Maximum: 1000 kPa (10 kp/cm2)
Recommended: 200–600 kPa (2–6 kp/cm2)
Note!
If the water pressure is below the minimum value, the wash result can not be guaranteed for certain program.
For WRAS-approved machines; always check connection requirements on WRAS website.
For KIWA-approved machines; always check connection requirements on KIWA website.
For NSF-approved machines; always check connection requirements on NSF website.

20 Installation manual
6 Connection of external dosing systems
6.1 Connection of the hoses
The machine is prepared for connection of external dosing systems or water re-use systems etc.
The connections are closed at delivery. Open any of the connections that shall be used by drilling a hole where the
hoses shall be connected.
Note!
Make sure there is no burrs left after drilling. When removing burrs make sure burrs does not fall into the si-
phon breaker.
A = ⌀17 mm (used for external dosing systems or systems for re-use of water).
B = ⌀6 mm (used for external dosing systems only).
C = Only used for external liquid manifold. (Separate instructions enclosed when ordering).
A
B
C
Always connect hoses on connections A with a hose clamp.
For connections B; if the hoses are made of a soft material such as silicone or similar, use a cable tie to fasten the
hose on the connection. If the hoses are made of a hard material, it is not recommended to make the connection
tighter by using a cable tie.
Note!
Equipment for external dosing must only be connected to work on pump pressure and not on network
pressure.
6.2 Electrical connection of external dosing system
The power supply to the external dosing system must never be connected to the machine’s incoming terminal
block or to the edge connectors on the I/O-board.
