Electrolux EDC 5340 User manual

TUMBLE DRYER
SECHE -LINGE
WÄSCHETROCKNER
TROMMELDROGER
INSTRUCTION BOOKLET
MODE DEMPLOI
GEBRAUCHSANWEISUNG
GEBRUIKSAANWIJZING
EDC 5340
F
GB
D
NL
125980810
125980810 gb.qxp 2005-01-24 07:21 Page 1

2
Contents
Important safety information ......................3
Disposal ..............................................................3
Tips for environmental protection ............4
Technical specifications................................4
Description of the appliance ......................4
Adjusting the level of conductivity............5
Installation ..........................................................6
• Unpacking ............................................................6
• Positioning ............................................................6
• Electrical connection ............................................6
• Stacking kit ..........................................................6
• Door reversal ........................................................6
Use ........................................................................7

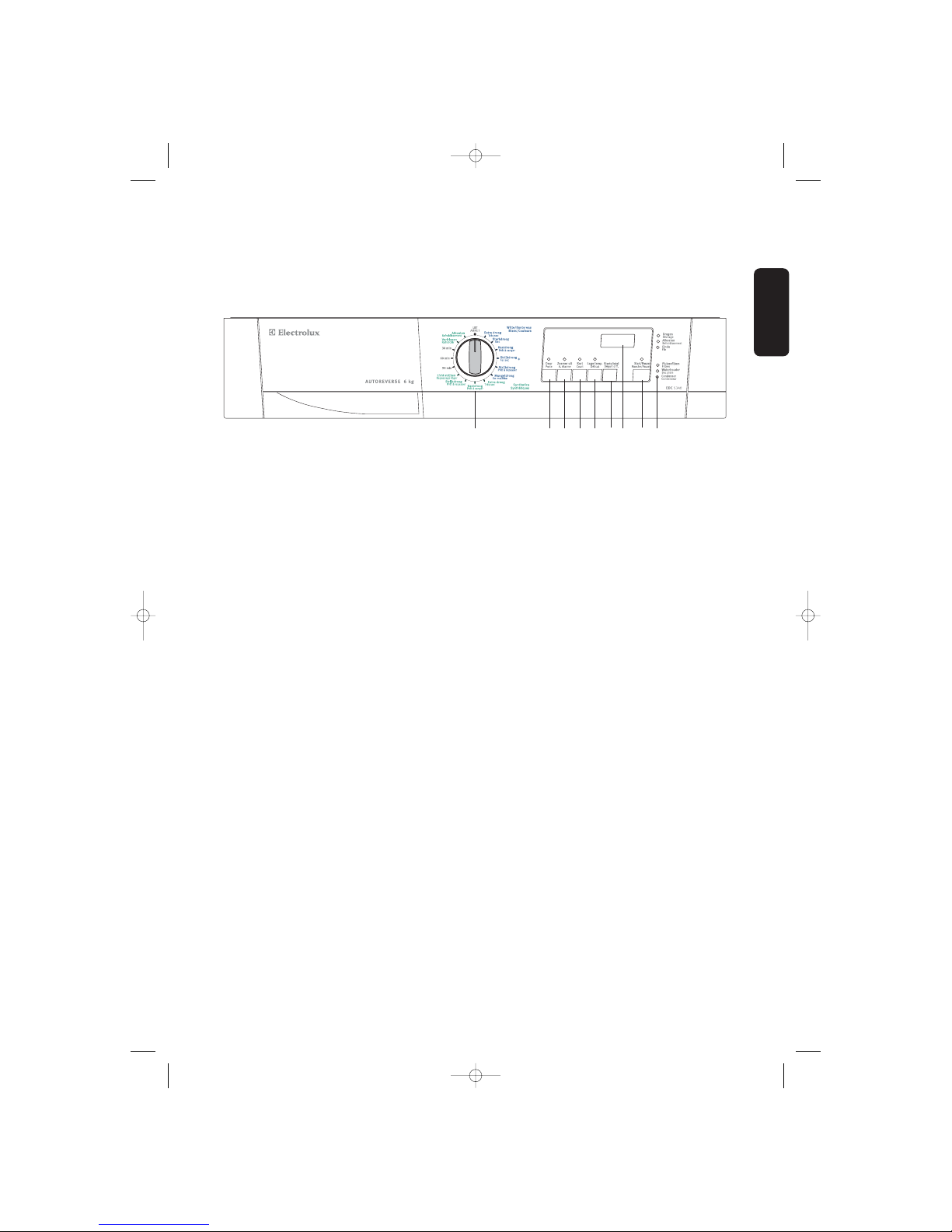

• The control panel ..............................................7-9
• Programme chart ................................................10
• Operating sequence............................................11
• Useful hints ........................................................12

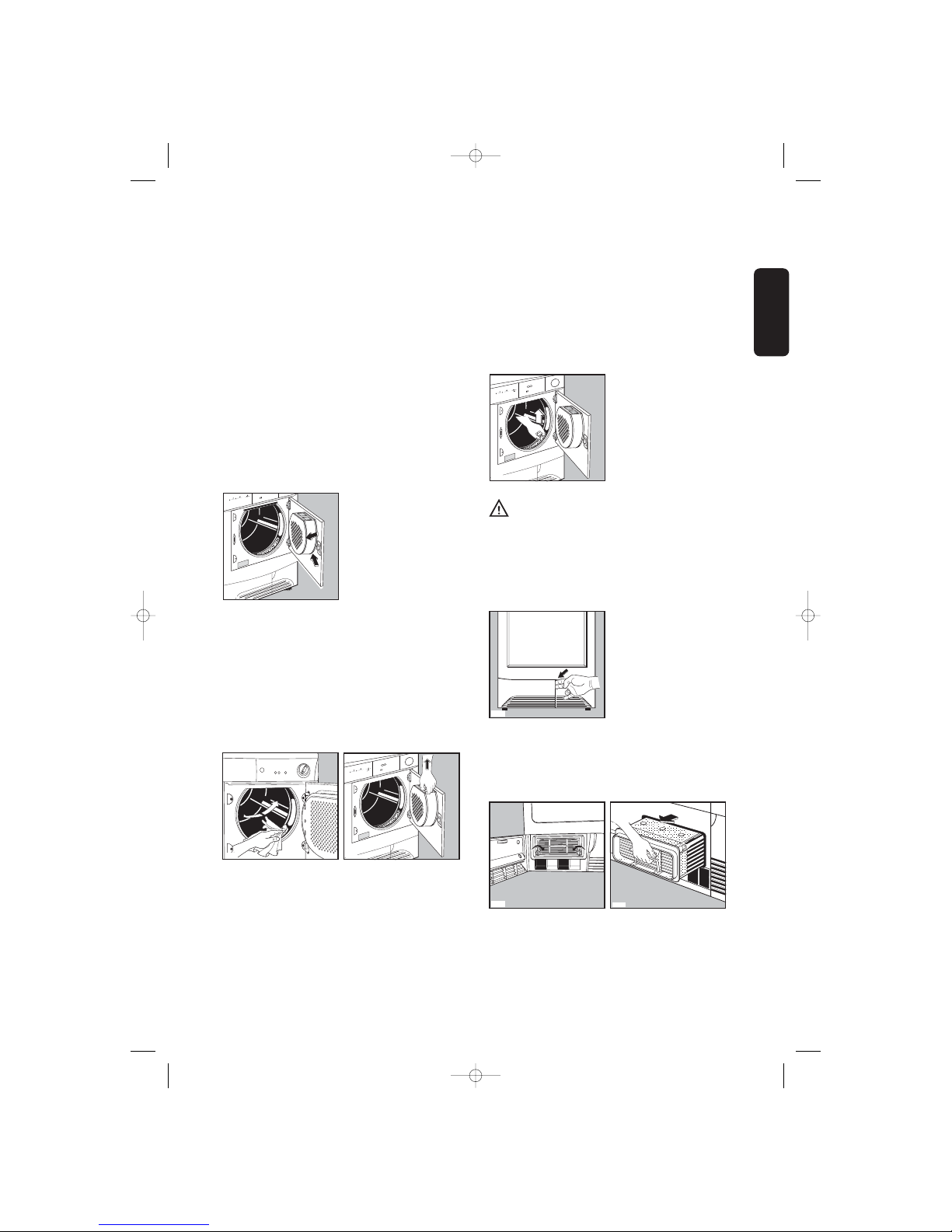

Maintenance and Cleaning ........................13
• External cleaning ................................................13
• Cleaning the door ..............................................13
• Cleaning the filters ..............................................13
• Cleaning the condenser unit ..............................13
• Emptying the water reservoir ..............................14
• Cleaning the air intake grille................................14
• Cleaning the drum ..............................................14
Something not working? ............................15
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
125980810 gb.qxp 2005-01-24 07:21 Page 2

ENGLISH
3
Important safety information
Installation
• Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
Use
• This appliance is designed for domestic use only.
If the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
•Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substances are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
•Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed on the
tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
• Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
• Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking this latter.
• Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
• Clean fluff filters after using the tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged or without filters.
• Do not allow fluff to accumulate around the dryer.
General safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Centre.
Always insist on genuine spare parts.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
• Packaging materials
The materials marked with the symbol are
recyclable.
This means that they can be recycled by disposing
of them properly in appropriate collection
containers.
• Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
Disposal
125980810 gb.qxp 2005-01-24 07:21 Page 3

Description of the appliance
1
2
6
7
4
54
3
4
To save energy and to help protect the environment,
we recommend that you follow these hints:
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Do not over-dry laundry, this avoids creasing and
saves energy.
Select the drying programme according to the
type of laundry and the required degree of
dryness.
• To utilize the maximum load, laundry which is to
be dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the programme for iron-dry, remove the iron-dry
items at the end of the programme and then
finish-dry the rest of the load.
• Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
Tips for environmental protection
Technical specifications
DIMENSIONS: Height 85 cm
Width 60 cm
Depth 58 cm
ELECTRICAL CONNECTION: 220/230 V/50 Hz
MAX. POWER ABSORBED: 2400 W
MIN. FUSE RATING: 16 A
MAX. DRYING CAPACITY: Cotton, linen 6 kg
Synthetics 2.5 kg
CONSUMPTION: Cotton, linen 4.37 kWh (6.5 kg store dry)
Cotton, linen 3.6.6kWh (6.5 kg iron dry)
Synthetics 1.40kWh (2.5 kg store dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
01 Control panel
02 Water reservoir
3 Drum light
04 Fluff filters
05 Rating Plate
06 Consenser Unit
07 Adjustable feet
125980810 gb.qxp 2005-01-24 07:21 Page 4

5
ENGLISH

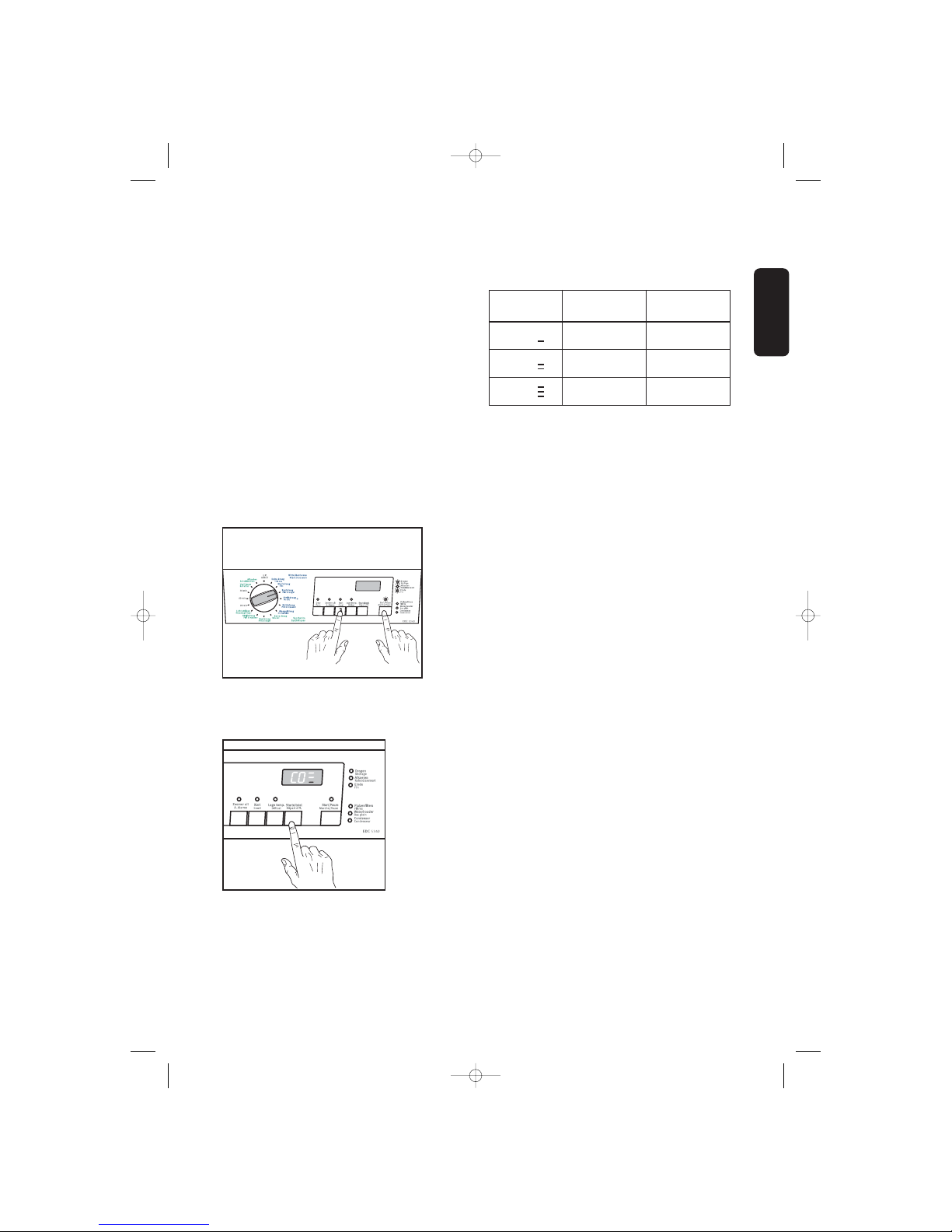

Adjusting the level of conductivity
Water contains, a variable quantity of limestone and
mineral salts of which quantities vary according to
geographical locations thus varying its conductivity
values.
Relevant variations of the conductivity of the water
compared to those prefixed by the factory could
slightly influence the residual humidity of the laundry
at the end of the cycle.
Your dryer allows you to regulate the sensitivity of
the drying sensor based on conductivity values of
the water by using the following procedure.
Procedure:
Turn the programme selector dial to switch on the
appliance
In selection mode press simultaneously the buttons
3and 6until «C0» appears on the digits.
Adjusting the level of conductivity:
Press button 5 sequentially: the level of conductivity
is indicated by the lighting of the horizontal hyphens.
6
3
245
6
3
12 45
1.25
Normally, the appliance is factory-set to the
highest level; however, certain models may be
configured differently.
Memorising the new setting:
Simultaneously press down the buttons 3and 6until
the previous drying cycle time appears again on the
display and the buzzer sounds.
Display Conductivity
degree
Approximative
value (µ/cm)
CC00Low < 300
CC00Medium 300-600
CC00High > 600
125980810 gb.qxp 2005-01-24 07:21 Page 5

6
Installation
Warning!
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the
appliance. Pull off adhesive strips from inside
machine on top of drum
Should the appliance be moved, it must be
transported vertically.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grille at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check
that the dryer is absolutely level with the aid of a
spirit level. If it is not, raise or lower the feet until
it is.
The feet must never be removed.
Do not restrict the floor clearance through deep-
pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
P1106
When operating the tumble dryer, the room
temperature must not be lower than +5°C and
higher than +35°C, as it may affect the performance
of the appliance.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.4 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
Should the appliance power supply
cable need to be replaced, this must
be carried out by our Service
Centre.
Important!
The power supply cable must be accessible after
installing the machine.

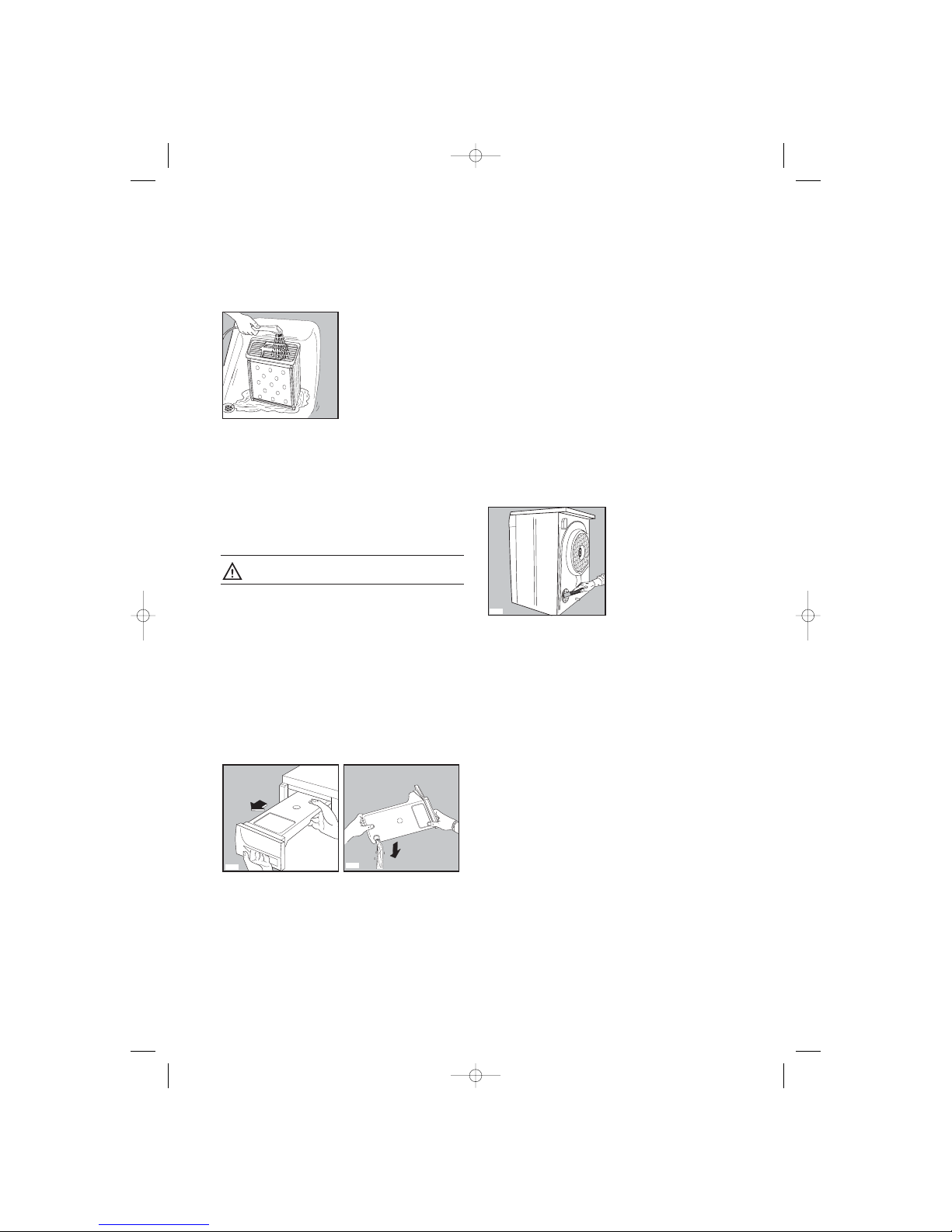

Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
a front loading washing machine with cover’s depth
between 48 and 60 cm.
Read carefully the instructions supplied with the kit.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Service Centre.
P1148
125980810 gb.qxp 2005-01-24 07:21 Page 6

7
ENGLISH
Use
The control panel
1 2 3 4 5 6 7 9
1 Programme/Time selector dial
Allows you to select electronically controlled or time
controlled drying.
Turn the dial to the required programme or time.
Electronically controlled drying
(automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of
the laundry.
Simply select the programme according to the type
of laundry and degree of drying required.
Time controlled drying
Can be used to finish off drying if necessary.
Select the 90 or 60 minute programme for cottons
or the 30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “UIT”.
At the end of drying, turn the selector dial to “UIT”
to switch the machine off before removing the
laundry.
2 Door opening button - “Deur”
Press this button to open the door. The light above
the button will light up.
Opening the door by means of this button is
possible only if the tumble dryer is on
(programme selector dial set to a programme or
drying time).
If you open the door during a programme, in order
to restart the programme you must re-press the
START/PAUZE button again after having closed the
door.
3 Buzzer OFF button - “Zoemer Uit”
A buzzer sounds
• when selecting the programme
• when depressing the buttons
• when an incorrect option selection is made
• when the programme selector dial is turned to
another position during the programme or when
you depress an option button during the cycle
• at the end of the programme
• when the water reservoir is full
• if the machine is not working correctly
• when the door of the appliance or the small door at
the bottom are open
By depressing button“Zomer Uit” the acoustic
signal is switched off in the following cases:
• when selecting the programme
• when depressing the buttons
• when the programme selector dial is turned to
another position during the programme or when
you depress an option button during the cycle
• at the end of the programme.
The corresponding light comes on.
4 Quick drying button - “Kort”
By depressing this button the drying time is reduced
in the following COTTON programmes:
• extra dry (extra droog)
• ready to wear (sterkdroog)
• store dry (kastdroog)
The corresponding light illuminates. This option
cannot be selected together with “low temperature”
function Low temperature (“Lage tamp”).
5 Low temperature button - “Lage temp”
Pressing this button allows drying to be performed
at a lower temperature, for delicate items.
The corresponding pilot light comes on.
This option can also be used for time controlled
drying.
This function cannot be used with QUICK DRYING
(“Kort”).
125980810 gb.qxp 2005-01-24 07:21 Page 7

8
6 DELAYED START button
This button allows you to delay the starting of the
programme by 12 hours max.
This option must be selected after having selected
the programme and before pressing Start/Pauze to
start the programme.
Every time the button is pressed, the time is
increased by 30 minutes, until the display shows a
delay of “2 hours”. After this, the delay is displayed
hour by hour.
The minutes or hours of delay that have been
selected are displayed for 2 seconds, then the
display shows the duration of the previously
selected programme.
The countdown begins after you have pressed the
Start/Pauze button.
To cancel the delay time press the DELAYED START
button until the display indicates 0’h. Then press the
Start/Pauze button again.
When the delay is cancelled, the display shows the
duration of the programme.
During the delayed start, it is not possible to change
the programme or the delay time that have been
selected. To do this, you must first switch off the
machine by setting the programme selector dial to
“0”. Select the new programme, the options and the
delayed start, then press the Start/Pauze button.
To cancel or change options that have been
selected, simply set the appliance to PAUZE. Once
you perform the desired operation, press once again
the Start/Pauze button.
If you wish to add more laundry while the machine is
performing the countdown, simply open the door.
When you close the door, press the Start/Pauze
button again to cause the countdown to be
resumed.

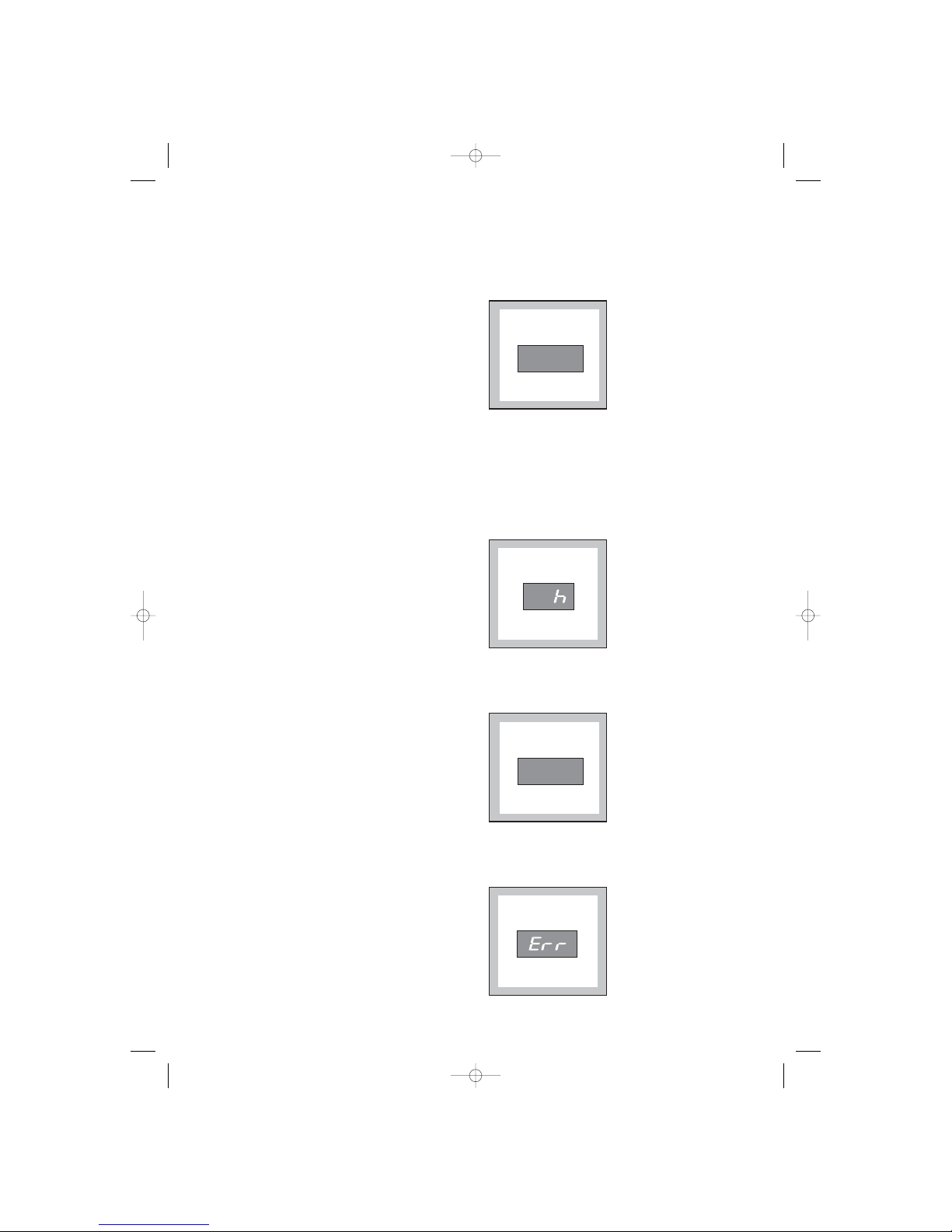

7 DISPLAY
The display shows the following information:
• duration of selected programme
• delayed start
• end of programme
• incorrect option selection
• alarm code
•Duration of selected programme
After you have selected the programme, its
duration (in hours and minutes) appears on the
display. It is calculated automatically on the basis
of the maximum load accepted for each type of
fabric and of the required degree of drying.
When the programme starts, the remaining time is
displayed every 5 minutes.
•Delayed start
If you have selected a delay time by means of the
relevant button, the display shows it for 2
seconds; then it shows the duration of the
previously selected programme.
The countdown is displayed every 30 minutes until it
displays “90 minutes” and then hour by hour.
•End of programme
A flashing zero indicates the end of the
programme and it is displayed after the “anti-
creasing” phase.
•Incorrect option selection
If you select an option that is not compatible with
the programme you have selected, the display
shows Err (error).
0
3
1.20
125980810 gb.qxp 2005-01-24 07:21 Page 8

9
ENGLISH
This code will reappear during the execution of the
programme if you press one of the option buttons or
turn the programme selector.
The same code will appear again also when you
push the Start/Pauze button while the door and
small door are opened.
•Alarm code
In case of a functional anomaly, the display shows
an alarm code (e.g. E21). See page 14 for more
detailed information.
8 Start/Pause button - “Start/Pauze”
Press this button to start the dryer after having
selected the programme and the options.
The relevant light will stop flashing. If you have
chosen a delayed start, the machine will begin the
countdown.
If the door of the appliance or the small door at
the bottom is opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the programme
from the point at which it was interrupted.
This button must be depressed also after a power
failure and after having re-inserted the water
reservoir, if it has been emptied in the middle of a
programme after lighting up of light “Waterhouder”
In both cases the light of the Start/Pauze button
flashes to remind you that the start button needs to
be pressed again.
E21
9 Indicator lights
These lights indicate the following functions:
“Drying” light - “Drogen”
This light indicates that the appliance is in the drying
phase.
“Cooling” light- “Afkoelen”
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a
10 minute cooling phase to cool the laundry.
“End of programme” light - “Einde”
This light is on at the end of the cooling phase,
during the anti-creasing phase and at the end of the
programme.
“Filter cleaning” light - “Pluizenfilters”
This light illuminates at the end of the programme to
remind you that the filters must be cleaned.
“Water reservoir full” light - “Waterhouder”
This light comes on at the end of the programme to
remind you that the water reservoir must be emptied
out. If this light illuminates during a programme this
means that the water reservoir is full. The buzzer
sounds, the programme stops, the light of the
Start/Pause button flashes.
“Condenser cleaning” light- “Condensor”
It comes on every 80 cycles to remind you that the
condenser must be cleaned.
125980810 gb.qxp 2005-01-24 07:21 Page 9

10
Programme chart
Automatic drying (electronic programmes)
(*) According to IEC 61121 Standards.
Type of laundry Degree of drying
required Max-load (1) Programme
Cotton & linen
extra dry
ready to wear
store dry
slightly damp
iron dry
machine iron dry
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
Time controlled drying
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
Fresh & Cool
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls). Programme duration 10 mins.
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
•cotton, linen: drum full but not too tightly packed;
•synthetics: drum no more than half full;
•delicate fabrics: drum no more than one third full.
Type of laundry Drying time Max-load (1) Programme
selector dial position
Cotton
Cotton
Synthetics
90 min
60 min
30 min
6 kg
6 kg
2.5 kg
90’
60’
30’
Synthetics
extra dry
store dry
iron dry
2.5 kg
2.5 kg
2.5 kg
Synthetics Easy iron 2.5 kg
Jackets, trousers,
dresses, skirts. Dry fresh 1 - 4 garments
• Easy iron is a special programme for synthetics.
• Dry fresh “Verfrissen” is designed to clean and freshen garments labelled “dry clean only” at home, in your
tumble dryer, using the special product available on the market.
Extra droog
Sterkdroog
Kastdroog (*)
Strijkdroog +
Strijkdroog (*)
Mangeldroog
Extra droog
Kastdroog (*)
Strijkdroog
Licht strijken
Verfrissen
125980810 gb.qxp 2005-01-24 07:21 Page 10

ENGLISH
11
Operating sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying
1. Connect the appliance.
2. Open the door (see picture).
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does
not get caught between the door and filter.
5. Select the drying programme or time. The lights
“Drogen” (“Drying”), “Afkoelen” (“Cooling”) and
“Einde” (“End”)come on. The light of the
StartPpauze button flashes and the display
shows the duration of the programme.
6. If required, press the “Lage temp.” (“Low
temperature”) button and/or the “Zoemer uit”
(“Buzzer OFF”) button or the “Kort” (“Quick
drying”) button.
7. Select the “Startuistel” (“Delayed Start”)if
required. The selected delay appears on the
display for 2 seconds, then the duration of the
selected programme is displayed.
8. Press the “Start/Puaze” (“Start/Pause”) button:
the corresponding light stops flashing and drying
starts. Only the light “Drogen” (“Drying”)
remains lit. If you have selected the delayed
start, the machine begins its countdown.
If the programme selector dial is turned to another
position, when the machine is running, the buzzer
will sound, the programme phase indicator lights
will flash and Err appears on the display.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
P1108
P1149
cooling phase (light “Afkoelen” (“Cooling”) is on).
You may remove the laundry after this phase.
The lights “Einde” (“End”), “Pluizenfilters”
(“Filter cleaning”) and “Waterhouder” (“Water
reservoir full”) illuminate.
The display shows a static zero and the buzzer sounds.
9. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing
phase (duration: 30 minutes maximum).
If you do not remove the laundry, the dryer will stop
automatically at the end of the anti-creasing phase.
Lights “Einde” (“End”), “Pluizenfilters” (“Filter
cleaning”) and “Waterhouder” (“Water reservoir
full”) remain lit and the buzzer sounds every 10
seconds for 2 minutes.
The light of the Start/Ppauze button goes off and
a flashing zero appears on the display.
10. Turn the programme selector dial to “UIT”; all
the lights go out. The appliance is switched off.
Remove the laundry.
If you open and then close the door before
turning the selector dial to “UIT” all the lights
corresponding to the phases making up the
performed programme come on and the
display shows the duration of the programme.
After each use
• Clean the filters (see page 13).
• Empty the water reservoir (see page 14).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position “Afkoelen”
(“Cooling”) and wait until the end of this cooling
phase before removing the laundry. This will avoid a
build-up of heat inside the appliance.To do this first
turn the dial to “UIT” and then to “Afkoelen”
(“Cooling”) and depress Start/Pauze button.
Modifying the programme
To change a programme which is running, first
cancel it by turning the programme selector dial to
“UIT”. Select the new programme and press the
Start/Pauze button.
125980810 gb.qxp 2005-01-24 07:21 Page 11

12
Useful hints
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet 700 - 1000 g
Tablecloth 400 - 500 g
Kitchen towel 70 - 120 g
Table napkin 50 - 100 g
Towelling hand towel 150 - 250 g
Bathrobe 1000 - 1500 g
Man’s shirt 200 - 300 g
Pillowcase 100 - 200 g
Man’s pyjamas 400 - 500 g
Ladies’ nightdress 200 - 250 g
• Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar
to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the
fluff.
• The laundry must be thoroughly spun before
tumble drying.
•Easy-care items, too, e.g. shirts, should be
briefly pre-spun before drying (depending on
crease resistance approx. 30 seconds or using the
special brief spin programme of your washing
machine).
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• You can also put starched items into your dryer.
However, to achieve the desired starched effect,
choose the programme “iron dry”. To remove any
starch residues, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
• To avoid a static charge when drying is
completed, use either a fabric softener when you
are washing the laundry or a fabric conditioner
specifically for tumble dryers.
• Remove the laundry when the dryer has finished
drying.
• If individual items are still damp after drying, set a
brief post-drying time, but at least 30 minutes.
This will be necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
125980810 gb.qxp 2005-01-24 07:22 Page 12

ENGLISH
13
Maintenance and Cleaning
After a while, a withish patina due to detergent
residue on laundry forms on the filters. When this
occurs, clean the filters with warm water using a
brush. Remove the filter in the door opening as per
picture (it can be positioned with the tooth facing to
the left or to the right).
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the condenser when light “Condensor”
comes on.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door,
push the catch as per picture.
During the drying cycle or at the end, it is normal for
water to be present on the surface of the condenser
insertion.
To pull out the condenser, first turn the two red
stops downwards and then remove the condenser
unit holding it at the handle.
P1155
P1154
P1153
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1152
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned
at the end of each programme, before removing
the laundry, with a damp cloth.
The light “Pluizenfilters” is on to remind you this
operation.
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All
fabric loses fluff when drying but it goes un-noticed
in the air. In a tumble dryer it simply collects in the
filter.
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1151
P1110
AUTOREVERSE
kg 5
kg 2,5
800 / 900
70' - 90'
35' - 50'
1000 / 1200
65' - 85'
30' - 45'
800 / 900
80' - 100'
55' - 70'
1000 / 1200
75' - 95'
50' - 65'
650
50' - 60'
30' - 35'
kg 2,5
kg 1
P1150
125980810 gb.qxp 2005-01-24 07:22 Page 13

14
Clean it with a brush and rinse it under the shower if
necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops upwards
and close the door.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the
machine is next used. The pilot light“Waterhouder”
reminds you this operation.
Proceed as follows:
•Pull out the reservoir
•Turn it upside down and let water flow down
•Re-fit the reservoir
The reservoir must be re-inserted correctly.
If this is not done the pilot light “Waterhouder”
comes on during next drying and the programme
stops, leaving the laundry damp. The buzzer will
sound.
After emptying and inserting the reservoir the
START/PAUZE-button has to be depressed again to
allow the programme to continue
P1157
P1156
P0639
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it turns out
either too dry or too damp, we advise you to clean
the inside of the drum with a cloth soaked with
vinegar.
This will eliminate the slight patina that has formed
in the drum (due to residues of detergent and
softeners used in the washing, and to the lime
contained in the water), which prevents the probes
from detecting the correct degree of dryness.
P1162
125980810 gb.qxp 2005-01-24 07:22 Page 14

ENGLISH
15
Something not working?
If, after the above checks, there is still a fault, call
your local Service Centre.
Please make sure you give the model and serial
number of the appliance.
Before contacting your local Service Centre, please make the following checks.
Important!
If light flashes, the buzzer sounds and an alarm code is displayed, switch the machine off and call the
Service Centre.
Problem Possible cause
• The dryer does not work: • The door(s) is(are) open.
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The water reservoir is full or not correctly inserted
(light “Waterhouder” is on). The programme starts in
any case but it stops after approx. 4 minutes
• The start button START/PAUZE has not been
depressed.
• The DELAYED START option has been selected.
• The dryer does not dry properly: • The filters are clogged.
• The condenser is clogged.
• The water reservoir is full.
• The selected cycle is not suitable for the laundry.
• Insufficient drying time.
• The laundry has not been spun properly.
• The low temperature function has been selected.
• Excessive laundry load.
• The dryer is not correctly installed.
This information can be found on the rating plate
(see picture on page 4).
125980810 gb.qxp 2005-01-24 07:22 Page 15
