Electrolux TE1220E User manual

User manual
Tumble dryer
TE1220E
0180500988/EN-1
Original instructions 2019.9.16

Contents
Contents
1 Safety Precautions.........................................................................................................................................5
1.1 General safety information...................................................................................................................7
1.2 Commercial use only...........................................................................................................................7
1.3 Symbols...............................................................................................................................................7
2 Program description.......................................................................................................................................7
2.1 General................................................................................................................................................7
2.2 Control panel illustration......................................................................................................................8
2.3 Program description............................................................................................................................8
2.4 Program running description ...............................................................................................................9
3 Handling.........................................................................................................................................................9
3.1 Load.....................................................................................................................................................9
3.2 How to startthe machine .....................................................................................................................9
3.2.1 Select program..........................................................................................................................9
3.2.2 Show program drying time on the display.................................................................................9
3.3 Press start button .............................................................................................................................. 10
3.4 When program has ended.................................................................................................................10
4 Error codes ..................................................................................................................................................10
5 Maintenance................................................................................................................................................11
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
The machine is not to be used if industrial chemicals have been used for
cleaning.
Do not dry unwashed items in the machine.
Items that have been soiled with substances such as cooking oil, ace-
tone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with an extra amount of de-
tergent before being dried in themachine.
Items such as foam rubber (latex foam), shower caps, waterproof tex-
tiles, rubber backed articles andclothes or pillows fitted with foam rubber
pads should not be dried in the machine.
Fabric softeners or similar products should be used as specified bythe
fabric softener instructions.
The final part of a drying cycle occurs without heat (cool down cycle) to
ensure that the items are left at a temperature that ensures that the items
will not be damaged.
Remove all objects from pockets such as lighters and matches.
WARNING. Never stop the machine before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is
dissipated.
Adequate ventilation has to be provided to avoid the back flow of gases
into the room for appliances burning other fuels, including open fires.
Exhaust air must not be discharged into a flue which is used for exhaust-
ing fumes from appliances burning gas or other fuels.
The machine must not be installed behind a lockable door, a sliding door
or a door with a hinge on the opposite side to that of the machine in such
a way that a full opening of the machine is restricted.
If the machine has a lint trap this has to be cleaned frequently.
The lint must not be accumulated around the machine.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out onlybyauthorized personnel.
Only authorized spare parts shall beused.
When performing service or replacing parts, the power must be
disconnected.
Whenthe power is disconnected, the operator must see that themachine
is disconnected (that the plug is removed and remains removed) from
any point to which he has access. If this is not possible, due to the

6 User manual
construction or installation of themachine, a disconnection with a locking
system in the isolated position shall be provided.
In accordance with the wiring rules: mount a multi-pole switch prior to the
machine to facilitate installation and serviceoperations.
The openings in the base, shall not be obstructed by a carpet.
Maximum mass of dry cloth: 12kg.
A-weighted emission sound pressure level at working stations: 68 dB(A).
Additional requirements for the following countries; AT,BE, BG, HR, CY
CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV,LT,LU, MT, NL, NO, PL,
PT,RO, SK, SI, ES, SE, CH, TR, UK:
• The appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and under-
stand the hazards involved. Children shall not play with theappliance.
Cleaning and user maintenance shall not be made by children without
supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experi-
ence and knowledge, unless they have been given supervision or in-
struction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with theappliance.

User manual 7
1.1 General safety information
In order toprevent damage to the electronics (and other parts) that may occur as theresult of condensation, thema-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine covered by this manual is made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine
2 Program description
2.1 General
The machine is equipped withfour programs adapted to the range of use to which themachine is intendeddifferent
marketsuse different programs. Thefollowing program description is a short description of some examplesof pro-
grams that can beused.
It is recommended to follow the care labelling of the garment as far as possible.
For best possible drying result it is advisable to dry garments of the same quality for each drying cycle.
Note!
Do not tumble dry wool or silk.

Program selection buttons
Start Button
Display
8 User manual
2.2 Control panel illustration
The display control panel allows the selection of the main drying programs.
The panels consist of program selection buttons (A), a start button (B) and a display (C) which
shows the price for each program and the drying time designated for each program.
Explanation of the control panel.
A –Program selection buttons
B –Start Button
C –Display indicating program time and price of the programs
2.3 Program description
There are four types of programs: high/medium/low/no heating temperature programs.
The following table shows some examples of available programs and a short description of those:
Programs
Description
Cotton and terry. high temperature
The program will stop when the time is up.
Cotton and terry. medium temperature
Theprogram will stop when the time is up.
Synthetic(exampleofsyntheticfabrics:polyester, polyamide,polyacrylicand elastan),viscose,polycotton and
delicate fabrics.low temperature
The program will stop when the time is up.
Airing bedspreads, duvets and bedclothes. no heating temperature
The program will stop when the time is up.

User manual 9
2.4 Program running description
The machine is equipped with four programs adapted to the range of use to which the machine is intended.
The machine offers four standard drying programs. Detailed descriptions of these procedures are
given in Chapter 2.2. For coin operated machines, “Price per program”, “Time for each program”,
and “Time for additional coin(s) or press” settings can be assigned to each program individually.
High, Medium, and Low drying programs are divided into two segments: a Heating period and a Cool Down
period. Drying time and temperature settings for each program can be adjusted with the service menu
registers. Heating and Cool Down times can also be adjusted using the registers in the service menu. During
heating, the display shows “d xx” where “xx” are the remaining drying time minutes. During cool down the
display shows “c xx” where xx is the remaining cool down time. The program stops at “c 00.”
3 Handling
3.1 Load
Load the goods into the machine according to recommendations and close the door.
Make sure the filter compartment is clean and clean if necessary.
The maximum load is 12 kg.
3.2 How to start the machine
3.2.1 Select program
Select program by pressing one of the four buttons which are shown by A.
3.2.2 Show program drying time on the display
There are two operation modes for the dryer to show program drying time on the display.
One is the free dry mode (OPL Mode), and the default mode of the dryer is OPL.The program operates
in “Time per push mode” (OPL mode).In this mode, each time a program button is pressed, the remaining time is
incremented. In any case the displayed remaining dryer time shall not be greater than the “Max drying time” for
that program.
The other one is coin meter operation mode, for this mode need insert correct amount of coins to start the machine .
After start it is possible to add time for the selected program. Insert more coins to add time.
The maximum accumulated time for one cycle is 90minutes. For example, If the program is selected for 90 minutes
at the beginning, inserting more coins can not add any time, if the program is selected for 60 minutes at the beginning,
the maximum increased time is 30 minutes, the total accumulated time is 90minutes.

10 User manual
3.3 Press Start Button
Press B button to start one of the program described above in Program Description.
3.4 When program has ended
Note!
For the best possible drying result it is important to empty the machine as soon as the program has ended.
Clean the line debris filter compartment after each drying cycle for best performance.
4 Error codes
Faults/errors in the program or machine are indicated by a numerical error code on the panel
display. Some error codes（Er01, Er02, Er28）are cleared automatically when the Start button is
pressed or when the door is opened. Er14 can be cleared automatically when the power cut off, but
if you find the load in the drum is still wet when the PCB display Er14, you have to contact local
service technician.For other error codes, a service technician must be called.
Error Code Cause / Action
Er00 Machine out of operation.
Er01 Inlet air temperature limit exceeded.
Er02 Outlet air temperature limitexceeded.
Er03 Inlet thermistor short circuit.
Er04 Outlet thermistor short circuit.
Er14 Heating not working or the clothes is too dry for a longtime.
Er17 Inlet thermistor open circuit.
Er18 Outlet thermistor open circuit.
Er28 Inlet air temperature exceeded during previous cycle.

User manual 11
5 Maintenance
General
It is the responsibility of the owner of the machine/the laundry manager tomake sure that maintenance is periodically
performed.
Note!
Lack of maintenance may deteriorate the performance of the machine and may cause damage to components.
Cleaning
A program and/or schedule should be established for periodic inspection, cleaning, and removal of
lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of
Cleaning can best be determined from experience at each location. Maximum operating efficiency is
dependent upon proper airflow. The accumulation of lint can restrict this airflow.
•Clean the lint screen after each load.
Weekly or 50 hours

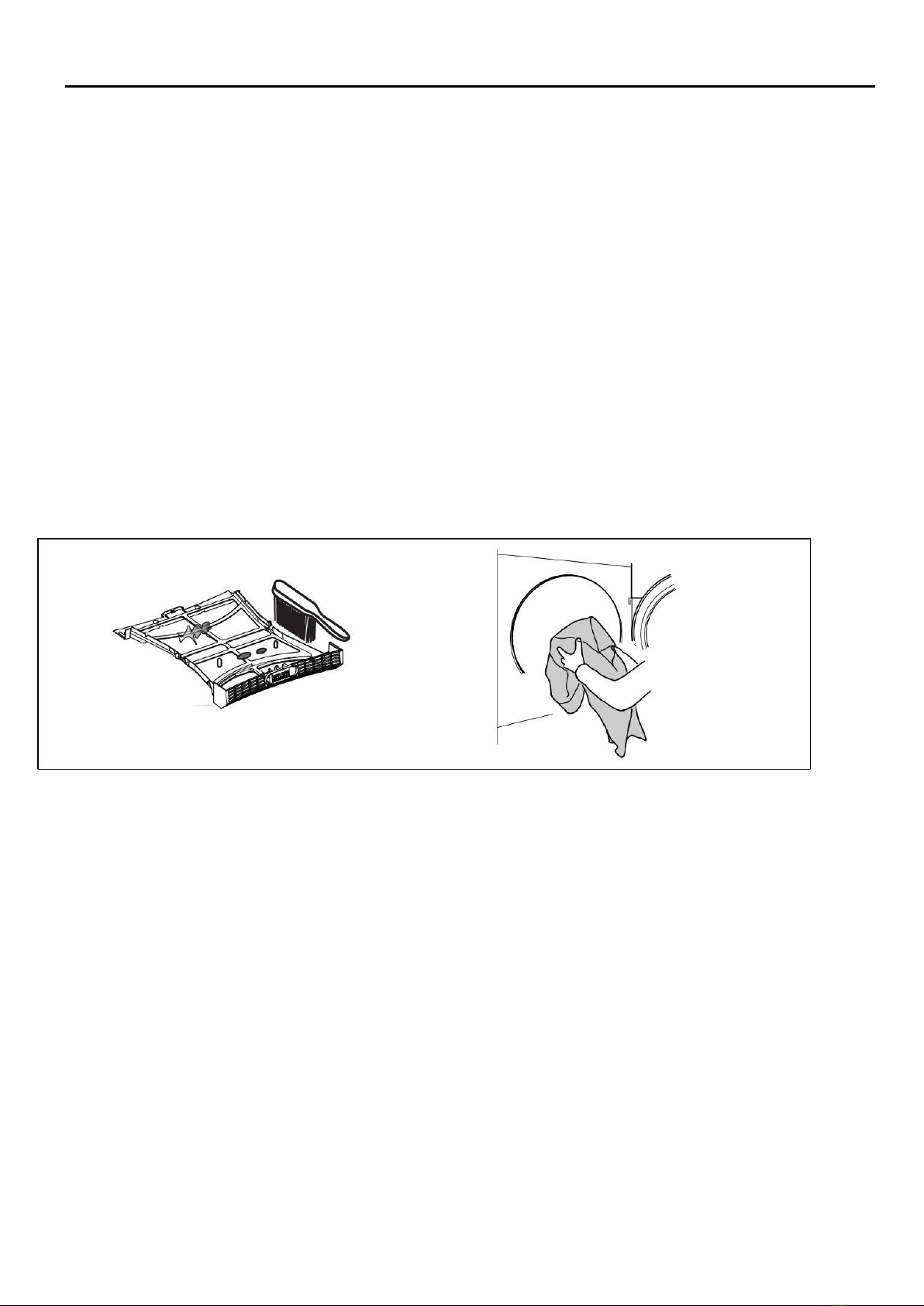

•Clean lint accumulation from lint chamber, and temperature sensor NTC1 area.
•Clean the door gasket.
•Use a soft wash cloth and mild detergent toc leandoor.
Every Three Months or 500 hours
•Disconnect Power.

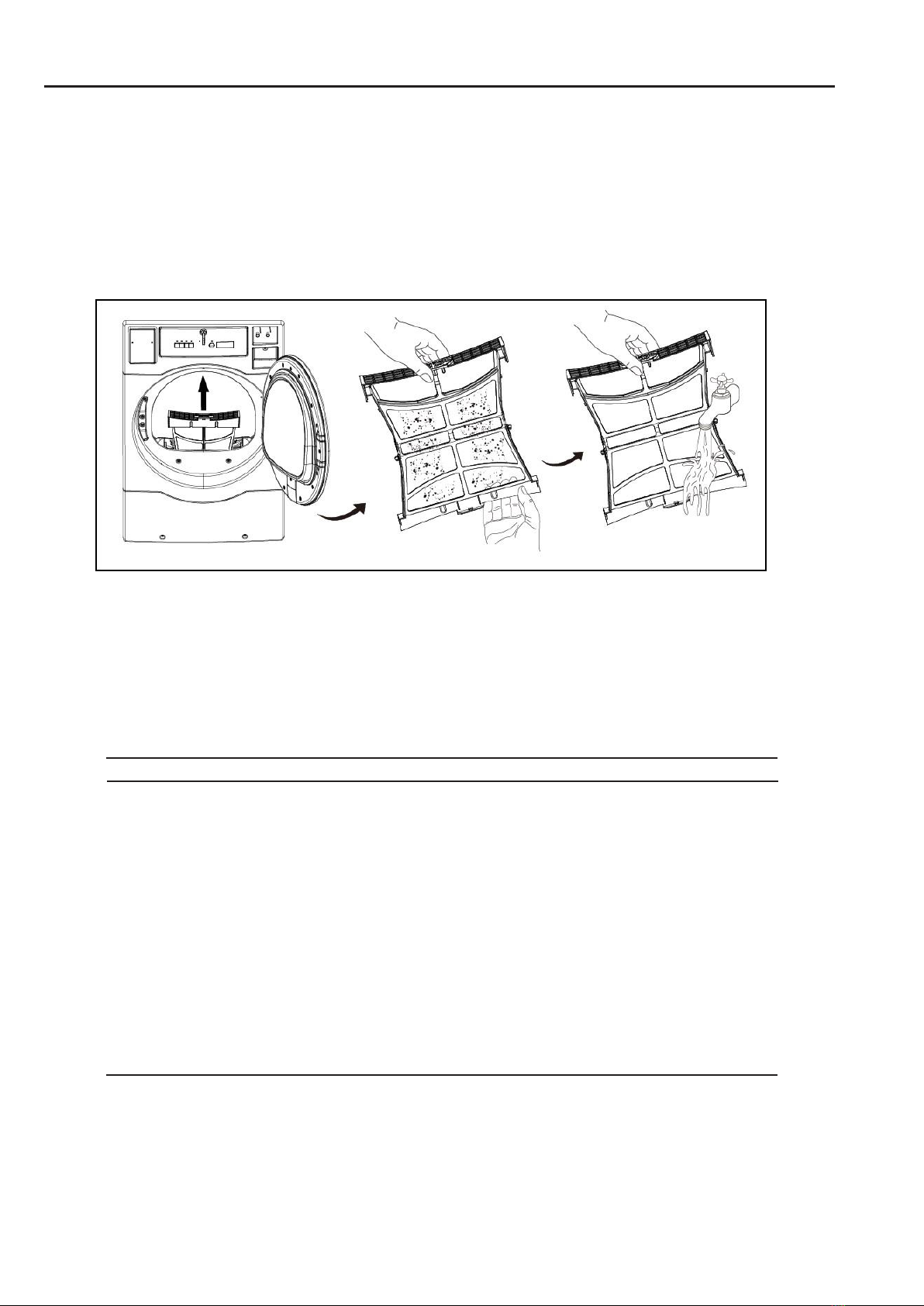

•On removing the lint filter from the lint compartment, clean lint in the lint compartment.
•Check to clear any accumulated lint around NTC1 (See Imagebelow)
•Clean any lint accumulation in and around the motor(s) casing opening.
NTC1

12 User manual
Every 6 Months or 1000 hours (Refer this service to qualified personnel)
•Inspect and remove lint accumulation external exhaust ductwork and from dryer’s internal
exhaust ducting.
•The accumulation of lint in the exhaust ductwork can create a potential fire hazard.
•Do not obstruct the flow of combustion and ventilation air. Check back draft dampersin
the exhaust ductwork. Inspect and remove any lint accumulation, which can cause the
damper to bind or stick. Obstructed ducting leads to longer drying times, higher energy
consumption and reduced motor life
•If ducting is highly obstructed with lint change to a shorter service interval such as every
three months.
•A back-draft damper that is sticking partially closed can result in slow drying and the
shutdown of heat circuit safety switches or thermostats.
•When cleaning the dryer cabinet, avoid using cleaners with harsh abrasives. A product
intended for appliance cleaning is recommended.
Every 12 Months or 2000 hours
•A competent service professional should inspect bolts, nuts, screws, setscrews,grounding
•Belts should be examined. Cracked or seriously frayed belts should bereplaced.
•Complete an operational check of controls and valves.
•Complete an operational check of all safety devices (lint switch, door switch).
To be carried out by

Electrolux Professional
Viale Treviso 15-33170Pordenone
Italy
Share more of our thinking at http://professional.electrolux.com
