Welcome to the world of Electrolux
Thank you for choosing a first class product from
Electrolux, which hopefully will provide you with lots of
pleasure in the future. The Electrolux ambition is to
offer a wide variety of quality products that make your
life more comfortable. You find some examples on
the cover in this manual. Please take a few minutes
to study this manual so that you can take advantage
of the benefits of your new machine. We promise that
it will provide a superior User Experience delivering
Ease-of-Mind. Good luck!
GB

4 contents electrolux
Contents
Safety information..............................5
Product description ...........................7
Control panel.....................................7
Use....................................................8
Drying rack ......................................12
Drying hints ................................13-14
Drying programme .....................15-16
Programme information ...................17
Care and cleaning ......................18-20
Something not working ..............21-23
Technical data .................................24
Consumption values ........................25
Installation ..................................26-27
Environment concerns.....................28
Guarantee conditions ......................29
Customer service centres ................30
The following symbols are used in this manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information

safety information electrolux 5
Safety Information
In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and safety.
General safety
• It is dangerous to alter the specifications
or attempt to modify this product in any
way.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or lack of experience
and knowledge, unless they have been
given supervision or instruction concern-
ing use of the appliance by a person
responsible for their safety.
• Make sure that small pets do not climb
into the drum. To avoid this, please check
into the drum before using.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive dam-
age and must not be placed into the
machine.
• In order to avoid danger of fires caused
by excessive drying, do not use appliance
to dry the following items: Cushions, quilts
and the like (these items accumulate
heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fit-
ted with foam rubber pads should not be
dried in the tumble dryer.
• Always unplug the appliance after use,
clean and maintenance.
• Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced per-
sons may cause injury or serious malfunc-
tioning. Contact your local Service Centre.
Always insist on genuine spare parts.
• Items that have been soiled with sub-
stances such as cooking oil acetone,
petrol, kerosene, spot removers, turpen-
tine, waxes and wax removers should be
washed in hot water with an extra amount
of detergent before being dried in the
tumble dryer.
• D
Da an ng ge er ro of fe ex xp pl lo os si io on n: Never tumble dry
items that have been in contact with
inflammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like). As
these substance are volatile, they could
cause an explosion. Only tumble dry items
washed with water.
• R
Ri is sk ko of ff fi ir re e: items that have been spotted
or soaked with vegetable or cooking oil
constitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with
stain remover you must execute an extra
rinse cycle before loading your tumble
dryer.
• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments to be loaded into
appliance
W
WA AR RN NI IN NG G! !
N
Ne ev ve er rs st to op pa at tu um mb bl le ed dr ry yb be ef fo or re et th he ee en nd do of f
t
th he ed dr ry yi in ng gc cy yc cl le eu un nl le es ss sa al ll li it te em ms sa ar re eq qu ui ic ck kl ly y
r
re em mo ov ve ed da an nd ds sp pr re ea ad do ou ut ts so ot th ha at tt th he eh he ea at ti is s
d
di is ss si ip pa at te ed d. .
R
RI IS SK KO OF FF FI IR RE E! !
GB

6electrolux safety information
I
In ns st ta al ll la at ti io on n
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check
that it is not damaged. If in doubt, do not
use it and contact the Service Centre.
• All packing and transit bolts must be
removed before use. Serious damage can
occur to the product and to property if
this is not adhered to. See relevant sec-
tion in the user manual.
• The final part of a tumble dryer cycle
occurs without heat ( cool down cycle ) to
ensure that the items are left at a temper-
ature that ensures that items will not be
damaged.
• Any electrical work required to install this
appliance should be carried out by a qual-
ified electrician or competent person.
• Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
• If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely.
• After having installed the appliance, check
that it is not pressing or standing on its
electrical supply cable.
• If the tumble dryer is placed on top of a
washing machine, it is compulsory touse
the stacking kit (optional accessory).
U
Us se e
• This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was
designed.
• Only wash fabrics which are designed to
be machine dried. Follow the instructions
on each garment label.
• Do not dry unwashed items in the tumble
dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should
not be placed in the dryer.
• Garments which have been in contact
with volatile petroleum products should
not be machine dried. If volatile cleaning
fluids are used, care should be taken to
ensure that the fluid is removed from the
garment before placing in the machine.
• Never pull the power supply cable to
remove the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power
supply cable, the control panel, the work-
ing surface or the base are damaged so
that the inside of the tumble dryer is
accessible.
• Fabric softeners, or similar products
should be used as specified by the fabric
softener instructions.
C
Ch hi il ld ds sa af fe et ty y
• This machine is not intended for use by
young children or infirm persons without
supervision.
• Children should be supervised to ensure
that they do not play with the appliance.
• The packaging components (e.g. plastic
film, polystyrene) can be dangerous to
children - danger of suffocation! Keep
them out of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not
climb into the drum.

product description/Control panel electrolux 7
Product description
Control panel
Drum Light
Fluff filters
Rating Plate
Condenser unit
Water reservoir
Adjustable feet
Rack
8
7
6
5
4
3
2
1
1
3
2
4
5
6
7
8
Control panel
Programme selector dial
Delicate button
Buzzer button
Dryness button
Time button
5
4
3
2
1
126
3458
7
9
Delicado Alarma
Inicio Diferido
Inicio/Pausa
G. Secado Tiempo Kit
Sintéticos
Seco Plancha
Mix
Extra Seco
Seco Armario
Algodón
Extra Seco
Seco
Seco Armario
Seco Plancha
Tiempo
Fácil Plancha
Vaqueros
Aireación
Especial
Lana
Sport
kit Secado
Start/Pause button
Delay button
Indicator lights
Display
9
8
7
6
GB

8electrolux use
Use
First Use
●Ensure that the electrical connections
comply with the installation instructions.
●Remove the polystryrene block and
any material from the drum.
●Before using your tumble dryer for
the first time, werecommend that you
to place a few damp clothsinside the
appliance and dry for 30 minutes.
There may be dust inside a brand
new tumble dryer.
Daily Use
Load the laundry

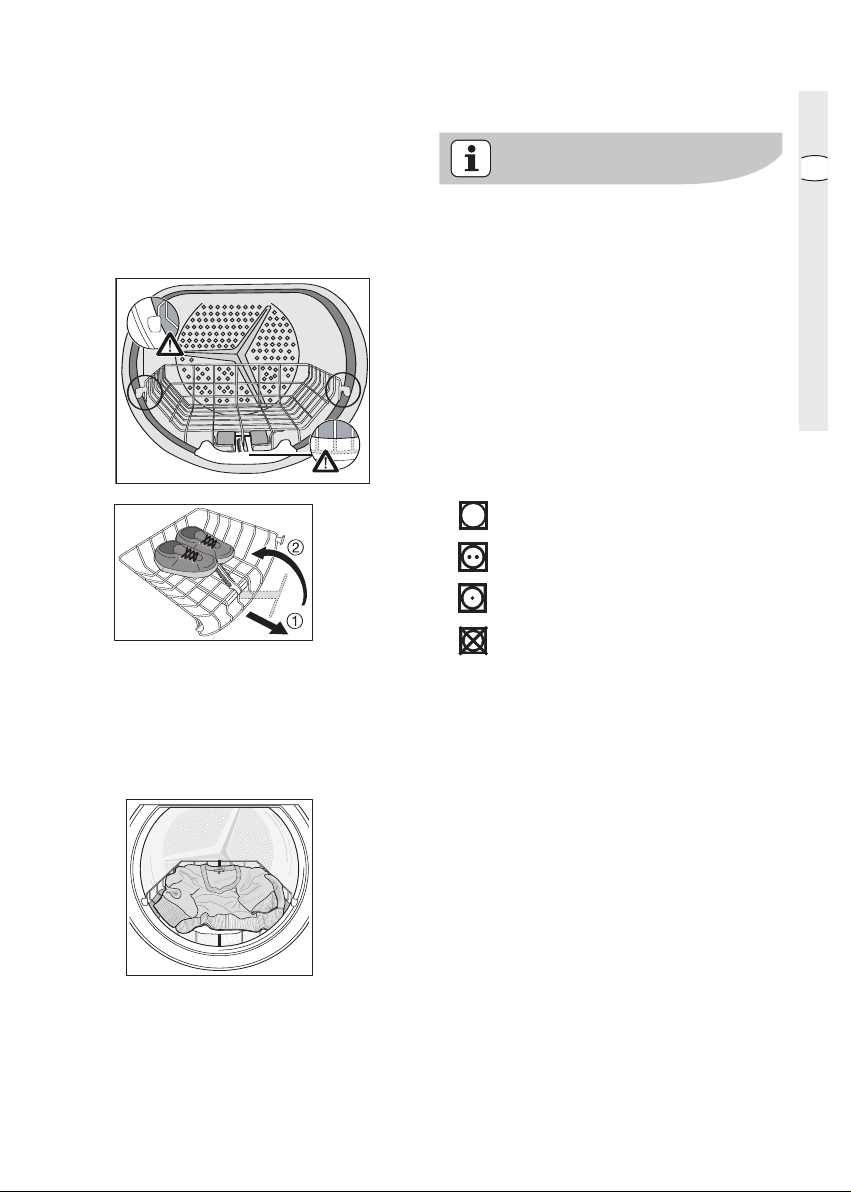

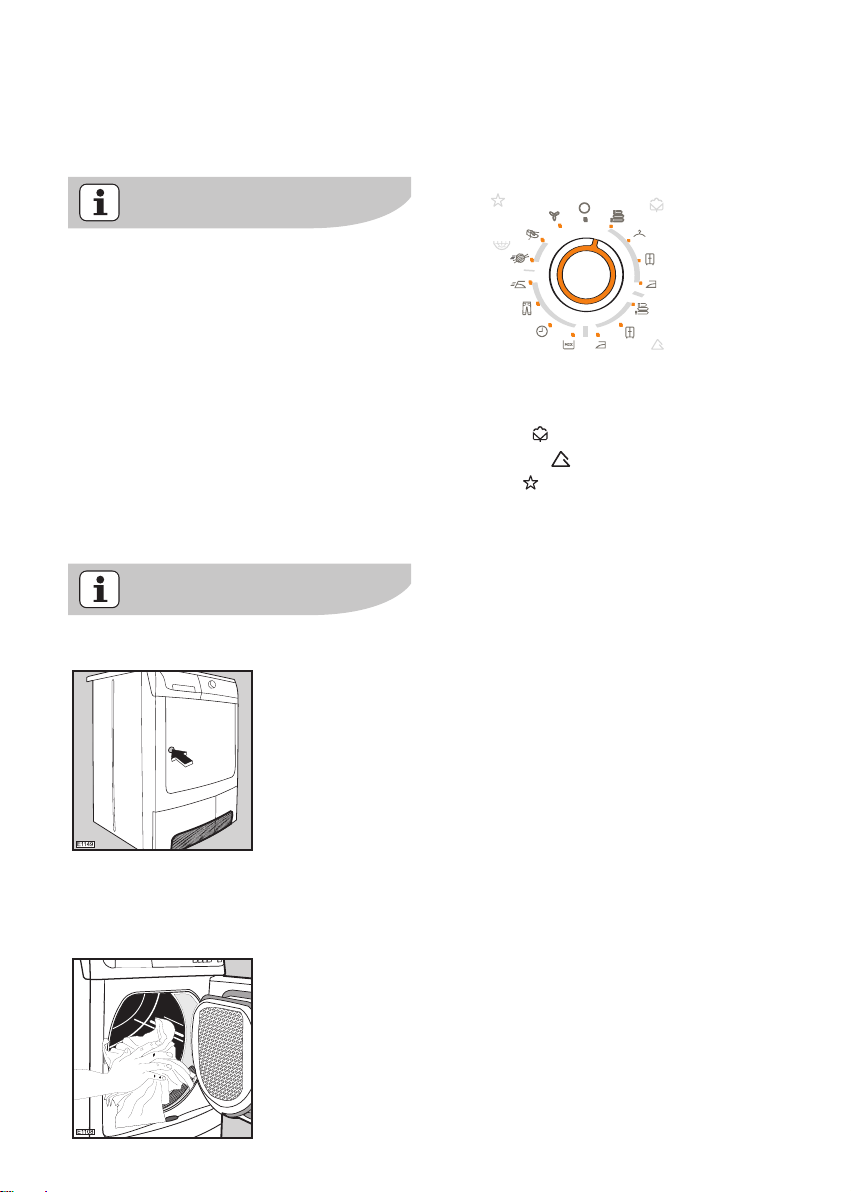

Connect the appliance. Open the door
(see picture).
Place the laundry in the drum, one item at a
time, shaking them out as much as possible.
Close the door. Please check the laundry does
not get caught between the door and filter.
Select the required programme
Turn the programme selector dial to the
required programme.
The light Start/Pause starts to flash.
The selector dial is divided into following
sections:
 Cottons
 Synthetics
 Special
Allows you to select electronically
controlled or time controlled drying. Turn
the dial to the required programme or time.
E
El le ec ct tr ro on ni ic ca al ll ly yc co on nt tr ro ol ll le ed dd dr ry yi in ng g( (a au ut to om ma at ti ic c) )
The appliance runs these programmes
with the help of probes which detect the
degree of dampness of the laundry.
Simply select the programme according
to the type of laundry and degree of
drying required. The selector dial can be
turned either clockwise or anticlockwise.
At the end of the programme the
selector dial must be turned to
position O, to switch the machine off.
Attention!
If you turn the programme selector dial
to another programme when the machine is
working, the lights of the programme progress
display start to flash. The machine will
not perform the new selected programme.

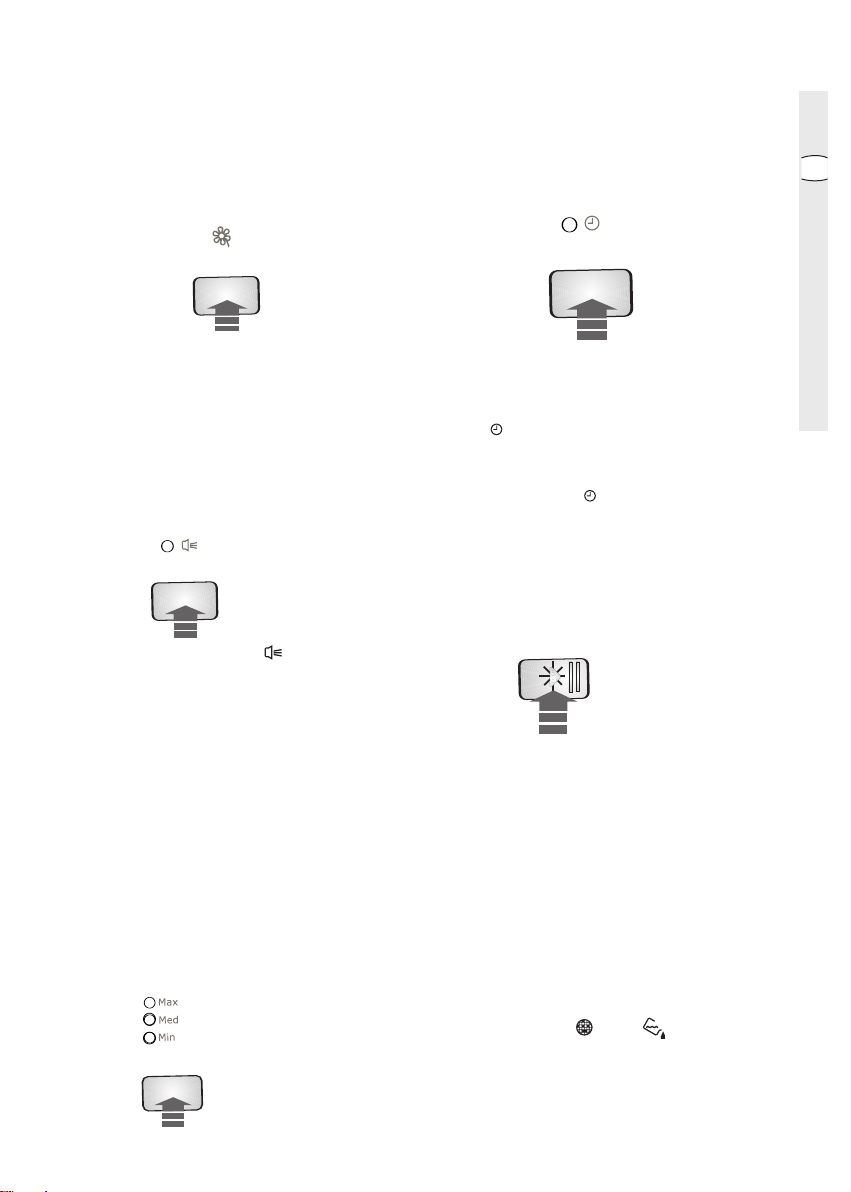

Programme Option buttons
Depending on the programme, different
functions can be combined. These must
be selected after choosing the desired
programme and before depressing the
Start/Pause button. When these buttons
are pressed, the corresponding pilot lights
Sintéticos
Extra Seco
Seco Armario
Seco Plancha
Algodón
Extra Seco
Seco
Seco Armario
Seco Plancha
Tiempo
Mix
Fácil Plancha
Vaqueros
Aireación
Especial
Lana
Sport
kit Secado

use electrolux 9
come on. When they are pressed again, the
pilot lights go out.
Select Delicate
Pressing this button allows drying to be
performed at a lower temperature, for
delicate items.
The corresponding pilot light comes
on. This option can also be used for
time controlled drying.
DELICATE is only suitable for use with
loads of up to 3kg!
Select the Buzzer
When the drying cycle has finished, an
intermittent audible signal will sound.
By depressing button the acoustic
signal is switched off in the following cases:
•when selecting the programme
•when depressing the buttons
• when the programme selector dial is
turned to another position during the
programme or when you depress an
option button during the cycle
•at the end of the programme.
The corresponding light comes on
Select the Dryness
Press the Dryness button repeatedly, to
select the desired option. The relevant
light will light up. Laundry becomes
dryer from MIN to MAX.
G. Secado
Alarma
Delicado
When the programme has finished the
pilot lights End is on.
Time button
To select the programme duration after set-
ting the TIME (Tiempo Kit) programme.
You can select a programme duration
from 10 mins to 3 hrs in 10- minute steps.
1. Turn the programme knob to the
TIME programme. The display will
show 0.10 (corresponding to the
COOLING programme).
2. Press the TIME button repeatedly until
the desired programme duration is shown in
the display, e.g. 00.20 for a programme of
20 minutes. If the programme duration is not
selected, the duration is automatically set to
10 mins.
Select the Start/Pause
Press this button to start the dryer after
having selected the programme and
the options. The relevant light will stop
flashing. If the programme selector dial
is turned to another position, when the
machine is running, the buzzer will
sound and the programme phase indicator
lights will flash. The drum turns alternately
in both directions during drying.
All drying programmes end with a 10 minute
cooling phase (light Cooling is on). You may
remove the laundry after this phase.
The display t will show the symbol Long
Anticrease, and and illuminate
and the buzzer sounds
I
If ft th he ed do oo or ro of ft th he ea ap pp pl li ia an nc ce eo or rt th he es sm ma al ll l
d
do oo or ra at tt th he eb bo ot tt to om mi is so op pe en ne ed dw wh hi il le et th he e
p
pr ro og gr ra am mm me ei is sr ru un nn ni in ng g, ,t th hi is sb bu ut tt to on nm mu us st t
Inicio/Pausa
Tiempo Kit
GB

10 electrolux use
b
be ep pr re es ss se ed da ag ga ai in na af ft te er rc cl lo os si in ng gt th he ed do oo or r
i
in no or rd de er rt to or re es st ta ar rt tt th he ep pr ro og gr ra am mm me ef fr ro om m
t
th he ep po oi in nt ta at tw wh hi ic ch hi it tw wa as si in nt te er rr ru up pt te ed d. .
T
Th hi is sb bu ut tt to on nm mu us st tb be ed de ep pr re es ss se ed da al ls so o
a
af ft te er ra ap po ow we er rf fa ai il lu ur re ea an nd da af ft te er rh ha av vi in ng gr re e- -
i
in ns se er rt te ed dt th he ew wa at te er rr re es se er rv vo oi ir r, ,i if fi it th ha as s
b
be ee en ne em mp pt ti ie ed di in nt th he em mi id dd dl le eo of fa ap pr ro o- -
g
gr ra am mm me ea af ft te er rl li ig gh ht ti in ng gu up po of fl li ig gh ht t.
.
In both cases the light of the Start/Pause
button flashes to remind you that the
start button needs to be pressed again.
Select the Delay Start
With the DELAY button, you can delay the
start of a programme by between 30 min-
utes (30' and a maximum of 20 hours (20H).
1.Select the programme
2.Press the DELAY button as many times as
necessary until the required start delay
appears on the multi display, e.g. 12H if the
programme is to be started in 12 hours.
3 If 20H is displayed and you press the but-
ton again, the time delay will be cancelled.
The display will show 0' and then the dura-
tion of the selected programme.
3.To activate the delay timer, press the
START/PAUSE button. The amount of
time remaining until the programme is set to
start is continuously displayed (e.g. 12H,
11H, 10H, … 30' etc).
If you wish to add some laundry while the
machine is performing the countdown, after
having done so and having closed the door,
press START/PAUSE again, in order to allow
the machine to complete the remaining
countdown time.
Display
The display shows the following information:
D
Du ur ra at ti io on no of fs se el le ec ct te ed dp pr ro og gr ra am mm me e
After you have selected the programme,
its duration (in hours and minutes) appears
Inicio Diferido
on the display. It is calculated automatically
on the basis of the maximum load accepted
for each type of fabric and of the required
degree of drying.
When the programme starts, the remaining
time is displayed every 5 minutes.
D
De el la ay ye ed ds st ta ar rt t
If you have selected a delay time by means
of the relevant button, the display shows it
for 3 seconds; then it shows the duration
of the previously selected programme. The
countdown is displayed every 30 minutes
until it displays “90 minutes” and then hour
by hour.
E
En nd do of fp pr ro og gr ra am mm me e
A flashing zero indicates the end of the
programme and it is displayed after the
“anticreasing” phase.
I
In nc co or rr re ec ct to op pt ti io on ns se el le ec ct ti io on n
If you select an option that is not compatible
with the programme you have selected,
the display shows Err (error).
This code will reappear during the execution of
the programme if you press one of the option
buttons or turn the programme selector.
A
Al la ar rm mc co od de e
In case of a functional anomaly, the display
0.00
3
1.20

use electrolux 11
shows an alarm code (e.g. E21).
“
“D Dr ry yi in ng g” ”
This symbol appears on the dispay that
the appliance is in the drying phase.
“
“C Co oo ol li in ng g” ”
This symbol appears on the dispay that
the appliance is in the cooling phase.
At the end of drying, there is a 10 minute
cooling phase to cool the laundry.
“
“A An nt ti ic cr re ea as se e” ”
This symbol appears on the dispay at
the end of the cooling phase, during
the anti-creasing phase and at the end
of the programme.
I
In nd di ic ca at to or rl li ig gh ht ts s
These lights indicate the following functions:
“
“W Wa at te er rr re es se er rv vo oi ir rf fu ul ll l” ”l li ig gh ht t
This light comes on at the end of the
programme to remind you that the water
reservoir must be emptied out. If this light
illuminates during a programme this means
that the water reservoir is full. The buzzer
sounds, the programme stops, the light of
the Start/Pause button flashes.
“
“F Fi il lt te er rc cl le ea an ni in ng g” ”l li ig gh ht t
It comes on every 80 cycles to remind you
that the condenser must be cleaned.
“
“C Co on nd de en ns se er rc cl le ea an ni in ng g” ”l li ig gh ht t
This light illuminates at the end of the
programme to remind you that the
filters must be cleaned.
At the end of the programme
All drying programmes end with a 10
minute cooling phase.
You may remove the laundry after this
phase. The lights and , and illu-
minate.
E.27
The display shows a static zero. If the laun-
dry is not removed at the end of the cycle,
the dryer performs an a
an nt ti i- -c cr re ea as si in ng gphase
(duration: 30 minutes maximum).
If you do not remove the laundry, the
dryer will stop automatically at the end of
the anti-creasing phase.
Lights and remain lit and the
buzzer sounds for 2 minutes.
If you do not intend to carry out another
wash, close the water tap. Leave the
door open to prevent the formation of
mildew and unpleasant smells.
Turn the programme selector dial to “
“O O” ”
to switch the machine off. Remove the
laundry from the drum and carefully
check that the drum is empty. The appli-
ance is switched off.
Remove the laundry.
I
If fy yo ou uo op pe en na an nd dt th he en nc cl lo os se et th he ed do oo or rb be ef fo or re e
t
tu ur rn ni in ng gt th he es se el le ec ct to or rd di ia al lt to o“ “O O” ”a al ll lt th he el li ig gh ht ts s
c
co or rr re es sp po on nd di in ng gt to ot th he ep ph ha as se es sm ma ak ki in ng gu up p
t
th he ep pe er rf fo or rm me ed dp pr ro og gr ra am mm me ec co om me eo on n. .
A
Af ft te er re ea ac ch hu us se e
• Clean the filters.
• Empty the water reservoir.
I
Im mp po or rt ta an nt t! !
If the drying programme has to be
stopped before it reaches the end, we
recommend that you turn the pro-
gramme selector dial to position Cooling
and wait until the end of this cooling
phase before removing the laundry. This
will avoid a build-up of heat inside the
appliance.To do this first turn the dial to
“O
O” ”and then to Cooling and
depress Start button.
M
Mo od di if fy yi in ng gt th he ep pr ro og gr ra am mm me e
To change a programme which is run-
ning, first cancel it by turning the pro-
gramme selector dial to “O
O”. Select the
new programme and press the Start
button .
GB

12 electrolux drying rack
The dryer drum must be empty!
1. Open the loading door.
2.Insert the rack.
Remove the rack from the drum at the
end of drying. Lift the rack horizontally in
the drum. Guide the rack down until the
support bracket at the front rests on the
opening.
3.Place the washing on the rack:
– Spread the garment out in the rack
and roll it up, without squashing or fold-
ing it..
– Place sportshoes on the rack with the
board turned up.
I
Im mp po or rt ta an nt t: Take out the insoles and
place them beside the shoes on the
rack. Tie the shoelaces.
5. Select the required programme run
time, settable with an interval of 10 min,
from 30 min. up to 180 minutes.
Press the button as many times as
necessary until the required programme
running time is shown in the
display.
6. Press the START/PAUSE button. The
programme is startet.
7. At the end of the drying programme
open the loading door and remove the
garments or shoes.
8. Turn the programme selector to OFF.
C
Ch hi il ld ds sa af fe et ty yd de ev vi ic ce e
The child lock can be set to prevent a
programme being accidentally started
or a programme in operation being
accidentally changed. The child safety
device locks all buttons and the pro-
gramme knob. The child safety device
can be activated or deactivated by
holding down the
Dryness button - and Time button
, simultaneously for 5 seconds.
• Before programme is started:
Appliance cannot be used
• After programme is started:
Programme in operation cannot be
changed
The symbol
appears in the display to indicate that
the child safety device is activated.
The child safety device is not deactivat-
ed once the programme comes to an
end.
If you want to set a new programme,
you must first deactivate the child safe-
ty device.
For first removing of the rack. please
refer to the instructions for use.
Drying rack

Drying hints
Before loading the laundry
Never tumble dry the following:
Particularly delicate items such as
net curtains, woollen, silk, fabrics
with metal trim, nylon tights, bulky
materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather
quilts and any items containing rub-
ber foam or materials similar to rub-
ber foam.
• Always follow the instructions on gar-
ment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with
fasteners to prevent small laundry
items getting tangled inside them.
Close press studs, zips and hooks
and tie belts and apron strings.
• Sort laundry according to type and
degree of drying required.
• Do not over-dry laundry, this avoids
creasing and saves energy.
• Avoid drying dark clothes with light
coloured fluffy items such as towels
as they could attract the fluff.
• The laundry must be thoroughly spun
before tumble drying.
•E
Ea as sy y- -c ca ar re ei it te em ms s, too, e.g. shirts,
should be briefly pre-spun before
drying (depending on crease resist-
ance approx. 30 seconds or using
drying hints electrolux 13
GB

the special brief spin programme of
your washing machine).
• Knitted textiles (knitted underwear)
may shrink a little during drying.
Please do not overdry items of this
type. It is advisable to allow for
shrinkage when choosing the size of
new purchases.
• You can also put starched items into
your dryer. However, to achieve the
desired starched effect, choose the
programme “iron dry”. To remove any
starch residues, wipe out the internal
drum after drying with a moist cloth
and then rub it dry.
• To avoid a static charge when drying
is completed, use either a fabric sof-
tener when you are washing the
laundry or a fabric conditioner specif-
ically for tumble dryers.
• Remove the laundry when the dryer
has finished drying.
• If individual items are still damp after
drying, set a brief post-drying time,
but a
at tl le ea as st t3 30 0m mi in nu ut te es s. This will be
necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
Do not dry wool in the dryer. May
become entangled! After air-drying,
wool may be dried with the WOOL
CARE programme.
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.
Remove persistent stains before
washing.
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care. Remove
hooks or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in
the programme charts.
General rules:
Cotton, linen: drum full but not too
tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum
no more than one third full.
Try to load to the maximum capacity
of the machine as small loads are
uneconomical.
L
Lo oa ad d
It is often difficult to estimate the
weight of items to be dried. We
therefore recommend that you adopt
the following guidelines:
• cotton, linen: drum full but not too
tightly packed;
• synthetics: drum no more than half
full;
• delicate fabrics: drum no more than
one third full.
Laundry weights
The following weights are indicative:
1200 gbathrobe
100 gnapkin
700 gquilt cover
500 gsheet
200 gpillow case
250 gtablecloth
200 gtowelling towel
100 gtea cloth
200 gnight dress
100 gladies’ briefs
600 gman’s work shirt
200 gman’s shirt
500 gman’s pyjamas
100 gblouse
100 gmen’s underpants
14 electrolux drying hints

Drying programmes
Programme Type of
laundry Options Description of programme
Extra
Cotton and
linen G. Secado
G. Secado
Cotton and
linen
Cupboard
Cupboard
Synthetics G. Secado
Iron
Synthetics G. Secado
G. Secado
Cotton and
linen
Strong
G. Secado
Cotton and
linen
Iron
G. Secado
Synthetics
Extra
Drying thick or multi-layered textiles,
e.g. terry towelling items
Drying thick textiles, e.g. terry towelling
items, towels.
Drying textiles of even thicknesses,
e.g. terry towelling items, knitted
items, towels.
For thin textiles which are not ironed,
e.g. easy care shirts, table linen,
baby’s clothes, socks, underwear.
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
shirts.
For cotton or linen laundry which are
still to be put through a machine, e.g.
bedding, table linen.
Drying thick or multi-layered textiles,
e.g. pullovers, bedding, table linen.
Time Synthetics
Cotton
G. Secado
Cotton
Synthetics
Special
Mix
For drying individual items of laundry or for
small volumes of less than 1kg. You
can select a programme duration from
10 mins to 3 hrs in 10-minute steps.
Special programme for cotton and
easy care, which can drying together
in the same time.
drying programmes electrolux 15
GB

Drying programmes
Programme Type of
laundry Options Description of programme
Special
Jeans
Cotton
Cupboard dry G. Secado
Sweaters,
Wollen
pullover,
Skirt, Pants,
Wool
Synthetics
Special
Easy
Cotton and
linen
Synthetics
Special
Cooling
Special programme for leisure
clothing, such as jeans, sweat-shirts,
etc., of different material thicknesses
(e.g. at the cuffs and seams).
Wool is special programme for briefly
treating woollens with warm air after they
have been dried naturally, worn or stored
for long periods. Wool fibres are aligned
and the wool becomes soft and snugly.
Special programme with anti-crease
mechanism for easy care textiles such
shirts and blouses; for minimum
ironing effort. The result depends on
the type and quality of textiles. (The
loading volume corresponds to
approx. 4 to 5 shirts.)
Recommendation: Place textiles in the
dryer straight after spinning. Once
dried, immediately remove textiles and
place on clothes hanger.
Special programme, lasting around 10
minutes, for refreshing or gently cleaning
textiles with commercially available dry
cleaning sets. (Only use those products
which are declared as suitable for the
drier by the manufacturer; please observe the
manufacturer’s instructions for use.)
Max Cottons load: 7 kg
Max Synthetics load: 3 kg
Max Time load: 1 kg
Max Special Mix load: 3 kg
Max Special Jeans load: 7 kg
Shoes
Sport
shoes
For gentle drying of one pair of
sportshoes, washed and spin-dried at
1000 rpm. Programme run times:
between 30 and 180 minutes.
16 electrolux drying programmes

programme information electrolux 17
Programme information
Adjusting the level
of conductivity
Water contains, a variable quantity of limestone and mineral salts
of which quantities vary according to geographical locations thus
varying its conductivity values.
Relevant variations of the conductivity of the water compared to
those prefixed by the factory could slightly influence the residual
humidity of the laundry at the end of the cycle. Your dryer allows
you to regulate the sensitivity of the drying sensor based on
conductivity values of the water by using the following procedure.
T
To oa ac cc ce es ss sa ad dj ju us st tm me en nt tm mo od de e: :
1. Turn the programme selector dial to switch on the appliance.
2. In selection mode,press simultaneously the buttons
DRYNESS and START.
Press the buttons down until until «C0» appears on the digits.
A
Ad dj ju us st ti in ng gt th he el le ev ve el lo of fc co on nd du uc ct ti iv vi it ty y:
Press the START/PAUSE button sequentially: the level of
conductivity is indicated by the lighting of the horizontal
hyphens.
Display Conductivity Approximate value µS/cm
C
CO OLow < 300
C
CO OMedium 300-600
C
CO OHigh >600
Normally, the appliance is factory-set to the highest level;
however, certain models may be configured differently.
M
Me em mo or ri iz zi in ng gt th he en ne ew ws se et tt ti in ng g: :
Simultaneously press the buttons DRYNESS and START.
Press the buttons down until the previous drying cycle time
appears again on the display and the buzzer sounds.
O = Cancelling/OFF
To reset a programme and to switch off the machine turn
the selector dial to O. Now can a new programme be
selected.
Objective Implementation
GB

18 electrolux care and cleaning
Care and cleaning
You must DISCONNECT the appliance
from the electricity supply, before you
can carry out any cleaning or
maintenance work.
External cleaning
Use only soap and water and then dry
thoroughly.
I
Im mp po or rt ta an nt t: :do not use methylated spirit,
diluents or similar products..
Cleaning the door
Clean periodically the interior part of
the door to remove any fluff from the
seals around the filter. Accurate clean-
ing ensures correct drying.
Cleaning the filters
Your dryer will only function well if the fil-
ters are clean.
The filters collect all the fluff which
accumulates during drying and they
must therefore be cleaned a
at tt th he ee en nd d
o
of fe ea ac ch hp pr ro og gr ra am mm me e, before removing
the laundry, with a damp cloth.
The light is on to remind you this
operation.
The filter in the inner door must be
removed for cleaning.
Do not be alarmed by the amount of fluff. It
is not due to excessive wear caused by the
dryer.
All fabric loses fluff when drying but it
goes un-noticed in the air. In a tumble
dryer it simply collects in the filter.
After a while, a withish patina due to
detergent residue on laundry forms on
the filters. When this occurs, clean the
filters with warm water using a brush.

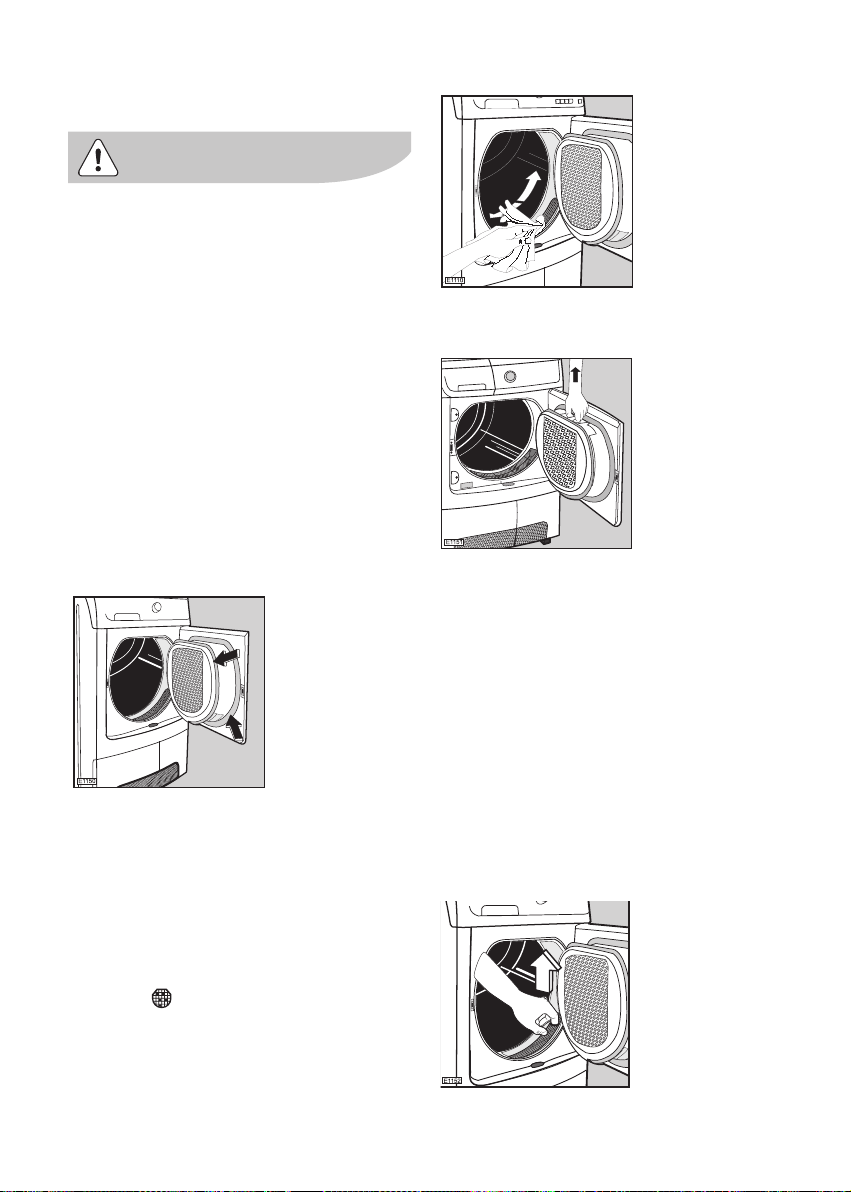

Remove the filter in the door opening
as per picture (it can be positioned with
the tooth facing to the left or to the
right).

D
Do on no ot tu us se et th he ea ap pp pl li ia an nc ce ew wi it th ho ou ut tf fi il lt te er rs s. .
Cleaning the condenser unit
Clean the condenser when light comes
on.
The condenser is situated at the lower part
of the cabinet behind a small door. To open
the door, push the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser insertion.
To pull out the condenser, first turn the two
red stops downwards and then remove the
condenser unit holding it at the handle.
Clean it with a brush and rinse it under the
shower if necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser
cabinet and in the inner part of the small
door with a damp cloth.
I
Im mp po or rt ta an nt t! !Do not use pointed objects
or utensils to clean the spaces
between the plates, as this could dam-
age the condenser and make it perme-
able.
Re-fit the condenser, turn the red stops
upwards and close the door.
D
Do on no ot tu us se et th hi is sa ap pp pl li ia an nc ce ei if ft th he ec co on nd de en ns se er r
h
ha as sn no ot tb be ee en nf fi it tt te ed d. .
Emptying the water reservoir
Water extracted from the laundry condens-
es inside the machine and is collected in a
reservoir.
The reservoir must be emptied after each
drying cycle to ensure efficient operation
when the machine is next used. The pilot
light reminds you this operation.
care and cleaning electrolux 19
GB

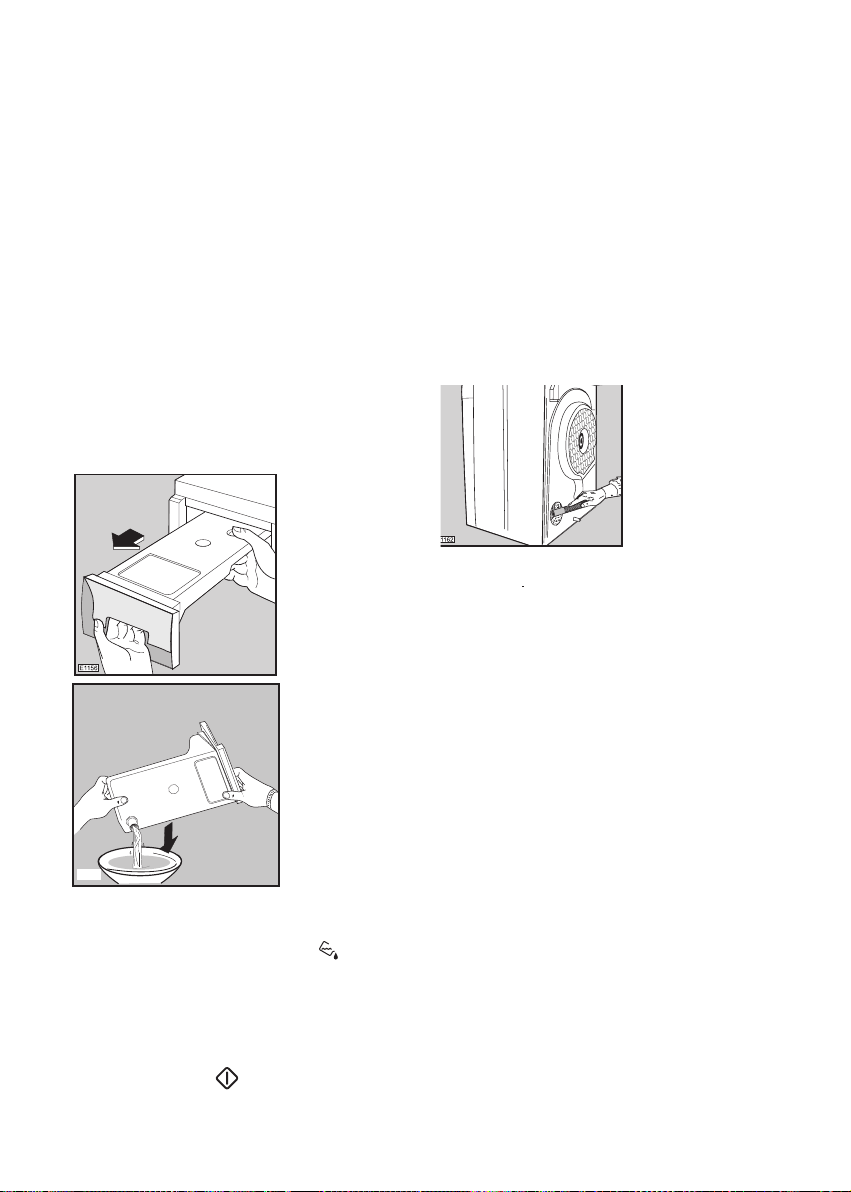

Proceed as follows:
• Open the small door at the lower part of
the cabinet
• Turn the yellow stop upwards
• Pull out the reservoir
• Open the small cover and let water flow
down
• Close the small cover and re-insert cor-
rectly the reservoir
•Push it until it clicks and turn the yellow
stop downwards to lock firmly it
•Close the small door and press the
START/PAUSE button again to allow the
programme to continue.
T
Th he er re es se er rv vo oi ir rm mu us st tb be er re e- -i in ns se er rt te ed dc co or rr re ec ct tl ly y. .
If this is not done the pilot light comes
on during next drying and the programme
stops, leaving the laundry damp. The
buzzer will sound for 1 minute.
After emptying and inserting the reservoir
the START-button has to be depressed
again to allow the programme to continue.
E1157
Handy tip: The condensed water may be
used in a steam iron or to top up a battery,
etc. In this case it must be filtered (e.g.
through a coffee filter)).
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff
from the air intake grille at the back of the
appliance.
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it
turns out either too dry or too damp, we
advise you to clean the inside of the drum with
a cloth soaked with vinegar.
This will eliminate the slight patina that has
formed in the drum (due to residues of
detergent and softeners used in the wash-
ing, and to the lime contained in the water),
which prevents the probes from detecting
the correct degree of dryness.
20 electrolux care and cleaning
