Electrolux EDC804Q5WB User manual

EDC804Q5WB
EN Tumble Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. CONDITIONS OF USE.......................................................................................5
3. SAFETY INSTRUCTIONS..................................................................................6
4. PRODUCT DESCRIPTION................................................................................ 7
5. CONTROL PANEL............................................................................................. 7
6. PROGRAM TABLE.............................................................................................9
7. OPTIONS..........................................................................................................10
8. SETTINGS........................................................................................................11
9. BEFORE FIRST USE....................................................................................... 13
10. DAILY USE..................................................................................................... 13
11. HINTS AND TIPS........................................................................................... 14
12. CARE AND CLEANING..................................................................................15
13. TROUBLESHOOTING....................................................................................18
14. TECHNICAL DATA.........................................................................................20
15. WARRANTY .................................................................................................. 20
IMPORTANT INFORMATION THAT MAY IMPACT
YOUR MANUFACTURER'S WARRANTY
Adherence to the directions for use in this manual is extremely important for
health and safety. Failure to strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect your ability to make a
claim under the Electrolux manufacturer’s warranty provided with your product.
Products must be used, installed and operated in accordance with this manual.
You may not be able to claim on the Electrolux manufacturer’s warranty in the
event that your product fault is due to failure to adhere to this manual.
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time. Welcome to
Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
www.electrolux.com2

General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damage. Always keep the instructions with
the appliance for future reference.
- Read the supplied instructions.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
ENGLISH 3

•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
www.electrolux.com4

removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and create a fire
hazard.
•If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent -this will
reduce, but not eliminate, the hazard.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• farm houses;
• by clients in hotels, motels, bed &
breakfast and other residential type
environments;
• areas for communal use in blocks of
flats or in launderettes.
ENGLISH 5

3. SAFETY INSTRUCTIONS
3.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
3.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
3.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
3.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
3.5 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
3.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
www.electrolux.com6

• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

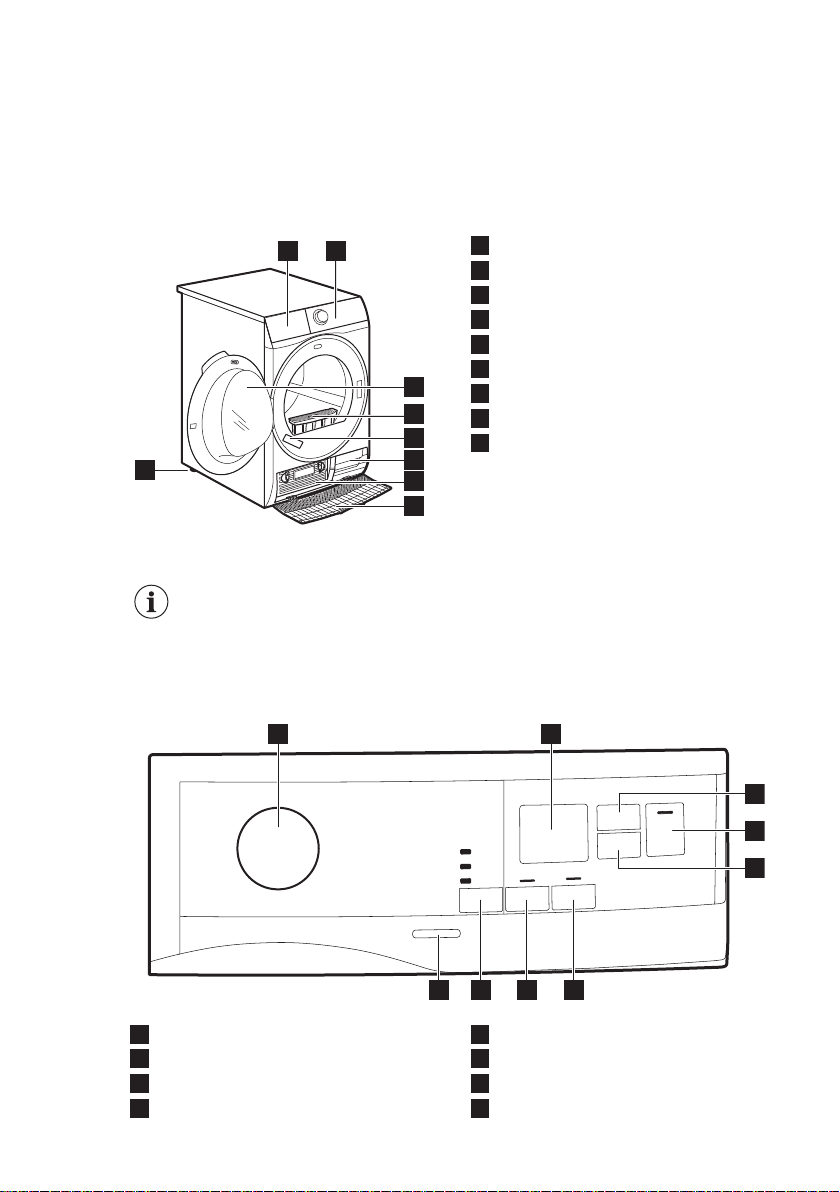

4. PRODUCT DESCRIPTION
1 2
5
3
4
6
7
8
9
1Water container
2Control panel
3Appliance door
4Filter
5Rating plate
6Airflow slots
7Heat Exchanger lid
8Heat Exchanger cover
9Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
5. CONTROL PANEL
1
89 7 6
3
5
4
2
1Program knob
2Display
3Time Dry touch button
4Start/Pause touch button
5Delay Start touch button
6Extra Anticrease touch button
7Gentle Dry touch button
8Dryness Level touch button
ENGLISH 7

9On/Off button Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
5.1 Display
Symbol on the display Symbol description
time drying option on
delay start option on
indicator: check Heat Exchanger
indicator: clean filter
indicator: drain the water container
indicator: drying phase
indicator: cooling phase
indicator: anti-crease phase
child lock on
wrong selection
program duration
- time Drying duration
- delay start duration
www.electrolux.com8

6. PROGRAM TABLE
Program Load 1) Properties / Fabric type2)
Favourite
Depends
on a mem‐
orised pro‐
gram
You can do your configuration of program and
options and memorise in the appliance mem‐
ory (See chapter " Settings - Favourite ").
Cottons 8 kg Cotton fabrics. /
Mixed 3kg
Cotton and synthetic fabrics.
Low temperature program. Deli‐
cate program with warm air. /
Bedding 3kg
Bed linen such as single and
double sheets, pillowcases, du‐
vet cover. /
Synthetics 3,5 kg Synthetic and mixed fabrics. /
Energy Saver3) 8 kg
Cycle to be used to dry cotton
with "cotton cupboard" dryness
level, with maximum energy sav‐
ing.
/
Refresh 1kg Refreshing textiles that were in storage.
Denim 4 kg
Leisure clothing such as jeans,
sweat-shirts of different material
thicknesses (e.g. at the neck,
cuffs and seams).
/
Sports 2 kg Sportswear, thin and light fab‐
rics, microfiber, polyester. /
Easy Iron 1 kg (or 5
shirts)
Easy care fabrics for which a
minimum of ironing is necessary.
The drying results can be differ‐
ent from one type of fabric to an‐
other. Shake the items before
putting them in the appliance.
When the program has ended,
immediately remove the items
and put them on a hanger.
/
Shirts 1,5kg (or 7
shirts)/
Easy care fabrics for which a
minimum of ironing is necessary.
The drying results can be differ‐
ent from one type of fabric to the
other. Shake the items before
you put them in the appliance.
When the program is completed,
Immediately remove the items
and put them on a hanger.
/
ENGLISH 9

Program Load 1) Properties / Fabric type2)
Wool 1 kg
Woollen fabrics. Gentle drying for hand-wash‐
able woollens. Remove items immediately
when the program is completed.
Delicates 4 kg Delicate fabrics such as viscose,
rayon, acrylic, and their blends. /
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter
HINTS AND TIPS: Preparing the laundry.
3) Energy Saver program is the reference program for Energy Label, tested according to
AS/NZS2442.2.
7. OPTIONS
7.1 Dryness Level
This function helps to increase dryness
of the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
7.2 Gentle Dry
With this option you can set a delicate
drying program that has a low
temperature. Use this option with a
fabrics that have the symbol on the
fabric label (e.g. acrylic, viscose).
7.3 Extra Anticrease
Extends the anti-crease phase by 60
minutes at the end of the drying cycle.
This function reduces creases. The
laundry can be removed during the anti-
crease phase.
7.4 Time Dry
You can set the program duration, from a
minimum of 10 minutes to a maximum of
2 hours. The required duration is related
to the quantity of laundry in the
appliance.
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
TIME DRYING RECOMMENDATION
10 - 20 min
action of cool
air only (no
heater).
20 - 40 min
additional dry‐
ing to improve
dryness after
previous dry‐
ing cycle.
>40 min
full drying of
the small laun‐
dry loads up to
4 kg, well spun
(>1200 rpm).
7.5 Options table
Program1) Dryness Level Gentle Dry Extra Anti‐
crease Time Dry
Favourite Depends on a memorised program
www.electrolux.com10

Program1) Dryness Level Gentle Dry Extra Anti‐
crease Time Dry
Cottons ■ ■ ■ ■ ■ ■
Mixed ■ ■ ■ ■
Bedding ■ ■ ■ ■
Synthetics ■ ■ ■ ■ ■ ■
Energy Saver ■ ■
Refresh ■
Denim ■ ■ ■
Sports ■ ■
Easy Iron ■ ■ ■
Shirts ■ ■
Wool ■
Delicates ■ ■ ■
1) Together with the program you can set 1 or more options. To activate or deactivate them,
press the related touch button.
8. SETTINGS
A B C
EDF
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Extra Anticrease touch button
E. Gentle Dry touch button
F. Dryness Level touch button
8.1 Child lock function
This option prevents children playing with
the appliance while a program is
operating. The touch buttons are locked.
Only the on/off button is unlocked.
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Press and hold touch button (D) for a
few seconds.
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
program operates. Press
and hold the same touch
buttons until the child lock
indicator goes off. The Child
Lock function isn't available
for 8 s after switching on the
appliance.
8.2 Favourite
You can do your configuration of
program and options and memorise in
the appliance memory.
ENGLISH 11

To memorise your
configuration:
1. Press the on/off button to activate the
appliance
2. Set the program and available
options.
3. Press the (E) button for some
seconds.
The sound and the message on the
display confirm that the configuration is
memorised.
To activate your memorised
configuration:
1. Press the on/off button to activate the
appliance.
2. Use the program knob to set
Favourite position.
Previously memorised configuration of
program and options will be restore.
8.3 Adjustment of remaining
laundry moisture
The appliance allows you to chose
between 3 levels corresponding to
different ranges of water hardness.
Dryness
level ppm
the results
from the inclu‐
ded water
hardness kit.
< 150 C01-C03
150 - 300 C04-C05
> 300 C06-C07
Depending on the country, the water
hardness is expressed in equivalent
scales: e.g. French degrees (°f), German
degrees (°d), English degrees (°e),
mmol/l and ppm
If necessary, please contact your local
water authority to check the water
hardness in your area.
Every time you enter in the
"Adjustment of remaining
laundry moisture" mode,
previously set degree of
remaining moisture will
change into next value ( e.g
previously set will
change into ).
To change the default degree of
remaining moisture:
1. Press the on/off button to activate the
appliance.
2. Use the program knob to set any
program.
3. Wait approximately 8 seconds.
4. Press and hold buttons (E) and (D) at
the same time.
One of these indicators comes on:
• the maximum dryness
• the more dry laundry
• the standard dry laundry
5. Press and hold buttons (E) and (D)
again until the indicator of the correct
level comes on.
If the display returns to
the normal mode (the
time of the selected
program from step 2. will
be displayed), while
setting the degree of
remaining moisture,
press and hold buttons
(E) and (D) once again
to enter to the
"Adjustment of remaining
laundry moisture" mode
(previously set degree of
remaining moisture will
change into next value).
6. After 5 s the display returns to normal
mode.
8.4 Water container indicator
By default, the water container indicator
is on. It comes on when the program is
completed or when it is necessary to
empty the water container.
www.electrolux.com12

If a draining kit is installed
(additional accessory), the
appliance automatically
drains the water from the
water container. In this case
we recommend that you
deactivate the indicator of
the water container.
Deactivating the water
container indicator:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (A) and
(C) at the same time.
The display shows one of these 2
configurations:
• The display shows "Off". After 5 s
the display returns to normal
mode.
• The display shows "On". After 5 s
the display returns to normal
mode.
8.5 Buzzer on/off
To deactivate or activate the acoustic
signals, press and hold for approximately
2 seconds touch buttons (E) and (F) at
the same time.
9. BEFORE FIRST USE
Before you use the appliance to dry
items:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour program with moist
laundry.
10. DAILY USE
10.1 Start a program without
delay start
1. Prepare the laundry and load the
appliance.
CAUTION!
Make sure that when
you close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct program and options
for the type of load.
The display shows the program duration.
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
4. Press the Start/Pause touch button.
The program starts.
10.2 Starting the program with
delay start
1. Set the correct program and options
for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
You can delay the start
of a program from a
minimum of 30 minutes
to a maximum of 20
hours.
3. Press the Start/Pause touch button.
ENGLISH 13

The display shows the countdown of the
delay start.
When the countdown is completed, the
program starts.
10.3 Change a program
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the program.
10.4 At the end of the program
When the program is completed:
• An intermittent acoustic signal
operates.
• The display shows
• The indicator is on.
• The indicators Filter and Tank
may come on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the anti-crease phase for approximately
30 minutes or more if Extra Anticrease
option was set (see chapter Option -
Extra Anticrease ).
The anti-crease phase reduces creasing.
You can remove the laundry before the
anti-crease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
When the anti-crease phase is
completed:
• The display still shows
• The indicator is off.
• The indicators Filter and Tank
remain on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Possible causes of unsatisfactory drying
results:
• Inadequate default dryness level
settings. See chapter Adjustment of
default dryness level
Always clean the filter and
empty the water container
when a program is
completed.
10.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates the
appliance:
• After 5 minutes if you do not start the
program.
• After 5 minutes from the end of the
program.
11. HINTS AND TIPS
11.1 Preparing the laundry
Very often the clothes after
washing cycle are kneaded
and tangled altogether.
Drying kneaded and tangled
clothes is inefficient.
To assure proper air flow
and even drying it is
recommended to shake and
load one by one the clothes
to the tumble dryer.
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a program.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the program suitable for
the type of laundry.
• Do not put light and dark colours
together.
• Use suitable program for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programs chapter or
shown on the display.
www.electrolux.com14

• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
• Shake the large clothes, fabrics
before placing in the tumble dryer. It is
to avoid moist places inside the fabric
after the drying cycle.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
12. CARE AND CLEANING
12.1 Cleaning the filter
CAUTION!
Avoid the use of water to
clean the filter. Instead throw
away lint in the dustbin
( avoid dispersion of plastic
fiber in water ambient).
To achieve the best drying
performances clean the filter
regularly , clogged filter lead
to longer cycles and energy
consumption increase.
Use your hand to clean the
filter , and if necessary , a
vacuum cleaner .
1. 2.
1
2
3. 4.
ENGLISH 15

5. 1) 6.
2
1
1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum
cleaner.
12.2 Emptying the water container
1. 2.
3. 4.
You can use the water from
the water container as an
alternative to distilled water
(e.g. for steam ironing).
Before you use the water,
remove dirt residues with a
filter.
12.3 Cleaning the Heat Exchanger
1. 2.
www.electrolux.com16

3. 4.
2
1
1
5. 6.
7. 8.
2
2
1
9. 10.
12.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum lifters. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive
materials or steel wool to
clean the drum.
12.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion.
12.6 Cleaning the airflow slots
Use a vacuum cleaner to remove fluff
from the airflow slots.
ENGLISH 17

13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13.1 Error Codes
The appliance does not start or it stops during operation.
First try to find a solution to the problem (refer to the table). If the problem persists,
contact the Authorised Service Centre.
WARNING!
Deactivate the appliance before carrying out any check.
In case of major problems, the acoustic signals operate, the display shows an
error code and the Start/Pause button may flash continuously:
Error code Possible cause Remedy
E5A
Appliance motor overloaded.
Too much laundry or entrap in
the drum.
The program was not completed.
Remove the laundry from the
drum, set the program and re‐
start the cycle.
E97
Internal fail. No communication
between electronic elements of
the appliance.
The program was not finished
properly or the appliance stoped
too early. Switch the appliance
off and on again.
If the error code appears again,
contact the Authorised Service
Centre.
EH0
The mains supply is unstable. When the appliance is showing
EH0, please wait until main sup‐
ply is stable than press start. If
the appliance pause the cycle
without any indication then press
the cycle start. If the warning will
occur check the power cord /
socket integrity or main supply.
If the display shows other error codes, deactivate and activate the appliance. If the
problem continues, contact the Authorised Service Centre.
In case of different problem with the tumble dryer check the table below for possible
solutions.
13.2 Troubleshooting
Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connec‐
ted to the mains socket.
www.electrolux.com18

Problem Possible solution
Check fuse in fuse box (domestic installa‐
tion).
The program does not start. Press Start/Pause.
Make sure that the appliance door is
closed.
The appliance door does not close. Make sure that the installation of the filter
is correct.
Make sure that the laundry is not caught
between the appliance door and the rub‐
ber seal.
The appliance stops during operation. Make sure that the water container is
empty. Press Start/Pause to start the pro‐
gram again.
Load is too small, increase the load or
use the Time Drying program.
The cycle time is too long or unsatisfacto‐
ry drying result.1)
Make sure that the weight of the laundry
is suitable for the duration of the pro‐
gram.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry
in the washing machine again.
Ensure that the room temperature is
higher than +5°C and lower than +35°C.
Optimal room temperature is 18°C to
25°C.
Set the Time Drying or the Extra Dry pro‐
gram.2)
The display shows . If you want to set a new program, deacti‐
vate and activate the appliance.
Make sure that the options are suitable
for the program.
1) After maximum 6 hours, the program ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets ).
If the drying results are not
satisfactory
• The set program was incorrect.
• The filter is clogged.
• The Heat Exchanger is clogged.
• There was too much laundry in the
appliance.
• The drum is dirty.
• Incorrect setting of the conductivity
sensor ( See chapter " Settings -
Adjustment of the remaining laundry
moisture degree " for better setting).
• The airflow slots are clogged.
• Room temperature is too low or too
high ( optimal room temperature 18°C
to 25°C )
ENGLISH 19

14. TECHNICAL DATA
Height x Width x Depth 850 x 596 x 630 mm (maximum 659 mm)
Max. depth with the appliance door open 1104 mm
Max. width with the appliance door open 958 mm
Adjustable height 850 mm (+ 15 mm - feet adjustment)
Drum volume 118 l
Maximum load 8 kg
Voltage 230-240 V
Frequency 50 Hz
Total power 2250 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of sol‐
id particles and moisture ensured by the
protective cover, except where the low
voltage equipment has no protection
against moisture
IPX4
15. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
APPLIANCE: ELECTROLUX DRYER
This document sets out the terms and
conditions of the product warranties
for Electrolux Appliances. It is an
important document. Please keep it
with your proof of purchase
documents in a safe place for future
reference should there be a
manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under
the Australian Consumer Law.
1. In this warranty:
a) ‘ACL’ or ‘Australian Consumer
Law’ means Schedule 2 to the
Competition and Consumer Act
2010;
b) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
c) ‘ASC’ means Electrolux
authorised service centres;
d) ‘Electrolux’ is the brand
controlled Electrolux Home
Products Pty Ltd of 163
O’Riordan Street, Mascot NSW
2020, ABN 51 004 762 341 in
respect of Appliances purchased
in Australia and Electrolux (NZ)
Limited (collectively “Electrolux”)
of 3-5 Niall Burgess Road, Mount
Wellington, in respect of
Appliances purchased in New
Zealand;
e) ‘Warranty Period’ means the
period specified in clause 3 of
this warranty;
f) ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.
2. Application: This warranty only
applies to new Appliances,
purchased and used in Australia or
New Zealand and is in addition to
(and does not exclude, restrict, or
modify in any way) other rights and
remedies under a law to which the
www.electrolux.com20
