Electrolux EI32AF80QS User manual

ELECTROLUXAPPLIANCES.COM
Featuring IQ-Touch™Electronic Controls
SIGNATURE FEATURES
BUILT-IN ALL FREEZER
PRODUCT DIMENSIONS
Height 71-3/8"
Width 32"
Depth 26-1/2"
MORE EASY-TO-USE FEATURES
PLATINUM STAR®LIMITED WARRANTY
Our exclusive limited warranty that includes a 3-year coverage
on parts and one year on labor without charge.1
IQ-TOUCH™CONTROLS
For those who like to have their options always visible on the
IQ-Touch™control panel.
BUILT-IN TRIM KIT
Optional trim kit(s) are available in stainless steel for built-in
refrigerator, built-in freezer or side-by-side configuration.
AUTOMATIC ICE MAKER
Ensures you’ll always have extra ice on hand.
ENHANCED LIGHTING
Bright lighting makes finding food easy.
ALARM SYSTEM
Notifies you if there’s been a power failure, if a door stays open
longer than five minutes and if the interior temperature of the
freezer rises above 23 degrees for more than 60 minutes.
PUREADVANTAGE®AIR FILTER
Keeps clean, filtered air circulated throughout to prevent
odor transfer.
Available in:
Stainless
(S)
SURE-2-FIT®CAPACITY
Our most usable space inside gives you
plenty of space to stock up so you’ll always
have food on hand for even an impromptu
gathering.
FULL-WIDTH GLASS SHELVES
25" Full-width glass shelves provide enough
space for large platters and are designed
to keep spills contained, making them easy
to clean.
SOFT FREEZE™BIN
Perfect storage for things like ice cream or
anything you want to keep frozen, but still
soft for serving.
LUXURY-GLIDE®FULL-WIDTH
FREEZER DRAWERS
Drawers glide out smoothly and fully extend,
giving you easy access to what’s inside.
EI32AF80QS
OPTIONAL TRIM KITS
84" LOUVERED
TRIM KITS
(ECP8436SS & ECP8472SS)
Designed as a replacement option
for the Sub-Zero®brand 650
Series models and for new-build
installation.
72" COLLAR
TRIM KITS
(ECP7236SS & ECP7272SS)
Designed as a replacement
option for the Sub-Zero®brand
601 Series models and for
new-build installation.
79" LOUVERED / 75"
COLLAR TRIM KITS
2
(TRIMKITSS1 & TRIMKITSS2)
Designed as a replacement option
for Electrolux ICON®brand models
E32AR75FPS and E32AF75FPS
and for new-build installation.
1Eligibility based on product registration with Electrolux North America within 60 days of purchase.
Products must have been purchased on or after July 1, 2013. Coverage includes material parts
for 3 years and labor for 1 year.
2Kits are designed to fit either 79" or 75" opening height. For 79" cutout opening height, installation
requires use of top louvered grille; for 75" cutout opening height, installation requires use of top
trim piece and shortening of both side trim pieces.
Sub-Zero®is a registered trademark of Sub-Zero,Inc.

High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Electrolux Major Appliances, N.A.
USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca
19 CU.FT. BUILT-IN ALL FREEZER
CAPACITIES
Total Capacity
Total Shelf Area
EXTERIOR
Hidden Hinge Door Design
Signature Soft-Arc Handle Design
FEATURES
IQ-Touch™Electronic Controls
Temp Alarm System
Door Ajar Alarm
Power Failure Alarm
PureAdvantage®Air Filtration
Adjustable Full-Width Glass Shelves (Silver Trim)
Luxury-Glide®Full-Width Bottom Basket
Luxury-Glide®Full-Width Mid-Level Baskets
Soft Freeze™Bin with Tall Bottle Retainer
Clear Half-Width Adjustable Door Bin
Full-Width Door Bin
Luxury-Design®LED Lighting
Automatic Ice Maker
Door Closer
Luxury-Quiet™Design
Air Filter Indicator
Electronic Control Lock
ADDITIONAL FEATURES
Sabbath Mode (Star-K®Certified)
ACCESSORIES
84" Louvered Trim Kits: Single – PN # ECP8436SS
Double – PN # ECP8472SS
72" Collar Trim Kits: Single – PN # ECP7236SS
Double – PN # ECP7272SS
79" Louvered /75" Collar Trim Kits1:
Single – PN # TRIMKITSS1
Double – PN # TRIMKITSS2
SPECIFICATIONS
Color –
Stainless Steel
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 115 Volts‡
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Kits are designed to fit either 79" or 75" opening height. For 79" cutout opening height, installation
requires use of top louvered grille; for 75" cutout opening height, installation requires use of top
trim piece and shortening of both side trim pieces.
‡An electrical supply with grounded three-prong receptacle is required. The power supply
circuit must be installed in accordance with current edition of National Electrical Code
(NFPA 70) and local codes & ordinances.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
18.6 Cu.Ft.
19.7 Sq.Ft.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2
1
2
1
4
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Optional
Optional
Optional
Optional
Optional
Optional
S
Right Bottom Rear
Left Bottom Rear
115V / 60 Hz
0.55
20
255 Lbs.
PRODUCT DIMENSIONS
Height (Cabinet)
(Including Door)
Width
Depth (Including Door)
(with 90° Door Open)
70-5/8"
71-3/8"
32"
26-1/2"
57-1/4"
EI32AF80Q 09/14 © 2014 Electrolux Home Products, Inc.
BUILT-IN ALL FREEZER
EI32AF80QS

High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Electrolux Major Appliances, N.A.
USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca

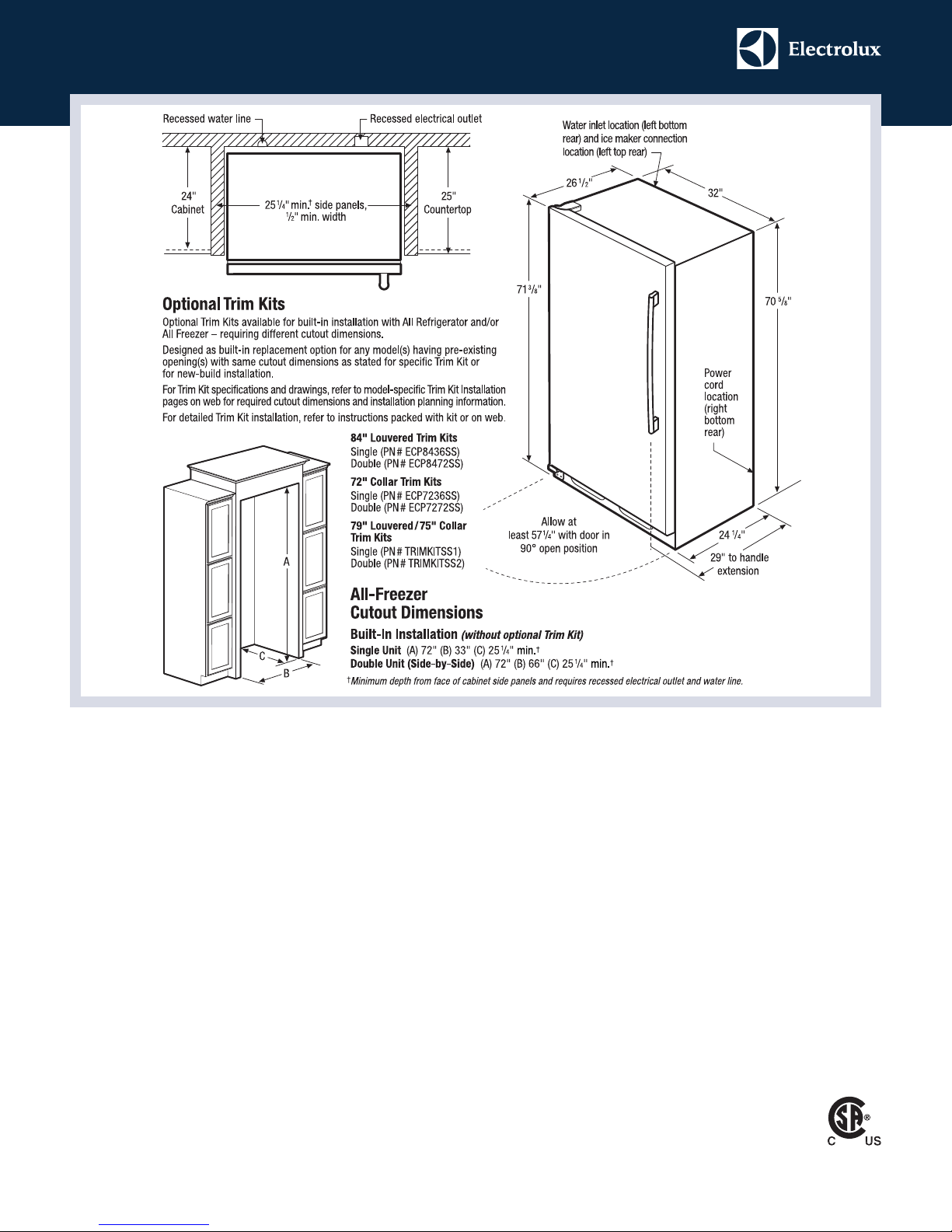

32" Built-In All Freezer Specifications
• Product Weight – 245 Lbs.
• An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes & ordinances.
• Voltage Rating – 115V / 60 Hz
• Connected Load (kW Rating) @ 115 Volts = 0.55 kW
• Amps @ 115V = 5.0A
• Always consult local and national electric & plumbing codes.
• Water line for ice maker can enter opening through floor or rear wall. Copper
tubing recommended between cold water line and water connection location.
Water line tubing recommended is 48" minimum length by 1/4" diameter.
Installation of easily accessible shutoff valve in water line required.
• Minimum 25-1/4" depth requires recessed electrical outlet and copper
water line.
• To allow for ease of installation, tape excess power cord to back of unit.
To allow for ease of moving out side-by-side units after installation,
84" minimum length of coiled copper tubing recommended.
• When installing freezer adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended
to allow for optimum 140° door swing, providing complete drawer / crisper
access and removal. (Absolute 4" minimum clearance will ONLY allow for
90° door swing which will provide limited drawer / crisper access with
restricted removal.)
• Freezer must be placed on level surface of hard material, same height as
flooring. Surface must support approximately 800 lbs. when fully loaded.
Unit equipped with 4-point leveling.
“Built-In Look” Specifications
• Minimum opening of 72" H x 33" W x 25-1/4" D required for single-unit
“Built-In Look” installation; 66" W required for double-unit installation.
(72" H to be measured from finished floor to underside of soffit or
overhead cabinet.)
• Remove all wall / floor molding prior to built-in installation.
Optional Trim Kit Specifications
For planning information, refer to model-specific Trim Kit Installation pages on web.
• Optional Trim Kits available for built-in installation with All Refrigerator and/or
All Freezer – requiring different cutout dimensions.
• Designed as built-in replacement option for any model(s) having pre-existing
opening(s) with same cutout dimensions as stated for specific Trim Kit or for
new-build installation.
• Remove all wall / floor molding prior to built-in installation.
• For detailed Trim Kit installation, refer to instructions packed with kit or on web.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
• 84" Louvered Trim Kits:
Single – (PN # ECP8436SS), Double – (PN# ECP8472SS).
• 72" Collar Trim Kits:
Single – (PN # ECP7236SS), Double – (PN# ECP7272SS).
• 79" Louvered / 75" Collar Trim Kits:
Single – (PN # TRIMKITSS1), Double – (PN # TRIMKITSS2).
All Freezer
EI32AF80Q
BUILT-IN ALL FREEZER
EI32AF80QS
EI32AF80Q 09/14 © 2014 Electrolux Home Products, Inc.

General Installation Guidelines
For Installation with All Refrigerator or All Freezer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_ARAF EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
