Electrolux ICON E32AF75FPS0 Quick start guide

P08F0114.eps P08D0518.eps P08C0969.eps P08S0434.eps P08ICE03.eps
Product No. E32AF75FPS0
Series Icon
Color Stainless/steel
Volts 115
Wiring Diagram 297115400
Owner's Guide 297122900
Market North America
Energy Guide 216910405
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995479473
07/04/25
(EN/SERVICE/MLR)
365
UPRIGHT FREEZER
W/ICE MAKER
Model No.
E32AF75FPS
Copyright ©2007 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995479473 E32AF75FPS0
04/07 2
DOOR

E32AF75FPS0 Publication No: 5995479473
# Functional Parts 3 04/07
* Non-Illustrated Parts
DOOR
POS. NO PART NO. DESCRIPTION
1 216522311 Gasket-door, black
9 216527902 Panel-inner door, frzr
11 216526572 Panel-outer door, stainless steel, LH
12 241603101 Label-nameplate
13 216974400 Door Stop
18 241637912 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 5303271077 Screw, flat head, #1/4-20, door stop/hng
26 216524200 Gasket, secondary
27 5303212828 Clip, panel mtg
27* 5304406520 Clip, panel mtg kit, (40)
32 5309950074 Valve, breather
59 216974500 Bearing, door closer
64 216403700 Plug-button, hole filler, door base
72 216514100 Shelf, tilt out, wire
72A 216580600 Shelf, tiltout, short 32, wire, (2)
73 216513900 End Cap, shelf, LH, tilt-out
74 216514000 End Cap, shelf, RH, tilt-out
79 218755406 Screw-set, 10-32 x 0.375
80 218755503 Screw-shoulder, #10 AB, handle mounting
80A 216514300 Bin-door, adjustable, (2)
93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995479473 E32AF75FPS0
04/07 4

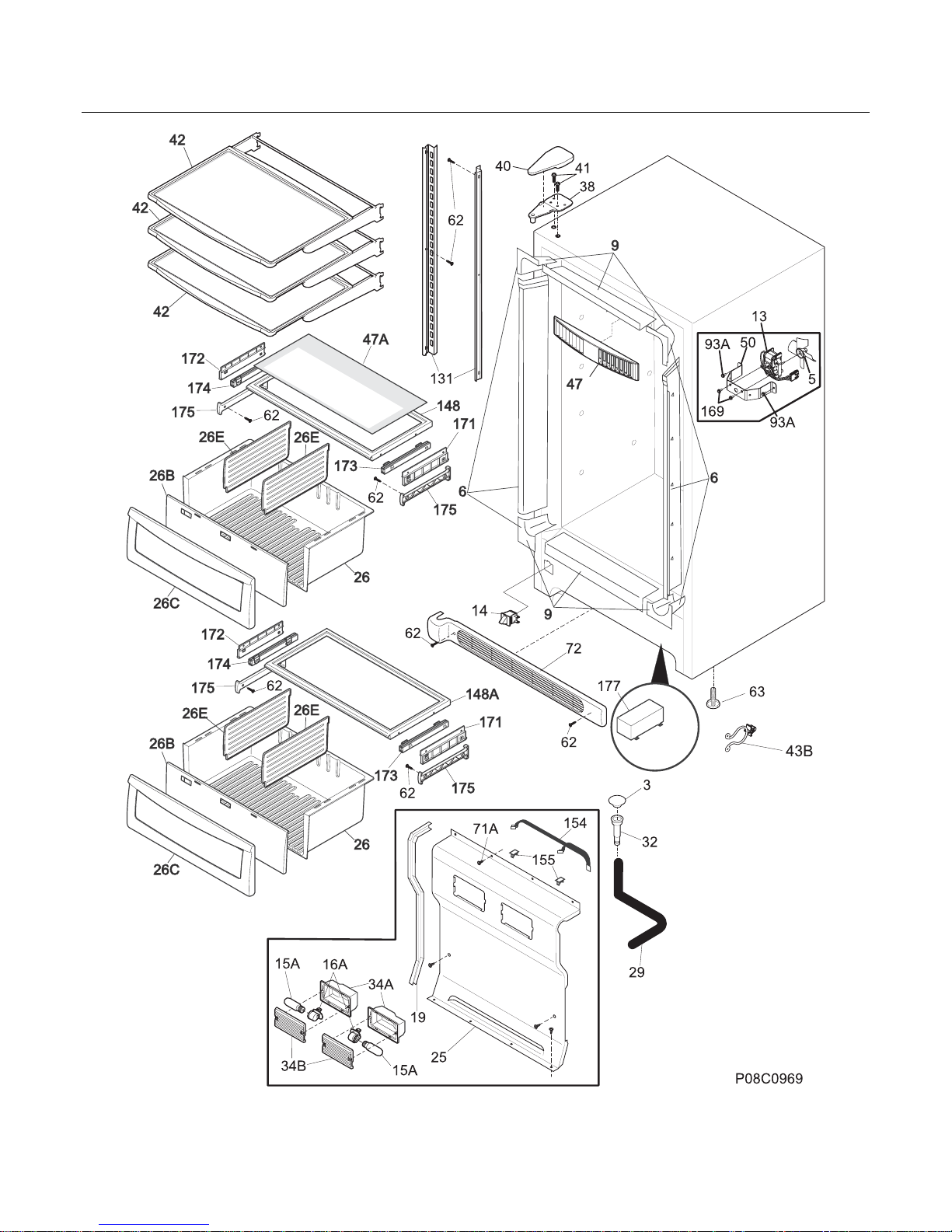

CABINET

E32AF75FPS0 Publication No: 5995479473
# Functional Parts 5 04/07
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
3 216503100 Screen-drain
5 # 216325600 Fan Blade
6 216604200 Breaker Kit w/corners
9 216603300 Breaker Kit w/corners, 32", top or bottom
13 # 216934100 Motor, fan, 115 V
14 216922800 Switch, light/lamp, ramp
15A 297048600 Light Bulb/Lamp, short
16A 216817600 Socket, light/lamp, 25 W
19 216204902 Gasket-evap cover
25 297099204 Cover-evaporator
26 297091600 Case-crisper, shallow
26B 297091801 Panel, crisper window
26C 297091704 Panel, crisper front
26E 297099400 Divider-crisper, shallow
29 216313501 Hose-drain
32 5308005500 Drain
34A 297053100 Shield-light, LH
34A 297053101 Shield-light, RH
34B 297053200 Lens, light
38 216939100 Hinge-upper
40 216809002 Cover-hinge
41 216936800 Screw-hinge, 12-24x.700 HWH
42 297108901 Shelf-sliding
43B 297048400 Clip
47 297133000 Baffle-plate
47A 297102700 Insert-pan cover, glass
50 216394000 Bracket, fan motor mount
62 131420300 Screw, cr truss head, 8-18AB x 0.750
63 216396900 Screw, leveling foot, plastic, adjustable
71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL
72 297036900 Grille/Kickplate, 32", white
93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping
131 218233301 Channel-shelf mtg, side, (2)
148 297092500 Frame-crisper cover, upper
148A 297092501 Frame-crisper cover, shallow, lower
154 297053000 Wire, jumper
155 5303313703 Clip, (2)
169 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)
171 297092700 Bracket, crisper cover, RH
172 297092701 Bracket, crisper cover, LH
173 297107600 Slide, crisper, RH
174 297107601 Slide, crisper, LH
175 297099500 Support-crisper
177 297116000 Electronics, theater lgt
* 216910405 Energy Guide
* 297001704 Insulation, 24", drain tube
* 297114600 Instructions, installation, icemaker

Publication No: 5995479473 E32AF75FPS0
04/07 6

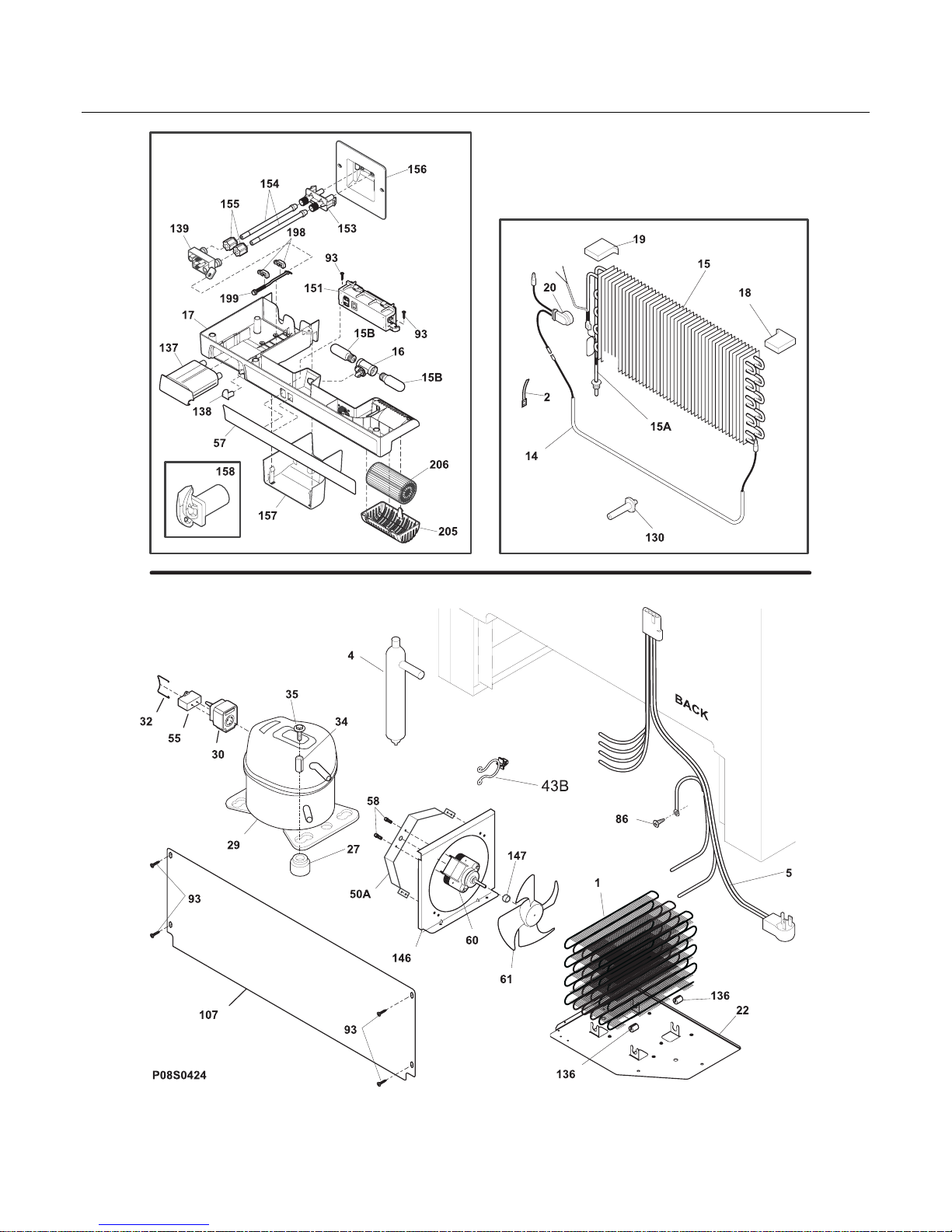

SYSTEM

E32AF75FPS0 Publication No: 5995479473
# Functional Parts 7 04/07
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 5300083897 Condenser
2 5308000110 Strap-evap/heater, aluminum, (2)
4 # 216938600 Drier-filter
5 # 297122600 Harness-main
14 216730700 Heater-defrost
15 # 216997300 Evaporator
15A# 216783200 Heat Exchanger, suct/cap tube
15B 297114000 Light Bulb, short, blue tint, 40W
16 241507803 Socket-light
* 297108000 Jumper-wire, electronic w/lt
17 297110300 Box-control, front
17* 131823400 Screw, 8-18 x 2.00
17* 297112600 Sleeve-control box, (3)
18 297078700 Insulator-evap, styrofoam
19 297078800 Insulator-evap, styrofoam
20 216872200 Thermostat, defrost
22 216970300 Base, condenser
27 5308002681 Grommet, compressor
29 # 297003000 Compressor, kit w/grommets, & welded clip, w/o electricals
30 # 241527803 Starter-TSD
31A 216994100 Pan-drain
32 241544101 Clamp, elec cont mtg, compressor, bale wire
34 5306594529 Sleeve-compressor
35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor
43B 297048400 Clip
50A 240524001 Bracket, fan motor mount
55 218909915 Capacitor, run, 220 VAC, 15 microfarad
57 297110801 Overlay-control box
58 218897002 Screw, hex washer head, 8-32 x 0.375
60 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming
93 5303161215 Screw, ph truss head, 8-18AB x 0.500
107 297001900 Shield, compressor, Compartment
130 216486800 Support, evaporator mtg
136 240405201 Grommet, rubber, black, cond tube/wire
146 216970200 Shroud-fan orfice
146* 216337700 Screw, hex washer head, 10-24 x 0.500
147 240560001 Ring-compression
151# 297112403 Electronic control, assy
158 297111000 Standoff, control box, (3)
205 297108500 Cap-air filter
206 241504902 Filter-air
* 216502500 Sleeve, suction line
* 297014500 Plug-suction line
* 297102800 Spacer-tube

Publication No: 5995479473 E32AF75FPS0
04/07 8

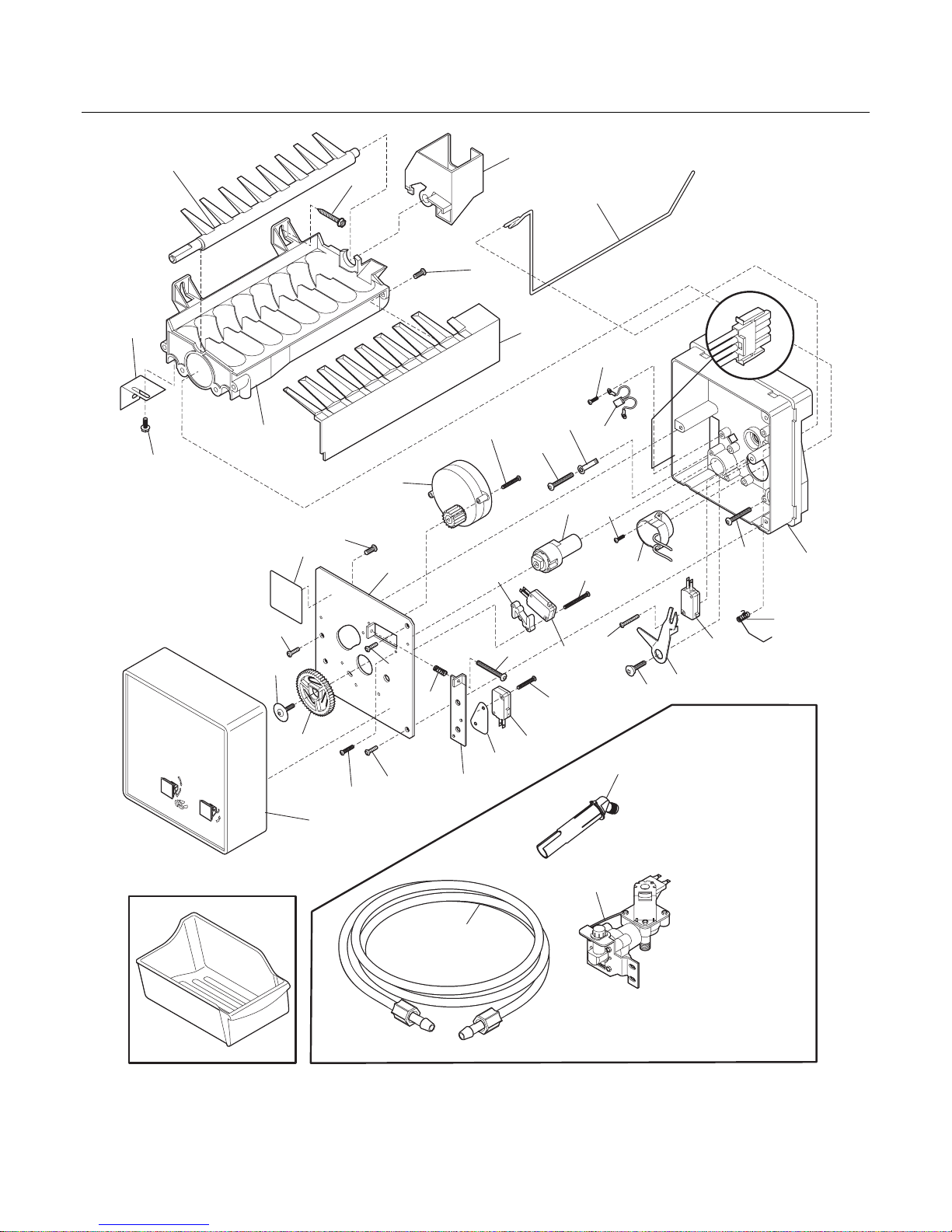

ICE MAKER
ON OFF
MOVE ARM UP UNTIL
LOCKED INTO PLACE
MOVE ARM UP UNTIL
LOCKED INTO PLACE
29
7
6
16
20
21
19
22
60
18
17
62
61
9
10
23
23
34
28
34
34
3
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55
51
65
INSTALLATION PARTS
P08ICE03

E32AF75FPS0 Publication No: 5995479473
# Functional Parts 9 04/07
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 297044900 Tube-water inlet, inlet valve, to ice maker
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304420650 Spring, shut-off arm
3 3206299 Label, ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire, 8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 Wiring Harness, ICE MAKER, internal, with plug
13 # 3206322 Thermostat Assy, ICE MAKER
14 5304420652 Screw, 4 x 0.750, switch mtg.
15 # 3206324 Switch, (3)
16 5304420653 Support, phenolic
17 # 5303320545 Mold-ice maker, radius cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop, 4-40 x 0.375
29 3206323 Screw, 4-24 x 0.750, (6)
30 3206341 Screw-timing adj, 8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw, plazscrew, 8-10, (3)
35 5304408585 Screw
36 3206347 Cover-ice maker
45 5303161215 Screw, ph truss head, 8-18AB x 0.500
51 216887500 Tube, water, ICE MAKER
55 # 240519601 Valve-water, single solenoid, 60 Hz, 105/120 V
60 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
61 218721500 Bracket-leveling, ICE MAKER
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
65 240385201 Container, ice bin
* 240352409 Ice Maker, radius cube, 115 V, no instl parts
* 297114101 Adapter-water supply, nut & sleeve, compression ftg
* IM501 Ice Maker Kit-Freezer

P08F0113.eps P08D0517.eps P08C0968.eps P08S0424.eps
Product No. E32AR75FPS0
Series Icon
Color Stainless/steel
Volts 115
Wiring Diagram 297115300
Owner's Guide 297122800
Market North America
Energy Guide 297115901
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995479135
07/04/26
(EN/SERVICE/MLR)
365
REFRIGERATOR
Model No.
E32AR75FPS
Copyright ©2007 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995479135 E32AR75FPS0
04/07 2
DOOR

E32AR75FPS0 Publication No: 5995479135
# Functional Parts 3 04/07
* Non-Illustrated Parts
DOOR
POS. NO PART NO. DESCRIPTION
1 216522311 Gasket-door, black
7 240338303 Door, dairy, clear
9 216953601 Panel-inner door, refr
11 216526571 Panel-outer door, stainless
12 241603101 Label-nameplate
13 5303271076 Door Stop
18 241637912 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 5303271077 Screw, flat head, #1/4-20, door stop/hng
26 216524200 Gasket, secondary
27 5303212828 Clip, panel mtg
27* 5304406520 Clip, panel mtg kit, (40)
27A 240396102 Retainer, tall bottle
32 5309950074 Valve, breather
48C 297108200 Bin-door, gallon
48D 240396302 Snugger, paddle type
49 297107801 Bin-door, 2-liter
59 216974500 Bearing, door closer
64 216403700 Plug-button, hole filler, door base
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
93 5303161215 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995479135 E32AR75FPS0
04/07 4

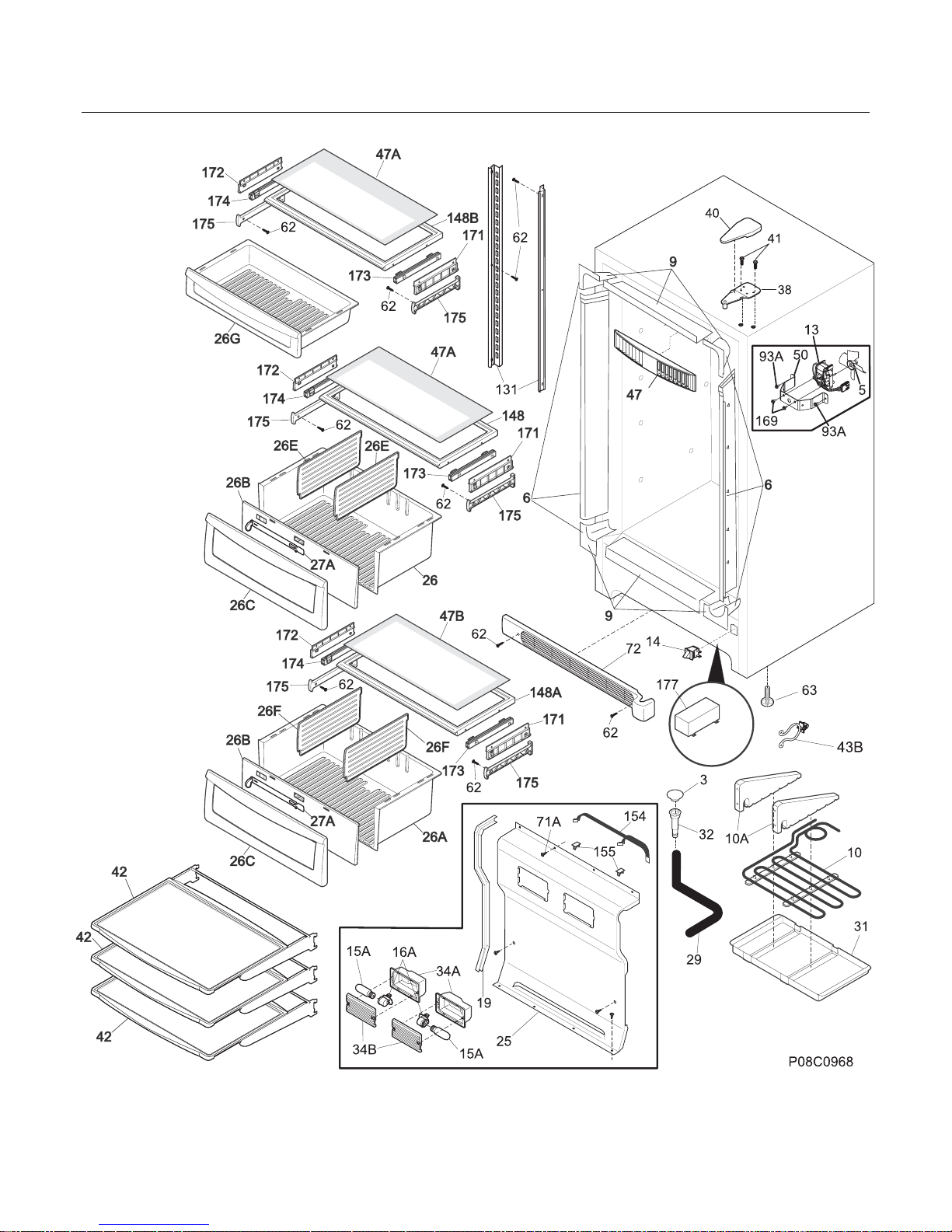

CABINET

E32AR75FPS0 Publication No: 5995479135
# Functional Parts 5 04/07
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
3 216503100 Screen-drain
5 # 216325600 Fan Blade
6 216604200 Breaker Kit w/corners
9 216603300 Breaker Kit w/corners, 32", top or bottom
10 216999400 Tubing- heater, formed
10A 216933700 Bracket, drain pan
13 # 216934100 Motor, fan, 115 V
14 216922800 Switch, light/lamp, ramp
15A 297048600 Light Bulb/Lamp, short
16A 216817600 Socket, light/lamp, 25 W
19 216204902 Gasket-evap cover
25 297099204 Cover-evaporator
26 297091600 Case-crisper, shallow
26A 297091601 Case-crisper, deep
26B 297091800 Panel, crisper window
26C 297091703 Panel, crisper front
26E 297099400 Divider-crisper, shallow
26F 297099401 Divider-crisper, deep
26G 297123700 Case-deli
27A 240362201 Control-humidity
29 216313503 Hose-drain
31 216732400 Pan-drain
31* 216742701 Screw, 8-18 x 9/16, black, (4)
32 5308005500 Drain
34A 297053100 Shield-light, LH
34A 297053101 Shield-light, RH
34B 297053200 Lens, light
38 216939100 Hinge-upper
40 216809002 Cover-hinge
41 216936800 Screw-hinge, 12-24x.700 HWH
42 297108901 Shelf-sliding
43B 297048400 Clip
47 297133000 Baffle-plate
47A 297102700 Insert-pan cover, glass
47B 297102701 Insert-pan cover, glass, lower
50 216394000 Bracket, fan motor mount
62 131420300 Screw, cr truss head, 8-18AB x 0.750
63 216396900 Screw, leveling foot, plastic, adjustable
71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL
72 297036900 Grille/Kickplate, 32", white
93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping
131 218233301 Channel-shelf mtg, side, (2)
148 297092500 Frame-crisper cover, upper
148A 297092502 Frame-crisper cover, lower
148B 297092503 Frame-deli cover
154 297053000 Wire, jumper
155 5303313703 Clip, (2)
169 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)
171 297092700 Bracket, crisper cover, RH
172 297092701 Bracket, crisper cover, LH
173 297107600 Slide, crisper, RH
174 297107601 Slide, crisper, LH
175 297099500 Support-crisper
177 297116000 Electronics, theater lgt
* 297001704 Insulation, 24", drain tube
* 5303305324 Paint, touch-up, white
* 297115901 Energy Guide

Publication No: 5995479135 E32AR75FPS0
04/07 6
SYSTEM

E32AR75FPS0 Publication No: 5995479135
# Functional Parts 7 04/07
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 5300083897 Condenser
2 5308000110 Strap-evap/heater, aluminum, (2)
4 # 216938600 Drier-filter
5 # 297122700 Harness-main
14 216730700 Heater-defrost
15 # 216997300 Evaporator
15A 297130100 Heat Exchanger
15B 297114000 Light Bulb, short, blue tint, 40W
16 241507803 Socket-light
17 297110301 Box-control, front
17* 131823400 Screw, 8-18 x 2.00
17* 297112600 Sleeve-control box, (3)
18 297078700 Insulator-evap, styrofoam
19 297078800 Insulator-evap, styrofoam
20 216731001 Thermostat, defrost
22 216970300 Base, condenser
27 5308002681 Grommet, compressor
29 # 297068200 Compressor, w/o electricals
30 216954210 Controller
32 216649100 Clamp, elec cont mtg, compressor
34 5306594529 Sleeve-compressor
35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor
43B 297048400 Clip
50A 240524001 Bracket, fan motor mount
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 297110901 Overlay-control box
58 218897002 Screw, hex washer head, 8-32 x 0.375
60 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
86 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming
93 5303161215 Screw, ph truss head, 8-18AB x 0.500
107 297001900 Shield, compressor, Compartment
130 216486800 Support, evaporator mtg
136 240405201 Grommet, rubber, black, cond tube/wire
137# 240396405 Filter, water, carbon cassette, front, with o'rings
138 240397301 Button-filter release
139 240396002 Base-water filter
146 216970200 Shroud-fan orfice
146* 216337700 Screw, hex washer head, 10-24 x 0.500
147 240560001 Ring-compression
151# 297112402 Electronic control, assy
153 297110200 Hose-junction attachment
154 297112901 Hose, water inlet
155 241518001 Nut, 1/2-20, nylon, water hose, (2)
156 297110100 Retainer, hose junction
157 297110500 Raceway, water filter
158 297111000 Standoff, control box, (3)
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
205 297108500 Cap-air filter
206 241504902 Filter-air
* 216502500 Sleeve, suction line
* 297108000 Jumper-wire, electronic w/lt
