Electrolux en:tice EQBM60AS User manual

user manual
electrolux en:tice barbecue
EQBM60AS and EQBM90AS

2 contents electrolux en:tice barbecue
environmental tip
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
• If you wish to discard this product, please contact your
local authorities and ask for the correct method of disposal.
Congratulations
Congratulations and thank you for choosing our Electrolux
En:tice barbecue. We are sure you will nd your new
barbecue a pleasure to use. Before you use the barbecue,
we recommend that you read through the entire user
manual, which provides the description of the barbecue
and its functions.
To avoid the risks that are always present when you use
a gas appliance, it is important that it is installed correctly
and that you read the safety instructions carefully to avoid
misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the barbecue please check it is not
damaged. If in doubt, do not use the appliance but
contact your local Electrolux Customer Care Centre
Conditional Use
This appliance is intended to be used in household and
similar applications such as:
- Farm Houses
- By clients in holiday apartments and other residential
type environments
Contents
• Importantsafetyinstructions 3
• ElectroluxEn:ticebarbecueEQBM90AS 4
• ElectroluxEn:ticebarbecueEQBM60AS 6
• Barbecueparts 8
• Unpackingthebarbecue 9
• Assemblingthebarbecue 10
• Gasspecications 20
• Gasbottlesafetyinformation 20
• Gasbottleinstallation 20
• Leaktestprocedure(UniversalLPG) 20
• ConversiontoNaturalGas 21
• Choosingalocation 22
• Installationwarnings 22
• Activatingthewheelbrake 23
• Optionsforcongurationofhotplatesandgrills 23
• Operatinginstructions 23
• Usingtheroastinghood 24
• Usingthesidetable 24
• Cleaningandcare 25
• Maintenance 25
• Troubleshooting 26
• Accessories 26
• Warranty 27

electrolux en:tice barbecue important safety instructions 3
Please read the user manual carefully and store in a handy
place for later reference.
Meanings of the symbols used in this manual are shown below:
warning
Thissymbolindicatesinformationconcerningyour
personalsafety
caution
Thissymbolindicatesinformationonhowtoavoid
damagingtheappliance
tips and information
Thissymbolindicatestipsandinformationaboutuse
oftheappliance
environmental tip
Thissymbolindicatestipsandinformationabout
economicalandecologicaluseoftheappliance
Thissymbolindicatesnevertodothis
Foryoursafetypleasereadthisbookbefore
operatingyourbarbecue.
warning
Improperinstallation,adjustment,alterationor
maintenancecancauseinjuryorpropertydamage.
NOTETOTHEINSTALLER
THIS MANUAL MUST REMAIN WITH THE OWNER
FOR FUTURE REFERENCE
Important safety instructions
warning
IFYOUSMELLGAS,donotattempttolightthe
barbecue.Locatetheleakandre-tightentheleaking
joint.CarryouttheLeakTestprocedureasdescribedin
thismanual.Iftheleakpersists,turnoffthegassupply
andcallElectroluxServiceoraLicensedGasFitter.
warning
Donotleanoverbarbecuewhenlighting.
Donotleavethebarbecueunattendedwhenalight.
Donotdelaylightingoncethegashasbeenturnedon.
Donotstoreoruseaerosolcansinthevicinityof
thebarbecue.
Donotstoreammableliquidsinthevicinityof
thebarbecue.
Donotusecausticorabrasivebasedcleanerson
thebarbecue.
Donotoperatewithoptionalweatherproof
covertted.
Donotattempttodismantleoradjustthe
controlvalves.
Donotattempttodismantleoradjusttheregulator.
Donottestforleakswithanakedame.
Donotmodifytheconstructionofthisappliance
ormodifytheinjectororicesize.
Donotobstructanyventilationofthebarbecue.
Donotallowchildrentooperateorplaynear
thebarbecue.
caution
ThisbarbecueissuppliedsetupforUniversalLPG
andislabelledaccordingly.UniversalLPGlabel
locatedinsidebarbecuecabinetontheRHside
panel.ANaturalGasconversionkitisavailablefor
purchasefromElectroluxServiceorSpareParts.
ConversionofthisunittoNaturalGasmustbecarried
outbyaqualiedlicensedpersonandaCerticate
ofCompliancemustbeissuedtotheowneron
completionoftheinstallationandconversion.

4 EQBM90AS description electrolux en:tice barbecue

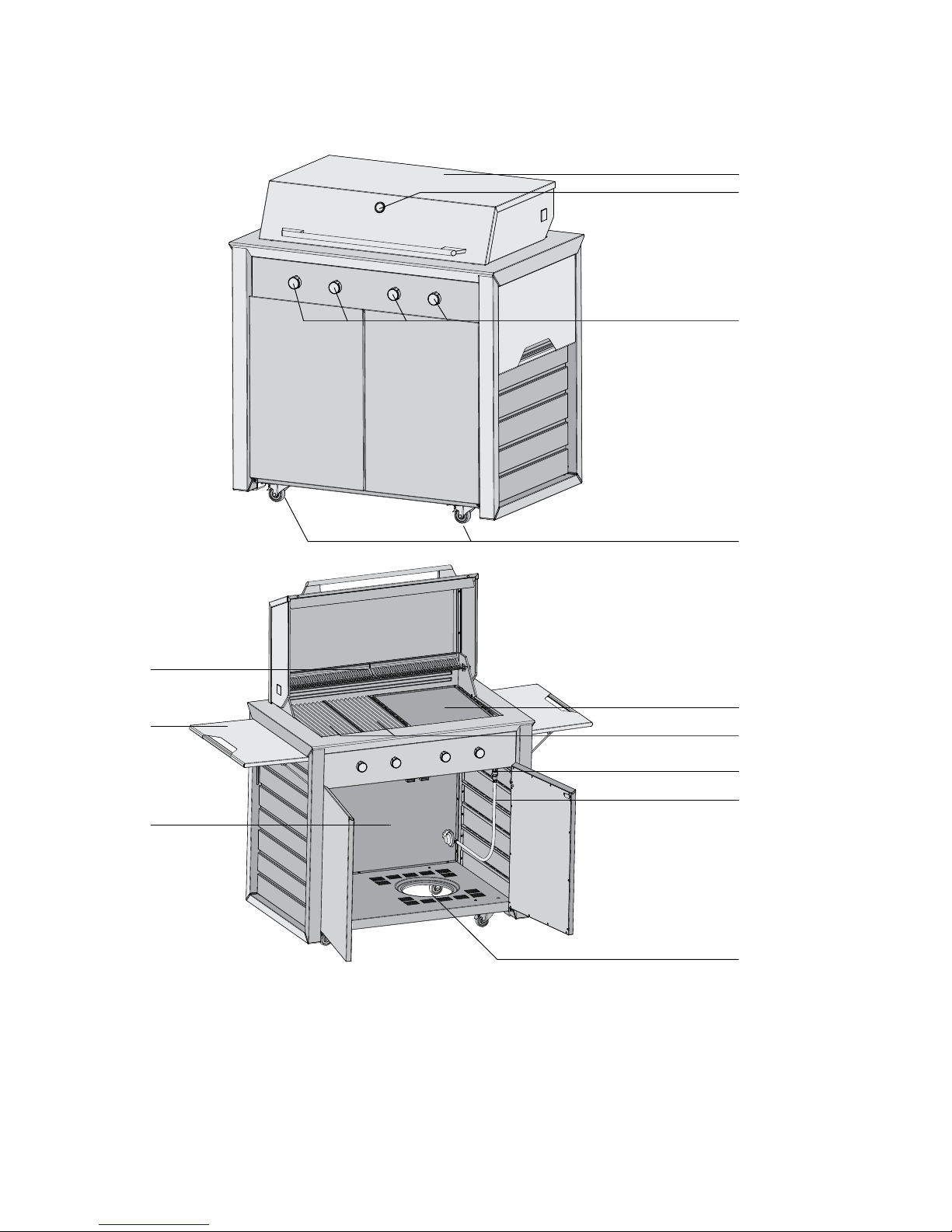

Electrolux En:tice barbecue EQBM90AS
1 Roasting hood
2Temperature indicator
3Burner controls
4 Swivel wheels with brake
5 Swivel wheels (not illustrated)
6 Gas bottle well
7 Storage compartment
8 Fold down side table
3
1
10
12
13
8
7
11
2
9
6
4
9Grill
10 Hotplate
11 Warming racks
12 Gas connection point
13 Gas hose with universal LPG connection
14 Match holder for manual lighting (not illustrated)
15 Removable oil reservoirs located at front of cooking
surface (not illustrated)

electrolux en:tice barbecue EQBM90AS dimensions 5
Dimensions EQBM90AS
581mm
202mm
539mm
924mm
1080mm
1169mm
700mm
966mm
Weight86kg

Electrolux En:tice barbecue EQBM60AS
1 Roasting hood
2Temperature indicator
3Burner controls
4 Swivel wheels with brake
5 Swivel wheels (not illustrated)
6 Gas bottle well
7 Fold down side table
8Grill
3
1
9
14
10
11
7
2
8
6
4
9Hotplate
10 Gas connection point
11 Gas hose with universal LPG connection
12 Match holder for manual lighting (not illustrated)
13 Removable oil reservoirs located at front of cooking
surface (not illustrated)
14 Wire warming rack
6 EQBM60AS description electrolux en:tice barbecue

Dimensions EQBM60AS
581mm
636mm
792mm
700mm
1169mm
966mm
202mm
539mm
electrolux en:tice barbecue EQBM60AS dimensions 7
Weight70kg

8 EQBM60AS/EQBM90AS parts electrolux en:tice barbecue
Electrolux En:tice barbecue parts
description qty
Separation
panel
assembly
1
Rear panel 1
Upper rear
panel
1
Front control
panel
1
Burner box
& hood
assembly
1
Hotplate 1
Grills 2
Wire warming
rack (model
EQBM60AS)
1
description qty
Base panel 1
Left side panel
assembly
1
Right side
panel
assembly
1
Left &
right door
assemblies
2
Wheel
assemblies
4
Blister pack
containing
screws,
washers,
door hinge
brackets and
control knobs
1
Warming
racks (model
EQBM90AS
only)
2
Tools you will need for assembly:
– Phillips head screwdriver
Contents of your barbecue pack:

electrolux en:tice barbecue unpacking the barbecue 9

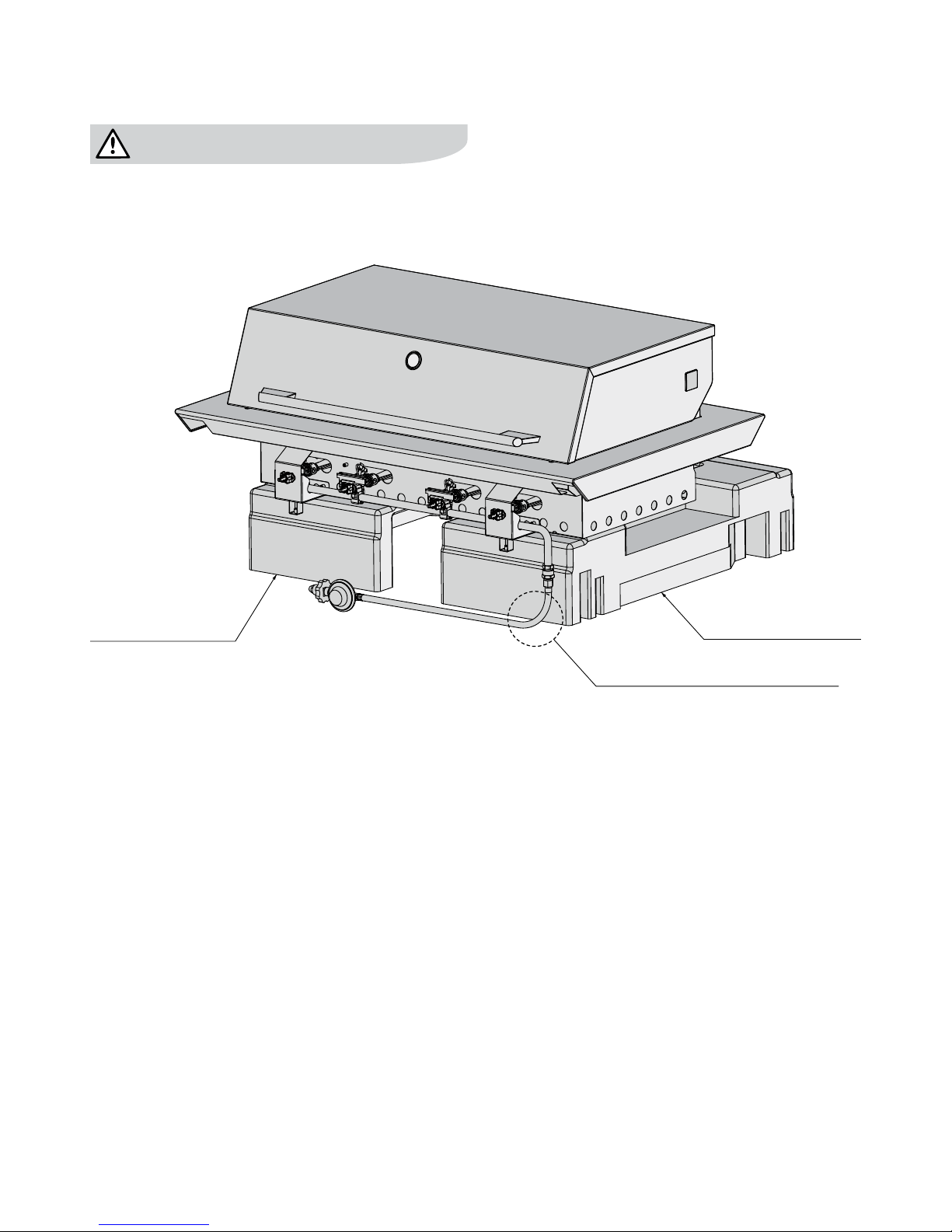

caution
When removing the burner box and hood assembly
from the box, ensure that it is placed onto a support
such as the polystyrene packaging to prevent kinking
the exible gas hose.
Unpacking the barbecue
Polystyrene Packaging Polystyrene Packaging
Take care to prevent kinking of hose here

10 assembling the barbecue electrolux en:tice barbecue
1. Fitlowerhingebracketstobasepanel
2. Partiallyinstallscrewstobasepanel
DO NOT screw in fully
Assembling the barbecue
Lower hinge bracket
Base panel
Lower hinge bracket
Qty 4
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 2
Lower hinge bracket
Screw locations
Qty 3
Type 1 screw (M4 x 8)
Note: EQBM60AS only
requires 2 screws.
Base panel

electrolux en:tice barbecue assembling the barbecue 11

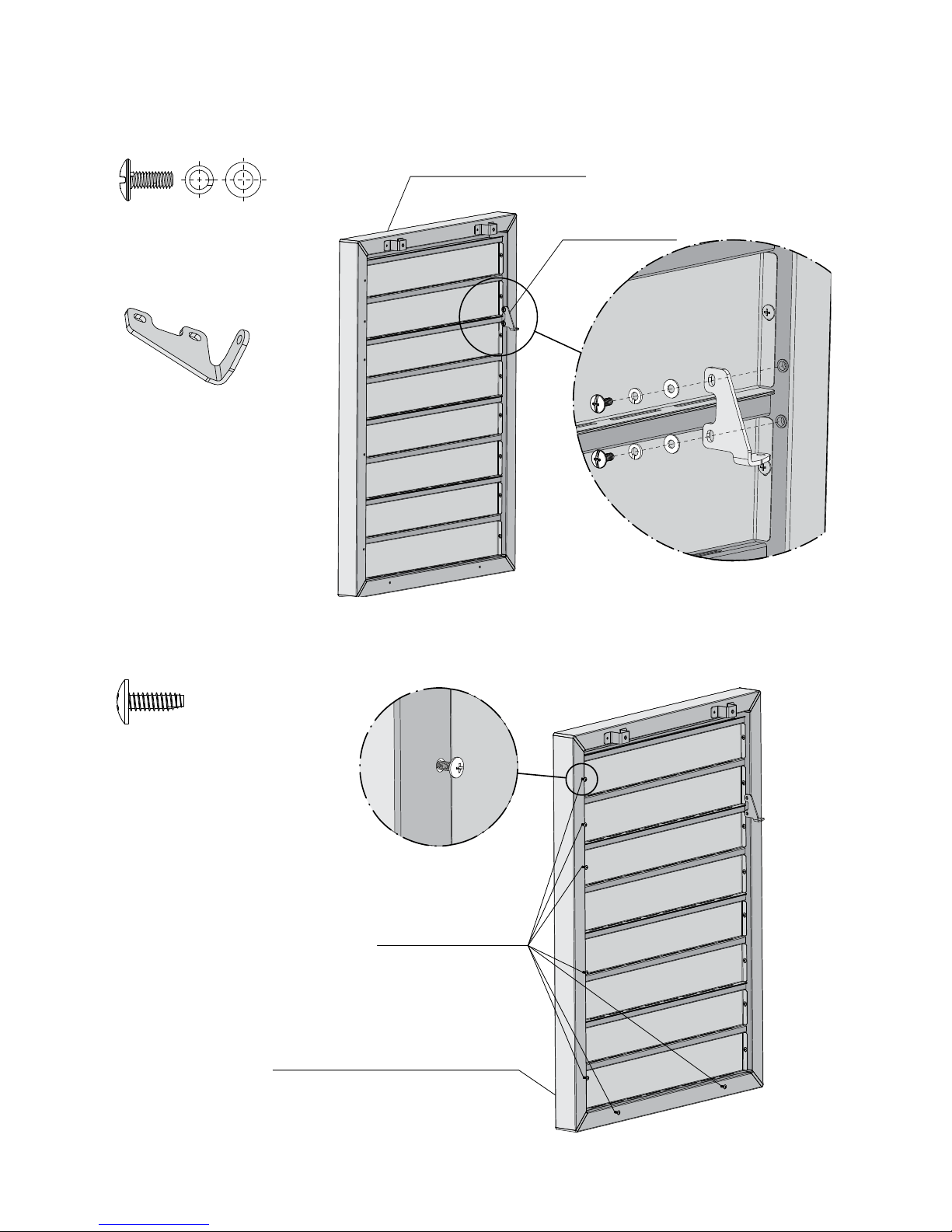

3. Fitleftupperdoorhingebracket
4. Partiallyinstallscrewstoleftsidepanelassembly
DO NOT screw in fully
Screw locations
Qty 7
Type 1 screw (M4 x 8)
Left side panel assembly
Left side panel assembly
Qty 2
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 1
Left upper door hinge bracket
Left upper door
hinge bracket

12 assembling the barbecue electrolux en:tice barbecue
5. Fitrightupperdoorhingebracket
6. Partiallyinstallscrewstorightsidepanelassembly
DO NOT screw in fully
Qty 2
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 1
Right upper door hinge bracket
Right side panel assembly
Right upper door
hinge bracket
Qty 7
Type 1 screw (M4 x 8)
Screw locations
Right side panel assembly

electrolux en:tice barbecue assembling the barbecue 13

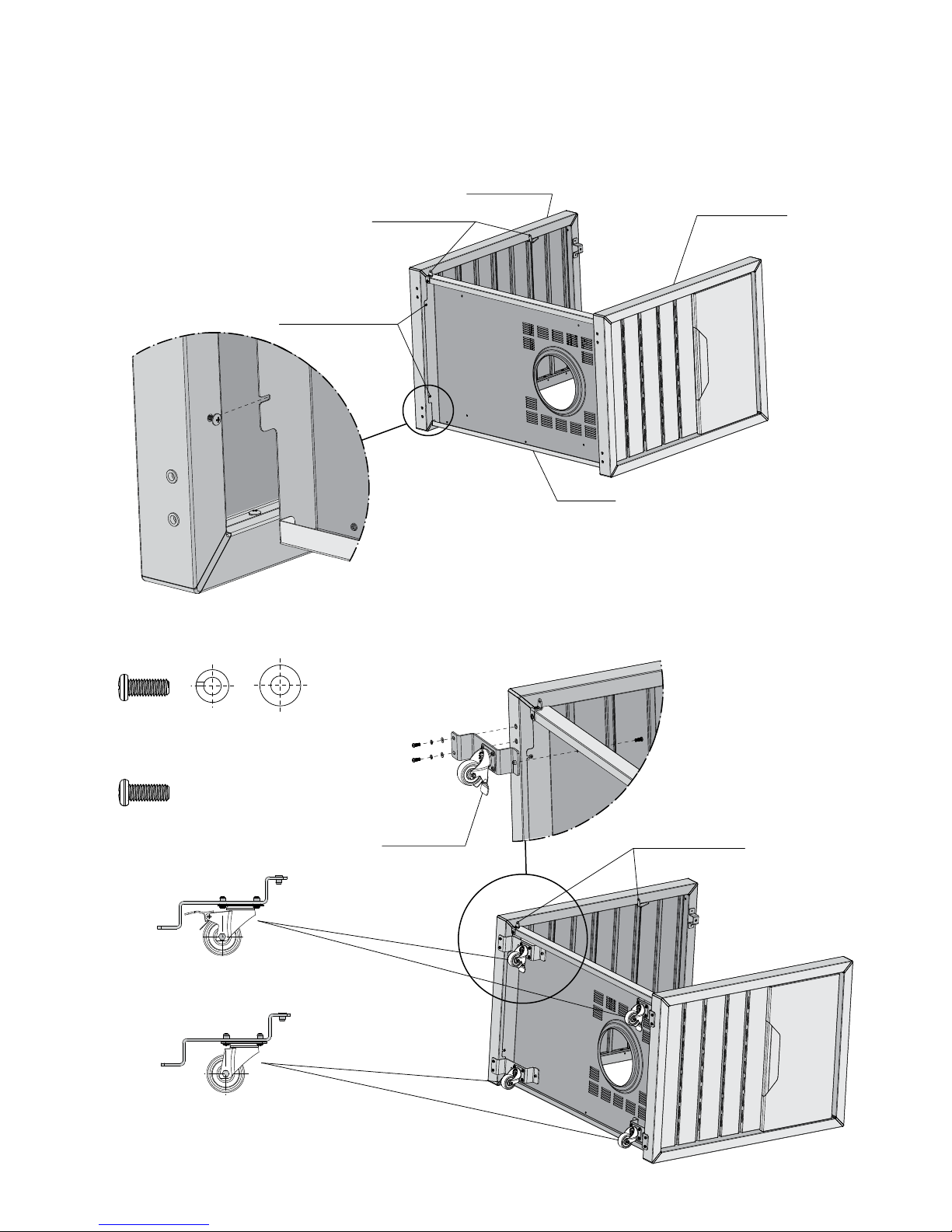

7. Fitsidepanelstobasepanel
Slide base panel slots under screw heads
and tighten screws 4 places (2 each side)
8. Fitwheelandbracketassemblies
Right side panel
assembly
Base panel
Qty 8
Type 2 screw (M6 x 20)
Spring washer
Flat washer
Left side panel
assembly
All hinge brackets
this side up
Base panel secured by
2 screws each side
Qty 4
Type 2 screw (M6 x 20) Door hinge brackets
this side up
Wheel assembly
with brake
Qty 2
Wheel assembly with brake
Qty 2
Wheel assembly without brake

14 assembling the barbecue electrolux en:tice barbecue
9. Fitrearpanel
Alight rear panel slots with screws and slide
rear panel slots under screw heads and tighten
screws 9 places (3 each side & 3 at bottom)
10.Fitupperrearpanel
Align upper rear panel slots at side with screws
and slide rear panel slots under screw heads
and tighten screws 4 places (2 each side)
DO NOT t screws to these
holes until next step
Rear panel
Upper rear panel
angled bend at top

electrolux en:tice barbecue assembling the barbecue 15

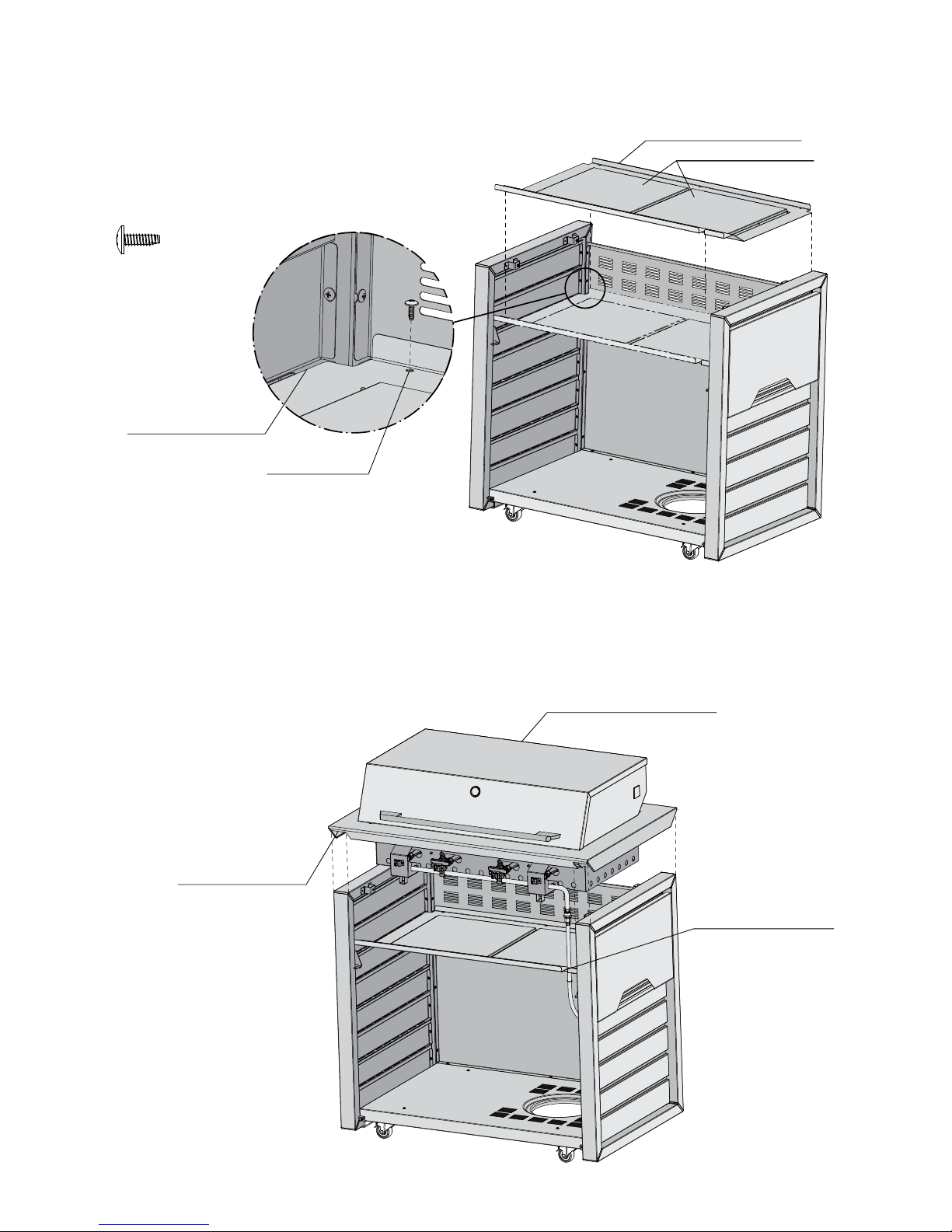

11.Fitseparationpanel
Lower separation panel into position. Sides of
separation panel rest on side panel and shoulders.
Align holes at rear with holes in rear panel,
and t 3 x type 1 screws
12.Fitburnerboxandhoodassembly-requires2people
A. Carefully lift the assembly (1 person each side) above the
base and lower into position. Ensure the trim panel ts
neatly over the top frame and the gas hose ts through
the slot in the separation panel. Do not t screws to
underside of separation panel at front until step 13.
Qty 3
Type 1 screw (M4 x 8)
Note: EQBM60AS only
requires 2 screws.
Side of panel rests on
shoulder of side panel
Screws tted to
holes at rear
Separation panel assembly
These panels facing up
Burner box and hood assembly
Ensure gas hose
located in panel slot
Cut out ts over top of
frame each corner

16 assembling the barbecue electrolux en:tice barbecue

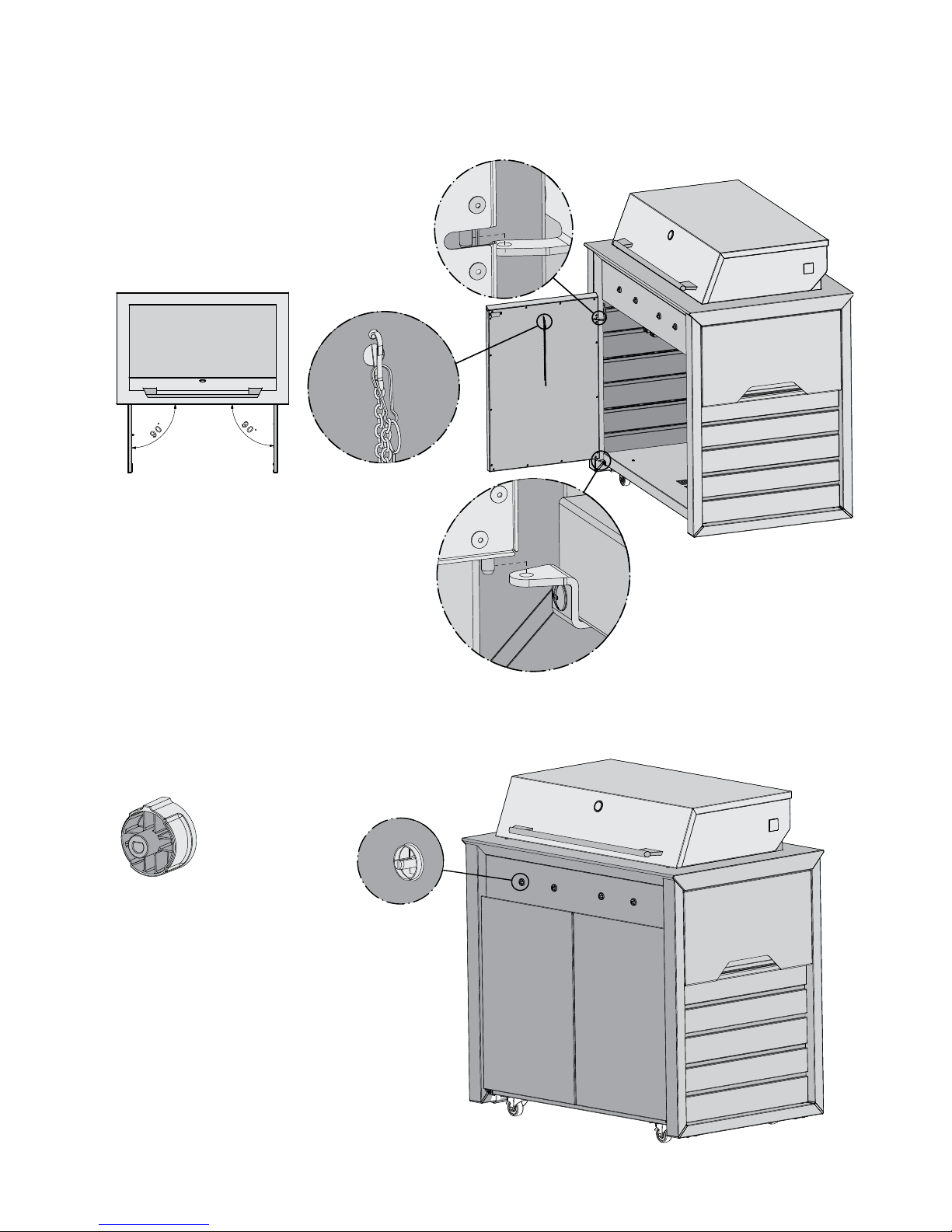

B. Once in position, open the hood and align the side
burner box formed holes with the side brackets.
Fit 2 screws with bre washer each side.
13.Fitcontrolpanel
Fit the control panel in by locating the 3 tabs
(EQBM60AS only has 2 tabs) at top into slots. Ensure
that valve shafts locate through holes. Check the lower
tabs of control panel are below the separation panel.
Align the lower tab holes with those in the separation
panel and t screws in 2 places.
Qty 4
Type 3 screw (M5 x 12)
Fibre washer
Left side screw
locations Right side screw
locations
Qty 2
Type 3 screw (M5 x 12)
Upper control panel tab to
be located into slots
location tab
Screw locations

electrolux en:tice barbecue assembling the barbecue 17
14.Fitdoors
Present the door perpendicular to the barbecue,
and locate the upper and lower pins of door to
support brackets. Repeat for other door.
Fit matcholder chain to inside of door with clip.
15.Controlknobs
Align the control knob with the valve shaft and push on.
NOTE: the hole and the shaft are not completely round,
having one side flat, these need to be aligned
Doors to be at 90° to
barbecue for assembly
Qty 4
Control knob

18 assembling the barbecue electrolux en:tice barbecue
16.Fitgreasecollectors
The collectors are already in correct location,
remove from plastic bag and relocate.
17.Fitgrills
The grills are to be placed in the correct orientation to
enable the grease to ow to the front grease collectors –
refer diagram for details.
Slots of grease collectors to be
placed over the location screws
Rear bracket locates
on top of burner box
Bracket at front located behind
barrier panel to prevent grill
from sliding forward.
Location
screws

Slots at rear of warmer
rack slide vertically into
retaining screws.
electrolux en:tice barbecue assembling the barbecue 19
Raised edge at rear
Drip edge at front
Form under front of plate
locates against front barrier
to prevent sliding forward
Forms under plate at rear locate
on rear of burner box to give
slope for grease drainage
Hot plate matches grill
when correctly installed
18.Fithotplate
The hot plate has forms underneath for location.
The rear forms lift the plate at rear to give slope for
grease drainage. The front forms are located behind
front barrier to prevent sliding forward. The plate slope
will match the grills when installed correctly.
19.Fitwarmerracks(modelEQBM90ASonly)
The warmer racks have slots in the rear bend
which slide over screws in splashback at rear.
20.Fitwirewarmingrack(modelEQBM60ASonly)
Tilt front of rack up and locate wire ends into holes
in rear of splashguard.

20 gas specications/gas bottle safety/gas bottle installation/leak test procedure electrolux en:tice barbecue
Leak test procedure (Universal LPG)
• Ensure all gas valves are in the ‘OFF’ position.
• In a small container, mix a solution of water and
detergent or soap.
• After connection of the hose, turn on the valve at the
gas bottle or mains as appropriate.
• Using a brush apply the solution to the gas connection
points and look for bubbles forming.
• Bubbling will indicate a leak.
• Turn off the valve and re-tighten the joint. Repeat the
leak test.
• If the leak persists, turn off the gas at the isolation
valves and contact a licensed gas tter to correct.
leak test points
check hose for
signs of abrasions,
cracks or leaks
Gas specications
ForElectroluxEn:ticeEQBM90ASonly
gastype universalLPG naturalgas
Maximum gas consumption 48 MJ/h 58 MJ/h
Injector orice diameter (mm) 0.95 1.75
Number of injectors 4 4
Regulator pressure 2.75 kPa** 0.97 kPa*
ForElectroluxEn:ticeEQBM60ASonly
gastype universalLPG naturalgas
Maximum gas consumption 42 MJ/h 42 MJ/h
Injector orice diameter (mm) 0.90 1.50
Number of injectors 4 4
Regulator pressure 2.75 kPa** 0.97 kPa*
NOTES
• This appliance MUST be serviced only by a qualied
licensed person.
• This product is intended for outdoor use only.
• Ventilation holes in the unit must not be obscured
by the installation.
* The outlet pressure at the Natural Gas regulator will be
lower when all burners are operating. Burner pressure
should read 0.97kPa with one burner operating and
approximately 0.87kPa for model EQBM90AS and
0.89kPa for model EQBM60AS with four burners
operating.
** The outlet pressure at the LPG regulator will be lower when
all burners are operating Burner pressure should read 2.75kPa
with one burner operating and approximately 2.67kPa with four
burners operating.
For conversion to Natural Gas a conversion kit is available
for purchase from Electrolux Spare Parts.
Gas bottle safety information
• This appliance is designed to use a Universal LPG
9kg (20 lbs) gas cylinder.
• The gas cylinder must be made and marked in
accordance with specications for LPG cylinders
• The isolation valve must be turned off when the
appliance is not in use.
• Gas cylinders must be stored in an approved housing
out of reach of children.
• When disconnecting the gas bottle ensure that all
the control valves are in the ‘OFF’ position.
• Remove the bottle from any housing in which it
may be stored before disconnection.
• When reconnecting the hose to the bottle, ensure
that all connections are tight before replacing in the
storage compartment.
• Carry out a leakage check as detailed below after
each reconnection.
Gas bottle installation
1. Open both gas bottle compartment doors.
2. Place gas bottle into well in base ensuring bottle is stable.
3. Make connection of gas hose to gas bottle.
Gas bottles vary in size and there may be some variations
that do not t into the space provided. As an alternative to
placing the bottle into well in base, the bottle can be placed
on the ground and hose placed through hole in rear panel
for connection to inlet. The cylinder connection is a POL
type 21 connection with a left hand thread.
