Electrolux EQTP4520IK User manual

Teppan yaki grill plate
EQTP4520IK
Electrolux
Cooking

CONTENTS
1. SAFETY INFORMATION...................................................................................... 2
2. SAFETY INSTRUCTIONS.....................................................................................4
3. PRODUCT DESCRIPTION................................................................................... 6
4. DAILY USE.......................................................................................................... 9
5. HINTS AND TIPS............................................................................................... 11
6. CARE AND CLEANING......................................................................................14
7. TROUBLESHOOTING........................................................................................14
8. INSTALLATION..................................................................................................16
9. TECHNICAL DATA.............................................................................................19
10. GREAT BRITAIN & IRELAND - CUSTOMER CARE AND SERVICE...................20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result
of incorrect installation or usage. Always keep the
www.electrolux.com2

instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
•Do not operate the appliance by means of an external
timer or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil
can be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
ENGLISH 3

•CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can
get hot.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and
do not rely on the pan detector.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance to avoid the possibility of
electric shock.
•If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions for
use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This
prevents hot cookware to fall from the
appliance when the door or the
window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for
air circulation.
• The bottom of the appliance can get
hot. Make sure to install a non-
combustible separation panel under
the appliance to prevent access to the
bottom.
www.electrolux.com4

• Make sure that the ventilation space of
2 mm, between the worktop and the
front of the below unit, is free. The
warranty does not cover damages
caused by the lack of an adequate
ventilation space.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact our Authorised
Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock.
• Remove all the packaging, labelling
and protective film (if applicable) before
first use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it
may splash.
ENGLISH 5

WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• Do not keep hot cookware on the
control panel.
• Do not put a hot pan cover on the
glass surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these objects
up when you have to move them on
the cooking surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
2.4 Care and cleaning
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Deactivate the appliance and let it cool
down before you clean it.
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
2.6 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.

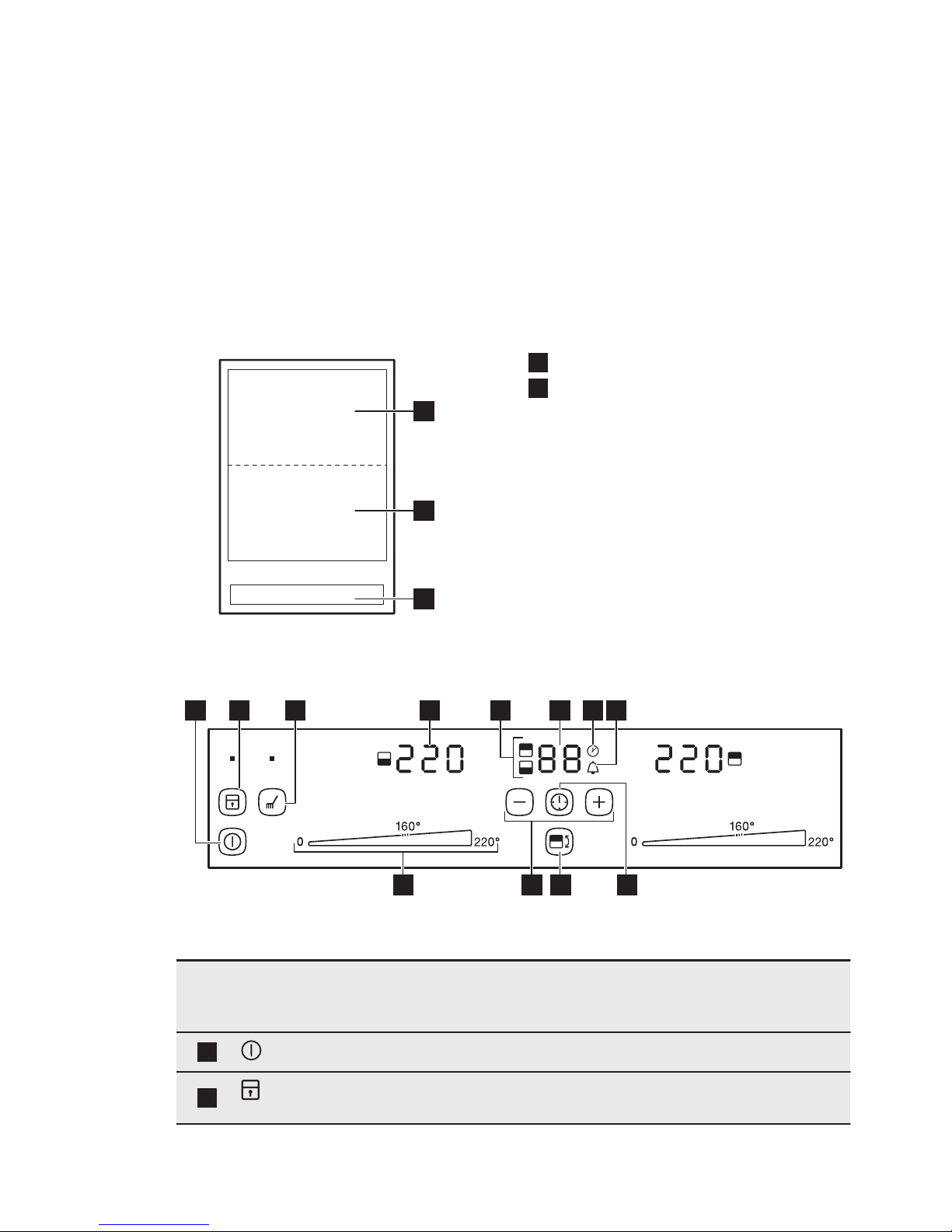

3. PRODUCT DESCRIPTION
3.1 The most important features
of your hob
• The cooking surface has 2 layers of
stainless steel with a layer of aluminium
between them. It has a high thermal
capacity, which prevents temperatures
from quickly decreasing (e.g. when you
prepare meat directly from the
refrigerator).
• Each Teppan Yaki grill surface is
unique because they are made by
hand and grounded by grinding
specialists. Differences in the grinding
pattern are normal and do not cause
problems in how the hob operates. The
more you use your grill, the more
valuable it looks.
• The groove around the edge:
– Decreases the temperature of the
installation surfaces, which lets you
install the cooking surface into
different types of kitchen worktops.
– Absorbs some of the expansion of
the heated cooking surface
through its indentation.
www.electrolux.com6

– Collects small food remnants and
liquids which you can easily
remove after cooking.
• The necessary temperature can be
kept constant by the thermostat with a
readable temperature setting. This
prevents overheating of the food and
permits low-fat cooking that keeps the
nutritional values of the food.
• The food is heated directly on the
cooking surface, with or without oil.
There is also the option of cooking with
pots or pans.
• The grill surface heats to a temperature
of 180 °C in approximately 4 minutes.
The temperature of the grill surface
decreases from 180 °C to 100 °C in
approximately 25 minutes, and to 60
°C in approximately 60 minutes.
• Always preheat the cooking surface
before cooking.
3.2 Cooking surface layout
1
1
2
1Roasting zone
2Control panel

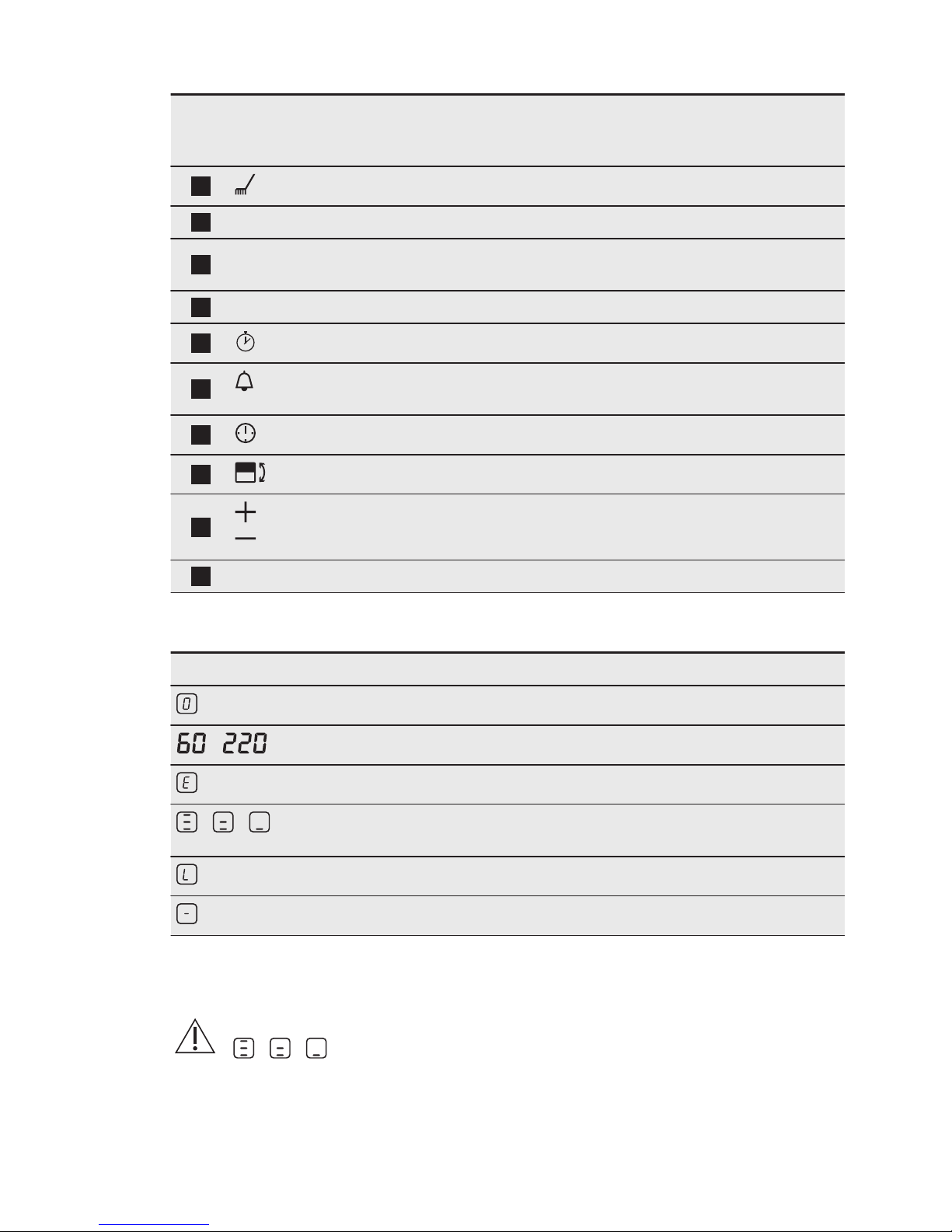

3.3 Control panel layout
6 742 3
11 10 9
851
12
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
Sen-
sor
field
Function Comment
1ON / OFF To activate and deactivate the hob.
2Lock / The Child Safety
Device
To lock / unlock the control panel.
ENGLISH 7

Sen-
sor
field
Function Comment
3Cleaning To activate and deactivate the function.
4- Temperature display To show the temperature.
5- Timer indicators of roast-
ing zones
To show for which zone you set the time.
6- Timer display To show the time in minutes.
7CountUp Timer To show that the function operates.
8Count Down Timer / Mi-
nute Minder
To show that the function operates.
9- To select the Timer function.
10 - To select the roasting zone.
11 / - To increase or decrease the time.
12 - Control bar To set the temperature.
3.4 Heat setting displays
Display Description
The roasting zone is deactivated.
- The roasting zone operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator) : continue cook-
ing / keep warm / residual heat.
Lock / The Child Safety Device function operates.
Automatic Switch Off function operates.
3.5 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
/ / There is a risk of
burns from residual heat. The
indicator shows the level of
the residual heat.
The induction cooking zones make the
heat necessary for cooking process
directly in the bottom of the cookware.
The glass ceramic is heated by the heat of
the cookware.
3.6 Accessories
Turning spoon TY WS (spatula)
www.electrolux.com8

The ergonomic spoon serves as a
multipurpose tool for turning food or for
removing burnt-on food remnants. 2 items
supplied.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
4.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• All roasting zones are deactivated.
• You do not set the temperature after
you activate the hob.
• You spill something or put something
on the control panel for more than 10
seconds, (a pan, a cloth, etc.). An
acoustic signal sounds and the hob
deactivates. Remove the object or
clean the control panel.
• You do not deactivate a roasting zone
or change the temperature. After 90
minutes comes on and the hob
deactivates. Before next use, set the
roasting zone to .
4.3 The heat setting
To set or change the heat setting:
Touch the control bar at the correct heat
setting or move your finger along the
control bar until you reach the correct heat
setting.
The display flashes until the roasting zone
reaches the temperature. Then a signal
sounds and the display shows the
temperature.
4.4 Timer
Count Down Timer
You can use this function to set how long
the roasting zone should operate for a
single cooking session.
First set the roasting zone then set
the function. The selection of the Timer
function is possible for roasting zones that
are active and after the temperature is set.
To set the roasting zone: touch
again and again until the indicator of a
necessary roasting zone comes on. When
this function is active, comes on.
To activate the function: touch of
the timer to set the time (00 - 99 minutes).
When the indicator of the roasting zone
starts to flash slowly the time counts
down.
To see the remaining time: set the
roasting zone with . The indicator of
the roasting zone starts to flash quickly.
The display shows the remaining time.
To change the time: set the roasting
zone with . Touch or .
To deactivate the function: set the
roasting zone with and touch . The
remaining time counts back to 00. The
indicator of the roasting zone goes out.
ENGLISH 9

When the time comes to an
end, the sound operates and
00 flashes. The roasting zone
deactivates.
To stop the sound: touch .
CountUp Timer (The count up
timer)
You can use this function to monitor how
long the roasting zone operates.
To set the roasting zone (if more than
1 roasting zone operates): touch
again and again until the indicator of a
necessary roasting zone comes on. When
this function is active, comes on.
To activate the function: touch . The
symbol goes out and comes on.
To see how long the roasting zone
operates: set the roasting zone with .
The indicator of the roasting zone starts to
flash quickly. The display shows how long
the zone operates. During the first minute
the display shows the time in seconds.
After the first minute the display shows the
time in minutes.
To deactivate the function: set the
roasting zone with and touch . The
symbol goes out and comes on.
To reset the function: touch . The
time counts back to 00.
If two functions operate at the
same time, the display shows
the CountUp Timer function
first.
Minute Minder
You can use this function as a Minute
Minder when the hob is activated and the
roasting zones do not operate (the
temperature display shows ).
To activate the function: touch .
Touch or of the timer to set the
time. When the time comes to an end, the
sound operates and 00 flashes.
To stop the sound: touch .
The function has no effect on
the operation of the roasting
zones.
4.5 Lock
You can lock the control panel while
cooking zones operate. It prevents an
accidental change of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays
on.
To deactivate the function: touch .
The previous heat setting comes on.
When you deactivate the
hob, you also deactivate this
function.
4.6 The Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: activate the
hob with . Do not set the heat setting.
Touch for 4 seconds. comes on.
Deactivate the hob with .
To deactivate the function: activate the
hob with . Do not set the heat setting.
Touch for 4 seconds. comes on.
Deactivate the hob with .
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds.
Set the heat setting in 10 seconds.
You can operate the hob. When you
deactivate the hob with the function
operates again.
4.7 OffSound Control
(Deactivating and activating the
sounds)
Deactivate the hob. Touch for 3
seconds. The display comes on and goes
out. Touch for 3 seconds. or
www.electrolux.com10

comes on. Touch of the timer to
choose one of the following:
• - the sounds are off
• - the sounds are on
To confirm your selection wait until the
hob deactivates automatically.
When the function is set to you can
hear the sounds only when:
• you touch
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control
panel.
5. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
5.1 Öko Timer (Eco Timer)
To save energy, the heater of the roasting
zone deactivates before the count down
timer sounds. The difference in the
operation time depends on the
temperature setting and the length of the
roasting.
5.2 Preparing food with the
Teppan Yaki
You prepare the food directly on the
roasting surface, with or without oil. You
can also use pots or pans, but the
cookware does not heat up as quickly as
it does on a glass-ceramic hob or a gas
hob.
You can cook or keep warm side dishes
or sauces in pots or pans. Put them
directly on the cooking surface.
The manufacturer does not recommend
that you boil large quantities of water on
the roasting surface (e.g. for spaghetti).
The noises are normal and
do not refer to hob
malfunction.
Do not put cookware in the middle of the
cooking surface between the zones, as
the unevenness can make them unsteady.
Frying on the surface, where the zones
touch, can cause in uneven browning (e.
g. with pancakes).
5.3 Examples of cooking
applications
Using fats and oils
When the temperature is too high, the fat
begins to produce smoke. This
temperature is called the smoke point.
Fats / Oils Max. temperature (°C) Smoke point (°C)
Butter 130 150
Pork fat 170 200
Beef fat 180 210
Olive oil 180 200
Sunflower oil 200 220
Groundnut oil 200 235
Coconut oil 200 240
ENGLISH 11

Always preheat the hob.
Food to be cooked Temperature (°C) Time / Tips
Fish and shellfish 140 – 160 Preheat the hob.
Salmon fillets 160 8 minutes, turn after 4 mi-
nutes.
King prawns (without shell) 140 6 minutes, turn after 3 mi-
nutes.
Shark steaks, approximate-
ly 2.5 cm thick
160 10 minutes, turn after 5 mi-
nutes.
Sole, Müllerin Art (fried in
butter)
140 8 minutes, turn after 4 mi-
nutes, light side first.
Plaice filets 140 6 minutes, turn after 3 mi-
nutes.
Veal 140 – 180 Preheat the hob.
Veal chop 180 10 minutes, turn after 5 mi-
nutes.
Veal medallions, 4 cm thick 160 10 minutes, turn after 5 mi-
nutes.
Veal steaks, 3 - 4 cm thick 160 6 minutes, turn after 3 mi-
nutes.
Veal escalopes, natural 180 5 minutes, turn after 2,5 mi-
nutes.
Veal fricasee in cream
sauce
180 6 minutes, turn after 3 mi-
nutes. The meat strips must
not be stuck to each other.
Beef 160 – 180 Preheat the hob.
Beef steak blau, very raw 180 2 minutes, turn after 1 mi-
nute.
Beef steak blutig, raw 180 6 minutes, turn after 3 mi-
nutes.
Beef steak rosa, medium 180 8 minutes, turn after 2 mi-
nutes.
Beef steak durch, well done 180 8 minutes, turn after 4 mi-
nutes. Without fatty sub-
stances, the roasting time
increases by approximately
20%.
www.electrolux.com12

Food to be cooked Temperature (°C) Time / Tips
Hamburger 160 6 - 8 minutes, turn after 3 -
4 minutes.
Châteaubriand 160 then 100 Sauté the meat in oil on all
sides (turn only when the
meat does not stick to the
pan). Finish off on one side
for 10 minutes (100 °C).
Pork 160 – 180 Preheat the hob.
Pork medallions 160 8 minutes, turn after 4 mi-
nutes (depending on the
thickness).
Pork steaks 180 8 minutes, turn after 4 mi-
nutes.
Pork escalopes 160 6 minutes, turn after 3 mi-
nutes.
Spare ribs 160 8 - 10 minutes, turn several
times.
Pork skewer 160 6 - 8 minutes, sauté well on
all sides.
Lamb 160 – 180 Preheat the hob.
Lamb chops 180 10 minutes, turn after 5 mi-
nutes.
Filet of lamb 160 10 minutes, turn after 5 mi-
nutes. The filet must be fri-
ed on both sides.
Lamb steaks 160 6 - 8 minutes, turn after 3 -
4 minutes.
Poultry 140 – 160 Preheat the hob.
Chicken supreme 140 8 - 10 minutes, turn after 4
- 5 minutes.
Turkey breast strips 160 6 minutes, turn several
times.
Sausages 160 Preheat the hob.
Fried egg 140 Preheat the hob.
Crepes / Omelettes 140 - 160 Preheat the hob.
Fruits 140 - 160 Preheat the hob.
Vegetables 140 - 160 10 - 20 minutes, turn sever-
al times.
ENGLISH 13

Food to be cooked Temperature (°C) Time / Tips
Vegetables 140 - 160 10 - 15 minutes, under a
cooking lid (turn halfway
through).
Cooking precooked rice 140 - 160 10 - 15 minutes, turn sever-
al times.
Cooking precooked noo-
dles
140 - 160 15 - 20 minutes, turn half-
way through.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General information
Clean the hob after each use.
Always use cookware with clean bottom.
WARNING!
Sharp objects and abrasive
cleaning agents will damage
the appliance.
6.2 Cleaning function
1. Touch . Each zone is set to 80°C.
The display flashes until the
temperature is 80°C. The function
locks the control panel, but not .
2. When the temperature reaches 80°C
an acoustic signal sounds, and the
control panel becomes unlocked.
3. Put ice cubes one by one on the
roasting zone (you can use also cold
water). At the same time, use a
spatula to remove the remaining
roasting pieces and push all pieces
into the trough.
4. Dry the hob with a clean cloth.
6.3 Cleaning when the hob is
cold
1. Apply a usual cleaning agent to the
roasting surface and let it set for 5
minutes.
2. Remove the cooking residue with a
spatula.
3. Clean the hob with a moist cloth.
4. Dry the hob with a clean cloth.
5. When the hob is dry, rub the roasting
surface with some cooking oil.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Remedy
You cannot activate or op-
erate the hob.
The hob is not connected
to an electrical supply or it
is connected incorrectly.
Check if the hob is correctly
connected to the electrical
supply. Refer to the con-
nection diagram.
www.electrolux.com14

Problem Possible cause Remedy
The fuse is blown. Make sure that the fuse is
the cause of the malfunc-
tion. If the fuse is blown
again and again, contact a
qualified electrician.
Activate the hob again and
set the heat setting in less
than 10 seconds.
You touched 2 or more
sensor fields at the same
time.
Touch only one sensor field.
There is water or fat stains
on the control panel.
Clean the control panel.
An acoustic signal sounds
and the hob deactivates.
An acoustic signal sounds
when the hob is deactiva-
ted.
You put something on one
or more sensor fields.
Remove the object from the
sensor fields.
The hob deactivates. You put something on the
sensor field .
Remove the object from the
sensor field.
Residual heat indicator
does not come on.
The zone is not hot be-
cause it operated only for a
short time.
If the zone operated suffi-
ciently long to be hot,
speak to an Authorised
Service Centre.
Automatic Heat Up function
does not operate.
The zone is hot. Let the zone become suffi-
ciently cool.
The highest heat setting is
set.
The highest heat setting has
the same power as the
function.
There is no signal when you
touch the panel sensor
fields.
The signals are deactivated. Activate the signals.
Refer to "Daily use" chapter.
comes on. Automatic Switch Off oper-
ates.
Deactivate the hob and ac-
tivate it again.
comes on. The Child Safety Device or
the Lock function operates.
Refer to "Daily use" chapter.
ENGLISH 15

Problem Possible cause Remedy
and a number come on. There is an error in the hob. Disconnect the hob from
the electrical supply for
some time. Disconnect the
fuse from the electrical sys-
tem of the house. Connect
it again. If comes on
again, speak to an Author-
ised Service Centre.
comes on. The electrical connection is
incorrect. The supply volt-
age is out of range.
Speak to a qualified electri-
cian to check the installa-
tion.
comes on. There is an error in the hob
because a cookware boiled
dry. Automatic Switch Off
and the overheating protec-
tion for the zones operate.
Deactivate the hob. Re-
move the hot cookware. Af-
ter approximately 30 sec-
onds, activate the zone
again. If the cookware was
the problem, the error mes-
sage goes out. Residual
heat indicator can stay on.
Let the cookware become
sufficiently cool. Check if
your cookware is compati-
ble with the hob.
Refer to “Hints and tips”
chapter.
comes on. The cooling fan is blocked. Check if objects block the
cooling fan. If comes
on again, speak to an Au-
thorised Service Centre.
7.2 If you cannot find a
solution...
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre. Give the
data from the rating plate. Give also three
digit letter code for the glass ceramic (it is
in the corner of the glass surface) and an
error message that comes on. Make sure,
you operated the hob correctly. If not the
servicing by a service technician or dealer
will not be free of charge, also during the
warranty period. The instructions about
the Service Centre and conditions of
guarantee are in the guarantee booklet.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Before the installation
Before you install the hob, write down the
information bellow from the rating plate.
The rating plate is on the bottom of the
hob.
Serial number ...........................
www.electrolux.com16

8.2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in units
and work surfaces that align to the
standards.
8.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable
use the following (or higher) mains
cable type: H05V2V2-F T min 90°C.
Speak to your local Service Centre.
8.4 Attaching the seal
1. Clean the worktop around the cut out
area.
2. Attach the supplied seal stripe to the
lower edge of the hob along the outer
edge of the glass ceramic. Do not
extend it. Make sure that the ends of
the seal stripe are located in the
middle of one side of the hob.
3. Add some mm when you cut the seal
stripe to the length.
4. Push the two ends of seal stripe
together.

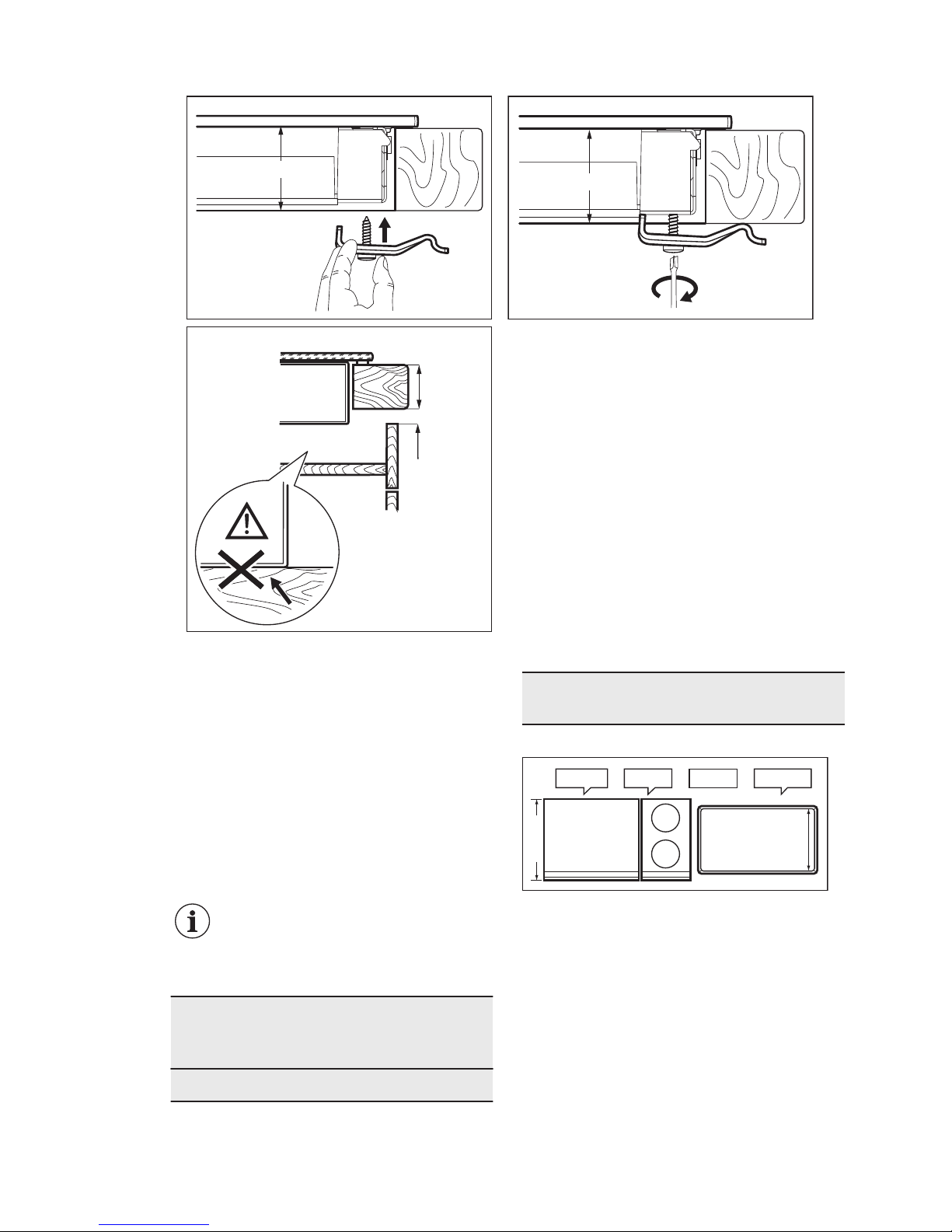

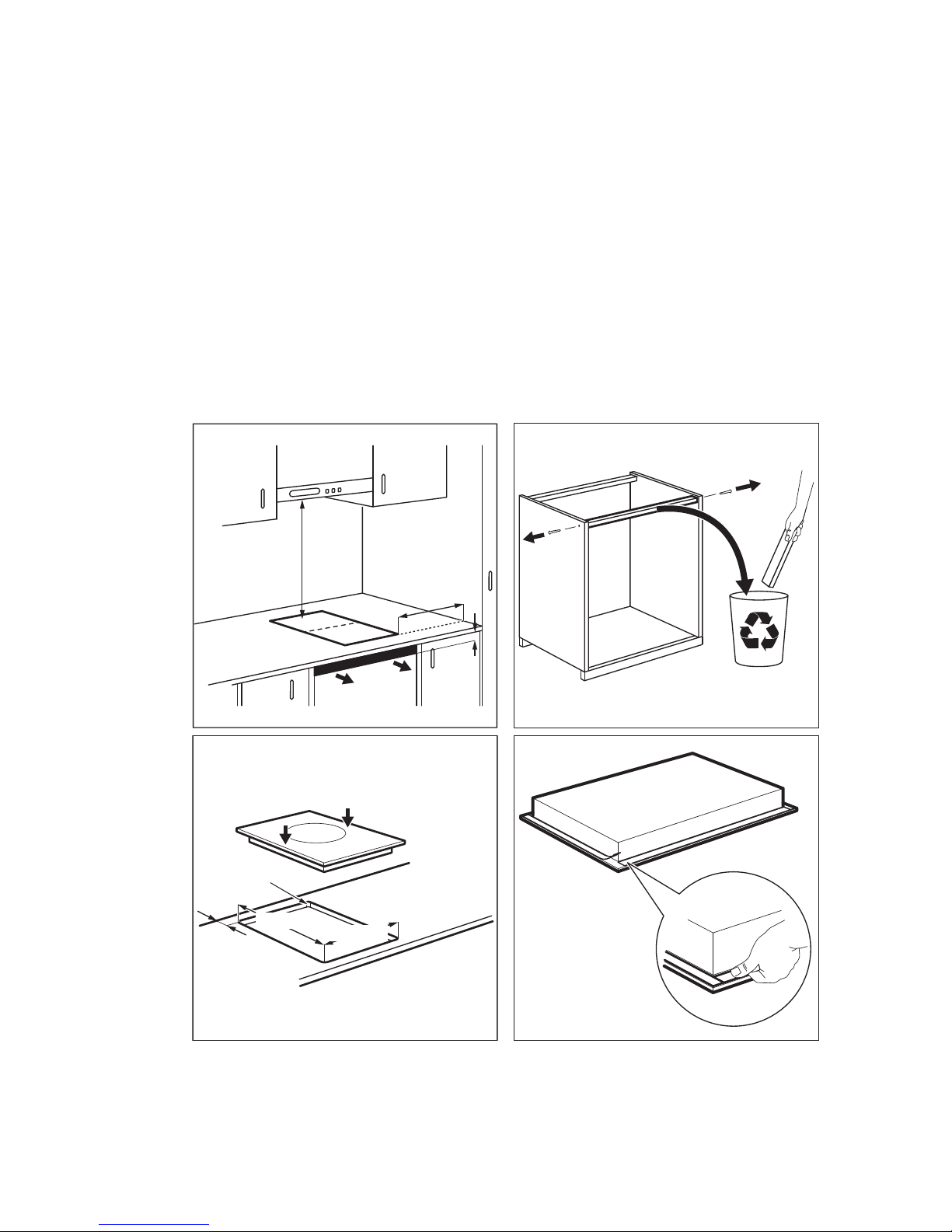

8.5 Assembly
min.
50mm
min.
500mm
min.
2mm
R 5mm
min.
55mm
340+1mm
490+1mm
ENGLISH 17

50 mm
50 mm
min.
25 mm
min.
2 mm
• Seal the gap between the worktop and
glass ceramic with silicone.
• Put some soapy water on the silicone.
• Pull off the excess silicone with the
scraper.
8.6 Installation of more than one
hob
Supplied accessories: connection bar,
heat-resistant silicone, rubber shape,
sealing stripe.
Use only a special heat-
resistant silicone.
The worktop cutout
Distance
from the
wall
minimum 50 mm
Depth 490 mm
Width sum of all widths of hobs
that you install minus 20 mm
Example:
580 mm
520 mm 490 mm
360 mm
+ - =
20 mm 920 mm

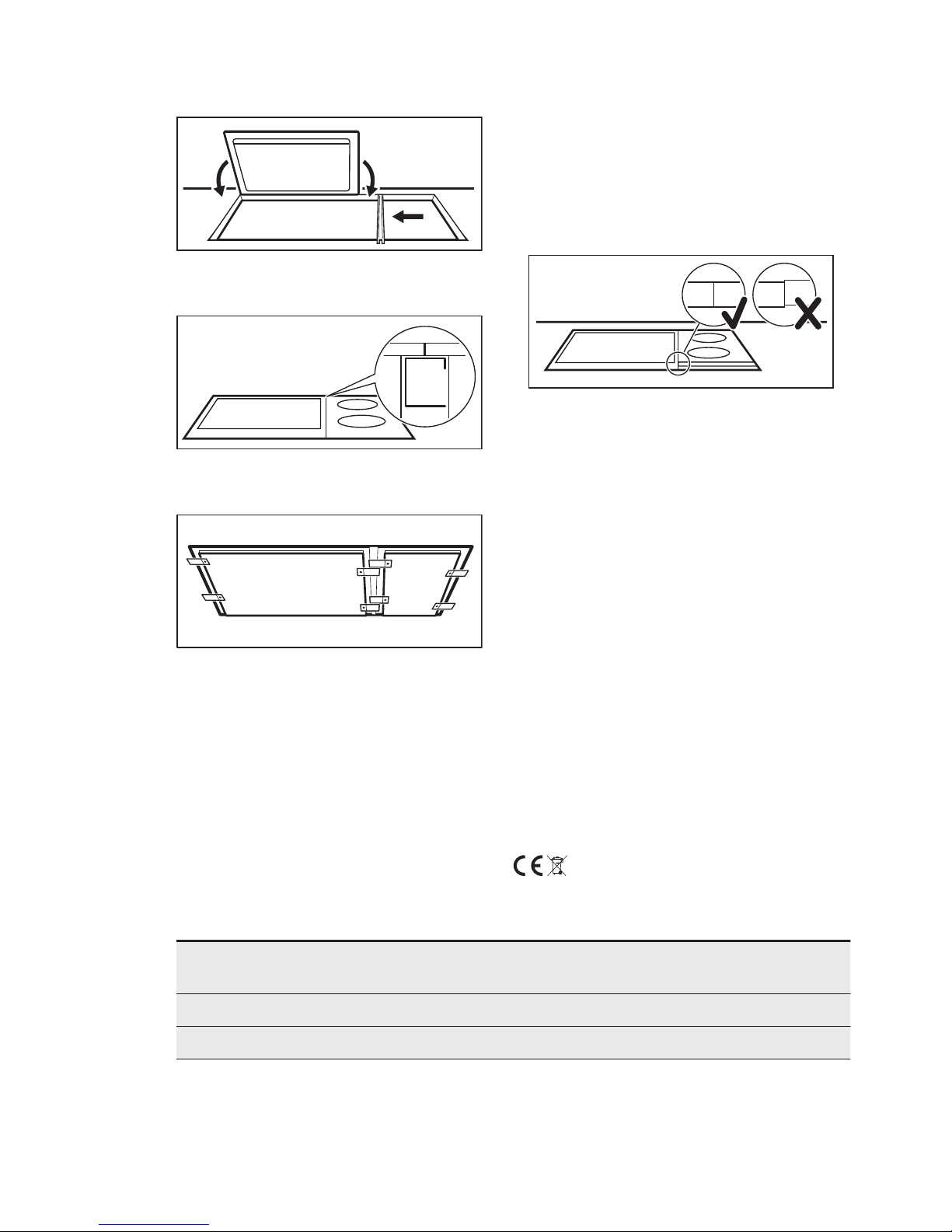

Assembly
1. Calculate correct cutout dimensions.
2. Prepare cutout in the worktop.
3. One by one place the hobs on a soft
surface (for example on a blanket) with
the bottom side up.
4. Attach the supplied seal stripe to the
lower edge of the hob along the outer
edge of the glass ceramic.
5. Loosely screw the fixing plates into the
correct holes in the protective casing.
6. Insert first hob into the worktop
cutout. Than insert the connection bar
www.electrolux.com18

into the worktop cutout. Push it half of
its width under the hob.
7. Loosely screw in the fixing plates from
below to the worktop and to the
connection bar.
8. Insert next hob into the worktop
cutout. Make sure that the front edges
of the hobs are on the same level.
9. Tighten the fixing plates / retaining grip
screws.
10. Use silicone to seal the gaps between
the hobs and between the hobs and
the worktop.
11. Put some soapy water on the silicone.
12. Press the rubber shape with some
strength against the glass ceramic and
move it slowly along the space.
13. Do not touch the silicone until it
becomes hard, it can last about a day.
14. Carefully remove the silicone that
came out with a shaving blade.
15. Clean the glass surface.
9. TECHNICAL DATA
9.1 Rating plate
Model EQTP4520IK PNC 941 560 830 02
Typ 56 TEP 00 AU 220 - 240 V 50 - 60 Hz
Induction 2.8 kW Made in Germany
Ser.Nr. ................. 2.8 kW
ELECTROLUX
9.2 Roasting zones specification
Roasting zone Nominal power (maximum heat set-
ting) [W]
Front 1400
Rear 1400
The power of the roasting zones can be
different in some small range from the
data in the table. It changes with the
material and dimensions of the cookware.
ENGLISH 19

10. GREAT BRITAIN & IRELAND - CUSTOMER CARE AND
SERVICE
GB
IE
Standard Guarantee Conditions and
Exclusions.To see our guarantee
conditions and exclusions please visit
www.electrolux.co.uk or contact our
Customer Care Department.
Service & Spare Parts. Please contact
your Authorised Service Centre on: 03445
616616 (Your call will automatically be
routed to your local centre) For the
address of your local centre please visit:
www.electrolux.co.uk Please ensure you
read the information under ‘What to do if’
in your instruction booklet before
contacting us for service. Servicing and/
or installation of your product, including
electrical connections and water
connections should be carried out by a
suitably qualified engineer. In the user
manual and on our web site,
www.electrolux.co.uk you will find some
useful information on how to deal with
minor faults and how to take care of your
product. When contacting us for Service
please ensure that you have your
purchase receipt and the following
information available:
Model No.......................... Serial No.................................
Product No......................... Purchase Date:........................
Customer Care. Please contact
Electrolux Major Appliances, Addington
Way, Luton, Bedfordshire, LU4 9QQ
Electrolux : 03445 613613
Republic of Ireland: For Customer Care
or Service please contact us at the
following address, Electrolux Group(Ir) Ltd,
Long Mile Rd, Dublin 12, Republic of
Ireland. Tel No. 0818543000, E mail:
[email protected]
Through our website you can get more
help and download user manuals.
Register your product and get easy
access to more helpful information about
your product:
www.RegisterElectrolux.com
11. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
*
www.electrolux.com20
