Electrolux EHG 682 User manual

1
Gas hobs
Mod. EHG 682
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
35678-5601 GB

2
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need
assistance, contact our Custo er Care Depart ent on 08705 950950
Installation
lThis hob must be installed by qualified personnel,
according to the manufacturer s instructions and
to the relevant British Standards.
lAny gas installation must be carried out by a
registered CORGI installer.
lRemove all packaging before using the hob.
lEnsure that the gas and electrical supply complies
with the type stated on the rating plate, located near
the gas supply pipe.
lDo not attempt to modify the hob in any way.
Child Safety
lThis hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
lThe hob gets hot when it is in use.
lChildren should be kept away until it has cooled.
lChildren can also injure themselves by pulling pans
or pots off the hob.
During Use
lThis hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
lWhen in use a gas cooking appliance will produce
heat and moisture in the room in which it has been
installed. Ensure there is a continuous air supply,
keeping air vents in good condition or installing a
cooker hood with a venting hose.
lWhen using the hob for a long period of time, the
ventilation should be improved, by opening a
window or increasing the extractor speed.
lDo not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
lEnsure the control knobs are in the OFF position
when not in use.
lWhen using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the cooking appliance.
lUnstable or misshapen pans should not be used
on the hob as unstable pans can cause an accident
by tipping or spillage.
lNever leave the hob unattended when cooking with
oil and fats.
lNever use plastic or aluminium foil dishes on the
hob.
lPerishable food, plastic items and areosols may
be affected by heat and should not be stored above
or below the hob unit.
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683 (Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical Compatibility
Directive);
* 90/396 (Gas Appliances),
and subsequent modifications
Service
lThis hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
lAfter installation, please dispose of the packaging
with due regard to safety and the environment.
lWhen disposing of an old appliance, make it
unusable, by cutting off the cable.
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Enviromental information
F
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.

3
1. Hob Top
2. Rapid Burner
3. Semi-rapid Burners
4. Auxiliary Burner
5. Con rol knob for back righ burner (semi-rapid)
6. Con rol knob for back lef burner (semi-rapid)
7. Con rol knob for fron lef burner (rapid)
8. Con rol knob for fron righ burner (auxiliary)
9. Elec ric Igni ion Push Bu on
Description of the Hob
1233
48765
9
For the User
Description of the Hob 3
Operation 4
Maintenance and Cleaning 4
Something Not Working? 5
Service and Spare Parts 5
Customer Care Department 6
Guarantee Conditions 6
Contents
For the Installer
Engineers technical data 9
Important safety requirements 10
Installation 10

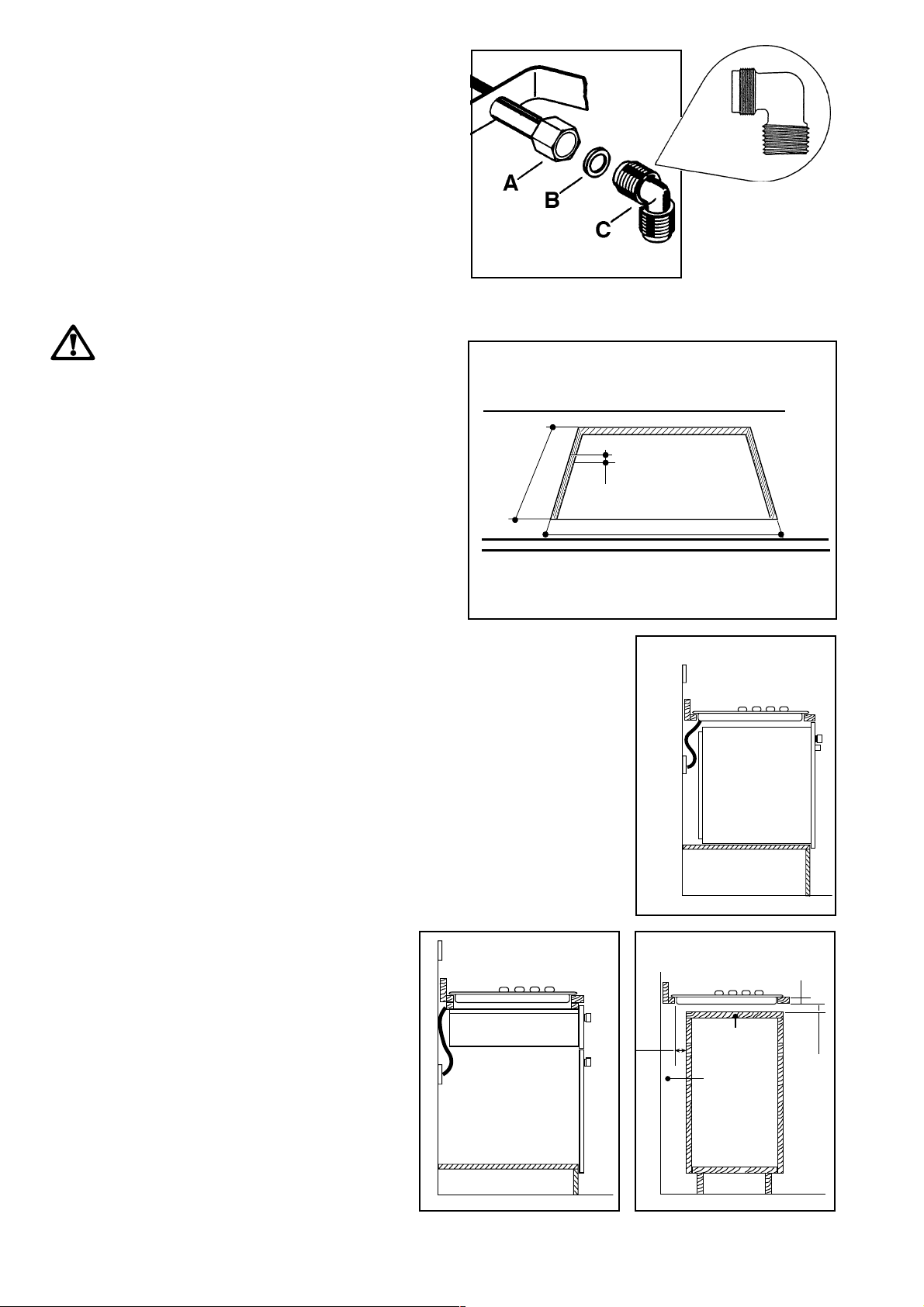

Building In 11

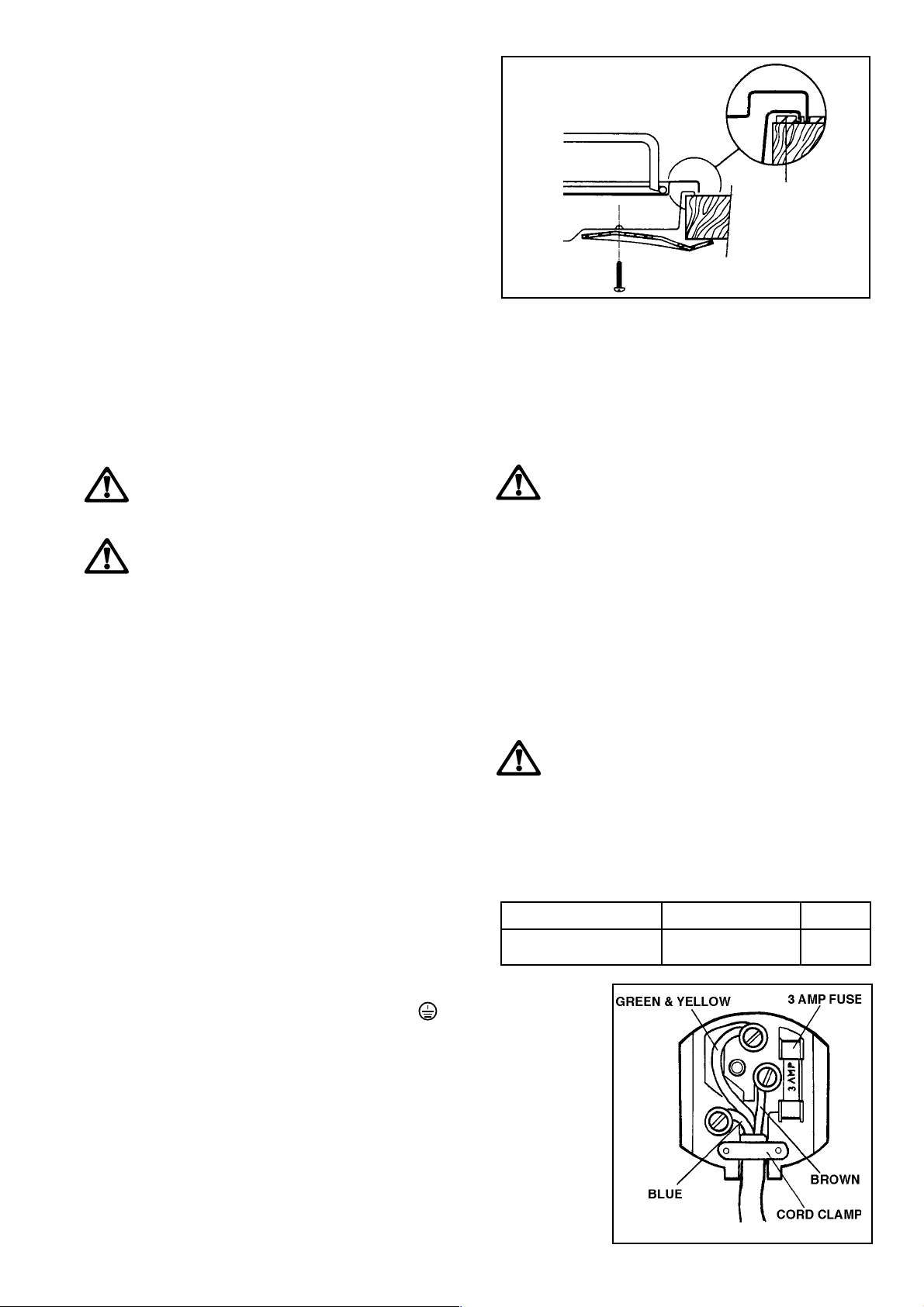

Electrical connections 12

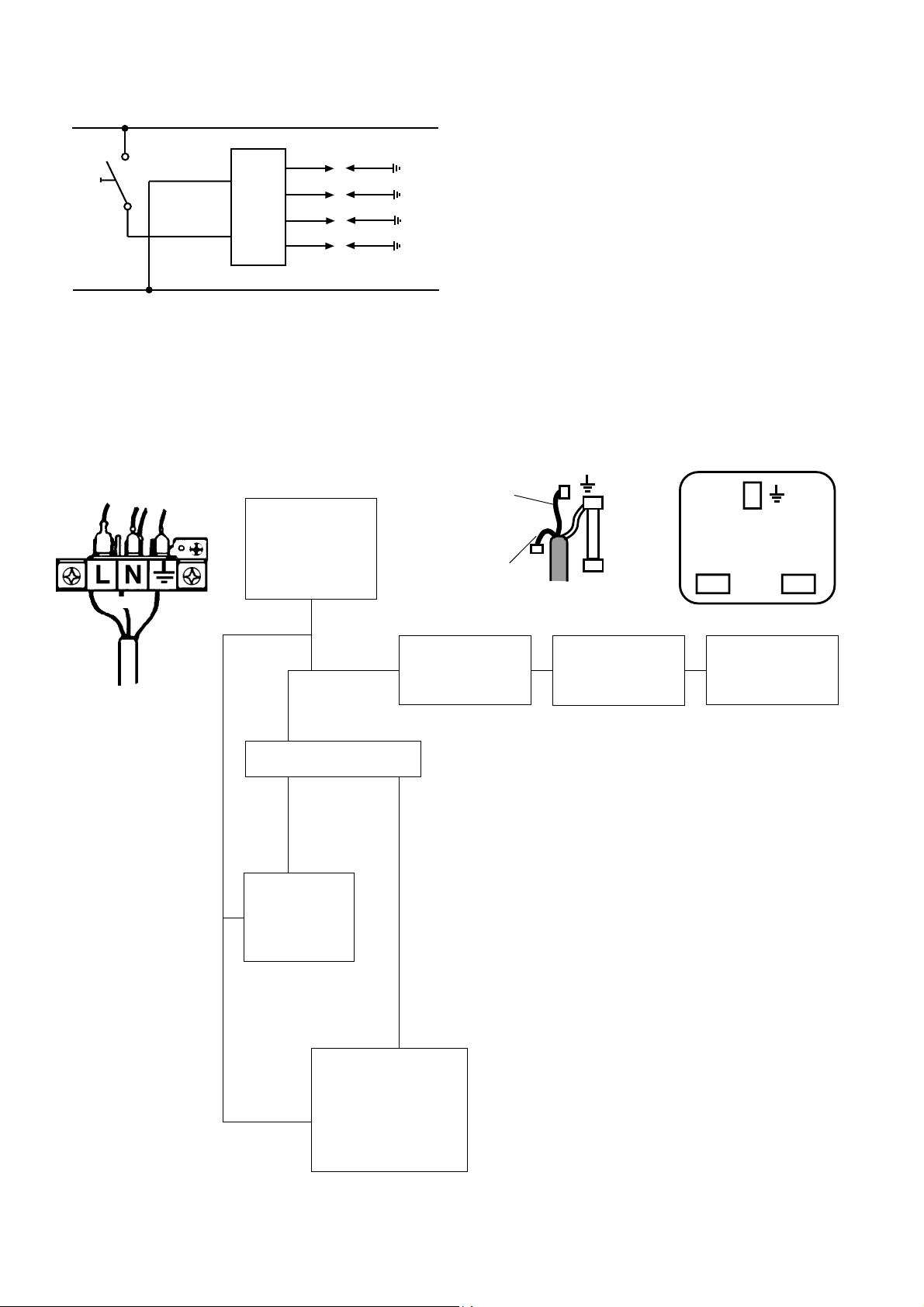

Wiring diagram 13
Fault finding 13
Commissioning 15
Conversion from natural gas to LPG 15

4
Operation
Burner ini u axi u
dia eter dia eter
Large (rapid) 180 mm. 260 mm.
Medium (semi-rapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
If you use a saucepan which is smaller than the
recommended size, the flame will spread
beyond the bottom of the vessel, causing the
handle to overheat.
As soon as a liquid starts boiling, turn down the
flame so that it will barely keep the liquid
simmering.
Take care when frying food in hot oil or fat,
as the overheated splashes could easily
ignite.
If the control knobs become difficult to turn,
please contact your local Electrolux Service
Centre.
FTo light a burner:
lpush the electric ignition pushbutton which is marked
by a little spark;
lat the same time turn the relevant control knob
anticlockwise to maximum position;
lthen adjust the flame as required.
If the burner does not ignite, turn the control knob to
zero, and try again.
To ensure maximum burner efficiency, you should only
use pots and pans with a flat bottom fitting the size of
the burner used (see table).
Hob Burners
Maintenance and Cleaning
Before any maintenance or cleaning can be
carried out, you must DISCONNECT the hob
from the electricity supply.
The hob is best cleaned whilst it is still warm, as
spillage can be removed more easily than if it is
left to cool.
The Hob To
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up
liquid has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is
recommended that a cleaning product such as Hob
Brite or Bar Keepers Friend is used.
Pan Su orts
The pan supports are dishwasher proof. If washing
them by hand, take care when drying them as the
enamelling process occasionally leaves rough edges.
If necessay, remove stubborn stains using a paste
cleaner.
The Burners
The burner caps and crowns can be removed for
cleaning.
Wash the burner caps and crowns using hot soapy
water, and remove marks with a mild paste cleaner. A
well moistened soap impregnated steel wool pad can
be used with caution, if the marks are particularly
difficult to remove.
After cleaning, be sure to wipe dry with a soft cloth.

5
Something Not Working?
SYMPTOM
nThere is no spark when lighting the gas
nThe gas ring burns unevenly
SOLUTION
uCheck that the unit is plugged in and the electrical
supply is switched on
uCheck that the RCCB has not tripped (if fitted)
uCheck the mains fuse has not blown
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
uCheck the main jet is not blocked and the burner
crown is clear of food particles.
uCheck the burner cap and crown have been
replaced correctly, e.g. after cleaning.
If the hob is not working correctly, please carry out the following checks before contacting your local Service Force
Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
If after all these checks, your hob still does not opera-
te correctly, contact your local Service Force Centre.
Please note that it will be necessary to provide
proof of purchase for any in-guarantee service calls.
In-guarantee custo ers should ensure that the
above checks have been ade as the engineer will
ake a charge if the fault is not a echanical or
electrical breakdown.
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Electrolux Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have
read the details under the heading Something Not
Working.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date
Service and Spare arts

6
For general enquiries concerning your Electrolux
appliance or for further information on Electrolux
products, please contact our Customer Care
Department by letter or telephone at the address below
or visit our website at www.electrolux.co.uk
Customer Care De artment
ELECTROLUX
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel. [phone] (*)
* calls to this number may be recorded for training purposes.
Customer Care Department
Guarantee Conditions
Electrolux Guarantee conditions
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
* The appliance has been correctly installed and
used only on the gas and electricity supply stated
on the rating plate.
* The appliance has been used for normal domestic
purpose only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30a and 5.30p
Monday to Friday. Visits may be available outside
these hours, in which case a pre iu will be
charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
* Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
* Products of Electrolux manufacture which are not
marketed by Electrolux.
Euro ean Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the
same extent for labour and parts as exist in the
new country of use for this brand or range of
products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

7
Ignition HT Spark
Spark Generator
Ispra Control's BF 50046 - 230-240V 0.6 YA T 120
Spark Gap Fixed
Rear Left Burner (se i rapid)
Heat Input 2.0 kW (6824 BTU/HR)
Front Left Burner (rapid)
Heat Input 3.0 kW Natural Gas (10236 BTU/HR)
2.8 kW L.P.G. (9554 BTU/HR)
Rear Right Burner (se i rapid)
Heat Input 2.0 kW (6824 BTU/HR)
Front Right Burner (auxiliary)
Heat Input 1.0 kW (3412 BTU/HR)
Overall dimensions
Width 580 mm.
Depth 500 mm.
Height (Above worktop) 8 mm.
Burner Dia. Tap By-pass
1/100
Auxiliary 28
Semi-rapid 32
Rapid 40
Aeration adjustment none
Instructions for the Installer
Cut out dimensions
Width 550 mm.
Depth 470 mm.
Thickness 30 mm.
BURNER RAPID SEMI-RAPID AUXILIARY
(large) (medium) (small)
POSITION MAX MIN MAX MIN MAX MIN
NOMINAL THERMAL
POWER kW 3.0 0.65 2.0 0.45 1.0 0.33
NOMINAL FLOW
RATE m
3
/h 0.286 0.062 0.190 0.043 0.095 0.031
NOZZLE REFERENCE 119 Ad ust. 96 Ad ust. 70 Ad ust.
NOMINAL THERMAL
POWER kW 2.8 0.65 2.0 0.45 1.0 0.33
NOMINAL FLOW
RATE g/h 202 47 144 32 72 24
NOZZLE REFERENCE 8 6 40 71 3 2 50 28
NATURAL GAS
0 mbar
TYPE OF
GAS
CHARACTERISTICS
LPG GAS
8-30/37 mbar
1/100 mm
1/100 mm
VALUE = 49.92 MJ/Kg
VALUE = 37.78 MJ/m
3
Ws - 50.7 MJ/ m
3
Su ly connections
Gas:
RC 1/2 inch (1/2 inch male) Rear right hand corner
Electric:
230-240V 50Hz supply, 3 core flexible cable with non
rewireable plug fitted with a 3 amp cartridge fuse.
CLASS APPLIANCE 3
APPLIANCE
CATEGORY II2H3+
APPLIANCE
GAS SUPPLY Natural gas G20 / 20mbar
Engineers technical data

8
Important safety requirements
This hob must be installed in accordance with the Gas
Safety (Installation and Use) Regulations (Current
Edition) and the IEE Wiring Regulations (Current
Edition).
Detailed recommendations are contained in the
following British Standards Codes Of Practice: B.S.
6172/ B.S. 5440, Part 2 and B.S. 6891 Current Editions.
The hob should not be installed in a bed sitting room
with a volume of less than 20 m3. If it is installed in a
room of volume less than 5 m3 an air vent of effective
area of 110 cm2 is required. If it is installed in a room of
volume between 5 m3 and 10 m3 an air vent of effective
area of 50 cm2 is required, while if the volume exceeds
11 m3 no air vent is required.
However, if the room has a door which opens directly
to the outside no air vent is required even if the volu-
me is between 5 m3 and 11 m3.
If there are other fuel burning appliances in the same
room, B.S. 5440 Part 2 Current Edition, should be
consulted to determine the requisite air vent
requirements.
Location
The hob may be located in a kitchen, a kitchen/diner
or bed sitting room, but not in a bathroom, shower room
or garage.
Before making the cut out in the worktop ensure that
the edges of the hob that are to be near either a side
or rear wall have a minimum distance of 55 mm.
between the edge of the hob and the wall.
The minimum distance combustible material can be
fitted above the hob is 400 mm. If it is fitted below 400
mm. a space of 50 mm. must be allowed from the edges
of the hob.
The minimum distance combustible material can be
fitted directly above the hob is 700 mm.
A minimum distance of 100 mm. must be left between
the side edges of the hob and any adjacent cabinets
or walls.
Installation
IMPORTANT
This hob must be installed by qualified
personnel to the relevant British Standards.
Any gas installation must be carried out by a
registered CORGI installer.
The manufacturer will not accept liability, should
the above instructions or any of the other safety
instructions incorporated in this book be ignored.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important
to remove any protective materials, which were
put on in the factory.
On the end of the shaft, which includes the GJ 1/2"
threaded elbow, adjustment is fixed so that the washer
is fitted between the components as shown in the
diagram. Screw the parts together without using
excessive force.
700 mm
400 mm
100 mm
400 mm
50 mm
55 mm
50 mm
FO 0812

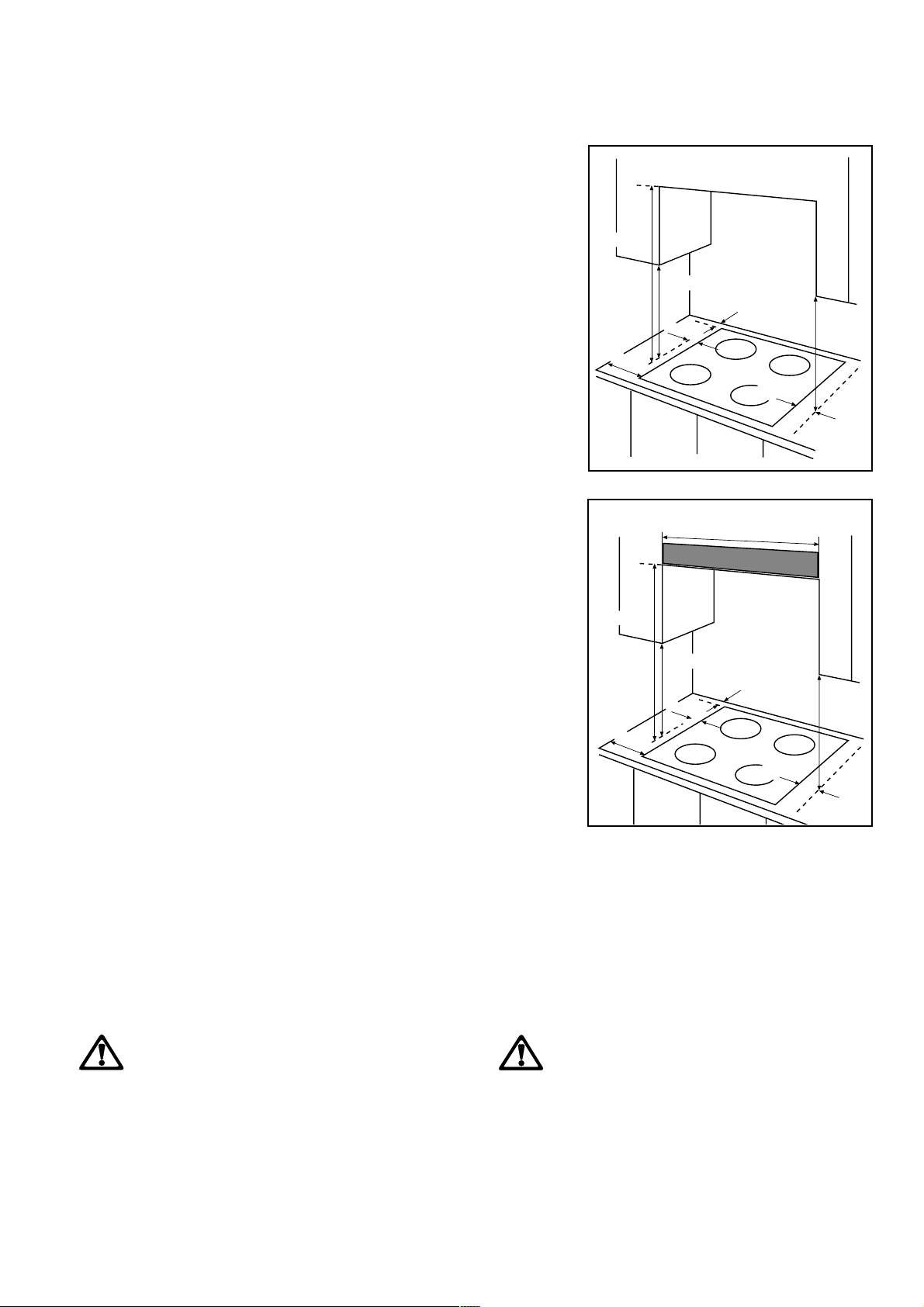

FITTING THE GAS HOB
WITHOUT A COOKER HOOD ABOVE
650 mm
400 mm
400 mm
100 mm
50 mm
50 mm
55 mm
600 mm
FO 0813
FITTING THE GAS HOB
WITH A COOKER HOOD ABOVE

9
It is important to install the elbow correctly, with
the shoulder on the end of the thread, fitted to
the hob connecting pipe.
Failure to ensure the correct assembly will cau-
se leakage of gas.
Gas Connection
Connection to the gas supply should be with either
rigid or semi-rigid pipe, i.e. steel or copper.
The connection should be suitable for connecting to
RC 1/2 (1/2 BSP male thread).
When the final connection has been made, it is
essential that a thorough leak test is carried out on the
hob and installation.
Ensure that the main connection pipe does not exert
any strain on the hob.
Cut Out Size
The dimensions of the cut-out are given in the
diagram.
Building In
Building over a cu board or
drawer
If the hob is to be installed above a cupboard or
drawer it will be necessary to fit a heat resistant
board below the base of the hob on the underside
of the work surface.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and
2.
Building over a kitchen unit
with door
Proper arrangements must be taken in designing
the furniture unit, in order to avoid any contact with
the bottom of the hob which can be heated when it
is operated. The recommended solution is shown
in diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical
assistance is needed. The space behind the kitchen
unit ("b") can be used for connections.
A)End of shaft with nut
B)Washer
C)Elbow
FO 0814
FO 0264
Rectangular cut-out size for hob
FO 2098
Dimensions are given in mm.
ON/OFF SWITCH
FLEX
OUTLET
FO 0763
1
ON/OFF SWITCH
FLEX
OUTLET
FO 0764
2
Dimensions are given in mm.
30
20 min
60
a
b
FO 1013
3
550
470
30

10
Fitting the Hob into the workto
Carry out the building in of the hob as follows:
 put the seals supplied with the hob, on the
edges of the cut out, taking care that the seals
meet without overlapping;
 place the hob in the cut out, taking care that it
is centred;
 fix the hob with the relevant fixing clamps and
screws, as shown in the diagram. When the
screws have been tightened, the excess seal
can be removed.
The edge of the hob forms a double seal which
prevents the ingress of liquids.
F
FO 0199
a
a) Sealing gasket
Electrical connections
F
Any electrical work required to install this hob
should be carried out by a qualified electrician
or competent person, in accordance with the
current regulations.
THIS HOB MUST BE EARTHED.
The anufacturer declines any liability should these
safety easures not be observed.
This hob is designed to be connected to a 230-240V
50Hz AC electrical supply.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the hob rating
plate. The rating plate is located on the bottom of the
hob. A copy is attached on the back cover of this book.
The hob is supplied with a 3 core flexible supply cord
incorporating a 3amp plug fitted. In the event of having
to change the fuse, a 3amp ASTA approved (BS 1362)
fuse must be used.
Should the plug need to be replaced for any reason,
the wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
 Connect the green and yellow (earth) wire to
the terminal in the plug which is marked with
the letter 'E' or the earth symbol or
coloured green and yellow.
 Connect the blue (neutral) wire to the terminal
in the plug which is marked with the letter 'N'
or coloured black.
 Connect the brown (live) wire to the terminal
in the plug which is marked with the letter 'L'
or coloured red.
Upon completion there must be no cut, or stray strands
of wire present and the cord clamp must be secure
over the outer sheath.
Permanent Connection
In the case of a permanent connection, it is necessary
that you install a double pole switch between the hob
and the electricity supply (mains), with a minimum gap
of 3 mm. between the switch contacts and of a type
suitable for the required load in compliance with the
current electric regulations.
The switch must not break the yellow and green earth
cable at any point.
Ensure that the hob supply cord does not
co e into contact with surfaces with
te peratures higher than 50 deg. C.
A cut off plug inserted into a 13 a p socket
is a serious safety (shock) hazard. Ensure
that the cut off plug is disposed of safely.
Min. size Cable/flex Cable / flex type Fuse
0.75 mm2H05 V2V2-F (T90) 3 A
Su ly cable re lacement
The cable used to connect the hob to the electrical
supply must comply to the specifications given below.
FO 0390

11
Wiring diagram
A. IGNITOR SWITCH
B. IGNITOR UNIT
B
L
N
01
2
3
4
220/240
A
Fault finding
Preliminary Electrical Systems
Check
Brown Blue Green
Yellow
Green
Yellow
Brown
Blue
A. EARTH CONTINUITY CHECK - Appliance must be
electrically disc nnected - meter set n W (Ohms) x 1
scale and adjust zer if necessary.
a) Test leads fr m any appliance earth p int t earth
pin n plug. Resistance sh uld be less than 0.1 W
(Ohm), check all earth wires f r c ntinuity and all
c ntacts are clean and tight.
B. INSULATION CHECK - Appliance electrically
disc nnected, all switches ON.
a) meter set n W (Ohms) x 1 scale.
Test leads fr m L t N in appliance terminal bl ck.
If meter reads «0» then there is a sh rt circuit.
b) meter set n W (Ohm) x 100 scale.
Repeat test with leads fr m L t E. If meter reads
less than ¥ (infinity) there is a fault.
NOTE - Sh uld it be f und that the fuse has failed but
n fault is indicated - a detailed c ntinuity check (i.e.
by disc nnecting and checking each c mp nent) is
required t trace the faulty c mp nent.
It is p ssible that a fault c uld ccur as a result f l cal
burning/arcing but n fault c uld be f und under test.
H wever a detailed visual inspecti n sh uld reveal
evidence f burning ar und the fault.
START
Is late appliance
and carry ut:
A: Earth C ntinuity
check.
Has inlet fuse bl wn?
Carry ut:
C: P larity check.
Electricity supply
sh uld n w be
satisfact ry.
Carry ut:
D: Resistance t
Earth check.
Inlet wiring
faulty.
Rectify any
fault.
Is late appliance and
carry ut:
B: Insulati n check.
Rectify any fault
including replacing
fuses as necessary.
NO YES
NO YES
SOCKET
(face view)
PLUG (with cover removed)
Earth Wire
Green/Yellow
Neutral Wire
Blue
( )
FUSE
( )
E
NL

12
Ignition System / Gas Ignition
YES
Check plug t p fuse and
replace if necessary
Check p larity and
earth c ntinuity f
supply p int
Check earth c ntinuity
f appliance
Ignit r d es n t spark
Check fitting f burners
Check p siti n f the
electr de
Check by pass simmer
adjusted
Light burner manually
Check gas supply at
burner
Check c ntinuity fr m 'N' n the
mains c nnect r bl ck and "O" n
the ignit r unit
Check c ntinuity fr m 'L' n the
mains c nnect r bl ck and the
taps igniti n switches
Check c ntinuity fr m igniti n
switches c nnect r t ignit r unit
Check c ntinuity fr m the tip f
each electr de t the terminals
1 t 4 n the ignit r unit
Check f r breaks in the insulati n
f the HT leads
Change the taps
igniti n switches
NO
Change the ignit r unit

13
Commissioning
When the hob has been fully installed it will be
necessary to check the minimum flame setting. To do
this, follow the procedure below.
- Turn the gas tap to the MAX position and ignite.
- Set the gas tap to the MIN flame position then turn
the control knob from MIN to MAX several times. If
the flame is unstable or is extinguished follow the
procedure below.
Procedure:
Re-ignite the burner and set to MIN.
Remove the control knob.
To adjust, use a thin bladed screwdriver and turn
the adjustment screw (see diagram) until the
flame is steady and does not extinguish, when
the knob is turned from MIN to MAX. Repeat
this procedure for all burners.
Pressure Testing
Remove left hand pan support and front left
burner cap and crown.
Fit manometer tube over the injector.
Turn on the burner gas supply and ignite another
burner.
The pressure reading should be nominally
20mbar and must be between 17 mbar and
25mbar.
Turn off the burner supplies.
F
F
Minimum adjustment screw

14
Conversion from Natural Gas to L G
It is important to note that this model is designed for use
with natural gas but can be converted for use with butane
or propane gas providing the correct injectors are fitted.
The gas rate is adjusted to suit.
Method
 Ensure that the gas taps are in the 'OFF' position
 Isolate the hob from the electrical supply
 Remove all pan supports, burner caps, rings,
crowns and control knobs.
 With the aid of a 7mm box spanner the burner
injectors can then be unscrewed and replaced by
the appropriate LPG injectors.
To adjust the gas rate
With the aid of a thin bladed screwdriver completely
tighten down the by pass adjustment screw. Upon
completion affix the replacement rating plate on the
under side of the hob.
IMPORTANT
The replacement/conversion of the gas hob should
only be undertaken by a competent person.

15

CUSTOMER CARE
Electrolux
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: [phone]
© Electrolux Household Appliances Limited 2000
Grafiche MDM - Forlì
12/02
The Electrolux Group. The worlds No.1 choice.
The Electrolux Group is the worlds largest producer of powered appliances for kitchen, cleaning and outdoor use. More
than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain
saws and lawn mowers are sold each year to a value of approx. USD 14 billion in more than 150 countries around the
world.

This file has been downloaded from:
www.UsersManualGuide.com
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
documentation manual, user maintenance, brochure, user reference, pdf manual
