1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
www.electrolux.com2

instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid
or a fire blanket.
ENGLISH 3

•CAUTION: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
•Do not use the appliance before installing it in the
built-in structure.
•Do not use a steam cleaner to clean the appliance.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains.
In case the appliance is connected to the mains
directly using junction box, remove the fuse to
disconnect the appliance from power supply. In either
case contact the Authorised Service Centre.
•In case of hotplate glass breakage:
–shut immediately off all burners and any electrical
heating element and isolate the appliance from the
power supply,
–do not touch the appliance surface,
–do not use the appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
•Where the appliance is directly connected to the
power supply, an all-pole isolating switch with a
contact gap is required. Complete disconnection in
compliance with the conditions specified in
overvoltage category III must be guaranteed. The
earth cable is excluded from this.
•When you route the mains cable, make sure that the
cable doesn't come into direct contact (for example
www.electrolux.com4

using insulating sleeving) with parts that can reach
temperatures of more than 50°C above room
temperature.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2. SAFETY INSTRUCTIONS
This appliance is suitable for the
following markets: IT
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
WARNING!
Risk of injury or damage to
the appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Keep the minimum distance from
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture from causing
swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance next to a
door or under a window. This
prevents hot cookware from falling
from the appliance when the door or
the window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer is sufficient for
air circulation.
• The bottom of the appliance can get
hot. Install a non-combustible
separation panel under the appliance
to prevent access to the bottom.
2.2 Electrical Connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation
make sure that the appliance is
disconnected from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.
• Use the correct electricity mains
cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the
cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets.
ENGLISH 5

• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug (if applicable) or to the
mains cable. Contact our Authorised
Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
2.3 Gas connection
• All gas connections must be made by
a qualified person.
• Before installation, make sure that the
local distribution conditions (nature of
the gas and gas pressure) and the
adjustment of the appliance are
compatible.
• Make sure that there is air circulation
around the appliance.
• The information about the gas supply
is on the rating plate.
• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current
installation regulations. Follow the
requirements for adequate ventilation.
2.4 Use
WARNING!
Risk of injury, burns and
electric shock.
• Remove all the packaging, labelling
and protective film (if applicable)
before first use.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Set the cooking zone to “off” after
each use.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
• When you place food into hot oil, it
may splash.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and
oils when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• Do not keep hot cookware on the
control panel.
• Do not let cookware boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
www.electrolux.com6

• Never leave a burner on with empty
cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these
objects up when you have to move
them on the cooking surface.
• Use only stable cookware with the
correct shape and diameter larger
than the dimensions of the burners.
• Make sure cookware is centrally
positioned on the burners.
• Do not use large cookware that
overlap the edges of the appliance.
This can cause damage to the
worktop surface.
• Make sure the flame does not go out
when you quickly turn the knob from
the maximum to the minimum
position.
• Use only the accessories supplied
with the appliance.
• Do not install a flame diffuser on the
burner.
• The use of a gas cooking appliance
results in the production of heat and
moisture. Provide good ventilation in
the room where the appliance is
installed.
• Prolonged intensive use of the
appliance may call for additional
ventilation, for example opening of a
window, or more effective ventilation,
for example increasing the level of
mechanical ventilation where present.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Do not let acid liquids, for example
vinegar, lemon juice or limescale
remover, touch the hob. This can
cause matt patches.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
2.5 Care and cleaning
WARNING!
Do not remove the buttons,
knobs or gaskets from the
control panel. Water may get
inside the appliance and
cause damage.
• Clean the appliance regularly to
prevent the deterioration of the
surface material.
• Switch off the appliance and let it cool
down before cleaning.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• Do not clean the burners in the
dishwasher.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Flat the external gas pipes.
ENGLISH 7

3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate.
The rating plate is on the bottom of the
hob.
Model .......................................
PNC .........................................
Serial number ...........................
3.2 Gas Connection
WARNING!
The following instructions
about installation,
maintenance and ventilation
must be carried out by
qualified personnel in
compliance with the
regulation in force (UNI-CIG
7129 - 7131). Make sure that
the kitchen is well ventilated:
keep natural ventilation
holes open (at least 100
cm²) or install a mechanical
extractor hood.
Choose fixed connections or use a
flexible pipe in stainless steel in
compliance with the regulation in force. If
you use flexible metallic pipes, be careful
they do not come in touch with mobile
parts or they are not squeezed. Also be
careful when the hob is put together with
an oven.
Make sure that the gas
supply pressure of the
appliance obeys the
recommended values.
If the supplied pressure has not the
specified value, it is necessary to
assemble a proper pressure regulator in
compliance with the standard UNI EN 88.
For Liquid Gas (LPG) the use of pressure
regulator is allowed only if they are in
compliance with UNI EN 12864. The
adjustable connection is fixed to the
comprehensive ramp by means of a
threaded nut G 1/2". Screw the parts
without force, adjust the connection in
the necessary direction and tighten
everything.
A B C

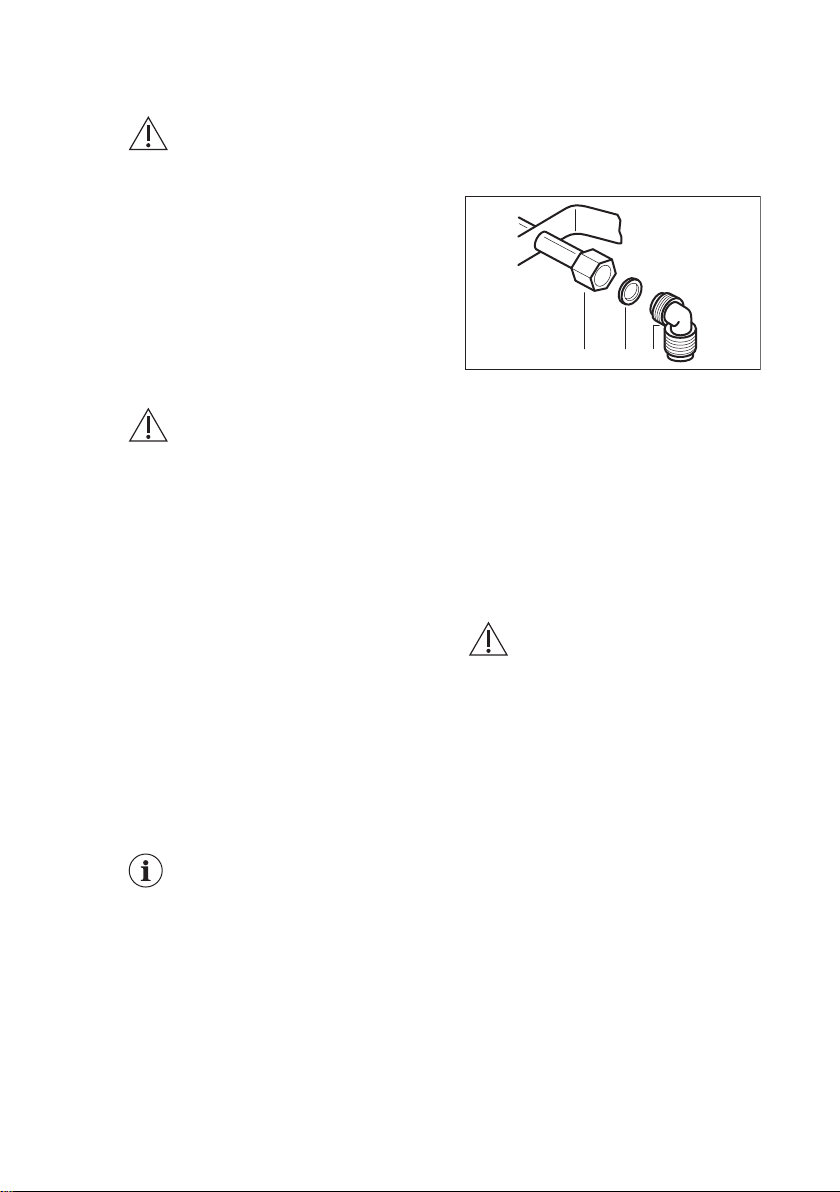

A. End of shaft with nut
B. Washer supplied with the appliance
C. Elbow supplied with the appliance
Rigid connection:
Carry out connection by using metal rigid
pipes (copper with mechanical end)
(UNI-CIG 7129).
Flexible connection:
Use a flexible pipe in stainless steel
(UNI-CIG 9891) with a maximum length 2
m.
WARNING!
When installation is
complete, make sure that
the seal of each pipe fitting
is correct. Use a soapy
solution, not a flame!
3.3 Injectors replacement
1. Remove the pan supports.
2. Remove the caps and crowns of the
burner.
3. With a socket spanner 7 remove the
injectors and replace them with the
ones which are necessary for the
type of gas you use (see table in
"Technical Data" chapter).
4. Assemble the parts, follow the same
procedure backwards.
5. Attach the label with the new type of
gas supply near the gas supply pipe.
You can find this label in the package
supplied with the appliance.
If the supply gas pressure is changeable
or different from the necessary pressure,
you must fit an applicable pressure
adjuster on the gas supply pipe.
www.electrolux.com8

3.4 Adjustment of minimum
level
WARNING!
Information for authorised
installer only.
To adjust the minimum level of the
burners:
1. Light the burner.
2. Turn the knob on the minimum
position.
3. Remove the knob and using thin
screwdriver lift up and remove the
plastic magnet holder.
4. With a thin screwdriver, adjust the
bypass screw position (A).
A
5. If you change:
• from natural gas G20 20 mbar to
liquid gas, fully tighten the bypass
screw in.
• from liquid gas to natural gas G20
20 mbar, undo the bypass screw
approximately 1/4 of a turn (1/2 of
a turn for Multi Crown burner).
6. Reassemble the magnet holder and
the knob.
WARNING!
Make sure the flame does
not go out when you quickly
turn the knob from the
maximum position to the
minimum position.
3.5 Electrical connection
• Make sure that the rated voltage and
type of power on the rating plate
agree with the voltage and the power
of the local power supply.
• This appliance is supplied with a
mains cable. It has to be supplied with
a correct plug which can hold the load
that the rating plate rates. Make sure
that you install the plug in a correct
socket.
• Always use a correctly installed
shockproof socket.
• Make sure that there is an access to
the mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• There is a risk of fire when the
appliance is in connection with an
extension cable, an adapter or a
multiple connection. Make sure that
the ground connection agrees with the
standards and regulations.
• Do not let the power cable to heat up
to a temperature higher than 90° C.
To prevent contact between the cable
and the appliance below the hob use the
clamps which are on the side of the
cabinet.
ENGLISH 9

A
A. Rigid copper pipe or flexible pipe of
stainless steel
If the pilot lights turn on after
connecting the hob to the
mains, turn on and off the
control knob and wait until
the residual heat indicator
goes out.
3.6 Connection cable
To replace the connection cable use only
the special cable or its equivalent. The
cable type is: H03V2V2-F T90.
Make sure that the cable section is
applicable to the voltage and the working
temperature. The yellow / green earth
wire must be approximately 2 cm longer
than the brown (or black) phase wire.
L
N
1. Connect the green and yellow (earth)
wire to the terminal which is marked
with the letter 'E', or the earth symbol
, or coloured green and yellow.
2. Connect the blue (neutral) wire to the
terminal which is marked with the
letter 'N' or coloured blue.
3. Connect the brown (live) wire to the
terminal which is marked with the
letter 'L'. It must always be connected
to the network phase.

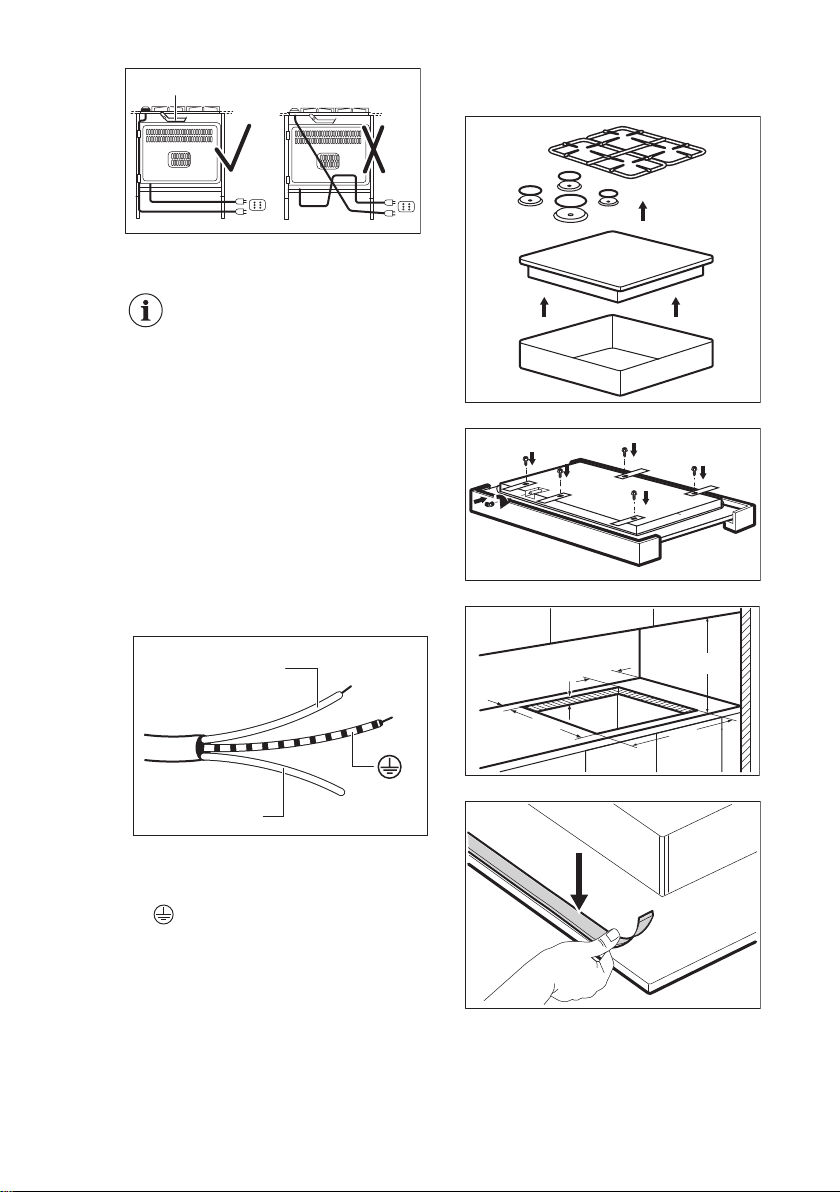

3.7 Assembly
1.
2.
3.
min. 55 mm
min. 650 mm
830 mm
2
0
+
min. 100 mm
30 mm
480 mm
2
0
+
4.
www.electrolux.com10

5.
6.
B
A
A) supplied seal
B) supplied brackets
7.
CAUTION!
Install the appliance only on
a worktop with flat surface.
3.8 Installing hob under the
hood
If you install the hob under a
hood, please see the
installation instructions of the
hood for the minimum
distance between the
appliances.
3.9 Possibilities for insertion
The panel installed below the hob must
be easy to remove and let an easy
access in case a technical assistance
intervention is necessary.
Kitchen unit with door
min 20 mm
(max 150 mm)
30 mm
60 mm
B
A
A. Removable panel
B. Space for connections
Kitchen unit with oven
The electrical connection of the hob and
the oven must be installed separately for
safety reasons and to let easy remove
oven from the unit.
ENGLISH 11

4. PRODUCT DESCRIPTION

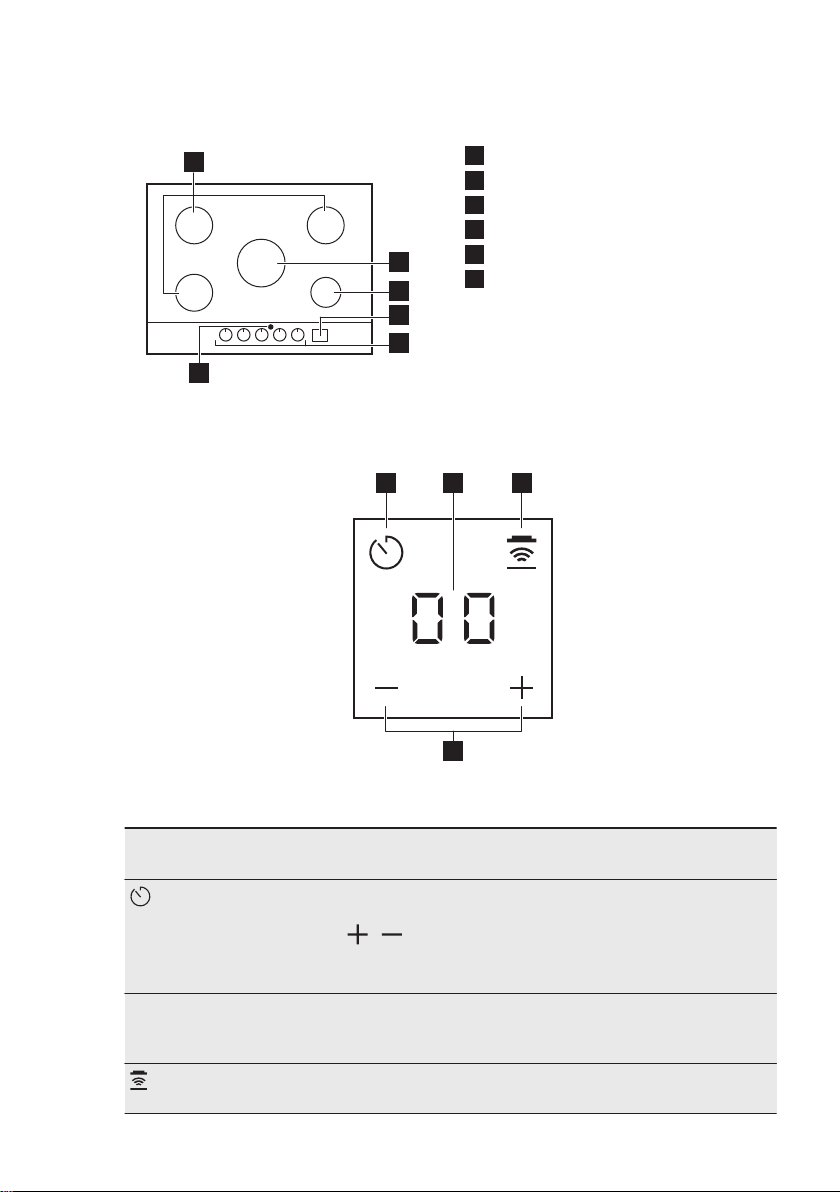

4.1 Cooking surface layout
1
4
6
3
2
5
1Semi-rapid burner
2Multi Crown burner
3Auxiliary burner
4Control panel
5Control knobs
6Window for Hob²Hood infrared signal
4.2 Control panel layout
1
4
2 3
Use the sensor fields to operate the Minute Minder and Hob²Hood. The displays,
indicators and sounds tell which functions operate.
Sensor
field
Function Comment
- To select the Timer function.
To activate
/ and
Hob²Hood icons.
To make the LEDs visible.
- Timer display To show the time in minutes.
To show Hob²Hood function and Hob²Hood Automatic
Modes.
Hob²Hood To activate and deactivate the manual mode of the
function.
www.electrolux.com12

Sensor
field
Function Comment
/ - To increase or decrease the time.
To switch Hob²Hood Automatic Modes.
Stand-by mode:
Press the for at least 1 second to activate the display, and .
4.3 Control knob
Symbol Description
no gas supply / off posi‐
tion
ignition position / maxi‐
mum gas supply
Symbol Description
minimum gas supply
1 - 9 power levels
4.4 Residual heat
8
9
7
654
3
2
1
8
9
7
654
3
2
1
LEDs full light
Knob opened
LEDs light slowly reduced
Residual heat starts
LEDs light off
Residual heat ends
WARNING!
There is a risk of burns from
residual heat.
The residual heat indicator
lights up when you turn off
the burner.
Knob of the
burner
Open knob
on < 20 s 20 s < on < 1 min 1 min < on < 5
min on > 5 min
Multi Crown 0 30 sec 3 min 15 min
Semi-rapid
(front left) 0 30 sec 3 min 10 min
Semi-rapid
(rear left) 0 30 sec 3 min 10 min
ENGLISH 13

Semi-rapid
(rear right) 0 30 sec 3 min 10 min
Auxiliary 0 30 sec 3 min 5 min
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Burner overview
$%'&
$%'&
A. Burner cap
B. Burner crown
C. Ignition candle
D. Thermocouple
5.2 Ignition of the burner
Always light the burner
before you put on the
cookware.
WARNING!
Be very careful when you
use open fire in the kitchen
environment. The
manufacturer declines any
responsibility in case of the
flame misuse.
1. Push the control knob down and turn
it counterclockwise to the maximum
gas supply position ( ).
2. Keep the control knob pushed for
equal or less than 10 seconds. This
lets the thermocouple warm up. If
not, the gas supply is interrupted.
3. Adjust the flame after it is regular.
If after some tries the burner
does not light, check if the
crown and its cap are in
correct positions.
WARNING!
Do not keep the control knob
pushed for more than 15
seconds. If the burner does
not light after 15 seconds,
release the control knob,
turn it into off position and try
to light the burner again after
minimum 1 minute.
www.electrolux.com14

CAUTION!
In the absence of electricity
you can ignite the burner
without electrical device; in
this case approach the
burner with a flame, turn the
control knob counter-
clockwise to maximum gas
supply position and push it
down. Keep the control knob
pushed for equal or less
than 10 seconds to let the
thermocouple warm up.
If the burner accidentally
goes out, turn the control
knob to the off position and
try to light the burner again
after minimum 1 minute.
The spark generator can
start automatically when you
switch on the mains, after
installation or a power cut. It
is normal.
Each control knob is
surrounded by highlighted
numbers visible while
Residual Heat function
operates.
The hob is supplied with
StepPower. This function
allows you to set the power
more precisely from 9-1.
WARNING!
If you do not switch the knob
to the off position, after two
hours a warning sound is
emitted and the symbols
flash red. It reminds you that
the burner is on. To stop the
sound, touch , , or
.
5.3 Turning the burner off
To put the flame out, turn the knob to the
off position .
WARNING!
Always turn the flame down
or switch it off before you
remove the pans from the
burner.
5.4 Minute Minder
You can use this function as a Minute
Minder.
The Minute Minder is the only icon visible
in standby state. Touch the to activate
other icons.
1. Touch .
To activate the function.
2. Touch or of the timer to set the
time (00 - 99 minutes).
When the time comes to an end, the
sound operates and 00 flashes.
In the last minute the time
decreases in seconds, and
the last 10 seconds the timer
emits a sound signal.
3. Touch , , or .
To stop the sound.
4. To stop the timer, touch longer .
You can use the Minute
Minder at any time also if the
appliance is off.
The function has no effect
on the operation of the
burners.
5.5 Hob²Hood
It is an advanced automatic function
which connects the hob to a special
hood. Both the hob and the hood have
an infrared signal communicator. You
can also operate the fan from the hob
manually.
Manual modes:
Mode Manual
light
Fan speed
H0 Off Off
HL On Off
ENGLISH 15

Mode Manual
light
Fan speed
H1 On Level 1
H2 On Level 2
H3 On Level 3
To turn off the hood touch
longer till H0 is displayed.
WARNING!
After end of cooking, the
hood does not turn off
automatically. Turn it off
manually.
For most of the hoods, the
remote system is originally
deactivated. Activate it
before you use the function.
For more information refer to
the hood user manual.
Setting default Hob²Hood procedure:
1. When timer is off, touch Minute
Minder for 3 seconds.
00, and come on.
2. Touch and together until An
comes on, n is a current automatic
mode.
3. Touch to select desired automatic
mode.
After the Automatic Mode is selected,
wait till it disappears from the display so
that this setting is saved in Flash Memory
and recalled at startup.
Repeat the same procedure
to select another Hob²Hood
Automatic Mode.
Automatic modes:
Mode Description H2H icon H2H display Automatic
light
Fan speed
A0 No remote control Off Off Off Off
A1 Remote control On On Off Off
A2 H2H Auto Light On On On Off
A3 H2H Auto Speed 0-2
(factory default) On On On 1
A4 H2H Auto Speed 1-3 On On On 1-3
A3
Burner type on Speed
AUX 1
SR 1
MC 1
A4
Power (kW) Speed
A4
1-5 1
6-8 2
9-11 3
www.electrolux.com16

6. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
6.1 Cookware
CAUTION!
Do not use cast iron pans,
clay or earthenware pots,
grilling accessories or
toaster plates.
WARNING!
Do not put the same pan on
two burners.
WARNING!
Do not put unstable or
damaged pots on the burner
to prevent spills and injuries.
CAUTION!
Make sure that the bottoms
of pots do not stand too
close to the control knob,
otherwise the flame heats
the control knob up.
CAUTION!
Make sure that pot handles
are not above the front edge
of the cooktop.
CAUTION!
Make sure that the pots are
placed centrally on the
burner in order to get the
maximum stability and a
lower gas consumption.
CAUTION!
Liquids spilt during cooking
can cause the glass to
break.
6.2 Diameters of cookware
CAUTION!
Use cookware with
diameters applicable to the
size of burners.
Burner Diameter of
cookware
(mm)
Multi Crown 180 - 260
Semi-rapid (rear left) 120 - 240
Semi-rapid (rear right) 120 - 240
Semi-rapid (front left) 120 - 240
Auxiliary 80 - 180
6.3 Hints and Tips for
Hob²Hood
When you operate the hob with the
function:
• Protect the hood panel from direct
sunlight.
• Do not spot halogen light on the hood
panel.
• Do not cover the hob control panel.
• Do not interrupt the signal between
the hob and the hood (e.g. with the
hand, a cookware handle or a tall
pot). See the picture.
The hood in the picture is only
exemplary.
Keep the window for
Hob²Hood infrared signal
communicator clean.
ENGLISH 17

Other remotely controlled
appliances may block the
signal. Do not use any such
appliances near to the hob
while Hob²Hood is on.
Cooker hoods with the Hob²Hood
function
To find the full range of cooker hoods
which work with this function refer to our
consumer website. The Electrolux cooker
hoods that work with this function must
have the symbol .
6.4 Suggested recipes
Food categories Recipes Burner type Power level
Sauces - Dressing Bechamel Auxiliary 2-4
Tomato sauce Semi-rapid 1-5
Pasta - Rice - other
Cereals
Mushrooms rice Multi Crown 1-5
Couscous Rapid 1-6
Ravioli Auxiliary 6-9
Soup - Legumes
Vegetable soup Semi-rapid 2-7
Mushrooms and pota‐
toes soup Semi-rapid 1-5
Fish soup Multi Crown 1-4
Meat
Beef meatballs Multi Crown 1-6
Fillet of pork roast Multi Crown 4-9
Beef burger gratin Auxiliary 1-5
Fish Sepia with peas Multi Crown 1-5
Roasted tuna steak Rapid 5-8
Eggs based meals Omelette Multi Crown 1-5
Vegetables
Mushrooms with sea‐
sonings Semi-rapid 2-6
Caponata with vegeta‐
bles Multi Crown 4-8
Frozen spinach with
butter Rapid 1-4
Fried dishes French fries Multi Crown 5-9
Donuts Multi Crown 3-7
Snacks cooked with
pan
Roasting nuts Semi-rapid 2-5
Croutons of bread Multi Crown 2-7
Pancakes Semi-rapid 3-9
www.electrolux.com18

Food categories Recipes Burner type Power level
Desserts
Caramel Auxiliary 1-5
Custard Auxiliary 1-5
Panna cotta Auxiliary 1-5
All recipes for approximately
4 portions.
The settings suggested in
the cooking table should
only serve as guidelines and
be adjusted depending on
the rawness of food, its
weight and quantity as well
as on the type of gas used
and the material of the
cookware used to prepare
the dish.
For an optimal delicate
cooking use the auxiliary
burner.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General information
• Clean the hob after each use.
• Clean the hob when all light are off.
The Minute Minder may stay
activated.
• Always use cookware with a clean
base.
• Use a special cleaner suitable for the
surface of the hob.
• Wash stainless steel parts with water,
and then dry them with a soft cloth.
• Scratches or dark stains on the
surface have no effect on how the hob
operates.
The presence of water or
other liquids on the control
panel can accidentally
activate or deactivate the
hob functions.
WARNING!
Do not use knives, scrapers
or similar instruments to
clean the surface of the
glass or the rims of the
burners and the frame (if
applicable).
7.2 Pan supports
The pan supports are not
resistant to washing in a
dishwasher. They must be
washed by hand.
1. Remove the pan supports to easily
clean the hob.
Be very careful when
you replace the pan
supports to prevent the
hob top from damage.
2. The enamel coating occasionally can
have rough edges, so be careful
when you wash the pan supports by
hand and dry them. If necessary,
remove stubborn stains with a paste
cleaner.
ENGLISH 19

3. After you clean the pan supports,
make sure that they are in correct
positions.
4. For the burner to operate correctly,
make sure that the arms of the pan
supports are aligned with the centre
of the burner inserted in the recesses
of the enamelled plates.
7.3 Removing and assembling
pan supports
After cleaning of the hob, make sure that
pan supports are in a correct position. In
order to place a pan support properly,
make sure that its arms fits the cut-outs
placed at the base of the burner as
shown in the picture. This way, a pan
support is stable and fixed.
7.4 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar,
otherwise, the dirt can cause damage
to the hob. Take care to avoid burns.
•Remove when the hob is
sufficiently cool: limescale rings,
water rings, fat stains, shiny metallic
discoloration. Clean the hob with a
moist cloth and a non-abrasive
detergent. After cleaning, wipe the
hob dry with a soft cloth.
• To clean the enamelled parts, caps
and crowns, wash them with warm
soapy water and dry them carefully
before you put them back on.
7.5 Cleaning the spark plug
This feature is obtained through a
ceramic ignition candle with a metal
electrode. Keep these components well
clean to prevent difficult lighting and
check that the burner crown holes are
not obstructed.
7.6 Periodic maintenance
Speak to your local Authorised Service
Centre periodically to check the
conditions of the gas supply pipe and the
pressure adjuster, if fitted.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Remedy
There is no spark when
you try to activate the
spark generator.
The hob is not connected
to an electrical supply or it
is connected incorrectly.
Check if the hob is correct‐
ly connected to the electri‐
cal supply.
The fuse is blown. Make sure that the fuse is
the cause of the malfunc‐
tion. If the fuse is blown
again and again, contact a
qualified electrician.
www.electrolux.com20
