CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
8. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
9. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes in-
juries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a per-
son who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recom-
mend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external
timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
ENGLISH 3

• Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
• If the glass ceramic surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control and
do not rely on the pan detector.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must in-
stall this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This pre-
vents hot cookware to fall from the ap-
pliance when the door or the window is
opened.
• If the appliance is installed above draw-
ers make sure that the space, between
the bottom of the appliance and the up-
per drawer, is sufficient for air circula-
tion.
• Make sure that the ventilation space of
2 mm, between the worktop and the
front of the below unit, is free. The war-
ranty does not cover damages caused
by the lack of an adequate ventilation
space.
• The bottom of the appliance can get
hot. We recommend to install a non-
combustile separation panel under the
appliance to prevent access to the bot-
tom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure the mains cable or plug (if
applicable) does not touch the hot ap-
4www.electrolux.com

pliance or hot cookware, when you
connect the appliance to the near sock-
ets
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Make sure that a shock protection is in-
stalled.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact the Service or an
electrician to change a damaged mains
cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Do not let the appliance stay unatten-
ded during operation.
• Do not operate the appliance with wet
hands or when it has contact with wa-
ter.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the ap-
pliance is in operation.
• When you place food into a hot oil, it
may splash.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food rem-
nants, can cause fire at a lower temper-
ature than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the con-
trol panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware
fall on the appliance. The surface can
be damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appli-
ance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass ceramic. Always
lift these objects up when you have to
move them on the cooking surface.
2.3 Care and Cleaning
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal ob-
jects.
ENGLISH 5

2.4 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for in-
formation on how to discard the appli-
ance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
3. PRODUCT DESCRIPTION
3.1 General overview
180 mm
145 mm
3
1
5 4
2
1Induction cooking zone
2Induction cooking zone
3Induction cooking zone
4Control panel
5Induction cooking zone
3.2 Control panel layout
To see the control panel activate
the appliance with
61 2 3 45
911 8710
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field function
1
To activate and deactivate the STOP+GO
function.
2
A heat setting display To show the heat setting.
3
To activate the Bridge function.
6www.electrolux.com

sensor field function
4
The timer display To show the time in minutes.
5
Timer indicators of cooking
zones To show for which cooking zone you set the time.
6
To lock/unlock the control panel.
7
To activate the Power function.
8
A control bar To set the heat setting.
9
/ To increase or decrease the time.
10
To activate and deactivate the appliance.
11
To set the cooking zone.
3.3 Heat setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
The function operates.
The Automatic Heat Up function operates.
Power function operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator) : contin-
ue cook / stay warm / residual heat.
Lock / The Child Safety Device operates.
Not correct cookware or too small or no cookware on the
cooking zone.
The Automatic Switch Off function operates.
3.4 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
\ \ The risk of burns
from residual heat!
OptiHeat Control shows the level of the
residual heat. The induction cooking
zones make the heat necessary for cook-
ing directly in the bottom of the cookware.
The glass ceramic is hot from the heat of
the cookware.
4. DAILY USE
4.1 Activation and deactivation
Touch for 1 second to activate or de-
activate the appliance.
The control panel comes on after you ac-
tivate the appliance and goes off after you
deactivate the appliance.
When the appliance is deactivated you
can see only sensor field.
ENGLISH 7

4.2 Automatic Switch Off
The function deactivates the
appliance automatically if:
•All cooking zones are deactivated (
).
• You do not set the heat setting after
you activate the appliance.
• You spill something or put something
on the control panel for more than 10
seconds, (a pan, a cloth, etc.). An
acoustic signal sounds some time and
the appliance deactivates. Remove the
object or clean the control panel.
• The appliance becomes too hot (e.g.
when, a saucepan boils dry). Before
you use the appliance again, wait for
the cooking zone to cool down.
• You use incorrect cookware. The sym-
bol comes on and the cooking zone
deactivates automatically after 2 mi-
nutes.
• You do not deactivate a cooking zone
or change the heat setting. After some
time comes on and the appliance
deactivates. See below.
• The relation between heat setting and
times of the Automatic Switch Off func-
tion:
•, - — 6 hours
•- — 5 hours
•- — 4 hours
•- — 1.5 hours
4.3 The heat setting
Touch the control bar at the heat setting.
Change clockwise or counterclockwise, if
it is necessary. Do not release before you
have a correct heat setting. The display
shows the heat setting.
4.4 Bridge function
The Bridge function connects two cook-
ing zones and they operate as one.
First set the heat setting for one of the
cooking zone.
To activate the Bridge function touch .
To set or change the heat setting touch
one of the control sensors.
To deactivate the Bridge function touch
. The cooking zones operate inde-
pendently.
4.5 Automatic Heat Up
You can get a necessary heat setting in a
shorter time if you activate the Automatic
Heat Up function. This function sets the
highest heat setting for some time (see
the diagram), and then decreases to the
necessary heat setting.
To start the Automatic Heat Up function
for a cooking zone:
1. Touch ( comes on in the dis-
play).
2. Immediately touch the necessary heat
setting. After 5 seconds comes on
in the display.
To stop the function change the heat set-
ting.
1
2
3
4
5
6
7
8
9
10
11
12
0
1 2 3 4 5 6 7 8 9 101112 1314
4.6 Power function
The Power function makes more power
available to the induction cooking zones.
The Power function can be activated for a
limited period of time ( see Technical In-
formation chapter). After that, the induc-
tion cooking zone automatically sets back
to highest heat setting. To activate, touch
, comes on. To deactivate, change
the heat setting.
8www.electrolux.com

4.7 Power management
The power management divides the pow-
er between two cooking zones in a pair
(see the illustration). The power function
increases the power to the maximum level
for one cooking zone in the pair. The
power in the second cooking zone auto-
matically decreases. The heat setting dis-
play for the reduced zone changes be-
tween two levels.
4.8 Timer
Count Down Timer
Use the Count Down Timer to set how
long the cooking zone operates for only
this one time.
Set the Count Down Timer after the
selection of the cooking zone.
You can set the heat setting before or af-
ter you set the timer.
•To set the cooking zone: touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate the Count Down Timer:
touch of the timer to set the time (
00
-
99
minutes). When the indicator
of the cooking zone start to flash slow,
the time counts down.
•To see the remaining time: set the
cooking zone with . The indicator of
the cooking zone starts to flash quickly.
The display shows the remaining time.
•To change the Count Down Timer:
set the cooking zone with . Touch
or .
•To deactivate the timer: set the
cooking zone with . Touch . The
remaining time counts back to
00
.
The indicator of the cooking zone goes
out.
When the countdown comes to an end,
the sound operates and
00
flashes.
The cooking zone deactivates.
•To stop the sound: touch
CountUp Timer ( The count up
timer)
Use the CountUp Timer to monitor how
long the cooking zone operates.
•To set the cooking zone (if more
than 1 cooking zone operate ) :
touch again and again until the indi-
cator of a necessary cooking zone
comes on.
•To activate the CountUp Timer:
touch of the timer comes on.
When the indicator of the cooking zone
starts to flash slow, the time counts up.
The display switches between and
counted time (minutes).
•To see how long the cooking zone
operates: set the cooking zone with
. The indicator of the cooking zone
starts to flash quickly. The display
shows the time that the cooking zone
operates.
•To deactivate the CountUp Timer:
set the cooking zone with and touch
or to deactivate the timer. The in-
dicator of the cooking zone goes out.
Minute Minder
You can use the timer as a Minute Mind-
er while the cooking zones do not oper-
ate. Touch . Touch or of the tim-
er to set the time. When the time comes
to an end, the sound operates and
00
flashes.
•To stop the sound: touch
4.9 STOP+GO
The function sets all cooking zones
that operate to the lowest heat setting (
).
When operates, you cannot change
the heat setting.
ENGLISH 9

The function does not stop the timer
function.
•To activate this function touch .
The symbol comes on.
•To deactivate this function touch .
The heat setting that you set before
comes on.
4.10 Lock
When the cooking zones operate, you
can lock the control panel, but not . It
prevents an accidental change of the heat
setting.
First set the heat setting.
To start this function touch . The sym-
bol comes on for 4 seconds.
The Timer stays on.
To stop this function touch . The heat
setting that you set before comes on.
When you stop the appliance, you also
stop this function.
4.11 The Child Safety Device
This function prevents an accidental oper-
ation of the appliance.
To activate The Child Safety Device
•Activate the appliance with . Do not
set the heat settings.
•Touch for 4 seconds. The symbol
comes on.
•Deactivate the appliance with .
To deactivate The Child Safety Device
•Activate the appliance with . Do not
set the heat settings. Touch for 4
seconds. The symbol comes on.
•Deactivate the appliance with .
To override The Child Safety Device
for only one cooking time
•Activate the appliance with . The
symbol comes on.
•Touch for 4 seconds. Set the heat
setting in 10 seconds. You can oper-
ate the appliance.
• When you deactivate the appliance with
, The Child Safety Device operates
again.
4.12 OffSound Control
(Deactivation and activation of
the sounds)
Deactivation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays
come on and go out. Touch for 3 sec-
onds. comes on, the sound is on.
Touch , comes on, the sound is off.
When this function operates, you can hear
the sounds only when:
•you touch
• the Minute Minder comes down
• the Count Down Timer comes down
• you put something on the control panel.
Activation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays
come on and go out. Touch for 3 sec-
onds. comes on, because the sound
is off. Touch , comes on. The
sound is on.
5. HELPFUL HINTS AND TIPS
INDUCTION COOKING ZONES
For induction cooking zones a strong
electro-magnetic field creates the heat in
the cookware very quickly.
5.1 Cookware for induction
cooking zones
Use the induction cooking zones
with correct cookware.
10 www.electrolux.com

Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of
the cookware.
The bottom of the cookware
must be as thick and flat as possi-
ble.
Cookware dimensions: induction cook-
ing zones adapt to the dimension of the
bottom of the cookware automatically to
some limit.
5.2 Use of the cooking zones
IMPORTANT
Put the cookware on the cross which is
on the surface that you cook. Cover the
cross fully. The magnetic part of the bot-
tom of the cookware must be 125 mm
minimum. Induction cooking zones adapt
to the dimension of the bottom of the
cookware automatically. You can cook
with the large cookware on two cooking
zones at the same time.
5.3 The noises during operation
If you can hear
• crack noise: cookware is made of dif-
ferent materials (Sandwich construc-
tion).
• whistle sound: you use one or more
cooking zones with high power levels
and the cookware is made of different
materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not re-
fer to appliance malfunction.
5.4 Energy saving
How to save energy
• If it is possible, always put the lids on
the cookware.
• Put cookware on a cooking zone be-
fore you start it.
• Use the residual heat to keep the food
warm or to melt it.
The cooking zone efficiency
The cooking zone efficiency is related to
the diameter of the cookware. The cook-
ware with a smaller diameter than the
minimum receives only a part of the pow-
er generated by the cooking zone. For the
minimum diameters see the Technical In-
formation chapter.
5.5 Öko Timer (Eco Timer)
To save energy, the heater of the
cooking zone deactivates before
the count down timer sounds. The
difference in the operation time
depends on the heat setting level
and the length of the cooking op-
eration.
5.6 The Examples of cooking
applications
The relation between the heat setting and
the cooking zone consumption of power
is not linear.
When you increase the heat setting it is
not proportional to the increase of the
cooking zone consumption of power.
It means that the cooking zone with the
medium heat setting uses less than a half
of its power.
The data in the table is for guid-
ance only.
ENGLISH 11

He
at
set
tin
g
Use to: Time Hints Nominal
power
consump-
tion
1
Keep warm the food
you cooked as required Put a lid on a cook- ware 3 %
1 -
3Hollandaise sauce, melt: butter, chocolate,
gelatine
5 - 25 min Mix from time to time 3 – 8 %
1 -
3Solidify: fluffy ome- lettes, baked eggs 10 - 40 min Cook with a lid on 3 – 8 %
3 -
5Simmer rice and milk- based dishes, heating
up ready-cooked
meals
25 - 50 min Add the minimum
twice as much liquid
as rice, mix milk
dishes part proce-
dure through
8 – 13 %
5 -
7Steam vegetables, fish, meat 20 - 45 min Add some table- spoons of liquid 13 – 18 %
7 -
9Steam potatoes 20 - 60 min Use max. ¼ l water for 750 g of potatoes 18 – 25 %
7 -
9Cook larger quantities of food, stews and
soups
60 - 150
min Up to 3 l liquid plus ingredients 18 – 25 %
9 -
12 Gentle fry: escalope, veal cordon bleu, cut-
lets, rissoles, saus-
ages, liver, roux, eggs,
pancakes, doughnuts
as necessa-
ry Turn halfway through 25 – 45 %
12
-
13
Heavy fry, hash
browns, loin steaks,
steaks
5 - 15 min Turn halfway through 45 – 64 %
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-
fry chips 100 %
Boil large quantities of water. Power function is activated.
6. CARE AND CLEANING
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the
glass-ceramic cause no effect on
how the appliance operates.
To remove the dirt:
1. –Remove immediately: melted
plastic, plastic foil, and food with
sugar. If not, the dirt can cause
damage to the appliance. Use a
special scraper for the glass . Put
the scraper on the glass surface at
12 www.electrolux.com

an acute angle and move the blade
on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metal-
lic discolorations. Use a special
cleaning agent for glass ceramic or
stainless steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
7. TROUBLESHOOTING
Problem Possible cause Remedy
You cannot activate the
appliance or operate it. Activate the appliance again and set the heat
setting in less than 10
seconds.
You touched 2 or more
sensor fields at the same
time.
Touch only one sensor
field.
The STOP+GO function
operates. Refer to the chapter “Dai- ly Use”.
There is water or fat
stains on the control pan-
el.
Clean the control panel.
An acoustic signal
sounds and the appliance
deactivates.
An acoustic signal
sounds when the appli-
ance is deactivated.
You put something on
one or more sensor fields. Remove the object from the sensor fields.
The appliance deacti-
vates. You put something on the
sensor field .
Remove the object from
the sensor field.
The residual heat indica-
tor does not come on. The cooking zone is not hot because it operated
only for a short time.
If the cooking zone oper-
ated sufficiently long to
be hot, speak to the serv-
ice centre.
The Automatic Heat Up
function does not oper-
ate.
The cooking zone is hot. Let the cooking zone be-
come sufficiently cool.
The highest heat setting
is set. The highest heat setting has the same power as
the Automatic Heat Up
function.
The heat setting changes
between two levels. The Power management is activated. Refer to “Power manage- ment”.
The sensor fields become
hot. The cookware is too large or you put it too near to
the controls.
Put large cookware on
the rear cooking zones if
necessary.
ENGLISH 13

Problem Possible cause Remedy
There is no signal when
you touch the panel sen-
sor fields.
The signals are deactiva-
ted. Activate the signals (refer to “OffSound control”).
comes on. The Automatic Switch Off
operates. Deactivate the appliance and activate it again.
comes on. The Child Safety Device
or the Lock function op-
erates.
Refer to the chapter “Dai-
ly Use”.
comes on. No cookware is on the
cooking zone. Put cookware on the cooking zone.
The cookware is incor-
rect. Use the correct cook- ware.
The diameter of the bot-
tom of the cookware is
too small for the cooking
zone.
Use cookware with cor-
rect dimensions.
The cookware do not
cover the cross / square
fully.
Cover the cross / square
fully.
and a number come
on.
There is an error in the
appliance. Disconnect the appliance from the electrical supply
for some time. Discon-
nect the fuse from the
electrical system of the
house. Connect it again.
If comes on again,
speak to the service cen-
tre.
comes on. The electrical connection
is incorrect. The supply
voltage is out of range.
Speak to a qualified elec-
trician to check the instal-
lation.
comes on. There is an error in the
appliance because a
cookware boils dry. The
overheating protection for
the cooking zones and
the Automatic Switch Off
operate.
Deactivate the appliance.
Remove the hot cook-
ware. After approximately
30 seconds, activate the
cooking zone again. If the
cookware was the prob-
lem, the error message
goes out of the display,
but the residual heat indi-
cator can stay. Let the
cookware become suffi-
ciently cool and refer to
“Cookware for the induc-
tion cooking zone” to see
if your cookware is com-
patible with the appli-
ance.
14 www.electrolux.com

Problem Possible cause Remedy
comes on. The cooling fan is
blocked. Check if objects block the
cooling fan. If comes
on again, speak to the
service center.
comes on. The electrical connection
is incorrect. The appli-
ance is connected only to
one phase.
Connect the appliance as
you see it in the connec-
tion illustration.
If you tried the above solutions and can-
not repair the problem, speak to your
dealer or the customer service. Give the
data from the rating plate, three digit letter
code for the glass ceramic (it is in the cor-
ner of the glass surface) and an error
message that comes on.
Make sure, you operated the appliance
correctly. If not the servicing by a custom-
er service technician or dealer will not be
free of charge, also during the warranty
period. The instructions about the cus-
tomer service and conditions of guarantee
are in the guarantee booklet.
8. INSTALLATION
WARNING!
Refer to the Safety chapters.
Before the installation
Before the installation of the appliance, re-
cord the information below from the rating
plate. The rating plate is on the bottom of
the appliance casing.
• Model ...........................
• PNC .............................
• Serial number ....................
8.1 Built-in appliances
• Only use the built-in appliances after
you assemble the appliance into correct
built-in units and work surfaces that
align to the standards.
8.2 Connection cable
• Use the correct mains cable of type
H05BB-F Tmax 90°C (or higher) for a
single phase or two phase connection.
• Replace the damaged mains cable with
a special cable (type H05BB-F Tmax
90°C or higher). Speak to your local
Service Centre.
ENGLISH 15

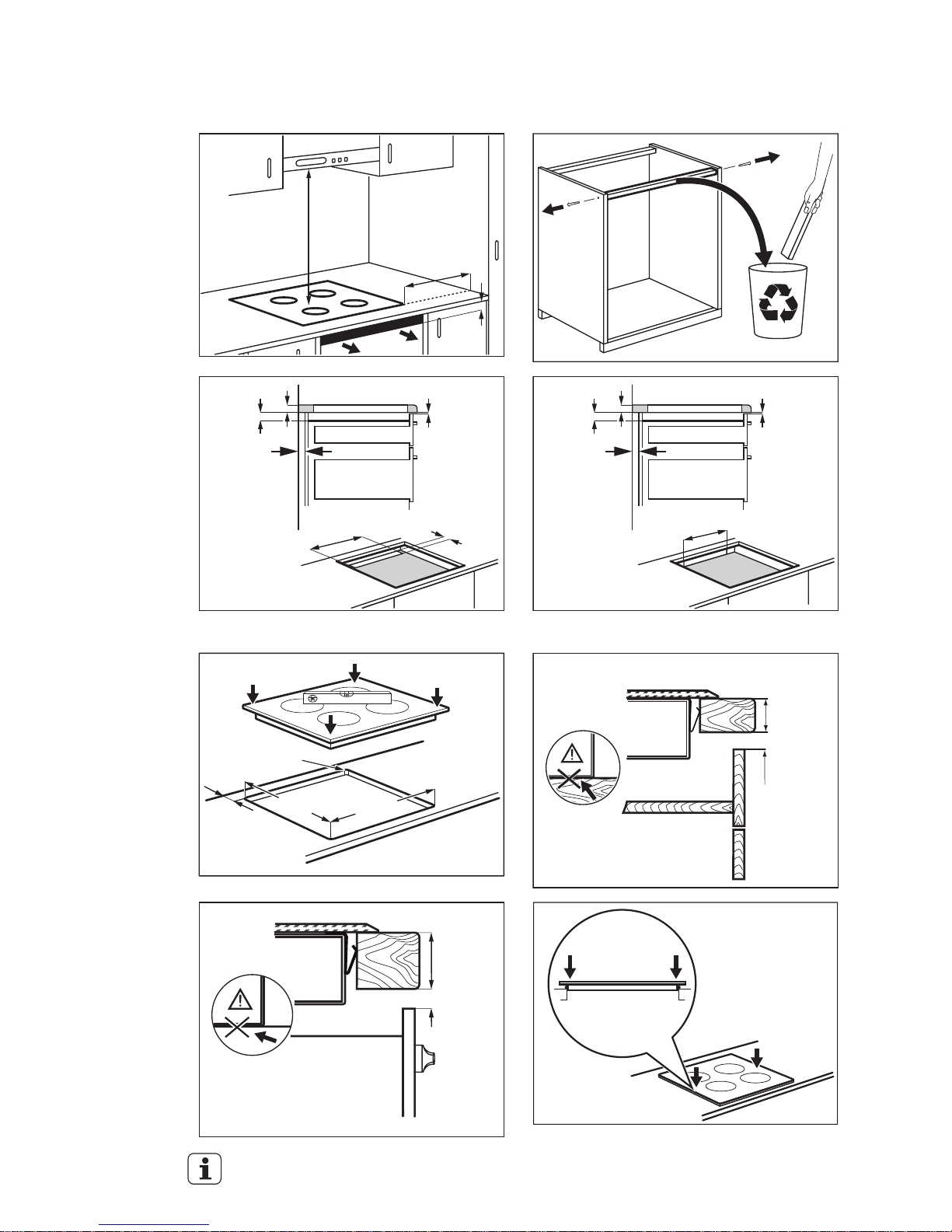

8.3 Assembly
min.
50mm
min.
500mm
min.
2mm
< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
R 5mm
min.
55mm
490+1mm 560+1mm
min.
12 mm
min.
2 mm
min.
38 mm
min.
2 mm
16 www.electrolux.com

If you use a protection box (an additional
accessory1)), the front airflow space of 2
mm and protective floor directly below the
appliance are not necessary.
You can not use the protection box if you
install the appliance above an oven.
1) The protection box accessory may not be available in some countries. Please contact your
local supplier.
9. TECHNICAL INFORMATION
Modell EHI6740FOK Prod.Nr. 949 596 105 00
Typ 58 GAD DC AU 220 - 240 V 50 - 60 Hz
Induction 7.4 kW Made in Germany
Ser.Nr. .......... 7.4 kW
ELECTROLUX
Cooking zones power
Cooking
zone
Nominal
Power (Max
heat setting)
[W]
Power Func-
tion activa-
ted [W]
Power func-
tion maxi-
mum dura-
tion [min]
Minimum
cookware di-
ameter [mm]
Right rear —
180 mm 1800 W 2800 W 10 145
Right front —
145 mm 1400 W 2500 W 4125
Left rear 2300 W 3200 W 10 125
Left front 2300 W 3200 W 10 125
The power of the cooking zones can be
different in some small range from the da- ta in the table. It changes with the material and dimensions of the cookware.
10. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 17

18 www.electrolux.com

ENGLISH 19

www.electrolux.com/shop
892951980-C-03201
