Electrolux EHP 600 K User manual

Ceramic glass hob
Installation and Operating
Instructions
EHP 600K
822 924 916-A-060904-01 g

2
Dear Customer,
Please read these user instructions carefully and
keep them to refer to later.
Please pass the user instructions on to any future
owner of the appliance.
The following symbols are used in the
text:
1Safety instructions
Warning! Information that affects your per-
sonal safety.
Important! Information that prevents damage
to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assignment of ring switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control Knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting the heat setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Warranty conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4
Operating Instructions
1Safety instructions
3Please comply with these instructions. If you
do not, any damage resulting is not covered
by the warranty.
5This appliance conforms with the following EU
Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Direc-
tive
–89/336/EEC dated 03.05.1989 EMC Directive in-
clusive of Amending Directive 92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
•This appliance should be used only for normal do-
mestic cooking and frying of food.
•The appliance must not be used as a work surface
or as a storage surface.
•Additions or modifications to the appliance are not
permitted.
Children’s safety
•Small children must be kept away from the appli-
ance.
•Only let bigger children work on the appliance un-
der supervision.
General safety
•The appliance may only be installed and connect-
ed by trained, registered service engineers.
•Built-in appliances may only be used after they
have built in to suitable built-in units and work sur-
faces that meet standards.
•In the event of faults with the appliance or damage
to the glass ceramic (cracks, scratches or splits),
the appliance must be switched off and discon-
nected from the electrical supply, to prevent the
possibility of an electric shock.
•Repairs to the appliance must only be carried out
by trained registered service engineers.
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used
carelessly.
•Cables from electrical appliances must not touch
the hot surface of the appliance or hot cookware.
•Overheated fats and oils can ignite quickly. When
cooking with fat or oil (e.g. chips) do not leave the
appliance unattended.
•Switch the cooking zones off after each use.
Safety when cleaning
•For cleaning, the appliance must be switched off
and cooled down.
•For safety reasons, the cleaning of the appliance
with steam jet or high-pressure cleaning equip-
ment is not permitted.
How to avoid damage to the appli-
ance
•The glass ceramic can be damaged by objects fall-
ing onto it.
•The edge of the glass ceramic can be damaged by
being knocked by the cookware.
•Cookware made of cast iron, cast aluminium or
with damaged bottoms can scratch the glass ce-
ramic if pushed across the surface.
•Objects that melt and things that boil over can
burn onto the glass ceramic and should be re-
moved straightaway.
•Do not use the cooking zones with empty cook-
ware or without cookware.

5
Description of the Appliance
Cooking surface layout
Assignment of ring switches
Singlecooking zone
1700W
Hob Cooking Zone
Control Knobs
Singlecooking zone
1700W
Singlecooking zone
1200W
Residual heat indicator Singlecooking zone
1200W

6
Control Knobs
The cooking power can be set anywhere between
level 1 and 12.
Residual heat indicator
The residual heat indicator lights up, as soon as the
corresponding cooking zone is hot.
1Danger! Risk of burns from residual heat. Af-
ter being switched off, the cooking zones need
some time to cool down. Look at the residual
heat indicator.
2Residual heat can be used for melting and
keeping food warm.
Operating the appliance
3When a cooking zone is switched on, it may
hum briefly. This is a characteristic of all ce-
ramic glass cooking zones and does not im-
pair either the function or the life of the
appliance.
Setting the heat setting
1. When boiling water/searing food, select a high
heat setting.
2. As soon as steam forms or the fat or oil is hot, set a
lower heat setting.
3. To end the cooking process, turn to the Off posi-
tion.
1 lowest power
12 highest power
0 Off position
Heat setting Ring control knob Knob setting
To increase turn clockwise 1 - 12
To re d u c e turn anti-clockwise 12 - 1
switch off 0

7
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowledge,
intensive browning of food, especially in prod-
ucts containing starch, can constitute a health
risk due to acrylamides. Therefore we recom-
mend cooking at the lowest possible tempera-
tures and not browning foods too much.
Cookware
•You can recognise good cookware from the bot-
toms of the pans. The bottom should be as thick
and flat as possible.
•Cookware made of enamelled steel or with alumin-
ium or copper bottoms can leave discolorations on
the glass ceramic surface which are difficult or im-
possible to remove.
Energy saving
2Always place cookware on the cooking zone
before it is switched on.
2If possible, always place lids on the pans.
2Switch cooking zones off before the end of the
cooking time, to take advantage of residual
heat.
2Bottom of pans and cooking zones should be
the same size.

8
Examples of cooking applications
The information given in the following table is for guidance only.
Heat
setting
Cooking-
process suitable for Cooking time Tips/Hints
0 Residual heat, Off position
1Keeping
food warm Keeping cooked foods warm as required Cover
1-3 Melting Hollandaise sauce,
melting butter, chocolate, gelatine 5-25 mins. Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
3-5 Simmering
on low heat
Simmering rice and milk-based
dishes
Heating up ready-cooked meals
25-50 mins.
Add at least twice as much
liquid as rice, stir milk dishes
part way through cooking
4-6 Steaming
Braising
Steaming vegetables, fish
braising meat 20-45 mins. With vegetables add only a lit-
tle liquid (a few tablespoons)
5-7 Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid, e. g.:
max. ¼l water for
750 g potatoes
Cooking larger quantities of food,
stews and soups 60-150 mins. Up to 3 l liquid plus ingredi-
ents
8-9 Gentle
Frying
Frying escalopes, veal cordon
bleu, cutlets, rissoles, sausages,
liver, roux, eggs, pancakes,
doughnuts
Steady frying Turn halfway through cooking
10-11 Heavy
Frying
Hash browns, loin steaks, steaks,
Flädle (pancakes for garnishing
soup)
5-15 mins.
per pan Turn halfway through cooking
11-12
Boiling
Searing
Deep frying
Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast),
deep frying chips

9
Cleaning and Care
1Take care! Risk of burns from residual heat.
Let the appliance cool down.
1Warning! Sharp objects and abrasive cleaning
materials will damage the appliance. Clean
with water and washing up liquid.
1Warning! Residues from cleaning agents will
damage the appliance. Remove residues with
water and washing up liquid.
Cleaning the appliance after each
use
1. Wipe the appliance with a damp cloth and a little
washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place a scraper on the glass ceramic surface at an
angle.
2. Remove residues by sliding the blade over the sur-
face.
3. Wipe the appliance with a damp cloth and a little
washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel
can be purchased in specialist shops
3Remove stubborn residues with a cleaner for
glass ceramic or stainless steel.
3Scratches or dark stains on the glass ceramic
that cannot be removed do not however affect
the functioning of the appliance.
Remove
Type of dirt immedi-
ately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes
cleaner for glass ceramic
or stainless steel*
fat splashes --- yes
shiny metallic discolorations --- yes

10
What to do if …
If you are unable to remedy the problem by fol-
lowing the above suggestions, please contact
your dealer or the Customer Care Department.
1Warning! Repairs to the appliance are only to
be carried out by qualified service engineers.
Considerable danger to the user may result
from improper repairs.
3If the appliance has been wrongly operated,
the visit from the customer service technician
or dealer may not take place free of charge,
even during the warranty period.
Disposal
2Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic com-
ponents are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
2Old appliance
Please dispose of your old appliance in line
with the guidelines for disposal in your com-
munity.
Problem Possible cause Remedy
The cooking zones are not func-
tioning.
The desired heat setting is not set. Set the heat setting.
The fuse in the house’s electrical
wiring (fuse box) has been tripped.
Check the fuse.
If the fuses trip a number of times,
please call an authorised electri-
cian.
The residual heat indicator is not
displaying anything
The cooking zone was only on for a
short time and is therefore not hot
If the cooking zone is supposed to
be hot, call the Customer Service
Department.

11
Installation Instructions
Safety instructions
The laws, ordinances, directives and standards in
force in the country of use are to be followed (safety
regulations, proper recycling in accordance with the
regulations, etc.)
Installation may only be carried out by a qualified
electrician.
The minimum distances to other appliances are to be
observed.
Drawers may only be installed with a with protec-
tive floor directly under the appliance.
The cut surfaces of the work top are to be protected
against moisture using a suitable sealant.
The sealant seals the appliance to the work top with
no gap.
Do not use silicon sealant between the appliance
and the work top.
Avoid installing the appliance next to doors and un-
der windows. Otherwise hot cookware may be
knocked off the rings when doors and windows are
opened.
1WARNING!
Risk of injury from electrical current.
•The electrical mains terminal is live.
•Make electrical mains terminal free of voltage.
•Observe connection schematic.
•Observe electrical safety rules.
•Ensure anti-shock protection through correct in-
stallation by a qualified electrician.
•The appliance must be connected to the electrical
supply by a qualified electrician.
1IMPORTANT!
Risk of injury from electrical current.
Loose and inappropriate plug and socket connec-
tions can make the terminal overheat.
•Have the clamping joints correctedly installed by a
qualified electrician.
•Use strain relief clamp on cable.
•In the event of single-phase or two-phase connec-
tion, the appropriate mains cable of type H05BB-F
Tmax 90° (or higher) must be used.
•If this appliance’s mains cable is damaged, it must
be replaced by a special cable (type H05BB-F
Tmax 90°; or higher). The latter is available from
the Customer Care Department.
A device must be provided in the electrical installa-
tion which allows the appliance to be disconnected
from the mains at all poles with a contact opening
width of at least 3 mm.
Suitable isolation devices include line protecting cut-
outs, fuses (screw type fuses are to be removed from
the holder), earth leakage trips and contactors.

12

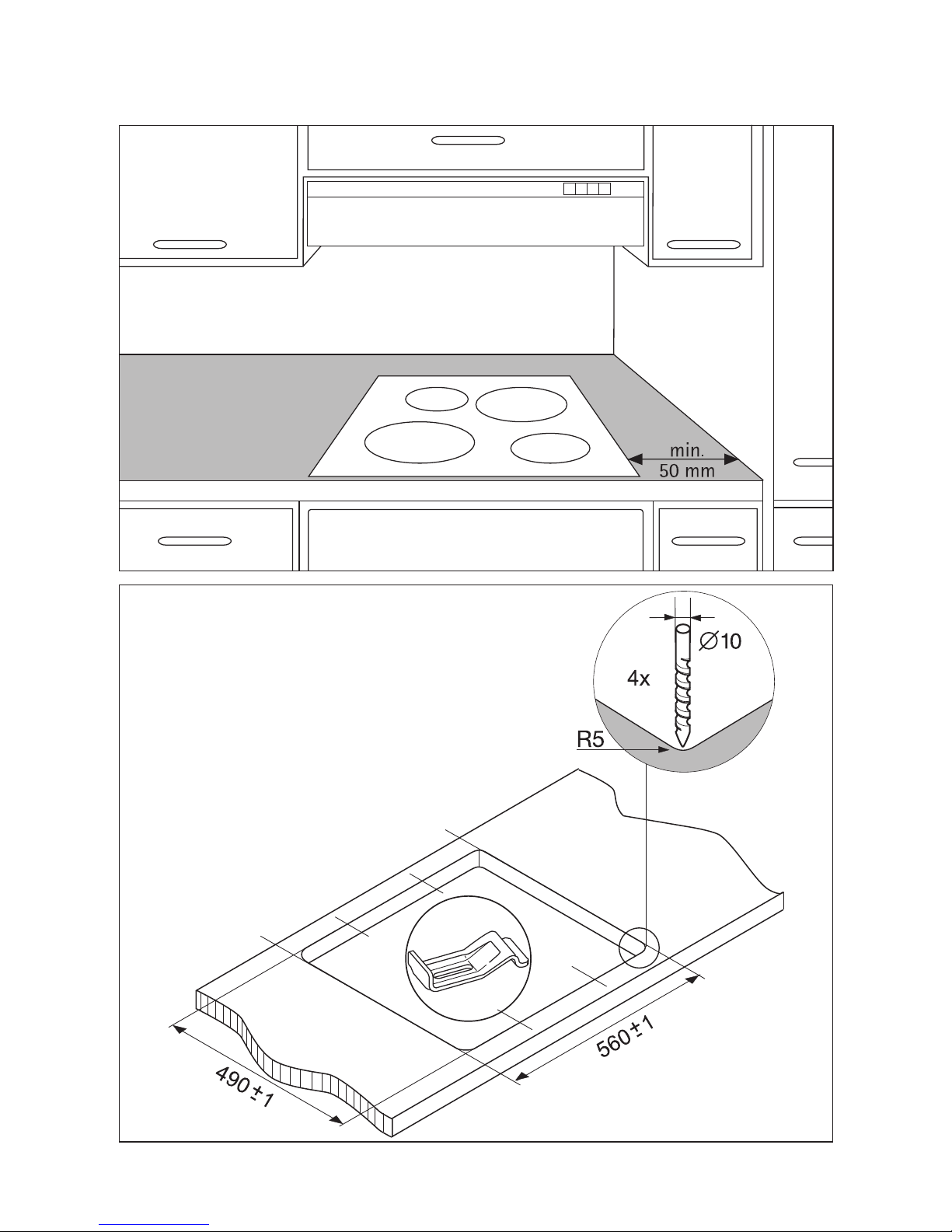

Assembly

13
Rating Plate

14
Warranty conditions
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of
the date of the purchase this Electrolux appliance or
any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at
our option repair or replace the same FREE OF
CHARGE for labour, materials or carriage on condi-
tion that:
•The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
•The appliance has been used for normal domestic
purposes only, and in accordance with the manu-
facturer’s instructions.
•The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any per-
son not authorised by us.
•All service work under this guarantee must be un-
dertaken by a Service Force Centre.
•Any appliance or defective part replaced shall be-
come the Company’s property.
•This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
Exclusions
This guarantee does not cover:
•Damage or calls resulting from transportation, im-
proper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
•Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
•Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
•Products of Electrolux manufacture which are not
marketed by Electrolux.
European Guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
•The guarantee starts from the date you first pur-
chased your product.
•The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of prod-
ucts.
•This guarantee relates to you and cannot be trans-
ferred to another user.
•Your new home is within the European Community
(EC) or European Free Trade Area.
•The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household.
•The product is installed taking into account regula-
tions in your new country.
Before you move please contact your nearest Cus-
tomer Care centre, listed below, to give them details
of your new home. They will then ensure that the lo-
cal Service Organisation is aware of your move and
able to look after you and your appliances.
France Senlis [phone]
Germany Nürnberg [phone]
Italy Pordernone [phone]
Sweden Stockholm [phone]
UK Slough [phone]

15
Service and Spare Parts
If the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact
Service Force by telephoning:
Your telephone call will be automatically routed to
the Service Force Centre covering your post code ar-
ea.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at
www. serviceforce.co.uk
Before calling out an engineer, please ensure you
have read the details under the heading „What to do
if...“
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance
(found on the rating plate)
5. The purchase date.
Please note that a valid purchase receipt or guaran-
tee documentation is required for in-guarantee serv-
ice calls.
Customer Care
For general enquiries concerning your Electrolux ap-
pliance, or for further information on Electrolux prod-
ucts please contact our Customer Care Department
by letter or telephone at the address below or visit
our website at www.electrolux.co.uk.
(*) Calls may be recorded for training purposes
0870 5 929 929
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: [phone] (*)
For Customer Service in the Republic of Ireland please con-
tact us at the address below:
AEG/ Electrolux Group (Ire) Ltd
Long Mile Road/ Dublin 12
Republic of Ireland
Tel: [phone]
Email: [e-mail]

The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products
(such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
822 924 916-A-060904-01 Subject to change without notice
