Electrolux EHS 6641 P User manual

Hob
Installation and Operating
Instructions
EHS 6641 P
822 930 199-A-191205-01

2
Dear Customer,
Please read these user instructions carefully and
keep them to refer to later.
Please pass the user instructions on to any future
owner of the appliance.
The following symbols are used in the
text:
1Safety instructions
Warning! Information that affects your per-
sonal safety.
Important! Information that prevents damage
to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

4
Operating Instructions
1Safety instructions
3Please comply with these instructions. If you
do not, any damage resulting is not covered
by the warranty.
5This appliance conforms with the following EU
Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Direc-
tive
–89/336/EEC dated 03.05.1989 EMC Directive in-
clusive of Amending Directive 92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
•This appliance should be used only for normal do-
mestic cooking and frying of food.
•The appliance must not be used as a work surface
or as a storage surface.
•Additions or modifications to the appliance are not
permitted.
•Do not place or store flammable liquids, highly in-
flammable materials or fusible objects (e.g. plastic
film, plastic, aluminium) on or near the appliance.
Children’s safety
•Small children must be kept away from the appli-
ance.
•Only let bigger children work on the appliance un-
der supervision.
General safety
•The appliance may only be installed and connect-
ed by trained, registered service engineers.
•Built-in appliances may only be used after they
have built in to suitable built-in units and work sur-
faces that meet standards.
•If there is a fault with the appliance, all hotplates
must be switched off and the appliance must be
disconnected from the mains supply to avoid any
possible electric shock.
•Repairs to the appliance must only be carried out
by trained registered service engineers.

5
Safety during use
•There is the risk of burns from the appliance if used
carelessly.
•Cables from electrical appliances must not touch
the hot surface of the appliance or hot cookware.
•Overheated fats and oils can ignite quickly. When
cooking with fat or oil (e.g. chips) do not leave the
appliance unattended.
•Switch the hotplates off after each use.
Safety when cleaning
•For cleaning, the appliance must be switched off
and cooled down.
•For safety reasons, the cleaning of the appliance
with steam jet or high-pressure cleaning equip-
ment is not permitted.
How to avoid damage to the appli-
ance
•Do not allow acid liquids such as vinegar, lemon
juice or limescale removing agents to touch the
hob, as otherwise this will cause matt patches.
•Do not place wet pan lids on the hotplates and do
not allow hot pans to cool on the hotplates. Other-
wise condensation and rust can form.
•Do not use the hotplates with empty cookware or
without cookware.

6
Description of the Appliance
Cooking surface layout
Using the Rings
You operate the appliance with the combination
appliance’s ring switches. The operation and the
function of the ring switches is described in the
Operating Instructions for the combination appli-
ance.
1Warning: The hotplates still remain hot for a
time even after being switched off. There is a
risk of burns. Let the hotplates cool down.
Quick hotplate
2000W
Quick hotplate
1500W
Quick hotplate
2000W
Quick hotplate
1500W

7
Tips on Cooking and Frying
Cookware
You can recognise good cookware from the bottoms
of the pans. The bottom should be as thick and flat
as possible.
Energy saving
2Always place cookware on the hotplate before
it is switched on.
2If possible, always place lids on the pans.
2Switch hotplates off before the end of the
cooking time, to take advantage of residual
heat.
2Bottom of pans and hotplate should be the
same size.

8
Cleaning and Care
1Take care! Risk of burns from residual heat.
Let the appliance cool down.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little
washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Remove heavy deposits from the hotplates using
fine scouring powder or a scouring pad.
2. Wipe off residues with a damp cloth.
3. Then heat the hotplate to a low temperature and
leave to dry.
4. To maintain the hotplates, rub in a little sewing ma-
chine oil now and again and then polish off with
absorbent paper.
1Important: Do not clean the stainless steel
edge of the hob with scouring powder or a
scouring pad as this will leave scratches!
For stainless steel hobs only use suitable stainless
steel cleaning and maintenance products. Please the
manufacturer’s instructions.
3The stainless steel edge of the plate can be
slightly discoloured as a result of thermal load.
This process is caused by the physical proper-
ties.

9
What to do if …
If you are unable to remedy the problem by fol-
lowing the above suggestions, please contact
your dealer or the Customer Care Department.
1Warning! Repairs to the appliance are only to
be carried out by qualified service engineers.
Considerable danger to the user may result
from improper repairs.
3If the appliance has been wrongly operated,
the visit from the customer service technician
or dealer may not take place free of charge,
even during the warranty period.
Problem Possible cause Remedy
The hotplates are not functioning The combination appliance is not
switched on
Switch on the appliance.
The desired heat setting is not set. Set the heat setting.
The fuse in the house’s electrical
wiring (fuse box) has been tripped..
Check the fuse.
If the fuses trip a number of times,
please call an authorised electri-
cian.

10
Disposal
2Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic com-
ponents are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
2Old appliance
The symbol Won the product or on its pack-
aging indicates that this product may not be
treated as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. By ensuring this product is dis-
posed of correctly, you will help prevent po-
tential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed in-
formation about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.

11
Installation Instructions
Safety instructions
The laws, ordinances, directives and standards in
force in the country of use are to be followed (safety
regulations, proper recycling in accordance with the
regulations, etc.)
Installation may only be carried out by a qualified
electrician.
The minimum distances to other appliances and
units are to be observed.
Drawers may only be installed under the appli-
ance with a protective floor.
The cut surfaces of the worktop are to be protected
against moisture using a suitable sealant.
The sealant seals the appliance to the work top with
no gap.
Do not use silicon sealant between the appliance
and the work top.
Avoid installing the appliance next to doors and un-
der windows. Otherwise hot cookware may be
knocked off the rings when doors and windows are
opened.
1Warning!
Risk of injury from electrical current.
The combination appliance is live.
•Observe electrical safety rules.
•Ensure anti-shock protection through correct in-
stallation by a qualified electrician.
•Rated voltage of the combined appliances must
match.
1Important!
Risk of injury from electrical current.
Loose and inappropriate plug and socket con-
nections can lead to overheating of the plug.
•Fit plug and socket connections together properly.
A device must be provided in the electrical installa-
tion which allows the appliance to be disconnected
from the mains at all poles with a contact opening
width of at least 3 mm.
Suitable isolation devices include line protecting cut-
outs, fuses (screw type fuses are to be removed from
the holder), earth leakage trips and contactors.

12
Assembly

13

14

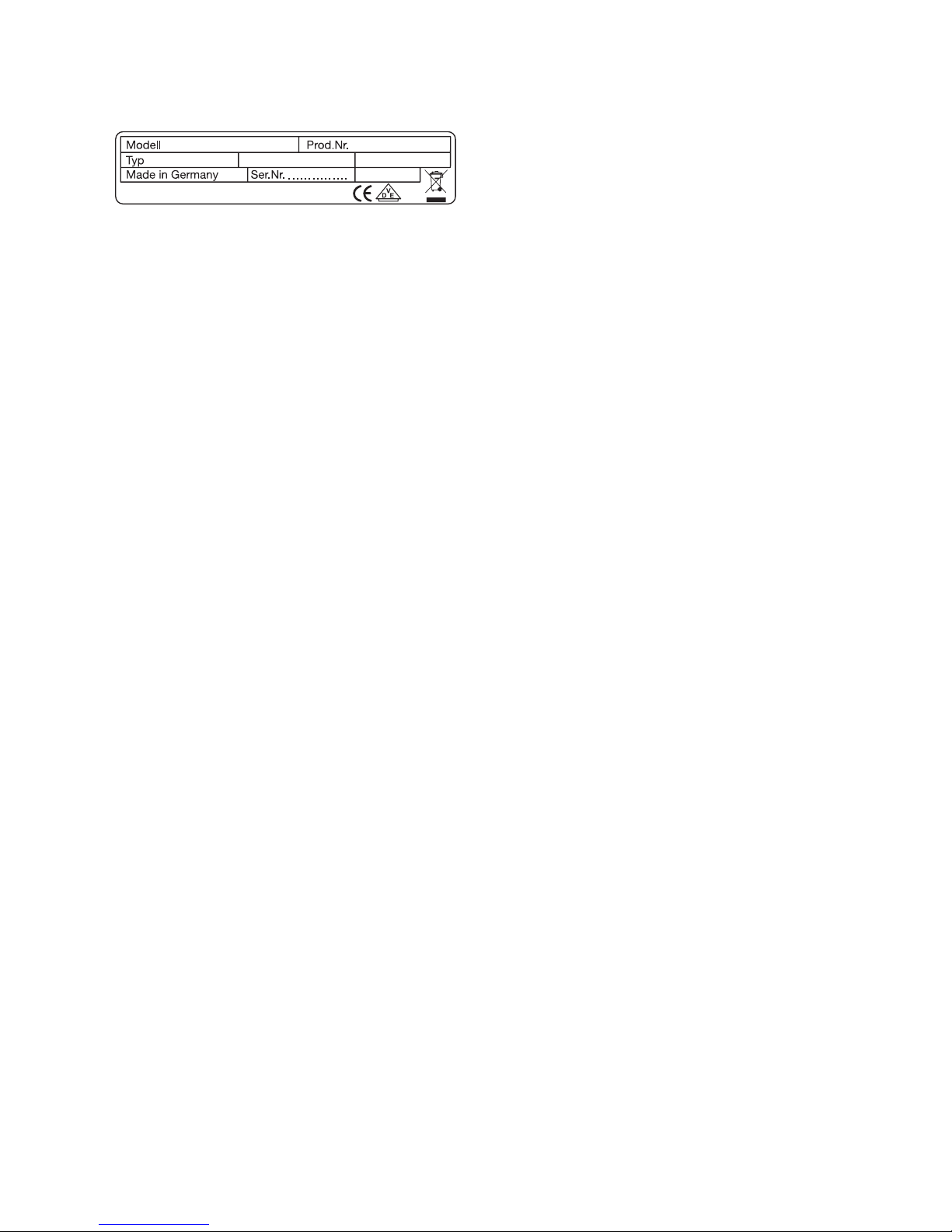

Rating Plate
MEE0004
EHE 631 X
7,0 kW
949 592 002
230 V 50 Hz
ELECTROLUX

15
Service
In the event of technical faults, please first check
whether you can remedy the problem yourself with
the help of the operating instructions (section “What
to do if…”).
If you were not able to remedy the problem yourself,
please contact the Customer Care Department or
one of our service partners.
In order to be able to assist you quickly, we require
the following information:
–Model description
–Product number (PNC)
–Serial number (S No.)
(for numbers see rating plate)
–Typ e of f au lt
–Any error messages displayed by the appliance
–three digit letter-number combination for glass ce-
ramic
So that you have the necessary reference numbers
from your appliance at hand, we recommend that
you write them in here:
Model description: .....................................
PNC: .....................................
S No: .....................................

The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products
(such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
822 930 199-A-191205-01 Subject to change without notice
