Electrolux EHS 6651 P User manual

Ceramic glass hob
Installation and
Operating instructions
EHS 6651 P
822 924 114-A-100603 GB

4
Dear customer
Please read these operating instructions carefully.
Pay particular attention to the section „Safety
Information” on the first pages. Please retain these
operating instructions for later reference. Pass
them on to any possible new owners of the
appliance.
The following symbols are used in
the text:
1. These numbers indicate step by step how to
use the appliance as required.
2. ...
3. ...
In the event of any disturbances, these operating
instructions contain information on how to
eliminate the fault yourself; refer to the section
“What to do if…”
Printed on environmentally compatible paper.
Thinking ecologically means acting ecologically…
Safety information
Warning! Information which serves your
personal safety.
Important! Information on how to avoid
damaging the appliance.
Information and practical hints
Environmental information

5
Contents
Operating instructions .................................. 6
Safety ............................................................ 6
Electrical safety .............................................. 6
Safety for children .......................................... 6
Safety during use ........................................... 6
Safety when cleaning ..................................... 6
How to prevent damage to the appliance ...... 7
Disposal ........................................................ 7
Disposing of the packaging material .............. 7
Disposing of old appliances ........................... 7
The key features of your appliance ............ 8
Appliance description ................................. 9
Control panel ................................................. 9
Digital displays ............................................. 10
Safety cut-out of the cooking zones ............. 10
Before using for the first time .................. 11
First cleaning ............................................... 11
Operating the cooking area ...................... 11
Touch Control-Sensor fields ........................ 11
Switching on the appliance .......................... 11
Switching off the appliance .......................... 12
Heat setting ................................................. 12
Setting the keep warm function .................. 12
Switching the casserole cooking zone
on and off ..................................................... 13
Switching the triple ring cooking zone
on and off ..................................................... 14
Switching off the cooking zone .................... 16
Residual heat indicator ................................ 16
Cooking with the
automatic warm-up function ........................ 17
Cooking without the
automatic warm-up function ........................ 18
Child safety feature ...................................... 19
Timer ............................................................ 21
Locking/unlocking the control panel ............. 23
Uses, Tables and Tips ................................ 24
Pots and pans .............................................. 24
Tips on saving energy .................................. 25
Advice on cooking with and
without automatic warm-up .......................... 26
Cleaning and care ...................................... 28
Cooking area ................................................ 28
What to do if … ........................................... 30
Rectifying faults ............................................ 30
What to do if … ............................................. 30
Installation instructions...............................32
Technical data ............................................ 32
Appliance dimensions .................................. 32
Cut-out dimensions ...................................... 32
Cooking zones .............................................. 32
Connection values ........................................ 32
Regulations, standards, directives ........... 33
Safety instructions for
the installation technician ......................... 34
Electrical connection ................................. 35
Service and Spare Parts ............................ 36
Guarantee Conditions ................................ 37
Standard guarantee conditions .................... 37
Exclusions .................................................... 37
European Guarantee .................................... 37
Installation ....................................................73

6
Operating instructions
Safety
The safety aspects of this appliance comply with
the accepted technical standards and the
German Appliance Safety Law. However, as the
manufacturer we also believe it is our
responsibility to familiarise you with the following
safety instructions.
Electrical safety
• Installation and connection of this new
appliance must only be carried out by a
qualified personnel.
• Repairs to the appliance are only to be
carried out by qualified personnel. Repairs
carried out by inexperienced persons may
cause an injury or serious malfunction. If your
appliances needs repairing, please contact
your local Service Force Centre.
• Flush-mounted appliances shall only be
operated following installation in suitable
installation cabinets and workplaces
complying with applicable standards. This
ensures adequate protection against contact
for electrical units as required by the VDE
(Association of German Electrical Engineers)
• If your appliance malfunctions or if fractures,
cracks or splits appear:
- Switch off all cooking zones.
- Disconnect the hob from the electricity
supply.
Safety for children
• When you are cooking or frying, the cooking
zones get hot. Keep small children away from
the appliance at all times. Keep older children
under supervision when they are using the
appliance.
• This appliance incorporates a locking device
which can be switched on so that playing
children cannot inadvertently switch the
appliance on.
Safety during use
• This appliance may only be used for cooking
and frying of foods in the home. It is not
designed for commercial or industrial
purposes.
• Never use the hob to heat the room.
• Be careful when plugging in electrical
appliances into main sockets near the
appliance. Connecting leads must not come
into contact with any hot parts of the
appliance.
• Overheated fats and oils catch fire quickly.
You should supervise cooking when
preparing foods in fat or oil (e.g., chips).
• Switch off the cooking zones after use.
• The sensor technology offers you the
maximum possible safety when using the
appliance. However, it also requires care
when setting the cooking zones, power and
times.
Safety when cleaning
• Switch off the appliance always before
cleaning.
• For reasons of safety, never use a steam jet
or a high pressure cleaner to clean the hob.
Please follow these instructions
carefully, otherwise the guarantee will
not cover any damage that may occur.

7
How to prevent damage to the
appliance
• Never use the hob as a work surface or for
storage.
• The frameless edge of the ceramic glass
surface is susceptible to knocks. Be careful
when moving pots and pans around.
• Do not operate the cooking zones with empty
pots or pans, or with no pots and pans on
them. The cooking utensils as well as the hob
surface could suffer damage as a result.
• Ceramic glass is insensitive to temperature
shocks and is very robust, however it is not
unbreakable. Especially sharp and hard
objects that fall on the cooking surface could
damage it.
• Do not use cast iron pots or pans with
damaged bases with rough edges or burrs.
Sliding these across the hob could cause
scratches.
• Do not place any pots or pans on the frame of
the cooking area. Scratches and damage to
the varnished surface could occur.
• Always make sure that no acid-containing
liquids such as vinegar, lemon or lime-
dissolving agents are split on the hob frame
as these can cause dull spots to appear.
• If sugar or a mixture containing sugarfalls
onto the cooking zone and melts, remove
immediately while still hot, using a suitable
kitchen scraper. If left to cool down, it may
damage the surface when removed.
• Keep objects, liable to melt, away from the
ceramic glass surface, for example, synthetic
materials, aluminium foils or cooking wraps. If
any other materials or foodstuffs melt on the
ceramic glass surface, these should be
cleaned away immediately using a suitable
kitchen scraper.
Disposal
Disposing of the packaging
material
All packing materials used can be recycled.
The plastic materials are identified as follows:
• >PE< for polyethylene, e.g. for the outer
wrapping and the bags inside.
• >PS< for foamed polystyrene, e.g., for
cushioning parts, in principle CFC-free.
The materials must be disposed of properly.
Please observe the national and regional
regulations for the disposal of packaging material
and the material designation (material
separation, recycling, waste collection).
Disposing of old appliances
For ecological reasons, all old appliances must
be disposed of in compliance with applicable
regulations.
• The appliance must not be disposed of with
the normal domestic waste.
• Contact your local council or Environmental
Health Office for information regarding the
safe disposal of the appliance.
Warning! Before disposing of old
appliances, make them inoperable so
that they are not a danger to others.
Separate the appliance from the
mains supply. Remove the mains
lead.

8
The key features of your appliance
•Ceramic glass cooking surface: The
appliance has a ceramic glass cooking
surface and 4 rapid response cooking zones.
The particularly powerful radiant heater
elements substantially shorten the amount of
time taken for the zones to heat up.
•Sensor fields: Your appliance is operated
using Touch-Control-sensor fields.
•Cleaning: The advantage of the ceramic
glass cooking surface and the sensor fields is
their accessibility for cleaning. It is easy to
clean the flat smooth surface.
•„ON/OFF“ Sensor field: With the „ON/OFF“
sensor field the appliance has a separate
mains switch with which the power supply to
the appliance can be completely switched on
and off with one touch.
•Displays: Digital displays and/or control
lamps inform the user about heat settings,
selected functions as well as any possible
residual heat of the corresponding cooking
zone.
•Safety cut-out: A safety cut-out ensures that
all cooking zones shut off automatically after
a period of time if the settings have not been
changed.
•Child safety: With this function the
cooking area can be locked to prevent any
unintentional switching on of the appliance.
•Keep warm stage: is the cooking stage
where foods can be kept warm.
•Residual heat display: will illuminate if
the cooking zone becomes hot enough for
there to be a risk of burning.
•Casserole cooking zone (multi-purpose
cooking zone): The cooking area is
equipped with a casserole cooking zone
(multi-purpose cooking zone). Depending on
the setting, it can be used as a round or oval
cooking zone, e.g., for casseroles or for
keeping dishes and/or food warm.
•Triple ring cooking zone: The cooking area
has a triple ring cooking zone. With this, your
appliance has a cooking zone with variable
size, e.g., for smaller pots. This saves
energy.
•Timer: With the integrated timer, all zones
can be switched off automatically. When the
end of the cooking time has been reached,
the cooking zone switches off.

9
Appliance description
Control panel

10
Digital displays
The four display fields allocated to the four cooking
zones show:
• after switching on
• on selection of the keep warm setting
• to , depending on the selected heat
setting
• for cooking automatic
• for residual heat
• when child safety is switched on
• upon malfunction /overheating
Safety cut-out of the cooking zones
If one of the cooking zones is not switched off after
a certain time, or if the heat setting is not changed,
the corresponding cooking zone switches itself off
automatically.
Existing residual heat is indicated with (as „hot“)
in the digital displays of the corresponding cooking
zones.
The cooking zones switch off at:
• heat setting , , after 6 hours
• heat setting , after 5 hours
• heat setting after 4 hours
• heat setting , , , after 1.5 hours
Switching off for other causes
Liquid boiling over onto the control panel causes
all cooking zones to switch off immediately.
The same effect occurs if you place a wet cloth
onto the control panel. In both cases, the appliance
must be switched on with the main switch after
the liquid or the wet cloth have been removed.
Should one or several cooking zones
switch off before expiration of the times
indicated, refer to the Chapter “What to
do, if…”

11
Before using for the first time
First cleaning
Wipe the ceramic glass surface with a damp cloth.
Operating the cooking area
Touch Control-Sensor fields
In order to operate the Touch Control sensor fields
place your finger from above flat onto the required
field until the corresponding display lights up or
extinguishes, and/or the desired function is carried
out.
Switching on the appliance
To switch on the appliance completely, touch the
„ON/OFF“ sensor field .
Touch the „ON/OFF“ sensor field for approx.
2 seconds.
The digital displays show:
Important! Do not use any caustic or
abrasive cleaners!
The surface could get damaged as a
result.
After the sensor field „ON/OFF“ has
been activated to switch on the
appliance, one of the cooking zones
must be selected within approx. 10
seconds or a time period must be set
with the timer (egg timer function).
Otherwise the appliance switches off
again for safety reasons.
~ 2 sec.

12
Switching off the appliance
To switch off the appliance completely, touch the
„ON/OFF“ sensor field .
Touch the „ON/OFF“ sensor field for approx.
one second.
The digital displays extinguish.
Heat setting
For setting and adjusting the heat setting ( to )
for the selected cooking zone.
With the heat setting sensor field increase the
setting.
With the heat setting sensor field reduce the
setting.
Setting the keep warm function
All 4 cooking zones are equipped with the keep
warm function .
With the heat setting sensor field select setting
the keep warm function
After switching off an individual cooking
zone or the entire hob, the existing
residual heat is displayed with (as
„hot“) in the digital displays of the
corresponding cooking zones.
~ 1 sec.

13

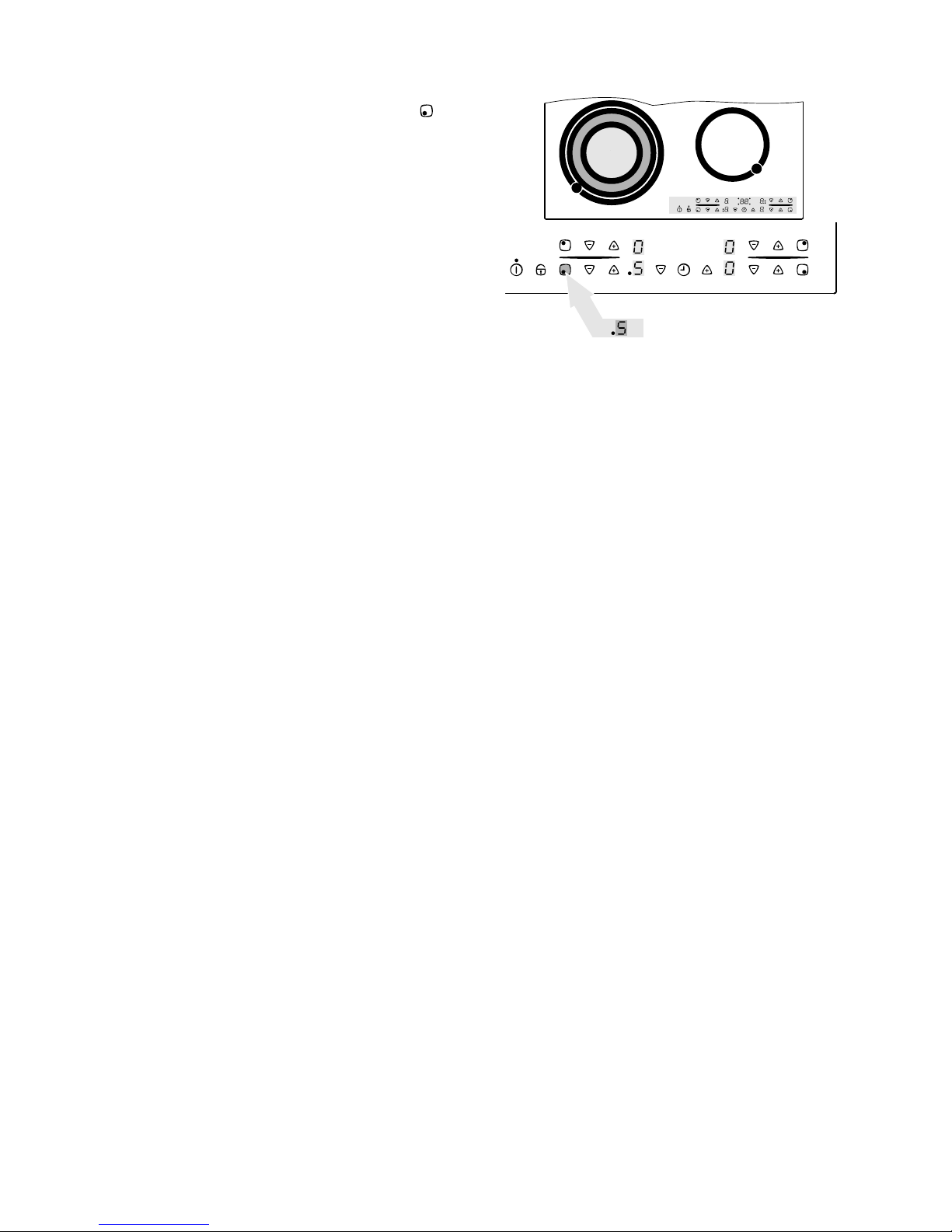

Switching the casserole cooking
zone on and off
Depending on the size of the pot or pan, the
“casserole cooking zone“ sensor field can be used
to switch between the two sizes of the casserole
cooking zone.
1. Set the desired heat setting.
2. Touch the „casserole cooking zone“ sensor
field .
The outer heating ring is activated.
The control lamp illuminates.
3. In order to switch off the outer heating ring,
touch the „casserole cooking zone“ sensor field
.
The outer heating ring is switched off.
The control lamp extinguishes.
This can only be activated when a heat
setting has already been made for the
inner heating ring.

14
Switching the triple ring cooking
zone on and off
Depending on the size of the pot or pan, the “triple
ring cooking zone” sensor field can be used to
switch between the three sizes of the zone.
1. Set the desired heat setting.
2. Touch the sensor field „triple ring zone” sensor
field .
The middle heating ring is activated.
The lower control lamp illuminates.
3. Touch the sensor field „triple ring zone” sensor
field .
The outer heating ring is activated.
The upper control lamp illuminates.
This can only be activated when a heat
setting has already been made for the
inner heating ring.

15
4. In order to switch off the outer heating ring,
touch the „triple ring zone“ sensor field .
The outer and middle heating ring, respectively, is
switched off.
The relevant control lamp extinguishes.

16
Switching off the cooking zone
In order to switch off, touch the heat setting
selection sensor fields and simultaneously
or with sensor field set the heat setting back to
zero.
Residual heat indicator
When an individual cooking zone or the entire
cooking area has been switched off, any residual
heat is shown with (as „Hot“) in the digital
displays of the corresponding cooking zones.
Even after the cooking zone has been switched off,
the residual heat indicator only goes out when the
cooking zone has cooled down.
You can use the residual heat for melting
foods or keeping them warm.
Important! As long as the residual heat
indicator is illuminated, there is a risk of
burns.
Important! In the event of a power failure,
the symbol also extinguishes and
there is no longer any indication of
residual heat. However, it is still possible
to burn yourself. You can avoid this by
being particularly careful when near the
hob.

17
Cooking with the automatic warm-up
function
All four cooking zones of the hob can be controlled
in nine stages and have an automatic warm-up
function:
• , lowest heat setting
• , highest heat setting
• , warm-up function
When you select the required heat setting with the
heat setting selection sensor field , the cooking
zone will work for a specific time on full power and
will then switch automatically to the heat setting
selected.
The duration of the automatic warm-up function
depends on the heat setting selected.
Touch the sensor field heat setting selection in
order to set the required heat setting to .
The heat setting selected is shown first.
After 5 seconds, the heat setting will be replaced
by (= automatic warm-up function) in the
display. After the end of the warm-up time, the heat
setting will be shown again.
If during the automatic warm-up function
you select a higher setting, e.g., from
to , the warm-up time is adjusted to
match.
If you select a lower setting, the warm-up
time ends immediately.
Cooking with the automatic warm-up
function is only possible with a cold or
moderately warm cooking zone. If a
cooking zone is already hot when
switched on (display ), you cannot
work with the automatic warm-up
function.

18
Cooking without the automatic
warm-up function
If you want to use the cooking zone without the
automatic warm-up function, then select the
required heat setting with the heat setting selection
sensor field .
Touch the sensor field heat setting selection in
order to set the required heat setting to .
With the heat setting selection sensor
fields and you can adjust the
setting at all times.

19
Child safety feature
With the child safety feature, the hob can be
protected against undesirable use.
Switching on the child safety feature
The appliance must be switched on in order to
switch on the child safety feature. However, no
cooking zone must be switched on.
1. Touch the „locking“ sensor field for approx.
3 seconds.
As acknowledgement, you hear a signal tone.
2. Touch any of the heat setting selection sensor
fields .
In the displays, will appear, the child safety
feature is activated. The appliance switches off
automatically after a few seconds.
Bypassing the child safety feature
The child safety feature can be bypassed for the
one-time use of the appliance (up to the next
switch-off of the appliance). At the next switch-on,
the child safety feature is automatically activated
again.
1. Switch on the appliance.
If the child safety feature is active, then is
indicated.
2. At the same time, touch any of the two heat
setting selection sensor fields and for
approx. 1 second.
As acknowledgement, you hear a signal tone. The
child safety feature is bypassed up to the point
when you switch off the appliance. The cooking
area can be used normally.
~ 3 sec.
~ 2 sec.
~ 1 sec.

20
Switching off the child safety feature
1. Switch on the appliance.
If the child safety feature is active, then is
indicated.
2. Touch the „locking“ sensor field for approx.
3 seconds.
As acknowledgement, you hear a signal tone.
3. Touch any of the heat setting selection sensor
fields .
The displays turn dark, the child safety feature is
switched off. The appliance switches off
automatically after a few seconds.
~ 2 sec.
~ 3 sec.

21
Timer
You can use the timer in two ways:
•as
Switch-off automatic function. You set a
slow cooking time for a cooking zone, and the
cooking zone switches off automatically when
the time expires. This function can be used for
several cooking zones at the same time.
•asaminute minder that does not control the
hob („egg timer”), you hear an acoustic signal
after the set time expires.
Using the automatic switch-off function
The cooking zone(s) for which you want to use the
automatic switch-off function must be switched on.
1. With the Timer sensor field select which
heating zone is to be controlled by the
automatic switch-off function is to be set.
By touching once the Timer sensor field the
first active cooking zone is selected clockwise, the
relevant lamp flashes quickly. Here, for example,
the left rear control lamp corresponds to the left
rear cooking zone. In the timer display, there
appears .
By a repeated touching of the Timer sensor field
the next active cooking zone is selected.
2. While the control lamp is flashing quickly, and
using the Timer setting sensor fields or
for this cooking zone, set the required time
period up to the automatic shut-off (e.g., 15
minutes).
After a few seconds, the automatic switch-off
function is activated.
The control lamp now flashes slower and the
remaining slow cooking time is shown in the
display. If the automatic switch-off function is set
for several cooking zones, then this applies for the
cooking zone with the shortest remaining slow
cooking time. The control lamps of the other
cooking zones with set shut-off automatic function
light up. To indicate the remaining slow cooking
time of one of these cooking zones, this must be
selected with the Timer sensor field , the
corresponding control lamp then flashes quickly.
The minute minder cannot be used when
a cooking zone is switched on.
~ 1 sec.

22
For adjusting the remaining slow cooking time, the
required cooking zone must be selected with the
Timer sensor field . The relevant control lamp
then flashes quicker. The adjustment is made with
the Timer setting senor fields or .
After expiry of the set slow cooking time, the
cooking zone switches off automatically and for
two minutes you hear an acoustic signal, the Timer
display flashes .
3. Touch the sensor field timer in order to shut off
the signal.
Ending the automatic switch-off function
prematurely
You have two ways for ending the automatic
switch-off function prematurely:
Switching off the cooking zone and timer at the
same time.
With the heat setting selection sensor field , set
the required cooking zone back to zero.
Cooking zone and timer switch off.
Switch off the timer - the cooking zone remains
active
1. With the Timer sensor field select the
required cooking zone.
The corresponding control lamp then flashes
quicker.
2. With the Timer setting sensor field set the
timer to :
Only the timer switches off, while the cooking zone
remains in operation.
For a faster adjustment, touch one of the
Timer setting sensor fields or for
such time until the required value is
obtained.
If the Timer setting sensor field is
activated first, the time setting begins
with 99 minutes. If the Timer setting
sensor field is activated first, the time
setting begins with 1 minute.
~ 1 sec.
