Electrolux EIL83443BW User manual

EIL83443BW
User Manual
Hob
EN 2
Notice d'utilisation
Table de cuisson
FR 19
Benutzerinformation
Kochfeld
DE 38
Istruzioni per l’uso
Piano cottura
IT 57
Manual de instrucciones
Placa de cocción
ES 76
electrolux.com/register

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................................. 4
3. INSTALLATION...............................................................................................................7
4. PRODUCT DESCRIPTION.............................................................................................8
5. DAILY USE......................................................................................................................9
6. HINTS AND TIPS..........................................................................................................13
7. CARE AND CLEANING................................................................................................ 14
8. TROUBLESHOOTING.................................................................................................. 15
9. TECHNICAL DATA....................................................................................................... 16
10. ENERGY EFFICIENCY...............................................................................................17
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
2 ENGLISH

installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
ENGLISH 3

•CAUTION: The appliance must not be supplied through an
external switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by a utility.
•CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
•Do not use the appliance before installing it in the built-in
structure.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and do
not rely on the pan detector.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains. In
case the appliance is connected to the mains directly using
junction box, remove the fuse to disconnect the appliance
from power supply. In either case contact the Authorised
Service Centre.
•If the supply cord is damaged, it must be replaced by the
manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
WARNING!
Risk of injury or damage to the
appliance.
• Remove all the packaging.
4 ENGLISH

• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Keep the minimum distance from other
appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture from causing swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance next to a door
or under a window. This prevents hot
cookware from falling from the appliance
when the door or the window is opened.
• Each appliance has cooling fans on the
bottom.
• If the appliance is installed above a
drawer:
– Do not store any small pieces or
sheets of paper that could be pulled
in, as they can damage the cooling
fans or impair the cooling system.
– Keep a distance of minimum 2 cm
between the bottom of the appliance
and parts stored in the drawer.
• Remove any separator panels installed in
the cabinet below the appliance.
2.2 Electrical Connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near sockets.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and electric
shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
ENGLISH 5

• Do not put cutlery or saucepan lids on the
cooking zones. They can become hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance
from the power supply. This to prevent an
electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it may
splash.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
2.4 Care and cleaning
• Clean the appliance regularly to prevent
the deterioration of the surface material.
• Switch off the appliance and let it cool
down before cleaning.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
6 ENGLISH

3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate. The
rating plate is on the bottom of the hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.
3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. The single wire must have a
diameter of minimum 2,5 mm². Speak to
your local Service Centre. The connection
cable may only be replaced by a qualified
electrician.
WARNING!
All electrical connections must
be made by a qualified
electrician.
CAUTION!
Do not drill or solder the wire
ends. It is forbidden.
CAUTION!
Do not connect the cable without
cable end sleeve.
3.4 Assembly
If you install the hob under a hood, please
see the installation instructions of the hood
for the minimum distance between the
appliances.
min.
50mm
min.
500mm
If the appliance is installed above a drawer,
the hob ventilation can warm up the items
stored in the drawer during the cooking
process.
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your Electrolux
Induction Hob - Worktop installation
ENGLISH 7

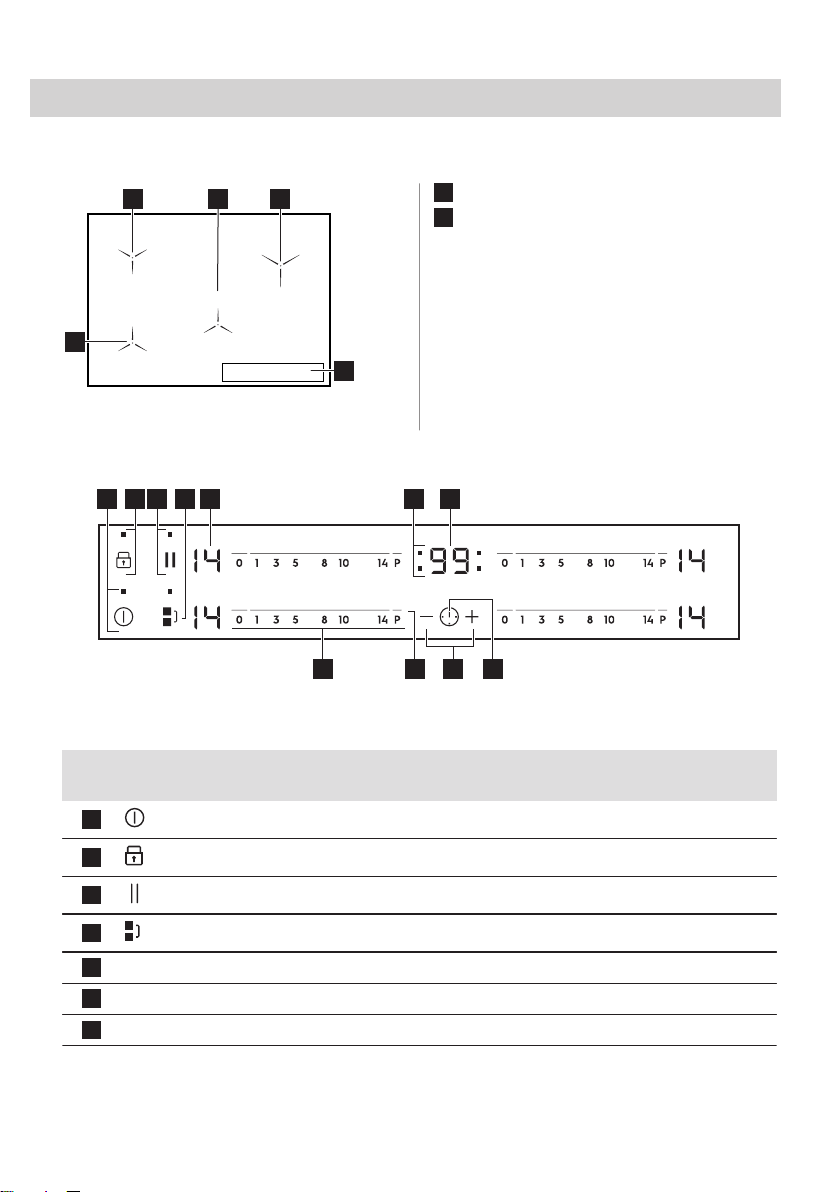

4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
1 1 1
2
1
1Induction cooking zone
2Control panel
4.2 Control panel layout
1 2 43 675
9 811 10
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
Function Comment
1ON / OFF To activate and deactivate the hob.
2Lock / Child Safety Device To lock / unlock the control panel.
3Pause To activate and deactivate the function.
4Bridge To activate and deactivate the function.
5- Heat setting display To show the heat setting.
6- Timer indicators of cooking zones To show for which zone you set the time.
7- Timer display To show the time in minutes.
8 ENGLISH

Sensor
field
Function Comment
8- To select the cooking zone.
9 / - To increase or decrease the time.
10 PowerBoost To activate the function.
11 - Control bar To set a heat setting.
4.3 Heat setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
Pause operates.
Automatic Heat Up operates.
PowerBoost operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / resid‐
ual heat.
Lock / Child Safety Device operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off operates.
4.4 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
/ / There is a risk of
burns from residual heat.
The indicators show the level of the residual
heat for the cooking zones you are currently
using. The indicators may also come on for
the neighbouring cooking zones even if you
are not using them.
The induction cooking zones produce the
heat necessary for the cooking process
directly in the bottom of the cookware. The
glass ceramic is heated by the heat of the
cookware.
5. DAILY USE
WARNING!
Refer to Safety chapters.
ENGLISH 9

5.1 Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
5.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on
the control panel for more than 10
seconds (a pan, a cloth, etc.). An acoustic
signal sounds and the hob deactivates.
Remove the object or clean the control
panel.
• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking zone
cool down before you use the hob again.
• you use incorrect cookware. The symbol
comes on and the cooking zone
deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting and
the time after which the hob deactivates:
Heat setting The hob deactivates
after
, 1 - 3 6 hours
4 - 7 5 hours
8 - 9 4 hours
10 - 14 1.5 hour
5.3 The heat setting
To set or change the heat setting:
Touch the control bar at the correct heat
setting or move your finger along the control
bar until you reach the correct heat setting.
5.4 Using the cooking zones
Place the cookware in the centre of the
selected zone. Induction cooking zones
adapt to the dimension of the bottom of the
cookware automatically.
You can cook with large cookware placed on
two cooking zones at the same time. The
cookware must cover the centres of both
zones but not go beyond the area marking. If
the cookware is located between the two
centres, Bridge function will not be activated.
5.5 Bridge
The function operates when the
pot covers the centres of the two
zones.
This function connects two left side cooking
zones and they operate as one.
First set the heat setting for one of the left
side cooking zones.
To activate the function: touch . To set or
change the heat setting touch one of the
control sensors.
To deactivate the function: touch . The
cooking zones operate independently.
10 ENGLISH

5.6 Automatic Heat Up
Activate this function to get a desired heat
setting in a shorter time. When it is on, the
zone operates on the highest setting in the
beginning and then continues to cook at the
desired heating setting.
To activate the function the
cooking zone must be cold.
To activate the function for a cooking
zone: touch ( comes on). Immediately
touch a desired heat setting. After 3 seconds
comes on.
To deactivate the function: change the
heat setting.
5.7 PowerBoost
This function makes more power available to
the induction cooking zones. The function
can be activated for the induction cooking
zone only for a limited period of time. After
this time the induction cooking zone
automatically sets back to the highest heat
setting.
Refer to “Technical data”
chapter.
To activate the function for a cooking
zone: touch . comes on.
To deactivate the function: change the
heat setting.
5.8 Timer
•Count Down Timer
You can use this function to set the length of
a single cooking session.
First set the heat setting for the cooking
zone, then set the function.
To set the cooking zone: touch
repeatedly until the indicator of a cooking
zone appears.
To activate the function: touch of the
timer to set the time (00 - 99 minutes). When
the indicator of the cooking zone starts to
flash, the time counts down.
To see the remaining time: touch to set
the cooking zone. The indicator of the
cooking zone starts to flash. The display
shows the remaining time.
To change the time: touch to set the
cooking zone. Touch or .
To deactivate the function: touch to set
the cooking zone and then touch . The
remaining time counts down to 00. The
indicator of the cooking zone disappears.
When the countdown ends, an
acoustic signal sounds and 00
flashes. The cooking zone
deactivates.
To stop the sound: touch .
•CountUp Timer
You can use this function to monitor how
long the cooking zone operates.
To set the cooking zone: touch
repeatedly until the indicator of a cooking
zone appears.
To activate the function: touch of the
timer. appears. When the indicator of the
cooking zone starts to flash, the time counts
up. The display switches between and the
counted time (in minutes).
To see how long the cooking zone
operates: touch to set the cooking zone.
The indicator of the cooking zone starts to
flash. The display shows how long the zone
operates.
To deactivate the function: touch and
then touch or . The indicator of the
cooking zone disappears.
•Minute Minder
You can use this function when the hob is
activated and the cooking zones do not
operate. The heat setting display shows .
To activate the function: touch and then
touch or of the timer to set the time.
When the time finishes, an acoustic signal
sounds and 00 flashes.
ENGLISH 11

To stop the sound: touch .
The function has no effect on the
operation of the cooking zones.
5.9 Pause
This function sets all cooking zones that
operate to the lowest heat setting.
When the function operates, all other
symbols on the control panels are locked.
The function does not stop the timer
functions.
Touch to activate the function.
comes on. The heat setting is lowered to
1.
To deactivate the function, touch . The
previous heat setting comes on.
5.10 Lock
You can lock the control panel while cooking
zones operate. It prevents an accidental
change of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch . The
previous heat setting comes on.
When you deactivate the hob,
you also deactivate this function.
5.11 Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: activate the hob
with . Do not set any heat setting. Touch
for 4 seconds. comes on. Deactivate
the hob with .
To deactivate the function: activate the hob
with . Do not set any heat setting. Touch
for 4 seconds. comes on. Deactivate
the hob with .
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds. Set the
heat setting in 10 seconds. You can
operate the hob. When you deactivate the
hob with the function operates again.
5.12 OffSound Control
(Deactivating and activating the
sounds)
Deactivate the hob. Touch for 3 seconds.
The display comes on and goes out. Touch
for 3 seconds. or comes on. Touch
of the timer to choose one of the
following:
• - the sounds are off
• - the sounds are on
To confirm your selection wait until the hob
deactivates automatically.
When the function is set to you can hear
the sounds only when:
• you touch
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control panel.
5.13 Power limitation
The hob is set to its highest possible power
level by default.
To decrease or increase the power level:
1. Deactivate the hob.
2. Press and hold for 3 seconds. The
display comes on and goes off.
3. Press and hold for 3 seconds. or
appears.
4. Press . P46 appears.
5. Press / of the timer to set the
power level.
Power levels
Refer to “Technical data” chapter.
12 ENGLISH

CAUTION!
Make sure that the selected
power fits the house installation
fuses.
• P46 — 4600 W
• P15 — 1500 W
• P20 — 2000 W
• P25 — 2500 W
• P30 — 3000 W
• P35 — 3500 W
• P40 — 4000 W
5.14 Power management
If multiple zones are active and the
consumed power exceeds the limitation of
the power supply, this function divides the
available power between all cooking zones.
The hob controls heat settings to protect the
fuses of the house installation.
• If the hob reaches the limit of maximum
available power (refer to the rating plate),
the power of the cooking zones will be
automatically reduced.
• The heat setting of the cooking zone
selected last is always prioritised. The
remaining power will be divided between
the previously activated cooking zones in
reverse order of selection.
• The heat setting display of the reduced
zones changes between the initially
selected heat setting and the reduced
heat setting.
• Wait until the display stops flashing or
reduce the heat setting of the cooking
zone selected last. The cooking zones will
continue operating with the reduced heat
setting. Change the heat settings of the
cooking zones manually, if necessary.
6. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
6.1 Cookware
For induction cooking zones a
strong electro-magnetic field
creates the heat in the cookware
very quickly.
Use the induction cooking zones with
suitable cookware.
• The bottom of the cookware must be as
thick and flat as possible.
• Ensure pan bases are clean and dry
before placing on the hob surface.
• In order to avoid scratches, do not slide or
rub the pot across the ceramic glass.
Cookware material
•correct: cast iron, steel, enamelled steel,
stainless steel, multi-layer bottom (with a
correct marking from a manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is suitable for an induction hob
if:
• water boils very quickly on a zone set to
the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
Cookware dimensions
• Induction cooking zones adapt to the
dimension of the bottom of the cookware
automatically.
• The cooking zone efficiency is related to
the diameter of the cookware. The
cookware with a diameter smaller than the
minimum receives only a part of the
power generated by the cooking zone.
• For both safety reasons and optimal
cooking results, do not use cookware
larger than indicated in "Cooking zones
specification". Avoid keeping cookware
close to the control panel during the
cooking session. This might impact the
functioning of the control panel or
accidentally activate hob functions.
Refer to "Technical data".
6.2 The noises during operation
If you can hear:
ENGLISH 13

• crack noise: cookware is made of different
materials (a sandwich construction).
• whistle sound: you use a cooking zone
with a high power level and the cookware
is made of different materials (a sandwich
construction).
• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not indicate
any malfunction.
6.3 Öko Timer (Eco Timer)
To save energy, the heater of the cooking
zone deactivates before the count down
timer sounds. The difference in the operation
time depends on the heat setting level and
the length of the cooking operation.
6.4 Examples of cooking
applications
The correlation between the heat setting of a
zone and its consumption of power is not
linear. When you increase the heat setting, it
is not proportional to the increase of the
consumption of power. It means that a
cooking zone with the medium heat setting
uses less than a half of its power.
The data in the table is for
guidance only.
Heat setting Use to: Time
(min)
Hints
- 1 Keep cooked food warm. as neces‐
sary
Put a lid on the cookware.
1 - 3 Hollandaise sauce, melt: butter, choco‐
late, gelatine.
5 - 25 Mix from time to time.
1 - 3 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
3 - 5 Simmer rice and milkbased dishes,
heat up ready-cooked meals.
25 - 50 Add at least twice as much liquid as
rice, mix milk dishes halfway through
the procedure.
5 - 7 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons of liquid.
7 - 9 Steam potatoes. 20 - 60 Use max. ¼ l of water for 750 g of po‐
tatoes.
7 - 9 Cook larger quantities of food, stews
and soups.
60 - 150 Up to 3 l of liquid plus ingredients.
9 - 12 Gentle fry: escalope, veal cordon bleu,
cutlets, rissoles, sausages, liver, roux,
eggs, pancakes, doughnuts.
as neces‐
sary
Turn halfway through.
12 - 13 Heavy fry, hash browns, loin steaks,
steaks.
5 - 15 Turn halfway through.
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Boil large quantities of water. PowerBoost is activated.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General information
• Clean the hob after each use.
• Always use cookware with a clean base.
14 ENGLISH

• Scratches or dark stains on the surface
have no effect on how the hob operates.
• Use a special cleaner suitable for the
surface of the hob.
• Use a special scraper for the glass.
7.2 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar,
otherwise, the dirt can cause damage to
the hob. Take care to avoid burns. Use a
special hob scraper on the glass surface
at an acute angle and move the blade on
the surface.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration. Clean
the hob with a moist cloth and a non-
abrasive detergent. After cleaning, wipe
the hob dry with a soft cloth.
•Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a cloth.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem Possible cause Remedy
You cannot activate or operate
the hob.
The hob is not connected to an elec‐
trical supply or it is connected incor‐
rectly.
Check if the hob is correctly connected
to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause of
the malfunction. If the fuse is blown
again and again, contact a qualified
electrician.
You do not set the heat setting for
10 seconds.
Activate the hob again and set the
heat setting in less than 10 seconds.
You touched 2 or more sensor fields
at the same time.
Touch only one sensor field.
Pause operates. Refer to "Daily use".
There is water or fat stains on the
control panel.
Clean the control panel.
An acoustic signal sounds and
the hob deactivates.
An acoustic signal sounds when
the hob is deactivated.
You put something on one or more
sensor fields.
Remove the object from the sensor
fields.
The hob deactivates. You put something on the sensor
field .
Remove the object from the sensor
field.
Residual heat indicator does not
come on.
The zone is not hot because it oper‐
ated only for a short time or the sen‐
sor is damaged.
If the zone operated sufficiently long to
be hot, speak to an Authorised Service
Centre.
Automatic Heat Up does not op‐
erate.
The zone is hot. Let the zone become sufficiently cool.
ENGLISH 15

Problem Possible cause Remedy
The highest heat setting is set. The highest heat setting has the same
power as the function.
The heat setting changes be‐
tween two levels.
Power management operates. Refer to "Daily use".
The sensor fields become hot. The cookware is too large or you put
it too near to the controls.
Put large cookware on the rear zones,
if possible.
There is no sound when you
touch the panel sensor fields.
The sounds are deactivated. Activate the sounds. Refer to "Daily
use".
comes on. Child Safety Device or Lock oper‐
ates.
Refer to "Daily use".
comes on. There is no cookware on the zone. Put cookware on the zone.
The cookware is unsuitable. Use suitable cookware. Refer to "Hints
and tips".
The diameter of the bottom of the
cookware is too small for the zone.
Use cookware with correct dimen‐
sions. Refer to "Technical data".
and a number come on. There is an error in the hob. Deactivate the hob and activate it
again after 30 seconds. If comes
on again, disconnect the hob from the
electrical supply. After 30 seconds,
connect the hob again. If the problem
continues, speak to an Authorised
Service Centre.
You can hear a constant beep
noise.
The electrical connection is incor‐
rect.
Disconnect the hob from the electrical
supply. Ask a qualified electrician to
check the installation.
8.2 If you cannot find a solution...
If you cannot find a solution to the problem
yourself, contact your dealer or an
Authorised Service Centre. Give the data
from the rating plate. Give also three digit
letter code for the glass ceramic (it is in the
corner of the glass surface) and an error
message that comes on. Make sure, you
operated the hob correctly. If not the
servicing by a service technician or dealer
will not be free of charge, also during the
warranty period. The instructions about the
Service Centre and conditions of guarantee
are in the guarantee booklet.
9. TECHNICAL DATA
9.1 Rating plate
Model EIL83443BW PNC 949 599 158 00
Typ 62 D4A 01 AA 220 - 240 V 50 - 60 Hz
Induction 4.6 kW Made in Germany
Ser.Nr. ................. 4.6 kW
ELECTROLUX
16 ENGLISH

9.2 Cooking zones specification
Cooking zone Nominal power
(maximum heat
setting) [W]
PowerBoost [W] PowerBoost
maximum dura‐
tion [min]
Cookware diame‐
ter [mm]
Left front 2300 3200 10 125 - 210
Left rear 2300 3200 10 125 - 210
Middle front 1400 2500 4 125 - 145
Right rear 2300 3400 10 205 - 240
The power of the cooking zones can be
different in some small range from the data in
the table. It changes with the material and
dimensions of the cookware.
For optimal cooking results use cookware no
larger than the diameter in the table.
10. ENERGY EFFICIENCY
10.1 Product information*
Model identification EIL83443BW
Type of hob Built-In Hob
Number of cooking zones 4
Heating technology Induction
Diameter of circular cooking zones (Ø) Left front
Left rear
Middle front
Right rear
21.0 cm
21.0 cm
14.5 cm
24.0 cm
Energy consumption per cooking zone (EC electric
cooking)
Left front
Left rear
Middle front
Right rear
179.6 Wh / kg
177.0 Wh / kg
180.2 Wh / kg
174.6 Wh / kg
Energy consumption of the hob (EC electric hob) 177.9 Wh / kg
* For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine
according to 742/2019.
EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance
The energy measurements referring to the cooking area are identified by the markings of the respective cooking
zones.
10.2 Energy saving
You can save energy during everyday
cooking if you follow below hints.
• When you heat up water, use only the
amount you need.
• If it is possible, always put the lids on the
cookware.
• Before you activate the cooking zone put
the cookware on it.
• Put the smaller cookware on the smaller
cooking zones.
ENGLISH 17

• Put the cookware directly in the centre of
the cooking zone.
• Use the residual heat to keep the food
warm or to melt it.
11. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of electrical
and electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
18 ENGLISH

NOUS PENSONS À VOUS
Merci d’avoir choisi un appareil Electrolux. Vous avez choisi un produit qui bénéficie de
décennies d'expérience professionnelle et d'innovation. Ingénieux et élégant, il a été
pensé pour vous. C'est la raison pour laquelle vous pouvez avoir la certitude d'obtenir
d'excellents résultats à chaque utilisation.
Bienvenue chez Electrolux
Consultez notre site pour :
Obtenir des conseils d’utilisation, des brochures, un dépanneur, des informations sur
le service et les réparations :
www.electrolux.com/support
Enregistrer votre produit pour un meilleur service :
www.registerelectrolux.com
Acheter des accessoires, consommables et pièces de rechange d’origine pour votre
appareil :
www.electrolux.com/shop
SERVICE ET ASSISTANCE À LA CLIENTÈLE
N’utilisez que des pièces de rechange d’origine.
Avant de contacter notre centre de service agréé, assurez-vous de disposer des
informations suivantes : Modèle, PNC, numéro de série.
Ces informations figurent sur la plaque signalétique.
Avertissement/Consignes de sécurité
Informations générales et conseils
Informations environnementales
Sous réserve de modifications.
TABLE DES MATIÈRES
1. INFORMATIONS DE SÉCURITÉ..................................................................................19
2. CONSIGNES DE SÉCURITÉ........................................................................................22
3. INSTALLATION.............................................................................................................24
4. DESCRIPTION DE L'APPAREIL.................................................................................. 25
5. UTILISATION QUOTIDIENNE...................................................................................... 27
6. CONSEILS.................................................................................................................... 31
7. ENTRETIEN ET NETTOYAGE..................................................................................... 33
8. DÉPANNAGE................................................................................................................33
9. CARACTÉRISTIQUES TECHNIQUES......................................................................... 35
10. RENDEMENT ÉNERGÉTIQUE.................................................................................. 36
1. INFORMATIONS DE SÉCURITÉ
Avant d'installer et d'utiliser cet appareil, lisez soigneusement
les instructions fournies. Le fabricant ne pourra être tenu pour
responsable des blessures et dégâts résultant d'une
FRANÇAIS 19

mauvaise installation ou utilisation. Conservez toujours les
instructions dans un lieu sûr et accessible pour vous y référer
ultérieurement.
1.1 Sécurité des enfants et des personnes
vulnérables
•Cet appareil peut être utilisé par des enfants âgés d'au
moins 8 ans et par des personnes ayant des capacités
physiques, sensorielles ou mentales réduites ou dénuées
d’expérience ou de connaissance, s'ils sont correctement
surveillés ou si des instructions relatives à l'utilisation de
l'appareil en toute sécurité leur ont été données et s’ils
comprennent les risques encourus.
•Les enfants entre 3 et 8 ans et les personnes ayant un
handicap très important et complexe doivent être tenus à
l'écart de l'appareil, à moins d'être surveillés en
permanence.
•Les enfants de moins de 3 ans doivent être tenus à l'écart
de l'appareil, à moins d'être surveillés en permanence.
•Ne laissez pas les enfants jouer avec l'appareil.
•Ne laissez pas les emballages à la portée des enfants et
jetez-les convenablement.
•AVERTISSEMENT : Tenez les enfants et les animaux
éloignés de l'appareil lorsqu'il est en cours de
fonctionnement ou lorsqu'il refroidit. Les parties accessibles
deviennent chaudes en cours d'utilisation.
•Si l'appareil est équipé d'un dispositif de sécurité enfants,
nous vous recommandons de l'activer.
•Le nettoyage et l'entretien ne doivent pas être effectués par
des enfants sans surveillance.
1.2 Sécurité générale
•AVERTISSEMENT : L'appareil et ses parties accessibles
deviennent chauds pendant son fonctionnement. Veillez à
ne pas toucher les éléments chauffants.
•AVERTISSEMENT : Il peut être dangereux de laisser
chauffer de la graisse ou de l'huile sans surveillance sur
20 FRANÇAIS
