Electrolux GK58TSIO User manual

GK58TSIO
................................................ .............................................
EN HOB USER MANUAL

Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Daily use 6
Helpful hints and tips 9
Care and cleaning 10
Troubleshooting 11
Installation 12
Environment concerns 15
Garantie, Garanzia, Guarantee 15
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and dam-
ages. Always keep the instructions with the appliance for fu-
ture reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are supervised by an adult or a person who is responsi-
ble for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it op-
erates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend
that you activate it.
• Cleaning and user maintenance shall not be made by chil-
dren without supervision.
GENERAL SAFETY
• The appliance and its accessible parts become hot during
use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer
or separate remote-control system.
2 electrolux

• Unattended cooking on a hob with fat or oil can be danger-
ous and may result in fire.
• Never try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire blan-
ket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
• If the glass ceramic surface is cracked, switch off the appli-
ance to avoid the possibility of electric shock.
• After use, switch off the hob element by its control and do
not rely on the pan detector.
SAFETY INSTRUCTIONS
INSTALLATION
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction supplied
with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above drawers
make sure that the space, between the
bottom of the appliance and the upper
drawer, is sufficient for air circulation.
• Make sure that the ventilation space of 2
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.
• The bottom of the appliance can get hot.
We recommend to install a non-combus-
tile separation panel under the appliance
to prevent access to the bottom.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections must be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tan-
gle.
• Make sure the mains cable or plug (if ap-
plicable) does not touch the hot appli-
ance or hot cookware, when you con-
nect the appliance to the near sockets
• Make sure the appliance is installed cor-
rectly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
electrolux 3

• Make sure that a shock protection is in-
stalled.
• Use the strain relief clamp on cable.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact the Service or an electri-
cian to change a damaged mains cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
USE
Warning! Risk of injury, burns or
electric shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Do not let the appliance stay unattended
during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work sur-
face or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance
from the power supply. This to prevent
an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the in-
duction cooking zones when the appli-
ance is in operation.
• When you place food into hot oil, it may
splash.
Warning! Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or heat-
ed objects away from fats and oils when
you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature
than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware fall
on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appli-
ance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass or glass ceramic.
Always lift these objects up when you
have to move them on the cooking sur-
face.
CARE AND CLEANING
Warning! Risk of damage to the
appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
Warning! Risk of injury or suffocation.
• Contact your municipal authority for infor-
mation on how to discard the appliance
correctly.
• Disconnect the appliance from the mains
supply.
4 electrolux

• Cut off the mains cable and discard it. SERVICE
• Contact the Service to repair the appli-
ance. We recommend only the use of
original spare parts.
PRODUCT DESCRIPTION
GENERAL OVERVIEW
210
mm
180
mm
180
mm
145
mm
1 2
45
3
1Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter =145 mm).
2Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter =145 mm).
3Induction cooking zone 1400 W, with
Power function 2500 W (minimum
cookware diameter =125 mm).
4Control panel
5Induction cooking zone 2300 W, with
Power function 3700 W (minimum
cookware diameter =180 mm).
CONTROL PANEL LAYOUT
910 8
564 72 31
Use the sensor fields to operate the appliance The displays, indicators and
sounds tell which function operate.
sensor field function
1
It activates and deactivates the appliance.
2
It locks/unlocks the control panel.
3
It activates and deactivates STOP+GO
4
It activates the Power function.
5
cooking zones' indicators of timer It shows for which cooking zone you set the time.
6
the timer display It shows the time in minutes.
7
a heat setting display It shows the heat setting.
8
a control bar It sets the heat setting.
electrolux 5

sensor field function
9
/ It increases or decreases the time.
10
It selects the cooking zone.
HEAT SETTING DISPLAYS
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
The function operates.
The Automatic Heat Up function operates.
Power function operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator) : continue cook / stay
warm / residual heat.
Lock / The Child Safety Device operates.
Not correct cookware or too small or no cookware on the cooking
zone.
The Automatic Switch Off function operates.
OPTIHEAT CONTROL (3 STEP
RESIDUAL HEAT INDICATOR)
Warning! \ \ The risk of
burns from residual heat!
OptiHeat Control shows the level of the re-
sidual heat. The induction cooking zones
make the heat necessary for cooking di-
rectly in the bottom of the cookware. The
glass ceramic is hot from the heat of the
cookware.
DAILY USE
ACTIVATION AND DEACTIVATION
Touch for 1 second to activate or deac-
tivate the appliance.
AUTOMATIC SWITCH OFF
The function deactivates the appliance
automatically if:
•All cooking zones are deactivated ( ).
• You do not set the heat setting after you
activate the appliance.
• You spill something or put something on
the control panel for more than 10 sec-
onds, (a pan, a cloth, etc.). An acoustic
signal sounds some time and the appli-
ance deactivates. Remove the object or
clean the control panel.
• The appliance becomes too hot (e.g.
when, a saucepan boils dry). Before you
use the appliance again, wait for the
cooking zone to cool down.
• You use incorrect cookware. The symbol
comes on and the cooking zone de-
activates automatically after 2 minutes.
• You do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the appliance deacti-
vates. See below.
• The relation between heat setting and
times of the Automatic Switch Off func-
tion:
•, - — 6 hours
•- — 5 hours
•- — 4 hours
•- — 1.5 hours
6 electrolux

THE HEAT SETTING
Touch the control bar at the heat setting.
Change to the left or the right, if it is neces-
sary. Do not release before you have a cor-
rect heat setting. The display shows the
heat setting.
AUTOMATIC HEAT UP
1
2
3
4
5
6
7
8
9
10
11
12
0
1234567891011121314
You can get a necessary heat setting in a
shorter time if you activate the Automatic
Heat Up function. This function sets the
highest heat setting for some time (see the
illustration), and then decreases to the nec-
essary heat setting.
To start the Automatic Heat Up function for
a cooking zone:
1. Touch ( comes on in the display).
2. Immediately touch the necessary heat
setting. After 3 seconds comes on
in the display.
To stop the function change the heat set-
ting.
POWER FUNCTION
The Power function makes more power
available to the induction cooking zones.
The Power function is activated for 10 mi-
nutes at most. After, that the induction
cooking zone automatically sets back to
P
highest heat setting . To activate, touch ,
the indicator comes on. To deactivate,
change the heat setting.
POWER MANAGEMENT
The power management divides the power
between two cooking zones in a pair (see
the illustration). The power function increa-
ses the power to the maximum level for one
cooking zone in the pair. Automatically de-
creases the power in the second cooking
zone to a lower level. The display for the re-
duced zone change between two levels.
TIMER
Count Down Timer
Use the Count Down Timer to set how long
the cooking zone operates for only this one
time.
Set the Count Down Timer after the se-
lection of the cooking zone.
You can set the heat setting before or after
you set the timer.
•To set the cooking zone: touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate the Count Down Timer:
touch of the timer to set the time (
00
-
99
minutes). When the indicator of the
cooking zone start to flash slow, the time
counts down.
•To see the remaining time: set the
cooking zone with . The indicator of
the cooking zone starts to flash quickly.
The display shows the remaining time.
•To change the Count Down Timer: set
the cooking zone with . Touch or
.
electrolux 7

•To deactivate the timer: set the cook-
ing zone with . Touch . The re-
maining time counts back to
00
. The in-
dicator of the cooking zone goes out. To
deactivate you can also touch and
at the same time.
When the countdown comes to an end,
the sound operates and
00
flashes. The
cooking zone deactivates.
•To stop the sound: touch
CountUp Timer ( The count up timer)
Use the CountUp Timer to monitor how
long the cooking zone operates.
•To set the cooking zone (if more than
1 cooking zone operate ) : touch
again and again until the indicator of a
necessary cooking zone comes on.
•To activate the CountUp Timer: touch
of the timer comes on. When the
indicator of the cooking zone starts to
flash slow, the time counts up. The dis-
play switches between and counted
time (minutes).
•To see how long the cooking zone
operates: set the cooking zone with .
The indicator of the cooking zone starts
to flash quickly. The display shows the
time that the cooking zone operates.
•To deactivate the CountUp Timer: set
the cooking zone with and touch
or to deactivate the timer. The indica-
tor of the cooking zone goes out.
Minute Minder
You can use the timer as a Minute Minder
while the cooking zones do not operate.
Touch . Touch or of the timer to
set the time. When the time comes to an
end, the sound operates and
00
flashes.
•To stop the sound: touch
STOP+GO
The function sets all cooking zones that
operate to the lowest heat setting.
When operates, you cannot change the
heat setting.
The function does not stop the timer
function.
•To activate this function touch . The
indicator comes on.
•To deactivate this function touch .
The heat setting that you set before
comes on.
LOCK
When the cooking zones operate, you can
lock the control panel, but not . It pre-
vents an accidental change of the heat set-
ting.
First set the heat settings.
To activate this function touch . The indi-
cator comes on.
The Timer stays on.
To deactivate this function touch . The
indicator goes out.
When you deactivate the appliance, you al-
so deactivate this function.
THE CHILD SAFETY DEVICE
This function prevents an accidental opera-
tion of the appliance.
To activate The Child Safety Device
•Activate the appliance with . Do not
set the heat settings.
•Touch for 4 seconds. The indicator
comes on.
•Deactivate the appliance with .
To deactivate The Child Safety Device
•Activate the appliance with . Do not
set the heat settings. Touch for 4
seconds. The indicator goes out.
•Deactivate the appliance with .
To override The Child Safety Device for
only one cooking time
•Activate the appliance with . The indi-
cator comes on.
•Touch for 4 seconds. Set the heat
setting in 10 seconds. You can operate
the appliance.
• When you deactivate the appliance with
, The Child Safety Device operates
again.
OFFSOUND CONTROL (DEACTIVATION
AND ACTIVATION OF THE SOUNDS)
Deactivation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays come
on and go out. Touch for 3 seconds.
8 electrolux

comes on, the sound is on. Touch ,
comes on, the sound is off.
When this function operates, you can hear
the sounds only when:
•you touch
• the Minute Minder comes down
• the Count Down Timer comes down
• you put something on the control panel.
Activation of the sounds
Deactivate the appliance.
Touch for 3 seconds. The displays come
on and go out. Touch for 3 seconds.
comes on, because the sound is off. Touch
, comes on. The sound is on.
HELPFUL HINTS AND TIPS
Use the induction cooking zones with
correct cookware.
COOKWARE FOR INDUCTION
COOKING ZONES
Important! For induction cooking zones a
strong electro-magnetic field creates the
heat in the cookware very quickly.
Cookware material
•correct: cast iron, steel, enamelled steel,
stainless steel, the bottom made of multi-
layer (with correct mark from a manufac-
turer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware must
be as thick and flat as possible.
Cookware dimensions: induction
cooking zones adapt to the dimension
of the bottom of the cookware auto-
matically to some limit.
THE NOISES DURING OPERATION
If you can hear
• crack noise: cookware is made of differ-
ent materials (Sandwich construction).
• whistle sound: you use one or more
cooking zones with high power levels and
the cookware is made of different materi-
als (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not refer
to appliance malfunction.
ENERGY SAVING
• If it is possible, always put the lids on
the cookware.
•Putcookwareona cooking zone be-
fore you start it.
ÖKO TIMER (ECO TIMER)
To save energy, the heater of the cook-
ing zone deactivates before the count
down timer sounds. The difference in
the operation time depends on the heat
setting level and the length of the cook-
ing operation.
THE EXAMPLES OF COOKING
APPLICATIONS
The relation between the heat setting and
the cooking zone consumption of power is
not linear.
When you increase the heat setting it is not
proportional to the increase of the cooking
zone consumption of power.
It means that the cooking zone with the
medium heat setting uses less than a half of
its power.
The data in the table is for guidance
only.
electrolux 9

Hea
t
set-
ting
Use to: Time Hints Nominal
power con-
sumption
1
Keep warm the food you
cooked
as required Put a lid on a cookware 3 %
1 - 3 Hollandaise sauce, melt:
butter, chocolate, gelatine
5 - 25 min Mix from time to time 3 – 8 %
1 - 3 Solidify: fluffy omelettes,
baked eggs
10 - 40 min Cook with a lid on 3 – 8 %
3 - 5 Simmer rice and milkbased
dishes, heating up ready-
cooked meals
25 - 50 min Add the minimum twice as
much liquid as rice, mix
milk dishes part procedure
through
8 – 13 %
5 - 7 Steam vegetables, fish,
meat
20 - 45 min Add some tablespoons of
liquid
13 – 18 %
7 - 9 Steam potatoes 20 - 60 min Use max. ¼ l water for
750 g of potatoes
18 – 25 %
7 - 9 Cook larger quantities of
food, stews and soups
60 - 150 min Up to 3 l liquid plus ingre-
dients
18 – 25 %
9 -
12
Gentle fry: escalope, veal
cordon bleu, cutlets, ris-
soles, sausages, liver, roux,
eggs, pancakes, doughnuts
as necessary Turn halfway through 25 – 45 %
12 -
13
Heavy fry, hash browns, loin
steaks, steaks
5 - 15 min Turn halfway through 45 – 64 %
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips 100 %
Boil large quantities of water. Power function is activated.
CARE AND CLEANING
Clean the appliance after each use.
Always use cookware with clean bottom.
Warning! The sharp objects and
abrasive cleaning agents can cause
damage to the appliance.
For your safety, do not clean the appli-
ance with steam cleaners or high-pres-
sure cleaners.
Scratches or dark stains on the glass-
ceramic cause no effect on how the
appliance operates.
To remove the dirt:
1. – Remove immediately: melted plas-
tic, plastic foil, and food with sugar. If
not, the dirt can cause damage to
the appliance. Use a special scraper
for the glass . Put the scraper on the
glass surface at an acute angle and
move the blade on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metallic
discolorations. Use a special cleaning
agent for glass ceramic or stainless
steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
10 electrolux

TROUBLESHOOTING
Problem Possible cause Remedy
You cannot activate the appli-
ance or operate it.
Activate the appliance again
and set the heat setting in less
than 10 seconds.
You touched 2 or more sensor
fields at the same time.
Touch only one sensor field.
The STOP+GO function oper-
ates.
Refer to the chapter “Daily
Use”.
There is water or fat stains on
the control panel.
Clean the control panel.
An acoustic signal sounds and
the appliance deactivates.
An acoustic signal sounds
when the appliance is deactiva-
ted.
You put something on one or
more sensor fields.
Remove the object from the
sensor fields.
The appliance deactivates. You put something on the sen-
sor field .
Remove the object from the
sensor field.
The residual heat indicator
does not come on.
The cooking zone is not hot
because it operated only for a
short time.
If the cooking zone operated
sufficiently long to be hot,
speak to the service centre.
The Automatic Heat Up func-
tion does not operate.
The cooking zone is hot. Let the cooking zone become
sufficiently cool.
The highest heat setting is set. The highest heat setting has
the same power as the Auto-
matic Heat Up function.
The heat setting changes be-
tween two levels.
The Power management is ac-
tivated.
Refer to “Power management”.
The sensor fields become hot. The cookware is too large or
you put it too near to the con-
trols.
Put large cookware on the rear
cooking zones if necessary.
There is no signal when you
touch the panel sensor fields.
The signals are deactivated. Activate the signals (refer to
“OffSound control”).
comes on The Automatic Switch Off oper-
ates.
Deactivate the appliance and
activate it again.
comes on The Child Safety Device or the
Lock function operates.
Refer to the chapter “Daily
Use”.
comes on No cookware is on the cooking
zone.
Put cookware on the cooking
zone.
Incorrect cookware. Use the correct cookware.
The diameter of the bottom of
the cookware is too small for
the cooking zone.
Move cookware to a smaller
cooking zone.
electrolux 11

Problem Possible cause Remedy
and number comes on. There is an error in the appli-
ance.
Disconnect the appliance from
the electrical supply for some
time. Disconnect the fuse from
the electrical system of the
house. Connect it again. If
comes on again, speak to the
service centre.
comes on There is an error in the appli-
ance because a cookware boils
dry. The overheating protection
for the cooking zones and the
Automatic Switch Off operate.
Deactivate the appliance. Re-
move the hot cookware. After
approximately 30 seconds, ac-
tivate the cooking zone again. If
the cookware was the problem,
the error message goes out of
the display, but the residual
heat indicator can stay. Let the
cookware become sufficiently
cool and refer to “Cookware for
the induction cooking zone” to
see if your cookware is com-
patible with the appliance.
If you tried the above solutions and cannot
repair the problem, speak to your dealer or
the customer service. Give the data from
the rating plate, three digit letter code for
the glass ceramic (it is in the corner of the
glass surface) and an error message that
comes on.
Make sure, you operated the appliance cor-
rectly. If not the servicing by a customer
service technician or dealer will not be free
of charge, also during the warranty period.
The instructions about the customer service
and conditions of guarantee are in the guar-
antee booklet.
INSTALLATION
Warning! Refer to the Safety chapters.
Before the installation, note down
the serial number (Ser. Nr.) from the
rating plate.The rating plate of the
appliance is on its lower casing.
Modell GK58TSIO
Prod.Nr. 941 591 753 01
Typ 58 GAD D5 AU
220 – 240 V 50 – 60 Hz
Induction 7.4 kW
Made in Switzerland
Ser. Nr. ....................
7.4 kW
ELECTROLUX
Warning! During installation in
combustible matter, NIN SEV 1000 and
fire protection guidelines and
regulations of the Association of
Cantonal Fire Insurance shall be strictly
adhered to.
BUILT-IN APPLIANCES
• Only use the built-in appliances after you
assemble the appliance into correct built-
in units and work surfaces that align to
the standards.
CONNECTION CABLE
• The appliance is supplied with the con-
nection cable.
• Replace the damaged mains cable with a
special cable (type H05VV-F or higher).
Speak to your local Service Centre.
ELECTRICAL CONNECTION
• Install the appliance with a socket supply
line. If there is no socket supply line, the
fixed home electrical system must include
an isolating device with at least a 3 mm-
contact separation to enable a simultane-
12 electrolux

ous and all-pole cut off from the mains
(according to NIN SEV 1000).

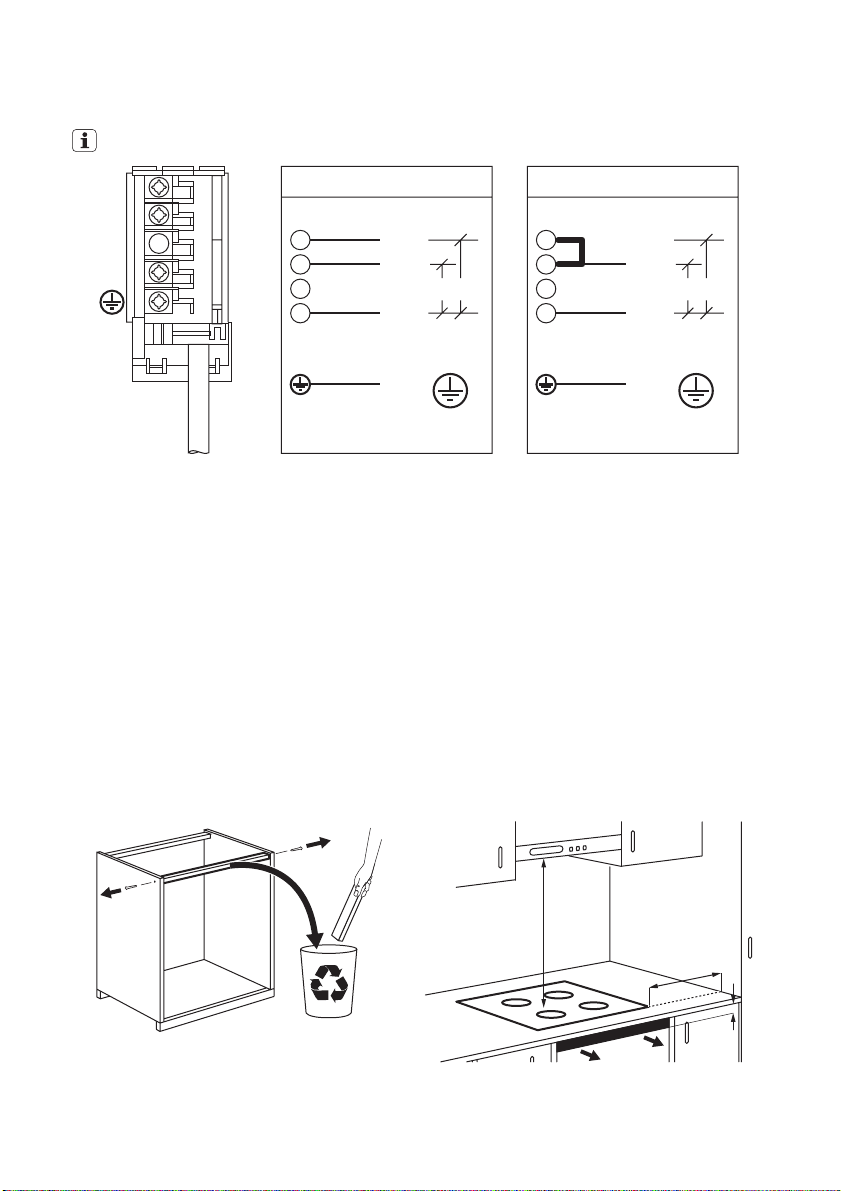

Electrical connection:
1
1L1
L2
N
PE
400V 2L-1N ~
2
3
N2
3
N
220V-240V
1
L1
N
PE
220V - 240V ~
2
3
N
220V-240V
387 8794 00
TO ATTACH THE SEAL TO THE
RABBET
• Clean the rabbet in the work surface.
• Bond the seal stripe supplied on the up-
per surface of the rabbet along the edges
of the cut out section.
• Cut the seal stripe into four pieces in rela-
tion to the length of the edges of the rab-
bet.
• For the four corners of the rabbet the
ends of the seal stripes must be cut into
mitres. Do not bond the ends over one
another.
• Bond the seal stripe flush into the corner
of the rabbet. Make sure that no silicon
compound can get below the glass ce-
ramic when grouting.
• Do not extend the tapes.
TO ATTACH THE SEAL.
• Clean the worktop in the area of the cut
out section.
• Bond the seal stripe supplied on the low-
er edge of the appliance along the outer
edge of the glass ceramic. Do not extend
it. Let stay the cut ends in the middle of
one side. When, you cut it to length (add
some mm), push the two ends together.
ASSEMBLY
min.
50mm
min.
500mm
min.
2mm
electrolux 13

< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
Mounting on the top
490+1mm 560+1mm
R 5mm
55mm
min.
12 mm
min.
2 mm
min.
38 mm
min.
2 mm
Integrated mounting
14 electrolux

584+1mm
514+1mm
490+1mm
min. 600mm
560+1mm
R10mm
R5mm
12mm
7mm
min.
12 mm
min.
2 mm
min.
38 mm
min.
2 mm
ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
PACKAGING MATERIAL
The packaging materials are friendly to
the environment and can be recycled.
The plastic components are identified
by marking: >PE<,>PS<, etc. Discard
the packaging materials as household
waste at the waste disposal facilities in
your municipality.
CH
GARANTIE, GARANZIA, GUARANTEE
KUNDENDIENST, SERVICE-CLIENTÈLE, SERVIZIO CLIENTI, CUSTOMER
SERVICE CENTRES
Servicestellen Points de Service Servizio dopo
vendita Point of Service
5506 Mägenwil/Zürich Industri-
estrasse 10
3018 Bern Morgen-
strasse 131
1028 Préverenges
Le Trési 6
6928 Manno Via
Violino 11
electrolux 15

Servicestellen Points de Service Servizio dopo
vendita Point of Service
9000 St. Gallen Zürcherstrasse
204e
4052 Basel St. Jakob-Turm
Birsstrasse 320B
6020 Emmenbrücke Seetal-
strasse 11
7000 Chur Comercialstrasse 19
Ersatzteilverkauf/Points de vente de re-
change/Vendita pezzi di ricambio/
spare parts service:
5506 Mägenwil, Industriestrasse 10, Tel.
0848 848 111
Fachberatung/Verkauf/Demonstration/
Vente/Consulente (cucina)/Vendita
8048 Zürich, Badenerstrasse 587, Tel. 044
405 81 11
Garantie Für jedes Produkt gewähren wir
ab Verkauf bzw. Lieferdatum an den End-
verbraucher eine Garantie von 2 Jahren.
(Ausweis durch Garantieschein, Faktura
oder Verkaufsbeleg). Die Garantieleistung
umfasst die Kosten für Material, Arbeits-
und Reisezeit. Die Garantieleistung entfällt
bei Nichtbeachtung der Gebrauchsanwei-
sung und Betriebs-vorschriften, unsachger-
echter Installation, sowie bei Beschädigung
durch äussere Einflüsse, höhere Gewalt,
Eingriffe Dritter und Verwendung von Nicht-
Original Teilen.
Garantie Nous octroyons sur chaque pro-
duit 2 ans de garantie à partir de la date de
livraison ou de la mise en service au con-
sommateur (documenté au moyen d’une
facture, d’un bon de garantie ou d’un justifi-
catif d’achat). Notre garantie couvre les frais
de mains d’œuvres et de déplacement, ain-
si que les pièces de rechange. Les condi-
tions de garantie ne sont pas valables en
cas d’intervention d’un tiers non autorisé,
de l’emploi de pièces de rechange non
originales, d’erreurs de maniement ou d’in-
stallation dues à l’inobser-vation du mode
d’emploi, et pour des dommages causés
par des influences extérieures ou de force
majeure.
Garanzia Per ogni prodotto concediamo
una garanzia di 2 anni a partire dalla data di
consegna o dalla sua messa in funzione. (fa
stato la data della fattura, del certificato di
garanzia o dello scontrino d’acquisto) Nella
garanzia sono comprese le spese di mano-
dopera, di viaggio e del materiale. Dalla co-
pertura sono esclusi il logoramento ed i
danni causati da agenti esterni, intervento di
terzi, utilizzo di ricambi non originali o dalla
inosservanza delle prescrizioni d’istallazione
ed istruzioni per l’uso.
Warranty For each product we provide a
two-year guarantee from the date of pur-
chase or delivery to the consumer (with a
guarantee certificate, invoice or sales re-
ceipt serving as proof). The guarantee cov-
ers the costs of materials, labour and travel.
The guarantee will lapse if the operating in-
structions and conditions of use are not ad-
hered to, if the product is incorrectly instal-
led, or in the event of damage caused by
external influences, force majeure, interven-
tion by third parties or the use of non-genu-
ine components.
16 electrolux

electrolux 17

18 electrolux

electrolux 19

www.electrolux.com/shop 892958594-A-202013
