Safety information
Safety for children and incompetent persons
• People (including children) who, because of their physical, sensory or mental capabilities
or their inexperience of ignorance are not able to use the appliance safely, should not
use this appliance without supervision or instruction by a responsible person.
• Switch on the child lock when there are children. The child lock makes sure that children
do not accidentally switch on the appliance.
Installation safety measures
• Let a registered electrician do the installation of the appliance. If you do not contact a
registered electrician, the guarantee becomes invalid if there is damage.
• For safety on installation, refer to "Installation"
2Contents

Electrical safety
• Let a registered electrician do the electrical connection of the appliance.
• For safety on installation, refer to "installation".
Risk of fire
• Open the door carefully. The use of ingredients with alcohol can cause a mixture of
alcohol and air. There is risk of fire.
• Do not let sparks or open flames come near the appliance when you open the door. There
is risk of fire.
• Do not keep flammable materials in the appliance. There is risk of fire.
Operation safety measures
Discoloration of the oven enamel does not effect the performance of the appliance. The
guarantee does not become invalid.
• Only use the appliance to cook, roast and bake food
• When you connect electrical appliances to mains sockets, do not let cables touch or come
near the hot oven door.
• The inner side of the appliance becomes hot during use. There is risk of burns.
• Do not cover the appliance with aluminium foil to prevent damage to the oven enamel.
• Do not put baking trays, pots, etc. on the oven floor to prevent damage to the oven
enamel.
• Never put hot water directly into the appliance to prevent damage to or discoloration
of the oven enamel.
• User a deep baking tray for very moist cakes. If not, fruit juices can cause stains that can
be permanent.
• Do not apply pressure on an open appliance door.
• Be careful when you remove or install the glass panels.
• Do not keep moist food in the appliance to prevent damage to the oven enamel.
• After you switch off the cooling fan, do not keep uncovered food in the appliance.
Moisture can condense in the appliance or on the glass doors.
Care and cleaning
• Before maintenance, switch off the appliance and make sure that the appliance is cool.
• Do not clean the appliance with a steam cleaner or a high-pressure cleaner.
• Do not clean the glass oven door with abrasive fluids or metal scrapers, which could
cause scratches on the surface. The glass could break and shatter
Safety information 3

Product description

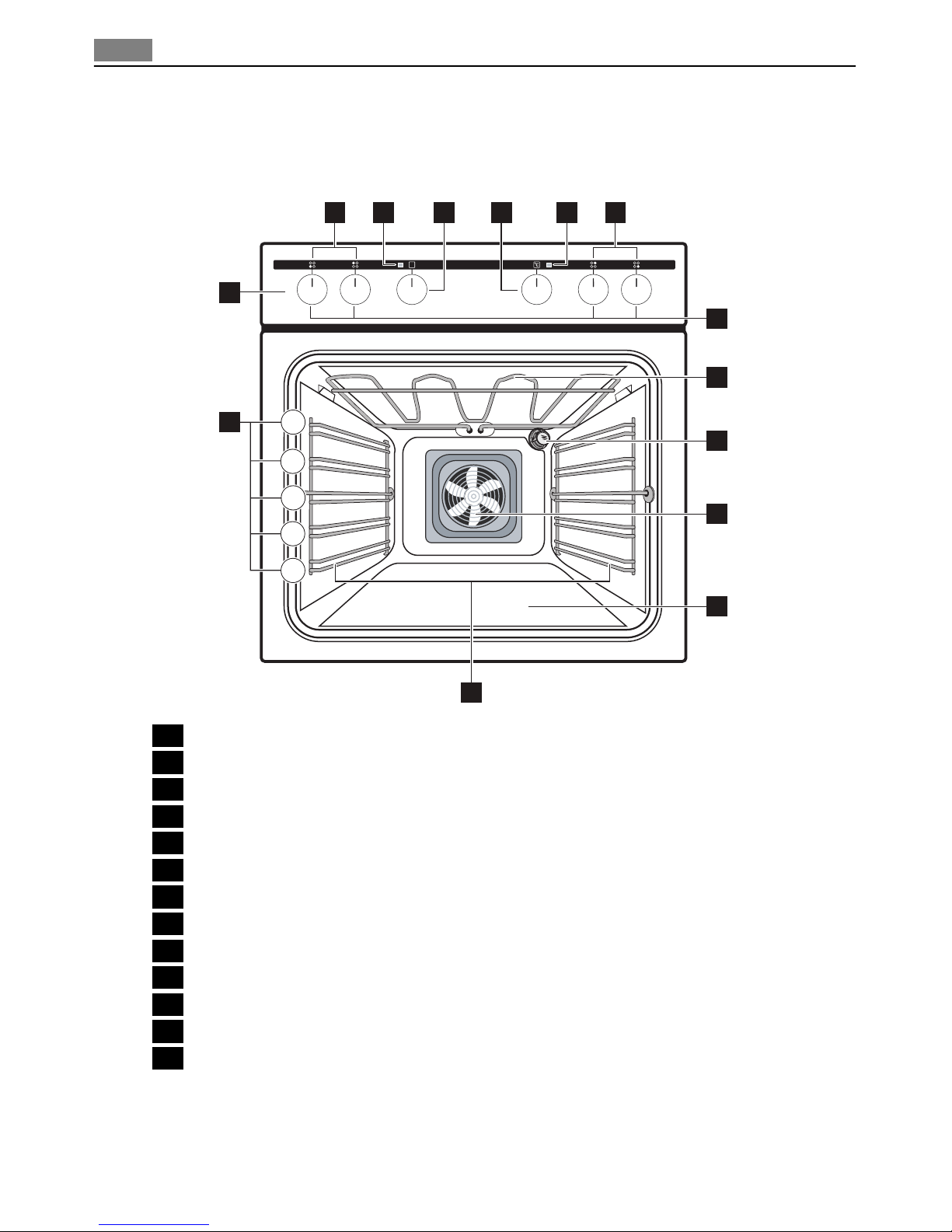

General overview
2 2
1
3 4 5 6
8
9
11
13 5
4
3
2
1
12
7
10
1Control panel
2Cooking zone indicators
3Power indicator
4Control knob for oven functions
5Control knob for temperature
6Temperature light
7Control knobs for cooking zones
8Heating element
9Oven lamp
10 Fan
11 Bottom heat
12 Oven shelf runners, removable
13 Shelf positions
Oven accessories
•Oven shelf
For cookware, cake tins, roasts.
4Product description

•Flat baking tray
For cakes and biscuits.
Oven steam outlet
The steam from the oven gets out through the outlet in the back left corner of the cooking
surface (see the Description of the appliance in hob user manual).
Before first use
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
CAUTION!
Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care
and Cleaning".
Daily use
To use the oven, push the retractable knob. The knob then comes out.
Switching the Oven On and Off
1. Turn the oven functions control knob to an oven function.
2. Turn the temperature control knob to a temperature.
The power indicator comes on while the oven is in operation.
The temperature indicator comes on while the oven temperature increases.
3. To switch off the oven, turn the oven functions control knob and the temperature
control knob to the Off position.
Cooling fan
When the appliance operates, the cooling fan switches on automatically to keep the sur-
faces of the appliance cool. If you switch off the appliance, the cooling fan continues to
operate until the appliance cools down.
Cooking zones
With the control knobs for cooking zones you operate the hob that you installed with the
oven. For more information about the hob, refer to the hob user manual.
Heat settings
Cooking zone indicators (refer to "General overview ") show which zone you set.
Before first use 5

Control knob Function
Keep warm setting
1-9 Heat settings
(1 = lowest heat setting; 9 = highest heat setting)
1. Turn the control knob to a necessary heat setting.
2. To complete the cooking process, turn the control knob to the “0” position.
Automatic heat-up function
This information is applicable only if you install the hob with Automatic heat up function!
The automatic heat-up function heats the cooking zone with full power for some time.
1. To switch on the function, turn the control knob clockwise as far as possible (pass the
highest heat setting).
2. To continue the cooking process, turn the control knob to the necessary heat setting.
3. To complete the cooking process, turn the control knob to the “0” position.
Oven Functions
Oven function Application
LIGHT Use this function to light up the oven interior.
Fan assisted circulation To bake on a maximum of two oven levels at the same time.
Set the oven temperatures (20-40°C) lower than for Con-
ventional. To dry food.
CONVENTIONAL To bake and roast on one oven level.
BASE HEAT To bake cakes with crispy or crusty bases and to preserve
food.
DEFROST To defrost frozen food.
SINGLE GRILL To grill flat food items in the middle of the grill and to toast.
DUAL GRILL To grill flat food items in large quantities and to toast.
ROTITHERM To roast larger joints of meat or poultry on one level. Also
to gratinate.
Inserting the Oven Accessories
Put in the slide-in accessories so that the double side edges are at the back of the oven and
point down to the bottom. Push the slide-in accessories between the guide-bars of one of
the oven levels.
6Daily use

The deep roasting pan and the oven shelf have
double side edges. These edges and the shape of
the guide-bars causes the anti-tilt safety for the
oven accessories.
Inserting the oven shelf and deep roasting
pan together
Put the oven shelf on the deep roasting pan. Push
the deep roasting pan between the guide-bars of
one of the oven levels.
Display
1 2 3
456
1Function Indicators
2Time display
3Function Indicators
4Button " +"
5Selector Button
6Button " -"
Daily use 7

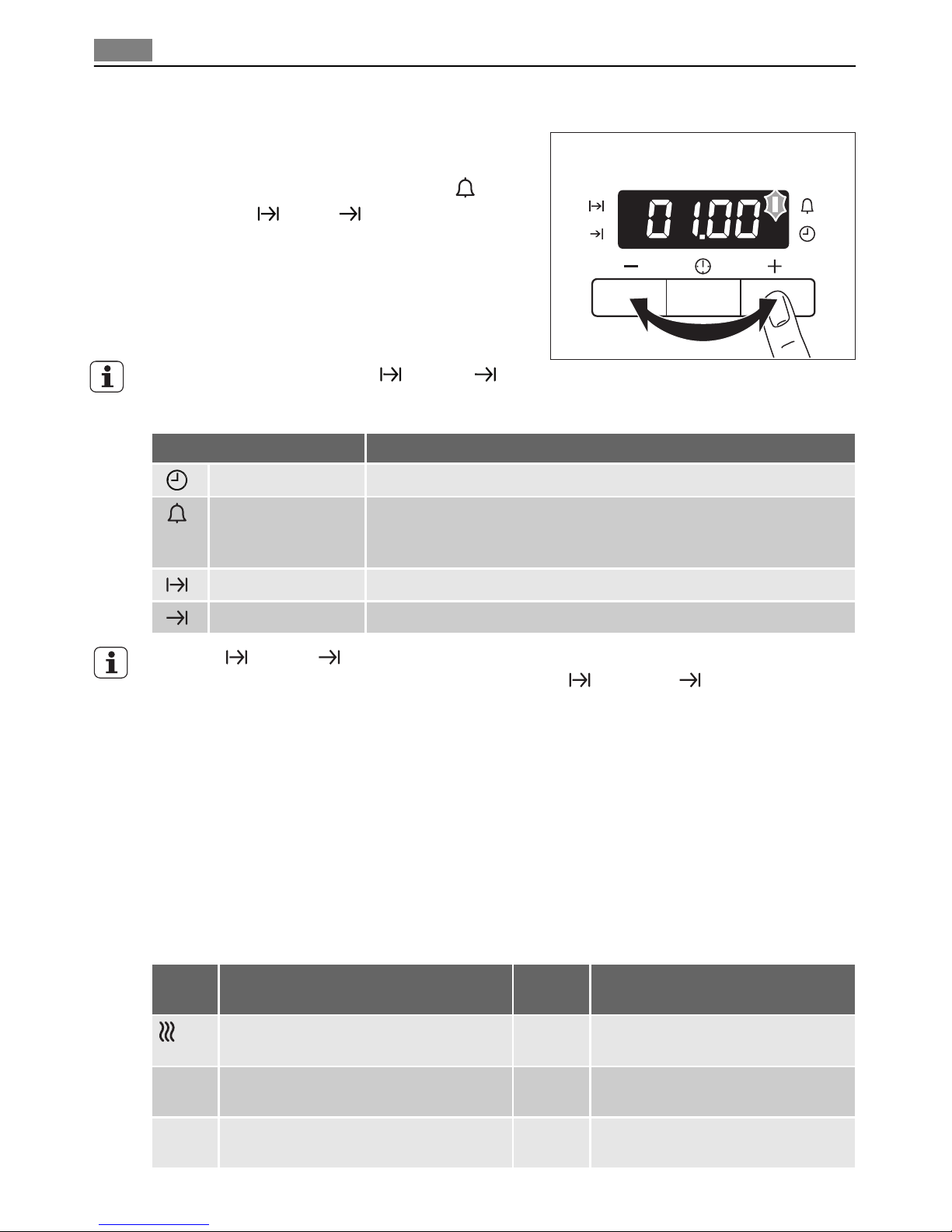

Setting the clock functions
1. Push the Selection button again and again
until necessary function indicator flashes.
2. To set the time for Minute minder ,
Duration or End , use " +" or " -"
button.
The related function indicator comes on.
When the time period is completed, the
function indicator flashes and an acoustic
signal sounds for 2 minutes.
With the functions Duration and End
the oven switches off automatically.
3. Push any button to stop the signal.
Clock function Application
Time of day Shows the time. To set, change or check the time.
Minute minder To set a countdown time.
A signal sounds, after the time period is completed.
This function has no effect on the operation of the oven.
Duration To set how long the oven has to be in operation.
End To set the switch-off time for an oven function.
Duration and End can be used at the same time, if the oven is to be switched on and
off automatically later. In this case first set Duration , then End .
Cancelling the clock functions
1. Push the Selection button again and again until necessary function indicator flashes.
2. Push and hold button " -".
After some seconds the clock function goes out.
Helpful hints and tips
Examples of cooking applications
The data in the table is for guidance only.
Heat
setting
Use to: Time Hints
1 Keep cooked foods warm as re-
quired
Cover
1-2 Hollandaise sauce, melt: butter, choco-
late, gelatine
5-25
min
Mix occasionally
1-2 Solidify: fluffy omelettes, baked eggs 10-40
min
Cook with a lid on
8Helpful hints and tips

Heat
setting
Use to: Time Hints
2-3 Simmer rice and milkbased dishes, heat-
ing up ready-cooked meals
25-50
min
Add at least twice as much liquid as
rice, stir milk dishes part way
through
3-4 Steam vegetables, fish, meat 20-45
min
Add a few tablespoons of liquid
4-5 Steam potatoes 20-60
min
Use max. ¼ l water for 750 g of po-
tatoes
4-5 Cook larger quantities of food, stews
and soups
60-150
min
Up to 3 l liquid plus ingredients
6-7 Gentle fry: escalope, veal cordon bleu,
cutlets, rissoles, sausages, liver, roux,
eggs, pancakes, doughnuts
as re-
quired
Turn halfway through
7-8 Heavy fry, hash browns, loin steaks,
steaks
5-15
min
Turn halfway through
9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips
Baking
General instructions
• Your new oven may bake or roast differently to the appliance you had before. Adapt
your usual settings (temperature, cooking times) and shelf levels to the values in the
tables.
• With longer baking times, the oven can be switched off about 10 minutes before the
end of baking time, to use the residual heat.
When you use frozen food, the trays in the oven can twist during baking. When the
trays get cold again, the distortion will be gone.
How to use the Baking Tables
• We recommend to use the lower temperature the first time.
• If you cannot find the settings for a special recipe, look for the one that is almost the
same.
• Baking time can be extended by 10-15 minutes, if you bake cakes on more than one
level.
• Cakes and pastries at different heights do not always brown equally at first. If this occurs,
do not change the temperature setting. The differences equalize during the baking pro-
cedure.
Baking on one oven level - Baking in tins
Type of baking Oven function Level Temperature
(°C)
Time (h:min)
Ring cake or brioche Fan assisted cir-
culation
1150 - 160 0:50 - 1:10
Madeira cake/Fruit
cakes
Fan assisted cir-
culation
1140 - 160 1:10 - 1:30
Helpful hints and tips 9

Type of baking Oven function Level Temperature
(°C)
Time (h:min)
Sponge cake Fan assisted cir-
culation
1140 0:25 - 0:40
Sponge cake Conventional 1160 0:25 - 0:40
Flan base - short pas-
try
1)
Fan assisted cir-
culation
3170-180 0:10 - 0:25
Flan base - sponge
mixture
Fan assisted cir-
culation
3150 - 170 0:20 - 0:25
Apple pie Conventional 1170 - 190 0:50 - 1:00
Apple pie (2 tins, Ø 20
cm, diagonally off set)
Fan assisted cir-
culation
1160 1:10 - 1:30
Apple pie (2 tins, Ø 20
cm, diagonally off set)
Conventional 1180 1:10 - 1:30
Savoury flan (e.g. qui-
che lorraine)
Fan assisted cir-
culation
1160 - 180 0:30 - 1:10
Curd Cheese Cake Conventional 1170 - 190 1:00 - 1:30
1) Pre-heat oven
Baking on one oven level - Cakes/pastries/breads on baking trays
Type of baking Oven function Level Temperature
(°C)
Time (h:min)
Plaited bread/bread
crown
Conventional 3170 - 190 0:30 - 0:40
Christmas stollen
1)
Conventional 3160 - 180 0:40 - 1:00
Bread ( rye bread) Conventional 1
- first of all
1)
230 0:25
- then 160 - 180 0:30 - 1:00
Cream puffs/eclairs
1)
Conventional 3160 - 170 0:15 - 0:30
Swiss roll
1)
Conventional 3180 - 200 0:10 - 0:20
Cake with crumble
topping (dry)
Fan assisted cir-
culation
3150 - 160 0:20 - 0:40
Buttered almond
cake/sugar cakes
1)
Conventional 3190 - 210 0:15 - 0:30
Fruit flans (made with
yeast dough / sponge
mixture)
2)
Fan assisted cir-
culation
3150 0:35 - 0:50
Fruit flans (made with
yeast dough / sponge
mixture)
2)
Conventional 3170 0:35 - 0:50
10 Helpful hints and tips
