Electrolux E4431-5 User manual

E4431-5
User manual Built-In Electric Oven

Contents2
Contents
Operating Instructions 3
Safety instructions 3
Description of the Appliance 4
General Overview 4
Control Panel 5
Oven Features 5
Oven accessories 6
Before Using for the first time 7
Setting and changing the time 7
Initial Cleaning 8
Using the Rings 8
Setting the heat setting 9
Using the Oven 9
Switching the Oven On and Off 9
Oven Functions 10
Inserting the Combination Shelf,
Baking Tray and Roasting Pan 11
Inserting/Removing the Fat Filter 12

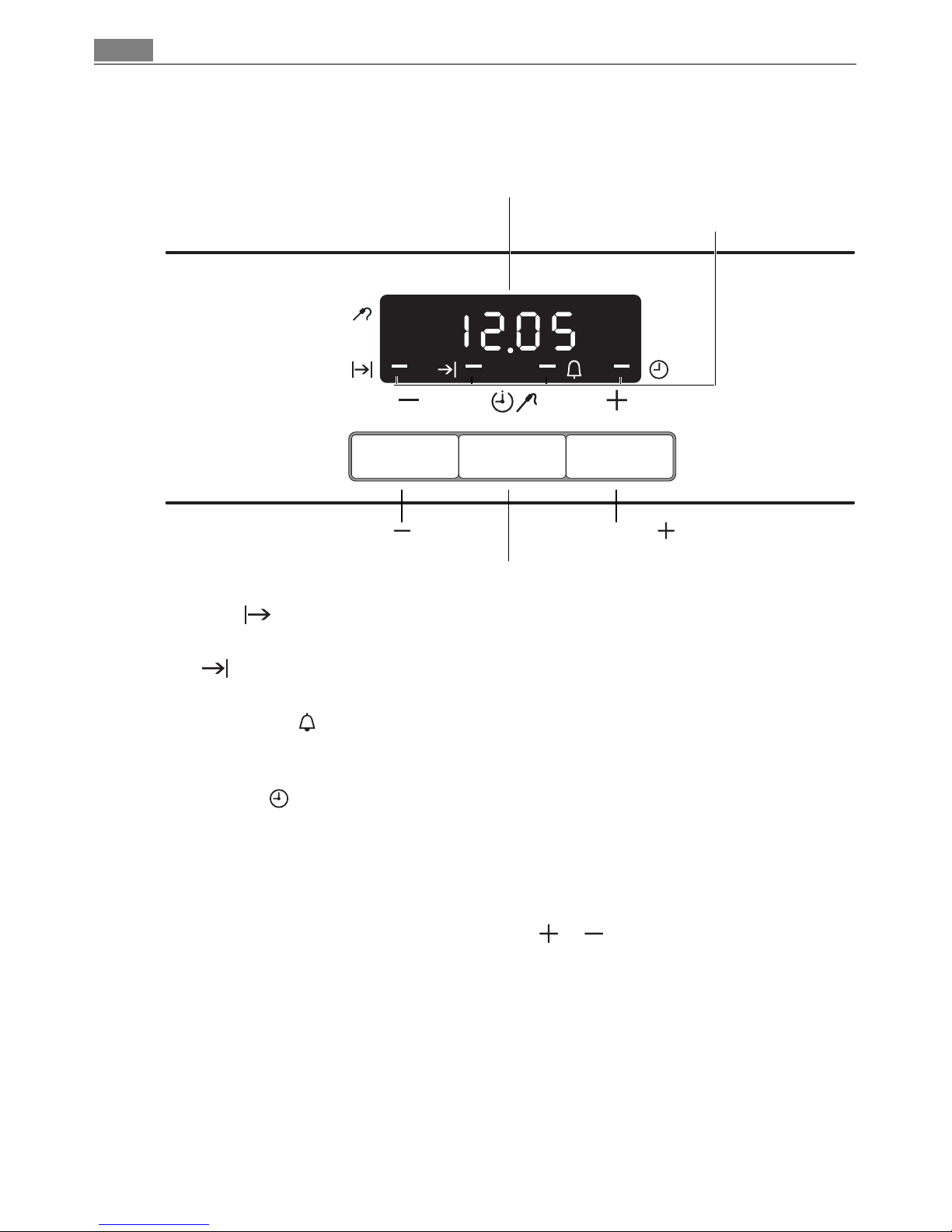

Clock Functions 14
Mechanical Door Lock 19
Uses, Tables and Tips 20
Cooking table 20
Baking 21
Roasting 27
Grill sizes 29
Defrosting 30
Drying 30
Making preserves 31
Cleaning and Care 32
Outside of the appliance 32
Oven interior 32
Accessories 33
Fat Filter 33
Shelf Support Rails 33
Oven lighting 34
Oven Ceiling 35
Oven door 36
Oven door glass 38
What to do if … 41
Disposal 42
Installation Instructions 43
Safety information for the installer 43
Guarantee/Customer Service 47
Service 49
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruc-
tion manual carefully. It will enable you to navigate all processes perfectly and most ef-
ficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3General information and tips
2Environmental information

3Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst using
•People (including children) who, because of their physical, sensory or mental capabili-
ties or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
•This appliance is intended to be used for cooking, roasting and baking food in the
home.
•Take care when connecting electric appliances to sockets nearby. Do not allow con-
necting leads to come into contact with or to catch beneath the hot oven door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air mixture
that is easily ignited. In this case, open the door carefully. Do not have embers, sparks
or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too
much.
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause damage to or
discolouration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the glass to
break.
•Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.

Description of the Appliance4
•Do not store any moist foods inside the oven. This could damage the oven enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-
ture may condense in the oven interior or on the glass doors and may get into the
units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a de-
fect in the sense of the warranty law.
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

5Description of the Appliance
Control Panel
Oven Features
Oven Functions Temperature selector
Hob Cooking Zone Control Knobs
Function buttons
Hob Cooking Zone Control Knobs
Oven Power Indicator
Temperature /
Time Display
Temperature Pilot Light
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

Description of the Appliance6
Inside of door
On the inside of the oven door you will find the
numbers of the different oven shelves.
You will also find some brief information about
the oven's functions, recommended shelves and
temperatures for cooking the most popular
dishes.
Oven steam vent
The steam from the oven is fed directly upwards
via the duct in the rear of the cooking surface.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for collect-
ing fat.

7Before Using for the first time
Meat probe
For determining exactly how far joints of meat
are cooked.
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.
After the appliance has been connected to the
electrical supply or when there has been a pow-
er cut, the function indicator Time of day
flashes automatically.
1. To change a time of day that has already been
set, press the Selection button repeatedly
until the function indicator Time of day
flashes.
2. Using the or button, set the current time.
After about 5 seconds, the flashing stops and
the clock displays the time of day set.
The appliance is now ready to use.
3The Time of day can only be changed, if no
automatic function (Duration or End ) is
set.

Using the Rings8
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.
3To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with warm water and
washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
Using the Rings
3Also refer to the operating instructions for your built-in hob. It contains important in-
formation on ovenware, operation, cleaning and care.
Heat settings
•You may select the heat settings within the range of settings 1-9.
•Intermediate positions may be selected between settings 2 and 7.
1 = lowest heat setting
9 = highest heat setting
2Switch the cooking zone off approx. 5-10 minutes before cooking is finished to make
use of the residual heat. This saves electricity.
3The cooker has pop-up ring switches.
Press the ring switch to use it. The switch will then pop up.
Hob Cooking Zone Control Knobs
front left rear left rear right front right

9Using the Oven
Setting the heat setting
1. Select the heat setting.
2. To end the cooking process, turn back to the Off
position.
3The corresponding ring pilot light is lit while the
ring is operating.
Using the Oven
Switching the Oven On and Off
Oven function selection Temperature selector
Temperature
/
Time Display
Oven Power Indicator
ButtonButton
Temperature Pilot Light
Meat probe indicator
Selection Button

Using the Oven10
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The power indicator is lit as long as the oven is in operation.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature selector to the
Off position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
Oven Functions
The oven has the following functions:
Oven function Application
Light Using this function you can light up the oven interior, e.g. for
cleaning.
True fan To bake on three oven levels maximum at the same time.
Decrease the oven temperatures 20-40 °C compared with Con-
ventional.
Fan baking For baking on one level dishes that require more intensive
browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Conventional For baking and roasting on one oven level.
Base heat For baking cakes with crispy or crusty bases.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Single grill For grilling flat food items placed in the middle of the grill and
for toasting.
Dual grill For grilling flat food items in large quantities and for toasting.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning

11Using the Oven
Inserting the Combination Shelf, Baking Tray and Roasting Pan
3Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved indenta-
tion at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of the oven
interior. This indentation is also important for preventing the insertable components
from tipping.
Inserting the baking tray or roasting pan
Push the baking tray or roasting pan between
the guide bars of the selected oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars of
the selected oven level.
3The high rim around the oven shelf is an addi-
tional device to prevent cookware from slip-
ping.
Inserting the oven shelf and roasting pan
together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.

Using the Oven12
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to pro-
tect the rear heating elements from fat splash-
es.

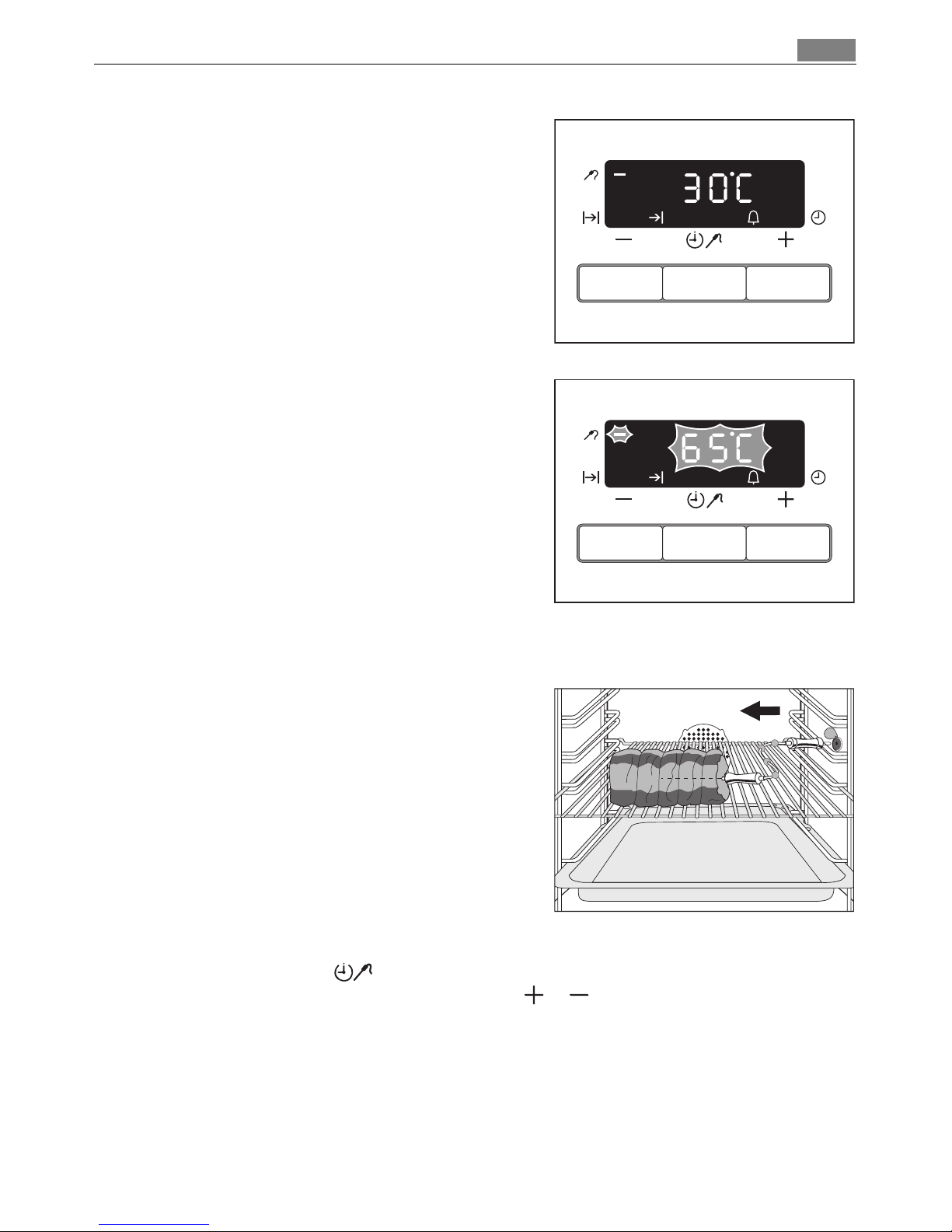

Meatprobe
For switching off the oven when the temperature at the centre of a roast reaches a set
temperature.
1Important!: Only the meat probe supplied may be used. If replacing, please use only
original replacement parts.
1. Push the tip of the meat probe right into the
meat so that the tip is in the centre of the
meat.
2. Insert the meat probe plug into the socket on
the side wall of the oven as far as it will go.
3. Using the or button set the desired core
temperature.

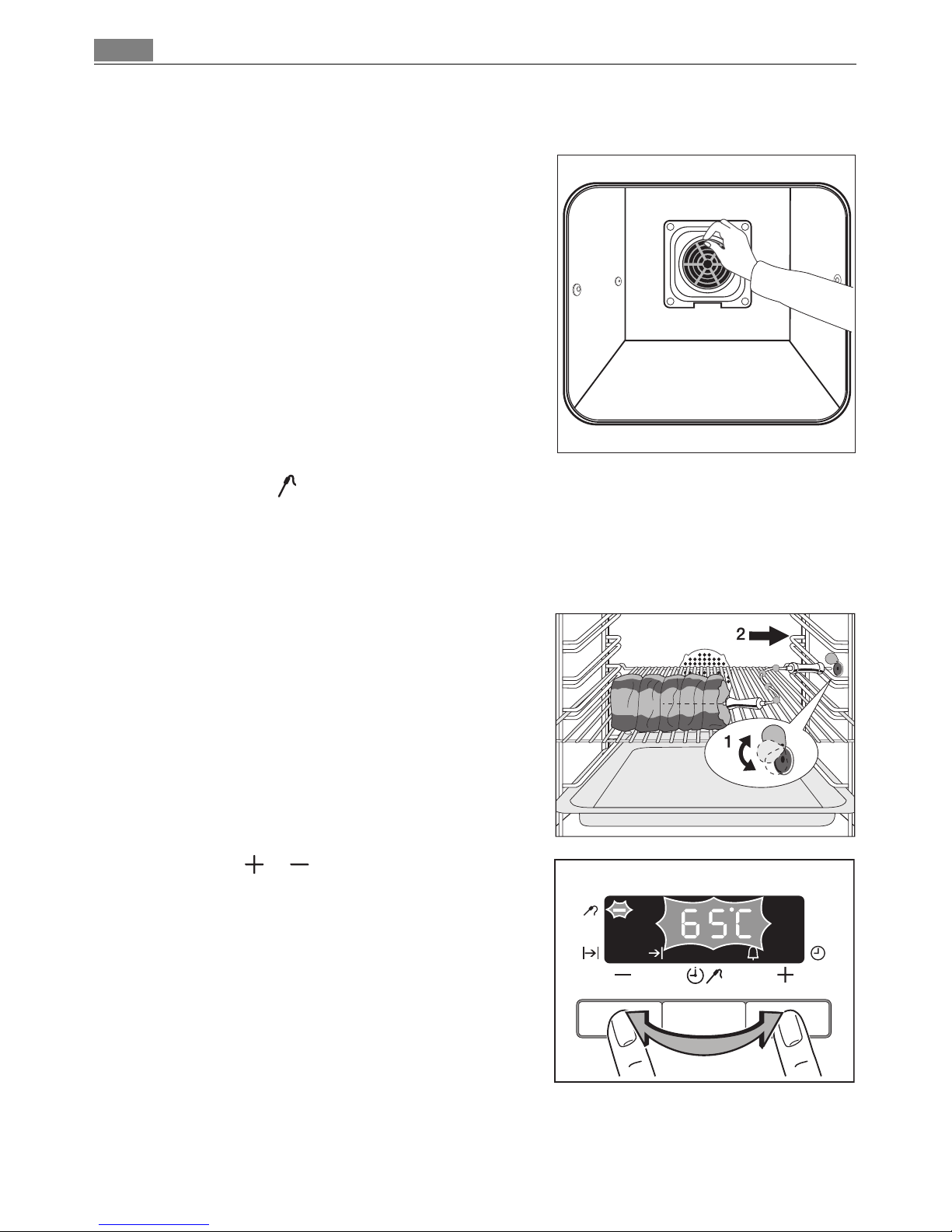

Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and un-
hook it.

13Using the Oven
The display changes to the current core tem-
perature.
3The core temperature is displayed from 30°C.
4. Set oven function and oven temperature.
As soon as the core temperature set is reached,
an audible signal sounds and the oven switches
itself off automatically.
5. Press any key to switch off the signal.
6. Turn oven function selector and temperature selector to the Off position.
1Warning: The meat probe is hot! There is a risk
of being burned when removing the plug and
the tip of the meat probe.
7. Remove the meat probe’s plug from the socket
and take the meat out of the oven.
Changing the core temperature
–Press the Selection button.
–If necessary, change the temperature using or .

Using the Oven14
Clock Functions
Duration
To set how long the oven is to be in use.
End
To set the switch-off time for an oven function.
Minute Minder
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Time of day
To set, change or check the time
(See also section “Before Using for the First Time”).
3General Hints
•After a function has been selected, the display flashes for about 5 seconds. While it
flashes, the desired time can be set using the or buttons.
•When the desired time has been set, the display flashes for another 5 seconds. The set
time begins to run.
•Press any of the buttons to stop the signal.
•The desired oven function and temperature can be selected before or after setting the
clock functions.
•When cooking is finished, turn the oven and temperature selectors back to zero.
Time display
Selection Button
Function Indicators
ButtonButton

15Using the Oven
Minute Minder
1. Press the Selection button repeatedly until
the function indicator Minute Minder flash-
es.
2. Within 5 seconds set the desired countdown
using the or buttons (max. 2 hours
30 minutes).
The function indicator Minute Minder lights
up.
After 5 seconds the display shows the current
time.
When the time set has elapsed, “00.00” and the
function indicator flashes. An audible signal
sounds.
3. The signal can be stopped by pressing any but-
ton.

Using the Oven16
Duration
1. Press the Selection button repeatedly un-
til the function indicator Duration flashes.
2. Using the or button set the desired cook-
ing time.
After approx. 5 seconds the display returns to
showing the current time. The function indica-
tor Duration lights up.
When the time has elapsed, the function indi-
cator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.
3. The signal and the programme can be stopped
by pressing any button.

17Using the Oven
End
1. Press the Selection button repeatedly un-
til the function indicator End flashes.
2. Using the or button set the desired
switch-off time.
After approx. 5 seconds the display returns to
showing the current time.
The function indicator End lights up.
When the time has elapsed, the function indi-
cator flashes, an audible signal sounds for
2 minutes and the oven switches itself off.
3. The signal and the programme can be stopped
by pressing any button.

Using the Oven18
Duration and End combined
3Duration and End can be used simultaneously, if the oven is to be switched on
and off automatically at a later time.
1. Using the Duration function, set the time
required for cooking the dish, 1 hour here.
2. Using the End function, set the time at
which the dish is to be ready, 14:05 here.
The function indicators Duration and
End light up and the current time is shown
in the display, 12:05 here.
The oven switches on automatically at the time
calculated, at 13:05 here.
And switches itself off again when the cook
time entered has elapsed, at 14:05 here.

19Using the Oven
Mechanical Door Lock
When the appliance is delivered, the door lock is deactivated.
Activate the door lock
Pull the safety catch forwards until it locks in
place.
Open the oven door:
1. Shut the door.
2. Press the safety catch and keep it pressed.
3. Open the doors.
Close the oven door
Close the door without pressing the safety catch.
Deactivating the door lock
Press the safety catch back into the panel.
3Switching off the appliance does not cancel the mechanical door lock.

Uses, Tables and Tips20
Uses, Tables and Tips
Cooking table
The information in the table is for guidance only.
3We recommend when boiling or searing foods using the highest heat setting at first and
then letting foods requiring a longer cooking time finish cooking on the desired heat
setting.
1Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
Heat
setting
Cooking-
process suitable for Cooking time Hints
0Residual heat, Off position
1Keeping
food warm To keep cooked foods warm as necessary Cover
1-2 Melting
Hollandaise sauce,
to melt butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidifying Fluffy omelettes, baked eggs 10-40 mins. Cook with lid on
2-3
Simmer-
ing on low
heat
To simmer rice and milk-
based dishes
To heat up ready meals
25-50 mins.
Add minimum twice as
much liquid as rice, stir
milk dishes some times
3-4 Steaming
Braising
To steam vegetables, fish
to braise meat 20-45 mins.
With vegetables add only
some liquid (some table-
spoons)
4-5 Boiling
To steam potatoes 20-60 mins.
Use only some liquid, e.g.:
max. ¼l water for
750 g potatoes
To cook larger quantities of
food, stews and soups 60-150 mins. 3 l liquid maximum plus ingredients
6-7 Gentle
Frying
To fry escalopes, veal cordon
bleu, cutlets, rissoles, sausag-
es, liver, roux, eggs, pancakes,
doughnuts
Steady frying Turn occasionally
7-8 Heavy
Frying
Hash browns, loin steaks,
steaks, Flädle (pancakes for
garnishing soup)
5-15 mins.
per pan Turn occasionally
9
Boiling
Searing
Deep
frying
To boil large quantities of water, to cook pasta,
to sear meat (goulash, pot roast), deep frying chips
