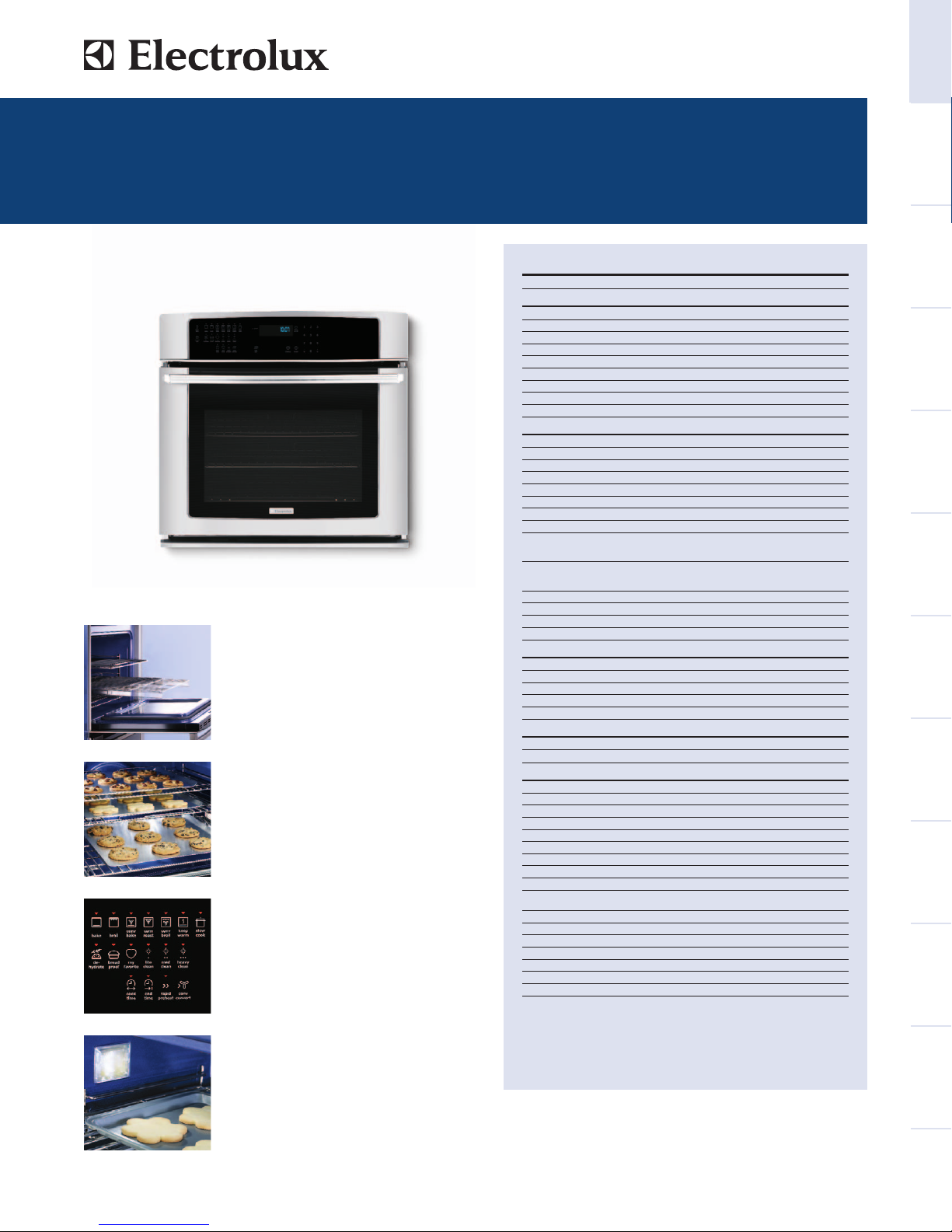

Electrolux EI30EW35JS User manual

Luxury-Glide®Oven Rack
With a ball bearing system, oven rack is
so smooth it extends effortlessly.
Sure-2-Fit™Capacity
Coordinate an entire meal – our oven features
4.2 cubic feet of cooking space with three
adjustable baking racks.
Versatile Cooking Option
Self-clean oven with versatile cooking option
features 7 cooking modes and 6 cooking options.
Luxury-Design™Lighting
Our ramp-up designer halogen lighting is as
beautiful as it is functional and our Luxury-Hold™
oven door stays put at whatever angle you
place it.
Single Wall Oven
EI30EW35J S
30" ELECTRIC SINGLE WALL OVEN
Configuration
Control Panel Features
IQ-Touch™Electronic Oven Control
Keypad Entry of Time & Temperature
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Lockout
Automatic Oven Shutoff – 12 Hour
Programmable for °F or °C
Luxury-Design™Halogen Oven Light Touch Pad
Oven Features
Oven Cavity
Hidden Bake Element
Electric Bake Element – 2200 Watts
Eight-Pass Broil Element – 4000 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Self-Clean Options with Door Lock
Perfect Convect3®with Variable 2-Speed Fan
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Cooking Options –
Dehydrate, Bread Proof, My Favorites,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design™Lighting with Dual 40W Halogen Bulbs
Luxury-Glide®Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Luxury-Hold™Oven Door
Extra-Large Glass Window
Sabbath Mode (Star-K®Certified)
A.D.A. Compliant*
Accessories
Porcelain Broiler Pan and Insert
3"-high Bottom Trim: S – PN# 903114-9110
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including 1" Bottom Trim)
Width
Depth (to Front Door Corner)
(with 90° Door Open)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/208 Volts
Amps@240/208 Volts
Minimum Circuit Required (Amps)
Armored Electrical Cable
Approved for Under-Counter Installation**
Shipping Weight (Approx.)
*When properly installed, meets the appliance standards in the Americans with Disabilities Act
and the Architectural Barriers Act Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
**Single Wall Oven is approved to be used beneath Electrolux gas cooktop models EW30GC60I,
EW30GC55G and EW36GC55G; and Electrolux electric cooktop models EW30EC55G, EW36EC55G,
EW30IC60I, EW36IC60I, EW30CC55G and EW36CC55G.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Single
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
4.2 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
6
Yes
1
2
Yes
Yes
Yes
Yes
Yes
Yes
Included
Optional
S
16-1/2"
24-1/8"
18-1/32"
29"
30"
24-1/2"
44"
Left Bottom Rear
4.0/3.0
17.0/14.5
20
Included
Yes
218 Lbs.
electroluxappliances.com
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezers
Wine Tower/
Under Counter
Washers / Dryers Dishwashers /
Kitchen Cleanup

Single Wall Oven
EI30EW35J S
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EI30EW35J 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
* Critical dimension – MUST be applied
** For cutout height between 27
5
/ 8 " and 28
1
/ 4 ", add one
2"-wide wood shim of appropriate height to each side
of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom
trim will hide shims at bottom.
(Optional 3"-high bottom
trim available for cutout height between 28
1
/ 4 " and 30".)
3"
Electrical
junction
box location
2" min.
11/2"
min.
31"
suggested
distance
41/2"
min.
required
27 1/4"
min.
27 5/8"
max.
Full base
required
to support
200 lbs.
301/8"
min.
4" x 4"
opening
to route
armoured
cable
28 1/2"min.
29"max.
231/2"min.*
(critical
dimension)
2"-wide
wood spacers
(if needed)**
281/4"
29"
(includes
1"bottom
trim) Spacer
115/16"
24 1/2"
30"
273/16"
Allow at least
21" clearance
for door depth
when open
Power
supply
location
(left
bottom
rear)
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 31". Minimum required distance is 4-1/2".
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
Base must be level and cabinet front must be square.
•
Single Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.
•
Single Wall Ovens are approved to be used alone in under-counter
installation or beneath Electrolux gas cooktop models EW30GC60I,
EW30GC55G and EW36GC55G; and electric cooktop models
EW30EC55G, EW36EC55G, EW30IC60I, EW36IC60I, EW30CC55G
and EW36CC55G. (Refer to Gas or Electric Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications pages on web.)
•
Single Wall Ovens are approved to be used in combination with any
Electrolux Warmer Drawer. (Refer to model-specific Warmer Drawer
product page for Combination Installation Specifications.)
•
Single Wall Ovens are approved to be used in combination with any
Electrolux Built-In Microwave Oven. (Refer to model-specific Combination
Installation Specifications pages on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
3"-High Bottom Trim: S – (PN# 903114-9110).

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 82 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13.7 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.

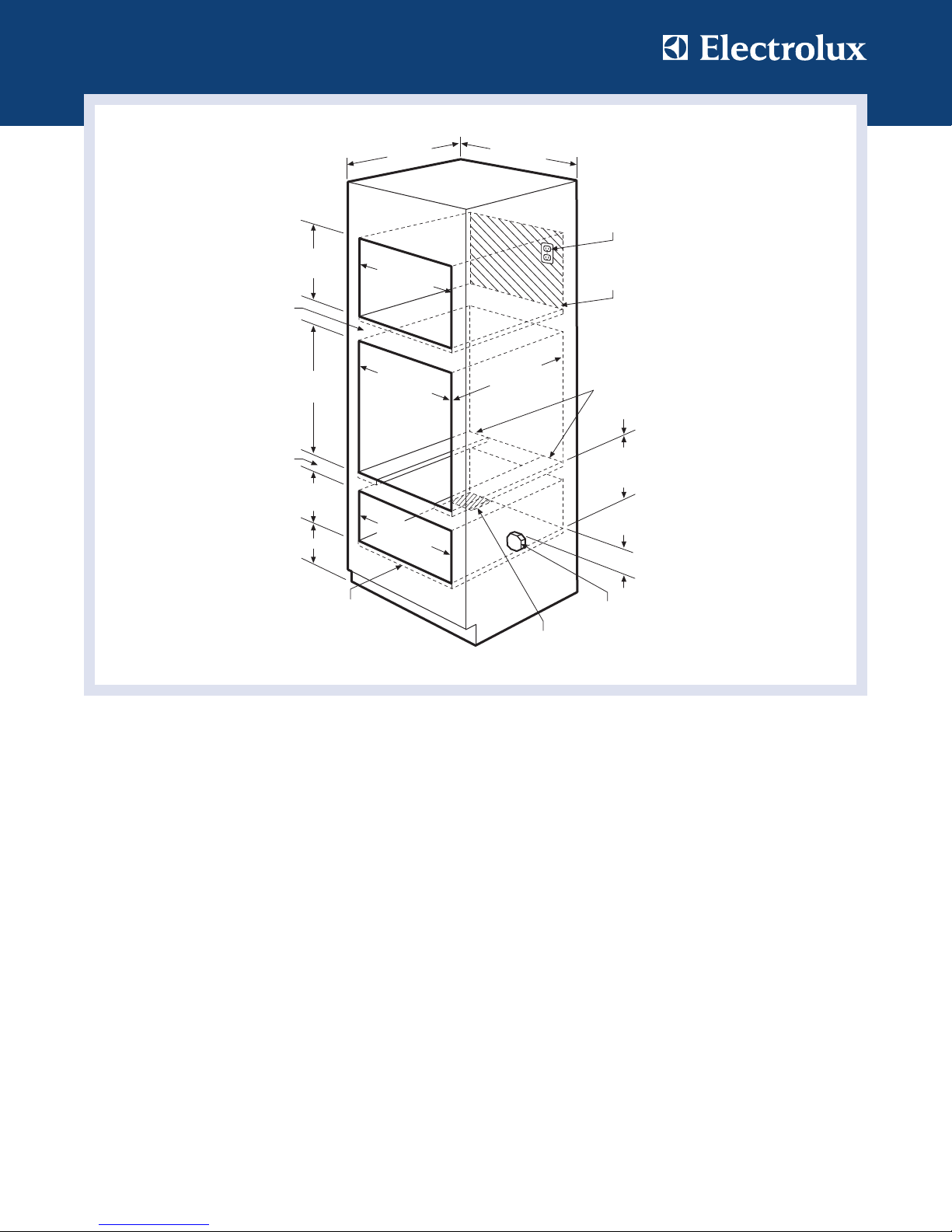

30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MODD_EW 30INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.
* Minimum 21/8" clearance required from bottom
of Built-In Microwave cutout to top edge of
Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
** Critical dimension – MUST be applied
† For cutout height between 275/8" and 281/4"
add one 2"-wide wood shim of appropriate
height to each side of opening under oven
side rails. Lifting oven will hide larger cutout
opening at top and oven’s 1"-high bottom trim
will hide shims at bottom.
(Optional 3"-high
bottom trim available for cutout height
between 28
1
/ 4 " and 30".)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web

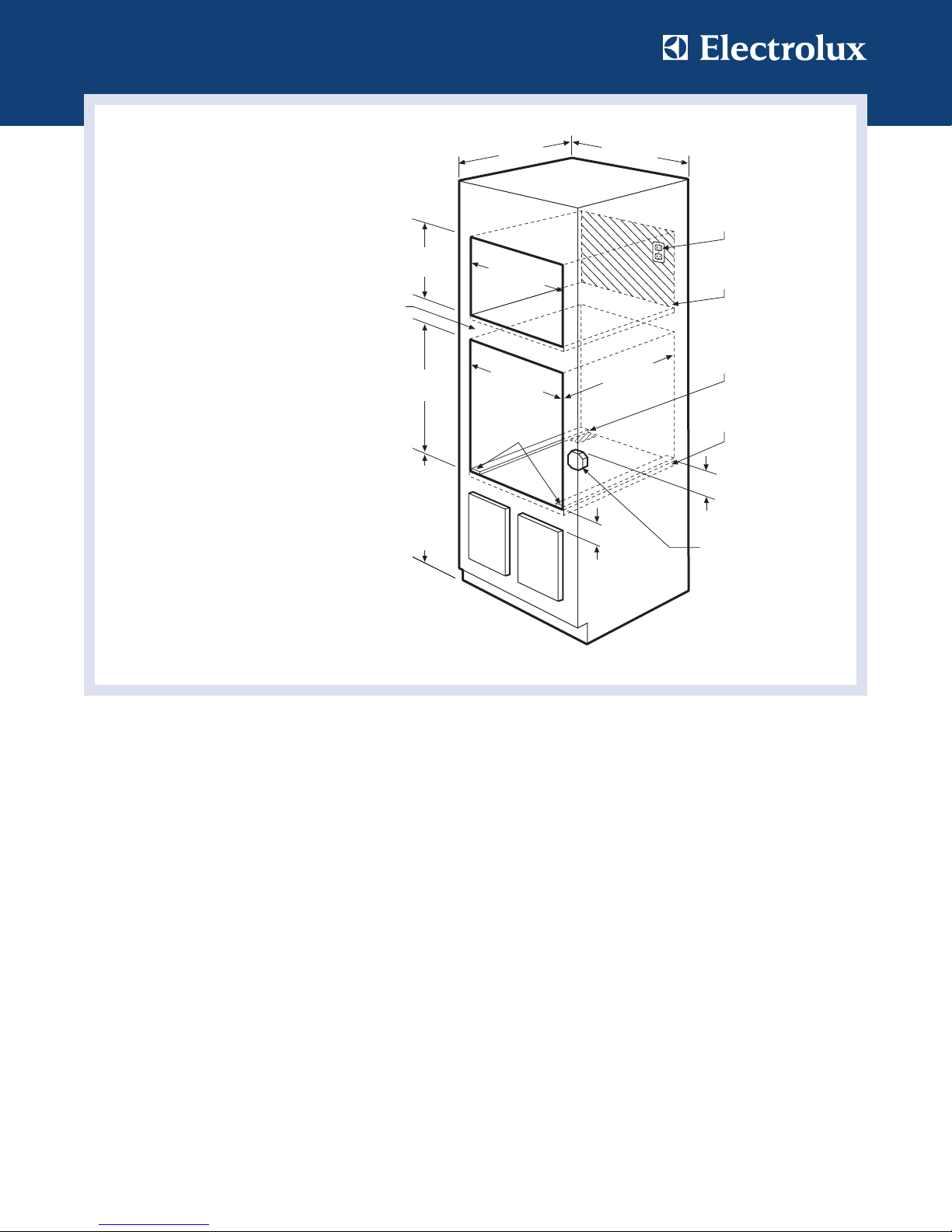

30" Electric Single
Wall Oven Cutout
For models:
EW30EW55G
EI30EW35J
30" Built-In
Microwave Cutout
For model:
EW30MO55H
24"min.
3"
271/4"min.
275/8"max.
4"x 4" opening
to route armored
cable
231/2"min.**
(critical
dimension)
2" min.
31"
suggested
distance
41/2"
min.
required
Full base required
to support 200 lbs.
Electrical junction
box location
2"
(visible
gap)*
301/8" min.
28 1/2"min.
29"max.
21"min.
211/2"max. 275/8"min.
281/8"max.
Full plywood base
required to support
150 lbs.
120V/60Hz
grounded electrical
MUST be located
within shaded area
2"-wide
wood spacers
(if needed)†

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 82 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13.7 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•
Product Weight – 65 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MODD_EW_WD 30INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
24"min.
3"max.
††
301/8" min.
97/8"min.
10 1/4"max.
2"
min.†
Full plywood base
required to support
100 lbs.
271/4"min.
275/8"max.
28 1/2"min.
28 3/4"max.
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
4"x 4" opening to route
armored cable
28 1/2"min.
28 3/4"max.
41/2"min.
required
235/8"min.**
(critical
dimension)
Electrical junction
box location
Bottom of
oven cutout
117/8"min.**
(critical
dimension)
* Minimum 21/8"
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (117/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
30" Warmer
Drawer Cutout
For model:
EW30WD55G
2"
(visible
gap)*
30" Electric Single
Wall Oven Cutout
For models:
EW30EW55G
EI30EW35J
30" Built-In
Microwave Cutout
For model:
EW30MO55H
21"min.
211/2"max. 275/8"min.
281/8"max.
Full plywood base
required to support
150 lbs.
120V/60Hz
grounded electrical
MUST be located
within shaded area

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW 30INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.
* Minimum 27/8" clearance required from bottom
of Built-In Microwave cutout to top edge of
Wall Oven’s faceplate, leaving a 2"visible gap
between both product faceplates.
** Critical dimension – MUST be applied
† For cutout height between 275/8" and 281/4"
add one 2"-wide wood shim of appropriate
height to each side of opening under oven
side rails. Lifting oven will hide larger cutout
opening at top and oven’s 1"-high bottom trim
will hide shims at bottom.
(Optional 3"-high
bottom trim available for cutout height
between 28
1
/ 4 " and 30".)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
30" Electric Single
Wall Oven Cutout
For models:
EW30EW55G
EI30EW35J
30" Built-In
Microwave Cutout
For model:
EI24MO45I
(with 30" Trim Kit)
24"min.
3"
271/4"min.
275/8"max.
4"x 4" opening
to route armored
cable
231/2"min.**
(critical
dimension)
2"
min.
31"
suggested
distance
41/2"
min.
required Full base required
to support 200 lbs.
Electrical
junction
box location
2"
(visible
gap)*
301/8" min.
28 1/2"min.
29"max.
2"-wide
wood spacers
(if needed)†
161/4"min.
163/8"max. 251/4"min.
253/8"max.
Trim Kit –
7/8" faceplate
overlap
Full plywood base
required to support
100 lbs.
120V/60Hz
grounded electrical
MUST be located
within shaded area

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•
Product Weight – 65 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW_WD 30INST EL 01/10 © 2010 Electrolux Major Appliances, NA Printed in the U.S.A.
3"max.
††
97/8"min.
10 1/4"max.
Full plywood base
required to support
100 lbs.
271/4"min.
275/8"max. 28 1/2"min.
28 3/4"max.
Two 3" wide
by 3/4" thick
planks must be
installed, capable
of supporting
200 lbs.
30" Warmer
Drawer Cutout
For model:
EW30WD55G
4"x 4" opening to route
armored cable
28 1/2"min.
28 3/4"max.
41/2"min.
required
235/8"min.**
(critical dimension)
Electrical junction
box location
Bottom of
oven cutout
117/8"min.**
(critical
dimension)
For detailed product dimensions
and installation specifications, refer
to model-specific product page and
installation guide on web
30" Electric Single
Wall Oven Cutout
For models:
EW30EW55G
EI30EW35J
30" Built-In
Microwave Cutout
For model:
EI24MO45I
(with 30" Trim Kit)
* Minimum 27/8"
clearance required
from bottom of
Built-In Microwave
cutout to top edge of
Wall Oven’s faceplate,
leaving a 2"visible
gap between both
product faceplates.
** Critical dimension –
MUST be applied
† Maximum height
depends on critical
dimension (117/8")
†† Electrical junction
box for Wall Oven
must be lower than
the Warmer Drawer
cutout
24"min. 301/8" min.
2"
(visible
gap)*
2"
min.†
Full plywood base
required to support
100 lbs.
161/4"min.
163/8"max. 251/4"min.
253/8"max.
Trim Kit –
7/8" faceplate
overlap
120V/60Hz
grounded electrical
MUST be located
within shaded area

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications
•
Product Weights – (EW30EW55G and EI30EW35J) 200 Lbs. /
(EW27EW55G and EI27EW35J) 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts =
(30") 4.0/3.0kW / (27") 3.4/2.6kW
•
Amps @ 240/208 Volts = (30")17.0/14.5 Amps / (27")14.2/12.6 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications
Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EW27EW55G and EI27EW35J are approved to be used beneath
Electrolux cooktop models EW36EC55G, EW30EC55G, EW36IC60I,
EW30IC60I, EW36CC55G and EW30CC55G.
For detailed Electric or Induction Hybrid Cooktop installation, refer to
model-specific product page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved electric cooktop models.
•
To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EC_EW INST EL 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Oven cutout
27 1/4" min.
28 1/4" max.
4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)
240/208V
Junction box
for wall oven
Approx. 3"
*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific
product page or installation guide on web
240/208V
Junction box
for electric
cooktop
Approx. 3"
36"
min.
Cooktop
cutout**
To route armored cable to junction box through left
cabinet side panel and/or filler panel, cut minimum
4" x 4" opening in wood base and runner
Cutout Width (A)
30" Wall 28 1/2"min.
Oven 29"max.
27" Wall 24 7/8"min.
Oven 25 1/4"max.
For all approved electric cooktop models, cut minimum
4" x 4" opening in right cabinet side panel and/or filler
panel, to route armoured cable to junction box
Electric Single Wall Oven Cutout
For models: EW30EW55G, EI30EW35J,
EW27EW55G & EI27EW35J
24" min.
cutout depth
231/2min.*
A
Unit will overlap cutout (minimum) edges by 1"
Install 3/4" full plywood base on 2 runners,
flush with toe plate, capable of supporting
200 lbs. (30" models) and 150 lbs. (27" models)
Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
electric cooktop models

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications
•
Product Weights – (EW30EW55G and EI30EW35J) 200 Lbs. /
(EW27EW55G and EI27EW35J) 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts =
(30") 4.0/3.0kW / (27") 3.4/2.6kW
•
Amps @ 240/208 Volts = (30")17.0/14.5 Amps / (27")14.2/12.6 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Gas Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications
Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EW27EW55G and EI27EW35J are approved to be used beneath
Electrolux cooktop models EW36GC55G, EW30GC55G and EW30GC60I.
For detailed Gas Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved gas cooktop models.
•
Minimum height opening of 6-1/2" (from top of counter) required in right
cabinet side panel and/or filler panel, to route gas and electric hookups.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Gas Cooktop Installation
Over 30"/27" Electric Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
GC_EW INST EL 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Oven cutout
120V/60Hz
grounded
outlet, for
gas cooktop
Cooktop
cutout**
27 1/4" min.
28 1/4" max.
240/208V
Junction box
for wall oven
Approx. 3"
To route armored cable to junction box through left
cabinet side panel and/or filler panel, cut minimum
4" x 4" opening in wood base and runner
*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific
product page or installation guide on web
5"
61/2"
min.
Pressure regulator
Manual shutoff valve
(Must be accessible)
Cabinet sides
and/or filler panel
Flare union
Manifold
pipe
Flexible connector Flare
union
4"
Countertop
18"max.
120V/60Hz
grounded outlet
Cooktop
Gas
Cooktop
Utility
Hookup
4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)
Side View
Cooktop
Wall Oven
36"
min.
Cutout Width (A)
30" Wall 28 1/2"min.
Oven 29"max.
27" Wall 24 7/8"min.
Oven 25 1/4"max.
24" min.
cutout depth
Electric Single Wall Oven Cutout
For models: EW30EW55G, EI30EW35J,
EW27EW55G & EI27EW35J
Unit will overlap cutout (minimum) edges by 1"
231/2min.*
Install 3/4" full plywood base on 2 runners,
flush with toe plate, capable of supporting
200 lbs. (30" models) and 150 lbs. (27" models)
A
For all approved gas cooktop models, a minimum
height opening of 6-1/2" (from top of counter) required
in right cabinet side panel and/or filler panel, to route
gas and electric hookups. (Refer to Gas Cooktop
Utility Hookup Diagram)
Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
gas cooktop models
