Electrolux EIKM6047 User manual

user manual
Cooker
EKC6046
EKC6047
EIKM6047
Oven
Get other manuals https://www.bkmanuals.com

We were thinking of you
when we made this product
Get other manuals https://www.bkmanuals.com

electrolux welcome 3
Welcome to the world of Electrolux
You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!
Get other manuals https://www.bkmanuals.com

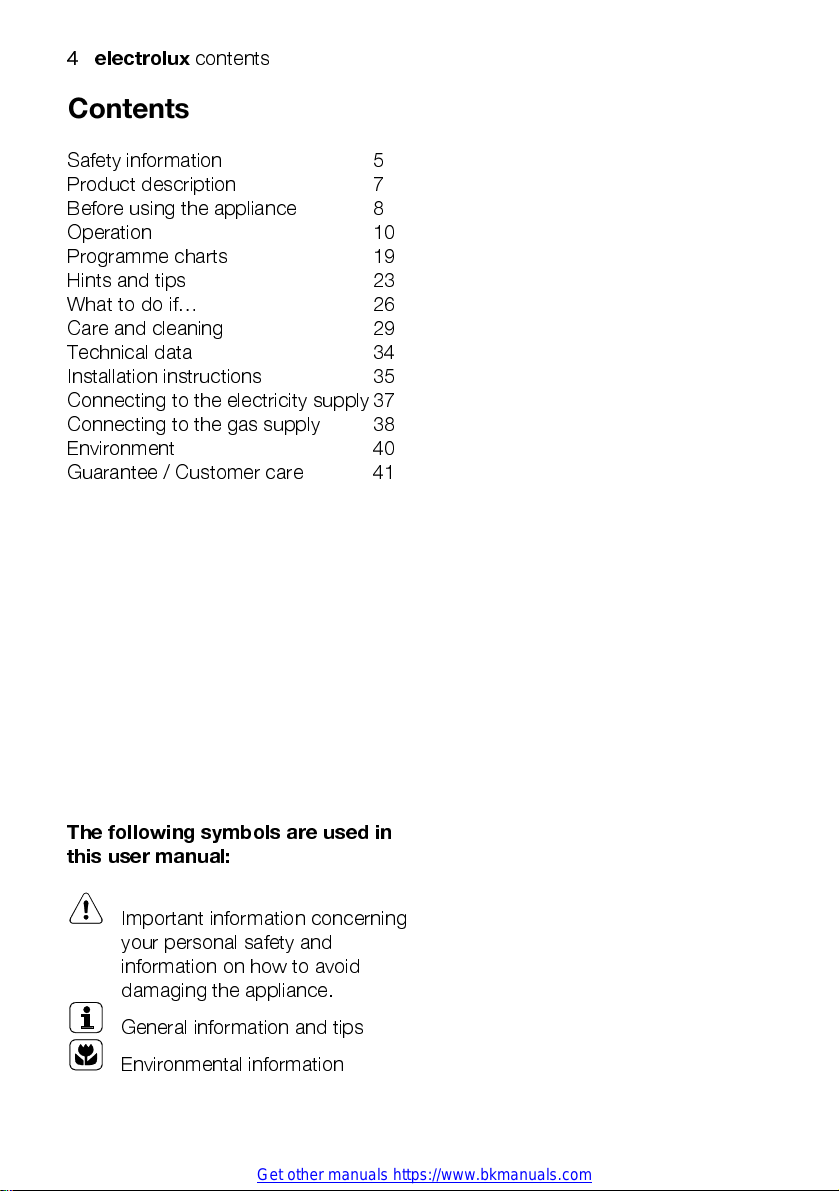

4 electrolux contents
Contents
Safety information 5
Product description 7
Before using the appliance 8
Operation 10

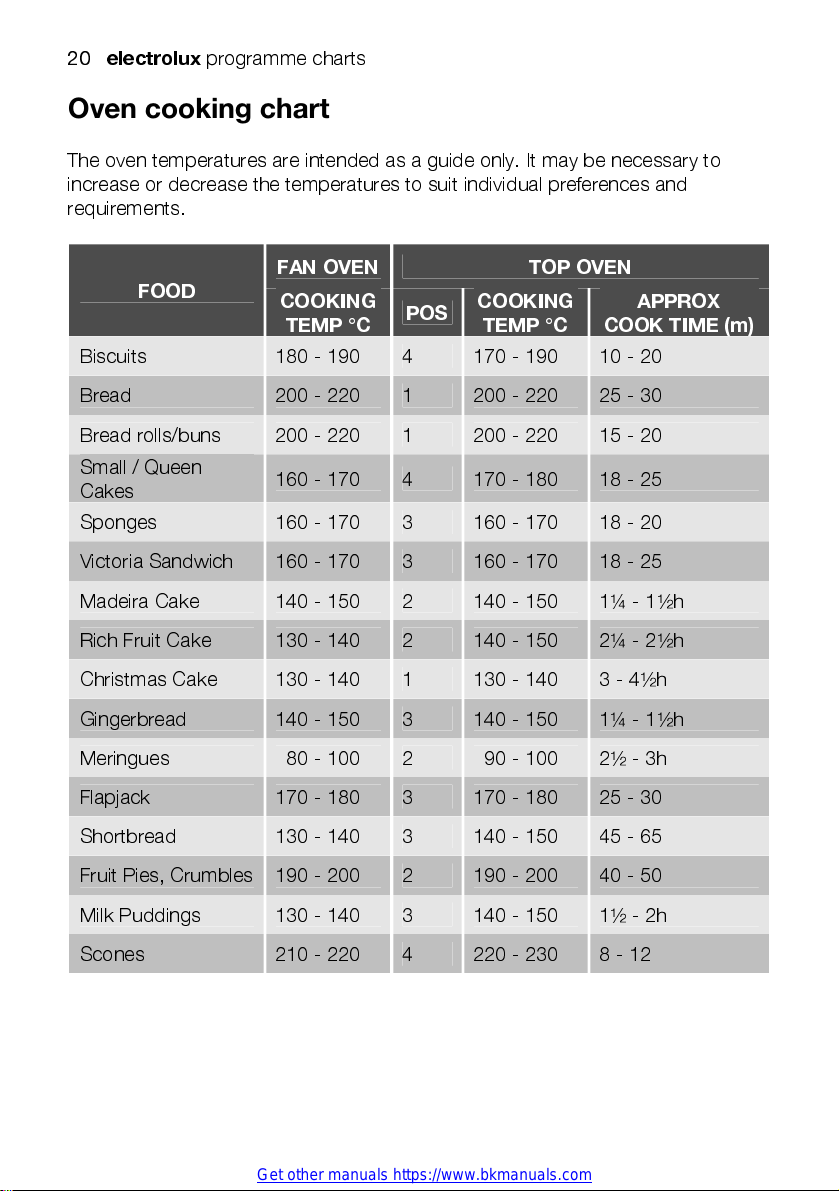

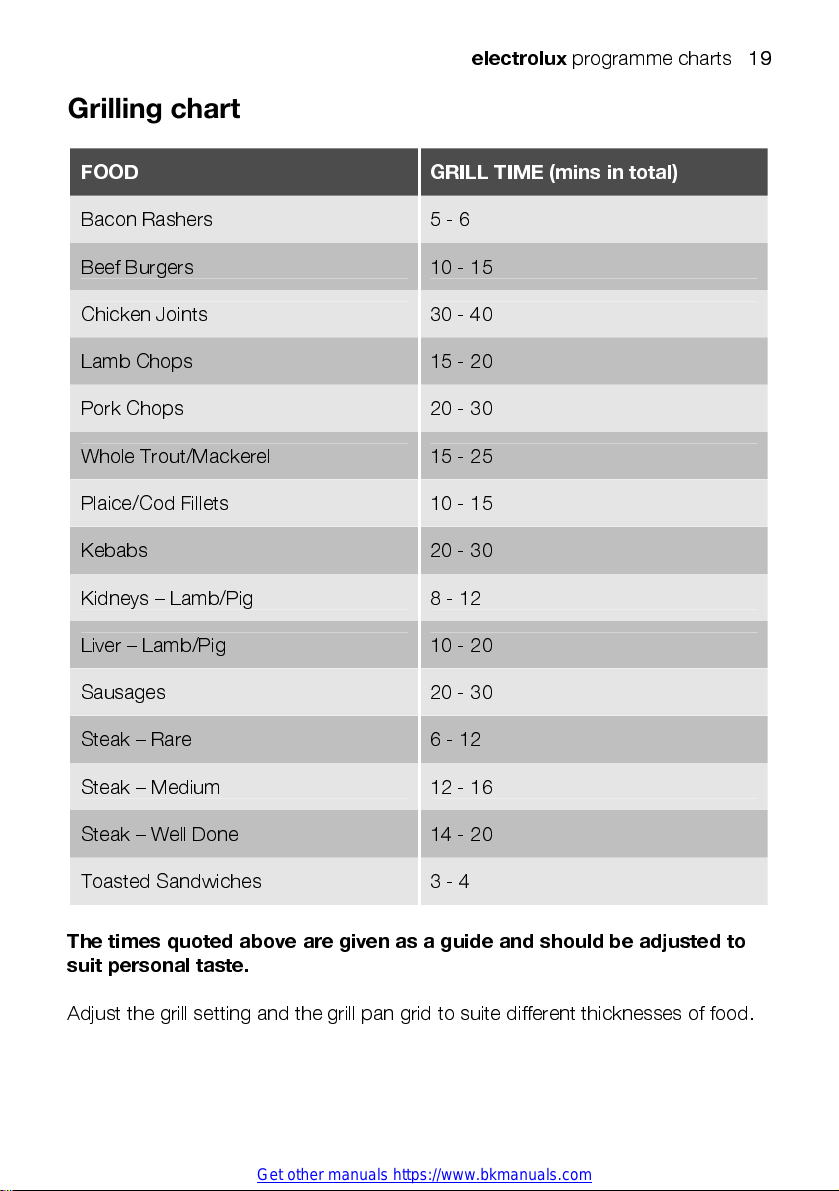

Programme charts 19
Hints and tips 23
What to do if… 26
Care and cleaning 29
Technical data 34
Installation instructions 35
Connecting to the electricity supply 37
Connecting to the gas supply 38
Environment 40
Guarantee / Customer care 41
The following symbols are used in
this user manual:
Important information concerning
your personal safety and
information on how to avoid
damaging the appliance.
General information and tips
Environmental information
Get other manuals https://www.bkmanuals.com

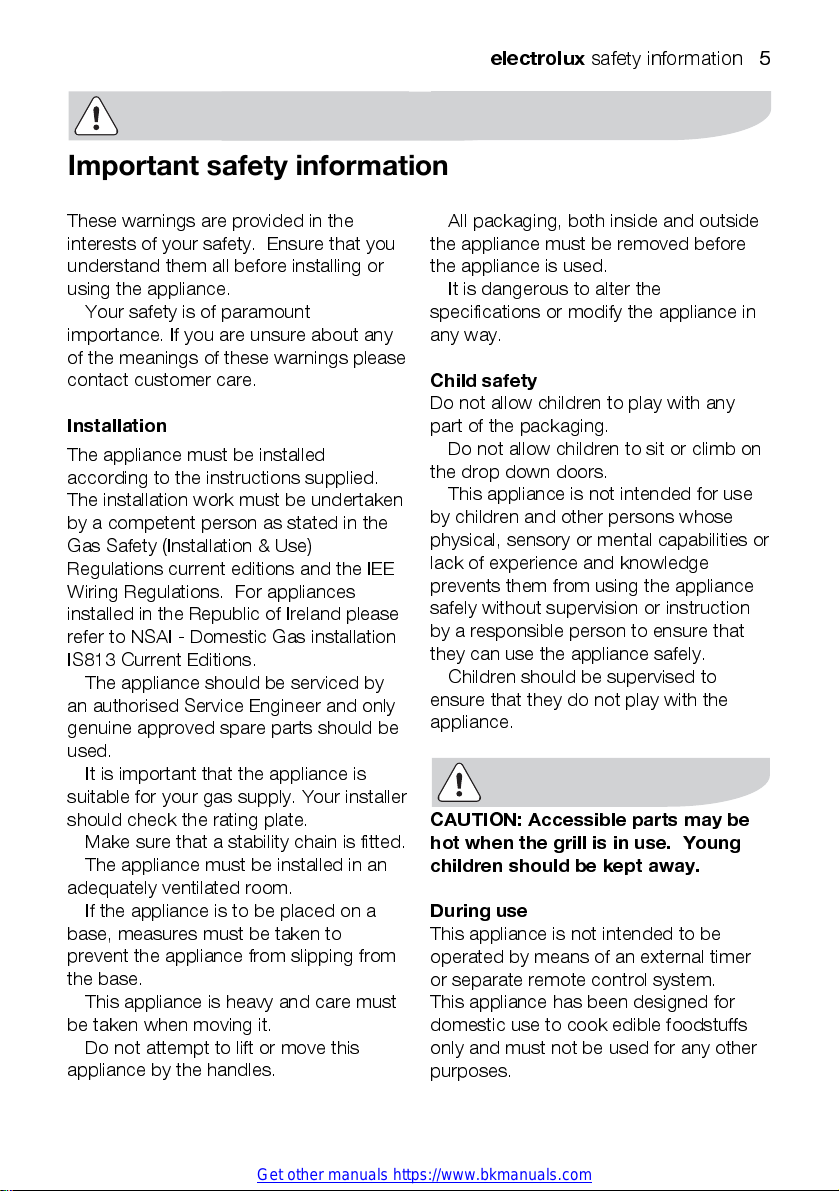

electrolux safety information 5
Important safety information
These warnings are provided in the
interests of your safety. Ensure that you
understand them all before installing or
using the appliance.
Your safety is of paramount
importance. If you are unsure about any
of the meanings of these warnings please
contact customer care.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be undertaken
by a competent person as stated in the
Gas Safety (Installation & Use)
Regulations current editions and the IEE
Wiring Regulations. For appliances
installed in the Republic of Ireland please
refer to NSAI - Domestic Gas installation
IS813 Current Editions.
The appliance should be serviced by
an authorised Service Engineer and only
genuine approved spare parts should be
used.
It is important that the appliance is
suitable for your gas supply. Your installer
should check the rating plate.
Make sure that a stability chain is fitted.
The appliance must be installed in an
adequately ventilated room.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance from slipping from
the base.
This appliance is heavy and care must
be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and outside
the appliance must be removed before
the appliance is used.
It is dangerous to alter the
specifications or modify the appliance in
any way.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb on
the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental capabilities or
lack of experience and knowledge
prevents them from using the appliance
safely without supervision or instruction
by a responsible person to ensure that
they can use the appliance safely.
Children should be supervised to
ensure that they do not play with the
appliance.
CAUTION: Accessible parts may be
hot when the grill is in use. Young
children should be kept away.
During use
This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any other
purposes.
Get other manuals https://www.bkmanuals.com

6 electrolux safety information
Take great care when heating fats and
oils as they will ignite if they become too
hot.
When you are lighting any burner
check that it is lit before you leave the
appliance. When turning off a burner, do
not leave the appliance until the flame
has gone out.
Never place plastic or any other
material that may melt in or on the oven.
Do not leave the grill pan handle in
position when grilling as it will become
hot.
Always support the grill pan when it is
in the withdrawn or partially withdrawn
position.
Always use oven gloves to remove and
place food in the oven.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
During use the appliance becomes hot.
Care should be taken to avoid touching
the heating elements inside the oven.
Ensure that all vents are not obstructed
to ensure ventilation of the oven cavity.
Never line any part of the appliance
with foil.
Always stand back from the appliance
when opening the oven door to allow any
build up of steam or heat to release.
Never leave the appliance
unattended when the oven doors are
open.
Do not place sealed cans or aerosols
inside the oven. They may explode if they
are heated.
Ensure that all control knobs are in the
OFF position when not in use.
Do not stand on the appliance or on
the open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its handles.
Do not use this appliance if it is in
contact with water. Never operate it with
wet hands.
Cleaning and maintenance
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.
Do not leave the cookware containing
foodstuff, e.g. fat or oil in the appliance
in case it is inadvertently switched on.
Do not disconnect the appliance
from the gas supply if the supply pipe
does not have a bayonet connection as
described in the installation section. If
this is the case contact the person who
installed the appliance.
Always allow the appliance to cool
before switching off at the wall prior to
carrying out any cleaning/maintenance
work.
Only clean this appliance in
accordance with the instructions given
in this book.
Never use steam or high-pressure
steam cleaners to clean the appliance.
Get other manuals https://www.bkmanuals.com

electrolux product description 7
Product description
Hob
Control Panel
Top Oven/Grill
Main Oven 
Hob Control
Main Oven Temperature Control
Electronic Timer
Top Oven/Grill Function Selector Control
Top Oven/Grill Temperature Control
Main Oven Indicator Neon
Top Oven/ Grill Indicator Neon
Ignition switch
Get other manuals https://www.bkmanuals.com

8 electrolux before using the appliance
Before using the appliance
Rating plate
This is situated on the lower front frame
of the appliance and can be seen upon
opening the door. Alternatively the
rating plate may also be found on the
back or top of some models (where
applicable).
The appliance must be protected by
a suitably rated fuse or circuit breaker.
The rating of the appliance is given
on the rating plate.
Do not remove the rating plate
from the appliance as this may
invalidate the guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.
The cooling fan for the controls
The cooling fan comes on immediately
when the grill/top oven is switched on
and after a short time when the main
oven is in use. It may run on after the
controls are switched off until the
appliance has cooled.
During the initial period the cooling
fan may turn on and off, this is quite
normal.
Always allow the cooling fan to
cool the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.
Control panel indicator neon(s)
The indicator neon will operate when
the grill (where applicable) or oven(s) is
switched on. The indicator neon will
glow. It may turn on and off during use
to show that the setting is being
maintained. If the neon does not
operate as the instructions indicate the
controls have been incorrectly set.
Return all controls to zero and reset
following the instructions for the
required setting.
Condensation and steam
When food is heated it produces steam
similar to a boiling kettle. The vents
allow some of this steam to escape.
However, always stand back from the
appliance when opening the door(s) to
allow any build up of steam or heat to
release.
If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is
quite normal and is not caused by a
fault on the appliance.
To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.
Get other manuals https://www.bkmanuals.com

electrolux before using the appliance 9
For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.
Cookware
Baking trays, dishes etc., should not be
placed directly against the grid
covering the fan at the back of the
oven.
Do not use baking trays larger than
30cm x 35cm (12” x 14”) as they will
restrict the circulation of heat and may
affect performance.
Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local service force centre.
1 grill pan
1 grill pan handle
1 grill pan grid
1 cranked shelf
(For grilling and top oven cooking)
2 cranked shelves
(For main oven cooking)
Get other manuals https://www.bkmanuals.com

10 electrolux operation
The timer
02:35
Key
1. Cook time indicator neon
2. End time indicator neon
3. Countdown indicator neon
4. Time indicator neon
5. Decrease control
6. Selector control
7. Increase control
The time of day must be set before
the main oven will operate
manually.
To set the time of day
The oven has a 24 hour clock.
When the electricity supply is first
switched on, the display will show
12:00
and the 'Time' indicator neon will
flash.
To set the correct time press the
increase control button and if
necessary, the decrease control button
until the correct time on the 24 hour
clock is reached. The 'Time' indicator
neon will flash for 5 seconds and
then go out.
The increase and decrease control
buttons operate slowly at first, and
then more rapidly. They should be
pressed separately.
To set the countdown
The 'Countdown' gives an audible
reminder at the end of any period of
cooking.
This cooking period may be up to 2
hrs 30 mins. It is not part of the
automatic control.
To set, press the Selector Control
button until the 'Countdown'
indicator neon is illuminated and
the display reads
0:00.
To set the required time duration,
press the increase control until the
display indicates the interval to be
timed. If necessary press the decrease
control to achieve the correct time
interval.
This must be completed within 5
seconds of first pressing the
Selector Control button.
During the operation of the
'Countdown', the remaining time
period will be shown in the display.
The 'Countdown' will sound
intermittently for up to 2 minutes at the
end of the timed period. The sound
can be stopped by pressing any button.
Get other manuals https://www.bkmanuals.com

electrolux operation 11
To cancel the countdown
If you change your mind and want to
cancel the 'Countdown', press the
Selector Control button until the
'Countdown' indicator neon
flashes then depress the decrease
control until
0:00 shows in the
display. The 'Countdown' indicator
neon will continue to flash for a
few seconds and then return to the
time of day.
To set the oven timer control
Only the main oven can be automatically
timed.
When using the timer control for the
very first time, it is advisable to let it
operate while you are at home. The
display can be checked to show that it
is operating correctly and you will feel
confident to leave a meal to cook
automatically in the future.
To set the timer to switch on and
off automatically
1.Ensure the electricity supply is
switched on and that the correct
time of day is displayed.
2.Place food in oven.
3.To set the length of cooking time.
Press the Selector Control button
until the 'Cook Time' indicator neon
is illuminated.
4.Press the increase control until
the required length of cooking time is
displayed. If necessary press the
decrease control until the correct
time interval is achieved. The
maximum cooking time is 10 hours.
5.Release the buttons. The 'Cook
Time' indicator neon will be
illuminated.
Remember, this must be
completed within 5 seconds of first
pressing the Selector Control
button.
6.To set the 'End Time'. Press the
Selector Control button until the
'End Time' indicator neon
flashes. Press the increase control
button until the required stop time
is displayed. If necessary press the
decrease control until the required
time interval is achieved.
7.Release the buttons. The time of day
will be displayed after 5 seconds.
The 'Cook Time' and 'End
Time' indicator neons will be
illuminated.
8.Set the main oven control to the
required temperature. The oven
indicator neon should be off.
When the automatic timed period
starts, the oven indicator neon will
turn on and off periodically during
cooking, showing that the
temperature is being maintained.
Get other manuals https://www.bkmanuals.com

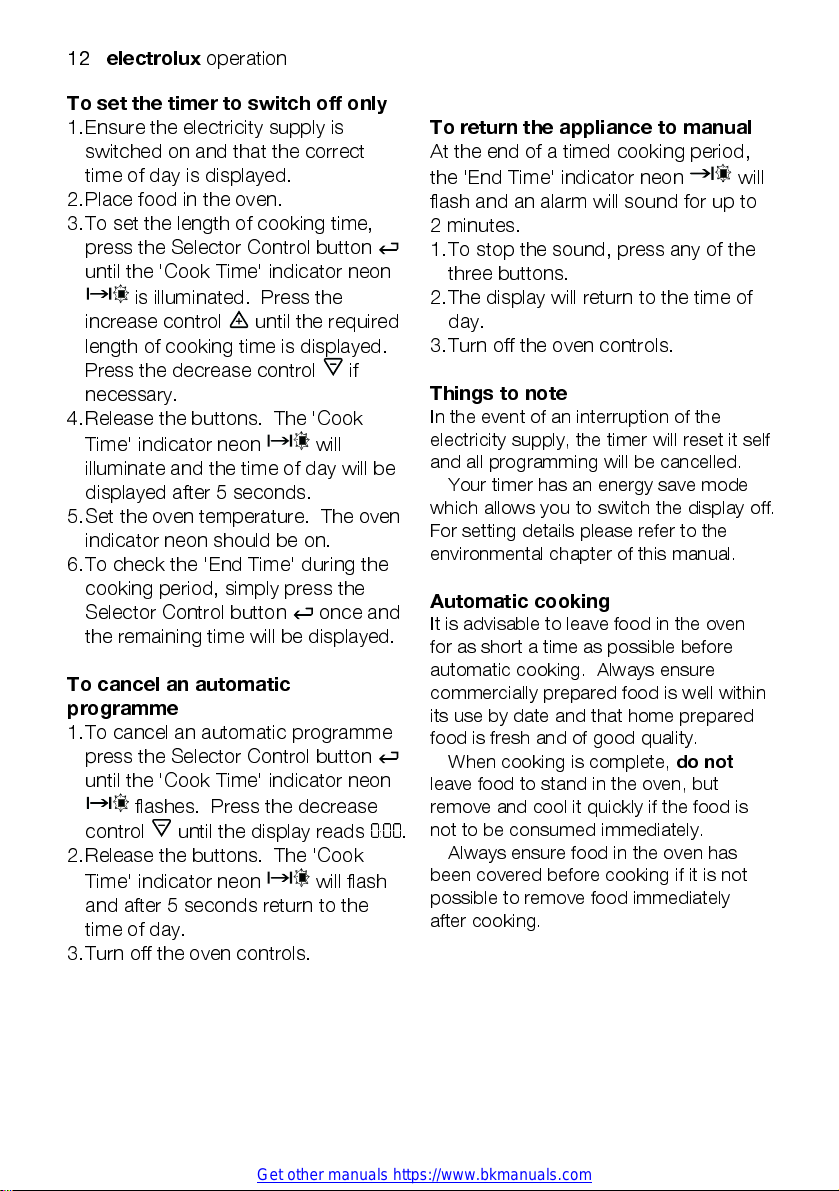

12 electrolux operation
To set the timer to switch off only
1.Ensure the electricity supply is
switched on and that the correct
time of day is displayed.
2.Place food in the oven.
3.To set the length of cooking time,
press the Selector Control button
until the 'Cook Time' indicator neon
is illuminated. Press the
increase control until the required
length of cooking time is displayed.
Press the decrease control if
necessary.
4.Release the buttons. The 'Cook
Time' indicator neon will
illuminate and the time of day will be
displayed after 5 seconds.
5.Set the oven temperature. The oven
indicator neon should be on.
6.To check the 'End Time' during the
cooking period, simply press the
Selector Control button once and
the remaining time will be displayed.
To cancel an automatic
programme
1.To cancel an automatic programme
press the Selector Control button
until the 'Cook Time' indicator neon
flashes. Press the decrease
control until the display reads
0:00 .
2.Release the buttons. The 'Cook
Time' indicator neon will flash
and after 5 seconds return to the
time of day.
3.Turn off the oven controls.
To return the appliance to manual
At the end of a timed cooking period,
the 'End Time' indicator neon will
flash and an alarm will sound for up to
2 minutes.
1.To stop the sound, press any of the
three buttons.
2.The display will return to the time of
day.
3.Turn off the oven controls.
Things to note
In the event of an interruption of the
electricity supply, the timer will reset it self
and all programming will be cancelled.
Your timer has an energy save mode
which allows you to switch the display off.
For setting details please refer to the
environmental chapter of this manual.
Automatic cooking
It is advisable to leave food in the oven
for as short a time as possible before
automatic cooking. Always ensure
commercially prepared food is well within
its use by date and that home prepared
food is fresh and of good quality.
When cooking is complete, do not
leave food to stand in the oven, but
remove and cool it quickly if the food is
not to be consumed immediately.
Always ensure food in the oven has
been covered before cooking if it is not
possible to remove food immediately
after cooking.
Get other manuals https://www.bkmanuals.com

electrolux operation 13
The gas hob
The gas hob has different burner sizes
to suit different types of cooking:
To ensure maximum burner
efficiency only use pots and pans with
flat bases appropriate to the burner
size used.
Larger burner (Rapid or triple crown
where applicable) - use a large pan for
food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering foods such as soups and
stews.
The largest pan which you should
use on any burner is 230mm (9"). The
base of the smallest pan should not
measure less than 100mm (4").
Ensure the pan supports are
correctly fitted before using the
hob.
To light the hob burners
The hob ignition works by means of an
electric spark system.
• Lift up the lid. You cannot use the
hob when the lid is down.
• Push in and hold the control knob,
turn to the large flame symbol .
• Press the ignition button
immediately. Keep the control
knob depressed for up to 5
seconds, but no longer than 10
seconds. After this time release
the controls. The flame should
remain alight. If after 10 seconds
the burner has not lit, stop
operating the appliance and wait at
least 1 min before attempting a
further ignition of the burner.
• When the burner has lit release the
control and ignition button, adjust
the setting as required.
Warning: If the ignition button is
not pressed immediately a build up
of gas may cause the flame to
spread.
When lighting any burner, ensure
that it is lit before you leave the
appliance.
If you close the lid of the appliance
while any of the hob burners are lit,
the gas will go out. This is because
it would be dangerous if the
burners stayed on when the lid was
closed.
Always use the control knob to
turn off a burner. Do not use the lid
as a cut-off device. This will only
cut off the gas when the lid is
closed. The gas will flow again
when the lid is opened.
Get other manuals https://www.bkmanuals.com

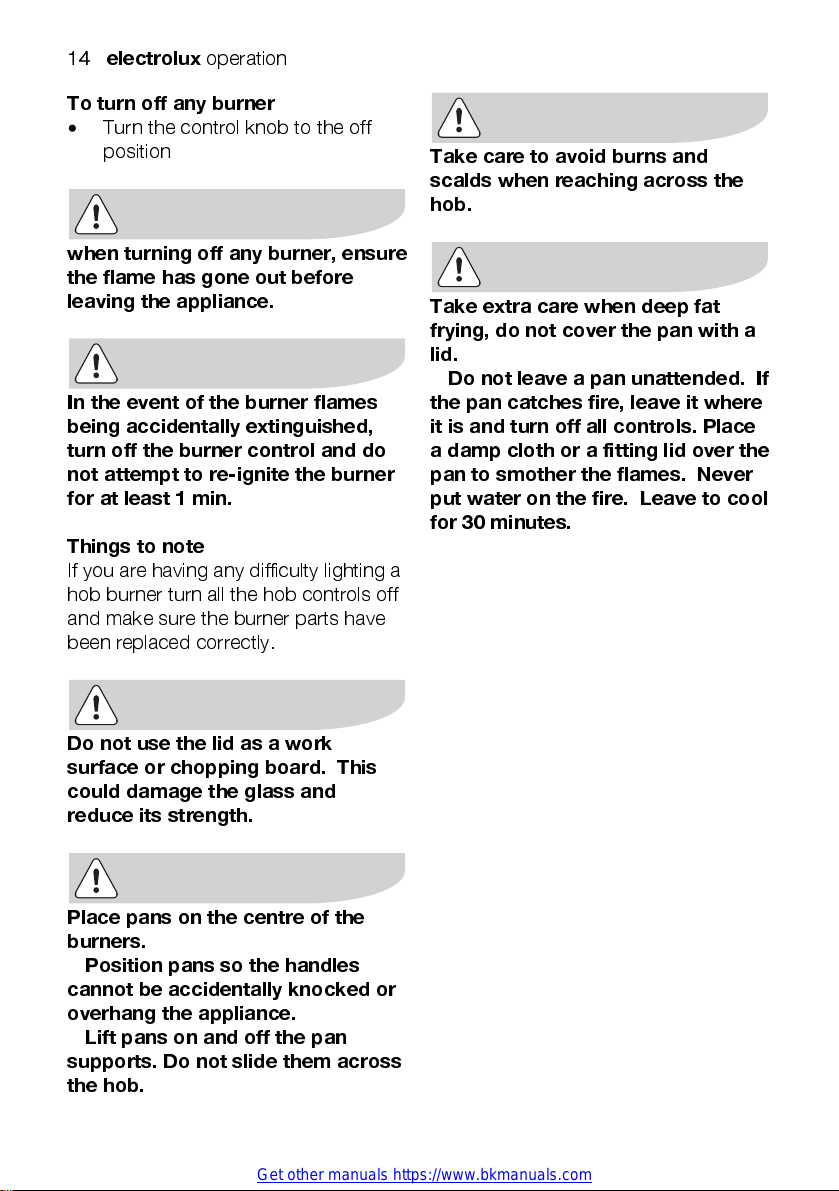

14 electrolux operation
To turn off any burner
• Turn the control knob to the off
position
when turning off any burner, ensure
the flame has gone out before
leaving the appliance.
In the event of the burner flames
being accidentally extinguished,
turn off the burner control and do
not attempt to re-ignite the burner
for at least 1 min.
Things to note
If you are having any difficulty lighting a
hob burner turn all the hob controls off
and make sure the burner parts have
been replaced correctly.
Do not use the lid as a work
surface or chopping board. This
could damage the glass and
reduce its strength.
Place pans on the centre of the
burners.
Position pans so the handles
cannot be accidentally knocked or
overhang the appliance.
Lift pans on and off the pan
supports. Do not slide them across
the hob.
Take care to avoid burns and
scalds when reaching across the
hob.
Take extra care when deep fat
frying, do not cover the pan with a
lid.
Do not leave a pan unattended. If
the pan catches fire, leave it where
it is and turn off all controls. Place
a damp cloth or a fitting lid over the
pan to smother the flames. Never
put water on the fire. Leave to cool
for 30 minutes.
Get other manuals https://www.bkmanuals.com

electrolux operation 15
The grill
CAUTION: Accessible parts may be
hot when the grill is in use. Young
children should be kept away.
The grill on this appliance has been
designed to heat up more quickly than
conventional grill elements. It provides
quick, direct heat and no preheating is
necessary.
Using the grill
• To operate the grill select the grill
function for full grill.
• Turn the Grill temperature control
knob to the right as far as it will go.
This is the hottest setting.
• To use the grill at lower settings,
turn the Grill temperature control
knob to a lower setting.
Things to note
• The cooling fan for the controls
may operate after a time.
• Some smoke from fat splashes
may be evident as the grill cleans
itself.
• The Top oven cannot be operated
when the grill is in use.
To fit the grill pan handle
Press the button on the handle and
insert the lip into the widest part of the
bracket. Slide the handle towards the
left and release the button.
Ensure the handle is correctly
located when lifting the grill pan.
To remove the handle, press the button
on the handle and slide the handle
towards the right. Release the button.
Protect your hands when removing
the grill pan handle.
Always remove the grill pan
handle during grilling.
Place the grill pan on the shelf so that
the pan is positioned centrally beneath
the grill. Ensure that the cut out on the
underside of the handle bracket locates
between the bars of the shelf.
Get other manuals https://www.bkmanuals.com

16 electrolux operation
The top oven
The top oven is the smaller of the two
ovens. It is heated by elements in the
top and bottom of the oven. It is
designed for cooking smaller quantities
of food. It gives especially good results
if used to cook fruitcakes, sweets and
savoury flans or quiche.
The top oven is ideal for use as a
warming compartment. Use the lowest
setting on the top oven temperature
control.
Using the top oven
• Turn the top oven/grill selector to
top oven .
• Turn the top oven temperature
control to the required setting.
Things to note
• The oven light will illuminate.
• The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.
• The cooling fan for the controls
may operate after a time.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.
To fit the top oven shelf
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear.
To install a shelf, reverse the above
steps. Each shelf position has an
upper and lower support wire, ensure
the shelf is placed between these two
support wires.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
Get other manuals https://www.bkmanuals.com

electrolux operation 17
The main oven
The fan oven is particularly suitable for
cooking larger quantities of food. The
advantages of fan oven cooking are:
Preheating
The fan oven quickly reaches its
temperature, so it is not usually
necessary to preheat the oven.
Without preheating however, you may
need to add an extra 5 – 10 minutes on
the recommended cooking times. For
recipes needing high temperatures, e.g.
bread, pastries, scones, soufflés etc.,
best results are achieved if the oven is
preheated first. For best results when
cooking frozen or cooked chilled ready
meals always preheat the oven first.
Cooking temperatures
Fan oven cooking generally requires
lower temperatures than conventional
cooking. Follow the temperatures
recommended in the cooking chart.
As a guide reduce temperatures by
about 20°C – 25°C for your own
recipes, using a conventional oven.
Batch baking
The fan oven cooks evenly on all shelf
levels, especially useful when batch
baking.
Using the main oven
• Turn the main oven temperature
control to the required setting.
Things to note
• The oven light will illuminate.
• The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.
• The cooling fan for the controls
may operate after a time.
To fit the main oven shelves
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear. To install a shelf,
reverse the above steps.
Each shelf position has an upper and
lower support wire, ensure the shelf is
placed between these two support
wires.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
Get other manuals https://www.bkmanuals.com

18 electrolux operation
Defrost feature
This function defrosts most foods
faster than more conventional methods.
It is particularly suitable for delicate
frozen foods, which are to be served
cold e.g. cream filled gateaux, cakes
covered with icings or frostings,
cheesecakes, biscuits, scones, etc.
Using the defrost feature
• Turn the main oven temperature
control to the defrost setting.
Things to note
• The oven fan and interior light will
come on.
Get other manuals https://www.bkmanuals.com

electrolux programme charts 19
Grilling chart
FOOD GRILL TIME (mins in total)
Bacon Rashers 5 - 6
Beef Burgers 10 - 15
Chicken Joints 30 - 40
Lamb Chops 15 - 20
Pork Chops 20 - 30
Whole Trout/Mackerel 15 - 25
Plaice/Cod Fillets 10 - 15
Kebabs 20 - 30
Kidneys – Lamb/Pig 8 - 12
Liver – Lamb/Pig 10 - 20
Sausages 20 - 30
Steak – Rare 6 - 12
Steak – Medium 12 - 16
Steak – Well Done 14 - 20
Toasted Sandwiches 3 - 4
The times quoted above are given as a guide and should be adjusted to
suit personal taste.
Adjust the grill setting and the grill pan grid to suite different thicknesses of food.
Get other manuals https://www.bkmanuals.com

20 electrolux programme charts
Oven cooking chart
The oven temperatures are intended as a guide only. It may be necessary to
increase or decrease the temperatures to suit individual preferences and
requirements.
FAN OVEN TOP OVEN
FOOD
COOKING
TEMP °C POS COOKING TEMP °C APPROX COOK TIME (m)
Biscuits 180 - 190 4 170 - 190 10 - 20
Bread 200 - 220 1 200 - 220 25 - 30
Bread rolls/buns 200 - 220 1 200 - 220 15 - 20
Small / Queen
Cakes 160 - 170 4 170 - 180 18 - 25
Sponges 160 - 170 3 160 - 170 18 - 20
Victoria Sandwich 160 - 170 3 160 - 170 18 - 25
Madeira Cake 140 - 150 2 140 - 150 1¼ - 1½h
Rich Fruit Cake 130 - 140 2 140 - 150 2¼ - 2½h
Christmas Cake 130 - 140 1 130 - 140 3 - 4½h
Gingerbread 140 - 150 3 140 - 150 1¼ - 1½h
Meringues 80 - 100 2 90 - 100 2½ - 3h
Flapjack 170 - 180 3 170 - 180 25 - 30
Shortbread 130 - 140 3 140 - 150 45 - 65
Fruit Pies, Crumbles 190 - 200 2 190 - 200 40 - 50
Milk Puddings 130 - 140 3 140 - 150 1½ - 2h
Scones 210 - 220 4 220 - 230 8 - 12
Get other manuals https://www.bkmanuals.com
