Electrolux EOD67642 User manual

user manual
Cooker
EKC6046
EKC6047
EOD67642
Oven

We were thinking of you
when we made this product

electrolux welcome 3
Welcome to the world of Electrolux
You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!

4 electrolux contents
Contents
Important safety information 5
Product description 7
Before using the appliance 9
Operation 11
Programme charts 27
Hints and tips 34
What to do if… 38
Care and cleaning 40
Technical data 45
Installation 46
Environment 52
Guarantee / Customer care 53
European guarantee 55
The following symbols are used in
this user manual:
Important information concerning
your personal safety and
information on how to avoid
damaging the appliance.
General information and tips
Environmental information

electrolux important safety information 5
Important safety information
These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance.
Your safety is of paramount
importance. If you are unsure about
any of the meanings of these warnings
please contact customer care.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be
undertaken by a qualified electrician or
competent person.
The appliance should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used.
The appliance must be installed in an
adequately ventilated room.
It is imperative that the appliance is
left in the base to protect both the
appliance and the floor.
This appliance is heavy and care
must be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and
outside the appliance must be
removed before the appliance is used.
It is dangerous to alter the
specifications or modify the appliance
in any way.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb
on the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental capabilities
or lack of experience and knowledge
prevents them from using the
appliance safely without supervision or
instruction by a responsible person to
ensure that they can use the appliance
safely.
Children should be supervised to
ensure that they do not play with the
appliance.
CAUTION: Accessible parts may be
hot. Young children should be kept
away.
During use
This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any
other purposes.
Take great care when heating fats
and oils as they will ignite if they
become too hot.

6 electrolux important safety information
Never place plastic or any other
material that may melt in or on the oven.
Do not leave the grill pan handle in
position when grilling as it will become
hot.
Always use oven gloves to remove
and replace the grill pan handle when
grilling.
Always support the grill pan when it
is in the withdrawn or partially
withdrawn position.
Always use oven gloves to remove
and place food in the oven.
During use the appliance becomes
hot. Care should be taken to avoid
touching the heating elements inside
the oven.
Ensure that all vents are not
obstructed to ensure ventilation of the
oven cavity.
Never line any part of the appliance
with foil.
Always stand back from the
appliance when opening the oven door
to allow any build up of steam or heat
to release.
Stand clear when opening the drop
down doors. Support the doors using
the handles until fully open.
Never leave the appliance
unattended when the oven door is
open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Do not stand on the appliance or on
the open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
Cleaning and maintenance
For hygiene and safety reasons this
appliance should be kept clean at
all times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.
Do not leave cookware containing
foodstuffs, e.g. fat or oil in the
appliance in case it is inadvertently
switched on.
Always allow the appliance to cool
before switching off at the wall prior to
carrying out any cleaning/maintenance
work.
Only clean this appliance in
accordance with the instructions given
in this book.
Never use steam or high pressure
steam cleaners to clean the appliance.

electrolux product description 7
Product description
Control Panel
Top Oven/Grill
Main Oven

8 electrolux product description
Product description continued
9
10
11
12
13
14
15
16
On / Off switch
Top oven and main oven cavity selector
Function selector
Temperature review
Timer selector control
Time / temperature decrease selector
Time / temperature increase selector
Light Bar (The light bar will glow when you turn the oven on
and when a cavity is selected. If no action is taken within
2 minutes of turing on the oven or selecting a cavity the
oven will turn off but the light bar will remain on. To turn
the light bar off turn the oven on py pressing and then
turn the oven off by pressing )
Timer indicators
Operating time
Keep warm indicator
Temperature / Time
Heat indicator
Light / Defrost indicators
Oven function
Cavity indicator

electrolux before using the appliance 9
Before using the appliance
Rating plate
This is situated on the front frame of
the appliance and can be seen upon
opening the door. Alternatively the
rating plate may also be found on the
back or top of some models (where
applicable).
The appliance must be protected by
a suitably rated fuse or circuit breaker.
The rating of the appliance is given
on the rating plate.
Do not remove the rating plate from
the appliance as this may invalidate the
guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.
The cooling fan for the controls
The cooling fan comes on after a
short time. It runs on after the controls
are switched off until the appliance has
cooled. During the initial period the
cooling fan may turn ON and OFF, this
is quite normal.
Always allow the cooling fan to
cool the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.
On/Off push button
The oven must be switched on before
setting any cooking function or
programme. When the on/off button
is pressed and held, the cavity symbol
will show in the electronic display.
To switch off the oven, you can press
and hold the on/off button at any
time. Any cooking function or
programme will stop, the oven light and
light bar will switch off and the
electronic display will show the time of
day only.
Oven function selector push
buttons
Push button to allow you to select
the second or main oven cavity.
Push button to allow you to select
the cooking function. Each time you
push this button a symbol will appear
in the display, showing what cooking
function has been selected.
Operating time
The operating time display shows how
long the oven has been operating. This
display can only be seen if none of the
clock functions Countdown , Cook
Time or End Time are set.

10 electrolux before using the appliance
Condensation and steam
When food is heated it produces steam
similar to a boiling kettle. The vents allow
some of this steam to escape. However,
always stand back from the appliance
when opening the door(s) to allow any
build up of steam or heat to release.
If the steam comes into contact with a
cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is quite
normal and is not caused by a fault on
the appliance.
To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.
For your safety wall coverings at the
rear of the appliance should be securely
fixed to the wall.
Cookware
Baking trays, dishes etc., should not be
placed directly against the grid covering
the fan at the back of the oven.
Do not use baking trays larger than
30cm x 35cm (12” x 14”) as they will
restrict the circulation of heat and may
affect performance.

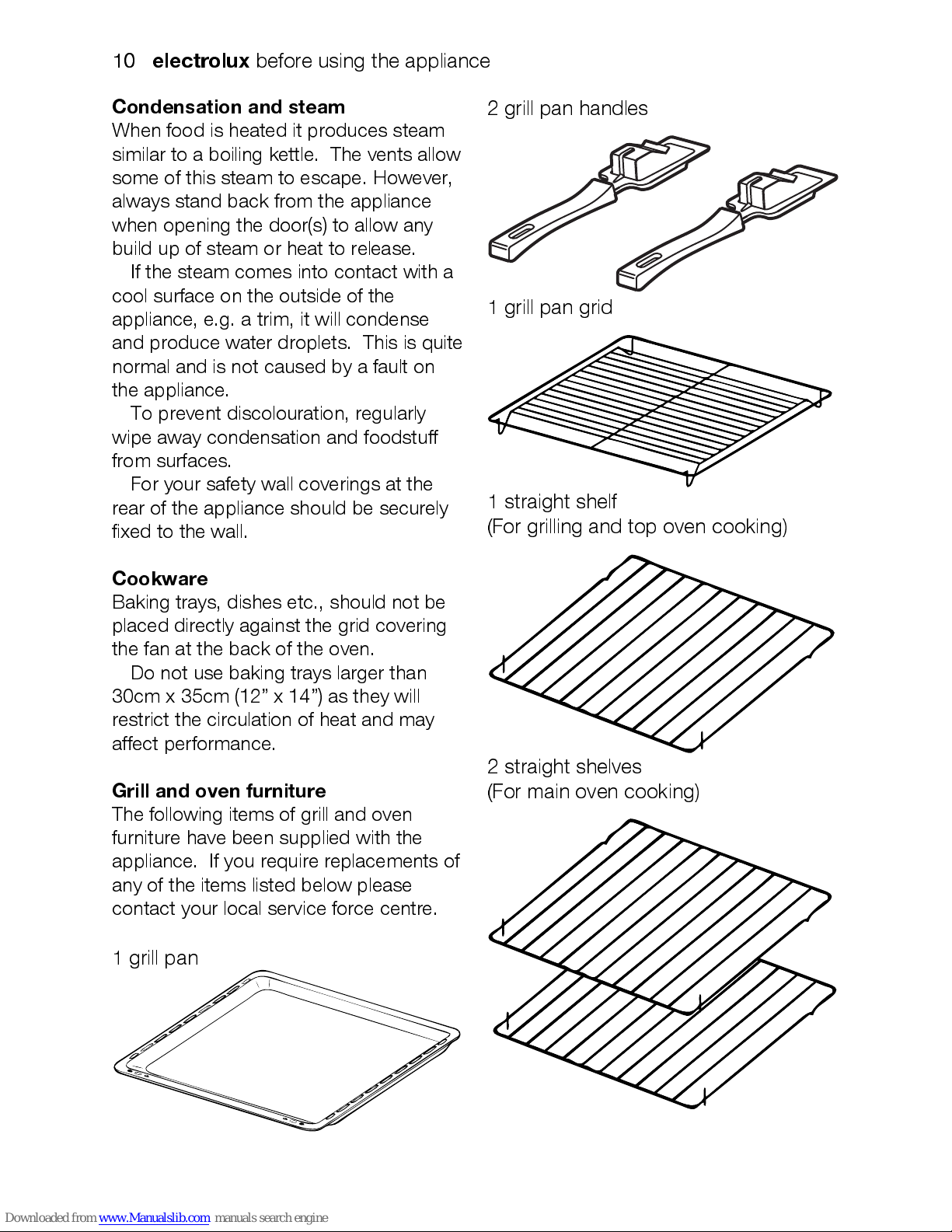

Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements of
any of the items listed below please
contact your local service force centre.
1 grill pan
2 grill pan handles
1 grill pan grid
1 straight shelf
(For grilling and top oven cooking)
2 straight shelves
(For main oven cooking)

electrolux operation 11

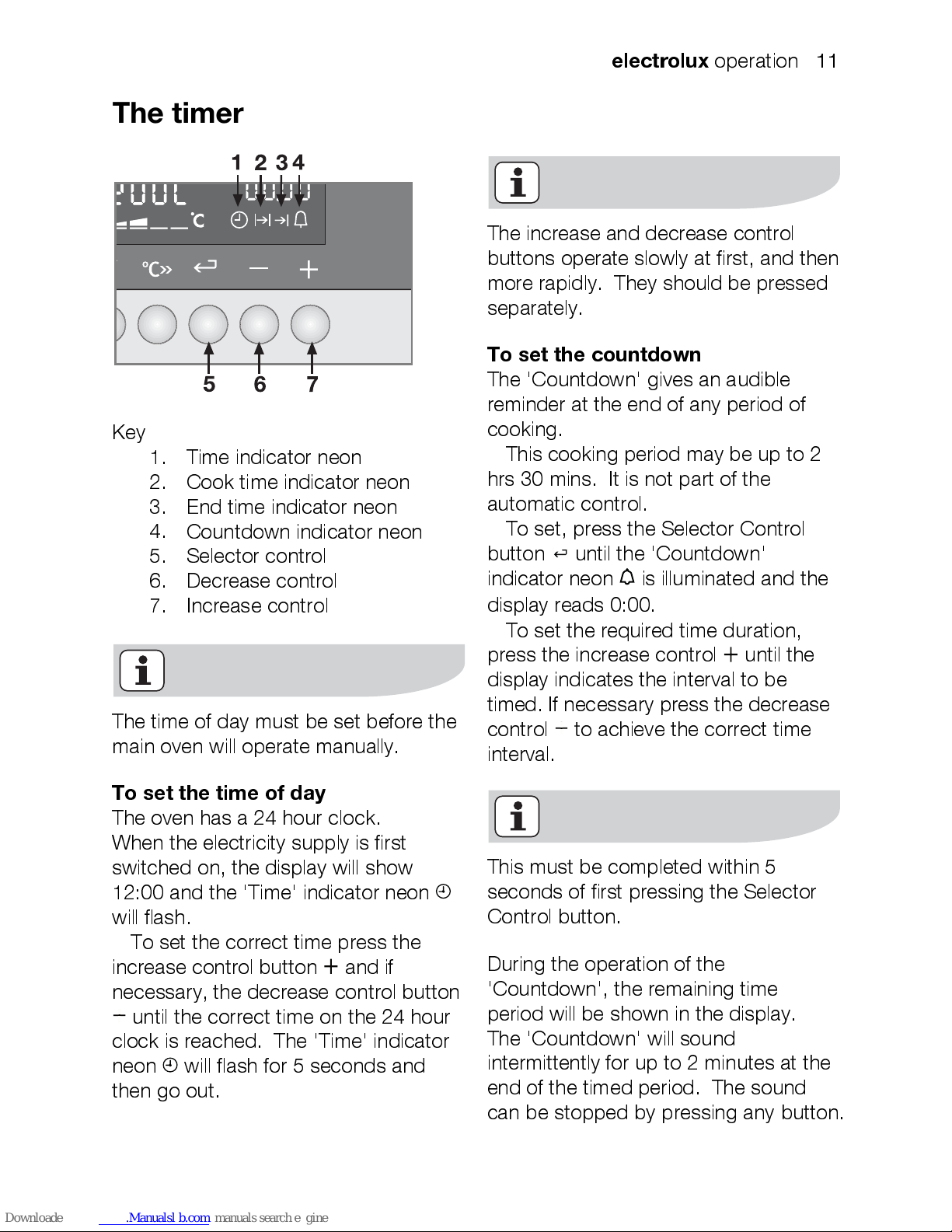

The timer
Key 1.
Time indicator neon
2.
Cook time indicator neon
3.
End time indicator neon
4.
Countdown indicator neon
5.
Selector control
6.
Decrease control
7.
Increase control
The time of day must be set before the
main oven will operate manually.
To set the time of day
The oven has a 24 hour clock.
When the electricity supply is first
switched on, the display will show
12:00 and the 'Time' indicator neon
will flash.
To set the correct time press the
increase control button and if
necessary, the decrease control button
until the correct time on the 24 hour
clock is reached. The 'Time' indicator
neon will flash for 5 seconds and
then go out.
The increase and decrease control
buttons operate slowly at first, and then
more rapidly. They should be pressed
separately.
To set the countdown
The 'Countdown' gives an audible
reminder at the end of any period of
cooking.
This cooking period may be up to 2
hrs 30 mins. It is not part of the
automatic control.
To set, press the Selector Control
button until the 'Countdown'
indicator neon is illuminated and the
display reads 0:00
.
To set the required time duration,
press the increase control until the
display indicates the interval to be
timed. If necessary press the decrease
control to achieve the correct time
interval.
This must be completed within 5
seconds of first pressing the Selector
Control button.
During the operation of the
'Countdown', the remaining time
period will be shown in the display.
The 'Countdown' will sound
intermittently for up to 2 minutes at the
end of the timed period. The sound
can be stopped by pressing any button.

12 electrolux operation
To cancel the countdown
If you change your mind and want to
cancel the 'Countdown', press the
Selector Control button until the
'Countdown' indicator neon flashes
then depress the decrease control
until 0:00 shows in the display. The
'Countdown' indicator neon will
continue to flash for a few seconds and
then return to the time of day.
To set the oven timer control
Only the main oven can be automatically
timed.
When using the timer control for the
very first time, it is advisable to let it
operate while you are at home. The
display can be checked to show that it
is operating correctly and you will feel
confident to leave a meal to cook
automatically in the future.
To set the timer to switch on and
off automatically
1.
Ensure the electricity supply is
switched on and that the correct
time of day is displayed.
2.
Place food in oven.
3.
To set the length of cooking time.
Press the Selector Control button
until the 'Cook Time' indicator neon
is illuminated.
4.
Press the increase control until the
required length of cooking time is
displayed. If necessary press the
decrease control until the correct
time interval is achieved. The
maximum cooking time is 10 hours.
5.
Release the buttons. The 'Cook
Time' indicator neon will be
illuminated.
Remember, this must be completed
within 5 seconds of first pressing the
Selector Control button.
6.
To set the 'End Time'. Press the
Selector Control button until the
'End Time' indicator neon flashes.
Press the increase control button
until the required stop time is
displayed. If necessary press the
decrease control until the required
time interval is achieved.
7.
Release the buttons. The time of day
will be displayed after 5 seconds.
The 'Cook Time' and 'End Time'
indicator neons will be illuminated.
8.
Set the main oven control to the
required temperature. The heat
indicator neon should be off.

electrolux operation 13
To set the timer to switch off only
1.
Ensure the electricity supply is
switched on and that the correct
time of day is displayed.
2.
Place food in the oven.
3.
To set the length of cooking time,
press the Selector Control button
until the 'Cook Time' indicator neon
is illuminated. Press the increase
control until the required length of
cooking time is displayed. Press the
decrease control if necessary.
4.
Release the buttons. The 'Cook
Time' indicator neon will illuminate
and the time of day will be displayed
after 5 seconds.
5.
Set the oven temperature. The oven
indicator neon should be on.
6.
To check the 'End Time' during the
cooking period, simply press the
Selector Control button once and
the remaining time will be displayed.
To cancel an automatic
programme
1.
To cancel an automatic programme
press the Selector Control button
until the 'Cook Time' indicator neon
flashes. Press the decrease
control until the display reads 0:00.
2.
Release the buttons. The 'Cook
Time' indicator neon will flash and
after 5 seconds return to the time of
day.
3.
Turn off the oven.
To return the appliance to manual
At the end of a timed cooking period,
the 'End Time' indicator neon will
flash and an alarm will sound for up to
2 minutes.
1.
To stop the sound, press any of the
three timer buttons (5,6 or 7).
2.
The display will return to the time of
day.
3.
Turn off the oven controls.
Things to note
In the event of an interruption of the
electricity supply, the timer will reset it self
and all programming will be cancelled.
Automatic cooking
It is advisable to leave food in the oven
for as short a time as possible before
automatic cooking. Always ensure
commercially prepared food is well within
its use by date and that home prepared
food is fresh and of good quality.
When cooking is complete, do not
leave food to stand in the oven, but
remove and cool it quickly if the food is
not to be consumed immediately.
Always ensure food in the oven has
been covered before cooking if it is not
possible to remove food immediately
after cooking.

14 electrolux operation

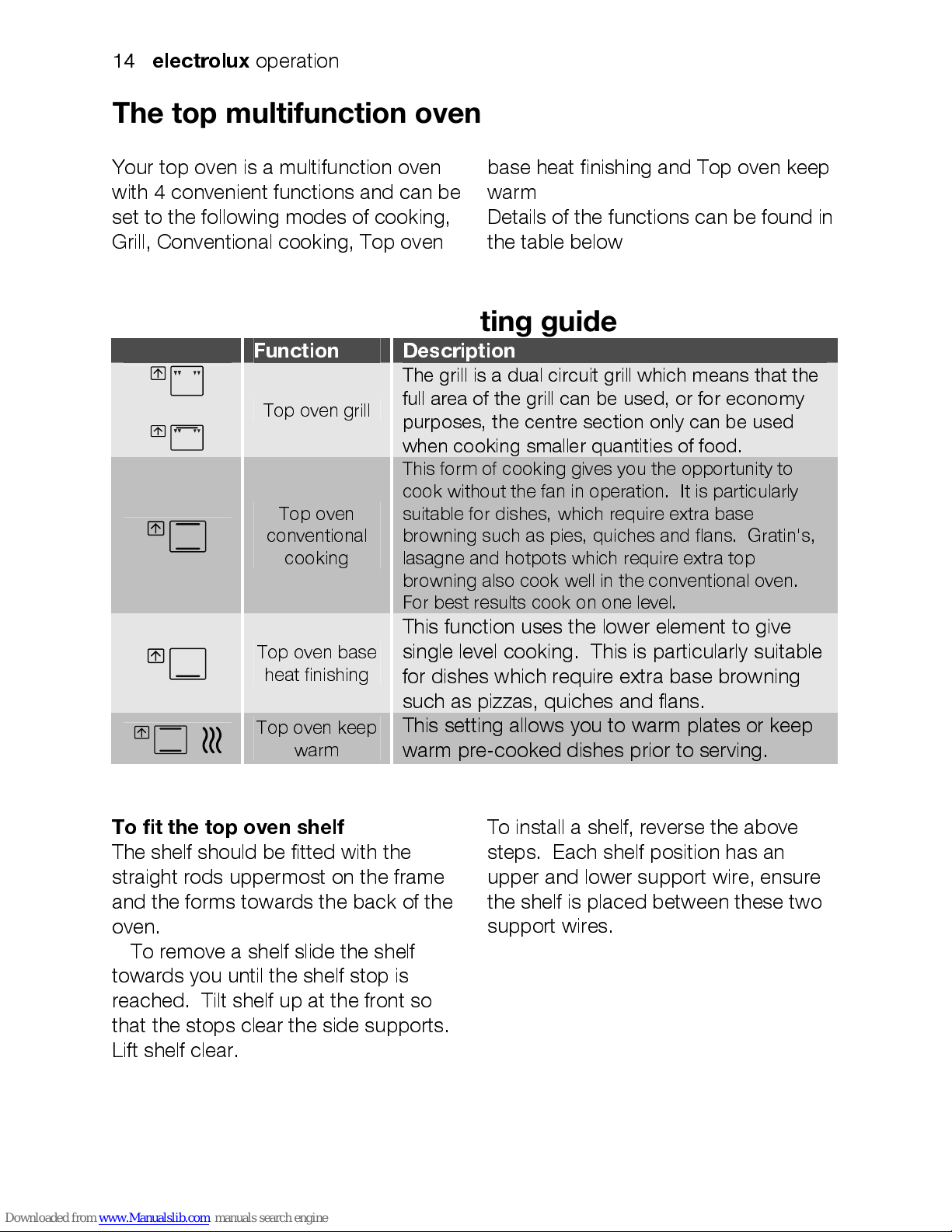

The top multifunction oven
Your top oven is a multifunction oven
with 4 convenient functions and can be
set to the following modes of cooking,
Grill, Conventional cooking, Top oven
base heat finishing and Top oven keep
warm
Details of the functions can be found in
the table below
Top multifunction oven setting guide
Function Description
Top oven grill
The grill is a dual circuit grill which means that the
full area of the grill can be used, or for economy
purposes, the centre section only can be used
when cooking smaller quantities of food.
Top oven
conventional
cooking
This form of cooking gives you the opportunity to
cook without the fan in operation. It is particularly
suitable for dishes, which require extra base
browning such as pies, quiches and flans. Gratin's,
lasagne and hotpots which require extra top
browning also cook well in the conventional oven.
For best results cook on one level.
Top oven base
heat finishing
This function uses the lower element to give
single level cooking. This is particularly suitable
for dishes which require extra base browning
such as pizzas, quiches and flans.
Top oven keep
warm
This setting allows you to warm plates or keep
warm pre-cooked dishes prior to serving.
To fit the top oven shelf
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear.
To install a shelf, reverse the above
steps. Each shelf position has an
upper and lower support wire, ensure
the shelf is placed between these two
support wires.

electrolux operation 15

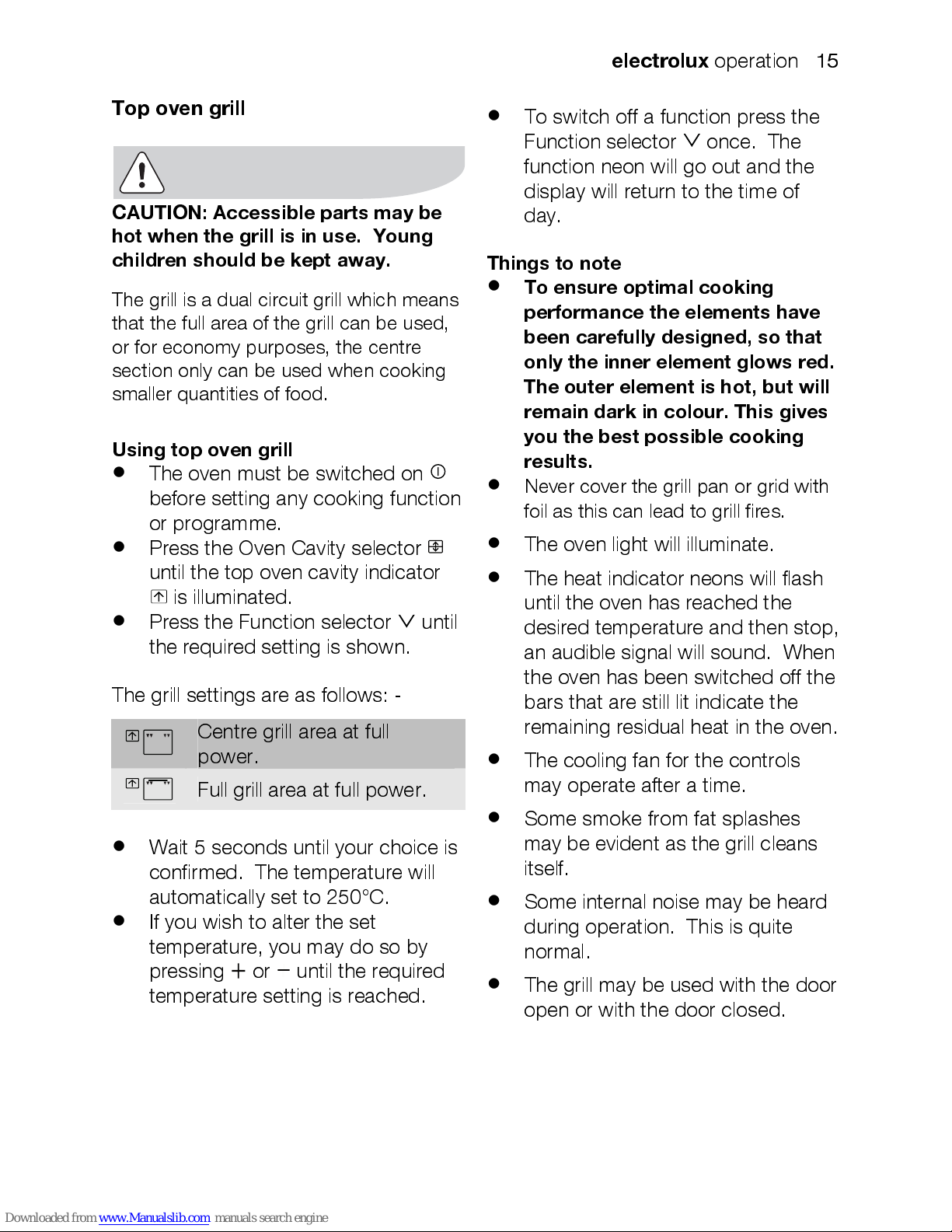

Top oven grill
CAUTION: Accessible parts may be
hot when the grill is in use. Young
children should be kept away.
The grill is a dual circuit grill which means
that the full area of the grill can be used,
or for economy purposes, the centre
section only can be used when cooking
smaller quantities of food.
Using top oven grill
• The oven must be switched on
before setting any cooking function
or programme.
• Press the Oven Cavity selector
until the top oven cavity indicator
is illuminated.
• Press the Function selector until
the required setting is shown.
The grill settings are as follows: -
Centre grill area at full
power.
Full grill area at full power.
• Wait 5 seconds until your choice is
confirmed. The temperature will
automatically set to 250°C.
• If you wish to alter the set
temperature, you may do so by
pressing or until the required
temperature setting is reached.
• To switch off a function press the
Function selector once. The
function neon will go out and the
display will return to the time of
day.
Things to note
• To ensure optimal cooking
performance the elements have
been carefully designed, so that
only the inner element glows red.
The outer element is hot, but will
remain dark in colour. This gives
you the best possible cooking
results.
• Never cover the grill pan or grid with
foil as this can lead to grill fires.
• The oven light will illuminate.
• The heat indicator neons will flash
until the oven has reached the
desired temperature and then stop,
an audible signal will sound. When
the oven has been switched off the
bars that are still lit indicate the
remaining residual heat in the oven.
• The cooling fan for the controls
may operate after a time.
• Some smoke from fat splashes
may be evident as the grill cleans
itself.
• Some internal noise may be heard
during operation. This is quite
normal.
• The grill may be used with the door
open or with the door closed.

16 electrolux operation
To fit the grill pan handle
Place the wirework under the cut out in
the pan so that the metal plate hooks
over the top of the grill pan.
Ensure the handle is correctly
located when lifting the grill pan.
To remove the handles, lift away from the
cut out on the grill pan.
Always remove the grill pan handle
during grilling.
Protect your hands when removing
the grill pan handle.
Place the grill pan on the shelf so that the
pan is positioned centrally beneath the
grill.
Top oven conventional cooking
The top oven is the smaller of the two
ovens. It is heated by elements in the
top and bottom of the oven. It is
designed for cooking smaller quantities
of food. It gives especially good results
if used to cook fruitcakes, sweets and
savoury flans or quiche.
The top oven is ideal for use as a
warming compartment. It can be used
to warm dishes and keep food hot.
Use the lowest setting on the top oven
temperature control.
Using top oven conventional
cooking
• The oven must be switched on
before setting any cooking function
or programme.
• Press the Oven Cavity selector
until the top oven cavity indicator
is illuminated.
• Press the Function selector until
the required setting is
illuminated.
• Wait 5 seconds until your choice is
confirmed. The temperature will
automatically set to 200°C.
• If you wish to alter the set
temperature, you may do so by
pressing or until the required
temperature setting is reached.
• To switch off a function press the
Function selector once. The
function neon will go out and the
display will return to the time of
day.

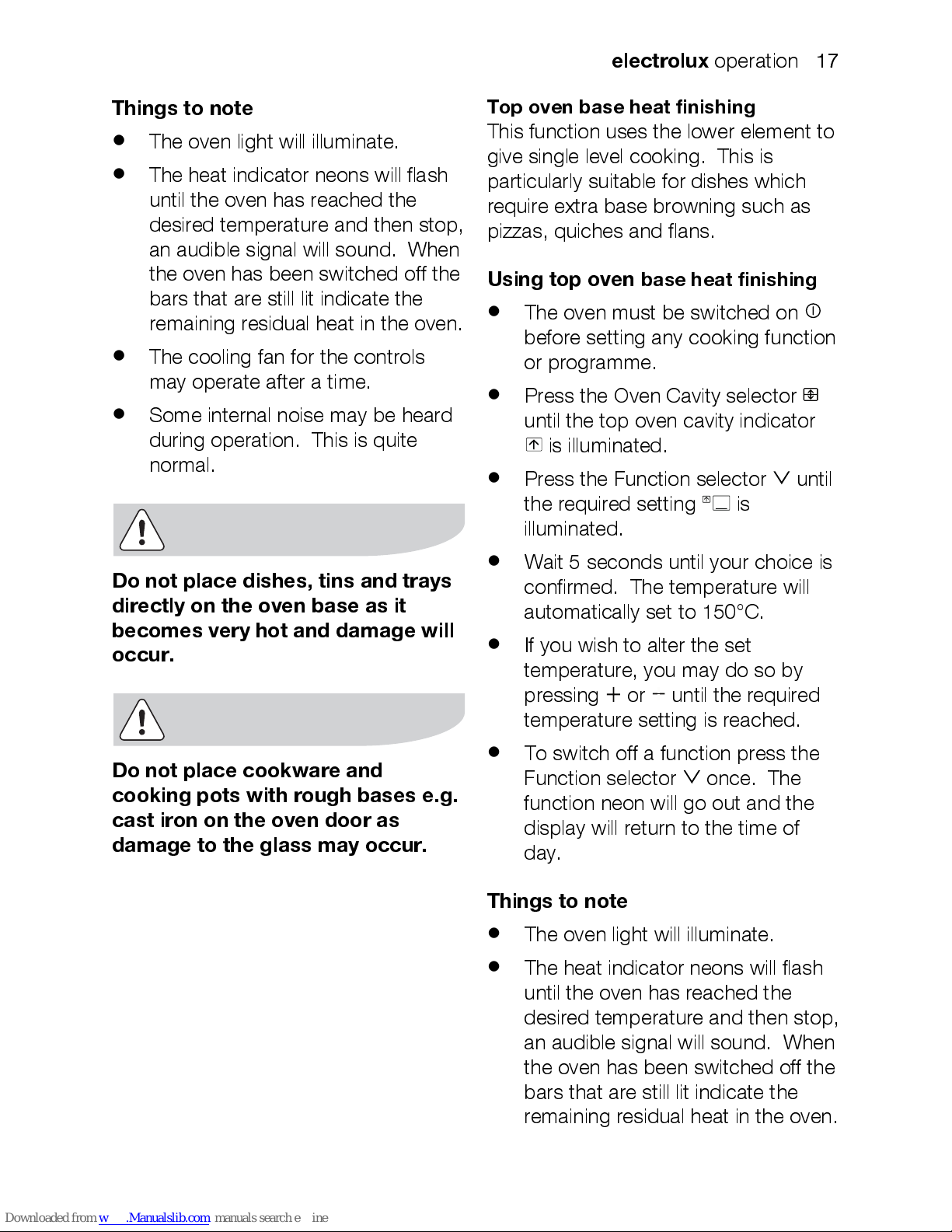

electrolux operation 17
Things to note
• The oven light will illuminate.
• The heat indicator neons will flash
until the oven has reached the
desired temperature and then stop,
an audible signal will sound. When
the oven has been switched off the
bars that are still lit indicate the
remaining residual heat in the oven.
• The cooling fan for the controls
may operate after a time.
• Some internal noise may be heard
during operation. This is quite
normal.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
Top oven base heat finishing
This function uses the lower element to
give single level cooking. This is
particularly suitable for dishes which
require extra base browning such as
pizzas, quiches and flans.
Using top oven base heat finishing
• The oven must be switched on
before setting any cooking function
or programme.
• Press the Oven Cavity selector
until the top oven cavity indicator
is illuminated.
• Press the Function selector until
the required setting is
illuminated.
• Wait 5 seconds until your choice is
confirmed. The temperature will
automatically set to 150°C.
• If you wish to alter the set
temperature, you may do so by
pressing or until the required
temperature setting is reached.
• To switch off a function press the
Function selector once. The
function neon will go out and the
display will return to the time of
day.
Things to note
• The oven light will illuminate.
• The heat indicator neons will flash
until the oven has reached the
desired temperature and then stop,
an audible signal will sound. When
the oven has been switched off the
bars that are still lit indicate the
remaining residual heat in the oven.

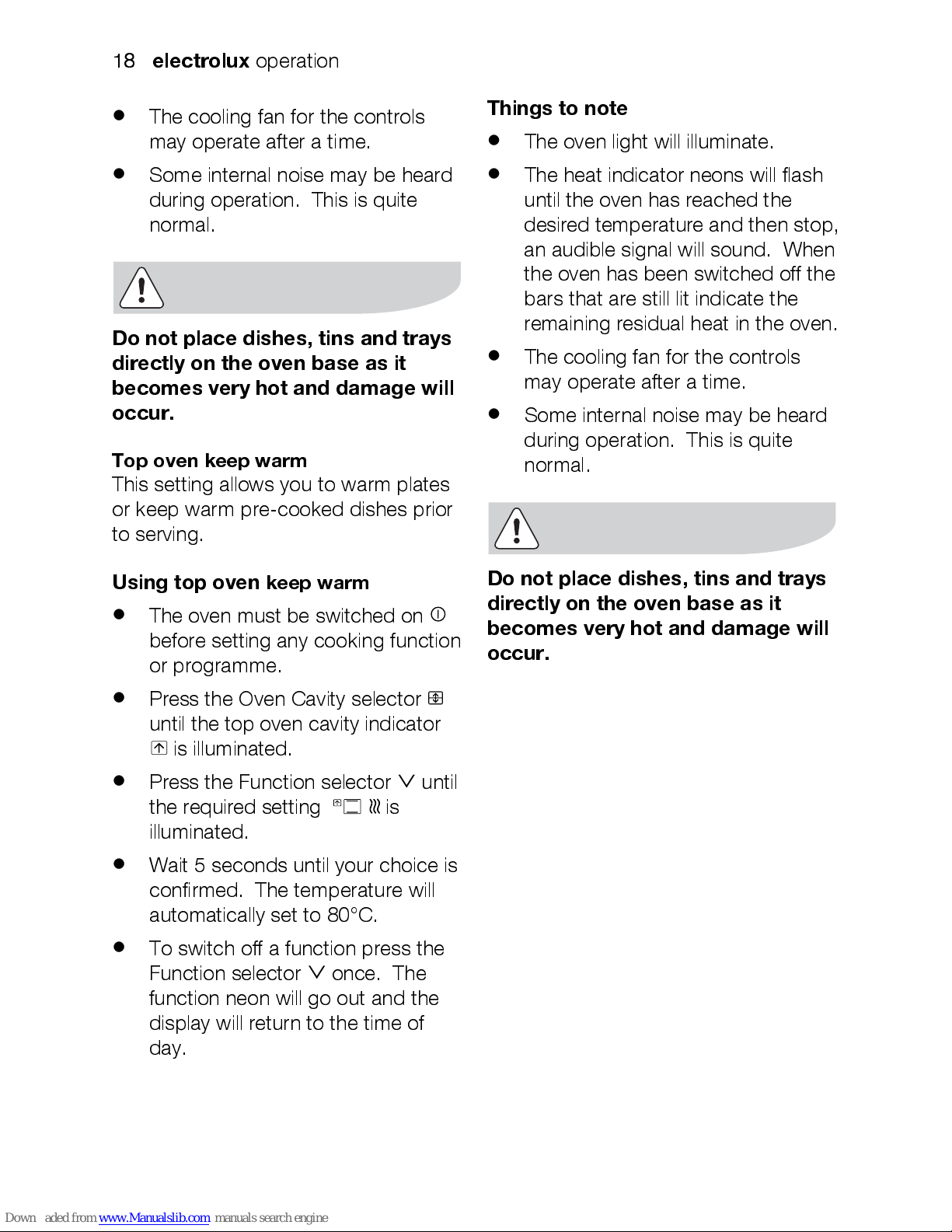

18 electrolux operation
• The cooling fan for the controls
may operate after a time.
• Some internal noise may be heard
during operation. This is quite
normal.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.
Top oven keep warm
This setting allows you to warm plates
or keep warm pre-cooked dishes prior
to serving.
Using top oven keep warm
• The oven must be switched on
before setting any cooking function
or programme.
• Press the Oven Cavity selector
until the top oven cavity indicator
is illuminated.
• Press the Function selector until
the required setting is
illuminated.
• Wait 5 seconds until your choice is
confirmed. The temperature will
automatically set to 80°C.
• To switch off a function press the
Function selector once. The
function neon will go out and the
display will return to the time of
day.
Things to note
• The oven light will illuminate.
• The heat indicator neons will flash
until the oven has reached the
desired temperature and then stop,
an audible signal will sound. When
the oven has been switched off the
bars that are still lit indicate the
remaining residual heat in the oven.
• The cooling fan for the controls
may operate after a time.
• Some internal noise may be heard
during operation. This is quite
normal.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.

electrolux operation 19
The main multifunction oven
Your main oven is a multifunction oven
with 8 convenient functions and can be
set to the following modes of cooking,
Main oven grill, Main oven conventional
cooking, Main oven fan cooking, Turbo
Grilling, Pizza, Keep warm, Hot air fan
baking and Defrost.
Details of the functions can be found in
the table below
Multifunction oven setting guide
Symbol Function Description
Main oven
grill Grilling in the main oven allows you to grill with the oven door closed (you must remove the grill pan handle)
Turbo grilling
Cooking is more gentle; therefore food generally takes a
little longer to cook when Turbo grilling compared with
conventional grilling. One of the advantages is that larger
quantities can be cooked at the same time.
Turbo grilling helps to minimise cooking smells in the
kitchen and allows you to grill with the oven door closed.
With the exception of toast and rare steaks you can
Turbo grill all the foods you would normally cook under a
conventional grill.
Main oven
conventional
cooking
This form of cooking gives you the opportunity to cook
without the fan in operation. It is particularly suitable for
dishes, which require extra base browning such as pies,
quiches and flans. Gratin's, lasagne and hotpots which
require extra top browning also cook well in the
conventional oven. For best results cook on one level.
Main oven
fan cooking The fan oven is particularly suitable for cooking larger quantities of food.
Pizza This setting can be used for foods such as pizza where
base browning and crispness are required.
Keep Warm This setting allows you to warm plates or keep warm pre-
cooked dishes prior to serving.
Hot air fan
baking This is particularly suitable for dishes which require extra base browning such as pizza, quiches and flans.
Defrost
This function defrosts most foods faster than more
conventional methods. It is particularly suitable for
delicate frozen foods which are to be served cold e.g.
cream filled gateaux, cakes covered with icings or
frostings, cheesecakes, biscuits, scones, etc.

20 electrolux operation
To fit the main oven shelves
The shelves should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
Back of the oven
Frame
Straight Rods
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear.
To install a shelf, reverse the above
steps. Each shelf position has an
upper and lower support wire, ensure
the shelf is placed between these two
support wires.
Main oven grill
CAUTION: Accessible parts may be
hot when the grill is in use. Young
children should be kept away.
The grill is a dual circuit grill which means
that the full area of the grill can be used,
or for economy purposes, the centre
section only can be used when cooking
smaller quantities of food.
Using main oven grill
• The oven must be switched on
before setting any cooking function
or programme.
• Press the Oven Cavity selector
until the main oven cavity indicator
is illuminated.
• Press the Function selector until
the required setting is shown.
The grill settings are as follows: -
Centre grill area at full
power.
Full grill area at full power.
• Wait 5 seconds until your choice is
confirmed. The temperature will
automatically set to 250°C.
• If you wish to alter the set
temperature, you may do so by
pressing or until the required
temperature setting is reached.
• To switch off a function press the
Function selector once. The
function neon will go out and the
display will return to the time of
day.
Things to note
• The oven light will illuminate.
• The heat indicator neons will scroll
until the oven has reached the
desired temperature and then stop,
an audible signal will sound. When
the oven has been switched off the
bars that are still lit indicate the
remaining residual heat in the oven.
• The cooling fan for the controls
may operate after a time.
