Electrolux EKG613A1OX User manual

EKG613A1OX
EN Cooker User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. PRODUCT DESCRIPTION................................................................................ 8
4. BEFORE FIRST USE......................................................................................... 9
5. HOB - DAILY USE............................................................................................ 10
6. HOB - HINTS AND TIPS.................................................................................. 11
7. HOB - CARE AND CLEANING.........................................................................11
8. OVEN - DAILY USE .........................................................................................12
9. OVEN - CLOCK FUNCTIONS.......................................................................... 14
10. OVEN - USING THE ACCESSORIES............................................................14
11. OVEN - HINTS AND TIPS.............................................................................. 16
12. OVEN - CARE AND CLEANING.................................................................... 17
13. TROUBLESHOOTING....................................................................................19
14. INSTALLATION.............................................................................................. 21
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•This appliance is intended for use up to an altitude of
2000 m above sea level.
•This appliance is not intended to be used on a ships,
boats or vessels.
•Do not install the appliance behind a decorative door
in order to avoid overheating.
ENGLISH 3

•Do not install the appliance on a platform.
•Do not operate the appliance by means of an external
timer or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid
or a fire blanket.
•CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door or the glass of hinged
lids of the hob since they can scratch the surface,
which may result in shattering of the glass.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
•Remove any spillage from the lid before opening. Let
the hob surface cool down before closing the lid.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
www.electrolux.com4

Service Centre or similarly qualified persons to avoid
an electrical hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2. SAFETY INSTRUCTIONS
This appliance is suitable for the
following markets:
KW MA QA TN AE
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• Do not install the appliance adjacent
to a door or under a window. This
prevents hot cookware to fall from the
appliance when the door or the
window is opened.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
ENGLISH 5

access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door, before
you connect the mains plug to the
mains socket.
2.3 Gas connection
• All gas connections should be made
by a qualified person.
• Before installation, make sure that the
local distribution conditions (nature of
the gas and gas pressure) and the
adjustment of the appliance are
compatible.
• Make sure that there is air circulation
around the appliance.
• The information about the gas supply
is on the rating plate.
• This appliance is not connected to a
device, which evacuates the products
of combustion. Make sure to connect
the appliance according to current
installation regulations. Pay attention
to requirements regarding adequate
ventilation.
2.4 Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and
oils when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
www.electrolux.com6

• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Do not keep hot cookware on the
control panel.
• Do not let cookware boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones
with empty cookware or without
cookware.
• Do not put aluminium foil on the
appliance or directly on the bottom of
the appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches. Always lift these
objects up when you have to move
them on the cooking surface.
• Provide good ventilation in the room
where the appliance is installed.
• Use only stable cookware with the
correct shape and diameter larger
than the dimensions of the burners.
• Make sure the flame does not go out
when you quickly turn the knob from
the maximum to the minimum
position.
• Use only the accessories supplied
with the appliance.
• Do not install a flame diffuser on the
burner.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
2.5 Care and Cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the
mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Fat and food remaining in the
appliance can cause fire.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
• Do not clean the burners in the
dishwasher.
2.6 Lid
• Do not change the specification of the
lid.
• Clean the lid regularly.

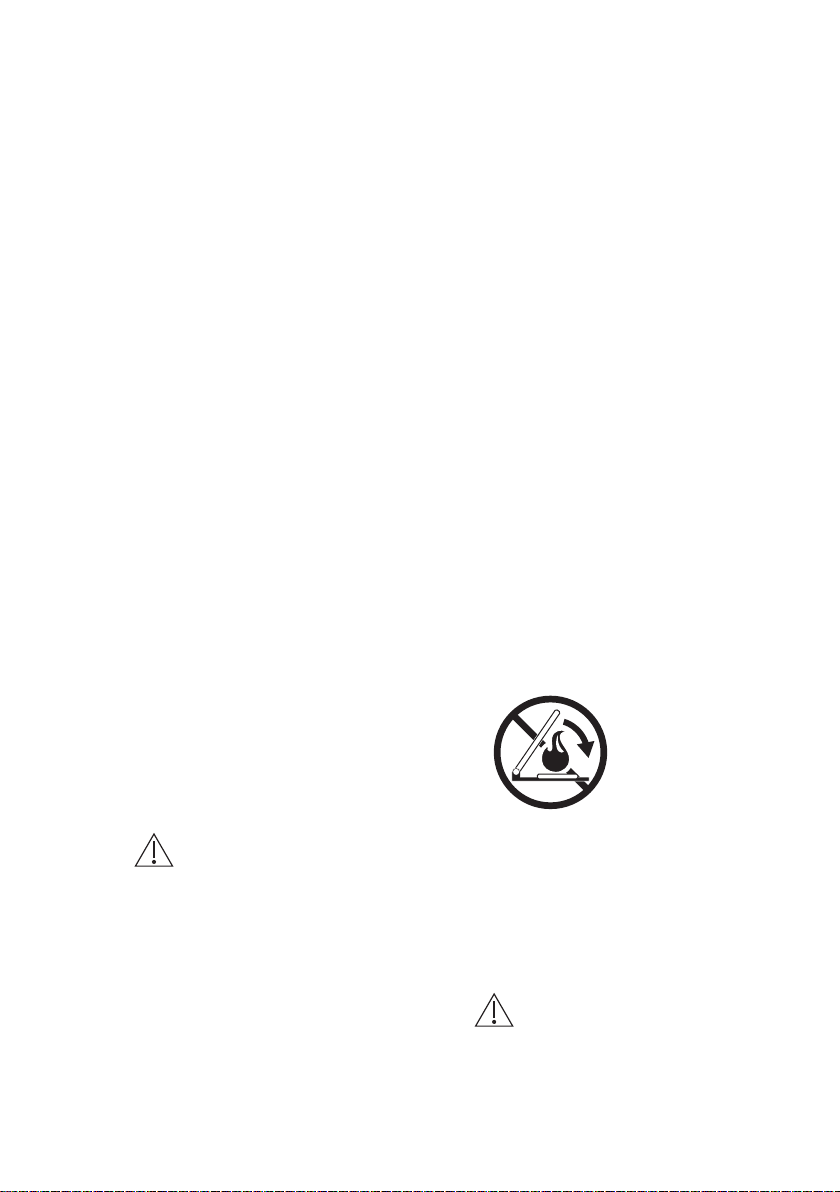

• Do not open the lid, when there are
spills on the surface.
• Before you close the lid turn all
burners off.
• Do not close the lid until the hob and
oven are completely cold.
• Glass lid can shatter, when heated (if
applicable).
• Keep the lid glass open, while the
oven is in operation (if applicable).
2.7 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it
for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
ENGLISH 7

2.8 Gas Grill
WARNING!
Risk of fire, explosion and
burns.
• Do not leave the appliance
unattended during grilling. Accessible
parts become hot.
• Keep children away when the grill is in
use.
• Do not put the oven shelf with food on
the highest shelf level.
2.9 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
• Flat the external gas pipes.
2.10 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
3. PRODUCT DESCRIPTION

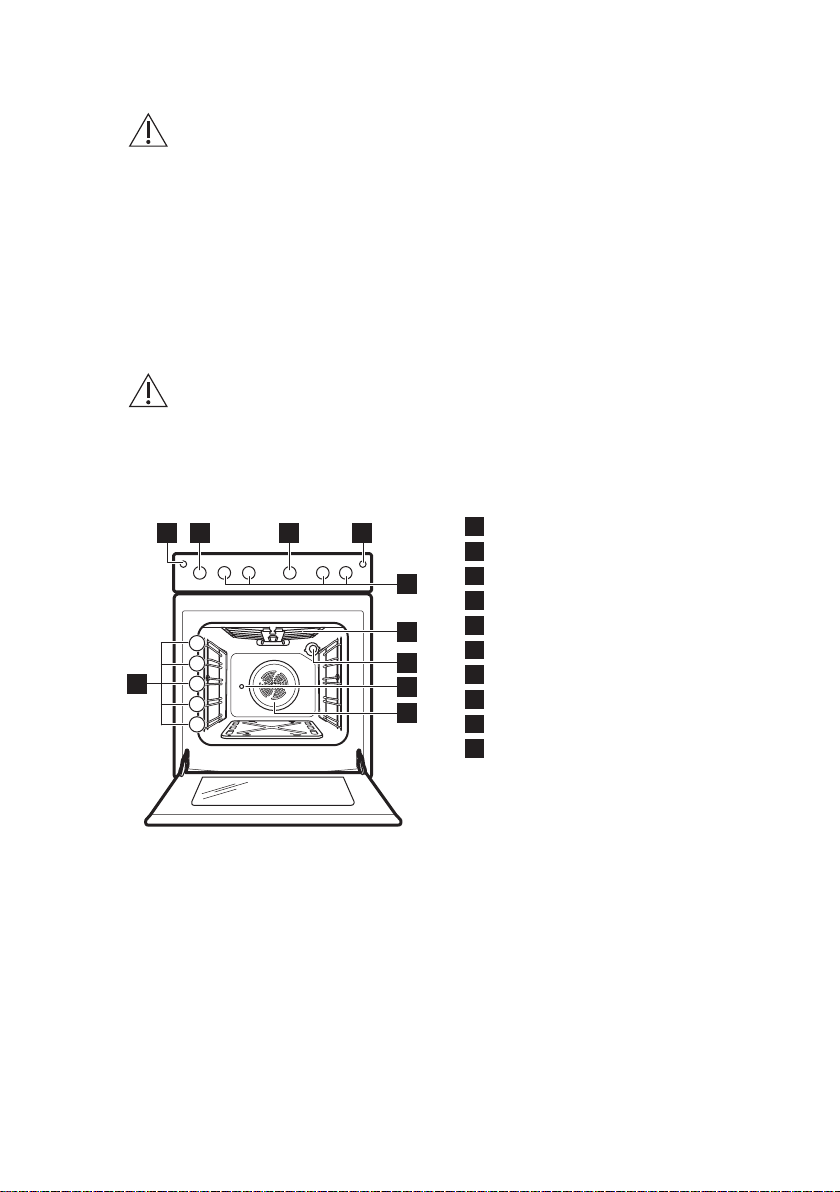

3.1 General overview
10
6
8
9
7
1 42 3
5
1
2
3
4
5
1Button for the turnspit
2Knob for the Minute Minder
3Knob for the oven functions
4Button for the lamp
5Knobs for the hob
6Grill
7Lamp
8Turnspit hole
9Fan
10 Shelf positions
www.electrolux.com8

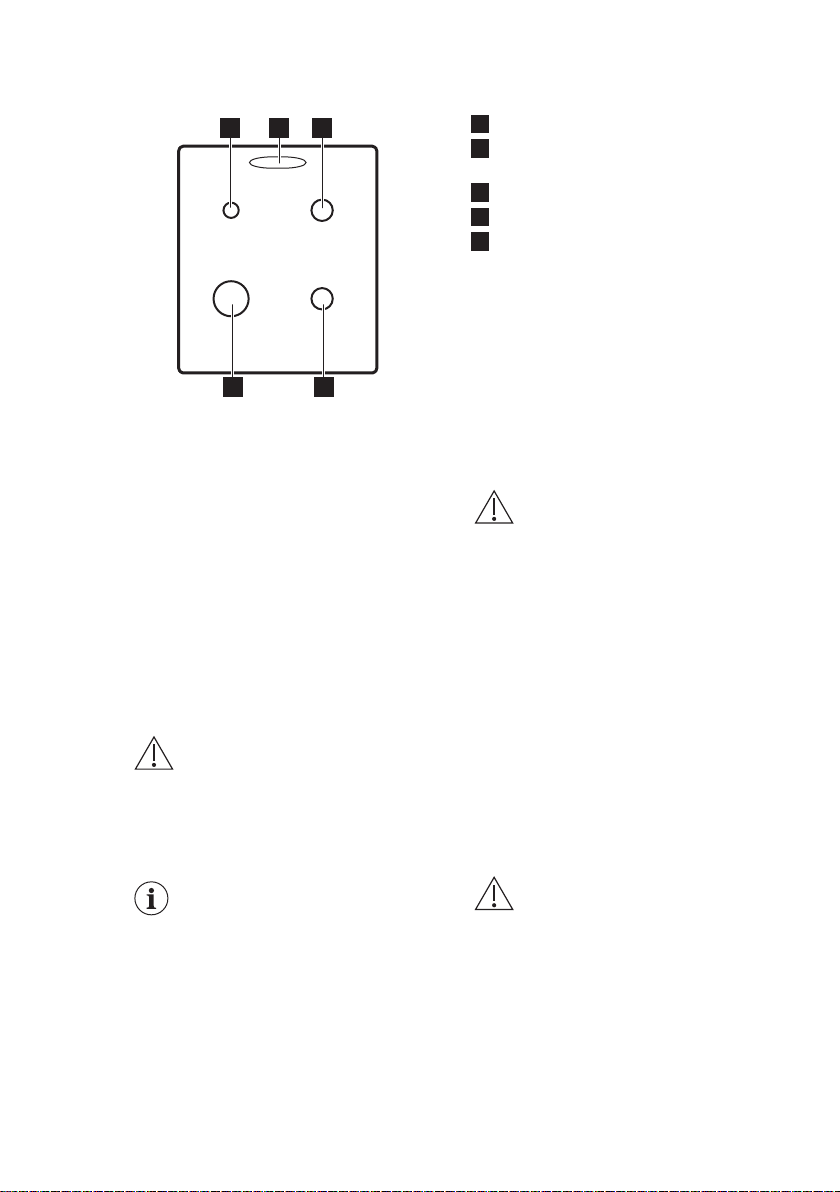

3.2 Cooking surface layout
1 2 3
5 4
1Auxiliary burner
2Steam outlet - number and position
depend on the model
3Semi-rapid burner
4Semi-rapid burner
5Rapid burner

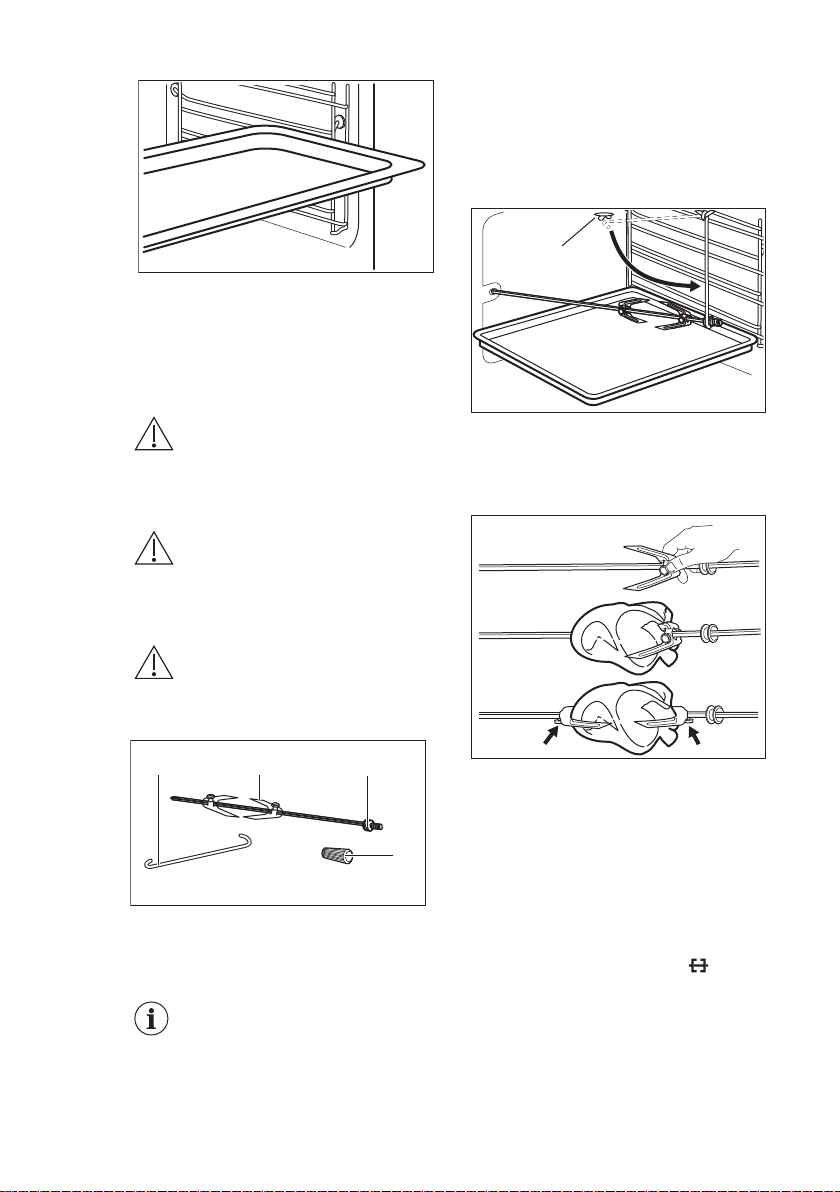

3.3 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Turnspit
For roasting larger joints of meat and
poultry.
•Storage compartment
The storage compartment is below
the oven cavity. To use the
compartment, lift the lower front door
then pull it down.
WARNING!
The storage compartment
can become hot when the
appliance operates.
•Coffee pot (if applicable)
For coffee makers and small pans.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
4.2 Preheating
Preheat the empty appliance to burn off
the remaining grease.
1. Set the maximum temperature.
2. Let the appliance operate for
approximately 1 hour.
WARNING!
Accessories can become
hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that
the airflow is sufficient.
Let the oven cool down. Dampen a soft
cloth with warm water and a little mild
washing-up liquid and use this to clean
the oven cavity.
ENGLISH 9

5. HOB - DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Ignition of the hob burner
Always light the burner
before you put on the
cookware.
WARNING!
Be very careful when you
use open fire in the kitchen
environment. The
manufacturer declines any
responsibility in case of the
flame misuse.
The spark generator can
start automatically when you
switch on the mains, after
installation or a power cut. It
is normal.
In the absence of electricity
you can ignite the burner
manually.
Ignition of a hob burner with the
thermocouple
• For manual ignition put the flame near
the burner. Push the knob for the hob
down and turn it counterclockwise to
the maximum gas flow position .
• For integrated ignition on knob push
the knob for the hob down and turn it
counterclockwise to the maximum gas
flow position .
Keep the knob for the hob pushed for
equal or less than 10 seconds to let the
thermocouple warm up. If not, the gas
supply is interrupted.
Adjust the flame after it is regular.
WARNING!
Do not keep the knob
pushed for more than 15
seconds. If the burner does
not light after 15 seconds,
release the knob, turn it into
the off position and try to
light the burner again after
minimum 1 minute.
If after some tries the burner
does not light, check if the
crown and its cap are in the
correct position.
If the burner accidentally
goes out, turn the knob to
the off position and try to
light the burner again after
minimum 1 minute.
5.2 Burner overview
A
B
D
C
A. Burner cap
B. Burner crown
C. Ignition candle (if applicable)
D. Thermocouple (if applicable)
5.3 Turning the burner off
To put the flame out, turn the knob to the
off position .
www.electrolux.com10

WARNING!
Always turn the flame down
or switch it off before you
remove the pans from the
burner.
6. HOB - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
6.1 Cookware
WARNING!
Do not put the same pan on
two burners.
WARNING!
Do not put unstable or
damaged pots on the burner
to prevent from spill and
injury.
CAUTION!
Make sure that pot handles
are not above the front edge
of the cooktop.
CAUTION!
Make sure that the pots are
placed centrally on the
burner in order to get
maximum stability and to get
lower gas consumption.
6.2 Diameters of cookware
WARNING!
Use cookware with
diameters applicable to the
size of burners.
Burner Diameter of cook‐
ware (mm)
Rapid 160 - 260
Semi-rapid 140 - 240
Auxiliary 120 - 180
6.3 Energy saving
• If it is possible, always put the lids on
the cookware.
• When the liquid starts to boil, turn
down the flame to barely simmer the
liquid.
7. HOB - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General information
• Clean the hob after each use.
• Always use cookware with clean
bottom.
• Scratches or dark stains on the
surface have no effect on how the hob
operates.
• Use a special cleaner applicable for
the surface of the hob.
• Wash stainless steel parts with water,
and then dry them with a soft cloth.
7.2 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, sugar and food with sugar.
If not, the dirt can cause damage to
the hob. Take care to avoid burns.
•Remove when the hob is
sufficiently cool: limescale rings,
water rings, fat stains, shiny metallic
discoloration. Clean the hob with a
moist cloth and non-abrasive
detergent. After cleaning, wipe the
hob dry with a soft cloth.
• To clean the enamelled parts, cap
and crown, wash them with warm
ENGLISH 11

soapy water and dry them carefully
before you put them back on.
7.3 Cleaning the spark plug
This feature is obtained through a
ceramic ignition candle with a metal
electrode. Keep these components well
clean to prevent difficult lighting and
check that the burner crown holes are
not obstructed.
7.4 Pan supports
The pan supports are not
resistant to washing in a
dishwasher. They must be
washed by hand.
1. Remove the pan supports to easily
clean the hob.
Be very careful when
you replace the pan
supports to prevent the
hob top from damage.
2. The enamel coating occasionally can
have rough edges, so be careful
when you wash the pan supports by
hand and dry them. If necessary,
remove stubborn stains with a paste
cleaner.
3. After you clean the pan supports,
make sure that they are in correct
positions.
4. For the burner to operate correctly,
make sure that the arms of the pan
supports are aligned with the centre
of the burner.
7.5 Periodic maintenance
Speak to your local Authorised Service
Centre periodically to check the
conditions of the gas supply pipe and the
pressure adjuster, if fitted.
8. OVEN - DAILY USE
WARNING!
Refer to Safety chapters.
8.1 Oven Functions
Oven function Application
Off position The appliance is off.
Grilling To grill flat food in the middle of the grill. To
make toast.
Oven lamp To illuminate the oven interior.
To use this function, press the button for the
lamp.
Turnspit To spit roasting meat.
MIN -
240°C
Gas Multifunction To cook several different dishes at the same
time. To cook home-made syrup, dry mush‐
rooms or fruit.
The fan always operates when a heat setting
is set.
www.electrolux.com12

8.2 Ignition of the oven gas
burner
CAUTION!
When turning on the oven
burner the oven door must
be opened.
CAUTION!
Make sure that the lid is
opened. When using the
oven the lid has to be
opened to avoid over-
heating.
Oven safety device:
The gas oven has a
thermocouple. It stops the
gas flow if the flame goes
out.
1. Open the oven door.
2. Ignite the oven gas burner.
• For integrated ignition on the
control knob turn the knob for the
oven functions counterclockwise
to the maximum heat settings and
push it to light the burner.
Keep the knob for the oven functions
pushed for 15 seconds or less to let
the thermocouple warm up. If not, the
gas flow is interrupted.

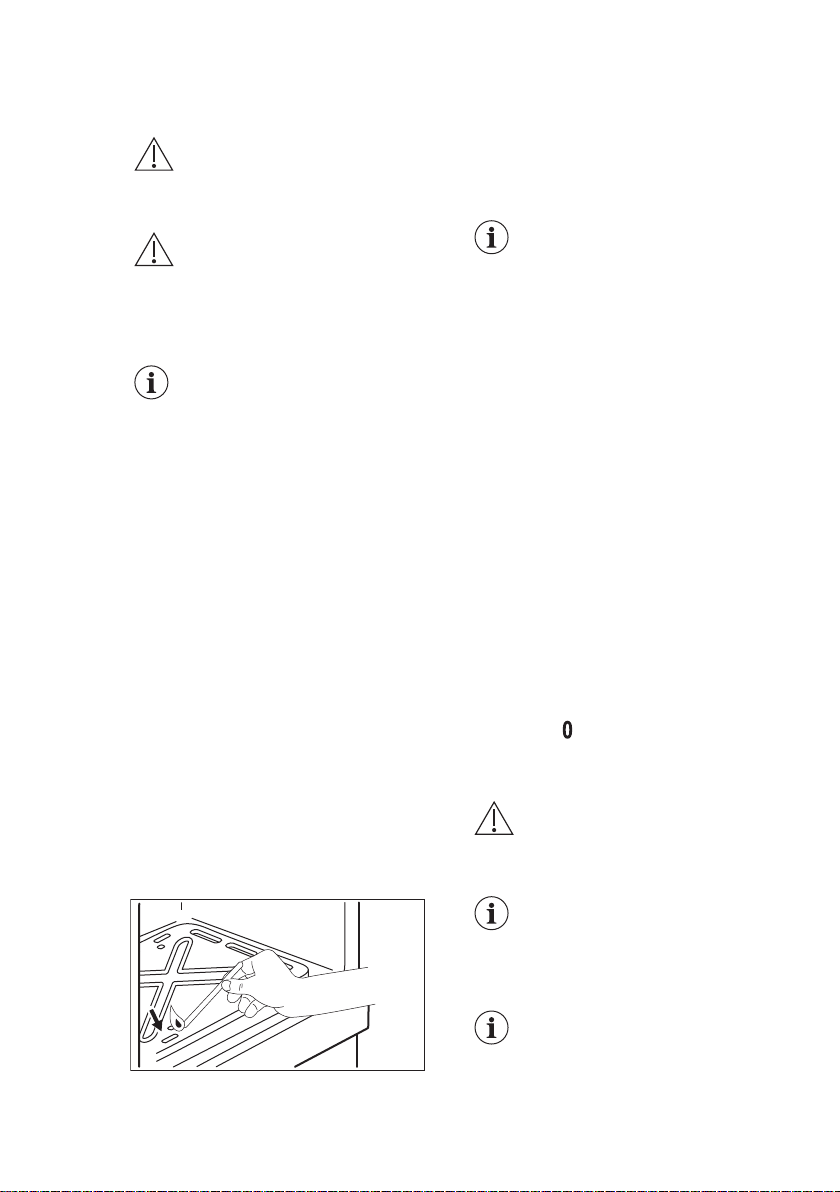

8.3 Manual ignition of oven gas
burner
In case of absence of the electricity you
can ignite the oven burner without an
electrical device.
1. Open the oven door.
2. Hold the flame near the hole in the
bottom of the oven cavity.
3. At the same time push the knob for
the oven functions and turn it
counterclockwise to the maximum
gas flow position.
4. When the flame comes on, keep the
knob for the oven functions pushed
on the maximum gas flow position for
15 seconds or less to let the
thermocouple warm up.
Do not keep the knob for the
oven functions pushed for
more than 15 seconds. If the
oven burner does not light
after 15 seconds, release
the knob for the oven
functions, turn it into off
position, open the oven door
and try to light the oven
burner again after minimum
1 minute.
8.4 After igniting the oven gas
burner
1. Release the knob for the oven
functions.
2. Close the oven door.
3. Turn the knob for the oven functions
to set the necessary heat setting.
Control the flame trough the holes in the
bottom of the oven.
8.5 Turning off the oven burner
To put out the flame, turn the knob to the
off position .
8.6 Using the grill
CAUTION!
Always keep the appliance
door closed when the grill
operates.
The grill temperature cannot
be adjusted. To get a lower
temperature or slower
cooking time, lower the grill
pan away from the flame.
Do not put the meat directly
on the tray or pan.
ENGLISH 13

CAUTION!
Do not put the meat on the
highest shelf level. There is
a risk of fire.
CAUTION!
Make sure to turn the knob
for the oven funstions as far
as it goes. Avoid the
intermediary position
between Off and Grill. On
the intermediary positions
the spark generator can
remain active.
1. Open the oven door.
2. Ignite the grill burner.
• For manual ignition hold a flame
near the grill burner holes. Push
and turn the knob for the grill to
the flame position. Hold the knob
pushed down.
• For integrated ignition on the
control knob push and turn the
knob for the grill to the flame
position.
3. Hold the knob for the grill pushed for
approximately 15 seconds.
4. Release the oven control knob.
If the grill does not come on or if it
accidentally goes out release the
knob for the oven functions and turn
it to the Off position. Open the oven
door. After one minute, try to light the
grill again.
5. Preheat the grill for 5 to 10 minutes.
6. Put the oven shelf with the meat on
shelf position 3.
7. Put a baking tray or roasting pan
below, on shelf position 2, to collect
the juices.
If there is temporarily no power supply
open the oven door hold a flame near the
grill burner holes and turn the lnob for the
gas to the flame position.
8.7 Turning off the grill burner
To put out the flame, turn the knob to the
off position .
9. OVEN - CLOCK FUNCTIONS
9.1 Minute Minder
This function has no effect
on the operation of the
appliance.
Turn the knob for the timer as far as it
goes, then turn it to necessary time
period.
After the time period is completed, an
acoustic signal sounds.
10. OVEN - USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
10.1 Inserting the accessories
Wire shelf:
Put the shelf between the guide bars of
the shelf support. The front and back
bars should be placed upwards.
Tray:
Do not push the baking tray
all the way to the back wall
of the cavity. This prevents
the heat from circulating
around the tray. The food
may be burnt, especially in
the rear part of the tray.
www.electrolux.com14

Push the tray or deep pan between the
guide bars of the shelf support. Make
sure it does not touch the back wall of
the oven.
10.2 Using the turnspit
WARNING!
Be careful when you use the
turnspit. The forks and the
spit are sharp. There is a
risk of injury.
WARNING!
Use oven gloves when you
remove the turnspit. The
turnspit and the grill are hot.
There is a risk of burns.
CAUTION!
The maximum weight
permitted on the turnspit is
4.5 kg.
A B C
D
A. Support hook
B. Forks
C. Spit
D. Handle
The support hook is installed
in the top of the oven cavity.
You can leave the support
hook in the oven, when the
turnspit is not active.
1. Open the oven door.
2. Put the turnspit handle into the spit.
3. Put the baking tray on the lowest
shelf level.
4. Snap out one end of the support
hook from the oven ceiling A and let
it hang on the other end.
A
5. Install the first fork on the spit, then
put the meat on the turnspit and
install the second fork.
Make sure that the meat is in the
middle of the spit.
6. Use the screws to tighten the forks.
7. Put the tip of the spit into the turnspit
hole.
Refer to "Product description"
chapter.
8. Put the front part of the spit on the
support hook.
9. Remove the turnspit handle.
10. Light the grill.
Refer to "Oven - Daily use" chapter.
11. Press the turnspit button .
12. Make sure that turnspit rotates.
13. Close the oven door.
The turnspit does not stop if you
open the oven door.
When meat is ready press the turnspit
button. Turn off the grill. Install the
ENGLISH 15

turnspit handle. Carefully remove the
turnspit and the roasting pan from the
oven.
11. OVEN - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
11.1 General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy
environment and keep the food soft
inside and crusty outside. It
decreases the cooking time and
energy consumption to a minimum.
• Moisture can condense in the
appliance or on the door glass panels.
This is normal. Always stand back
from the appliance when you open the
appliance door while cooking. To
decrease the condensation, operate
the appliance for 10 minutes before
cooking.
• Clean the moisture after each use of
the appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components
when you cook. This can change the
baking results and cause damage to
the enamel.
11.2 Baking
• Your oven may bake or roast
differently to the appliance you had
before. Adapt your usual settings
such as temperature, cooking time
and shelf position to the values in the
tables.
• Use the lower temperature the first
time.
• If you cannot find the settings for a
special recipe, look for the similar
one.
• Cakes and pastries at different
heights do not always brown equally
at first. If this occurs, do not change
the temperature setting. The
differences equalize during the baking
procedure.
• Trays in the oven can twist during
baking. When the trays become cold
again, the distortions disappear.
11.3 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
11.4 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the
juice does not seep out.
• To prevent too much smoke in the
oven during roasting, add some water
into the deep pan. To prevent the
smoke condensation, add water each
time after it dries up.
11.5 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
www.electrolux.com16

12. OVEN - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12.1 Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a
dedicated cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire.
• Clean stubborn dirt with a special
oven cleaner.
• Clean all accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a
dishwasher. It can cause damage to
the nonstick coating.
12.2 Stainless steel or
aluminium appliances
Clean the oven door with a
damp cloth or sponge only.
Dry it with a soft cloth.
Do not use steel wool, acids
or abrasive materials as they
can damage the oven
surface. Clean the oven
control panel with the same
precautions.
12.3 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
1. Pull the front of the shelf support
away from the side wall.
2. Pull the rear end of the shelf support
away from the side wall and remove
it.
2
1
Install the shelf supports in the opposite
sequence.
12.4 Catalytic cleaning
CAUTION!
Do not clean the catalytic
surface with oven sprays,
abrasive cleaning agents,
soap or other cleaning
agents. This will damage the
catalytic surface.
Spots or discolouration of
the catalytic surface have no
effect on catalytic properties.
WARNING!
Keep children away when
you clean the oven at a high
temperature. The oven
surface becomes very hot
and there is a risk of burns.
Before activating the
catalytic cleaning remove all
the accessories from the
oven.
The walls with a catalytic coating are
self-cleaning. They absorb fat which
ENGLISH 17

collects on the walls while the appliance
operates.
To support the self-cleaning procedure,
heat the empty oven on a regular basis.
1. Clean the oven floor with warm water
and washing up liquid, then dry it.
2. Set the oven temperature to 250 °C
and let the oven operate for 1 hour.
3. When the appliance is cool, clean it
with a soft and moist sponge.
12.5 Cleaning the oven door
The oven door has two panels of glass
installed one behind the other. To make
the cleaning easier remove the oven
door.
WARNING!
The oven door can close if
you try to remove the
internal panel of glass when
the door is still assembled.
Do not lose the screws.
1. Open the door fully and hold the two
door hinges.
2. Lift and turn the levers on the two
hinges.
3. Close the oven door to the first
opening position (halfway). Then pull
forward and remove the door from its
seat.
4. Put the door on a soft cloth on a
stable surface.
5. Use a screwdriver to remove 2
screws from bottom edge of door.
1
1
www.electrolux.com18

6. Use a spatula made of wood or
plastic or equivalent to open the inner
door. Hold the outer door, and push
the inner door against the top edge of
the door. Lift the inner door.
2
2
3
7. Clean the oven door with water and
soap. Clean inner side of the door.
Dry the oven door carefully.
When the cleaning is completed, install
the glass panels and the oven door. To
install the oven door, do the above steps
in the opposite sequence.
4
4
5
5
6
12.6 Replacing the lamp
Put a cloth on the bottom of the interior
of the appliance. It prevents damage to
the lamp glass cover and the cavity.
WARNING!
Danger of electrocution!
Disconnect the fuse before
you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box
or deactivate the circuit breaker.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
ENGLISH 19

13.1 What to do if...
Problem Possible cause Remedy
There is no spark when
you try to activate the
spark generator.
The hob is not connected
to an electrical supply or it
is connected incorrectly.
Check if the hob is correct‐
ly connected to the electri‐
cal supply. Refer to the
connection diagram.
There is no spark when
you try to activate the
spark generator.
The fuse is blown. Make sure that the fuse is
the cause of the malfunc‐
tion. If the fuse is blown
again and again, contact a
qualified electrician.
There is no spark when
you try to activate the
spark generator.
Burner cap and crown are
placed incorrectly.
Place the burner cap and
crown correctly.
The flame extinguishes im‐
mediately after ignition.
Thermocouple is not heat‐
ed up sufficiently.
After lightning the flame,
keep the spark generator
activated for equal or less
than 10 seconds
The flame ring is uneven. Burner crown is blocked
with food residues.
Make sure that the injector
is not blocked and the
burner crown is clean.
The burners do not work. There is no gas supply. Check the gas connection.
The appliance makes
noises.
Some metal parts of the
appliance expand and con‐
tract when they heat up or
cool down. The noises are
normal.
The flame colour is orange
or yellow.
The flame can look orange
or yellow in some areas of
the burner. This is normal.
The lamp does not oper‐
ate.
The lamp is defective. Replace the lamp.
Steam and condensation
settle on the food and in
the cavity of the oven.
You left the dish in the
oven for too long.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the
cooking process ends.
The oven does not heat
up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The turnspit does not ro‐
tate.
The turnspit is not correctly
installed into the turnspit
hole.
Refer to "Using the turn‐
spit".
It takes too long to cook
the dishes or they cook too
quickly.
The temperature is too low
or too high.
Adjust the temperature if
necessary. Follow the ad‐
vice in the user manual.
www.electrolux.com20
