Electrolux FI23/11ND User manual

FI23/11NDV
EN Fridge Freezer User Manual 2
FR Réfrigérateur/congélateur Notice d'utilisation 22
DE Kühl - Gefrierschrank Benutzerinformation 44
ES Frigorífico-congelador Manual de instrucciones 66

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. OPERATION.......................................................................................................5
4. DAILY USE......................................................................................................... 8
5. HINTS AND TIPS............................................................................................. 11
6. CARE AND CLEANING....................................................................................12
7. TROUBLESHOOTING......................................................................................13
8. INSTALLATION................................................................................................ 15
9. TECHNICAL INFORMATION........................................................................... 20
10. NOISES.......................................................................................................... 20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3

•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate
around the appliance.
• Wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
www.electrolux.com4

a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION

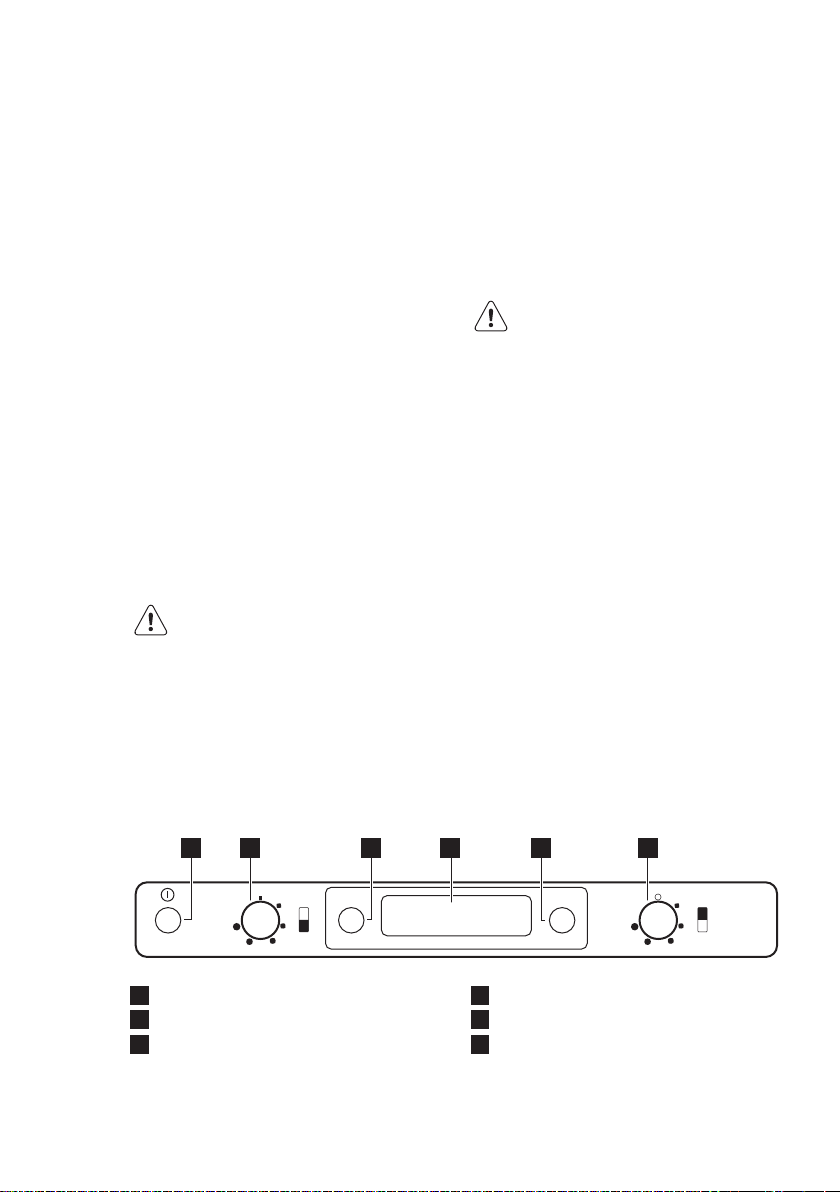

3.1 CONTROL PANEL
MODE˚C
1 2 3 4 5 6
1ON/OFF switch
2Freezer temperature regulator
3Fridge-Freezer temperature indicator
button
4Display
5Function button Alarm reset switch
6Fridge temperature regulator
ENGLISH 5

3.2 Display
A B C D E F G
A) Fridge compartment indicator
B) Freezer compartment indicator
C) Positive or negative temperature
indicator
D) Temperature indicator
E) FastFreeze function
F) Shopping function
G) FreeStore function
3.3 Switching on
After plugging the plug into the power
outlet, if the display is not illuminated,
press ON/OFF switch.
As soon as the appliance is turned on,
the following signals will appear on the
control panel:
• Positive or negative temperature
indicator will be positive, indicating
that the temperature is positive.
• The temperature flashes, the
background of the display is red and
will hear a buzzer.
Press Function Button and the buzzer
will go off (also refer to "High
temperature alarm"). Set the desired
temperature (refer to "Temperature
regulation").
3.4 Switching off
The appliance is switched off by pressing
ON/OFF switch for more than 1 second.
After this a countdown of the
temperature from -3 -2 -1 will be shown.
When the appliance is switched off.
Display also goes off.
3.5 Switching off the fridge
compartment
To switch off the refrigerator
compartment, rotate the Fridge
temperature setting regulator counter-
clockwise till position "O".
Once the refrigerator compartment is
shut off, the only temperature which is
indicated is the one of the freezer
compartment.
In this condition, the lighting in the
refrigerator compartment will be switched
off.
The freezer compartment will keep on
working.
3.6 Temperature Indication
Each time the Fridge-Freezer
temperature indication button is pressed,
the display indicates in sequence:
1. • The Fridge compartment indicator
is on.
• The display indicates the latest
set temperature for the fridge.
2. • The Freezer compartment
indicator is on (In normal
conditions).
• The display indicates the latest
set temperature for the freezer.
3.7 Functions menu
Each time Function is pressed, the
following functions are activated in a
clockwise direction:
• FastFreezefunction
• Shopping function
• FreeStore
• no symbol: normal operation.
You can set one function ON
at any time and set the
function OFF by pressing
Function several times until
no icon appears.
3.8 Temperature regulation
The temperature within the appliance is
controlled by the Temperature regulator.
www.electrolux.com6

The temperature of the fridge
compartment may be regulated by
rotating the Fridge temperature regulator,
and may vary between more or less
+2°C and +8°C.
The temperature of the freezer
compartment may be regulated by
rotating the Freezer temperature
regulator, and may vary between more or
less -15°C and -24°C.
For a correct storage of the food the
following temperatures should be set:
+5°C in the fridge
-18°C in the freezer.
During normal functioning the
Temperature indicator shows the
temperature currently set.
To operate the appliance proceed as
follows
1. turn the Temperature regulator
clockwise to obtain the maximum
coldness
2. turn the Temperature regulator
counter- clockwise to obtain the
minimum coldness.
The intermediate position is usually
the most suitable.
However, the exact setting should be
chosen keeping in mind that the
temperature inside the appliance
depends on:
• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.
3.9 Shopping Function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest to activate
the Shopping function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
Press Function (several times if
necessary) until the corresponding icon
appears .
The Shopping function shuts off
automatically after approximately 6
hours.
During the Shopping function also the
fan inside the refrigerator compartment is
automatically activated.
The fan inside the
refrigerator compartment is
automatically activated also
when the room temperature
is high (over 32°C) or for a
quick temperature
recovering after door
opening, even though the
Shopping function is not
activated.
It is possible to de-activate
the function at any time by
pressing Function (refer to
"Functions Menu").
3.10 FreeStore Function
The function is activated by pressing the
Function button (several times if
necessary) until the corresponding icon
appears .
In this condition the fan works
continuously.
It is possible to deactivate the function at
any time by pressing the Function button
until the icon goes out of view.
If the function is activated automatically
the FreeStore icon is not shown (refer to
"Daily use").
The activation of the FreeStore function
increases the energy consumption.
3.11 FastFreeze Function
To freeze fresh foods, you will need to
activate the FastFreeze function.
Press Function (several times if
necessary) until the corresponding icon
appears.
This function stops automatically after 52
hours.
It is possible to deactivate the function at
any time by pressing Function (refer to
"Functions Menu").
ENGLISH 7

3.12 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
a power failure) is indicated by:
• flashing temperature
• freezer compartment flashing
(Freezer compartment indicator/Door
open alarm indicator)
• sounding of buzzer
• red illumination of display
When normal conditions are restored:
• the acoustic signal shuts off
• the temperature value continues to
flash
• the display illumination remains red.
When you press Function/Alarm reset
switch to deactivate the alarm, the
highest temperature reached in the
compartment appears on indicator
for some seconds.
At this point the flashing stops and the
display illumination changes over from
red to white.
During the alarm, the buzzer can be
switched off by pressing Function/Alarm
reset switch.
The illumination of the display remains
red until normal storage conditions are
restored.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Cleaning the interior
Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
some neutral soap so as to remove the
typical smell of a brand-new product,
then dry thoroughly.
WARNING!
Do not use detergents or
abrasive powders, as these
will damage the finish.
4.2 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the Fast
Freezing function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Place the fresh food to be frozen in the
top compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the inside
of the fridge.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
After 24 hours, when the freezing
process is completed, deactivate the
Fast Freezing function (see "Fast
Freezing function").
4.3 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 12 hours on the Action Freeze
setting.
If large quantities of food are to be
stored, remove all drawers and baskets
from appliance and place food on cooling
shelves to obtain the best performance.
www.electrolux.com8

WARNING!
Make sure that foods do not
exceed the load limit stated
on the side of the upper
section (where applicable)
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer that the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then re-
frozen (after cooling).
4.4 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
4.5 Cold accumulators
The freezer contains at least one cold
accumulator which increases storage
time in the event of a power cut or
breakdown.
4.6 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes. Fill these trays with water, then
put them in the freezer compartment.
Do not use metallic
instruments to remove the
trays from the freezer.
4.7 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
4.8 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follows:
1. Gradually pull in the direction of the
arrows until it comes free.
2. Reposition the shelf as required.
Do not move the big lower
door shelf to ensure correct
air circulation.
4.9 Bottle rack
Place the bottles (with the opening facing
front) in the pre-positioned shelf.
ENGLISH 9

CAUTION!
If the shelf is positioned
horizontally, place only
closed bottles.
This bottle holder shelf can
be tilted in order to store
previously opened bottles.
To obtain this result, pull the
shelf up so it can rotate
upwards and be placed on
the next higher level.
4.10 FreeStore
The refrigerator compartment is
equipped with a device that allows for
rapid cooling of foods and more uniform
temperature in the compartment.
This device activates by itself when
needed, for example for a quick
temperature recovering after door
opening or when the ambient
temperature is high.
It is possible to switch on the device
manually when needed (refer to
"FreeStore function").
The FreeStore device stops
when the door is open and
restarts immediately after
the door closing.
4.11 MaxiBox drawer
The drawer is suitable for storing fruit
and vegetables.
There is a separator inside the drawer
that can be placed in different positions
to allow for the subdivision best suited to
personal needs.
There is a grille (if foreseen) on the
bottom of the drawer to separate the fruit
and vegetables from any humidity that
may form on the bottom surface.
All parts inside the drawer can be
removed for cleaning purposes
4.12 Temperature indicator
For proper storage of food the
refrigerator is equipped with the
temperature indicator. The symbol on the
side wall of the appliance indicates the
coldest area in the refrigerator.
If “OK” is displayed (A), put fresh food
into area indicated by symbol, if not (B),
adjust the temperature controller to a
colder setting and wait 12 hours before
checking the temperature indicator
again.
OK
OK
A
B
www.electrolux.com10

After putting fresh food into
the appliance or after
opening the door repeatedly
or for a long period, it is
normal for the indicator not
to show "OK"; wait at least
12 hours before readjusting
the temperature controller.
5. HINTS AND TIPS

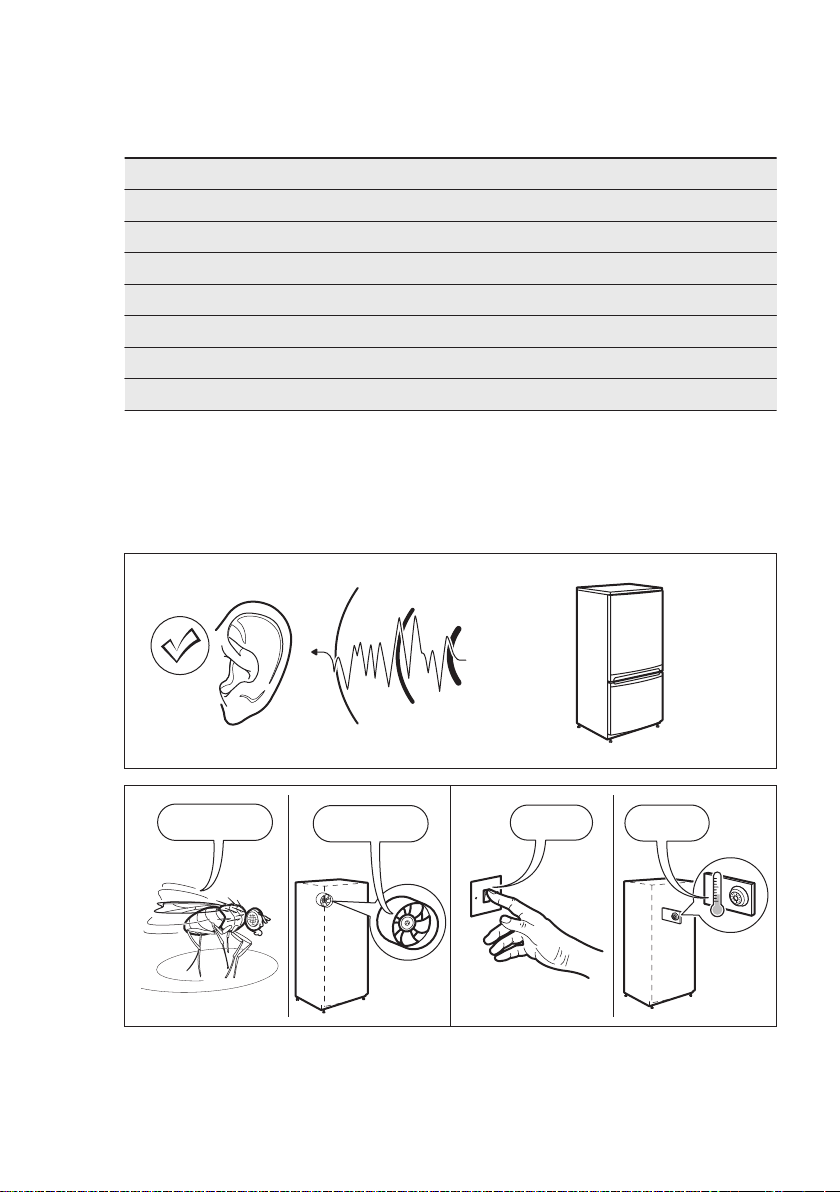

5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If foreseen, do not remove the cold
accumulators from the freezer basket.
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one
or two days at the most.
• Cooked foods, cold dishes, etc..:
these should be covered and may be
placed on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or
polythene bags to exclude as much
air as possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or
(if equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
5.5 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;
• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
ENGLISH 11

thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
5.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave
it open longer than absolutely
necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 Periodic cleaning
The equipment has to be cleaned
regularly:
• clean the inside and accessories with
lukewarm water and some neutral
soap.
• regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
• rinse and dry thoroughly.
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
Never use detergents,
abrasive powders, highly
perfumed cleaning products
or wax polishes to clean the
interior as this will damage
the surface and leave a
strong odour.
Clean the condenser (black grill) and the
compressor at the back of the appliance
with a brush. This operation will improve
the performance of the appliance and
save electricity consumption.
Take care of not to damage
the cooling system. When
moving the cabinet, lift it by
the front edge to avoid
scratching the floor.
6.2 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
www.electrolux.com12

6.3 Defrosting the freezer
The freezer compartment is frost free.
This means that there is no build up of
frost when it is in operation, neither on
the internal walls nor on the foods.
The absence of frost is due to the
continuous circulation of cold air inside
the compartment, driven by an
automatically controlled fan.
6.4 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost (if necessary) and clean the
appliance and all accessories.
4. Clean the appliance and all
accessories.
5. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The appliance is switch‐
ed off.
Switch on the appliance.
The mains plug is not
connected to the mains
socket correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock‐
et. Contact a qualified elec‐
trician.
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on or the
temperature is still too
high.
Refer to "Door Open
Alarm"or "High Temperature
Alarm".
The temperature in the
appliance is too high.
Refer to "Door Open
Alarm"or "High Temperature
Alarm".
ENGLISH 13

Problem Possible cause Solution
The temperature in the
appliance is too high.
Contact a qualified electri‐
cian or contact the nearest
Authorised Service Centre.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author‐
ised Service Centre.
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed
correctly.
Refer to "Closing the door".
The water drainage plug
is not correctly posi‐
tioned.
Position the water drainage
plug in the correct way.
Food products are not
wrapped properly.
Wrap the food products bet‐
ter.
Temperature is set incor‐
rectly.
Refer to "Operation" chapter.
Water flows inside the re‐
frigerator.
The water outlet is clog‐
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food prod‐
ucts do not touch the rear
plate.
Water flows on the floor. The melting water outlet
is not connected to the
evaporative tray above
the compressor.
Attach the melting water out‐
let to the evaporative tray.
The temperature in the ap‐
pliance is too low/too high.
The temperature regula‐
tor is not set correctly.
Set a higher/lower tempera‐
ture.
The door is not closed
correctly.
Refer to "Closing the door".
www.electrolux.com14

Problem Possible cause Solution
The food products' tem‐
perature is too high.
Let the food products tem‐
perature decrease to room
temperature before storage.
Many food products are
stored at the same time.
Store less food products at
the same time.
The thickness of the frost
is greater than 4-5 mm.
Defrost the appliance.
The door has been
opened often.
Open the door only if neces‐
sary.
There is no cold air circu‐
lation in the appliance.
Make sure that there is cold
air circulation in the appli‐
ance.
If the advice does not lead to
the desired result, contact
the nearest Authorised
Service Centre.
Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Service
Center.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to "Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
Climate
class
Ambient temperature
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
ENGLISH 15

8.2 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.

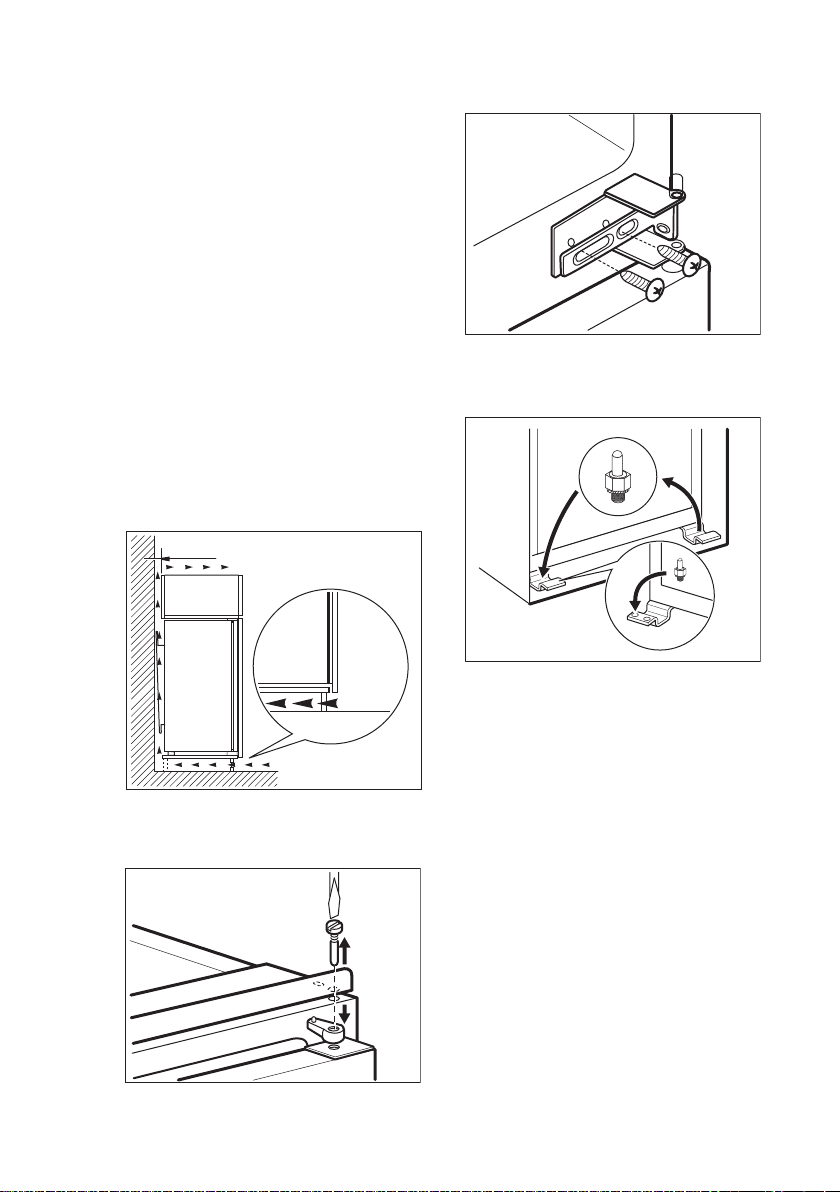

8.3 Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
8.4 Door reversibility
1. Loosen and remove the upper pin.
2. Remove the upper door.
3. Remove the spacer.
4. Loosen the middle hinge.
5. Remove the lower door.
6. Loosen and remove the lower pin.
7. Tighten the lower pin on the opposite
side.
8. Install the lower door.
9. Tighten the middle hinge.
10. Install the spacer.
11. Install the upper door.
12. Tighten the upper pin.
www.electrolux.com16

Do a final check to make
sure that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature is
cold (i.e. in Winter), the
gasket may not fit perfectly
to the cabinet. In that case,
wait for the natural fitting of
the gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.
8.5 Installing the appliance
CAUTION!
Make sure that the mains
cable can move freely.

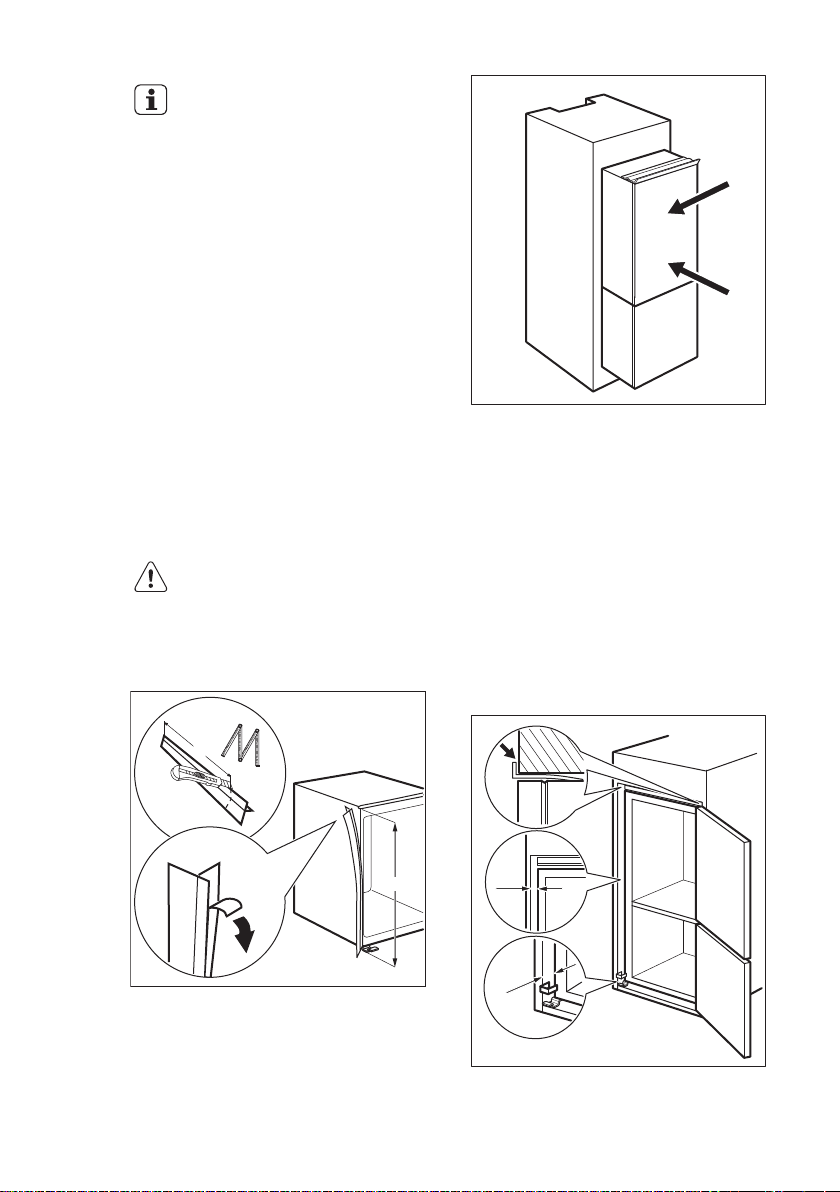

1. If necessary cut the adhesive sealing
strip and then apply it to the
appliance as shown in figure.
x
x
2. Install the appliance in the niche.
3. Push the appliance in the direction of
the arrows (1) until the upper gap
cover stops against the kitchen
furniture.
1
2
4. Push the appliance in the direction of
the arrows (2) against the cupboard
on the opposite side of the hinge.
5. Adjust the appliance in the niche.
Make sure that the distance between
the appliance and the cupboard front-
edge is 44 mm.
The lower hinge cover (in the
accessories bag) makes sure that the
distance between the appliance and
the kitchen furniture is correct.
Make sure that the clearance
between the appliance and the
cupboard is 4 mm.
6. Open the door. Put the lower hinge
cover in position.
4 mm
44 mm
7. Attach the appliance to the niche with
4 screws.
ENGLISH 17

I
I
8. Remove the correct part from the
hinge cover (E). Make sure to
remove the part DX, in the case of
right hinge, SX in opposite case.
9. Attach the covers (C, D) to the lugs
and the hinge holes.
E
E
B
D
C
10. Install the vent grille (B).
11. Attach the hinge covers (E) to the
hinge.
12. Connect the appliance laterally to the
kitchen furniture sidewall.
13. Loosen the screws of the part (G)
and move the part (G) till the furniture
sidewall.
G
H
14. Tighten the screws of the part (G)
again.
15. Attach the part (H) to the part (G).
16. Disconnect the parts (Ha), (Hb), (Hc)
and (Hd).
Hb Ha
Hc
Hd
17. Install the part (Ha) on the inner side
of the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
18. Push the part (Hc) on the part (Ha).
www.electrolux.com18

Ha
Hc
19. Open the appliance door and the
kitchen furniture door at an angle of
90°.
20. Insert the small square (Hb) into
guide (Ha).
21. Put together the appliance door and
the furniture door and mark the
holes.
Ha
Hb
8 mm
22. Remove the brackets and mark a
distance of 8 mm from the outer edge
of the door where the nail must be
fitted (K).
Ha
K
8 mm
23. Place the small square on the guide
again and fix it with the screws
supplied.
24. Align the kitchen furniture door and
the appliance door by adjusting the
part (Hb).
Hb
25. Press the part (Hd) on the part (Hb).
Hb
Hd
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to
the cabinet.
• The door opens and closes correctly.
ENGLISH 19

9. TECHNICAL INFORMATION
9.1 Technical data
Dimensions of the recess
Height mm 1850
Width mm 560
Depth mm 560
Rising time Hours 21
Voltage Volts 230 - 240
Frequency Hz 50
The technical information are situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
10. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK! CLICK!
SSSRRR! SSSRRR!
www.electrolux.com20
