IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings of these warnings contact the Customer Services Department.
Installation
• Any installation work must be undertaken by a quali-
ed electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor be-
comes overheated. If the cut-out device is activated,
switch off the fan motor and allow the cooker hood to
cool. The cut-out device will reset itself when the fan
motor has cooled signicantly.
• It is dangerous to alter the specications or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its ue must be of the room sealed or
balanced ue type.
• If other types of ue or appliances are tted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which is
being used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch re.
• Never do ambé cooking under this cooker hood.
• Do not leave naked ames under the hood.
• This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal lters are not replaced as recommen-
ded.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or more
serious malfunction. Refer to your local Electrolux
Service Force Centre. Always insist on genuine
spare parts.

5
YOUR APPLIANCE
OPERATING INSTRUCTIONS
This cooker hood is designed to extract
unpleasant odours from the kitchen, it will not
extract steam.
Cooker Hood Controls
The cooker hood functions are controlled by four
push button switches located centrally in the control
fascia.
L Turns the worktop lighting On and Off
SMains light - illumination indicates fan motor is
running
V1 Turns the fan motor On and Off at low speed,
suitable for one pan or when simmering.
V2 Medium fan speed, suitable for use when
cooking with a number of pots and pans.
V3 Maximum fan speed, suitable for cooking foods
with strong odours.

  






6
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters
the cooker hood through the grease lters. The air is
cleaned by passing through the charcoal lters
before being passed back into the kitchen through
the grilles in either side of the chimney stack.
Extraction
In the extraction mode the contaminated air enters
the cooker hood passing through the grease lters
and is passed out through the ducting into the
atmosphere.
To obtain the best performance when cooking it is
advisable to switch the cooker hood on for a few
minutes before you start cooking and leave it
running for about 15 minutes after nishing.
When used in the ducting mode the charcoal
lters are not required.
Never do ambé cooking under this cooker
hood.
Never leave frying pans unattended during use,
as over-heated fats and oils can catch re.
Do not leave naked ames under the cooker
hood.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.

7
Before carrying out any maintenance or
cleaning isolate the cooker hood from the
mains supply.
The cooker hood must be kept clean, as
a build up of grease or fat can be a re
hazard.
External Cleaning
Wipe the cooker hood frequently with warm soapy
water using a mild detergent.
Never use scouring pads or abrasive
cleaners.
Never use excessive amounts of water
when cleaning particularly around the
control panel.
Metal Grease Filters
The grease lters absorb grease and dust during
cooking to help keep the cooker hood clean
inside.
Cleaning
The lters must be washed once every
month, using a normal household
detergent; their compact dimension
also enables them to be washed in a
dishwasher. Allow to dry completely
before replacing.
Removing and replacing the lters
Remove the lters one at a time, press
against the metal actuator to release
the spring catch as illustrated. When
replacing, ensure that the handles face
outwards.
Charcoal Filter
In the recirculation mode the charcoal lter
absorbs smells and unwanted odours.
The charcoal lter cannot be cleaned or
regenerated, and must be replaced approximately
every 4 months, or more frequently if the hood is
subjected to heavy usage.
Replacing the charcoal lter
First remove the metal grease lters.
Remove the saturated activated charcoal
lter by releasing the xing hooks as
illustrated.
MAINTENANCE AND CLEANING

8
Position the new charcoal lter in the
position marked and while holding
the lter replace the xing hooks as
illustrated.
This appliance can be a possible re
hazard if the grease and charcoal
lters are not cleaned and replaced as
recommended.
Changing the Light Bulb
20 W halogen light
Remove the snap-on lamp cover by
levering it from under the metal ring,
supporting it with one hand.
Remove the halogen lamp from the lamp
holder by pulling gently.
Replace the lamp with a new one of the
same type, making sure that you insert
the two pins properly into the housings on
the lamp holder.
Replace the snap-on lamp cover.
Replacement lters and light bulbs can be
obtained from your local Service Force Centre.

9
SOMETHING NOT WORKING
SERVICE AND SPARE PARTS
If, having followed these instructions carefully, your cooker hood fails to work properly please carry out
the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during opera-
tion
If after all these checks, the fault persists, contact your
local Service Force Centre, quoting the model and
serial number.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
Solution
• Check the hood is connected to the electricity
supply.
• Make sure the switch is in the ‘ON’ position.
• The fan speed is set high enough for the task
• The grease lter is clean.
• The kitchen is adequately vented to allow the
entry of fresh air.
• If set up for recirculation, check that the char-
coal lter is still effective.
• If set up for extraction, check that the ducting
and outlets are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to
reset.
In-guarantee customers should ensure that the
above checks have been made as the engineer
will make a charge if the fault is not a mechanical
or electrical breakdown.
If you require an engineer or spare parts contact your
local Service Force Centre by telephoning:
08705 929929
Your telephone call will be routed to your local Service
Force Centre. For the address of your local Service For-
ce Centre and further information about Service Force,
please visit the website at www.serviceforce.co.uk.
For general assistance with your appliance or for further
information on Electrolux products please contact our
Customer Services Department.
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: [phone]*
* calls to this number may be recorded for training
purposes.

10
GUARANTEE CONDITIONS
We Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux built-in appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our
option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:
• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
• All service work under this guarantee must be undertaken by Electrolux Service Force Centre.
• Any appliance or defective part replaced shall become the property of this company.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any lilght bulbs or
removable parts of glass or plastic.
• Costs incurred for calls to put right appliances improperly installed or calls to appliances outside the United
Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agree-
ments.
• Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualications:
• The guarantee starts from the date you rst purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
Before you move please contact your nearest Customer Care Centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Luton [phone]

11
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 70 mm
HEIGHT OF CHIMNEY: (UPPER SECTION) 415 mm
(LOWER SECTION) 700 mm
WIDTH OF CANOPY : 898 mm
DEPTH OF CANOPY: 650 mm
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 330 W
FAN MOTOR: 250 W
LAMPS : (4 x 20 W) 80 W
Note: CE Marking certies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and subse-
quent modications and Low Voltage directive 72/23/E.
ELECTRICAL CONNECTIONS
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofce,
your household waste disposal service or the shop where you purchased the product.
Electrical Requirements
Any permanent electrical installation must
comply with the latest I.E.E. Regulations and
local Electricity Board regulations. For your own
safety this should be undertaken by a qualied
electrician e.g. your local Electricity Board, or a
contractor who is on the roll of the National
Inspection Council for Electrical Installation
Contracting (NICEIC).
Electrical Connection
Before connecting to the mains supply ensure
that the mains voltage corresponds to the
voltage on the rating plate inside the cooker
hood.
This appliance is tted with a 3 core mains cable and
must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact
gap on each pole. A Switched Fuse Connection Unit to
BS1363 Part 4, tted with a 3 Amp fuse, is a recom-
mended mains supply connection accessory to ensure
compliance with the Safety Requirements applicable to
xed wiring instructions.
This appliance conforms to BS 800: 1988 and EEC
Directive No. 78 308 regarding suppression of radio and
television interference.
This appliance must be earthed

12
INSTALLING THE COOKER HOOD
Please ensure that when the appliance is installed it is easily accessible to an engineer in the event of a
breakdown.
All installations must comply with the local authorities requirements for the discharge of exhaust air.
Incorrect installation may affect the safety of this cooker hood.
Installation Requirements
Before installation check the wall to which the cooker hood is to be tted for electric cables, water pipes or
gas.
This cooker hood is designed to be xed to any horizontal surface over a cooking area, and can be used in the
extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualied and competent person.
The manufacturer disclaims any responsibility for damage due to incorrect installation of the cooker hood or if the
hood is not installed in compliance with relevant regulations controlling this type of installation.
Unpacking
Before unpacking the cooker hood position the carton with the
arrows pointing upwards as illustrated on the carton.

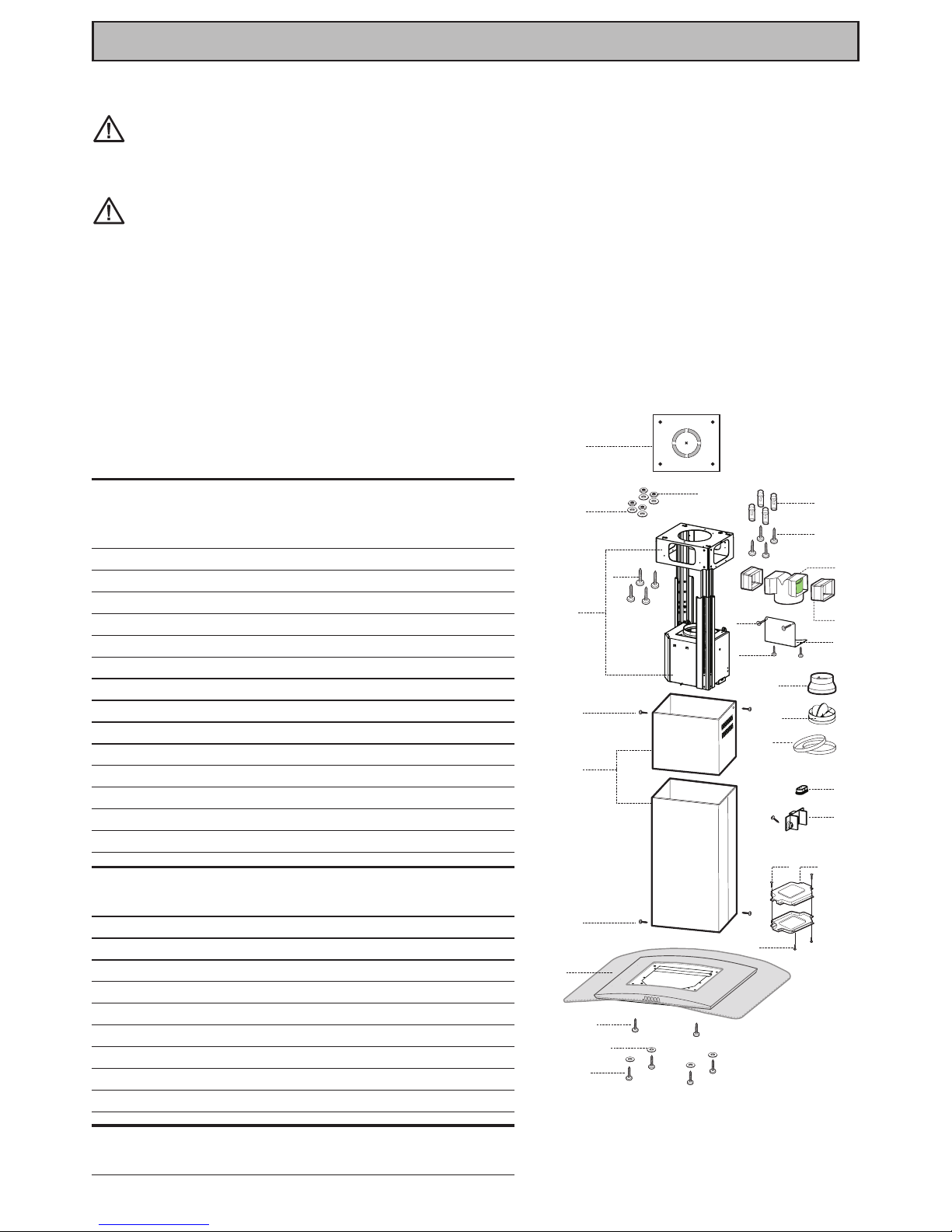

The cooker hood is made up of the following components:
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
7.1 1 Telescopic frame complete with extractor, consisting of:
7.1a 1 Upper frame
7.1b 1 Lower frame
91 Reducer Flange ø 150-120 mm
10 1 Dumper ø 150
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
24 1 Junction box
25 2 Pipe clamps
26 2 Cable clamps
27 1 Finishing plug
Ref. Q.ty Installation Components
7.3 1 Air Outlet Connector xing bracket
12c 8 Screws 2.9 x 6.5
12e 4 Screws 2.9 x 9.5
12f 2 Screws M4 x 80
12g 4 Screws M6 x 80
12h 4 Screws 5.2 x 70
12q 4 Screws 3.5 x 9.5
21 1 Drilling template
22 8 Washers ø 6.4
23 4 Nuts M6
Q.ty Documentation
1 Instruction Manual
































13
INSTALLING THE COOKER HOOD
The clereance height between the inferior part of
the cooker hood and the hob must be 650 mm (
some models can be tted at a lower height from
the hob, please refer to the installation paragraph).

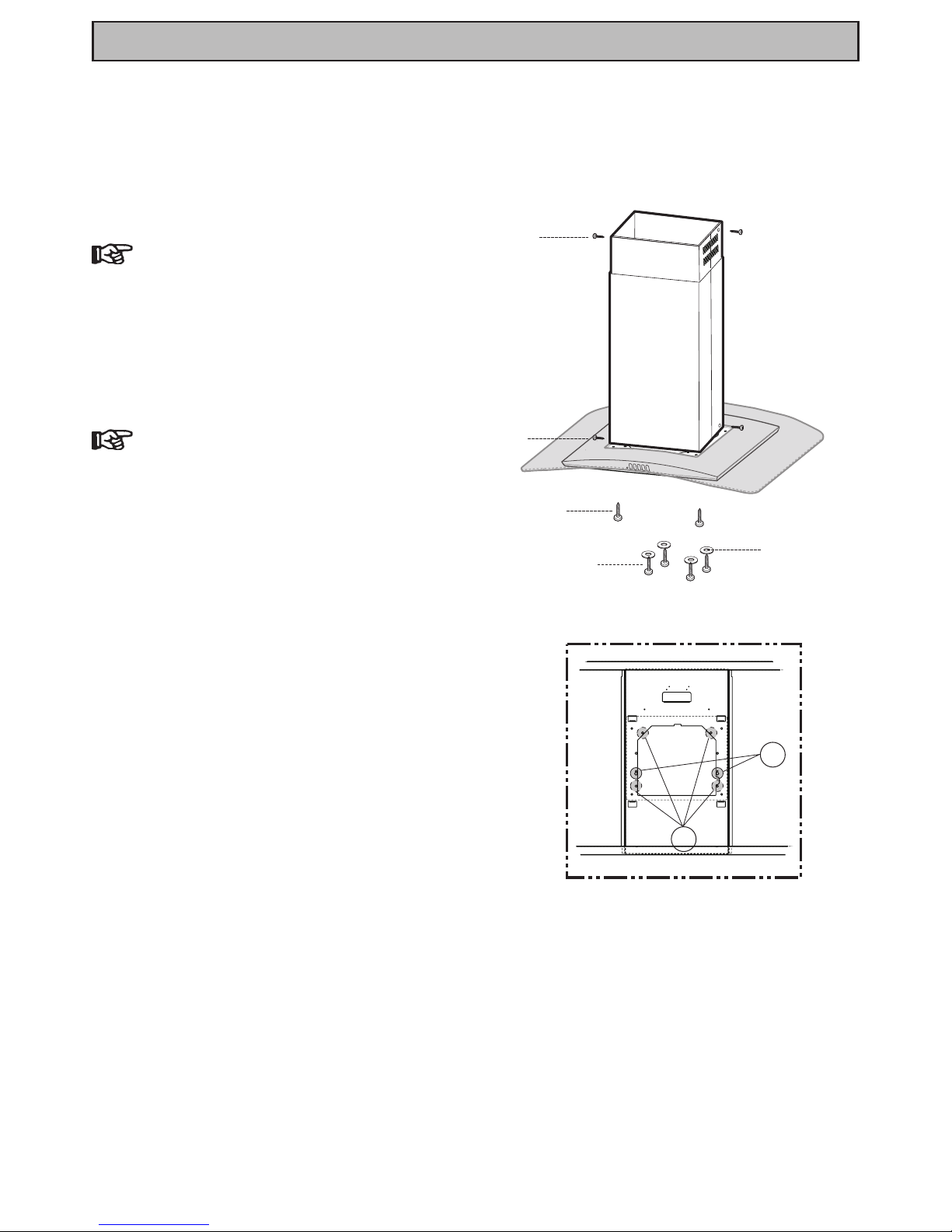

Drilling the Ceiling/Support Shelf
• Use a plumb line to mark the centre of the hob on the
ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/
support shelf, making sure that the template is in the
correct position by lining up the axes of the template
with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to
the screw size.
• For hollow brick ceilings with wall thickness of 20
mm: drill ø 10 mm (immediately insert the Dowels
not provided).
• For wooden beam ceilings, drill according to the
wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according
to the diameter of the external air exhaust duct
connection.
• Insert two screws of the following type, crossing them
and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for
the screw size (not provided).
• For Cavity ceiling with inner space, with wall thickness
of approx. 20 mm, Screws not provided.
• For wooden beam ceilings, use 4 wood screws (not
provided).
• For wooden shelf, use 4 screws with washers and
nuts (not provided)
Fixing the Frame
• Loosen the two screws fastening the lower chimney
and remove this from the lower frame.
• Loosen the two screws fastening the upper chimney
and remove this from the upper frame.
If you wish to adjust the height of the frame, proceed
as follows:
• Unfasten the eight metric screws joining the two
columns, located at the sides of the frame.
• Adjust the frame to the height required, then replace
all the screws removed as above.
• Insert the upper chimney stack from above, and leave
it running free on the frame.
• Lift up the frame, t the frame slots onto the screws
up to the slot end positions.
• Tighten the two screws and fasten the other two screws
provided with the hood.



14
Extraction
The cooker hood is more effective when used in the
extraction mode (ducted to the outside).
Venting kits may be purchased through your retailer
or DIY store, and must be ducted to an outside vent
of Ø120mm or Ø150mm.
For the best performance use the shortest possible duct
run and the minimum number of bends.
Where exible ducting is tted it should not be turned
through very tight bends as this may impair the perform-
ance of the hood.
It is recommended a maximum length of 3 metres
with one bend, to be installed, to be reduced metre
for each 90o bend.
If a distance is greater than 3 metres the efciency of
the hood could be impaired.
The ducting used must be manufactured from fire
retardent material conforming to the relevant British
Standard or DIN 4102-B1.
When the cooker hood is ducted to the outside the
charcoal lter must be removed.
INSTALLING THE COOKER HOOD
Before tightening the screws completely it is possible to
adjust the frame by turning it. Make sure that the screws
do not come out of their seats in the slotted holes.
• The frame mountings must be secure to with-
stand the weight of the hood and any stresses
caused by the occasional side thrust applied to
the device.
On completion, check that the base is stable,
even if the frame is subjected to bending.
• In all cases where the ceiling is not strong
enough at the suspension point, the installer
must provide strengthening using suitable
plates and backing pieces anchored to the
structurally sound parts.

15
INSTALLING THE COOKER HOOD

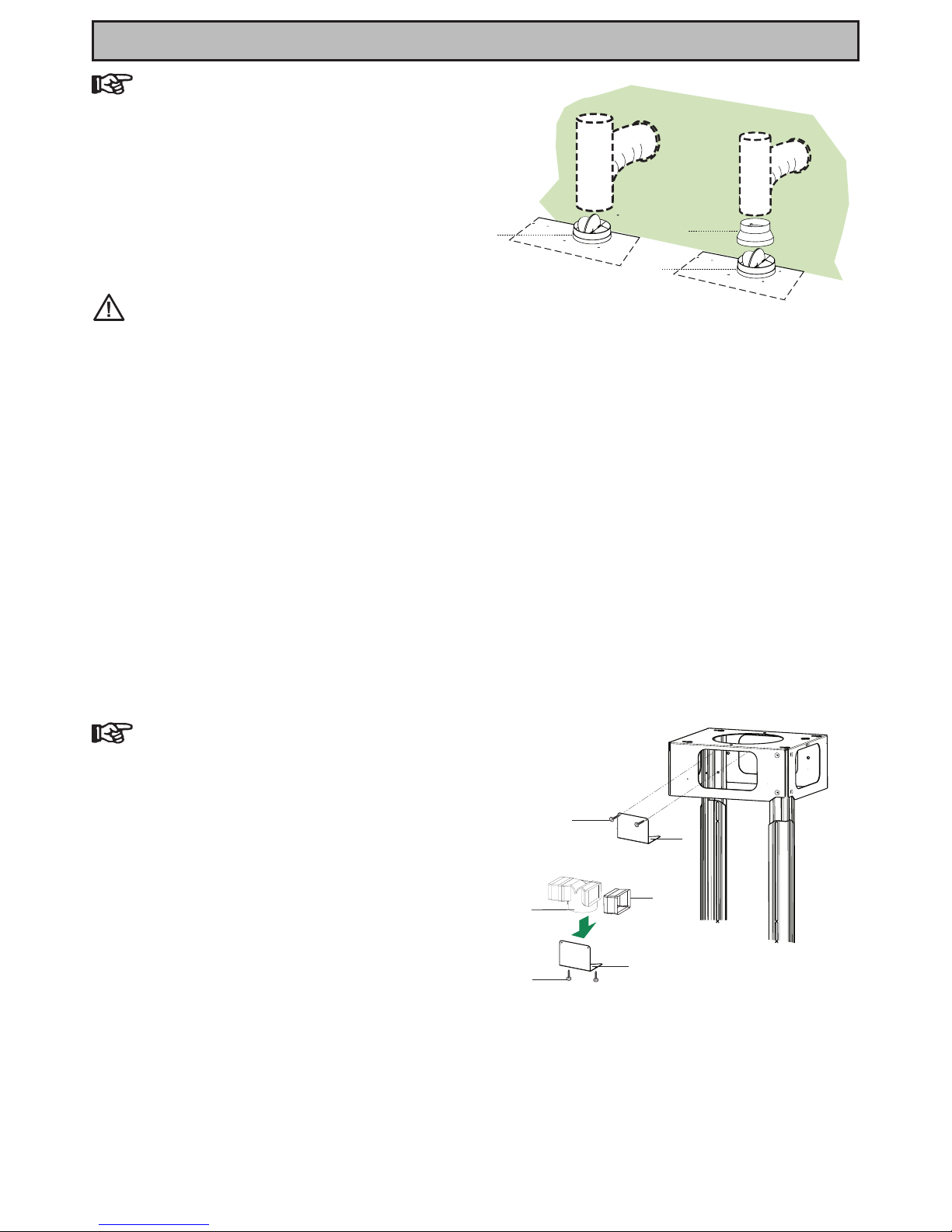

Ducting Connection
Connect the ducting chosen to:
The diameter of the ducting spigot on the top of
the hood body item 1 is Ø150mm (6”).
When using Ø120mm ducting it will be necessary
to install the ducting adapter item 9 to the the
Dumper 10 (supplied) Ø150mm outlet on the top
of the hood body.
If the room where the cooker hood is to be used
contains a fuel burning appliance such as a central
heating boiler, then its ue must be of the room
sealed or balanced ue type.
If other types of ue or appliances are tted sure
that there is an adequate supply of air to the
room.
The cooker ducting (extraction mode) must never
be connected to central heating ues, radiators or
water heaters etc.
Recirculation
The cooker hood is supplied specied for use in the
recirculation mode, with the charcoal lter tted.
In the recirculation mode contaminated air is passed
through the charcoal lter to be puried and recirculated
into the kitchen through the grille outlets on either side
of the chimney.
Recirculation Connection
• Insert the Connector extensions 14.1 into the side of
the Connector 15.
• Insert the Connector 15 into the Support bracket 7.3
and x it with the screws.
• Fasten the Support bracket 7.3, xing it to the upper
part with the Screws.
• Make sure that the Connector extensions outlet 14.1
is in correspondence with the Chimney openings both
horizontally and vertically.
• Join the Connector 15 to the Hood canopy outlet using
a rigid or exible pipe ø¸150 mm, selection of which
is at the discretion of the installation techni-cian.
• Make sure that the Activated charcoal odour lter
has been tted.












16
Chimney Stack
The chimney consists of two sections.
The lower chimney measures 700mm and the upper
chimney (with the recirculation grilles on either side)
measures 415mm. The overall installed measurement
is min. 830 - max 1100mm.
Fitting the Chimney
• Position the upper chimney section and x the upper
part to the frame using the 2 screws 12c (2,9 x 6,5)
provided.
• Similarly, position the lower chimney section and
x the lower part to the frame using the 2 screws
12c (2,9 x 6,5) provided.
Fitting the Hood Body
Before xing the hood canopy to the frame:
• Screw the 2 screws 12f half way into the holes
provided in the sides of the bottom of the
frame.
• Remove the grease filters from the hood
canopy.
• Remove any activated charcoal lters.
• Lift the hood canopy and engage the screws
12f in the slots (A) as far as they will go.
• Working from below, x the hood canopy to
the frame (B), using the 4 screws 12q and 4
washers 22 provided, then tighten all the screws
securely.
INSTALLING THE COOKER HOOD



 



17
Electrical Connection
• Connect the Hood to the Mains power supply, inserting
a two-pole Switch with a contact aperture of at least
3 mm.
• Remove the Metal grease lters (see par. on “Mainte-
nance”) and make sure that the power supply Cable
is properly inserted in the Suction fan socket.

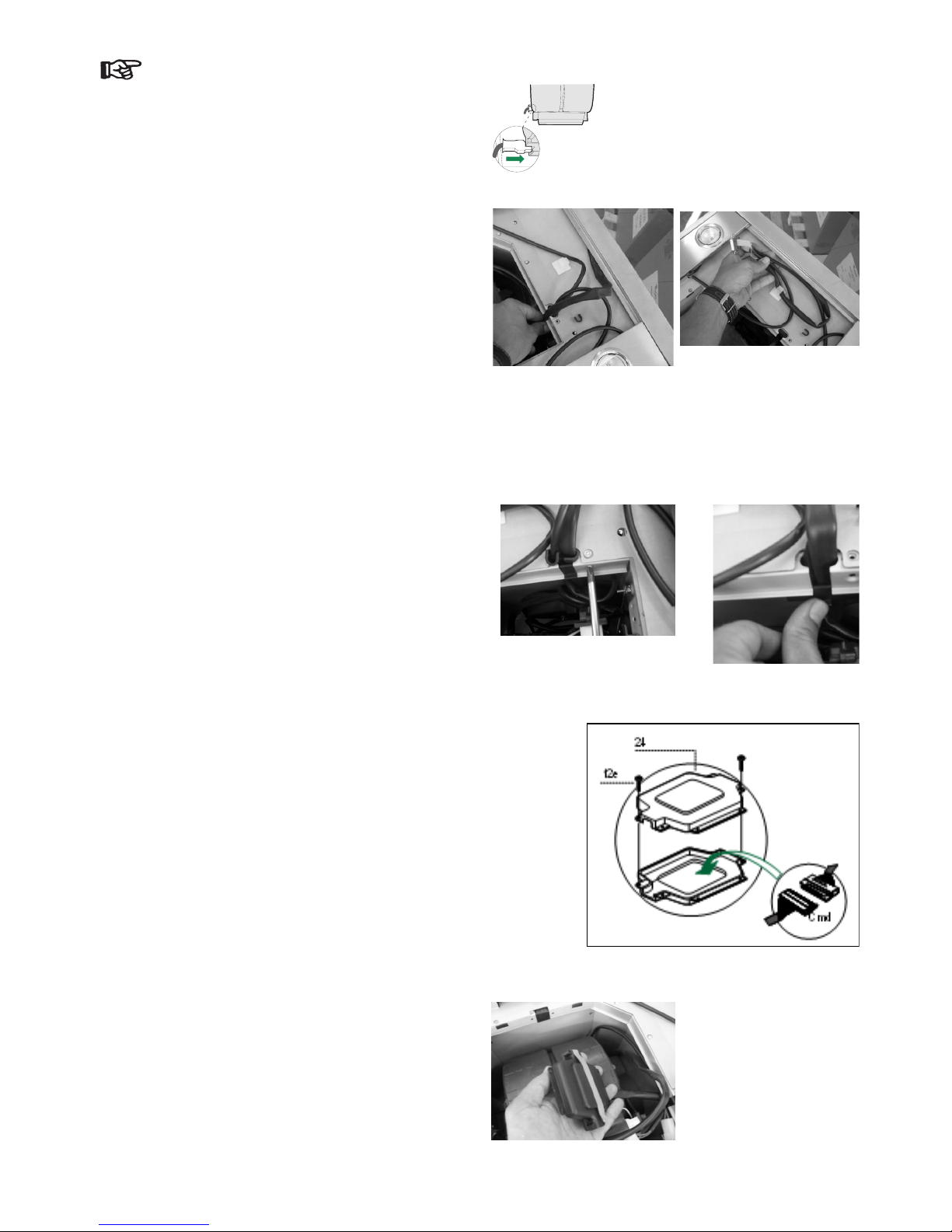

• Take the wires indicated in g.1and pass them through
the slot formed on the galvanized diffuser support,
as shown in g.2.
• Position the nishing plug 27 over the housing in
the diffuser support, xing it using a screw 12e (2.9
x 9.5) and applying the 2 cable clamp elements 26
as indicated in gs. 3and 4.
• Connect the Controls Connector g. 5.
• Store both the Connectors in the Protective box 24 and
close it with 2 Screws 12e (2.9 x 9.5), provided.
• Remove the protective lm from the double-sided
adhesive on the connection box, and x it inside the
motor compartment g. 6.
1
2
3
4
5
6


For general enquiries concerning your Electrolux appliance
or for further information on Electrolux products, please







  




       









Please refer to your guarantee card for the guarantee
conditions. Replacement cards are available on request
from the above address.
Customer Services Department
Major Appliances
Electrolux
Addington Way
Luton
Bedfordshire
LU4 9QQ
Tel: [phone] *

www.electrolux.com
436005298_01 - 110125
