Thank you for your choice of an Electrolux product. We are convinced that you will
have great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole
user manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by
electricity, it is important that the cooker hood is installed correctly and that you
read the safety instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Congratulations to your new Cooker Hood
Safety instructions
At installation and service
●The cooker hood is made for normal house-
holds with normal cooking. If it is used for
other purposes there is a risk of damage
which is not covered by the warranty.
●All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by
a person with enough knowledge.
Installation made otherwise could lead to
loss of performance and even injuries and /
or damage on properties.
●The hood cannot be connected to flues of
other appliances that run on energy sources
other than electricity.
Please, keep to the provisions of official
directives regarding the question of fumes
discharge.
●When the hood is used at the same time of
other appliances that run on energy sources
other than electricity, provision must be
made for an adequate supply of air.
●When installed, the hood must be not
less than 60 cm. above electric burners
or 75 cm. above gas or mixed-fuel
burners. (Fig. 2).
●The power cord should be drawn so that
there is no risk of damage. Hazard!
At use of cooker hood
●No food must be cooked flambé underneath
the hood.
●The use of an unprotected flame is danger-
ous for the filters and could cause fires.
●Never leave the deep-frying or frying pan
over a cooker/hob. The oil contained in the
pan may spontaneously ignite through
overheating.
●Observe the filter change or cleaning inter-
vals. Failure to observe these intervals may
cause the risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker
hood and the heating zone; Cover the fire ,
Never use water.
At disposal
●Help to avoid damages even when the
cooker hood should be disposed. Discon-
nect the power plug and cut the power cord
at hood inlet. Check with the authorities for
information of how to proceed for disposal.

4
1. Light switch
2. Motor switch
3. Work light
4. Metal grease filters
5. Chimney
6. Outlet grids (Recycling)
Standard accessories included:
●Air deflector (recycling)
●Connecting ring (Exhausting)
●screws and hooks
●Template
● Chimney support
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting version
The air is vented outdoors by a duct which must
be connected to connecting ring (S - Fig. 3).
The hood cannot be connected
to flues of other appliances that
run on energy sources other
than electricity.
Recycling version
The air is filtered through a carbon filter and
recirculated into the room through the outlet grids
(K - Fig. 3).
This version is used when there is no exhaust
duct for venting outdoors or when it is impossible
to install one.
Description of the appliance
Fig. 1
4
4
21
56
3

5
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.
Placement
The hood is to be mounted on the wall.
When installed, the hood must be not less than
60 cm. above electric burners or 75 cm. above
gas or mixed-fuel burners. (Fig. 2).
Electrical connection
The hood has a power cord with moulded plug
to be connected to a wall outlet of 230 V.
The power cord length is 1,3 m.

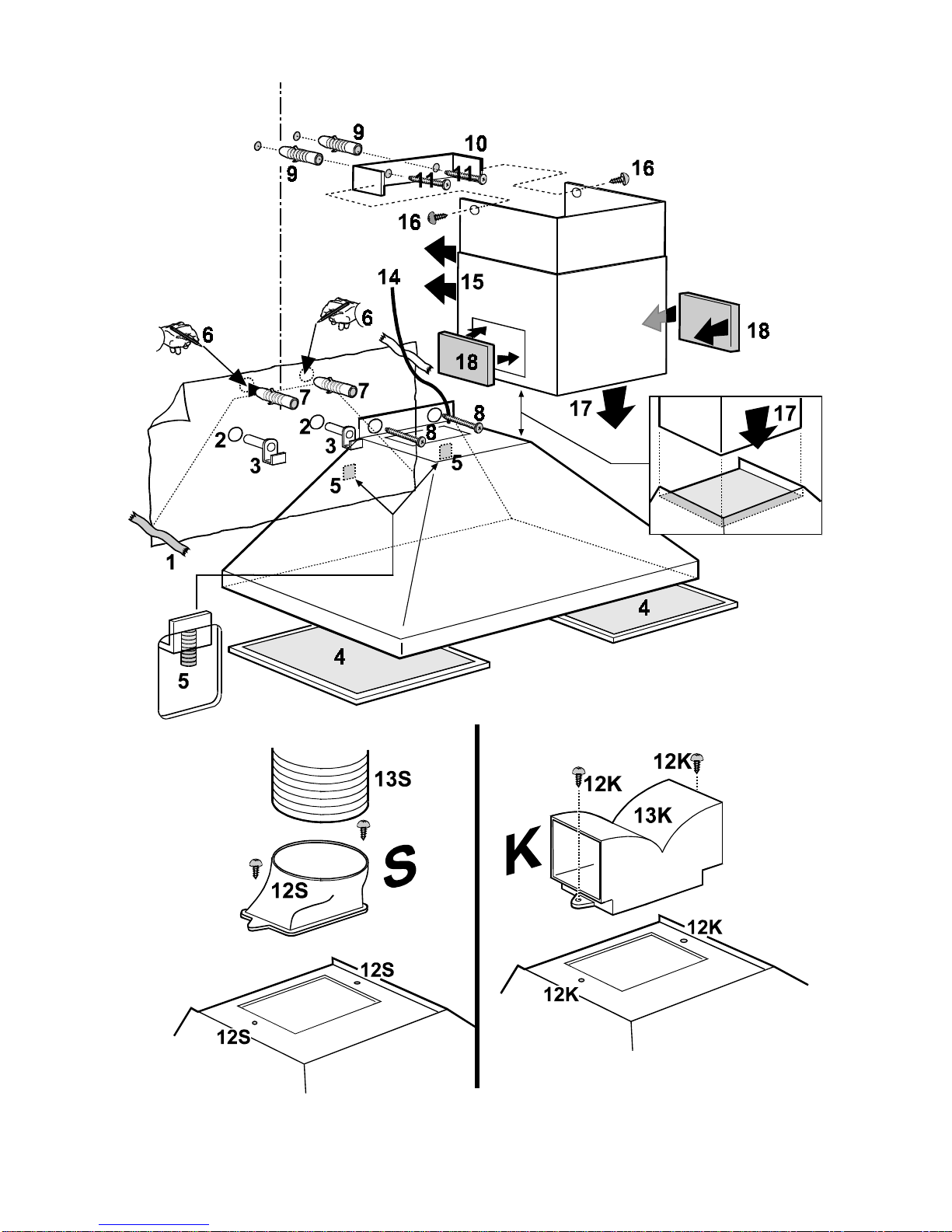

Mounting the hood - Fig. 3
a. Put the template onto the wall (1)and drill two
Ø12mm holes (2).
b.Fit two hooks (3) on the drilled holes.
c. Remove the metal filters.
d.Hang the hood on the hooks and adjust the
position of the hood using the two screws on
the bottom of the hooks (5).
e. On the top of the cooker hood mark two
holes (6),
Remove the hood and drill two Ø8mm holes
on the marked points.
Fit two Ø8mm wall dowels (7), Hang again
the hood and fix the hood definitively with two
screws 5X45 (8) from the inside of thehood.
f. Refit the metal filters
Installation
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 942 120 389
Fig. 2
Mounting the chimney
g.Fix the chimney support (10) with two screws
5 x 45 mm (11) and two wall dowels (9) on
the wall close to the ceiling.
h. For exhausting version: Fit the connection
ring on the top of the hood with two screws Ø
3,5 x 6,5 mm (12S) then fit an axhausting
pipe long enough to reach the outside (13S).
For recycling version: fix the deflector
(13K) on the top of the hood with two screws
Ø 3,5 x 6,5 mm (12K) .
Check that the active carbon filters are
mounted, see Fig. 7.
i. Prepare the electric connection (14) (see
relative chapter).
j. Fit the chimney (15) and fix it on the chimney
support with two screws 3,0 x 9 mm (16).
The lower part of the chimney must be slided
down and inserted on the housing on the
upper part of the hood (17).
Remove the plastic film that protects the
chimney.
k. Fit the two grids (18) on both sides of the
chimney.
Min.
60 cm.
Min.
75 cm.

6
Fig. 3
Ø 120 mm

7
Using the hood
Speed regulation
The hood has a variable speed motor.
For the best performance, we recommend
using the highest speed in particular cases of
strong odour and vapour concentration.
We recommend starting up the hood a few
minutes before cooking and keeping it running
until all the odours have been eliminated.
Work light
The hood has two lamps 40W (E14).
Switch lamps ON and OFF with the left slide
switch.
Correct ventilation
To have the cooker hood working correctly the
windows in the kitchen should be closed. In
stead a window in an adjacent room should be
open.
Important to know
If the hood is run at the same time as a burner
or fireplace that depend on ambient air (for
example gas, Diesel, coal or wood heaters,
water heaters, etc.) be careful, because the
hood, when it exhausts the air, removes the
ambient air required by the burner or fireplace
for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Fig. 4
Fig. 5

8
Maintenance
Before performing any
maintenance operation,
disconnect the hood from
the electricity.
Grease filter - Fig. 6
This serves to hold the grease particles in sus-
pension. The metal filter should be washed every
month with warm soapy water or, if possible, in
the dishwasher (65°C).
Remove the filter:
●Push the spring handle towards the back, then
extract the filter downwards.
Leave to dry before refitting it.
Carbon filter - Fig. 7
This filter dissolves cooking odours.
It should be changed every 6-8 months in normal
use. Ask the technical assistance service or
manufacturing company for a new one.
The carbon filter must never be washed.
Mounting and dismounting of the carbon
filter:
a. Disconnect the hood from the electricity.
b.Remove the grease filter.
c. To install the filters, place one filter on each
side so that they cover the grates protecting
the rotor on the motor. Then turn the center
handle for the filters in the clockwise direction.
d.To dismount the carbon filters (covering the
grates protecting the rotor on the motor) for
replacement, turn the central handle in the
counter-clockwise direction until the filters are
unlocked.
e. Remove the grease filter.
Attention
Failure to observe the rules for cleaning the
appliance and changing and cleaning the filters
may cause fires. Therefore, we recommend
observing these instructions.
Cleaning
To clean the outside of the hood use a cloth
moistened with denatured alcohol or neutral liquid
detergents. Never use products containing
abrasives.
Fig. 6
Fig. 7
Fig. 8
Changing the lighting elements -
Fig. 8
●Disconnect the hood from the electricity.
●Remove the lamp cover.
●Replace the damaged part with one of equal
rating.

9
If the hood does not function
Before you make contact to service
Check that the power plug is connected to the
wall power outlet and that no fuse is blown. Do
not do any operations that can cause hazard or
damage to the product. If the problem remains
contact your dealer or an approved service com-
pany
Remember to save the purchase recite and
the Warranty card (only used in some coun-
tries)
Service and spare parts
Service and spare parts you will get via your
dealer or service company.
When you order service or spare parts you
should be ready to give the product number
and model denomination. This information you
will find on the rating label.
Take away the grease filter and you will
find the rating label behind.
Model:
Product number:
Date of purchase:
Technical data
Model EFC 621 EFC 921 EFC 931
Dimension Height 910-1310 mm 910-1310 mm 910-1310 mm
Width 599 mm 899 mm 899 mm
Depth 515 mm 515 mm 515 mm
Light 2 x 40 W E 14 2 x 40 W E 14 2 x 40 W E 14
Grease filter 2 pc 3 pc 3 pc
Mains Voltage 220-230 V 220-230 V 220-230 V
Electric safety class Class 2 Class 2 Class 2
Power rating total 250 W 250 W 250 W
x) Valid when the hood is used with carbon filter (recirculation)

10

11

LI096A Ed. 11/98
