Electrolux EFC 9551 User manual

EFC 9551
Instructions Manual

EN
2
2
Instructions Manual
INDEX
RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................3
CHARACTERISTICS..............................................................................................................................................................4
INSTALLATION......................................................................................................................................................................5
USE.........................................................................................................................................................................................8
MAINTENANCE....................................................................................................................................................................10

EN
3
3

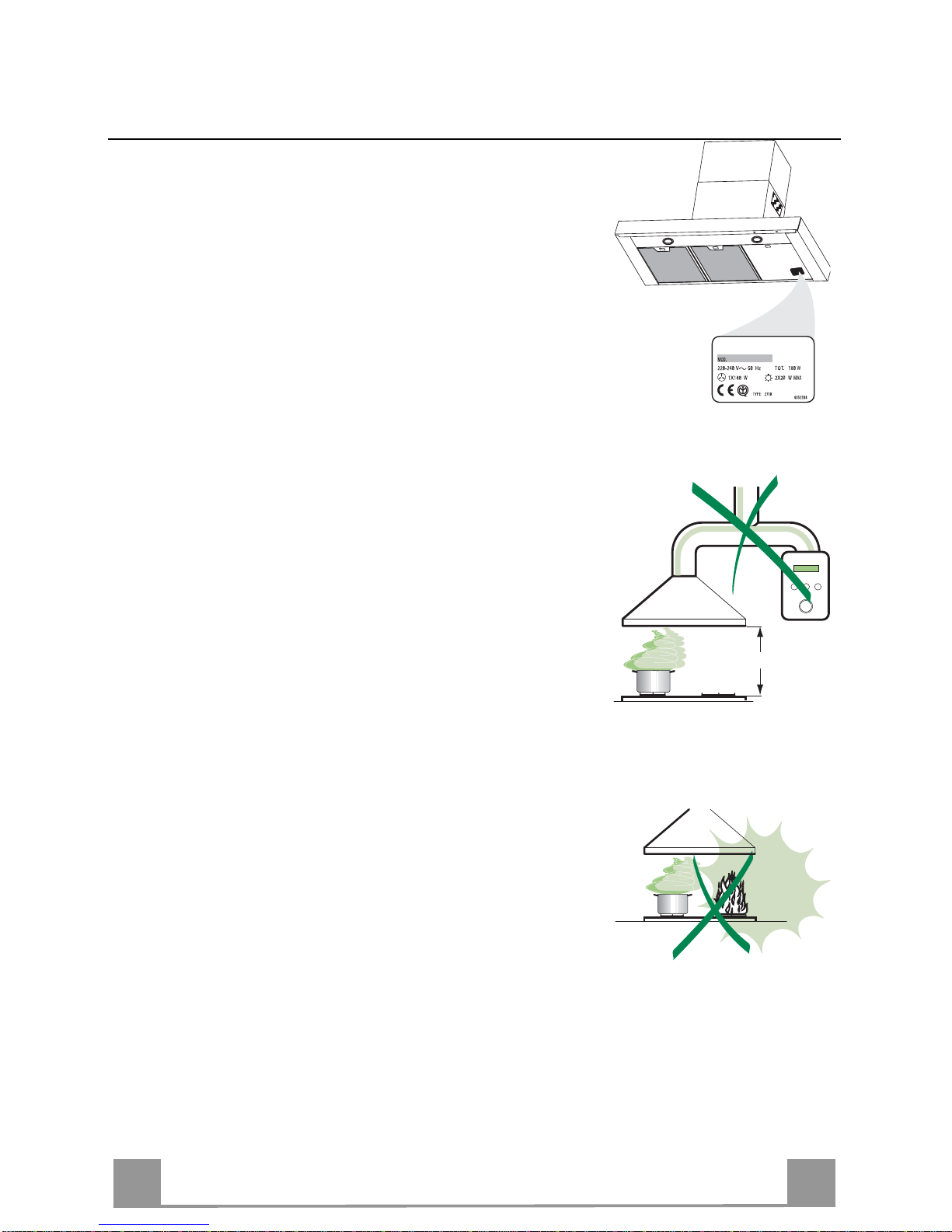

RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extrac-
tor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guaran-
tees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combus-
tion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust
gas. The kitchen must have an opening communicating directly with
the open air in order to guarantee the entry of clean air.
USE
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has ben de-
signed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,
making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: over-
heated oil can burst into flames.
• The hood should not be used by children or persons not instructed in
its correct use.
• The appliance is not intended for use by young children or infirm per-
sons without supervision.
• Young children should be supervised to ensure that they do not play
with the appliance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carry-
ing out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.
650 mm min.

EN
4
4

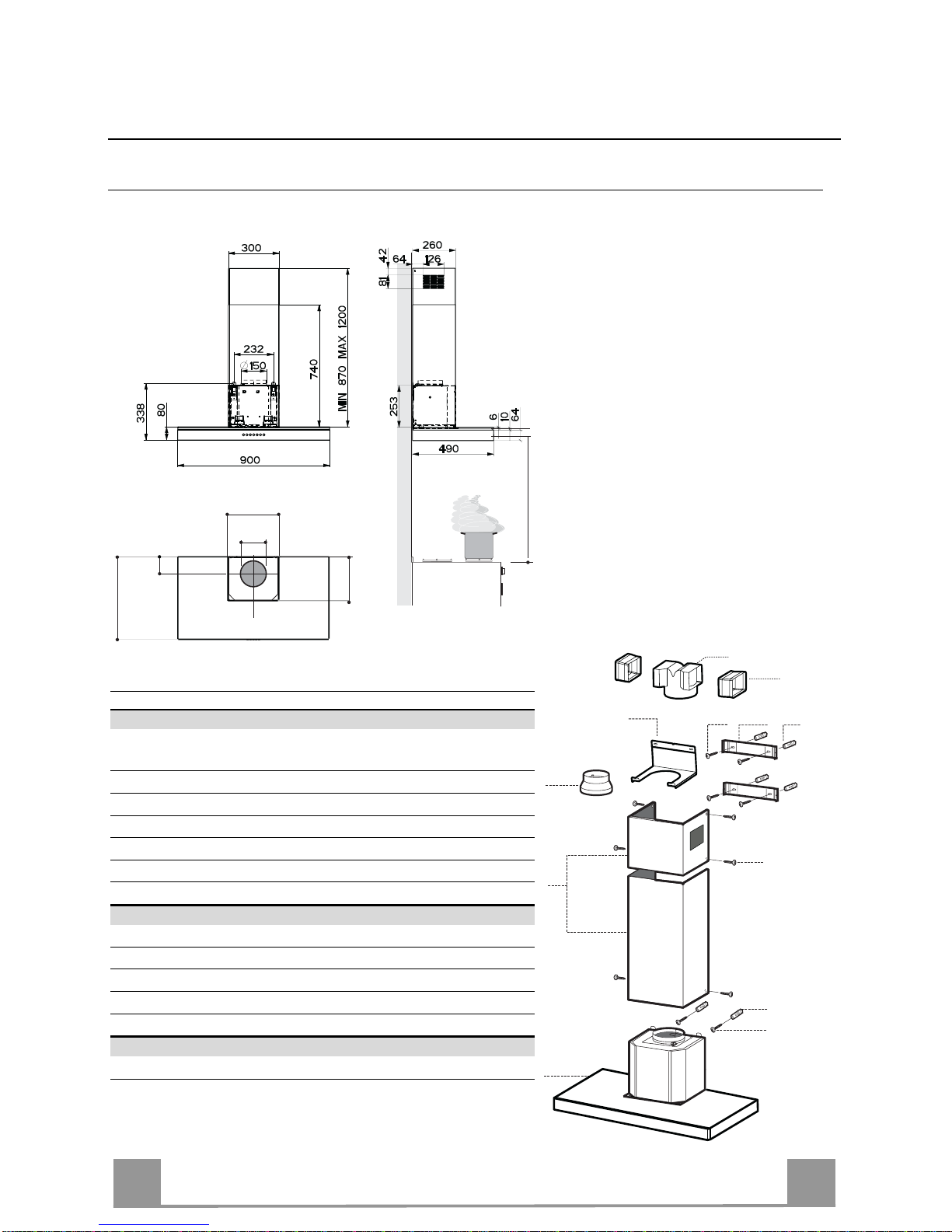

CHARACTERISTICS
Dimensions
260
300
490
108
150
650 min.
Components
Ref. Q.ty Product Components
11 Hood Body, complete with: Controls, Light, Blower,
Filters
21 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
91 Reducer Flange ø150-120 mm
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
7.3 1 Air Outlet Connection Support
11 6 Wall Plugs
12a 6 Screws 4,2 x 44,4
12c 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
2.1
2.2
2
12c
12a 7.2.1 11
11
12a
1
9
7.3
14.1
15

EN
5
5
11
12a
338 X
11 6
1÷2
11 6
650 min.
7.2.1
INSTALLATION Wall drilling and bracket fixing
Wall marking:
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the
centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-
ing the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 338 mm
above the horizontal reference line.
• Repeat this operation on the other side.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2
screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap
of 5-6 mm between the wall and the head of the screw.

EN
6
6
Mounting the hood body
• Before attaching the hood body, tighten the two screws Vr lo-
cated on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.
12a
Vr

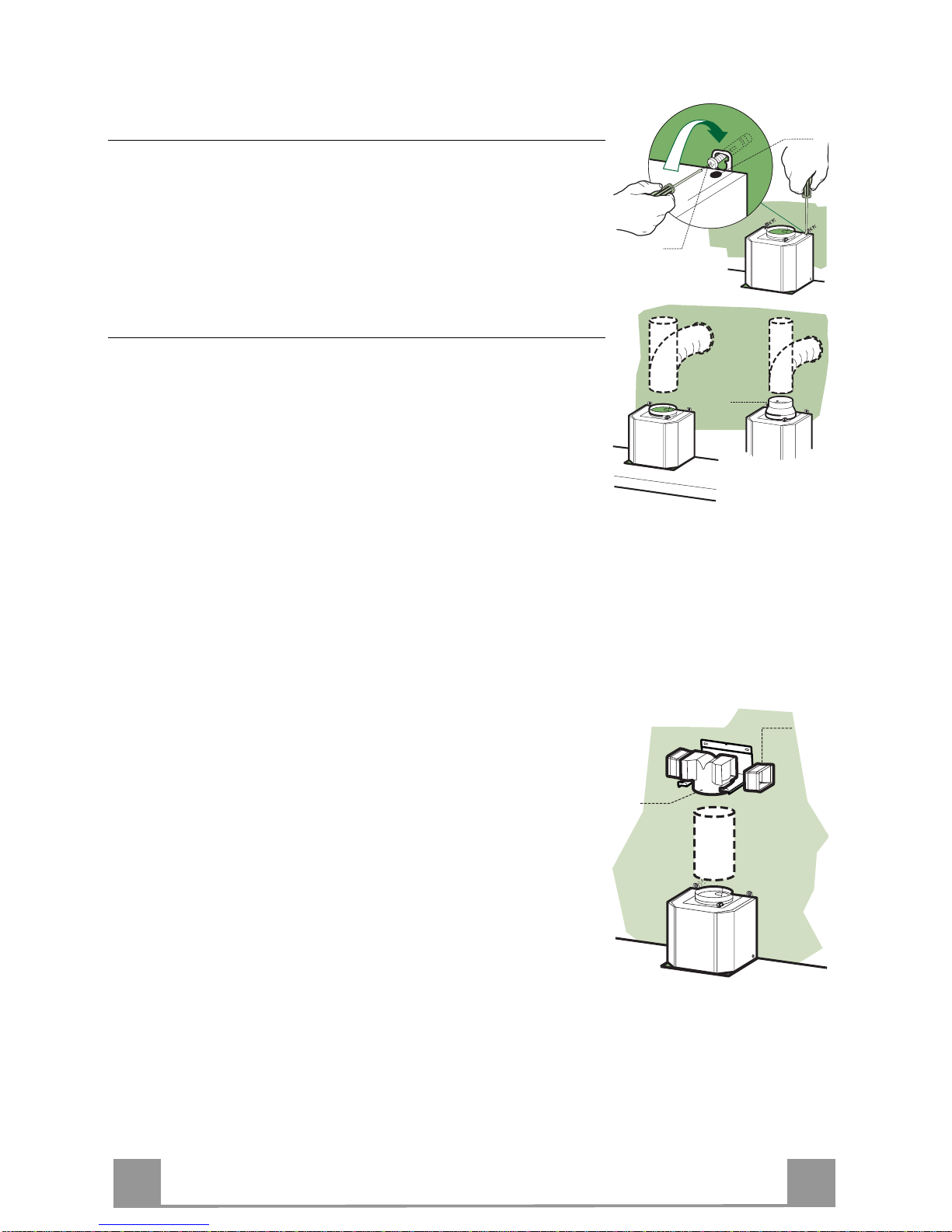

Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120 mm,
the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove any activated charcoal filters.
9
ø 120ø 150
RECIRCULATION VERSION AIR OUTLET
• Put connection 15 into the connection support 7.3.
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet
using either a flexible or rigid pipe ø 150 mm, the choice of
which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.
ø 150
14.1
15

EN
7
7

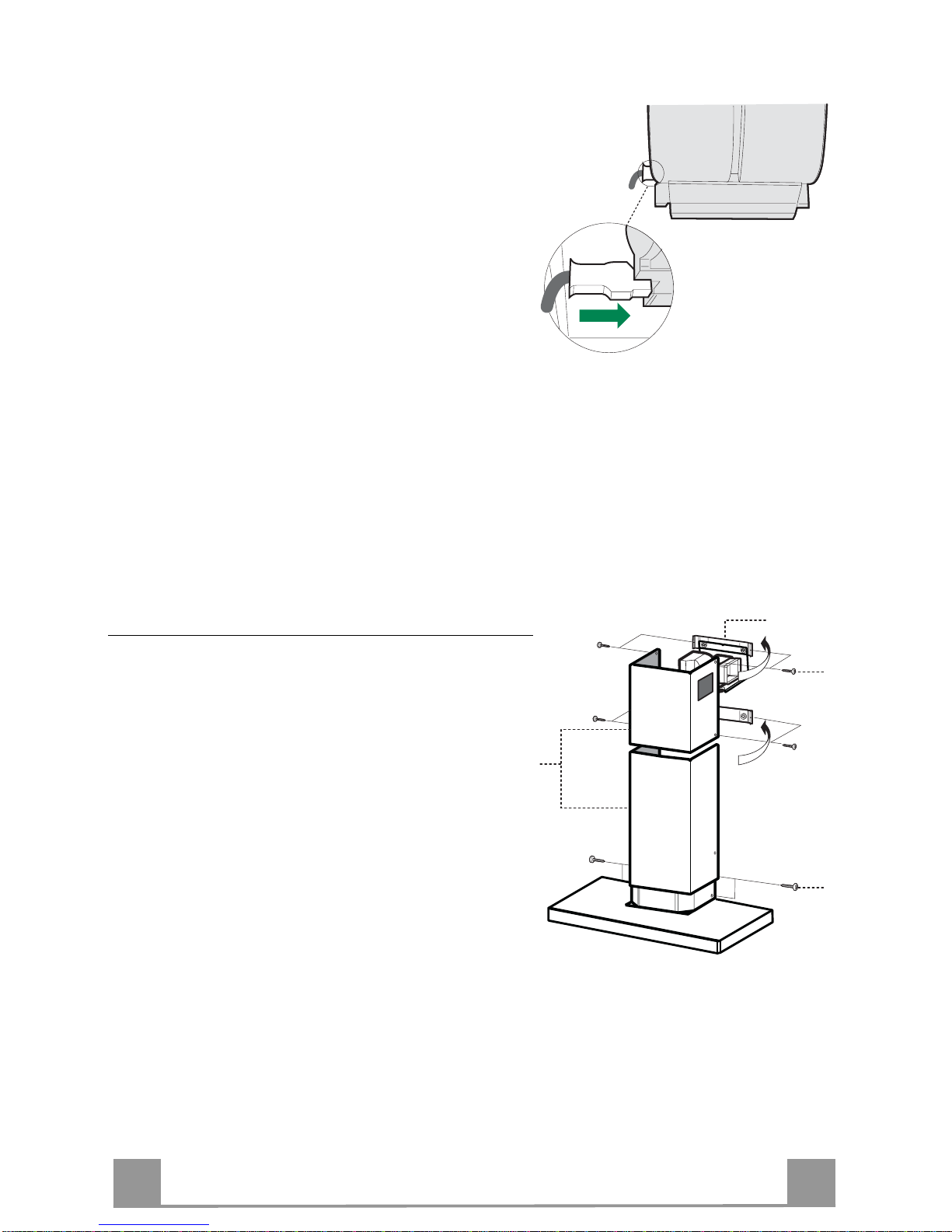

ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole
switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Mainte-
nance) being sure that the connector of the feeding
cable is correctly inserted in the socket placed on the
side of the fan.
Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue and
hook them behind the brackets 7.2.1, making sure
that they are well seated.
• Secure the sides to the brackets using the 4 screws
12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is
aligned with the chimney outlets.
Lower exhaust flue
• Slightly widen the two sides of the flue and hook
them between the upper flue and the wall,
making sure that they are well seated.
• Fix the lower part laterally to the hood body using
the 2 screws 12c (2,9 x 9,5) supplied.
12c
2.1
2.2
2
7.2.1
12c

EN
8
8
USE
L T1 T2 T3 T4 T5 F
The hood can be switched on pushing directly onto the requested speed without firstly hav-
ing to select 0/1 button .
Basic functions
Touch
control
Dua
l Function
Indicator lights
When briefly pressed it switches the lighting system
on and off. Touch control unlit Lights off
Touch control unlit
Lights off
Touch controllit Lights on
L
Whenpressed for 2 secondsit switches the electro-
luminescent lighting on and off.This function is in-
dependent from the basic functions of the control u-
nit.It is therefore possible to switch on simultane-
ouslythehood lighting and the electroluminescent
lighting.During the electroluminescent lightingmode
the touch control is unlit. Touch control unlit Electroluminescent
lighting on
Touch controllit Motoron
T1 When pressed the motor is stopped, regardless of the
speed it is set to. Touch control unlit Motoroff
T2 When pressed the motor is set to the first speed Touch control lit
By a brief pressing the motor is set to the second
speed. Touch controllit Second speed on
T3
By pressing the touch control for approximately 2
seconds the Delay function is enabled, i.e dela-
yed shutdown of the appliance ensuring a com-
plete elimination of the residual odours. This fun-
ction can be activated at OFF-position and at 1°,
2° and 3°speeds. It can be stopped in advance
by pressing any of the touch controls (T) with the
exception of T3. The Delay function works accor-
ding to the following scheme:
1°speed / OFF = 20 minuets
2°speed = 15 minutes
3°speed = 5 minutes
Flashing touch
control Delay function on
T4 When pressed the motor is set to the third speed Touch control lit

EN
9
9
Touch
control
Basic functions Indicator lights
T5 When pressed the motor is set to the intensive speed
timed to 5 minutes. At the end of 5 minutes of intensi-
ve speed the hood starts again at the speed it was set
to previously. In case the hood is set to the intensive
speed directly from OFF-state it will then start from
the first speed after 5 minutes of intensive speed.
Touch control lit
Touch control lit
Metal grease filters satu-
ration alarm. Metalgrease
filtersneed to be washed.
The alarm starts up after
100 working hours.
F When pressed for 4 seconds it resets the filter alarm
signal indicated by flashing of the touch control T1.
This procedure can be carried out only when the
motor is stopped.
Flashing touch
control Charcoalodour filter satu- ration alarm. Charcoal
filter hasto be replaced
and metal grease filters
washed. The alarm starts
up after 200 working
hours. (Activation; check
the paragraph “Odour
filter”)

EN
1
0
10
MAINTENANCE
Cleaning the Comfort Panels
• Pull the Comfort Panel to open it.
• Disconnect the panel from the hood canopy by slid-
ing the fixing pin lever.
• The comfort panel must never be washed in a dish-
washer.
• Clean the outside using a damp cloth and neutral liq-
uid detergent.
• Clean the inside as well using a damp cloth and neu-
tral detergent; do not use wet cloths or sponges, or
jets of water; do not use abrasive substances.
• When the above operation has been completed, hook
the panel back to the hood canopy and close it by
turning the knob in the opposite direction.
Grease filters
CLEANING OF THE METAL CASSETTE FILTERS
Alarm reset
• Stop the motor.
• Press the F-
touch control for at least 4 seconds until
the T1 -touch control flashes.
Cleaning the filters
• Filters can be washed in the dish machine. They need
to be washed every 2 months or even more frequently
in case of particularly intensive use of the hood.
• Pull the Comfort Panel to open it.
• Remove the filters one by one pushing them towards
the back side of the unit and simultaneously pulling
downwards.
• Any kind of bending of the filters has to be avoided
when washing them. Before fitting them again into
the hood make sure that they are completely dry.
• When fitting the filters into the hood pay attention
that they are mounted in correct position and that the
handle faces outwards.
• Close the comfort panel.

EN
1
1
11

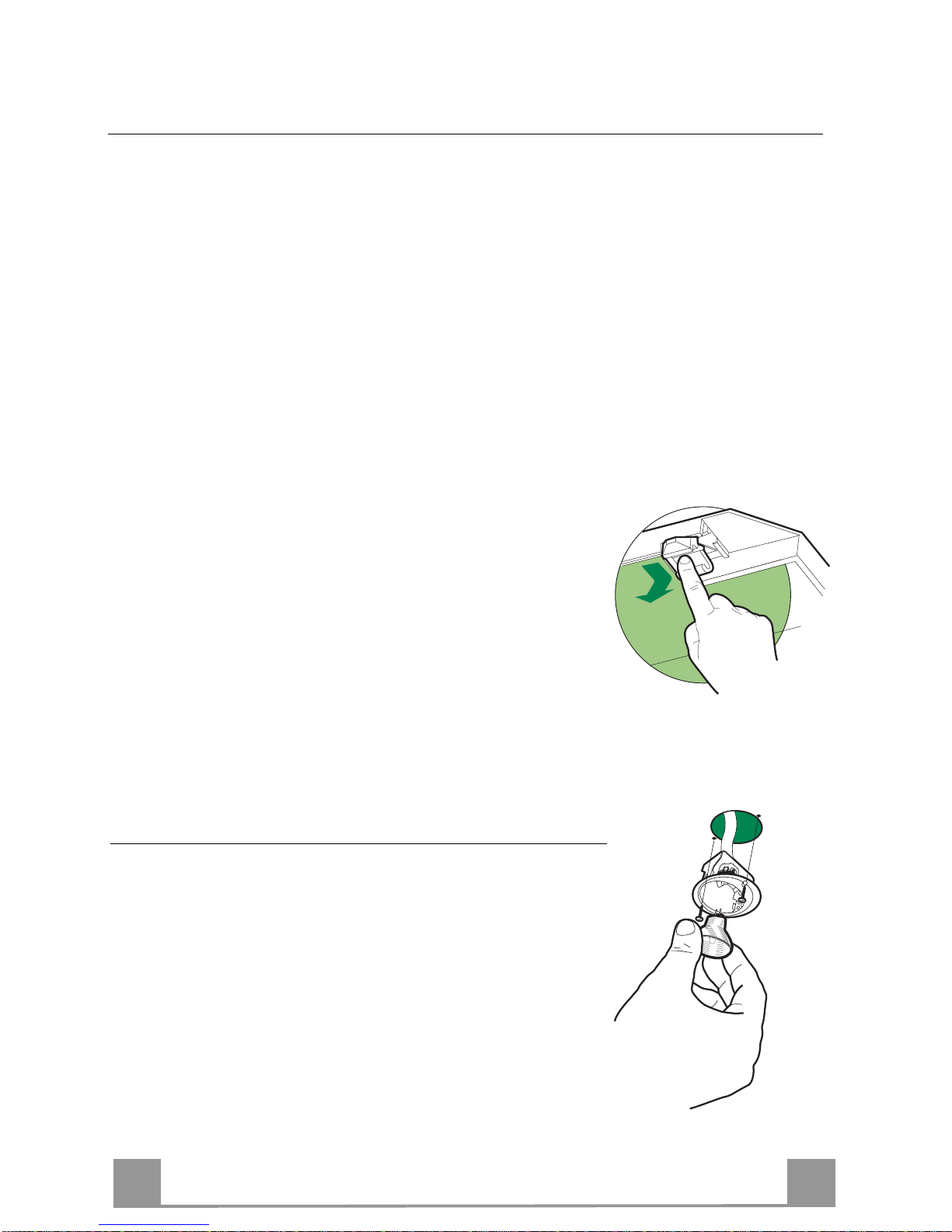

Odour filter (Recirculation Version)
This filter cannot be washed or regenerated, and must be replaced when the Ftouch control starts
to flash, or at least once every 4 months. The alarm is only triggered when the motor is on.
Enabling/Disabling the alarm signal
• In Recirculation Version Hoods, the Filter saturation Alarm must be enabled at the time of
installation or later.
• Switch off the lights and the motor.
• Disconnect the mains power supply to the hood by removing the motor unit power supply
cable connector, switching off the power supply at the Mains or turning the Main switch off.
• Restore the connection, pressing and holding T2.
• Release the touch control, touch controls L, T2 and Fwill light up normally.
• Within 3 seconds press the touch control Funtil the key itself flashes to confirm as follows:
• 2 flashes – Charcoal odour Filter saturation Alarm ENABLED
• 1 flash - Charcoal odour Filter saturation Alarm DISABLED
REPLACING THE CHARCOAL ODOUR FILTER
Reset the alarm signal
• Stop the motor.
• Press the touch control F for at least 4 seconds, until the touch
control T1 flashes.
Replace the Filter
• Pull the Comfort Panel to open it.
• Remove the metal grease filters.
• Remove the saturated charcoal filter, turning the fasteners pro-
vided.
• Fit the new filter and fasten it its correct position.
• Put the metal grease filters in their seats.
• Close the comfort panel.
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the 2 screws fixing the Lighting support, and pull it
out of from the Hood.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws re-
moved as above.

436003106_ver1
