USER MANUAL
EFC90620

We were thinking of you
when we made this product

electrolux 3
IMPORTANT SAFETY INFORMATION 4
YOUR APPLIANCE 5
OPERATING INSTRUCTIONS 6
MAINTENANCE AND CLEANING 9
SOMETHING NOT WORKING 13
GUARANTEE/CUSTOMER SERVICE 14
GUARANTEE CONDITIONS 15
INSTALLATION INSTRUCTIONS 17
ELECTRICAL CONNECTIONS 18
INSTALLING THE COOKER HOOD 19
EN
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which
hopefully will provide you with lots of
pleasure in the future. The Electrolux
ambition is to offer a wide variety of
quality products that make your life
more comfortable. You find some
examples on the cover in this manual.
Please take a few minutes to study this
manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a
superior User Experience delivering
Ease-of-Mind.
Good luck!
EN
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

4 electrolux IMPORTANT SAFETY INFORMATION
EN
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you
understand them all before installing or using this appliance. Your safety is of
paramount importance. If you are unsure about any of the meanings of these
warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken
by a qualified electrician or a competent
person.
• This hood must be installed in accordance
with the installation instructions and all
measurements must be adhered to.
• If the cooker hood is installed for use
above a gas appliance then the provision
for ventilation must be in accordance
with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use) Regulations,
the Building Regulations issued by
the Department of the Environment,
the Building standards (Scotland)
(Consolidated) Regulations issued by the
Scottish Development Department.
• The fan motor of this cooker hood
incorporates a cut-out device which will
operate if the cooker hood is installed
below the minimum height recommended
under section ‘Clearance Height’, or if the
motor becomes overheated. If the cut-
out device is activated, switch off the fan
motor and allow the cooker hood to cool.
The cut-out device will reset itself when
the fan motor has cooled significantly.
• It is dangerous to alter the specifications
or modify this product in any way.
• When installed between adjoining wall
cabinets the wall cabinets must not
overhang the hob.
• If the room where the hood is to be used
contains a fuel burning appliance such as
a central heating boiler then its flue must
be of the room sealed or balanced flue
type.
• If other types of flue or appliances are
fitted ensure that there is an adequate
supply of air to the room.
• The ducting system for this appliance
must not be connected to any existing
ventilation system which is being used
for any other purpose.
• Do not install above a cooker with a high
level grill.
Child Safety
• This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during
use as over-heated fats and oils might
catch fire.
• Never do flambé cooking under this
cooker hood.
• Do not leave naked flames under the
hood.
• This cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
Maintenance and Service
• This appliance can be a hazard if the
synthetic paper and charcoal filters are
not replaced as recommended.
• Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or more
serious malfunction. Refer to your local
Electrolux Service Force Centre. Always
insist on genuine spare parts.

YOUR APPLIANCE electrolux 5
EN

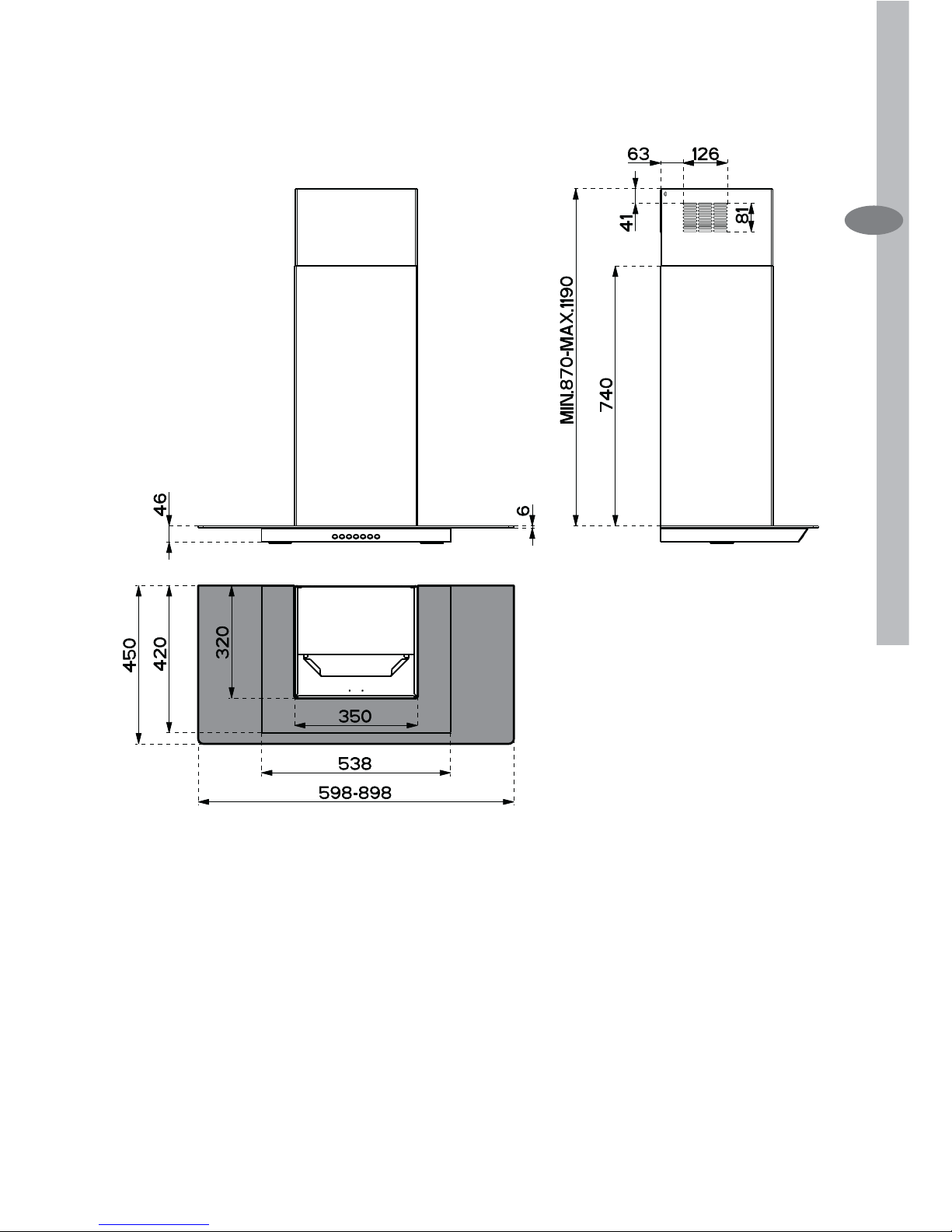

YOUR APPLIANCE

6 electrolux OPERATING INSTRUCTIONS
EN
OPERATING INSTRUCTIONS
The cooker hood is designed to extract
unpleasant odours from the kitchen, it
will not extract steam.
Cooker Hood Controls
The hood can be switched on pushing
directly onto the requested speed
without firstly having to select 0/1
button
L T1 T2 T3 T4 T5 F
Touch
control
Basic functions Indicator lights
Dual Function
L
When briefly pressed it switches the lighting
system on and off.
Touch control
unlit
Lights off
When pressed for 2 seconds it starts the
lighting system in “courtesy light” mode.
The lamps are fed at a reduced power of
approximately 5W. Such function can be
stopped by pressing the touch control for 2
seconds or just by pressing it shortly in order to
return to the normal lighting mode. In courtesy
light mode the touch control is not lit.
Touch control lit Lights on
Touch control
unlit
Courtesy light on
T1
When pressed the motor is stopped, regardless
of the speed it is set to.
Touch control lit Motor on
Touch control
unlit
Motor off
T2
When pressed the motor is set to the first speed Touch control lit

7 electrolux OPERATING INSTRUCTIONS
EN
T3
By a brief pressing the motor is set to the second
speed.
Touch control lit Second speed on
By pressing the touch control for approximately
2 seconds the Delay function is enabled, i.e
delayed shutdown of the appliance ensuring
a complete elimination of the residual odours.
This function can be activated at OFF-position
and at 1°, 2° and 3°speeds. It can be stopped
in advance by pressing any of the touch
controls (T) with the exception of T3. The Delay
function works according to the following
scheme:
1°speed / OFF = 20 minuets
2°speed = 15 minutes
3°speed = 5 minutes
Flashing touch
control
Delay function on
T4
When pressed the motor is set to the third speed Touch control lit
T5
When pressed the motor is set to the intensive
speed timed to 5 minutes. At the end of 5
minutes of intensive speed the hood starts again
at the speed it was set to previously. In case the
hood is set to the intensive speed directly from
OFF-state it will then start from the first speed
after 5 minutes of intensive speed.
Touch control lit
F
When pressed for 4 seconds it resets the filter
alarm signal indicated by flashing of the touch
control T1. This procedure can be carried out
only when the motor is stopped.
Touch control lit Metal grease filters saturation
alarm. Metal grease filters need
to be washed. The alarm starts
up after 100 working hours.
Flashing touch
control
Charcoal filter saturation
alarm. Charcoal filter has to
be replaced and metal grease
filters washed. The alarm
starts up after 200 working
hours. (Activation; check the
paragraph “Charcoal filter”)

OPERATING INSTRUCTIONS electrolux 8
EN
To Operate
Select the required fan speed and light
if required.
Recirculation
In the recirculation mode the
contaminated air enters the cooker
hood through the grease filters. The
air is cleaned by passing through the
charcoal filters before being passed
back into the kitchen through the grilles
in either side of the chimney stack.
Extraction
In the extraction mode the contaminated
air enters the cooker hood passing
through the grease filters and is passed
out through the ducting into the
atmosphere.
To obtain the best performance when
cooking it is advisable to switch the
cooker hood on for a few minutes before
you start cooking and leave it running
for about 15 minutes after finishing.
When used in the ducting mode the
charcoal filters are not required.
Never do flambé cooking under this
cooker hood.
Never leave frying pans unattended
during use, as over-heated fats and
oils can catch fire.
Do not leave naked flames under the
cooker hood.
Ensure heating areas on your hob
are covered with pots and pans
when using the hob and cooker hood
simultaneously.

9 electrolux MAINTENANCE AND CLEANING
EN
MAINTENANCE AND CLEANING
Before carrying out any maintenance
or cleaning isolate the cooker hood
from the mains supply.
The cooker hood must be kept clean,
as a build up of grease or fat can be
a fire hazard.
External Cleaning
Wipe the cooker hood frequently
with warm soapy water using a mild
detergent.
Never use scouring pads or abrasive
cleaners.
Never use excessive amounts of wa-
ter when cleaning particularly around
the control panel.
Cleaning of the Suction panel
• Pull the suction panel to open it.
• Slide the fixing pivot lever to disconnect
the panel from the hood casing.
• Do not wash the panel in the
dishwasher.
• Clean the outside using a damp cloth
and neutral liquid detergent.
• Clean the inside as well using a damp
cloth and neutral detergent; do not use
wet cloths or sponges, or jets of water;
do not use abrasive substances.
• After having carefully cleaned the panel
hook the panel back to the hood and
close it.

10 electrolux MAINTENANCE AND CLEANING
EN

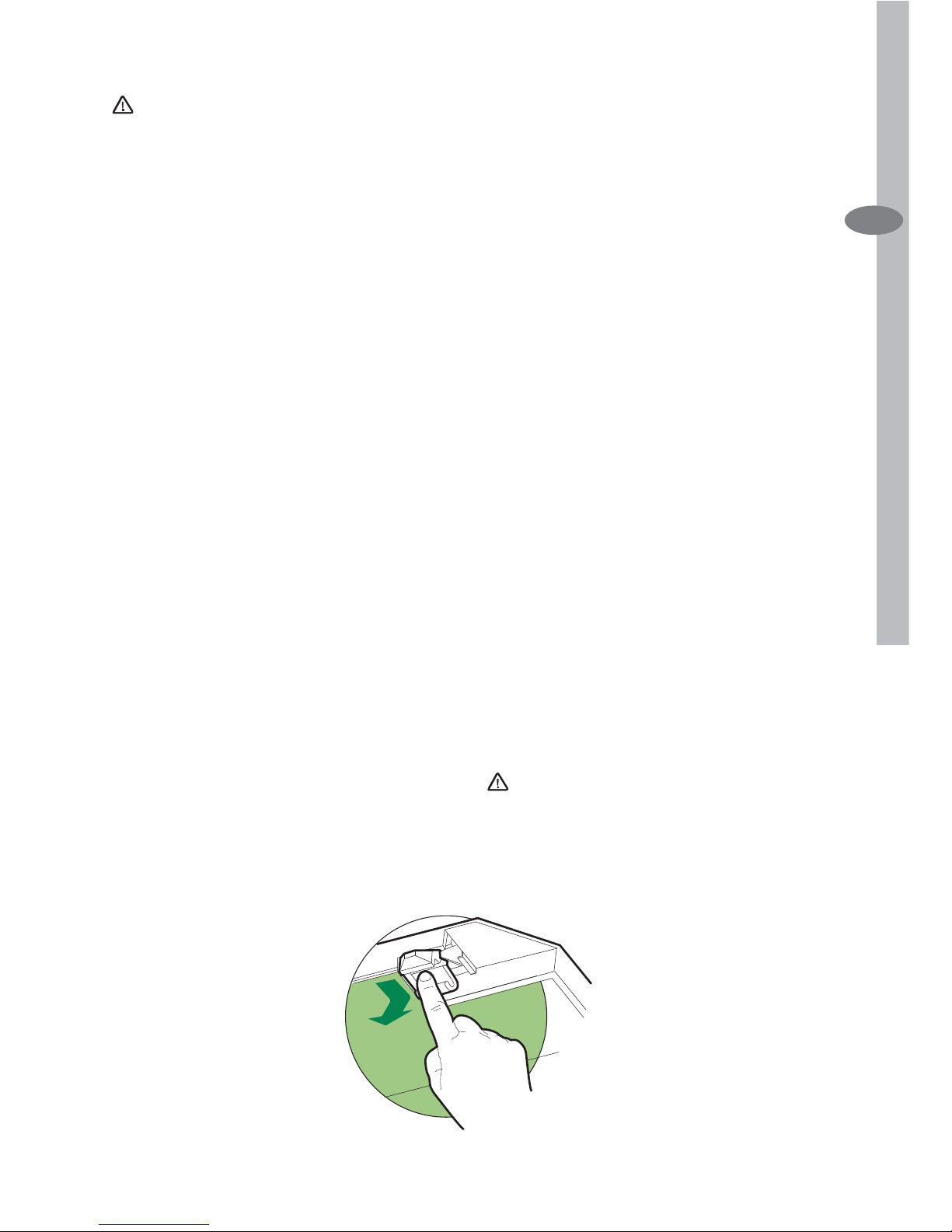

Cleaning of the Metal Cassette
Filters
Alarm reset
• Stop the motor.
• Press the F-touch control for at least
4 seconds until the T1 -touch control
flashes.
Cleaning the filters
• Filters can be washed in the dish
machine. They need to be washed
every 2 months or even more
frequently in case of particularly
intensive use of the hood.
• Pull the suction panel to open it.
Remove the metal grease
filters one at a time by:
pushing them lateraly and simulta
neously pulling downwards.
• Any kind of bending of the filters
has to be avoided when washing
them. Before fitting them again into
the hood make sure that they are
completely dry (The colour of the filter
surface may change throughout the
time but this has no influence to the
filter efficiency).
• When fitting the filters into the hood
pay attention that they are placed in
correct position and that the handle
faces outwards.
• Close the suction panel.

MAINTENANCE AND CLEANING electrolux 11
EN
Before carrying out any maintenance
or cleaning isolate the cooker hood
from the mains supply.

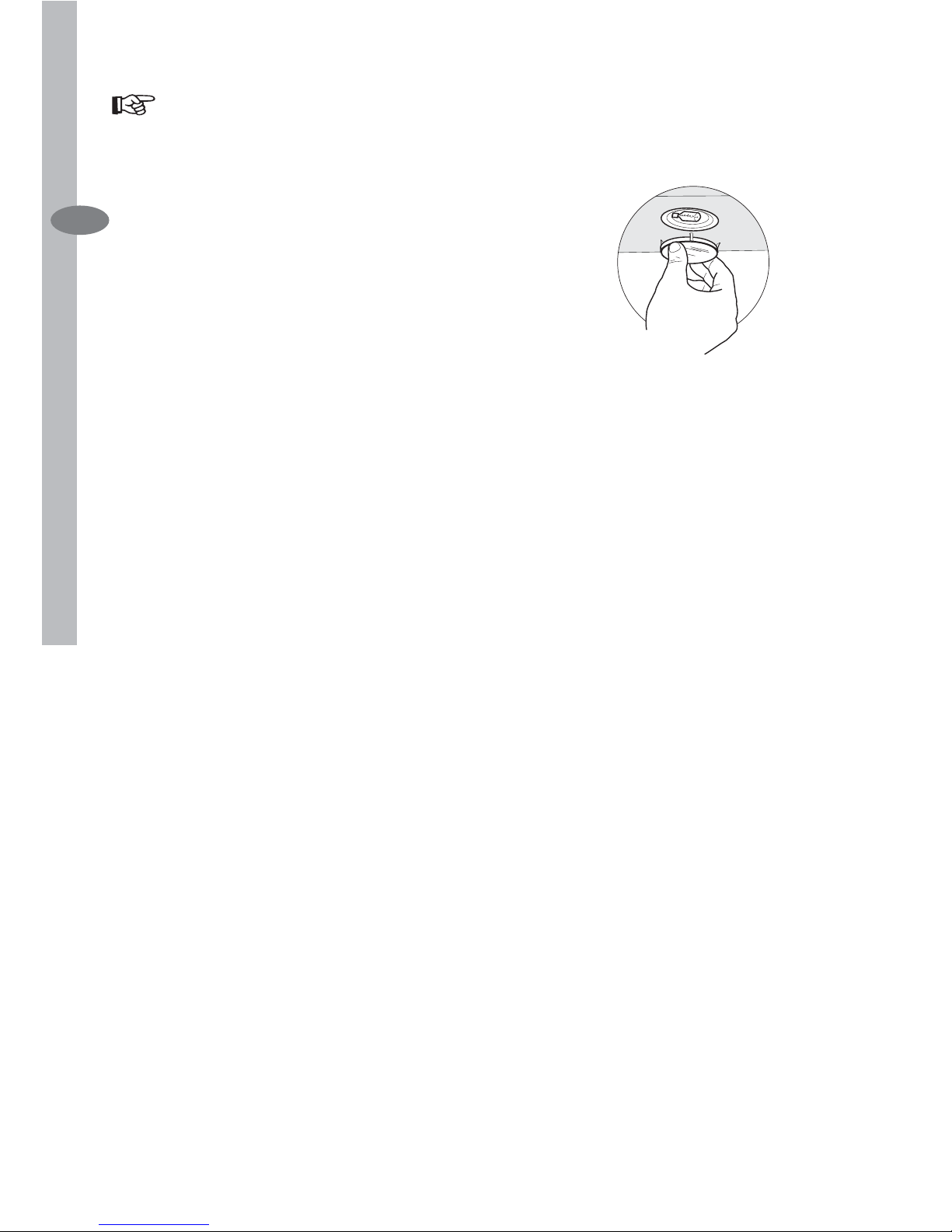

Replacing the Charcoal Filter
This filter cannot be washed or
regenerated, and must be replaced
when the F touch control starts to flash,
or at least once every 4 months. The
alarm is only triggered when the motor
is on.
Enabling/Disabling the alarm signal
• In Recirculation Version Hoods,
the Filter saturation Alarm must be
enabled at the time of installation or
later.
• Switch off the lights and the motor.
• Disconnect the mains power supply
to the hood by removing the motor
unit power supply cable connector,
switching off the power supply at the
Mains or turning the Main switch off.
• Restore the connection, pressing and
holding T2.
• Release the touch control, touch
controls L, T2 and Fwill light up
normally.
• Within 3 seconds press the touch
control Funtil the key itself flashes to
confirm as follows:
• 2 flashes – Charcoal Filter saturation
Alarm ENABLED
• 1 flash - Charcoal Filter saturation
Alarm DISABLED
Reset the alarm signal
• Stop the motor.
• Press the touch control Ffor at least
4 seconds, until the touch control T1
flashes.
Replace the Filter
• Pull the suction panel to open it..
• Remove the metal grease filters.
• Remove the saturated charcoal filter,
turning the fasteners provided.
• Fit the new filter and fasten it its
correct position.
• Put the metal grease filters in their
seats.
• Close the suction panel.
This appliance can be a possible fire
hazard if the grease and charcoal fil-
ters are not cleaned and replaced as
recommended.

12 electrolux MAINTENANCE AND CLEANING
EN
Changing the Halogen Light
• Remove the snap-on lamp cover by
levering it from under the metal ring,
supporting it with one hand.
• Remove the halogen lamp from the
lamp holder by pulling gently.
• Replace the lamp with a new one of
the same type, making sure that you
insert the two pins properly into the
housings on the lamp holder.
• Replace the snap-on lamp cover.
Replacement filters and light bulbs can
be obtained from your local Service
Force Centre.

SOMETHING NOT WORKING electrolux 13
EN
If, having followed these instructions carefully, your cooker hood fails to work properly
please carry out the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working
effectively
The cooker hood has switched off
during operation
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to pro-
vide proof of purchase for any in-guarantee
service calls.
Solution
• Check the hood is connected to the
electricity supply.
• Make sure the switch is in the ‘ON’ posi
tion.
• The fan speed is set high enough for the
task
• The grease filter is clean.
• The kitchen is adequately vented to allow
the entry of fresh air.
• If set up for recirculation, check that the
charcoal filter is still effective.
• If set up for extraction, check that the
ducting and outlets are not blocked.
• The safety cut-out device has been trip
ped.
• Tum off the hob and then wait for the
device to reset.
In-guarantee customers should ensure
that the above checks have been made
as the engineer will make a charge if
the fault is not a mechanical or electri-
cal breakdown.
SOMETHING NOT WORKING

14 electrolux GUARANTEE/CUSTOMER SERVICE
EN
GUARANTEE/CUSTOMER SERVICE
Standard guarantee conditions
We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by
reason only of faulty workmanship or
materials, we will, at our option repair
or replace the same FREE OF CHARGE
for labour, materials or carriage on
condition that:
• The appliance has been correctly
installed and used only on the
electricity supply stated on the rating
plate.
• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufacturer’s
instructions.
• The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us.
• Electrolux Service Force Centre must
undertake all service work under this
guarantee
• Any appliance or defective part
replaced shall become the Company’s
property.
• This guarantee is in addition to your
statutory and other legal rights.
Exclusions
• Damage or calls resulting from
transportation, improper use or
neglect, the replacement of any light
bulbs or removable parts of glass or
plastic.
• Costs incurred for calls to put right
an appliance which is improperly
installed or calls to appliances outside
the United Kingdom.
• Appliances found to be in use within
a commercial environment, plus
those which are subject to rental
agreements.
• Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact your local Service
Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically
routed to the Service Force Centre
covering your postcode area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at
www.serviceforce.co.uk
Before calling out an engineer, please
ensure you have read the details under
the heading “Something not working”
When you contact the Service Force
Centre you will need to give the
following details:
1.Your name, address and postcode.
2.Your telephone number.
3.Clear concise details of the fault.
4.The model and Serial number of the
appliance (found on the rating plate).
5.The purchase date.
Please note a valid purchase receipt or
guarantee documentation is required for
in guarantee service calls.

GUARANTEE CONDITIONS electrolux 15
EN
GUARANTEE CONDITIONS
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further
information on Electrolux products
please contact our Customer Care
Department by letter or telephone at
the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)
(*) Calls may be recorded for training
purposes
European Guarantee
This appliance is guaranteed by
Electrolux in each of the countries
listed at the back of this user manual,
for the period specified in the appliance
guarantee or otherwise by law. If you
move from one of these countries to
another of the countries listed below the
appliance guarantee will move with you
subject to the following qualifications:-
• The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced
by production of a valid purchase
document issued by the seller of the
appliance.
• The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in
your new country of residence for
this particular model or range of
appliances.
• The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
• The appliance is installed and used
in accordance with instructions
issued by Electrolux and is only used
within the home, i.e. is not used for
commercial purposes.
• The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.
The provisions of this European Guarantee
do not affect any of the rights granted to you
by law.

16 electrolux
EN
www.electrolux.com
à
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn
España [phone] Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas [phone], Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lietuva [phone] Verkių29, LT-09108 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország [phone] H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw
Portugal [phone] Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-
518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera [phone] Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Tržaška 132, 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK,
Seberíniho 1, 821 03 Bratislava
Suomi [phone] Konepajanranta 4, 28100 Pori
Sverige [phone] Electrolux Service, S:t Göransgatan 143, S-105 45
Stockholm
Türkiye [phone] Tarlabaşıcaddesi no : 35 Taksim İstanbul
Россия [phone] 129090 Москва, Олимпийский проспект, 16, БЦ
“Олимпик”

INSTALLATION INSTRUCTIONS electrolux 17
EN
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT OF CANOPY: 46mm
HEIGHT OF CHIMNEY: (UPPER SECTION) 465mm
(LOWER SECTION) 740mm
WIDTH OF CANOPY : 898mm
DEPTH OF CANOPY: 450mm
GROSS : 28,5kg
NET : 22,6kg
ELECTRICAL SUPPLY: VOLTAGE: 220-240 V 50Hz
POWER CONSUMPTION: 290W
FAN MOTOR: 250W
HALOGEN LIGHT: (2 x 20 W) 40W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7KW (max)
GAS HOB: 10KW (max)
SLOT-IN GAS COOKER 13.5KW (max)
SLOT-IN ELECTRIC COOKER 12.4KW (max)
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and subse-
quent modifications and Low Voltage directive 72/23/E.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it
shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you purchased the product.

18 electrolux ELECTRICAL CONNECTIONS
EN
ELECTRICAL CONNECTIONS
THIS APPLIANCE MUST BE EARTHED
Electrical Requirements
Any permanent electrical installation
must comply with the latest I.E.E.
Regulations and local Electricity Board
regulations. For your own safety this
should be undertaken by a qualified
electrician e.g. your local Electricity
Board, or a contractor who is on the
roll of the National Inspection Council
for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains
supply ensure that the mains voltage
corresponds to the voltage on the rating
plate inside the cooker hood.
This appliance is fitted with a 3 core
mains cable and must be permanently
connected to the electricity supply
via a double-pole switch having
3mm minimum contact gap on each
pole. A Switched Fuse Connection
Unit to BS1363 Part 4, fitted with
a 3 Amp fuse, is a recommended
mains supply connection accessory
to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800:
1988 and EEC Directive No. 78 308
regarding suppression of radio and
television interference.

INSTALLING THE COOKER HOOD electrolux 19
EN
INSTALLING THE COOKER HOOD
Please ensure that when the appliance
is installed it is easily accessible to an
engineer in the event of a breakdown.
All installations must comply with the
local authorities requirements for the
discharge of exhaust air.
Incorrect installation may affect the
safety of this cooker hood.
Installation Requirements
Before installation check the wall to
which the cooker hood is to be fitted
for electric cables, water pipes or
gas.
This cooker hood is designed to be
fixed to any vertical surface over a
cooking area, and can be used in the
extraction (ducted to the outside) or
recirculation mode.
The installation work must be undertaken
by a qualified and competent person.
The manufacturer disclaims any
responsibility for damage due to
incorrect installation of the cooker
hood or if the hood is not installed in
compliance with relevant regulations
controlling this type of installation.
Unpacking
Before unpacking the cooker hood
position the carton with the arrows
pointing upwards as illustrated on the
carton.

20 electrolux INSTALLING THE COOKER HOOD
EN
The cooker hood is made up of the
following components:
Ref Qty Product Components
11 Hood body, complete with
controls, lighting, fan and
filters.
21 Telescopic Chimney
comprising:
2.1 1 Upper section
2.2 1 Lower section
3 1 Extensions metal
91 ø150-120 Ducting spigot
10 1 ø120-125 Ducting flange
10 1 Flange ø150
14.1 2 Air outlet Connection Extension
15 1 Air outlet Connector
30 1 Suction panel
Ref Qty Installation Components
7.2.1 2 Upper chimney wall fixing
brackets
7.3 1 Air outle Connection Support
12c 6 Chimney fixing screws
Ref Qty Documentation
1 Instruction booklet
30
2.1
2.2
2
12c
1
9
7.2.1
10
15
10a
