Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 6
Operating the appliance 8
Cleaning and Care 11
What to do if … 13
Disposal 15
Installation Instructions 16
Assembly 19
Installing more than one
Frontline hob 21
Guarantee/Customer Service 26
T
he following symbols are used in this user information:
1
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3General information and advice
2Information on environmental protection
zDangerous voltage

operating instructions electrolux 5
Operating Instructions
Safety instructions
Please comply with these instructions. If
you do not, any damage resulting is not
covered by the warranty.
Correct use
•This appliance is not intended for
use by children or other persons
whose physical, sensory or mental
capabilities or lack of experience and
knowledge prevents them from us-
ing the appliance safely without su-
pervision or instruction by a
responsible person to ensure that
they can use the appliance safely.
•Do not leave the appliance unattend-
ed during operation.
•The appliance must not be used as a
work surface or as a storage surface.
•Additions or modifications to the ap-
pliance are not permitted.
Children’s safety
•Small children must be kept away
from the appliance.
•Only let bigger children work on the
appliance under supervision.
General safety
•The appliance may only be installed
and connected by trained, registered
service engineers.
•Built-in appliances may only be used
after they have built in to suitable
built-in units and work surfaces that
meet standards.
•In the event of faults with the appli-
ance or damage to the glass ceramic
(cracks, scratches or splits), the ap-
pliance must be switched off and
disconnected from the electrical
supply, to prevent the possibility of
an electric shock.
•Repairs to the appliance must only
be carried out by trained registered
service engineers.
Safety during use
•Remove stickers and film from the
glass ceramic.
•When the appliance is switched on,
do not flambé directly next it.
•In the event of fire, switch off appli-
ance.
•Smother fire using a cover, never use
water to put out.
•Switch off the appliance after each
use.
Safety when cleaning
•For cleaning, the appliance must be
switched off.
•For safety reasons, the cleaning of
the appliance with steam jet or high-
pressure cleaning equipment is not
permitted.
How to avoid damage to the appli-
ance
•The glass ceramic can be damaged
by objects falling onto it.

6electrolux description of the appliance
Description of the Appliance

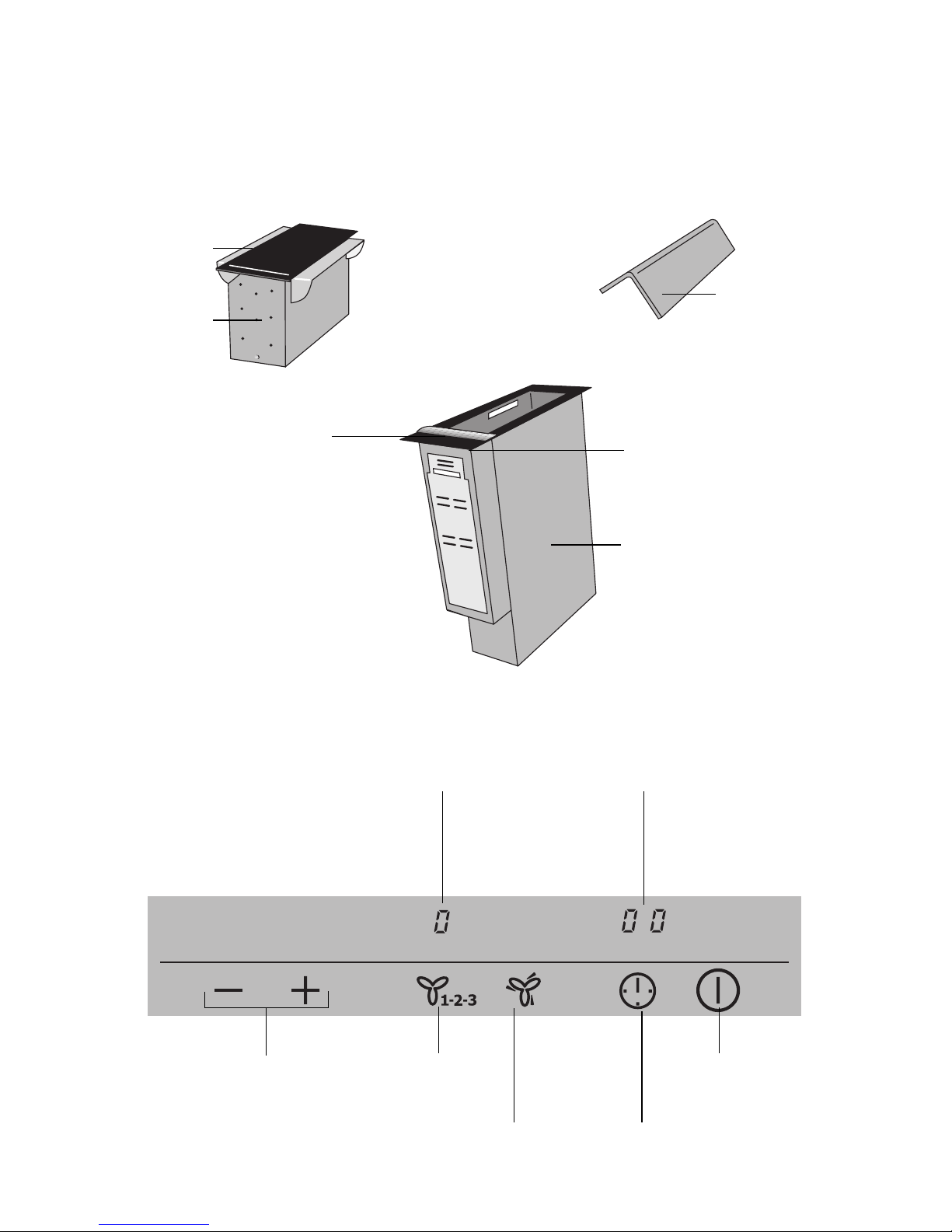

Cooking surface layout
Control panel layout
Upper
casing
Control panel
Frontline strip
Shaft of down draught
extractor
Filter
Fin
Timer indicator
Position selection
Timer
Fan level
display
Intensive fan
On/Off
Fan level selection

description of the appliance electrolux 7
Touch Control sensor fields
The appliance is operated using Touch
Control sensor fields. Functions are
controlled by touching sensor fields and
confirmed by displays and acoustic sig-
nals.
Touch the sensor fields from above,
without covering other sensor fields.
Displays
Sensor field Function
On / Off To switch the appliance on and off
Increase settings To increa s e p o sition
Reduce settings To reduce position
Fan To set fan le vel
Intensive fan To switch intensive fan on/off
Timer Timer selection
Display Description
¾no power setting set
¿- ÁFan levels Fan level is set
eClean filter Filter must be cleaned
Safety cut-out Safety cut-out has been activated

8electrolux operating the appliance
Operating the appliance
Switching the appliance on and off
After switching on, within approx.
10 seconds a function must be set,
otherwise the appliance automati-
cally switches itself off.
Let the down draught extractor run
for a few minutes before and after
preparing a meal.
While the down draught extractor is
working, windows in the room
should be closed. A window in a
neighbouring room can be open.
Control panel Display Pilot light
To swi t ch on Touch for 2 seconds ¾lights up
To swi t ch off Touch for 1 second none goes out

operating the appliance electrolux 9
Setting position of down draught extractor
Increasing extractor position
Reducing extractor position
Retaining extractor position
If the appliance becomes blocked
when changing the position, it
switches off automatically.
Setting fan level
Switching off fan level
Step Control panel Position of extractor
1. Touch once Middle
2. Touch To p
Fan level 1 is switched on.
Step Control panel Position of extractor
1. Touch Middle/bottom
The appliance switches off in the lowest position.
Step Control panel Position of extractor
1. Touch Current position is retained
The appliance switches off.
Step Control panel Fan level display Fan power
1. Touch once ¿150 m³/h
2. Touch once À220 m³/h
3. Touch once Á345 m³/h
Step Control panel Display
1. To u c h ¾
The fan level is switched off.

10 electrolux operating the appliance
Switching intensive fan on and off
The intensive fan function makes ex-
tra power available for 5 minutes. After
that the appliance switches off automat-
ically or switches back to the previously
set fan level.
Using the timer
After the time set has elapsed, the suc-
tion switches off. The down draught ex-
tractor remains in the top position.
Setting the time
Switching timer function off
Automatic switch off
•If one or more sensor fields are cov-
ered for longer than approx.
10 seconds, e.g. by a pan cloth lying
on them, the appliance switches off
automatically.
•If the appliance is not switched off af-
ter 6 hours or the fan level is not al-
tered, the appliance automatically
switches itself off.
•Before the appliance is used again,
must be touched.
Control panel Fan power
To swi t ch on Touch 480 m³/h
To swi t ch off Touch previously set fan power
Step Control panel Display
1. To u c h once 60 seconds
2. Touch for longer ... 05...10...15... 20 (5 minute increments
for easier setting)
The time is set.
The time counts down.
Step Control panel Display
1. To u c h The remaining time counts up to 00.
The timer function is switched off.

cleaning and care electrolux 11
Cleaning and Care
Important: A blocked grease filter
can ignite. Keep appliance clean.
Important: Sharp objects and abra-
sive cleaning materials will damage
the appliance. Clean with a damp
cloth and washing up liquid.
Important: Residues from cleaning
agents will damage the appliance.
Remove residues with a damp cloth
and washing up liquid.
Important: Risk of fire! Cleaning
must be performed according to the
instructions in these operating in-
structions.
Glass ceramic, shaft of down
draught extractor
1. Wipe the appliance with a damp
cloth and a little washing up liquid.
2. Dry the appliance using a clean
cloth.
Scratches or dark stains on the
glass ceramic cannot be removed
but do not affect the functioning of
the appliance.
Upper housing
1. Switch on down draught extractor
and move to the top position.
2. Remove upper housing.
3. Wipe the appliance with a damp
cloth and a little washing up liquid.
4. Dry the appliance using a clean
cloth.
Filter
After 30 hours of operation the filter
must be cleaned, 0appears.
Important: Fingers can get caught.
Only remove filter or upper casing
when appliance is dismantled.
1. Switch on down draught extractor
and move to the top position.
2. Switch off fan level.
3. Remove upper casing and place on
something soft.
4. Press in and remove the springs of
the filter.
5. Take filter out.
6. Clean filter with hot water and wash-
ing up liquid or clean in the dish-
washer.
If cleaned in the dishwasher, the fil-
ter can become discoloured, but
this does not affect the functioning
of the filter.
7. Install filter, springs and upper casing
in reverse order.

12 electrolux cleaning and care
The filter must be completely dry
before being installed.
8. Reset filter sensor by pressing
and at the same time for
3seconds.
9. 0goes out.
If the filter is cleaned before the 30
hours of operation have elapsed, it
can be reset in the same way.
If the electricity supply is interrupt-
ed, the filter sensor automatically
resets itself.
Removable Frontline strip
The aluminium Frontline strip fastens on
by means of magnets. It is easy to re-
move by hand and can be cleaned with
detergent. Please do not use any scour-
ing agents or sponges that scratch. Do
not clean the strip in the dishwasher.

what to do if … electrolux 13
What to do if …
Problem Possible cause Remedy
The appliance cannot be
switched on or is not operating
More than 10 seconds have
passed since the appliance
was switched on
Switch appliance on again
Several sensor fields were
touched at the same time
Only touch one sensor field
The sensor fields are partly
covered by a damp cloth or
with liquid
Remove the cloth or the liquid.
Switch appliance on again
Electronics fault Disconnect appliance from the
electrical supply for a few min-
utes. (Take the fuse out of the
house’s wiring system.)
If the appliance still does not
operate after switching on
again, call the Customer Care
Department
Fuses keep blowing Too many electrical appliances
are connected
Switch off electrical appliances
The fan is switched off, but the
down draught extractor is
raised
There was a power cut during
operation
Switch on down draught ex-
tractor and touch
e is displayed Filter sensor has responded. Clean filter and reset filter sen-
sor (see section “Cleaning and
Care”)
Down draught extractor has
switched off automatically and
cannot be switched on again
Vertical adjustment of the
down draught extractor has
become jammed
Disconnect appliance from the
electrical supply for a few min-
utes. (Take the fuse out of the
house’s wiring system.)
If the appliance still does not
operate after switching on
again, call the Customer Care
Department

14 electrolux what to do if …
If you are unable to remedy the
problem by following the above
suggestions, please contact your
local Service Force Centre.
Warning! Repairs to the appliance
are only to be carried out by quali-
fied service engineers. Considera-
ble danger to the user may result
from improper repairs.
If the appliance has been operated
incorrectly, the engineer's visit will
be chargeable, even during the war-
ranty period.

disposal electrolux 15
Disposal
Packaging material
The packaging materials are envi-
ronmentally friendly and can be re-
cycled. The plastic components are
identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the
packaging materials in the appro-
priate container at the community
waste disposal facilities.
Old appliance
The symbol Won the product or on
its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable col-
lection point for the recycling of
electrical and electronic equipment.
By ensuring this product is dis-
posed of correctly, you will help pre-
vent potential negative
consequences for the environment
and human health, which could oth-
erwise be caused by inappropriate
waste handling of this product. For
more detailed information about re-
cycling of this product, please con-
tact your local city office, your
household waste disposal service
or the shop where you purchased
the product.

16 electrolux installation instructions
Installation Instructions
Safety instructions
Warning! This must be read!
The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.)
Installation may only be carried out by a
qualified electrician.
The minimum distances to other appli-
ances and units are to be observed.
Anti-shock protection must be provided
by the installation, for example drawers
may only be installed with a protective
floor directly underneath the appliance.
The cut surfaces of the worktop are to
be protected against moisture using a
suitable sealant.
The sealant seals the appliance to the
work top with no gap.
Important: If the down draught extractor
is operated at the same time as a gas
appliance, there must be sufficient
draught in the room.
Important: If the down draught ex-
tractor is operated at the same time
as a fireplace, the pressure in the
room must be below 4 Pa (4 x 10-5
bar).
Important: If the mains cable is de-
fective, it must only be replaced by a
qualified electrician or our Custom-
er Care Department in order to pre-
vent hazards.
zRisk of injury from electrical
current.
•The electrical mains terminal is live.
•Make electrical mains terminal free of
voltage.
•Follow connection schematic.
•Observe electrical safety rules.
•Ensure anti-shock protection by in-
stalling correctly.
•The appliance must be connected to
the electrical supply by a qualified
electrician.
zRisk of injury from electrical
current.
•Loose and inappropriate plug and
socket connections can make the
terminal overheat.
•Have the clamping connections cor-
rectly installed by a qualified electri-
cian.
•Use strain relief clamp on cable.
A device must be provided in the electri-
cal installation which allows the appli-
ance to be disconnected from the mains
at all poles with a contact opening width
of at least 3 mm.
Suitable isolation devices include line
protecting cut-outs, fuses (screw type
fuses are to be removed from the hold-
er), earth leakage trips and contactors.
Connect down draught extractor to an
air-tight vent hose or vent pipe with a
120 mm diameter and at least 1 m long.

installation instructions electrolux 17
Important: Do not connect down
draught extractor to the voltage
supply until an adequate air outlet
has been provided.
Do not connect vent hose or vent
pipe to an air shaft, flue or similar
which is already in use.
If several Frontline appliances are in-
stalled, install down draught extractor
between the appliances.
Distance from flammable materials: at
least 150 mm
Important: Official regulations must
be followed when drawing off ex-
haust air.
Important: Do not conduct exhaust
air to a chimney which is used by
appliances operated with gas or
other combustible fuels.
Installing next to a gas appliance
Important: The appliance must not be
built in between two gas appliances.
Important: If a gas appliance is in-
stalled next to the down draught ex-
tractor, the down draught extractor
may only extract air on the opposite
side. Therefore the fin nearest the
gas appliance must be removed and
the supplied cover must be fitted.

18 electrolux installation instructions
To remove the fin
1. Switch on down draught extractor
and move to the top position.
2. Switch off fan level.
3. Press in and remove the springs of
the filter.
4. Take filter o ut.
5. Remove upper casing and place on
something soft.
6. Remove the two screws which hold
the fin.
7. Remove single screw that holds the
lever that closes the fin.
8. Remove the fin.
To fi t cov er
1. Lay cover on the glass ceramic.
2. Position cover on the upper housing.
3. Mark four holes on the upper casing.
Use cover as a template.
4. Remove cover and drill the four holes
in the upper casing.
5. Remove adhesive film.
6. Press cover in position on the upper
casing.
7. Affix cover with the blind rivets sup-
plied.
8. Install filter, springs and upper casing
in reverse order.

assembly electrolux 19
Assembly

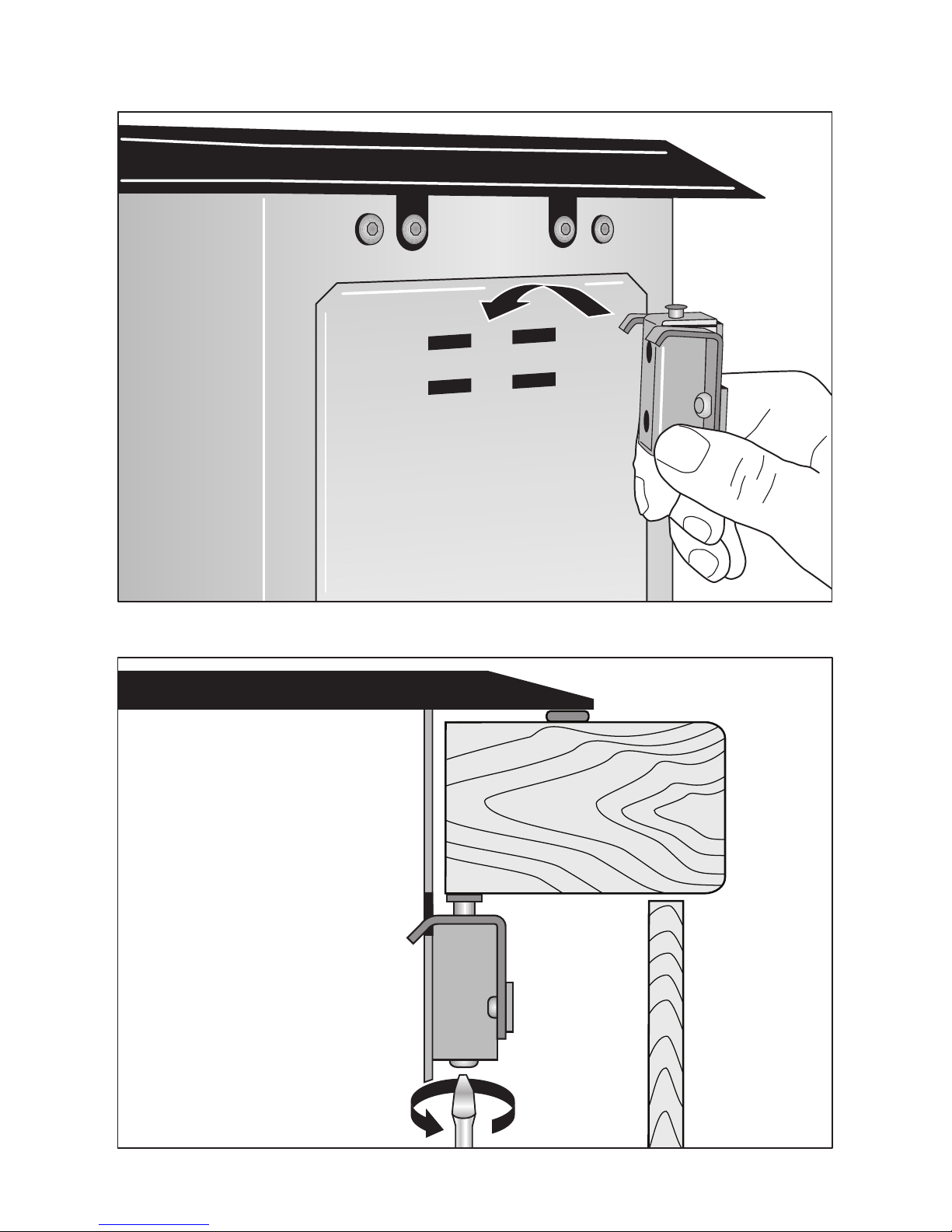

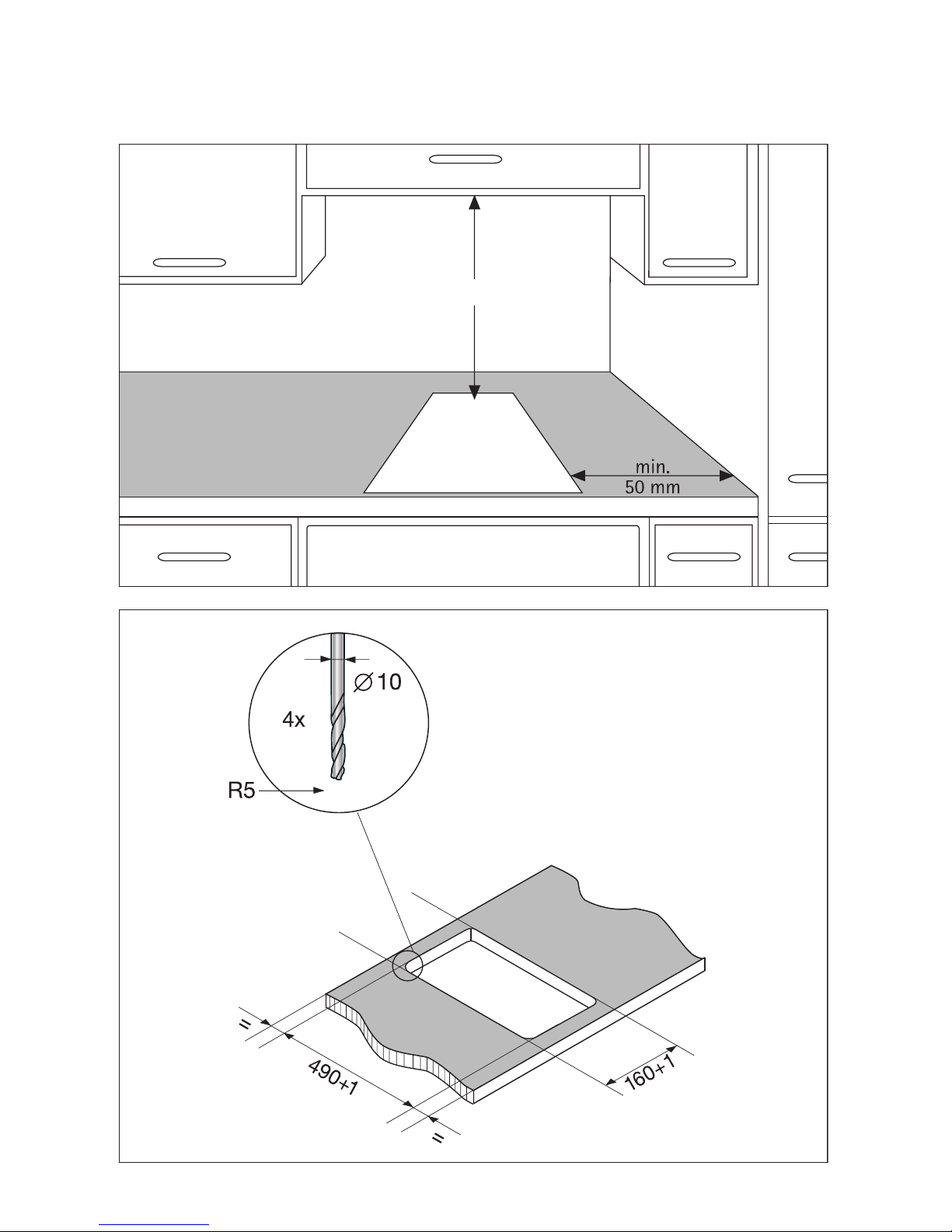

min. 500 mm

20 electrolux assembly
