Electrolux EFP60033 User manual

USER MANUAL
EFP60033
EFP90033

We were thinking of you
when we made this product

electrolux 3
IMPORTANT SAFETY INFORMATION 4
YOUR APPLIANCE 5
OPERATING INSTRUCTIONS 5
MAINTENANCE AND CLEANING 7
SOMETHING NOT WORKING 10
GUARANTEE/CUSTOMER SERVICE 11
GUARANTEE CONDITIONS 12
INSTALLATION INSTRUCTIONS 14
ELECTRICAL CONNECTIONS 15
INSTALLING THE COOKER HOOD 16
EN
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which
hopefully will provide you with lots of
pleasure in the future. The Electrolux
ambition is to offer a wide variety of
quality products that make your life
more comfortable. You find some
examples on the cover in this manual.
Please take a few minutes to study this
manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a
superior User Experience delivering
Ease-of-Mind.
Good luck!
EN
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instruction book
Safety instructions Step by step instructions

4 electrolux IMPORTANT SAFETY INFORMATION
EN
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you
understand them all before installing or using this appliance. Your safety is of
paramount importance. If you are unsure about any of the meanings of these
warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken
by a qualified electrician or a competent
person.
• This hood must be installed in accordance
with the installation instructions and all
measurements must be adhered to.
• If the cooker hood is installed for use
above a gas appliance then the provision
for ventilation must be in accordance
with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use) Regulations,
the Building Regulations issued by
the Department of the Environment,
the Building standards (Scotland)
(Consolidated) Regulations issued by the
Scottish Development Department.
• The fan motor of this cooker hood
incorporates a cut-out device which will
operate if the cooker hood is installed
below the minimum height recommended

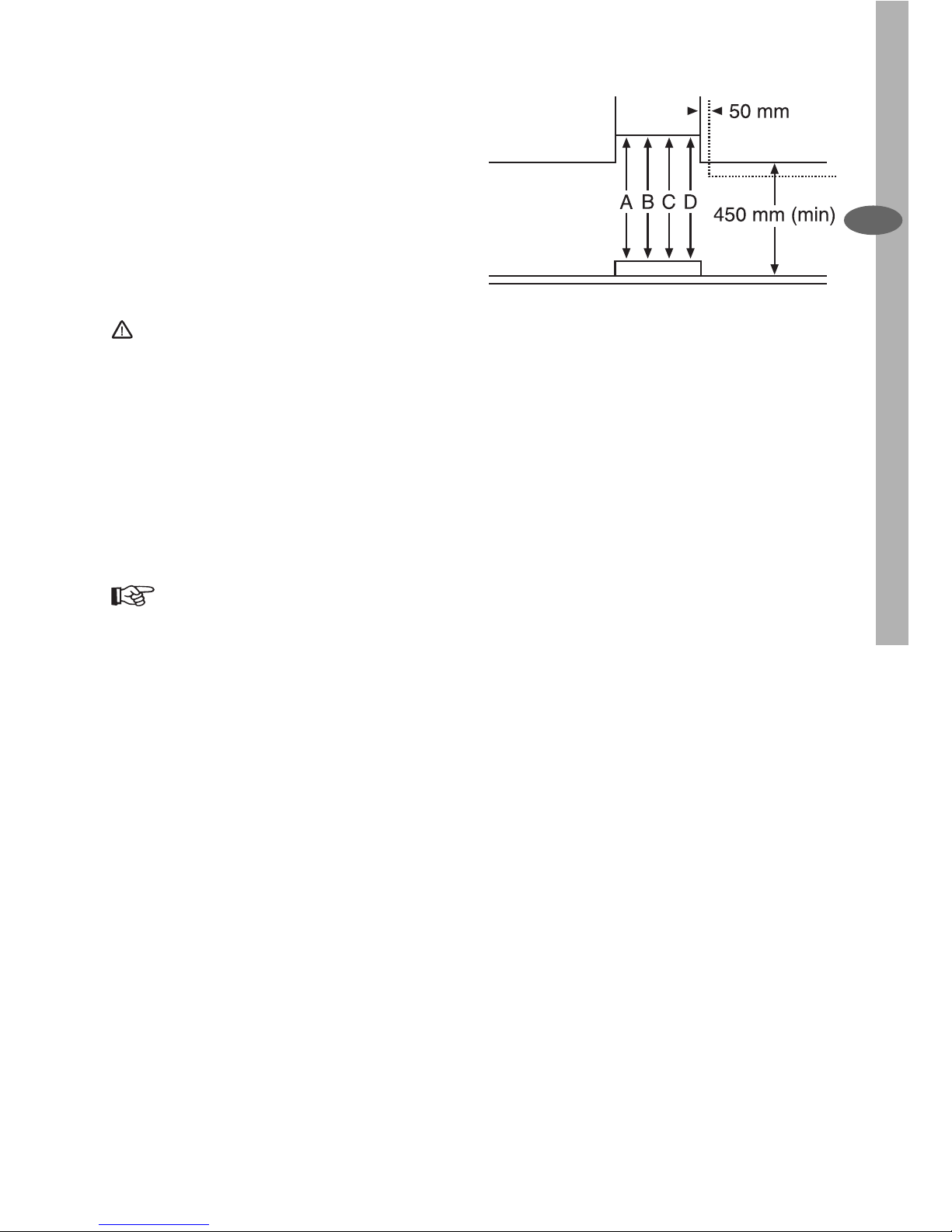

under section ‘Clearance Height’, or if the
motor becomes overheated. If the cut-
out device is activated, switch off the fan
motor and allow the cooker hood to cool.
The cut-out device will reset itself when
the fan motor has cooled significantly.
• It is dangerous to alter the specifications
or modify this product in any way.
• When installed between adjoining wall
cabinets the wall cabinets must not
overhang the hob.
• If the room where the hood is to be used
contains a fuel burning appliance such as
a central heating boiler then its flue must
be of the room sealed or balanced flue
type.
• If other types of flue or appliances are
fitted ensure that there is an adequate
supply of air to the room.
• The ducting system for this appliance
must not be connected to any existing
ventilation system which is being used
for any other purpose.
• Do not install above a cooker with a high
level grill.
Child Safety
• This appliance is designed to be operated
by adults. Children should not be allowed
to tamper with the controls or play with
the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during
use as over-heated fats and oils might
catch fire.
• Never do flambé cooking under this
cooker hood.
• Do not leave naked flames under the
hood.
• This cooker hood is designed to extract
unpleasant odours from the kitchen, it will
not extract steam.
Maintenance and Service
• This appliance can be a hazard if the
synthetic paper and charcoal filters are
not replaced as recommended.
• Under no circumstances should you
attempt to repair the appliance yourself.
Repairs carried out by inexperienced
persons may cause injury or more
serious malfunction. Refer to your local
Electrolux Service Force Centre. Always
insist on genuine spare parts.

YOUR APPLIANCE AND OPERATING INSTRUCTIONS electrolux 5
EN
YOUR APPLIANCE
OPERATING INSTRUCTIONS
The cooker hood is designed to extract
unpleasant odours from the kitchen, it
will not extract steam.
To obtain the best performance it is
advisable to switch on the hood a few
minutes before you start cooking and
leave it running for approximately 15
minutes after finishing.

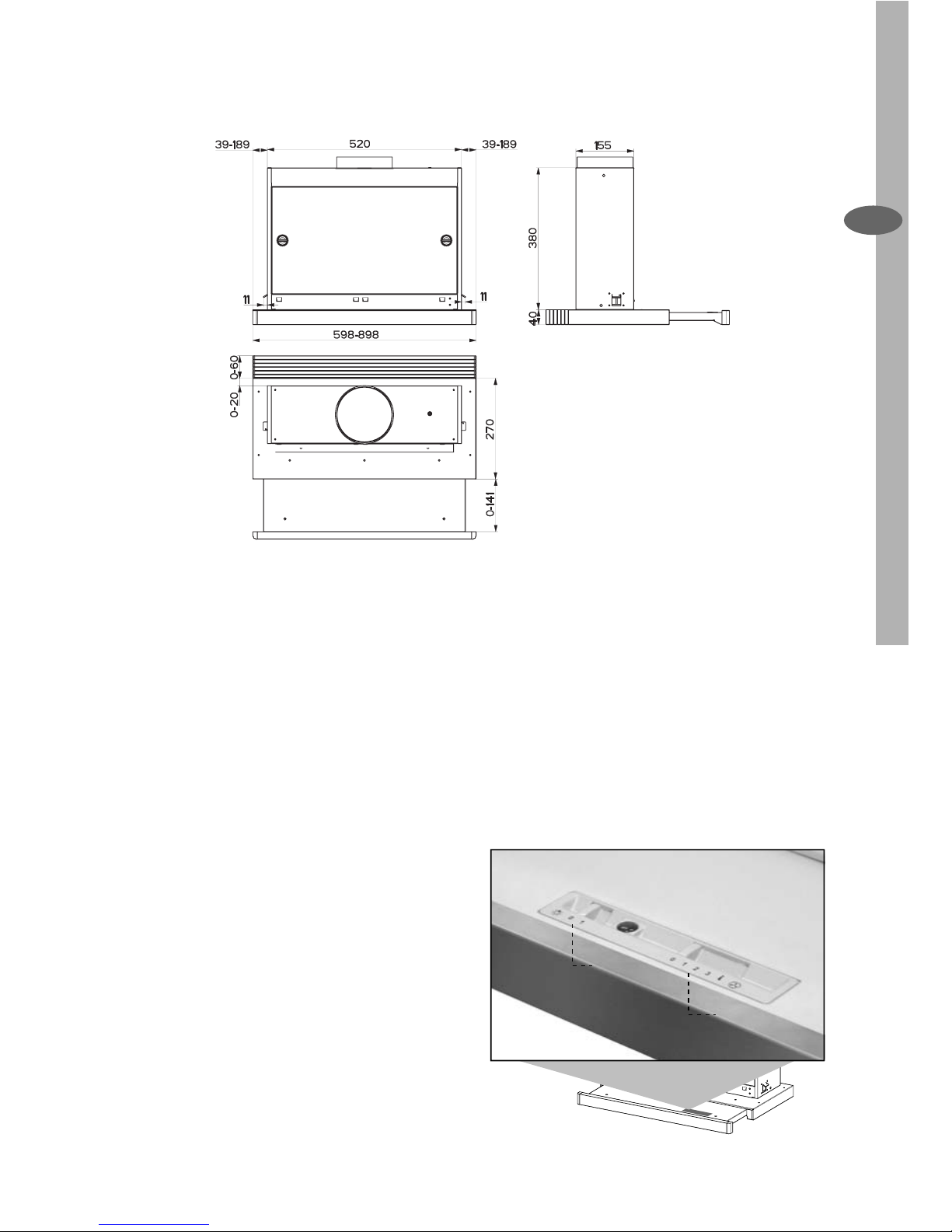

Cooker Hood Controls
The cooker hood functions are
controlled by slide switches, located
centrally in the front edge of the metal
grille panel.
L. Light ON/OFF control
0 - Off
1 - On
M. Fan Speed Control
Position 0 - Off
Position 1 - Low
Position 2 - Normal
Position 3 - Boost
L
M

6 electrolux
EN
To Operate
Select the required functions.
The appliance can be installed to
recirculate or extract contaminated air.
The cooker hood is more effective when
used in the extraction mode.
Extraction
In the extraction mode the contaminated
air enters the cooker hood, passes
through the grease filter and out through
the ducting to the atmosphere.
Recirculation
In the recirculation mode contaminated
air is passed through the charcoal
filters to be purified and recirculated
into the kitchen through a recirculation
grille. Ensure the charcoal filters are in
position.
When the ducting mode is selected
the charcoal filters are not required.
Never do flambé cooking under this
cooker hood.
Never leave frying pans unattended
during use as over-heated fats and
oils can catch fire.
Do not leave naked flames under the
cooker hood.
Ensure heating areas on your hob
are covered with pots and pans
when using the hob and cooker hood
simultaneously.

MAINTENANCE AND CLEANING electrolux 7
EN
MAINTENANCE AND CLEANING
Before carrying out any maintenance
or cleaning isolate the cooker hood
from the mains supply.
The cooker hood must be kept clean,
as a build up of grease or fat can be
a fire hazard.
The external surfaces of the hood
should be cleaned regularly. Wipe the
cooker hood frequently with warm
soapy water using a mild detergent. Dry
thoroughly after cleaning.
Always wear protective gloves when
cleaning the hood.
Never use scouring pads or abrasive
cleaners.
Never use excessive amounts of wa-
ter when cleaning particularly around
the control panel.
Charcoal Filter
The charcoal filters absorb the odours
from cooking. They will slowly become
saturated and gradually less effective.
The charcoal filters cannot be cleaned,
we recommend they are replaced every
3-6 months or more often if the hood is
used for more than 3 hours per day.

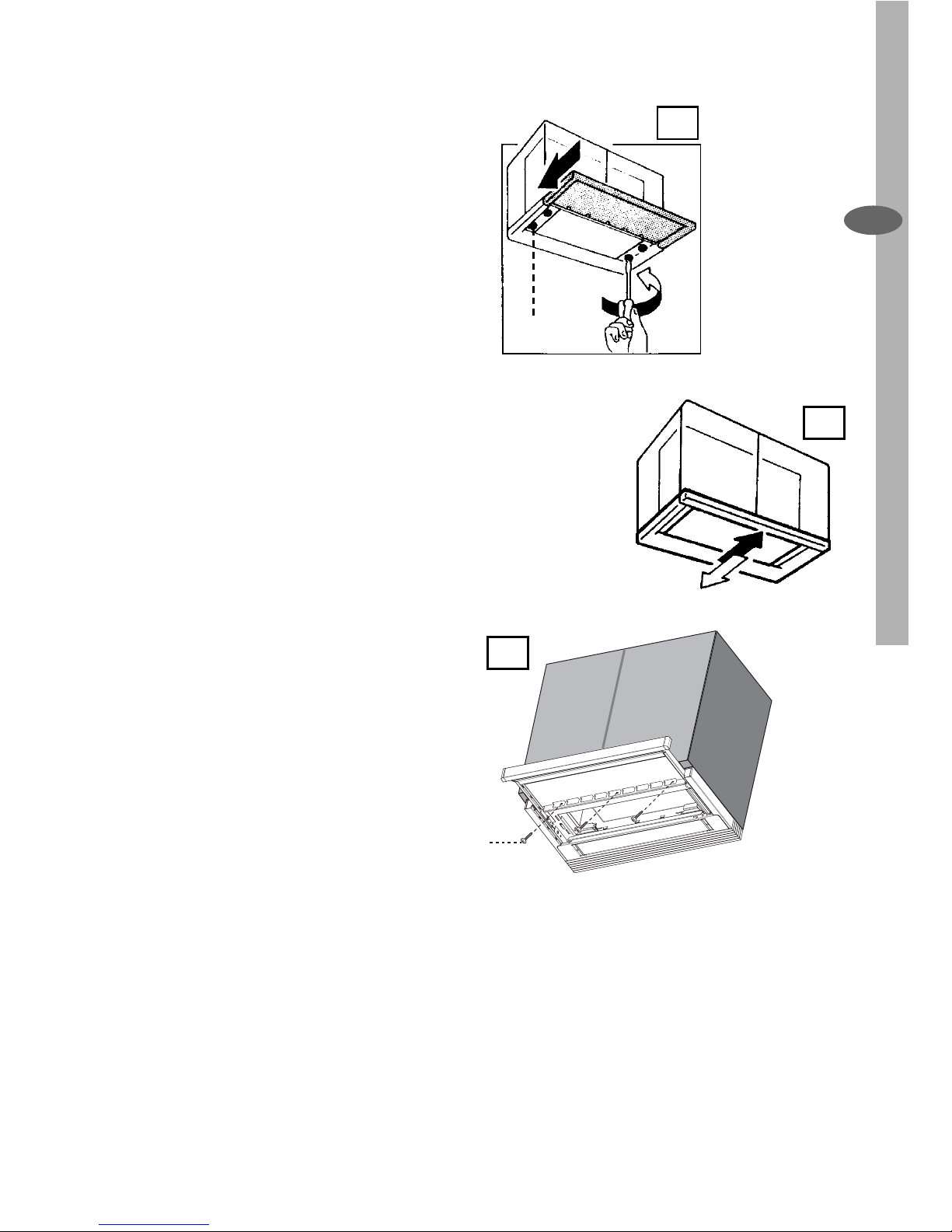

To Remove/Replace the
Charcoal Filters
• Pull out the sliding suction panel.
• Remove the filters one by one, after
having disconnected the relative
fastening elements
• Remove the saturated carbon filter by
releasing the fixing hooks
• Replace the grease filters.
• Close the sliding suction panel.

8 electrolux MAINTENANCE AND CLEANING
EN
The clips have sharp points, handle
with care and keep away from chil-
dren.
This appliance is a possible fire ha-
zard if the grease and charcoal filters
are not replaced as recommended.
The metal grease filters can be
machine washed in a dishwasher, or
hand washed in hot water and a mild
detergent or liquid soap.
To Remove/Replace the Metal
Filters
• Pull out the sliding suction panel.
• Remove the filters one by one, after
having disconnected the relative
fastening elements.
• Wash the filters, taking care not to
bend them. Let them get dry before
refitting them. (The colour of the filter
surface may change throughout the
time but this has no influence to the
filter efficiency).
• When refitting the filters, make sure
that the handle is visible on the
outside.
• Close the sliding suction panel.
This appliance is a possible fire
hazard if the grease filters are not
cleaned reguarly and the charcoal
filters replaced as recommended.

MAINTENANCE AND CLEANING electrolux 9
EN
Changing the Light Bulb
9 W fluorescent lights.
• Remove the metal terminals fixing the
glass.
• Slide the glass cover out of one of the
fastening clips. Lower the unfastened
part of the glass cover slightly, so
that the cover can be completely
removed.
• Replace the light with a new one of
the same type and rating.
• Replace the glass cover in reverse
order.
Replacement filters and lamps can
be obtained from your local Service
Force Centre.

10 electrolux SOMETHING NOT WORKING
EN
If, having followed these instructions carefully, your cooker hood fails to work properly
please carry out the following checks.
Symptom
The cooker hood will not start
The cooker hood is not working
effectively
The cooker hood has switched off
during operation
If after all these checks, the fault persists,
contact your local Service Force Centre,
quoting the model and serial number.
Please note that it will be necessary to pro-
vide proof of purchase for any in-guarantee
service calls.
Solution
• Check the hood is connected to the
electricity supply.
• Make sure the switch is in the ‘ON’ posi
tion.
• The fan speed is set high enough for the
task
• The grease filter is clean.
• The kitchen is adequately vented to allow
the entry of fresh air.
• If set up for recirculation, check that the
charcoal filter is still effective.
• If set up for extraction, check that the
ducting and outlets are not blocked.
• The safety cut-out device has been trip
ped.
• Tum off the hob and then wait for the
device to reset.
In-guarantee customers should ensure
that the above checks have been made
as the engineer will make a charge if
the fault is not a mechanical or electri-
cal breakdown.
SOMETHING NOT WORKING

GUARANTEE/CUSTOMER SERVICE electrolux 11
EN
GUARANTEE/CUSTOMER SERVICE
Standard guarantee conditions
We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part
thereof is proved to be defective by
reason only of faulty workmanship or
materials, we will, at our option repair
or replace the same FREE OF CHARGE
for labour, materials or carriage on
condition that:
• The appliance has been correctly
installed and used only on the
electricity supply stated on the rating
plate.
• The appliance has been used for
normal domestic purposes only, and
in accordance with the manufacturer’s
instructions.
• The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us.
• Electrolux Service Force Centre must
undertake all service work under this
guarantee
• Any appliance or defective part
replaced shall become the Company’s
property.
• This guarantee is in addition to your
statutory and other legal rights.
Exclusions
• Damage or calls resulting from
transportation, improper use or
neglect, the replacement of any light
bulbs or removable parts of glass or
plastic.
• Costs incurred for calls to put right
an appliance which is improperly
installed or calls to appliances outside
the United Kingdom.
• Appliances found to be in use within
a commercial environment, plus
those which are subject to rental
agreements.
• Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact your local Service
Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically
routed to the Service Force Centre
covering your postcode area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at
www.serviceforce.co.uk
Before calling out an engineer, please
ensure you have read the details under
the heading “Something not working”
When you contact the Service Force
Centre you will need to give the
following details:
1.Your name, address and postcode.
2.Your telephone number.
3.Clear concise details of the fault.
4.The model and Serial number of the
appliance (found on the rating plate).
5.The purchase date.
Please note a valid purchase receipt or
guarantee documentation is required for
in guarantee service calls.

12 electrolux GUARANTEE CONDITIONS
EN
GUARANTEE CONDITIONS
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further
information on Electrolux products
please contact our Customer Care
Department by letter or telephone at
the address below or visit our website
at www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)
(*) Calls may be recorded for training
purposes
European Guarantee
This appliance is guaranteed by
Electrolux in each of the countries
listed at the back of this user manual,
for the period specified in the appliance
guarantee or otherwise by law. If you
move from one of these countries to
another of the countries listed below the
appliance guarantee will move with you
subject to the following qualifications:-
• The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced
by production of a valid purchase
document issued by the seller of the
appliance.
• The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in
your new country of residence for
this particular model or range of
appliances.
• The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
• The appliance is installed and used
in accordance with instructions
issued by Electrolux and is only used
within the home, i.e. is not used for
commercial purposes.
• The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.
The provisions of this European Guarantee
do not affect any of the rights granted to you
by law.

electrolux 13
EN
www.electrolux.com
à
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Sjællandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Mustamäe tee 24, 10621 Tallinn
España [phone] Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
France www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas [phone], Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lietuva [phone] Verkių29, LT-09108 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország [phone] H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw
Portugal [phone] Quinta da Fonte - Edificio Gonçalves Zarco - Q 35 -2774-
518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz - Suisse - Svizzera [phone] Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Tržaška 132, 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiče SK,
Seberíniho 1, 821 03 Bratislava
Suomi [phone] Konepajanranta 4, 28100 Pori
Sverige [phone] Electrolux Service, S:t Göransgatan 143, S-105 45
Stockholm
Türkiye [phone] Tarlabașıcaddesi no : 35 Taksim İstanbul
Россия [phone] 129090 Москва, Олимпийский проспект, 16, БЦ
“Олимпик”

14 electrolux INSTALLATION INSTRUCTIONS
EN
INSTALLATION INSTRUCTIONS
It is dangerous to alter the specifications or attempt to modify this product in any way.
Technical Information
DIMENSIONS HEIGHT: 420mm
WIDTH: EFP 60033 598 mm
EFP 90033 898mm
DEPTH: 270mm
DUCTING OUTLET: 120mm
WEIGHT GROSS: EFP 60033 18 kg - EFP 90033 21,2 kg
NET: EFP 60033 13,5 kg - EFP 90033 15 kg
ELECTRICAL SUPPLY: Voltage (50Hz) 220-240V
POWER CONSUMPTION: 318W
FAN MOTOR: 2 x 150W 300W
LAMP: 2 x 9 W 18W
SUITABLE FOR INSTALLATION
ABOVE: ELECTRIC HOB: 7KW (max)
GAS HOB: 10KW (max)
SLOT-IN GAS COOKER 13.5KW (max)
SLOT-IN ELECTRIC COOKER 12.4KW (max)
Note: CE Marking certifies that this appliance complies with the requirements
laid down in EEC directive 89:336. (Electromagnetic compatibility) and subse-
quent modifications and Low Voltage directive 72/23/E.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it
shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ELECTRICAL CONNECTIONS electrolux 15
EN
ELECTRICAL CONNECTIONS
THIS APPLIANCE MUST BE EARTHED
Electrical Requirements
Any permanent electrical installation
must comply with the latest I.E.E.
Regulations and local Electricity Board
regulations. For your own safety this
should be undertaken by a qualified
electrician e.g. your local Electricity
Board, or a contractor who is on the
roll of the National Inspection Council
for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains
supply ensure that the mains voltage
corresponds to the voltage on the rating
plate inside the cooker hood.
This appliance is fitted with a 3 core
mains cable and must be permanently
connected to the electricity supply
via a double-pole switch having
3mm minimum contact gap on each
pole. A Switched Fuse Connection
Unit to BS1363 Part 4, fitted with
a 3 Amp fuse, is a recommended
mains supply connection accessory
to ensure compliance with the Safety
Requirements applicable to fixed wiring
instructions.
This appliance conforms to BS 800:
1988 and EEC Directive No. 78 308
regarding suppression of radio and
television interference.

16 electrolux INSTALLING THE COOKER HOOD
EN
INSTALLING THE COOKER HOOD
Please ensure that when the
appliance is installed it is easily
accessible to an engineer in the
event of a breakdown.
All installations must comply with the
local authorities requirements for the
discharge of exhaust air.
Incorrect installation may affect the
safety of this cooker hood.
Installation Requirements
Before fitting the hood beneath
any type of canopy or wall cabinet,
ensure that the housing is firmly fixed
to the wall in accordance with the
manufacturer’s instructions.
If it is necessary to fix the housing for
the canopy to a hollow construction
plaster or partition board structure then
it should be sufficiently reinforced to
be quite rigid in the area of the cabinet
housing fixings.
Ducting
The ducting must be fire retardant
125mm (5ins) in diameter and the length
should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the
efficiency of the hood and reduce the
airflow.
Clearance Height
The cooker hood is designed to be
fitted over a cooking appliance at the
clearance heights stated, providing
the maximum output of the appliance
beneath does not exceed the maximums
quoted in the Technical Specifications.
If the output of the appliance below the
cooker hood exceeds the maximum
outputs quoted, please refer to the
cooker manufacturer’s installation
instructions.
Clearance Height
A clearance height of 650mm (25 1/2 ”)
is required when installed above a built-
in electric hob, or 700mm (27 1/2 ”)
when installed above a built-in gas hob.
A clearance height of 685mm (27”)
is required when installed above a
slot-in electric cooker, or 787mm (30
1/2 ”) when installed above a slot-in gas
cooker.

INSTALLING THE COOKER HOOD electrolux 17
EN
A: Built-in Electric Hob: 650mm clearance
B: Built-in Gas hob: 700mm clearance
C: Slot-in Electric Cooker: 685mm clearance
D: Slot-in Gas Cooker: 787mm clearance
Hob
When installed between adjoining wall
cabinets, the wall cabinets must not
overhang the hob and the distance
between the underside of the cabinet
and the worktop must be 450mm. If
the height of the wall cabinet is less
than 450mm, a gap of 50mm must be
maintained either side of the hob.
This cooker hood must not be instal-
led above a cooking appliance with a
high level grill.
Unpacking
The fittings supplied to install this cooker
hood can be found with the instruction
book inside the packaging:
120 - 125 mm ducting collar
Fitting the Cooker Hood
into the Housing/Canopy
The hood is fixed to the housing using
the screw holes located around the
base of the casing. Access to the screw
holes will require the removal of the
metal grille panel.
Check the position of the hole is
correct with the measurements
above before making the cut-out.

18 electrolux INSTALLING THE COOKER HOOD
EN

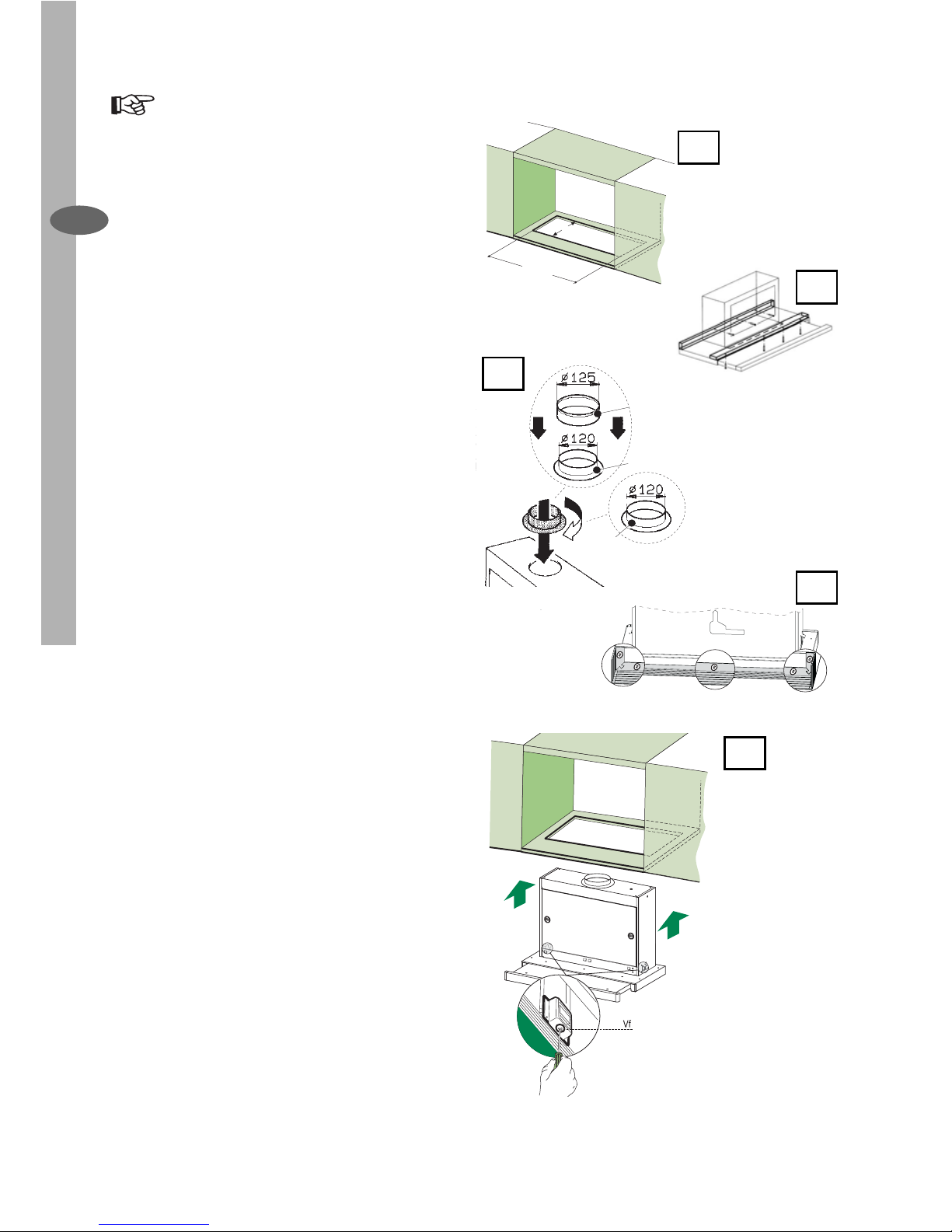

Drilling the Support surface
and Fitting the Hood
• The Hood can be fitted directly on the
lower surface of the Wall Units (650
mm min. above the Cooker Top) using
the snap-on Side Supports.
• Make an opening on the lower surface
of the Wall Unit, as indicated. (fig.1)
• Before carrying out the installation, the
wooden transportation protections
screwed on the visor and on the
canopy body must be removed.
(fig.2)
• Choose the correct flange measure
basing on the air outlet diameter
and insert it to the upper air outlet
opening. (fig.3)
• Screw the closing profile 20 onto the
rear part of the hood, using the screws
12f (2.9 x 9.5) provided. (fig.4)
• Open the sliding suction panel.
• Remove the metal grease filters one
by one after having disconnected the
relative fastening elements.
• Close the sliding suction panel again.
• Insert the Hood until the snap-on side
supports click into place. (fig.5)
• Open the sliding suction panel.
• Lock in position by tightening the
screws Vf from underneath the Hood.
(fig.5)
523
162
1
2
10a
10a
10b
3
5
4

INSTALLING THE COOKER HOOD electrolux 19
EN
• If necessary, adjust the whole filter
holder unit and proceed as follows:
• Loosen the four adjustment
screws Vr and close the sliding
panel again. (fig.6)
• Move the entire filter holder unit
until it is properly aligned with the
wall unit. (fig.7)
• Keeping the hood canopy still,
remove the sliding panel and lock
the adjustment screws again.
(fig.6)
• The hood can now be fastened to
the wall unit using the four screws
12a (3.5 x 16) provided. (fig.8)
• Replace the metal grease filters.
• Close the sliding suction panel again.
12a
7
6
8
Vr

20 electrolux INSTALLING THE COOKER HOOD
EN
Venting
The hood is more effective when used
in the extraction mode (ducted to the
outside). Venting kits maybe purchased
through your retailer or DIY store, and
must be ducted to an outside vent of
125mm (5”) minimum.
The ducting used must be manufac-
tured from fire retardant material.
When the hood is ducted externally the
charcoal filters must be removed.
Recirculation
If you are using the hood for recirculating,
ensure the charcoal filters are in position
following the instructions below.
Inserting the Charcoal
Filters
• Cut a hole ø 125 mm in any shelf that
may be positioned over the hood.
• Insert the flange 10a on the hood
body outlet.
• Connect the flange to the outlet on
the shelf over the hood using a flexible
or rigid pipe ø120 mm.
• Fix the pipe in position using sufficient
pipe clamps (not supplied).
• Fix the directional grille 8on the
recirculation air outlet using the 2
screws 12e (2,9 x 12,7) provided.
• Ensure that the activated charcoal
filters have been inserted.
12e
8
