Electrolux EFT 601-2 User manual

Bruksanvisning, Brugsanvisning
EFT 601-2
EFT 701-2
Käyttöohje, User Manual
UK
NS FIN
DK

38
Contents
Safety instructions .............................................................................................................39
At installation and service...................................................................................................................39
At use of cooker hood ........................................................................................................................39
At disposal ..........................................................................................................................................39
Description of the appliance ............................................................................................. 40
Standard accessories included: .........................................................................................................40
Function ..............................................................................................................................................40
Exhausting ..........................................................................................................................................40
Recycling ............................................................................................................................................40
Special accessories ........................................................................................................... 41
Installation .......................................................................................................................... 41
Unpacking...........................................................................................................................................41
Placement...........................................................................................................................................41
Electrical connection...........................................................................................................................41
Mounting under cupboard...................................................................................................................41
Mounting of hood on wall ...................................................................................................................42
Exhausting mode................................................................................................................................42
Recirculation mode (with carbon filter) ...............................................................................................42
Using the hood ................................................................................................................... 43
Speed regulation ................................................................................................................................43
Work light............................................................................................................................................43
Correct ventilation...............................................................................................................................43
Important to know ...............................................................................................................................43
Maintenance........................................................................................................................ 44
Grease filter ........................................................................................................................................44
Carbon filter ........................................................................................................................................44
Attention..............................................................................................................................................44
Cleaning..............................................................................................................................................44
Changing the lighting elements ..........................................................................................................44
If the hood does not function............................................................................................ 45
Service and spare parts..................................................................................................... 45
Technical data .................................................................................................................... 46

39
Thank you for your choice of an Electrolux product. We are convinced that you will have
great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user
manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity,
it is important that the cooker hood is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Congratulations to your new Cooker Hood
Safety instructions
At installation and service
lThe cooker hood is made for normal
households with normal cooking. If it is
used for other purposes there is a risk of
damage which is not covered by the war-
ranty.
lAll eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by
a person with enough knowledge. Installa-
tion made otherwise could lead to loss of
performance and even injuries and /or
damage on properties.
lThe hood cannot be connected to flues of
other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official
directives regarding the question of fumes
discharge.
lWhen the hood is used at the same time of
other appliances that run on energy
sources other than electricity, provision
must be made for an adequate supply of
air.
lWhen installed, the hood must be not less
than 50 cm. above electric burners or 70
cm. above gas or mixed-fuel burners. (Fig.
4).
lThe power cord should be drawn so that
there is no risk of damage. Hazard!
At use of cooker hood
l Nofood mustbe cookedflambéunder-
neath the hood.
lThe use of an unprotected flame is danger-
ous for the filters and could cause fires.
lNever leave the deep-frying or frying pan
over a cooker/hob. The oil contained in the
pan may spontaneously ignite through
overheating.
lObserve the filter change or cleaning
intervals. Failure to observe these intervals
may cause the risk of fire through fat depo-
sition.
Note! If a fire starts; Switch of the cooker
hood and the heating zone; Cover the fire ,
Never use water.
At disposal
lHelp to avoid damages even when the
cooker hood should be disposed. Discon-
nect the power plug and cut the power cord
at hood inlet. Check with the authorities for
information of how to proceed for disposal.

40

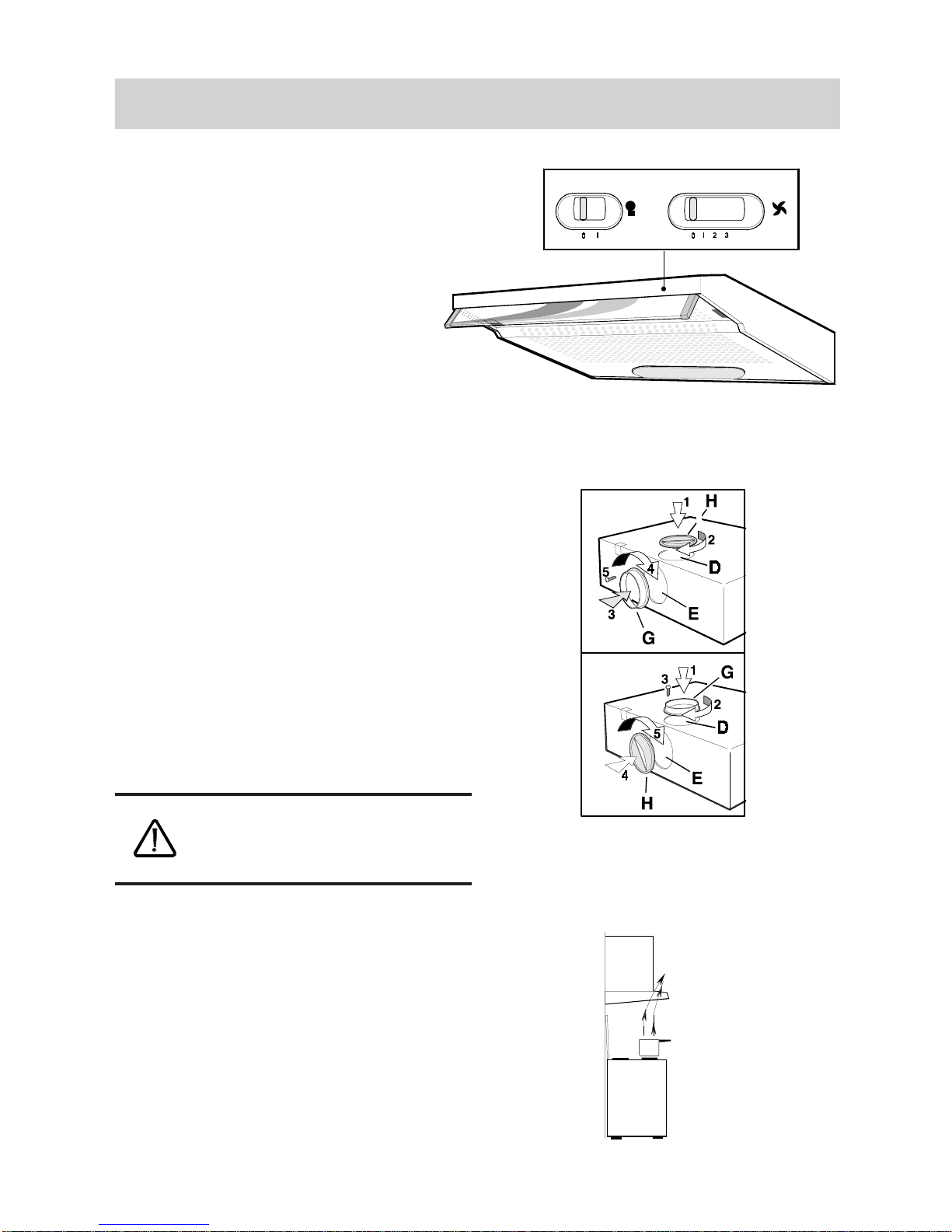

1. Light switch
2. Motor speed switch
3. Work light
4. Suction grid with grease filter
Standard accessories included:
lScrews
lDuct with no return valve
lPlug for unused outlet hole
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting
The appliance has two exhaust outlets; D and E
(Fig. 2).
Connect the hood to the smoke exhaust hose by
using the connecting ring G with no return valve
(bayonet coupling).
Insert plug H in the unused exhaust hole (bayo-
net coupling).
Plug H is for closing the unused hole.
Attention! In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the out-
side.
The hood cannot be connected
to flues f other appliances that
run on energy sources other
than electricity.
Recycling
The air is filtered through a carbon filter and
recirculated into the room through the front grid
(fig. 3).
This version is used when there is no exhaust
duct for venting outdoors or when it is impossible
to install one.
Description of the appliance
Fig. 2
Fig. 3
Fig. 1
12
43

41
Unpacking
Check that the cooker hood has no damages.
Transportation damages should immediately be
reported to the one responsible for the transport
Damages, faults and eventually missing details
should immediately be reported to the seller.
Take care of the packing material so that small
children cannot play with it.

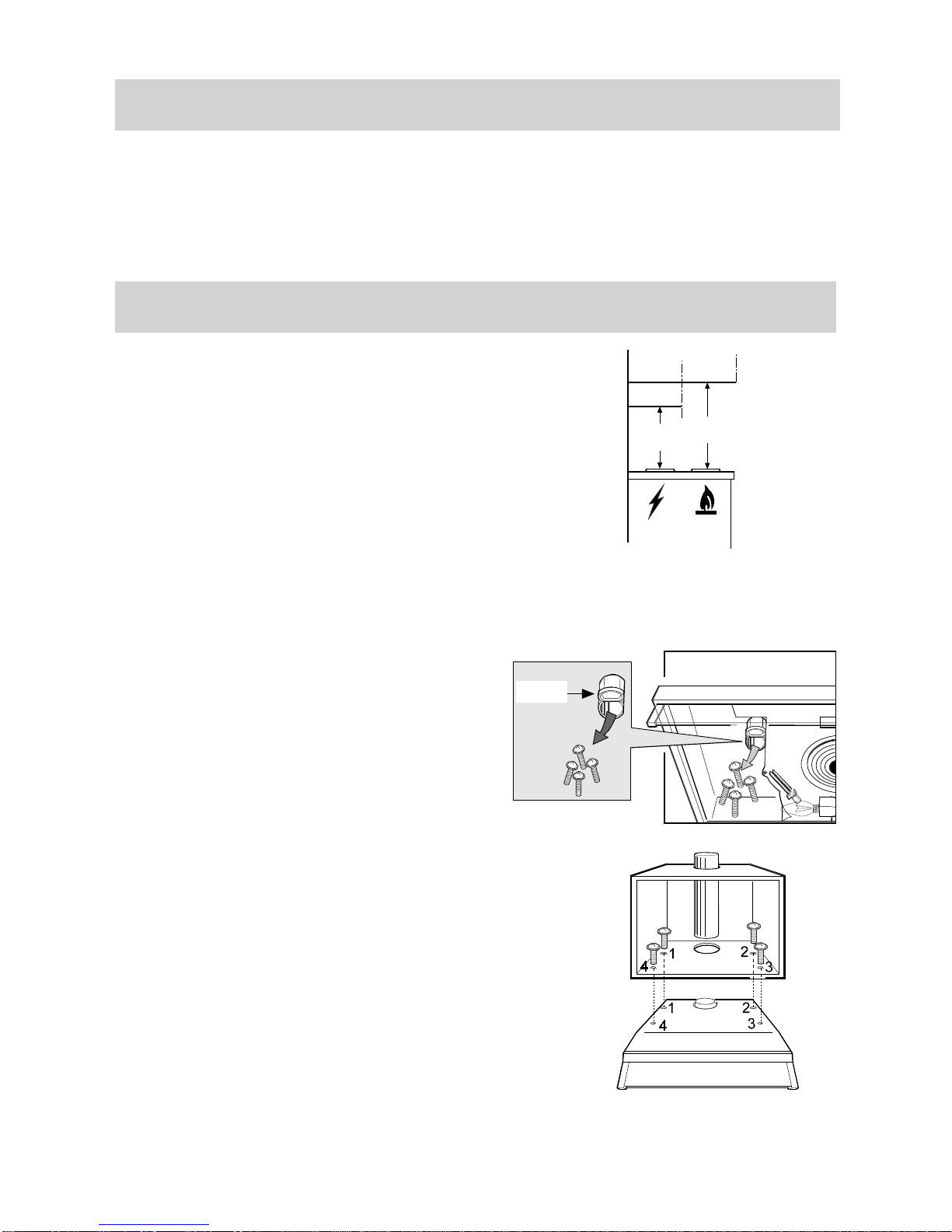

Placement
The hood is to be mounted on the wall or under
a wall cupboard.
When installed, the hood must be not less than
50 cm. above electric burners or 70 cm. above
gas or mixed-fuel burners. (Fig. 4).
Electrical connection
The hood has a power cord with moulded plug
with earth connection to be connected to a wall
outlet of 230 V.
The power cord length is 1 m.
Mounting under cupboard
lMake the holes on the bottom of the cupboard.
lFrom inside the cupboard, insert the 4 sup-
plied screws and tighten them in the appropri-
ate holes on the appliance. (Fig. 5).
Attention!
Mounting screws are located in the proper box
aside the conveyor.
Installation
Special accessories
Active carbon filter
When the hood is used in recirculation mode an
active carbon filter should be used.
Order by the retailer
PNC 942 120 388
Fig. 4
open
Fig. 5
Min
70 cm
Min
50 cm

42
Mounting of hood on wall - Fig. 6
lIn this case 3 expansion plugs Ø 8mm and 3
screws 5x45 are needed and must be pur-
chased apart.
lMake 3 Ø 8 mm holes in the wall. 2 at points
H, 1 as desired at points I.
lInsert the three Ø 8 mm expansion plugs into
the wall.
lInsert 2 5x45 screws at points H but do not
tighten them completely.
lOpen the grid.
lFit the hood into holes H, tighten the 2 screws.
lFrom inside the hood, insert the third 5x45
screw into hole I.
Exhausting mode
lConnect the air outlet to the smoke exhaust
hose
lOpen the suction grid (Fig. 11).
lCheck that the selection lever for evacuation/
recycle is in the position A - external evacua-
tion. (Fig. 7).
lRefit the suction grid.
Recirculation mode (with carbon
filter)
The air outlets D (Fig. 2) must be shut.
lOpen the suction grid (Fig. 11).
lCheck that the selection lever for evacuation/
recycle is in the position : F - recycle (Fig. 7)
Mounting the circular charcoal filter
(Fig. 8):
a. Position the circular charcoal filter so that it
covers the plastic grate which protects the fan
wheel and motor.
b.Check that the small tab (1) coincides with the
arrow (2) printed on the conveyor.
c. Turn in clockwise direction. Fig. 7
Fig. 8
Recirculation
mode
Exhausting mode
HH
I
I
Fig. 6

43

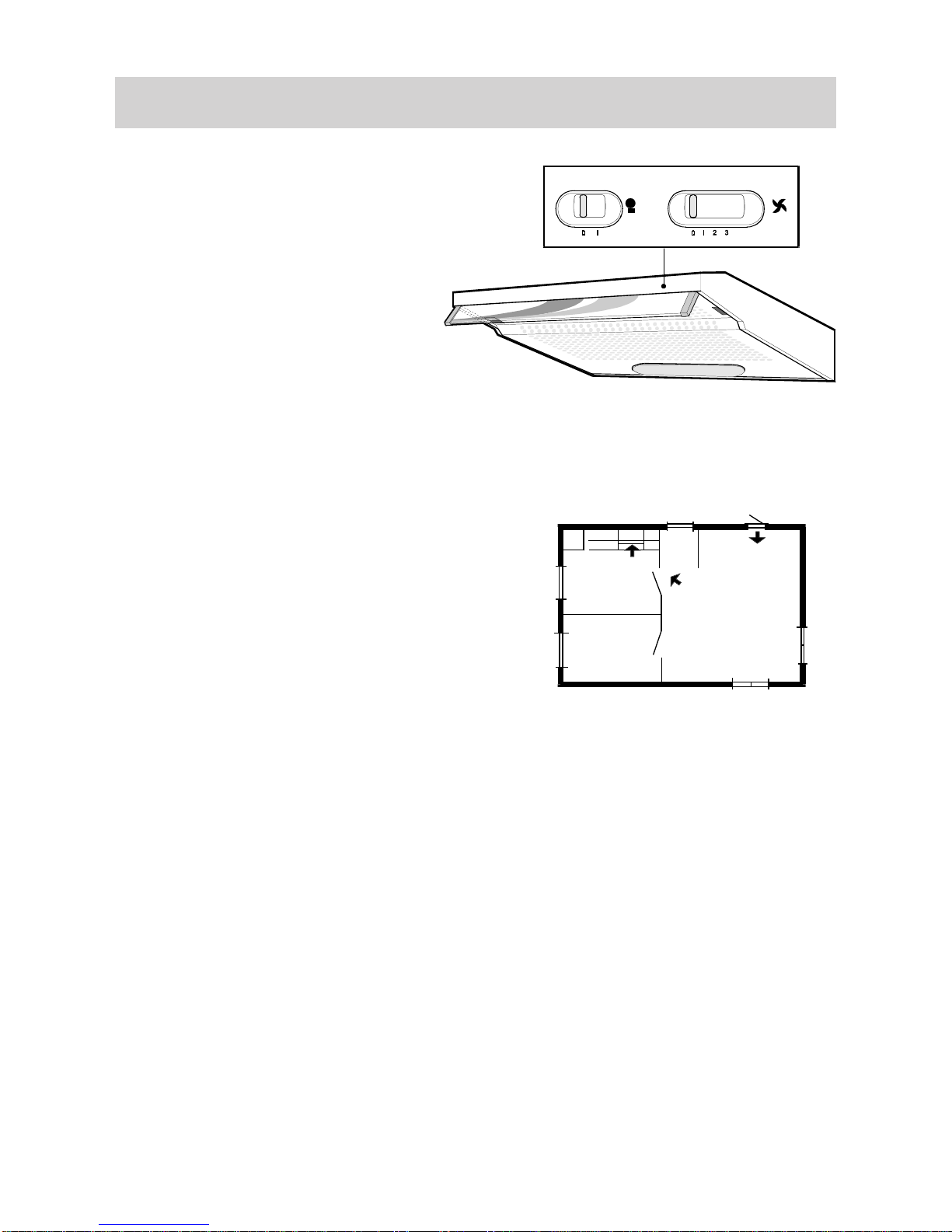

Using the hood
Speed regulation
The hood has a three speed motor regulated
with a slide switch. For the best performance,
we recommend using the highest speed in
particular cases of strong odour and vapour
concentration.
We recommend starting up the hood a few
minutes before cooking and keeping it run-
ning until all the odours have been elimi-
nated.
Work light
The hood has two lamps 40 W (E 14 candle).
Switch on and off with the left slide switch.
Correct ventilation
To have the cooker hood working correctly
the windows in the kitchen should be closed.
In stead a window in an adjacent room should
be open.
Important to know
If the hood is run at the same time as a
burner or fireplace that depend on ambient air
(for example gas, Diesel, coal or wood heat-
ers, water heaters, etc.) be careful, because
the hood, when it exhausts the air, removes
the ambient air required by the burner or
fireplace for combustion.
Not valid if the cooker hood is used in
recirculation mode.
Fig. 9
Fig. 10

44
Maintenance
Before performing any
maintenance operation,
disconnect the hood from
the electricity.
Grease filter
This serves to hold the grease particles in sus-
pension. The metal filter should be washed every
month with warm soapy water or, if possible, in
the dishwasher (60°C).
Remove the filter:
lOpen the latch and rotate the grid downwards
(Fig. 11).
lTo remove, pull forward from the right hand
side and unhook.
lRelease the clips B (Fig. 12).
Leave to dry before refitting it.
Grid must be cleaned as well as the grease filter.
Carbon filter
This filter dissolves cooking odours.
It should be changed every 6-8 months in normal
use. Ask the technical assistance service or
manufacturing company for a new one.
The carbon filter must never be washed.
Dismounting the carbon filter (Fig. 13):
a. Disconnect the hood from the electricity.
b.Remove the exhausting grid (Fig. 11).
c. Pull-out the tab (1).
d.Turn the filter in the counterclockwise direction
(2).
Attention
Failure to observe the rules for cleaning the
appliance and changing and cleaning the filters
may cause fires. Therefore, we recommend
observing these instructions.
Cleaning
To clean the outside of the hood use a cloth
moistened with denatured alcohol or neutral
liquid detergents. Never use products containing
abrasives.
Changing the lighting elements
lDisconnect the hood from the electricity.
lOpen the grid (Fig. 11).
lReplace the damaged part with one of equal
rating.
Fig. 11
Fig. 12
Fig. 13
B

45
If the hood does not function
Service and spare parts
Service and spare parts you will get via your
dealer or service company.
When you order service or spare parts you
should be ready to give the product number
and model denomination. This information
you will find on the rating label.
Take away the grease filter and you will
find the rating label behind.
Model:
Product number:
Date of purchase:
Before you make contact to
service
Check that the power plug is connected to the
wall power outlet and that no fuse is blown.
Do not do any operations that can cause
hazard or damage to the product. If the prob-
lem remains contact your dealer or an ap-
proved service company
Remember to save the purchase recite and
the Warranty card (only used in some coun-
tries)
Electrolux Pan European Guarantee
If you move to an other Country within Europe then your guarantee moves with you to your new
home subject to the following qualifications:
lThe guarantee starts the date you first purchased your product
lThe guarantee is for the same period and to the same extent for labour and parts as exists in the
new country of use for this brand or range of products
lThis guarantee relates to you and cannot be transferred to another user
lYour new home is within the European Community (EC) or European Free Trade Area
lThe product is installed and used in accordance with our instructions and is only used domesti-
cally, i.e. a normal household
lThe product is installed taking into account regulations in your new country
Before you move please contact your nearest Customer Care centre, listed below, to give them
details of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.
France Senlis [phone]
Germany Nurnberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Newbury [phone]

46
Technical data
Model EFT 601 EFT 701
Capacity Max 230 m3/h x) 140 m3/h 230 m3/h x) 140 m3/h
Min. 110 m3/h 110 m3/h
Dimension Height 130 mm 130 mm
Width 599 mm 699 mm
Depth 493 mm 493 mm
Light 2 x 40 W E 14 2 x 40 W E 14
Grease filter 1 pc 1 pc
Mains Voltage 230 V 230 V
Electric safety class Class 1 Class 1
Power rating total 205 W 205 W
x) Valid when the hood is used with carbon filter (recirculation)

1007AIR L900 Ed. 06/97
Electrolux AB
105 45 Stockholm
Electrolux Husholdnings Apparater
Spireavn. 14
0510 Oslo
Tlf: 22 63 55 00
Electrolux Husholdningsapparater A/S
Lundtoftevej 160
2800 Lyngby
Tlf: 45 87 70 88
Oy Electrolux Kotitalouskoneet Ab
ELECTROLUX
Teollisuuskatu 1A
00510 Helsinki
Puh. (09) 396 11
