Electrolux ICON E30DD75ESS User manual

Dishwasher
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Retractable Ventilation System
Instrucciones de Instalación
Sistema de ventilación retráctil
Instructions d’installationInstructions d’installation
Instructions d’installationInstructions d’installation
Instructions d’installation
Système de ventilation rétractable
5995426227
E30DD75ESS E36DD75ESS E46DD75ESS E48DD75ESS

2Finding Information
READ AND SAVE THESE INSTRUCTIONS
Read all instructions before installing the downdraft vent.
For your safety, please read and observe all safety instructions. This guide will help
you anticipate all installation connections.
QUESTIONS?
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
©2004 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Attach your sales
receipt to this
page for future
reference.
NONO
NONO
NOTETE
TETE
TE
Installer: Leave instructions with owner.
Owner: Read your Retractable Ventilation System Use & Care Manual. It contains
important safety information for operating this appliance. It also has many suggestions
for getting the best results from your downdraft vent.

3
Finding Information
TABLE OF CONTENTS
Finding Information ........................................... 2
Please Read And Save This Guide ................... 2
Questions .......................................................... 2
Table Of Contents .............................................. 3
Safety ................................................................... 4
Important Safety Instructions .............................. 4
Safety Precautions ............................................. 5
Preparing for Installation .................................. 7
Verifying Package Contents ............................... 7
Installation Planning ........................................... 7
Specifications and Dimensions ........................... 8
Electrical Power Supply ..................................... 9
Requirements .................................................... 9
Duct Preparation ............................................... 10
Duct Installation ................................................ 10
Countertop Preparation ................................... 13
Preparing the Countertop ................................ 13
Installation ........................................................ 16
Installing the Downdraft Vent ............................ 16
Connecting the Exhaust Duct ........................... 16

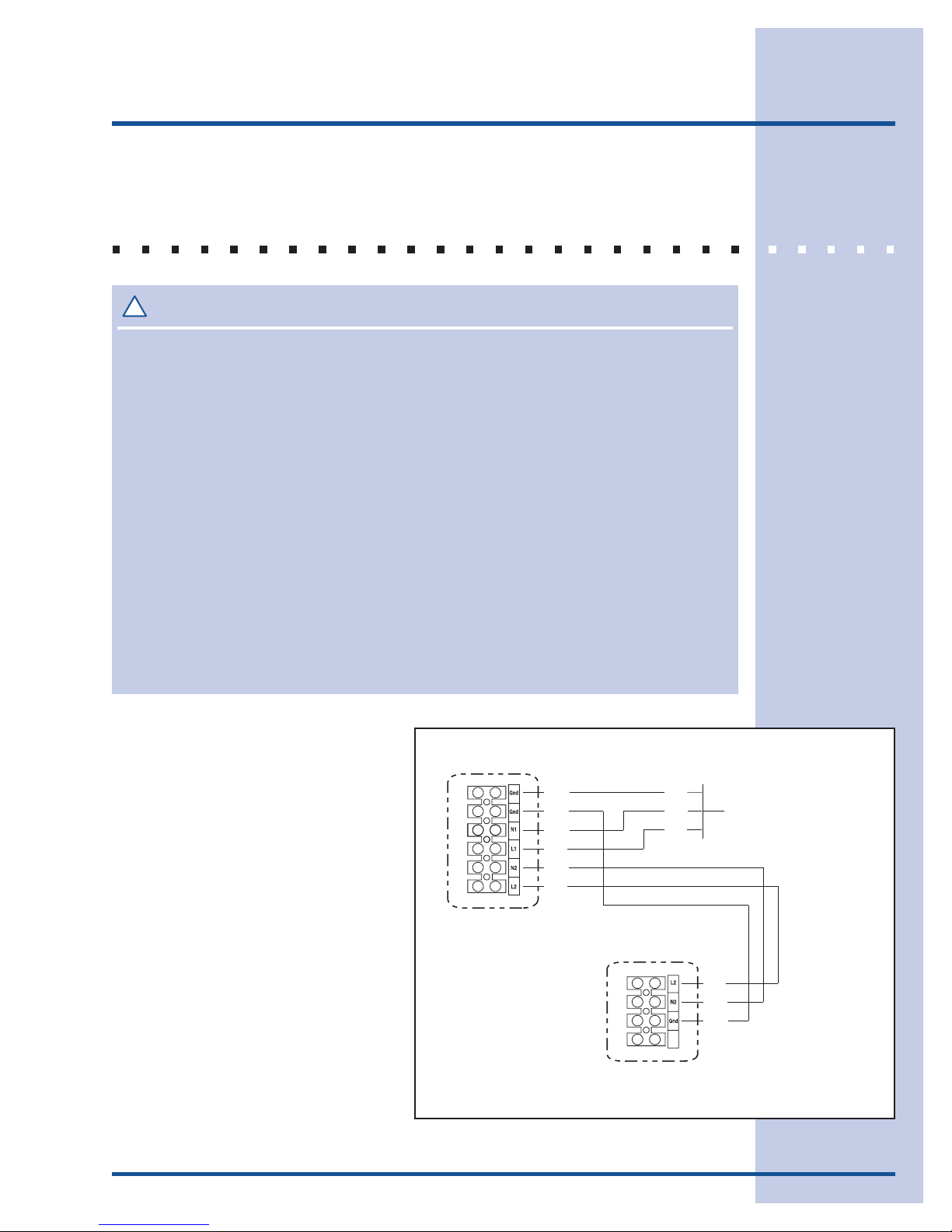

Making the Electrical Connection ..................... 17
Installing with a Cooktop/Range ....................... 18
Operation ........................................................... 19
Verifying the Operation .................................... 19

4Safety
IMPORTANT SAFETY INSTRUCTIONS
Safety Precautions
Do not attempt to install or operate your unit until you have read the safety
precautions in this manual. Safety items throughout this manual are labeled with a
Warning or Caution based on the risk type.
Definitions
!
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Indicates installation, operation or maintenance information which is important but
not hazard related.
!
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
CAUTION used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.
!
WARNINGWARNING
WARNINGWARNING
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

5
!
WARNINGWARNING
WARNINGWARNING
WARNING
• To reduce the risk of fire, electric shock, or injury to persons, observe the following:
a) Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated
construction.
b) Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting. Follow the heating equipment manufacturer’s guidelines and safety
standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
d) Ducted fans must always be vented outdoors.
e) Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
• To reduce the risk of fire, use only metal ductwork.
• Grounding Instructions
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord having a grounding wire
with a grounding plug. The plug must be plugged into an outlet this is properly
installed and grounded.
• Improper grounding can result in a risk of electric shock.
• Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
• Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician install an outlet near the appliance.
Safety
SAFETY PRECAUTIONS

6Safety
!
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
To reduce the risk of fire and electric shock, install this retractable ventilation unit only
with remote blower models rated maximum 8 amp (total of all interconnected remote
blowers).

7
Preparing for Installation
VERIFY PACKAGE CONTENTS
• Use & Care Guide
• Anchoring Legs and Hardware
INSTALLATION PLANNING
A qualified technician must complete the installation of this appliance. Proper
installation is your responsibility.
Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Follow the
heating equipment manufacturer’s guideline and safety standards such as those
published by he national Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
the local code authorities.
Plan the installation so that all required minimum clearances between the cooktop,
overhead cabinets and adjacent vertical walls are provided. Refer to the cooktop/
range installation instructions for the minimum dimensions specific to the particular
appliance being installed.
The vent system is designed to remove the contaminants and by-products that
result when cooking with gas or electric appliances. The vent system consists of
the vent intake along with a remote blower. The raised vent downdraft systems are
compatible for use with select cooktops and ranges, therefore, these instructions
offer specific guidelines for mounting the raised vents behind cooktops and ranges.
Make sure that you have everything needed to complete the installation
before proceeding.

8Specifications and Dimensions
8 1/2"
(216mm)
6 5/8"
(168mm)
10"
(254mm)
30"
(762mm)
22 1/2"
(572mm)
1 5/8" x 16"
Exhaust duct
Stiffener
3 3/4"
(95mm)
3/4" (19mm)
Finished floor
1 5/8" x 16"
Exhaust duct
3 1/4" x 10"
Rear
Exhaust duct
1 5/8" x 16"
Exhaust duct
1 5/8" x 16"
Exhaust duct
48", 3 prong grounded
power cord
Electrical
access panel
3/8"
(10mm)
Countertop
Motor
cover
6"
(152mm)
3 1/4" x 10"
Exhaust duct
25 7/8"
(657mm)
2 13/16"
(71mm)
Cooktop/Range
Stud wall
Wall board
3/4" (19mm) Max. backsplash thickness
1/4" (6mm) Min. flat area
3"
(76mm)
9/32" (7mm)
1 15/16"
(49mm)
2 1/8"
(54mm)
B
A
Raised Vent System Specifications
Raised Vent Model No. For Use With Gas Cooktops Duct Size
E30DD75ESS
E36DD75ESS
E46DD75ESS
E30GC64ESS
E36GC65ESS
3 1/4”x10” & 10”
3 1/4”x10” & 10”
3 1/4”x10” & 10”
Model
E30DD75ESS
E36DD75ESS
E46DD75ESS
Width “A” Width “B”
30” (762mm) 27 3/4” (705mm)
36” (914mm)
46” (1168mm) 43 3/8” (1102mm)
33 3/4” (857mm)
Figure 1
E46GC66ESS/E46GC67ESS 3 1/4”x10” & 10” E48DD75ESS
E48DD75ESS 48” (1219mm) 43 3/8” (1102mm)
E46GC66ESS/E46GC67ESS

9
Electrical Power Supply
REQUIREMENTS
It is the owner’s responsibility to ensure that the electrical connection of this
appliance is performed by a qualified electrician. The electrical installation,
including minimum supply wire size and grounding, must be in accordance with the
National Electric code ANSI/NFPA 70-1993* (or latest revision) and local codes and
ordinances.
A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
The correct 120VAC, 60Hz, 15A circuit must be supplied for this appliance from a
separate, grounded, circuit that is protected by a properly sized circuit breaker or
time delay fuse.
!
WARNINGWARNING
WARNINGWARNING
WARNING
Failure to disconnect power may result in electrical shock or fire hazard! If the
electric service provided does not meet the product specifications, do not
proceed with the installation. Call the selling dealer or a licensed electrician.

10 Duct Preparation
DUCT INSTALLATION
!
WARNINGWARNING
WARNINGWARNING
WARNING
• To reduce the risk of fire and to properly exhaust air, ducted fans must be vented
to outside. Do not vent exhaust air into spaces within walls, ceilings, attics, crawl
spaces or garages.
• Improper installation, adjustment, alteration, service, or maintenance can cause
personal injury or property damage.
• To reduce the risk of fire, use only duct work materials deemed acceptable by
state, municipal and local codes.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
• Best performance is achieved by using round duct instead of rectangular,
especially when elbows are required.
• If multiple elbows are needed, ensure that there is a minimum of 24” of straight
duct between any two elbows.
• Avoid “S” or “back to back” configurations caused by adjacent elbows.
• Thermal breaks, such as a short section of non-metallic duct, should be used in
areas of extreme cold.
• A back-draft damper at the duct outlet may also be required.
• Do not use flexible metal duct.
• Do not use duct work that is smaller in cross-sectional area than the
recommended size duct.
• Do not rely on duct tape alone to seal duct joints. Use sheet metal screws as
require to support the duct weight.
• The vent hood and cooking appliance(s) must be removable if service is required.
• Be certain that the duct work does not interfere with floor joists or wall studs.
• It is important to keep a minimum number of turns in the duct run, and to keep the
run as short as possible.
• Do not restrict the air flow by reducing the duct cross-sectional areas when
making hard joints or squeezing through a tight area.
• With concrete slab construction, “box-in” the duct work to prevent it from
collapsing when the wet concrete is poured. Also allow room for electrical
conduit.
• Cross-drafts or air currents caused by adjacent open windows or doors, HVAC
outlets, and ceiling fans reduce vent efficiency.

11
Duct Preparation
Higher volumes of air exhausted by the vent system result in better overall removal
of smoke and fumes from the kitchen. Longer duct runs and greater numbers of
duct transitions reduce air volume, therefore it is extremely important to keep
duct runs as short and straight as possible.
We recommend using a certified HVAC contractor for all installations.
To ensure that your installation
meets this requirement, add the
actual straight length of duct to the
equivalent straight length of all duct
fittings to determine the total
equivalent straight length of duct.
(Refer to the table on the right,
which shows various common duct
fittings with their equivalent straight
lengths for various common duct
sizes). If this total equivalent
straight length is less than or equal
to the maximum limits specified,
then the installation is proper.
Consider the duct size that
corresponds to the majority of the duct used in the installation.
Sample problem - for reference only:
Given a system installation having 25 feet of 3 ¼” x 10” rectangular duct, one (1)
90-degree 3 ¼” x 10” elbow, and one (1) 3 ¼” x 10” to 10” round transition, would
this installation be proper?
Solution:
1. Add the total length of straight duct:
25’ (of 3 ¼” x 10”) = 25’.
2. Using Table above, determine the equivalent straight length of all duct fittings:
90-degree 3 ¼” x 10” elbow = 15’. 3 ¼” x 10” to 10” round transition = 4’.
E30DD75ESS
E36DD75ESS
E46DD75ESS
E48DD75ESS
Maximum Equivalent Straight LengthsModel Duct
Size
3 1/4” x 10” 60’
70’
3 1/4" x 10" 90° Elbow 3 1/4" x 10" 45° Elbow 3 1/4" x 10" Wall Cap 3 1/4" x 10"
90° Flat Elbow
Transistion
3 1/4" x 10" to Round
45° Elbow - Round Duct 90° Transistion
3 1/4" x 10" to 10" Round
90° Elbow - Round Duct
15 Feet 7 Feet 2 Feet 20 Feet
10" Diameter - 4 Feet 10" Diameter - 2 Feet 25 Feet 10" Diameter - 5 Feet
10”

12 Duct Preparation
3. Add (1) and (2) to determine the total equivalent straight length of the
complete duct system: 25’ + 15’ + 4’ = 44’ total equivalent straight duct length.
4. For the system with 3 ¼” x 10” duct, the maximum allowable total equivalent
straight length of duct is 60 feet. Thus, this proposed installation is proper.
After determining that your proposed duct work meets the maximum duct length
requirement, proceed with the location planning.

13
Countertop Preparation
PREPARING THE COUNTERTOP
Plan the installation so that all required minimum clearances between the cooktop,
overhead cabinets and adjacent vertical walls are provided. Refer to the cooktop
installation instructions for the minimum dimensions specific to the particular
appliance being installed.
The raised vent system is designed to remove the contaminants and by-products
that result when cooking with gas or electric appliances. The vent system consists
of the vent intake along with a remote blower. The raised vent downdraft systems
are compatible for use with select cooktops, therefore, these instructions offer
specific guidelines for mounting the raised vents behind the cooktops.
For installation of the raised vent system, provide an opening in the countertop as
shown in the Countertop Preparation section. Position the cutout so all required
minimum clearances are met. Make certain that the minimum flat countertop area
meets or exceeds the combined overall width and overall depth, as shown in
Figures 2, 3 and 4that follow.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• To reduce the risk of personal injury caused by reaching over a hot appliance,
cabinet storage space located directly above the cooktop should be avoided.
• Do not store combustible materials or items adversely affected by heat in cabinet
areas above the appliance.
• Follow the instructions regarding minimum safe clearances and installation
location. Failure to do so may result in a fire or safety hazard.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Verify that the raised vent and blower being installed are a matched pair before
beginning the installation. (Part number 5304444802 and E30DD75ESS, E36DD75ESS,
E46DD75ESS, and E48DD75ESS.)

14 Countertop Preparation
Electrolux Icon Model No.
E30GC64ESS
E36GC65ESS
Cutout “A” Cutout “B”
27 1/2” (698 mm) -
33 3/4” (857 mm)
44 1/2” (1130 mm)
-
E46GC67ESS 44 1/2” (1130 mm)
43 1/2” (1105 mm)
43 1/2” (1105 mm)
22 7/16"
(570mm)
23 1/4"
(591mm)
Min.
7 1/2" (191mm) Min.
to combustible side
walls above the range
(both sides)
25"
(635mm)
Backsplash
Max.3/4" (19mm)
1/4" (6mm)
Min. flat ledge
Vertical
non-combustible
surface rear wall
Flush with
backside of
cabinet front
A
Overall Cutout Dimensions
(E30GC64ESS and E36GC65ESS)
Figure 3
Figure 2
E30EC65ESS 30” (762 mm) 27 1/2” (698 mm)
E46GC66ESS
E36EC65ESS 36” (914 mm) 33 3/4” (857 mm)
20 3/8"
(508mm)
23 1/4"
(591mm)
Min.
7 1/2" (191mm) Min.
to combustible side
walls above the range
(both sides)
25"
(635mm)
Backsplash
Max.3/4" (19mm)
1/4" (6mm)
Min. flat ledge
Vertical
non-combustible
surface rear wall
Flush with
backside of
cabinet front
2 9/16"
(65mm)
B
A
Overall Cutout Dimensions
(E30EC65ESS and E36EC65ESS)

15
19 7/8"
(505mm)
23 1/4"
(591mm)
Min.
7 1/2" (191mm) Min.
to combustible side
walls above the range
(both sides)
25"
(635mm)
Backsplash
Max.3/4" (19mm)
1/4" (6mm)
Min. flat ledge
Vertical
non-combustible
surface rear wall
Flush with
backside of
cabinet front
2 9/16"
(65mm)
B
A
Overall Cutout Dimensions
(E46GC66ESS and E46GC67ESS)
Countertop Preparation
Figure 4

16 Installation
INSTALLING THE DOWNDRAFT VENT
Loosely attach the anchoring legs to the left and right sides of the plenum using the
hex nuts provided. Place the vent into the rear of the countertop cutout. Adjust the
anchoring leg height so that the end caps are gently resting on the counter, then
tighten the hex nuts. Secure the anchoring legs to the cabinet/floor with the screws
provided.
CONNECTING THE EXHAUST DUCT
For the side or bottom knockouts use the supplied transition. For the rear knockout
attach a 3 1/4" x 10" duct.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
The vent must be installed in a vertical orientation. Do not mount the vent on a slant or
angle.
Remove the knockout from the plenum by cutting the tape and metal cross overs to
remove the insert.
IMPORIMPOR
IMPORIMPOR
IMPORTT
TT
TANTANT
ANTANT
ANT
Use duct tape and sheet metal screws to seal the connection between the blower outlet
and duct. Support the duct weight as necessary to ensure sealed joints.

17
Installation
MAKING THE ELECTRICAL CONNECTION
Both vent systems require a properly
grounded, 120 VAC, 60 Hz., 15 Amp
electrical service. Maximum full line
load is 8 amps. Always use a
dedicated circuit. Do not use same
circuit that the cooktop is using.
Make all electrical connections
between the vent and blowers, then
connect power to the vent as per the
wiring diagrams. Use wire nuts
provided and electrical tape to secure
all wiring connections at the blowers.
See wiring diagram in Figure 5.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• Ensure that the power supply is disconnected before proceeding.
• Verify that the power supply matches the ratings found on the appliance data
plate before proceeding.
• The complete appliance must be properly grounded at all times when electrical
power is applied.
• Do not ground the appliance with the neutral (white) house supply wire. A
separate ground wire must be utilized.
• If aluminum house supply wiring is used, splice the appliance copper wires to the
aluminum house wiring with special connectors designed and agency-certified
for this purpose. Follow the connector manufacturer’s recommended procedure
carefully. Improper connection can result in a fire hazard.
• Failure to complete electrical connections properly may result in a damaged or
nonfunctional system. Follow the wiring diagrams carefully to ensure a proper
installation.
RVS
GRN
GRN
GRN
GRN
WHT
WHT
WHT
BLK
BLK
BLK
Blower
WHT
BLK
120VAC, 60Hz, 15A
48” (1219mm) power cord with
three prong grounded plug
Wiring of RVS
with Blower
Figure 5

18 Installation
INSTALLING WITH A COOKTOP
!
WARNINGWARNING
WARNINGWARNING
WARNING
• The cooktops have very different installation requirement. Please make sure you
read the Installation Instructions for the accompanying cooktop thoroughly
before continuing the installation process.
• After the cooktop has been installed ensure that the top cap on the vent intake
does not catch on the back edge of the cooktop when the intake is lowered. If
interference does occur, adjust the position of the cooktop by moving it against
the front edge of the countertop cutout, then re-secure the cooktop to the
countertop. Also, ensure that the vent anchoring legs have been properly
secured to the cabinet base using the screws provided in the instructions
envelope. Failure to eliminate interference may result in permanent damage to the
vent.

19
Operation
VERIFYING THE OPERATION
• Press the top cap up/down switch once to raise the vent to its operating
position.
• In the up position, turn the variable speed control switch in both directions
to verify that the blower is operating correctly.
• Press the top cap up/down switch once to lower the vent.
!
WARNINGWARNING
WARNINGWARNING
WARNING
• If the vent system is not operational after completion of the installation, do not
attempt to repair it. See the Problem Solving section of the Use & Care Guide, then
call a qualified service technician if the system is still not functional.
• Always disconnect the appliances from the electrical power when servicing them.
• Install the two (2) front filters and the grill prior to operating the vent. Refer to the
Use & Care Guide for instructions regarding filter and grill installation.

Dishwasher
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
External Blower Assembly for
Electrolux Retractable Ventilation Systems
E30DD75ESS E36DD75ESS E46DD75ESS E48DD75ESS 5995433678
