Electrolux EIFLS60LT Installation instructions

Optional Luxury-Glide®
Touch-2-Open™
Pedestals Shown in
Available Colors.
Island White
Silver Sands
Silver Sands
EIFLS60L SS
27" ELECTRIC FRONT LOAD WASHERS
Capacity D.O.E.
Features
Door Design
Electronic Controls
Perfect Steam™Wash System
Balance System
Sound System
Lighting
Touch-2-Open™/ (Close) Door
Touch-2-Open™/ (Close) Dispenser Drawer
Wash System
Integral Water Heater
Wash Drum
Automatic Temperature Control
Automatic Water Level Adjustment
Auto Prewash Detergent Dispenser (Liquid / Powder)
Auto Bleach Dispenser (Liquid Only)
Auto Detergent Dispenser (Liquid/ Powder)
Auto Fabric Softener Dispenser (Liquid Only)
Tumble Speed (RPM)
Spin Speed (RPM)
Reversible Door
Adjustable Leveling Legs
ENERGY STAR®
NSF®Certified
Cycles
Fast Wash*, My Favorite (1), Deep Clean Sanitize*,
Heavy Duty*, Whitest Whites*, Colors*, Normal*,
Casual*, Delicates, Allergen*, Spin Only, Rinse & Spin
(*Can be used with Add Steam option)
Specialty Cycles –
Jeans, Fast Sanitize, Stuffed Animals, Pet Beds,
Clean Washer, Active Wear, Fast Steam
Options
Wash / Rinse Temperature Combinations
Temperature Selections
Add Steam
Spin Speed Selections
Soil Level Selections
Delay Start (Hours)
End-of-Cycle Chime
Installation Options
Freestanding, Under Counter*, Stacked (Under Dryer),
Pedestal, Hidden (In Closet), Second Floor
Accessories
Luxury-Glide®Touch-2-Open™/ (Close) Pedestal –
Silver Sands – PN # EPWD15SS
Island White – PN # EPWD15IW
Dryer Stacking Kit – PN # STACKIT4X
Drain Hose Extension Kit – PN # 137098000
Mobile Home Installation Kit – PN # 137067200
Specifications
Color –
Silver Sands
Island White
Product Dimensions –
Height Without 15" Pedestal)
(With 15" Pedestal)
Width
Depth (to Center of Arc Not Including Hose)
(with 90° Door Open))
Power Supply /
Water Inlet Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts‡
Watts @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
*Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry.
‡An electrical supply with grounded three-prong receptacle is required. The power supply circuit must
be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes
& ordinances.
NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
4.30 Cu. Ft.
Signature Soft-Arc
IQ-Touch™with LCD Display
Yes
Perfect Balance®
Luxury-Quiet™
Luxury-Design®
Yes
Luxury-Glide®
ExpertCare™
Yes
Stainless Steel
Yes
Yes
Yes
Yes
Yes
Yes
Variable
1,300
Yes
Yes
Most Efficient3
Sanitize / Allergen
11
7
9
5
7
5
5
22
Adjustable
Yes
Optional
Optional
Optional
Optional
SS
IW
38"
53"
27"
31-1/2"
50-5/8"
Top Right Rear /
Top Left Rear
120V / 60 Hz / 15A
1.2
1200
12
247 Lbs.
Cleanest Front Load Wash1
Our front load washer offers exclusive technology
that gets your clothes the cleanest.
Fastest Wash Time2
Fifteen minutes to wash.
Sure-2-Fit®Capacity Washer
Wash more in one load with our large capacity
washer.
ENERGY STAR®Most Efficient3
Recognized as the Most Efficient of
ENERGY STAR®in 2012.
Front Load Washers
EIFLS60L SS, EIFLS60J IW
IQ-Touch™Electronic Controls Featuring Perfect Steam™
electroluxappliances.com
1Based on AHAM washability test protocol for leading brand front load washers with normal cycle times less
than 60 minutes.
2Fastest time based on smallest load/Fast Wash and Fast Dry cycles selected for various load compositions.
3Recognized as the Most Efficient of
ENERGY STAR®in 2012.

Front Load Washers
EIFLS60L SS, EIFLS60J IW
Electrolux Major Appliances, N.A.
USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca
EIFLS60L 09/12 © 2012 Electrolux Home Products, Inc.
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.

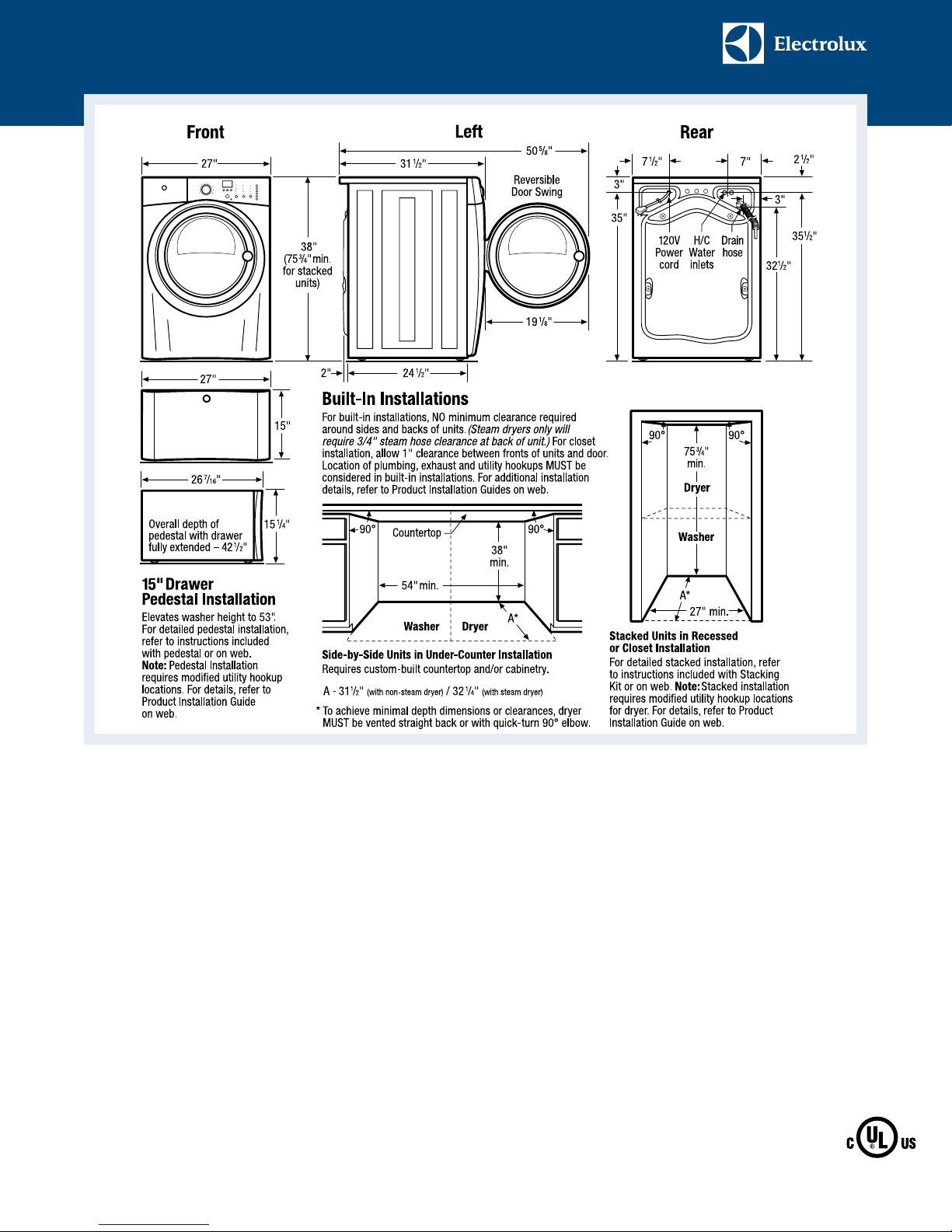

Front Load Washer Specifications
Product Weight – 237 Lbs.
•
An electrical supply with grounded three-prong receptacle is required. The
•
power supply circuit must be installed in accordance with current edition
of National Electrical Code (ANSI/NFPA 70) and local codes & ordinances.
(Do not use same circuit as dryer.)
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Amps @ 120 Volts = 12 Amps
•
Connected Load (kW Rating) @ 120 Volts = 1.2 kW
•
Equipped with 120V 3-wire power supply cord, approx. 60" long.
•
Always consult local and national electric & plumbing codes.
•
To maximize detergent effectiveness, ambient temperature should never
•
be below 60° F.
Can be installed alone, with or without optional 15" drawer pedestal, or
•
stacked beneath matching Electrolux Dryer, which requires installation
of optional dryer stacking kit. (For installation details, refer to instructions
included with optional pedestal or stacking kit or on web.)
Can be built in with matching Electrolux Dryer in under-counter, recessed
•
or closet installation. Installations requiring countertop and / or cabinetry
will require custom building. (Refer to Built-In Installations on this page
for cutout dimensions. For additional installation details, refer to Product
Installation Guide on web.)
Closet installation requires vented door with 2 unobstructed louvered
•
openings, minimum 60 sq. in. each, located 3" from top and bottom of
door. Full-length 120 sq. in. opening also acceptable. Allow 1" clearance
between door and fronts of units.
Do NOT install in area exposed to dripping water or outdoor weather
•
conditions, or where gasoline or other flammables, including automobiles,
are kept or stored.
Floor MUST be solid with 1" maximum slope. To ensure vibration or
•
movement does not occur, reinforcement of floor may be necessary.
Do NOT install on carpeted surface.
Leveling legs supplied to level washer properly and reduce excessive
•
noise and vibration.
H/C water faucets MUST be installed within 42" of washer’s water inlet
•
and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses.
Water pressure MUST be between 30 and 120 psi with NOT more than
•
10 psi pressure difference between hot and cold.
Drain required with standpipe diameter of 1-1/4" min. and height of 24"
•
min. / 96" max. above floor, capable of eliminating 17 gallons per minute.
Attached 59" drain hose can reach 79"-high standpipe.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
Drawer Pedestals – Silver Sands (PN # EPWD15SS),
•
Island White (PN # EPWD15IW).
Dryer Stacking Kit – (PN # STACKIT4X).
•
Drain Hose Extension Kit – (PN # 137098000).
•
Mobile Home Installation Kit – (PN # 137067200).
•
IQ-Touch Front Load Washers:
EIFLW55H (non-steam) / EIFLS55I (steam) / EIFLS60J (steam)
