electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully will
provide you with lots of pleasure in the future. The Electrolux ambition is to offer a
wide variety of quality products that make your life more comfortable. You find
some examples on the cover in this manual. Please take a few minutes to study
this manual so that you can take advantage of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering Ease-of-
Mind. Good luck!
132972250 EN.qxd 16/01/2008 10.53 Pagina 3

4 contents electrolux
Contents
Safety information..............................5
Product description ...........................7
Control panel.....................................8
Use....................................................9
Washing hints ..................................22
International wash code symbol ......25
Washing programme ..................26-27
Programme information ...................29
Care and cleaning ...........................30
Something not working....................34
Techical data ...................................38
Consumption values ........................39
Installation .......................................40
Environment concerns.....................46
Guarantee conditions ......................47
Customer service centres................49
The following symbols are used in this manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
132972250 EN.qxd 16/01/2008 10.53 Pagina 4

safety information electrolux 5
Safety Information
In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and
safety.
General safety
●It is dangerous to alter the
specifications or attempt to modify
this product in any way.
●During high temperature wash
programmes the door glass may get
hot. Do not touch it!
●Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using.
●Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
●Only use the advised quantities of
fabric softener and detergent.
Damage to the fabric can ensue if
you over-fill. Refer to the
manufacturer’s recommendations of
quantities.
●Wash small items such as socks,
laces, washable belts etc in a
washing bag or pillow case as it is
possible for such items to slip down
between the tub and the inner drum.
●Do not use your washing machine to
wash articles with whalebones,
material without hems or torn
material.
●Always unplug the appliance and
turn off the water supply after use,
clean and maintenance.
●Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
●This appliance is provided with a
white drum light. It is class 1, in
accordance with IEC 60825-1:1993
+ A1:1997 + A2:2001 standard.
Should the appliance drum light
need to be replaced, this must be
carried out by a Service Centre.
Installation
●This appliance is heavy. Care should
be taken when moving it.
●When unpacking the appliance,
check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.
●All packing and transit bolts must be
removed before use. Serious
damage can occur to the product
and to property if this is not adhered
to. See relevant section in the user
manual.
●After having installed the appliance,
check that it is not standing on the
inlet and drain hose and the worktop
is not pressing the electrical supply
cable.
●If the machine is situated on a
carpeted floor, please adjust the feet
132972250 EN.qxd 16/01/2008 10.53 Pagina 5

6 safety information electrolux
in order to allow air to circulate freely
●Always be sure, that there is no
water leakage from hoses and their
connections after the installation.
●If the appliance is installed in a
location subject to frost, please read
the “dangers of freezing”chapter.
●Any plumbing work required to install
this appliance should be carried out
by a qualified plumber or competent
person.
●Any electrical work required to install
this appliance should be carried out
by a qualified electrician or
competent person.
Use
●This appliance is designed for
domestic use. It must not be used
for purposes other than those for
which it was designed.
●Only wash fabrics which are
designed to be machine washed.
Follow the instructions on each
garment label.
●Do not overload the appliance. See
the relevant section in the user
manual.
●Before washing, ensure that all
pockets are empty and buttons and
zips are fastened. Avoid washing
frayed or torn articles and treat
stains such as paint, ink, rust, and
grass before washing. Underwired
bras must NOT be machine washed.
●Garments which have been in
contact with volatile petroleum
products should not be machine
washed. If volatile cleaning fluids are
used, care should be taken to
ensure that the fluid is removed from
the garment before placing in the
machine.
●Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
●Never use the washing machine if
the power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the washing machine is
accessible.
Child safety
●This washing machine is not
intended for use by young children
or infirm persons without
supervision.
●Young children should be supervised
to ensure that they do not play with
the appliance.
●The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach
●Keep all detergents in a safe place
out of children’s reach.

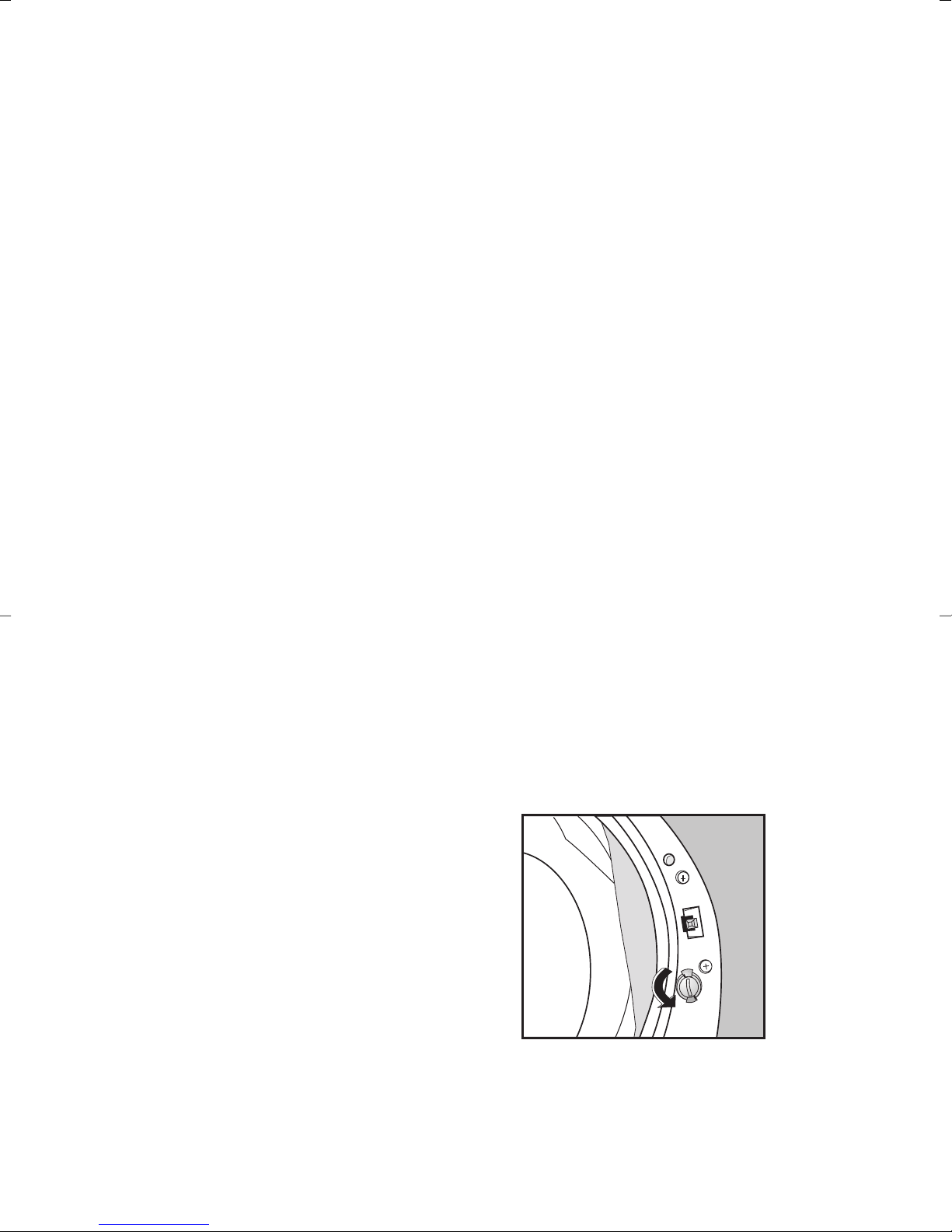

●Make sure that children or pets do
not climb into the drum. To avoid this
the machine incorporates special
feature. To activate this device, rotate
the button (without pressing it) inside
the door clockwise until the groove
is horizontal. If necessary use a coin.
To disable this device and restore
the possibility of closing the door,
rotate the button anti-clockwise until
the groove is vertical.
P1076
132972250 EN.qxd 16/01/2008 10.53 Pagina 6

electrolux product description 7
Product description

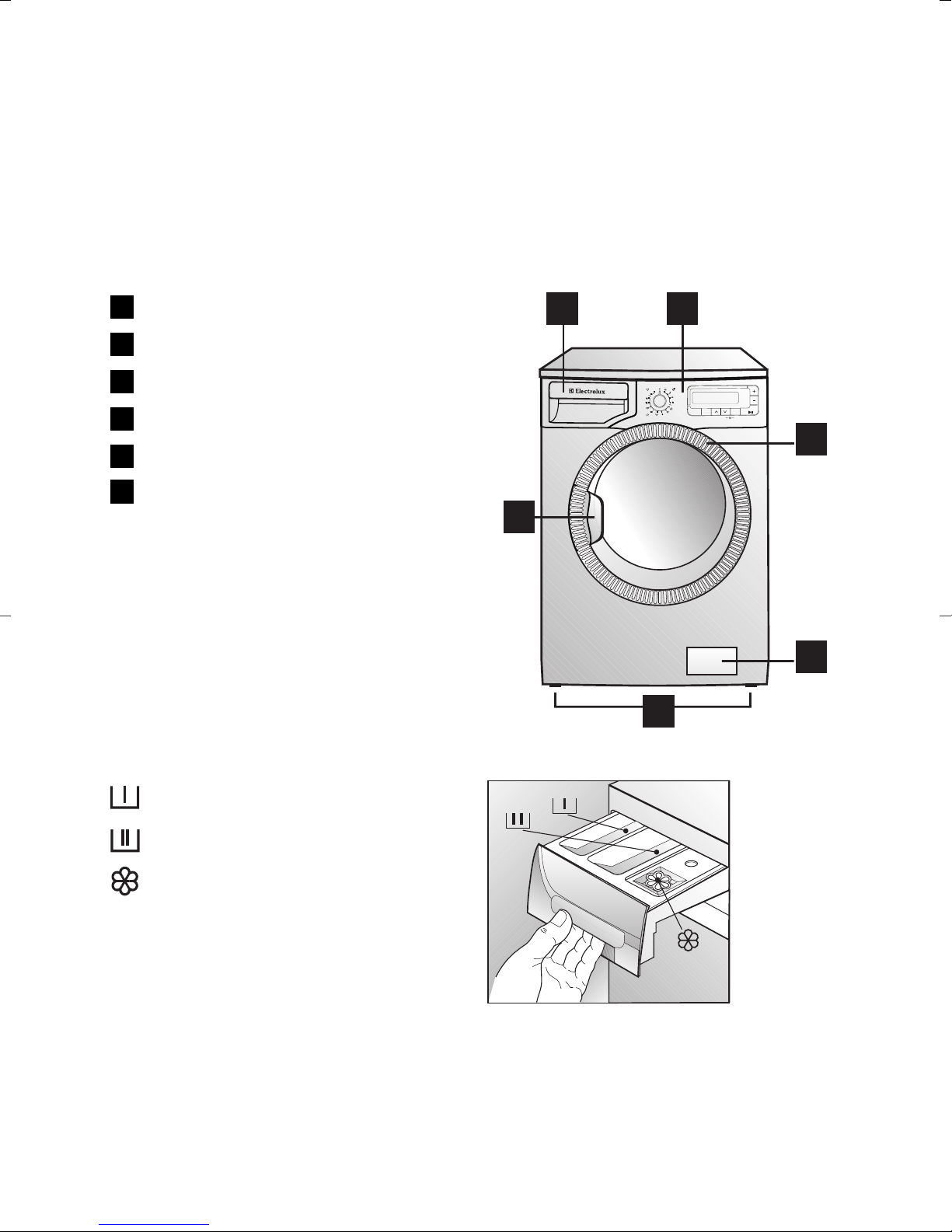

Detergent dispenser drawer
Control panel
Door opening handle
Drum light
Drain pump
Adjustable feet
5
4
3
2
1

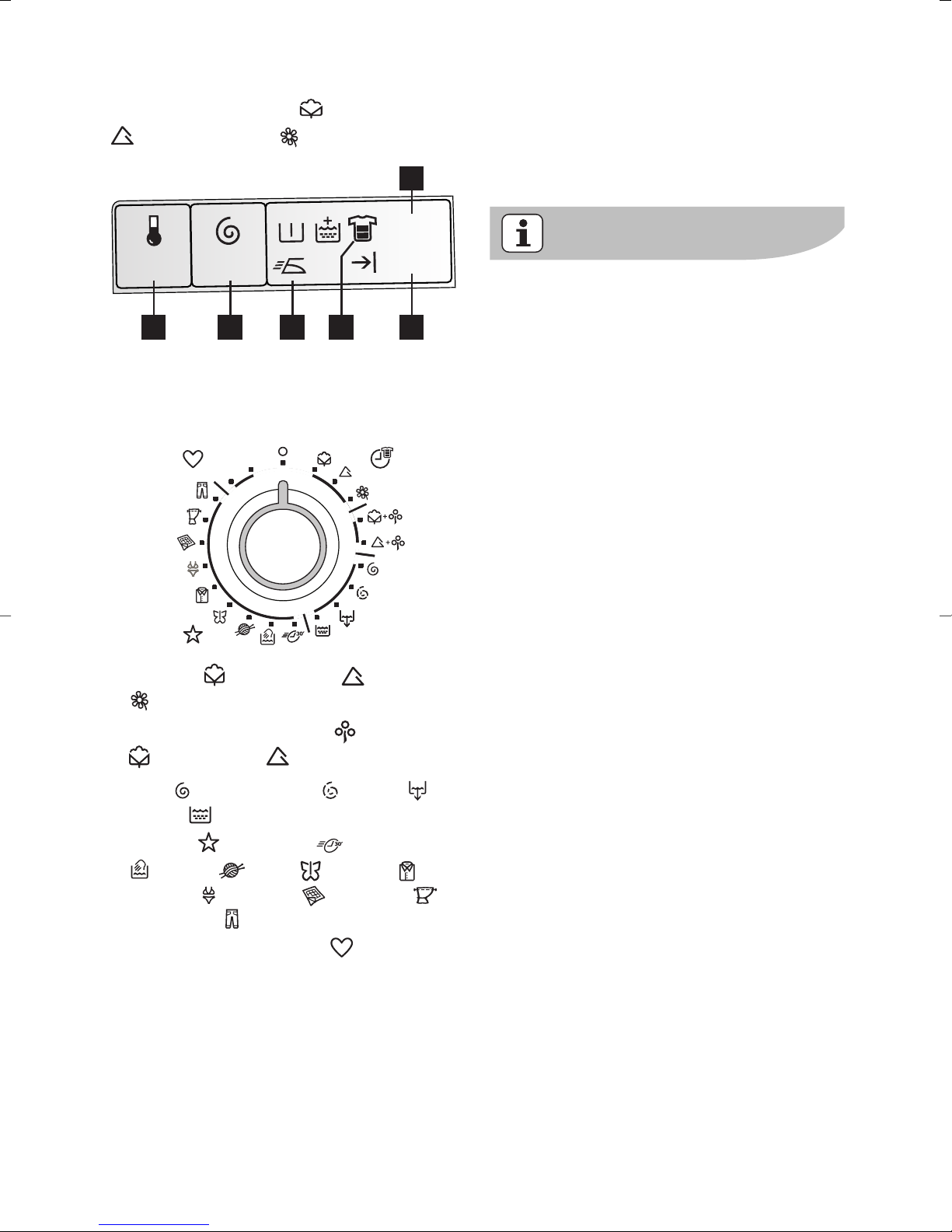

Prewash
Wash
Fabric Softener
EWN 14991 W
Start/
Pause
Time
Manager
Temp . Spin OK
Option
Cottons
Economy
rain
Handwash
Spin
Rinses
Blanket
Synthetics
Cottons Time
Manager
Sensitive
plus
elicates
1
2
Favourite
Silk
14 min
Specials
1 2
3
5
6
4
EN001
Detergent dispenser drawer
Your new appliance meets all modern requirements for effective treatment of laundry
with low water, energy and detergent consumption.
The New Jet system allows total use of detergent and reduces water consumption
so saving energy.
6
132972250 EN.qxd 16/01/2008 10.53 Pagina 7

8electrolux control panel
Control panel

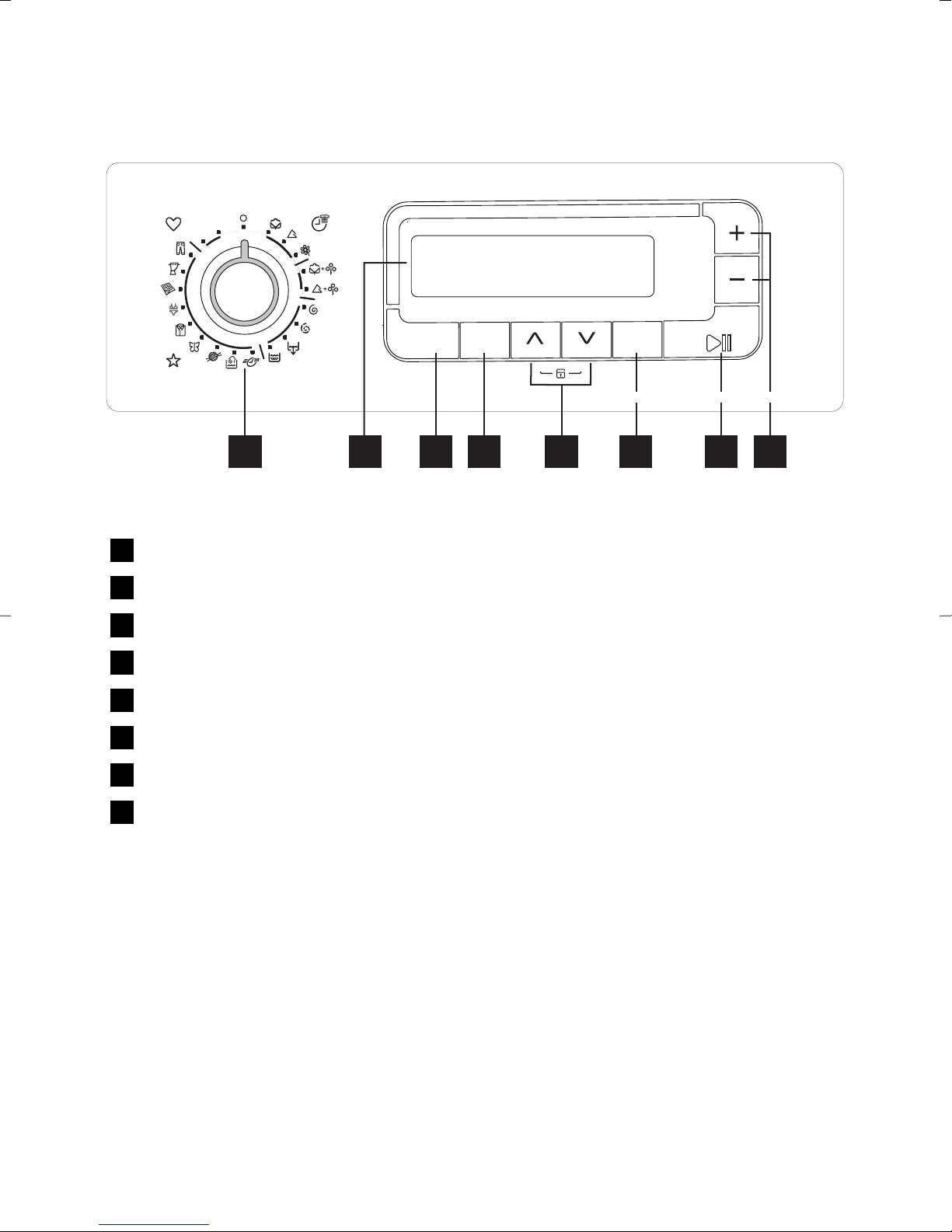

Programme selector dial
Display
Temperature button
Spin reduction button
Options buttons
Confirm button
Start/Pause button
Time manger buttons
8
7
6
5
4
3
2
1
1 4 5 73 6 82
Start/
Pause
Time
Manager
Temp. Spin OK
Option
EWN 14991 W
8Kg irect Spray
Favourite
2
1
Special
Time
Manager
132972250 EN.qxd 16/01/2008 10.53 Pagina 8

use electrolux 9
Use
First Use
●Ensure that the electrical and water
connections comply with the
installation instructions.
●Remove the polystryrene block and
any material from the drum.
●Run a cotton cycle at 95°C, without
any laundry in the machine, to
remove any manufacturing residue
from the drum and tub.
Setting the language
When switching on the appliance for the
first time, by turning the programme
selector dial, you must set the language in
which you want the indicators in the
display to appear. When the appliance is
switched on again all indicators in the
display will appear in this language.
Important!
If the display is not showing any language,
the appliance has already been switched
on once. In such case, if you would
change the language setting, press at the
same time Tem p . and Spin buttons for 6
seconds to activate the menu language.
By pressing the Option buttons
you can scroll all the available languages.
Press the Ok button twice to confirm your
choice.
Setting the time
After having chosen the language you
must set the time prior to the first wash
and when changing to and from daylight
savings time.
The clock setting permits you to
modify/set up the current time. It is
important to keep it updated as the
current END Cycle Time depends on it.
With a short/single time pressure of the
Option buttons, the time varies
minute by minute. With a continue
pressure of the same buttons, the time
varies 10 minutes by 10 minutes.
Press the Ok button to fix the current time.
Daily Use
Customize your appliance
This appliance is provided of a «settings»
menu that allows you to modify the
factory settings as you want.
When you switch on the machine, by
turning the programme selector dial,
press the Option buttons to
activate the Options menu. By pressing
again the same buttons you can move
through all the available options till when
you locate the Settings menu. Press
Ok to access in the menu. Use again
Option buttons to scroll all the
settings and press Ok button to confirm
your choice.
Setting the sound volume
The sound setting permits you to modify
the volume of the sound emitter. By
pressing the Option buttons,
you can choose between different
volume levels from 0to 9(0 = no sound;
9 = max.).
Press Ok button to confirm your choice.
Setting the brightness
The Brightness setting allows you to
modify the backlight intensity of the
display.
By pressing the Option buttons,
you can increase or decrease the
brightness.
132972250 EN.qxd 16/01/2008 10.53 Pagina 9

10 electrolux use
You can choose between different levels
from 0to 9(0 = min. - 9 = max.).
Press Ok button to confirm your choice.

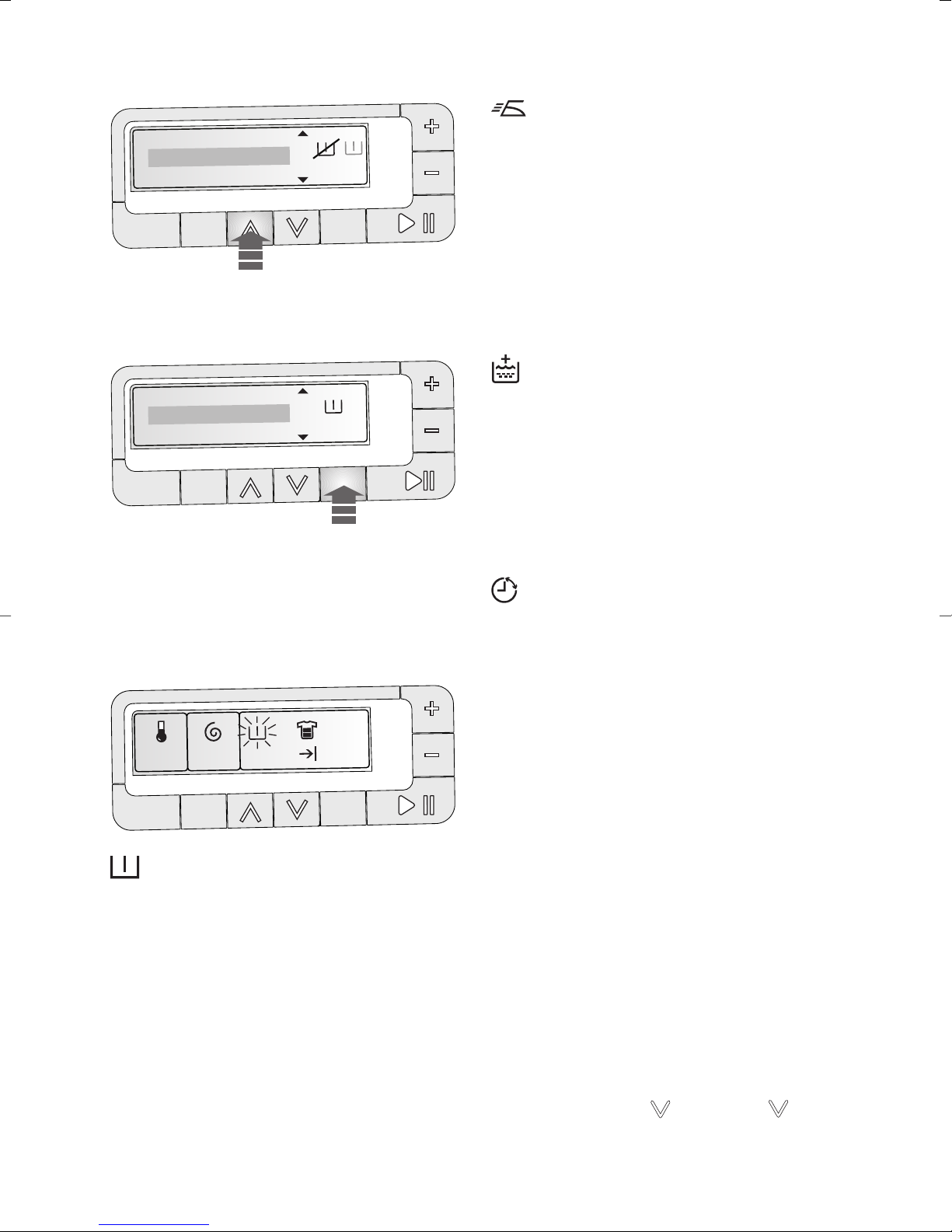

Setting the contrast
The Contrast setting allows you to
modify the optical characteristic of the
display.
By pressing the Option buttons,
you can increase or decrease the
contrast.
You can choose between different levels
from 0to 9(0 = min. - 9 = max.).
Press Ok button to confirm your choice.
Reset settings
The Reset Settings setting function
allows you to re-apply the factory
settings.
Press Ok button to activate this
function.
Press Ok button to confirm your choice.
Return to main menu
This setting function allows you to return
to the options menu.
Locate the Back option by
pressing the Option .
Press Ok button to confirm your choice.
Acoustic signals
The machine is provided of an acoustic
device, which sounds in the following
cases:
●when the appliance is switched on
●by pressing the Start/Pause button
●at the end of the cycle
●in the event of operating problems
If you want disable the acoustic
signals, except for the event of
operating problems, please refer to
the previous chapter «setting the
sound volume».
Child lock: your appliance is
provided of CHILD SAFETY LOCK,
which permits you to leave the
appliance not supervised with the door
closed without having the worry that
children might be injured by or cause
damage to the appliance.
Set this option before pressing the
Start/Pause and after having selected
the required programme wash.
This function remains enable also when
the washing machine is not working.
Setting Child lock option:
• press the Option buttons to
activate the options menu
• by pressing the Up or Down
locate the Child lock option
• press the Ok button to enable this
option. The corresponding icon
changes your status from Off to On
and the following message appears
on the display: «Press and
together for 5 seconds to unlock
machine.».
• by pressing Temp. or Spin button the
display returns the default status.
Press and together together
for 5 seconds to unlock machine.
Temp. Spin Option Ok
Time
manager
Start/
Pause
Chlid lock
End Time
Save Favourite
Off On
12
132972250 EN.qxd 16/01/2008 10.53 Pagina 10

use electrolux 11
If you press any key after the
programme has started with «child lock»
enabled, the display shows the
message «Machine is locked, use
key combination to unlock it.».
At the end of the programme it is
necessary to press simoultaneously
and buttons for 5 seconds
until the display will show the message
«Machine unlocked» to select a new
programme.

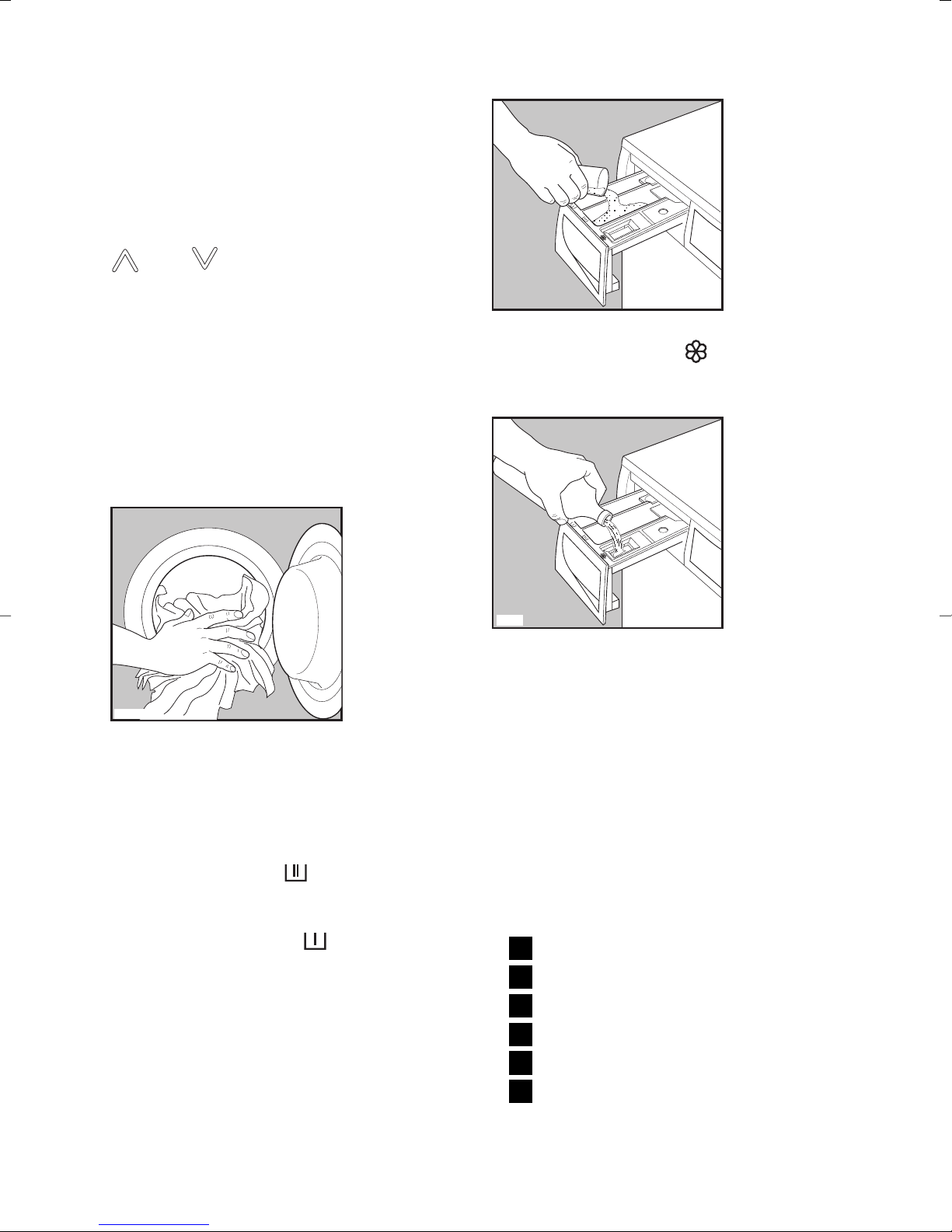

Load the laundry
Open the door by carefully pulling the
door handle outwards. Place the laundry
in the drum, one item at a time, shaking
them out as much as possible. Close
the door.
Measure out the detergent and the
fabric softener
Pull out the dispenser drawer until it
stops. Measure out the amount of
detergent required, pour it into the main
wash compartment and, if you wish
to carry out a programme with the
«prewash», pour it into the
compartment marked .
P0004N
If required, pour fabric softener into the
compartment marked (the amount
used must not exceed the “MAX” mark
in the drawer). Close the drawer gently.
Select the required programme
Turn the programme selector dial to the
required programme. When the
appliance is switched on, a frielndly
jingle can be heard, at the same time
the Electrolux logo appears on the
display and, for few seconds, a short
description of the selected programme
is shown in last 2 rows of the display.
After having selected the programme,
the appliance will propose on the
display the following information:
temperature
spin speed
selected option icons
soil degree (*)
washing programme duration
end of washing cycle
6
5
4
3
2
1
C0065
C0064
132972250 EN.qxd 16/01/2008 10.53 Pagina 11

12 electrolux use
(*) Only with Cottons ,Synthetics
and Delicates programmes.
The Start/Pause button light will start
flashing.
The selector dial is divided into following
sections:
●Cottons , Synthetics , Delicates
.
●Economy programmes : Cottons
, Synthetics .
●Spin , Delicate spin , Drain ,
Rinses .
●Special : Mini 30’ ,,Handwash
, Wool , Silk , Shirts ,
Lingerie , Blanket , Curtains
and Jeans .
●Favourite programmes : 1, 2.
The selector dial can be turned either
clockwise or anticlockwise. Position Oto
Reset programme/ Switching OFF of the
machine.
Favourite
2
1
Special
Time
Manager
1400
60
2:00
20:33
1 2 3 4
5
6
At the end of the programme the
selector dial must be turned to
position O, to switch the machine off.
Attention!
If you turn the programme selector dial
to another programme when the
machine is working, on the display will
appear the following message: «Please
turn programme selector in the last
used position.».
The machine will not perform the new
selected programme.
Display
Note!
The DISPLAY is used for setting a large
number of functions and combine them
with each other using only a few control
elements (1 programme selector dial
and 8 buttons). This simple control
method is made easy thanks to the
interactive display. Interactive means
that the washing machine display
changes to reflect each step you have
entered. This ensures that only those
settings that make sense are made. You
are able to see the current settings at
any time in the information panel and in
the option row.
The display shows the following
information:
Duration of the selected programme
After selecting a programme, the
duration of the washing programme (A)
and the extimated end of cycle (B) are
displayed in hours and minutes (for
example 2.05).
132972250 EN.qxd 16/01/2008 10.53 Pagina 12

use electrolux 13
The duration is calculated automatically
on the basis of the maximum
recommended load for each type of
fabric.
After the programme has started, the
time remaining is updated every minute.
Programme progress display
After you have pressed the Start/Pause
button, the display of the the machine
shows which phase of the programme
wash is performing.
On the display you can see the symbol
of the selected type of fabric, the
current phase, the duration of the wash
programme and the end of cycle.
When the machine performs the
washing phase the display shows also
some animated bubbles that simulate
the moving of the water.
1:37
20:33
Washing
Temp. Spin Option Ok
Time
manager
Start/
Pause
2:00
20:33
Filling
Start/
Pause
Temp. Spin Option Ok
Time
manager
1400
60
02:00
20:33
A
B
Start/
Pause
Temp. Spin Option Ok
Time
manager
Delay

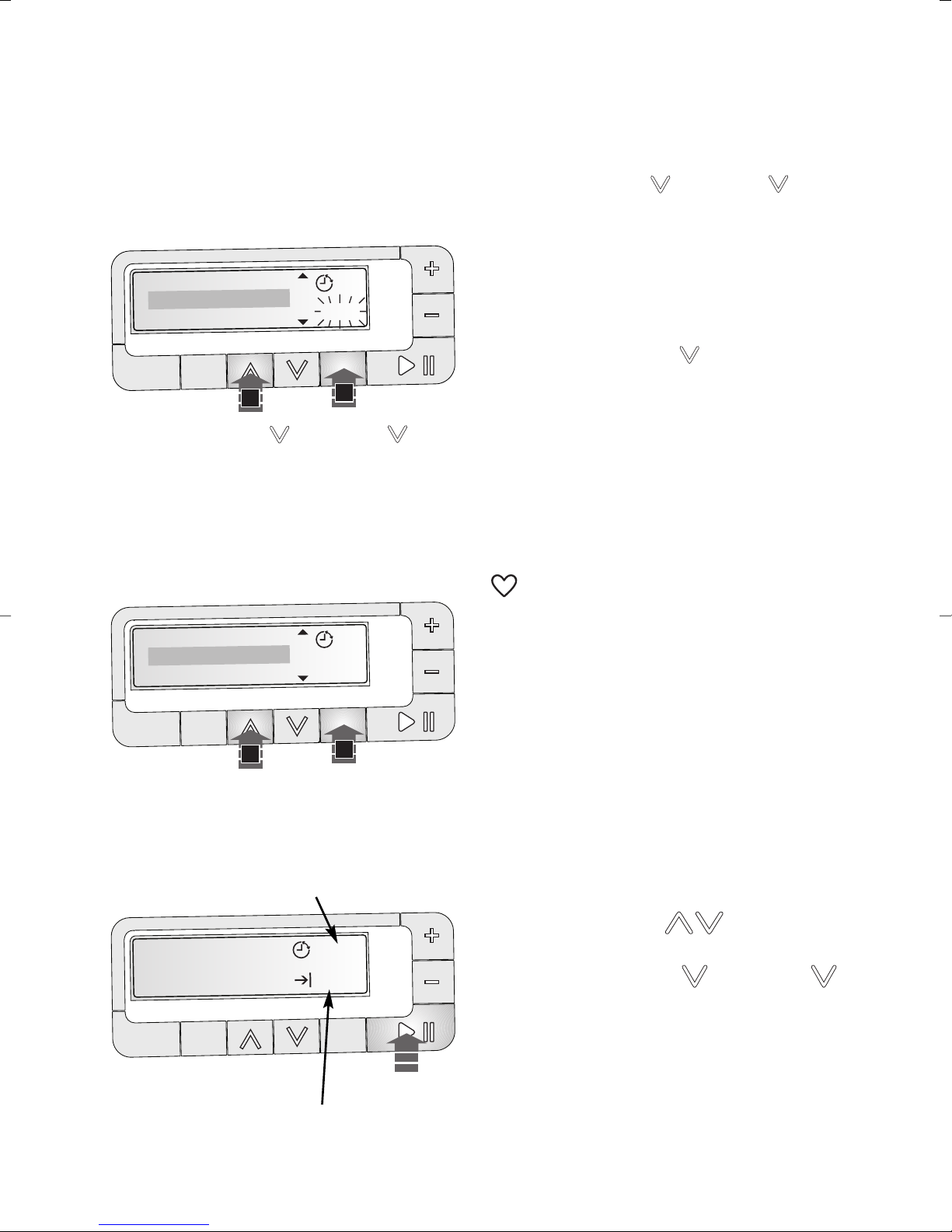

The selected delay time value (up to 20
hours max.) appears on the right side of
the display close to the relevant icon
that it is lighted-on.
The delay time value decreases every
minute.
Alarm codes
In the event of operating problems,
some alarm codes can be displayed, for
example «Cannot fill water. Please
check that the tap is open and then
press » (please see paragraph
“Something not working”).
Delay Start 23:00
1:29
Temp. Spin Option Ok
Time
manager
Start/
Pause
0:20
20:33
Spinning
Temp. Spin Option Ok
Time
manager
Start/
Pause
0:40
20:33
Draining
Temp. Spin Option Ok
Time
manager
Start/
Pause
0:59
20:33
Rinsing
Temp. Spin Option Ok
Time
manager
Start/
Pause
132972250 EN.qxd 16/01/2008 10.53 Pagina 13

14 electrolux use
End of programme
When the programme has finished the
messages «Door Unlocked» and
«Finished» appear alternatively.
The door icon remains lighted-on to
inform that the wash cycle has finished
and the door can be opened.
If your laundry is not removed during 10
minutes after the programme is finished,
the backlight of the display switches off
and the energy saving system will be
enabled.
Only the Start/Pause button pilot light
is flashing to indicate that the appliance
has to be switched off.
By pressing any buttons the appliance
will come out from the energy saving
status and you could set another
washing programme or swich off the
appliance.
Programme Option buttons
Depending on the programme, different
functions can be combined. These must
be selected after choosing the desired
programme and before depressing the
Start/Pause button.
20:33
20:33
Door Unlocked
Finished
Temp. Spin Option Ok
Time
manager
Start/
Pause
Cannot fill water. Please check
that the tap is open and then
press
Temp. Spin Option Ok
Time
manager
Start/
Pause

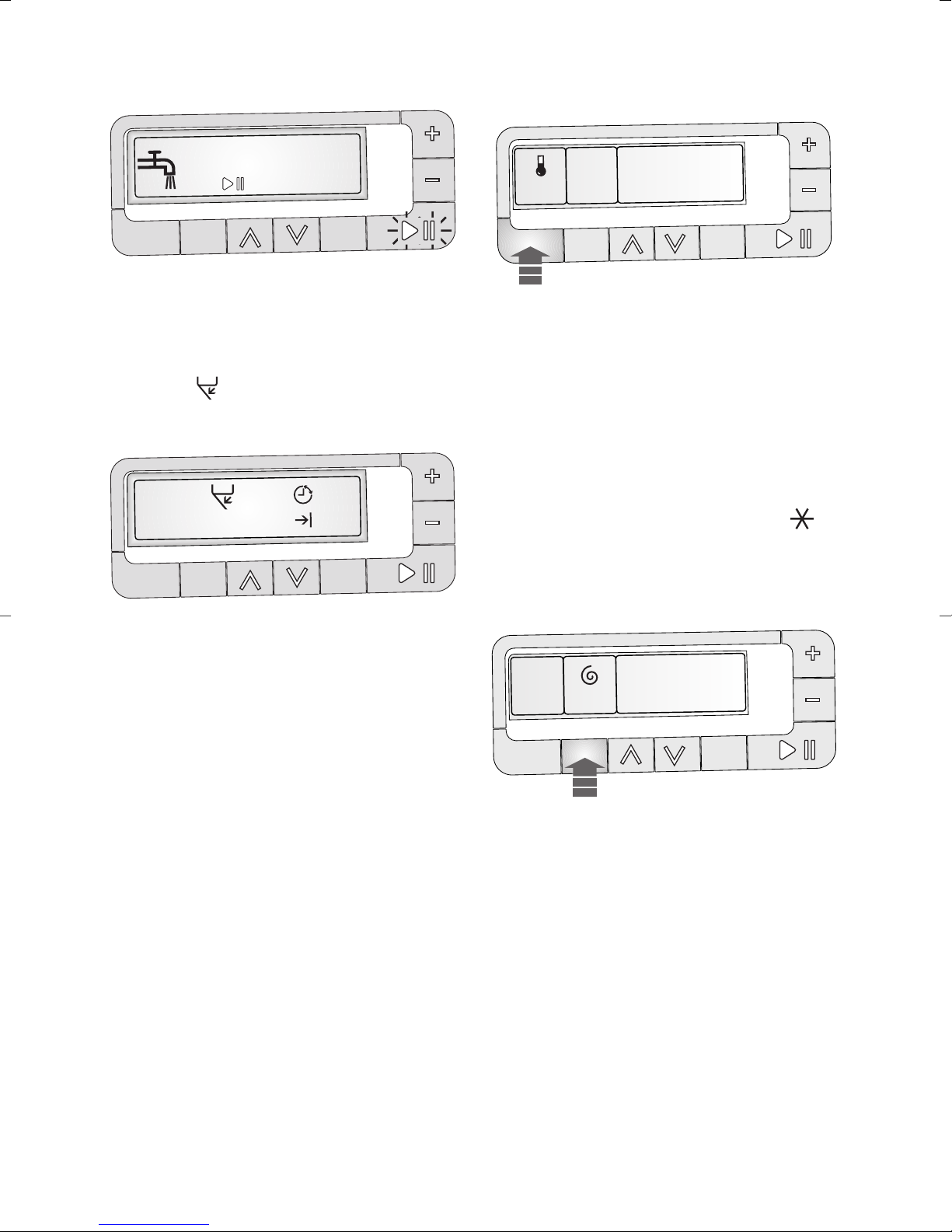

Select the temperature
Press this button repeatedly to increase or
decrease the temperature, if you want
your laundry to be washed at a
temperature different from the one
proposed by the washing machine.
Maximum temperatures are 95°C for
white cottons, 60°C for coloured
cottons and synthetics, 40°C for
delicates, wool and fabrics to be
handwashed, 30°C for silk, while
corresponds to cold wash.
Select the spin speed or No spin or
Night Cycle or Rinse Hold option
Press the Spin button repeatedly to
change the spin speed, if you want your
laundry to be spun at a speed different
from the one proposed by the washing
machine.
Maximum speeds are:
●for Cotton: 1400 rpm;
●for Jeans: 1200 rpm;
●for Wool and Handwash: 1000 rpm
●for Synthetics, Shirts and Lingerie: 900
rpm;
●for Delicate fabrics, Mini 30’, Silk,
Blanket and Curtains: 700 rpm.
1200
Temp. Spin Option Ok
Time
manager
Start
Pause
60
Temp. Spin Option Ok
Time
manager
Start/
Pause
132972250 EN.qxd 16/01/2008 10.53 Pagina 14

use electrolux 15

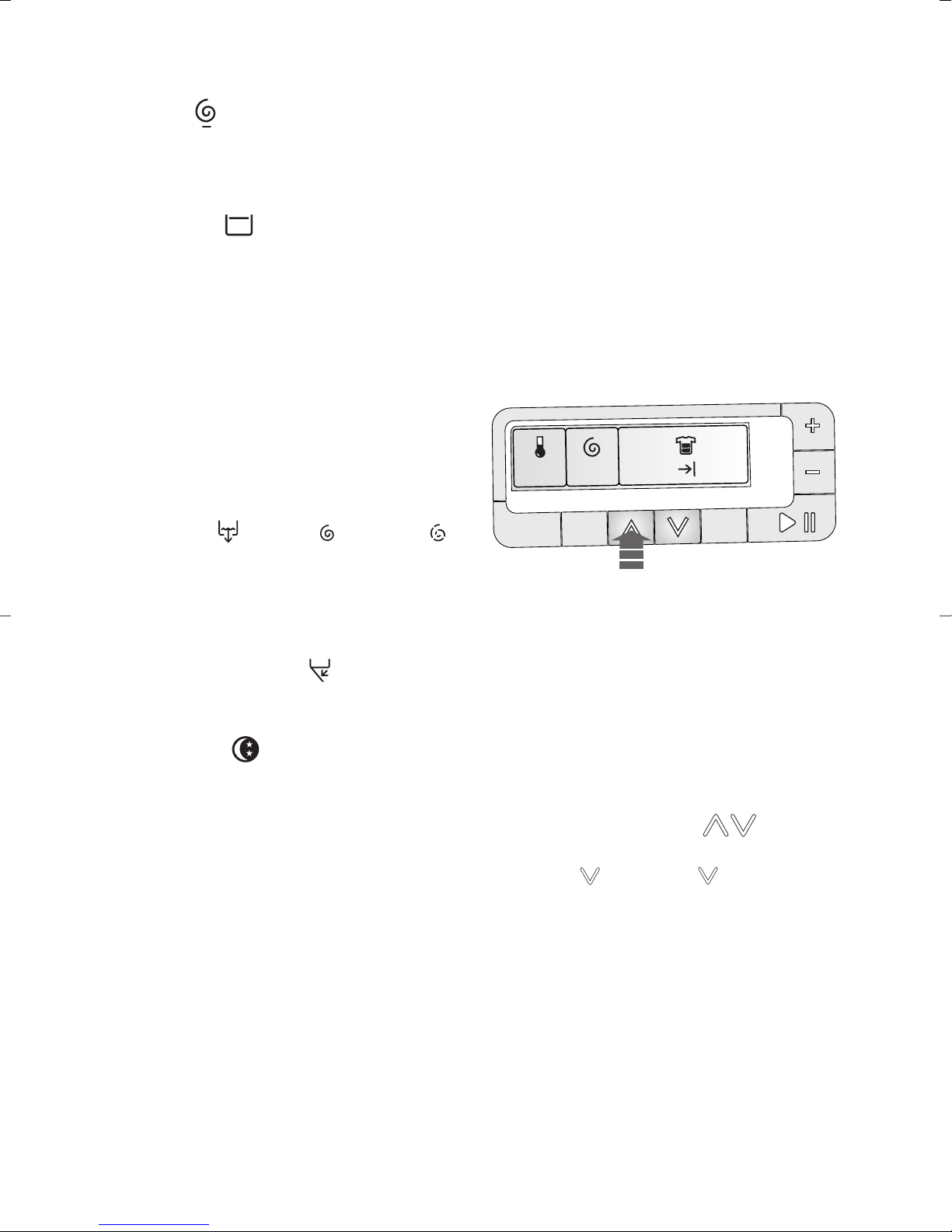

No spin option eliminates all the
spin phases and increases the number
of rinses for cottons, synthetics, deli-
cates and silk.
Rinse Hold : by selecting this
option the water of the last rinse is not
emptied out to prevent the fabrics from
creasing. When the programme has
finished the display shows the icon of
the selected programme and the
message «Finished», while on the right
of the display the end cycle and the
current time appear. The buzzer sounds
a short jingle, the Start/Pausa light is
off and the door is locked to indicate
that the water must be emptied out.
To empty out the water:
●select the (Drain), (Spin) or
(Delicate spin) programme
●reduce the spin speed if needed, by
means of the relevant button
●depress Start/Pause button
●at the end of the programme, on the
display is shown the (Door) icon
and the «Door Unlocked» message.
The door can be opened.
Night Cycle : by selecting this
option, the machine will not drain the
water of the last rinse, so as not to
wrinkle the laundry.
As all spinning phases are suppressed,
this washing cycle is very noiseless and
it can be selectionned at night or in
times with a more economical power
rate. On cotton, synthetics, delicates
and silk programmes the rinses will be
performed with more water.
When the programme has finished the
display shows the icon of the selected
programme, below the icon of the
selected programme and the message
«Finished», while on the right of the
display the end cycle and the current
time appear. The Start/Pause light is
off and the door is locked to indicate
that the water must be emptied out.
To empty out the water, please
read the previous option steps.
Select the options
Depending on the selected programme
only certain options are available and
shown during the selection phase.
Note: Not all the options are compatible
between themselves. The uncompatible
option icons will disappear.
The required options must be selected
after having choosen the desired
programme and before depressing the
Start/Pause button.
By pressing the Option buttons,
you can activate the options menu.
Using Up or Down button you
can move through all the available
options.
The display will show, using all the
visible area, the selected option in
highlighted mode. The corresponding
icon will appear on the right side of the
display and just below it, a short
message describes the status of the
option (Off or On).
1400
60
2:00
20:33
Temp. Spin Option Ok
Time
manager
Start/
Pause
132972250 EN.qxd 16/01/2008 10.53 Pagina 15

16 electrolux use
Press the Ok button to activate and
confirm your choice, press it again to
deactivate the selected option.
Once you have completed the selection
of the options, press Temp.or Spin
buttons or simply wait 10 seconds to
return the display in the default status.
The selected icons will be shown on the
display.
Prewash: select this option if you
wish your laundry to be prewashed before
the main wash (not available for Mini
30’,Wool, Handwash, Silk, Shirts, Lingerie
and Blanket).
The Prewash ends with a short spin at
650 rpm in programmes for cotton and
synthetic fabrics, whereas in the program
for delicate fabrics the water
is only drained.
1400
60
2:00
20:33
Temp. Spin Option Ok
Time
manager
Start/
Pause
Back
Extra Rinse
On
Prewash
Temp. Ok
Time
manager
Spin Option
Start/
Pause
Prewash
Extra Rinse
Off On
Back
Temp. Spin Option Ok
Time
manager
Start/
Pause
Easy iron: selecting this option
the laundry is gently washed and spun
to avoid any creasing. In this way
ironing is easier. Furthermore the
machine will perform some additional
rinses for cottons and synthetics. This
function can be used only for cotton
and synthetic fabrics. If this option is
selected for cotton programmes, the
spin speed automaticaly will reduce to
900 rpm.
Extra rinse: this option can be
selected with all programmes except
the Mini 30’, Wool, Handwash, Silk,
Shirts, Lingerie and Blanket
programmes. The machine performs
some additional rinses.
This option is recommended for people
who are allergic to detergents, and in
areas where the water is very soft.
Delay start: this option makes it
possible to delay the starting of the
washing program by 30 min - 60 min -
90 min, 2 hours and then by 1 hour till
20 hours. The delay you have selected
is indicated on the display. The end time
will increase in order to show you the
selected delay.
You must select this option after you
have set the programme and before you
press the Start/Pause button.
If you wish to add laundry in the
machine during the delay time you will
press Start/Pause button to put the
machine in pause.
Add the laundry, close the door and
press Start/Pause button again.
You can cancel the delay time at any
moment, before you press the
Start/Pause button.
Selecting the delayed start.
• By pressing Up or Down
132972250 EN.qxd 16/01/2008 10.53 Pagina 16

use electrolux 17
button you can move through the
options menu till you locate «End
Time».
• Press Ok button to activate this
option (the visualized time starts to
flash).
• By pressing Up or Down
button you can increase or decrease
the delay time.
• Press Ok button to confirm your
delay.
• Press Temp. or Spin button to return
the display to the default status.
• Press the Start/Pause button to start
the programme. The programme will
start after the selected delay has
expired.
Programme End Time
Delay Start 23:00
1:29
Temp. Spin Option Ok
Time
manager
Start/
Pause
Delay selected
End time
Settings
Child lock
12
23:00
Temp. Spin Option Ok
Time
manager
Start/
Pause
End Time
Settings
Child lock
12
21:30
Temp. Spin Option Ok
Time
manager
Start/
Pause
Cancelling the delayed start
• Depress Start/Pausa button to
pause the appliance.
• By pressing Up or Down
button you can move through the
options menu till you locate «End
time».
• Press Ok button to activate this
option (the visualized time starts to
flash).
• By pressing Down button you can
decrease the «End time» to the
current time.
• Press Ok button to confirm your
choice.
• Press Temp. or Spin button to return
the display to the default status.
• Depress Start/Pausa button to start
immediately the programme.
Favourite: Programme settings
that are frequently used can be saved
(e.g. cotton, 60°C, 1200 rpm, with
Prewash and Extra Rinse).
There are 3 memory spaces available
for this purpose in the last 3 position of
the programme selector dial. The
saved programme can be selected in
the same way as any other wash
programme by means of the selector
dial.
Saving Favourite programme:
• select the desired programme and
required options
• press the Option buttons to
activate the options menu
• by pressing the Up or Down
locate the «Save Favourite» option
and depress OK button
132972250 EN.qxd 16/01/2008 10.54 Pagina 17

18 electrolux use
• by pressing or select the
number of Favourite (1-2) in which
you wish memorize your customized
programme.
• press the Ok button to save the
selected programme. On the display
appears the message «Saved» in
highlighted mode.
• by pressing Temp. or Spin button the
display returns the default status.
To change the memorized programme
setting repeat the procedure from the
beginning.
Note
If the memory space is already used by
a programme previously selected, the
display will show ther message
«Favourite already used. Press OK
to overwrite it. Press and
to cancel.». Depress then OK button
to memorize the new programme.
The Favourites programme cannot be
erased, but you can only overwrite
them with another preferred washing
programmes (see Note).
Favourite 2
Favourite 1
Temp. Spin Option Ok
Time
manager
Start/
Pause
Save Favourite
Child lock
Back
Temp. Spin Option Ok
Time
manager
Start/
Pause
Wash Guide: this appliance is
provided of a wash guide menu that
you allow to select the most suitable
temperature, spin speed and options
to wash your laundry.
In the Wash Guide menu you can also
locate a Stain Guide, that contains
important informations on how to
remove the most rappresentative
stains, and a Demo Mode ideal for
shop floor demonstrations (not suitable
for the customer).
Selecting the Wash Guide:
• press the Option buttons to
activate the options menu
• by pressing the Up or Down
button you can locate the Wash
Guide option
• press the Ok button to enter into the
Wash Guide menu
• by pressing the Up or Down
button you can move through the
following list: Temperature Guide, Spin
Speed Guide, Option Guide, Stain
Guide and Demo Mode
• press the Ok button to enter into the
selected help Guide and by pressing
the Up or Down you can
read all the explanations of the
selected one.
Wash Guide
Easy Iron
Settings
12
Temp. Spin Option Ok
Time
manager
Start/
Pause
132972250 EN.qxd 16/01/2008 10.54 Pagina 18

use electrolux 19
• to consult the informations of another
Guide you must return to the Wash
Guide menu selecting the «Back»
symbol and repeat the
procedure starting from the 4th point.
• by pressing Temp. or Spin button the
display returns to the default status.
Select the “Time manager” option
1400
60
02:00
20:33
Temp. Spin Option Ok
Time
manager
Start/
Pause
Back
Temp. Spin Option Ok
Time
manager
Start/
Pause
0
White/coloured cottons and synthetics
Temp. Spin Option Ok
Time
manager
Start/
Pause
Temperature Guide
B
ack
Spin Speed Guide
12
Temp. Spin Option Ok
Time
manager
Start/
Pause
This function allows you to modify the
washing time, automatically proposed by
the washing machine. By pressing the
«Time manager buttons «+/-»
repeatedly, the duration of the washing
cycle can be increased or decreased.
The Time manager option cannot be
selected with Economy programme.
The soil level icon visualized on the
display will change to indicate which
type of soil degree you have chosen.
(*) Max. load for cotton: 4 kg.
Max. load for synthetic and
delicate: 2 kg.
Note
Once the programme has started the
Time manager option cannot be
changed.
The availability of these soil level icons
change according to the type of fabric
as shown in the chart.
Soil
Level Icon Type of fabric
Intensive For heavy soiled items
Normal For normal soiled items
Daily For daily soiled items
Light For slightly soiled items
Quick For very slightly soiled items
Super
Quick (*)
For items used or worn for a
short time
132972250 EN.qxd 16/01/2008 10.54 Pagina 19

20 electrolux use
Select the Start/Pause
To start the selected programme, press
the Start/Pause button; the green
pilot light stops flashing.
On the display will appear the icon,
and alternatively the name and the
running phase of the selected
programme to indicate that the
appliance starts operating and the door
is locked.
02:00
20:33
Filling
Temp. Spin Option Ok
Time
manager
Start/
Pause
To interrupt a programme which is
running, depress the Start/Pause
button: the green pilot light starts to
flash and the icon and the current
phase of the selected programme
appears on the display to indicate that
the appliance is paused.
To restart the programme from the
point at which it was interrupted,
press the Start/Pause button again.
If you have chosen a delayed start, the
machine will begin the countdown.
Altering an option or a running
programme
It is possible to change only the
options vizualised on the display by
means of and buttons before
the programme carries them out.
Before you make any change, you
must pause the washing machine by
pressing the Start/Pause button.
Changing a running programme is
possible only by resetting it. Turn the
programme selector dial to “O” and
then to the new programme position,
press the Ok button to cancel the
previous washing programme. The
washing water in the tub will not
emptied out. Start the new programme
by depressing the Start/Pause button
again.
Interrupting a programme
Depress the Start/Pause button to
interrupt a programme which is
running, the corresponding light starts
to flash. Depress the button again to
restart the programme.
Fabric Soil Level
Cottons
95°C XXXXXX
60/50°C XXXXXX
40°C XXXXXX
30°C XXXXXX
(cold)
XXXXXX
Synthetics
Delicates
60/50°C X X X X
40°C
X X X X
40°C X X X X
30°C X X X X
30°C X X X X
(cold)
X X X X
(cold)
X X X X
132972250 EN.qxd 16/01/2008 10.54 Pagina 20
