Element4 CLUB-E Series User manual

INSTALLATION MANUALINSTALLATION MANUAL
CLUB-E SERIES

INSTALLATION MANUAL
2

INSTALLATION MANUAL
3
CONTENTS
1 CE STATEMENT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
2 WARANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
3 ELECTRICAL SAFETY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
4 IMPORTANT SAFETY INFORMATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
4�1 CHILD SAFETY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
4�2 GENERAL WARNINGS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
5 CONNECTION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
5�1 ELECTRICAL � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
5�2 MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
6 INSTALLATION REQUIREMENTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
6�1 HEATER UNIT CUT OUT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
6�2 SERVICING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
7 INSTALLATION METHOD � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
7�1 PRODUCT SIZE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
8 THE ONE-BOX SYSTEM � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
8�1 CONVERSION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
8�1�1 STEP 1: REMOVAL OF THE FRONT GLASS (ITEM 2) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
8�1�2 STEP 2: REMOVAL OF THE SIDE GLASS (ITEM 1) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
8�1�3 STEP 3: REMOVAL OF PLASTER KIT (ITEM 3) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
8�1�4 STEP 4: FITTING IN THE IN-FILL SIDES (ITEM 13 AND ITEM 14) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
8�2 PART LIST � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
9 REMOVING THE GLASS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
10 PLACING THE LOGS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
11 E-SMART CLOUD APP INTERFACE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �12
12 PAIRING THE REMOTE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �13
13 USING THE REMOTE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �14
A TROUBLESHOOTER � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �15
B MODEL DIMENSIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �17

4
Chapter 1
INSTALLATION MANUAL | Chapter 1
1 CE STATEMENT
This guide is designed to aid in the installation and continued
performance of this product. This product conforms with all health,
safety, and environmental protection standards as indicated by a CE
mark. For optimum performance this product requires a well insulated
location or occasional use.
We hereby declare that the design and construction of the Element4
electric appliances are complying to the essential demands and
regulations for electric products.
Models:
• Club 50e
• Front
• Corner
• Threesided
• Club 80He
• Front
• Corner
• Threesided
• Club 100e
• Front
• Corner
• Threesided
• Club 125e
• Front
• Corner
• Threesided
All Element4 Electric res meet the requirements of the EC Directives.
These directives have been met by compliance with the following
standard
• EN 55014-1:2006 + A2:2011
• EN 55014-2:2015
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• EN 60335-1:2012 + A1:2014
• EN60335-2-30:2009+A11:2012
This declaration loses its validity when changes to the device are made
without the written permission by Element4. You can ask for a copy of
the test certicates of all models via our general e-mail adress, which is
found on the back of this manual.
J. Kempers
CEO
2 WARANTY
Should this device show defects within 24 months of purchase due to
shortcomings in construction, material or workmanship, the product will
be repaired free of charge under the following conditions:
It is the responsibility of the buyer to prove that the device is covered
by the warranty, e.g. with a proof of purchase.
Any guarantee will lapse if
• unauthorized repairs or modications have been made to the
electric replace
• in the event of an accident, misuse or damage caused by an
incorrect installation
• damage occurred during transport to or from the
• repairer, and changed or missing serial numbers.
Parts replaced under this warranty will become our property.
The company is not liable for consequential damage or any other
damage arising from or related to this electric replace.
This warranty does not apply to heating elements, lamps or fuses.
Service visits where no errors are found and installation errors are not
covered by the manufacturer’s warranty.
In this case, the maintenance technician employed by us will charge
you for the service visit.
This guarantee is an addition to and does not aect the legal rights of
the buyer as a consumer.
Replacement plug
Caution: when removing the molded plug and connection to a fused
tap through a unqualied person, the guarantee will lapse.
• Club 150e
• Front
• Corner
• Threesided
• Club 180e
• Front
• Corner
• Threesided
• Club 240e
• Front
• Corner
• Threesided

5
Chapter 3
INSTALLATION MANUAL |
3 ELECTRICAL SAFETY
When using electrical appliances, basic precautions should always be
followed to reduce the risk of re, electric shock, and injury to persons,
including the following:
1. Read all instructions before using this electric replace.
2. This replace is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. The trim around the heater outlet
becomes hot during heater operation.
DANGER: High temperatures may be generated under certain abnormal
conditions. Do not partially or fully cover or obstruct the front of this
heater.
3. Extreme caution is necessary when any heater is used by or near
children or people of reduced mobility and whenever the unit is
left operating and unattended.
4. Young children should be supervised to ensure that they do not
play with the appliance.
5. The appliance is not intended for use by young children or
inrmed persons without supervision.
6. In the event of a malfunction, disconnect power at the service
panel and have the unit inspected by a reputable electrician
before reusing.
7. If the supply cord is damaged, it must be replaced by the
manufacturer, or its service agent, or a qualied person in order
to avoid a hazard.
8. Do not use outdoors.
9. Never locate replace where it may fall into a bathtub or other
water container.
10. To disconnect the replace, turn the controls o, and turn o
power to heater circuit at main disconnect panel.
11. Do not run the cord under carpeting. Do not cover cord with
throw rugs, runners, or the like. Arrange cord away from trac
area and where it will not be tripped over.
12. Do not locate the heater immediately below a xed socket-
outlet.
13. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock, re or damage to the heater.
14. To prevent a possible re, do not block air intakes or
exhaust in any manner.
15. All electrical heaters have hot and arcing or sparking
parts inside. Do not use in areas where gasoline, paint, or
ammable liquids are used or stored.
16. Use this replace only as described in this manual. Any
other use not recommended by the manufacturer may
cause re, electric shock or injury to persons.
17. Do not change the plug in any way. Always plug heaters
directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power
strip).
18. Do not burn wood or other materials in the electric
replace.
19. Do not strike the replace glass.
20. Always use a certied electrician should new circuits or
outlets be required.
21. Always use properly grounded, fused and polarized
outlets.
22. Disconnect all power supply before performing any
cleaning, maintenance or relocation of the unit.
23. When transporting or storing the unit and cord, keep in a
dry place, free from excessive vibration and store so as to
avoid damage.
NOTE: Changes or modications not expressly approved by the
party responsible for compliance could void user’s authority to
operate the equipment.
This appliance is supplied with a two meter power lead, which
has a 13Amp moulded three pin plug to connect to a standard
230/240V plug socket.

6
Chapter 4
INSTALLATION MANUAL |
4 IMPORTANT SAFETY INFORMATION
Please read these instructions before installation or use and keep this
booklet handy for future reference.
4�1 CHILD SAFETY
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision
The instructions shall state that the heater must not be located
immediately below a socket outlet.
WARNING
• In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless
continuously supervised
Children under 8 years shall only switch on/o the appliance provided
that it has been placed or installed in its intended normal operating
position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Children under 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
CAUTION
Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable
people are present
CAUTION
In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and o by the utility
CAUTION
The LED light system shall be replaced by electrically competent
personnel only (LP – These cannot be user replaceable since they will
allow access to live parts)
4�2 GENERAL WARNINGS
• Never leave children unsupervised with an unguarded heater.
• Never obstruct or cover the heater outlet.
• Never install or use this product where it may come in contact
with water i.e. a bathroom or wet room.
• Never use aerosols or steam cleaners near this product.
• Never route the electric cable near the heater outlet.
• Never route the electric cable under carpets or oor coverings.
• Never install this product close to curtains or combustible
materials.
• Never use the heater to dry clothes or other objects.
• Never remove the replace surrounding without isolating the
electric supply.

7
Chapter 5
INSTALLATION MANUAL |
5 CONNECTION
5�1 ELECTRICAL
This appliance must only be connected to a 230/240 Volts AC 50Hz
supply. Before connecting the re, check that the supply voltage is the
same as stated on the re.
It is important that the outlet is located outside the installation
location so that the socket is easily accessible and the plug can be
disconnected from the stove after installation.
After the re is attached to the wall and connected to the socket, the
surround (the chimney) can be placed around it.
This appliance must only be used on a AC supply, fuse rating 13Amp.
The wires in the mains lead are coloured in accordance with a standard
UK supply, these being:
• GREEN/YELLOW – EARTH
• BLUE – NEUTRAL
• BROWN – LIVE
As the colours of the mains lead of this appliance may not match the
coloured markings used to identify the terminals in a plug, please
observe the following
• The green and yellow wire must be connected to the terminal in
the plug which is marked with the letter E or Earth symbol.
• The blue wire must be connected to the terminal in the plug which
is marked with the letter N.
• The brown wire must be connected to the terminal in the plug
marked with the letter L.
• Replace fuses only with fuses of the correct size and rating.
Figure.5.1 | Position of the On/Off switch
5�2 MAINTENANCE
Maintenance to this device may only be done by a qualied
professional. It is adviced to maintain your re at least once every 12
months.
WARNING:
Before repaires or maintenance check whether the re is unplugged.
Attention: This replce should not be used as a primary heater
CAUTION
In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and o by the utility.
The on/o switch to activate connection to your app is located at the
the front of the re, in the top trim, oset to the right hand side. Figure
5.1

8
Chapter 6
INSTALLATION MANUAL |
7 INSTALLATION METHOD
In all Element4 replaces, a free space of 100mm at least 50mm
must be maintained immediately above and below the main housing
for good air circulation. (Failure to do so may cause problems for the
heating and ame function).
Each Element4 replace is supplied with one or more wall mounting
brackets.
Determine the height at which the nished Element4 replace should
be positioned in relation to the oor level.
Note: The minimum distance to the oor is 300 mm
Attach the wall bracket to the wall, making sure that you use the correct
fasteners that match the respective wall - hollow or solid.
Hang the Element4 replace on the bracket and secure it in place with
the wall bracket at the top of the replace.
Insert the plug of the IEC-compliant power cable into the IEC-compliant
socket and ensure that it is rmly pushed.
Construct the hollow installation space for the electric re in the
desired dimensions. It is important that you take into account the
nished front when determining the depth of the frame construction.
It is important that a header/lintel is also placed at the desired height,
so that the weight of the wall made will not come to rest on the
appliance.
Make the cut in the plasterboard / nishing plate and install the
replace, making sure that the plaster board edges connect to the
inside of the cut in the plate.
Warning: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and o by the utility.
7�1 PRODUCT SIZE
Theproduct dimensions can be found in APPENDIX BAPPENDIX B
It is also important to ensure that the product has a minimum clearance
around it of 15mm, this is to ensure that the product can circulate the
required airow to the heater unit.
The product should never be sealed into an opening with the use
of silicones or adhesives as this can alter the airow and hinder any
further servicing of the product.
Please refer to technical specication table for further information, with
reference to measurements.
6 INSTALLATION REQUIREMENTS
This product has been designed to be installed into a plaster board, or
existing masonry chimney breast.
Please seek advice from a professional, with reference to the structural
integrity of the installation site.
If the product is to be installed into a open chimney or ue, it is
important that the chimney/ue is blocked o to prevent any up/down
draughts and falling debris which could restrict and alter the airow to
the product.
It is also important to ensure that the product has a minimum internal
clearance directly above and below the product of 100mm, this is to
ensure that the product can circulate the required airow for the heater
unit.
The product should never be sealed into a opening with the use of
silicones or adhesives as this can also alter the airow and hinder any
further servicing of the product.
6�1 HEATER UNIT CUT OUT
This is a safety feature to safe guard against further damage to the
product.
If the airow is restricted the heater will automatically turn o. This can
occur due to incorrect installation or obstruction. To reset the heater
function;
• Isolate from main power supply
• Leave product to cool
• After suitable cooling down period, remove the obstruction if
obstructed and check installation
• After 10 minutes the thermo switch (cut-out) in the heater will
reset.
Please note: that both the eect fan and heater fan omit a low decibel
noise, both of which are normal operating characteristics.
6�2 SERVICING
Only a competent person should service this appliance. This appliance
must be serviced every 12 months.
Warning: Before carrying out any repairs or servicing, ensure that the
power supply cord is removed from the mains supply.

9
Chapter 8
INSTALLATION MANUAL |
8 THE ONE-BOX SYSTEM
Every Element4 electrical appliance is delivered to the customer
according to the so-called one-box system. This means that the
customer can choose from four congurations per replace type,
depending on which sides of the replace have glass or not. These
four models are respectively the front model, two corner models and a
three-sided model.
This chapter explains the various steps with which the customer can
put together the desired conguration. The replace is supplied as a
three-sided model as standard.
Please note: Check for the possible conversion of your replace rst
the contents of the box.
Om the next page see all the parts which are supplied in the box.
8�1 CONVERSION
8�1�1 STEP 1: REMOVAL OF THE FRONT GLASS (ITEM 2)
Remove the 2 o xings (item 7) that secure the front glass bottom
retainer (item 6) to the fuel bed (item 8).
8�1�2 STEP 2: REMOVAL OF THE SIDE GLASS (ITEM 1)
Remove the 2 o side glass top retainer brackets (item 9) by taking out
the 4 o xings (item 10). 2 o on each bracket.
Please note: If one wishes to install a corner model of the Electric the
steps need only be executed for the corner that is not supposed to
stay glass.
Carefully tilt the side glass inwards at the top and lift it away from unit.
8�1�3 STEP 3: REMOVAL OF PLASTER KIT (ITEM 3)
Remove the plaster kit xings (item 11) using a phillips screw driver
(not supplied)
Please note: Ensure to keep xings for future reference.
Remove the plaster kit (item 3) from both sides of the unit.
8�1�4 STEP 4: FITTING IN THE IN-FILL SIDES (ITEM 13 AND ITEM 14)
Remove the In-ll side xings (item 12)
Place the in-ll sides over the existing side pieces
Using the in-ll side xings (item 12) together with the plaster kit
xings (item 11) that were removed in the previous step secure the left
and right in-ll sides (item 13 and 14) to the unit.
Wall Brackets
Plaster board edges
Figure.8.1 | Wall brackets & plaster board locations

10
Chapter 8
INSTALLATION MANUAL |
19 1102 3
85 6 7714 13
Figure.8.2 | Parts of the one box system
11 12
Figure.8.3 | Side view part indications
ITEM DESCRIPTION Quantity
1 Side glass 2
2 Front glass 1
3Plaster kit (3 o left side, 3 o right side) 6
4 Main housing 1
5 Front glass bottom support 1
6 Front glass bottom retainer 1
7Front glass bottom retainer xings 2
8 Fuel bed 1
9 Side glass top retainer (internal) 2
10 Side glass top retainer (internal) xings 4
11 Plaster kit xings 16
12 In-ll side piece xings 16
13 In-ll right side 1
14 In-ll left side 1
8�2 PART LIST
Make sure the following parts are included in the box.

11
Chapter 9
INSTALLATION MANUAL |
9 REMOVING THE GLASS
• To remove the front glass rst remove the screws of the glas
retainer strip. See Figure 8.1.
After removing the screws remove the glas retainer bracket. See
Figure 8.2.
• After removing the glas retainer strip, place the suction cup on the
glas before removing the second glas retaining strip. See Figure
8.3.
• Carefully remove the front glas. See Figure 8.4. For the 150e, 180e
and 240e it is recomended to do this with two people.
Reminder: Do not remove the front glass without protection when
re has been on! The frame as well as other parts of the replace can
become hot!
Figure.9.1 | Remove bottom screws Figure.9.2 | Remove glas retainer strip
Figure.9.3 | Remove second glas retainer strip Figure.9.4 | Carefully remove the glas
10 PLACING THE LOGS
All replaces are supplied with a european log set. The style and size of
the set varies between models.
The logs can be arranged to personal preference and do not inuence
the ames or the proper functioning of the re.

12
Chapter 11
INSTALLATION MANUAL |

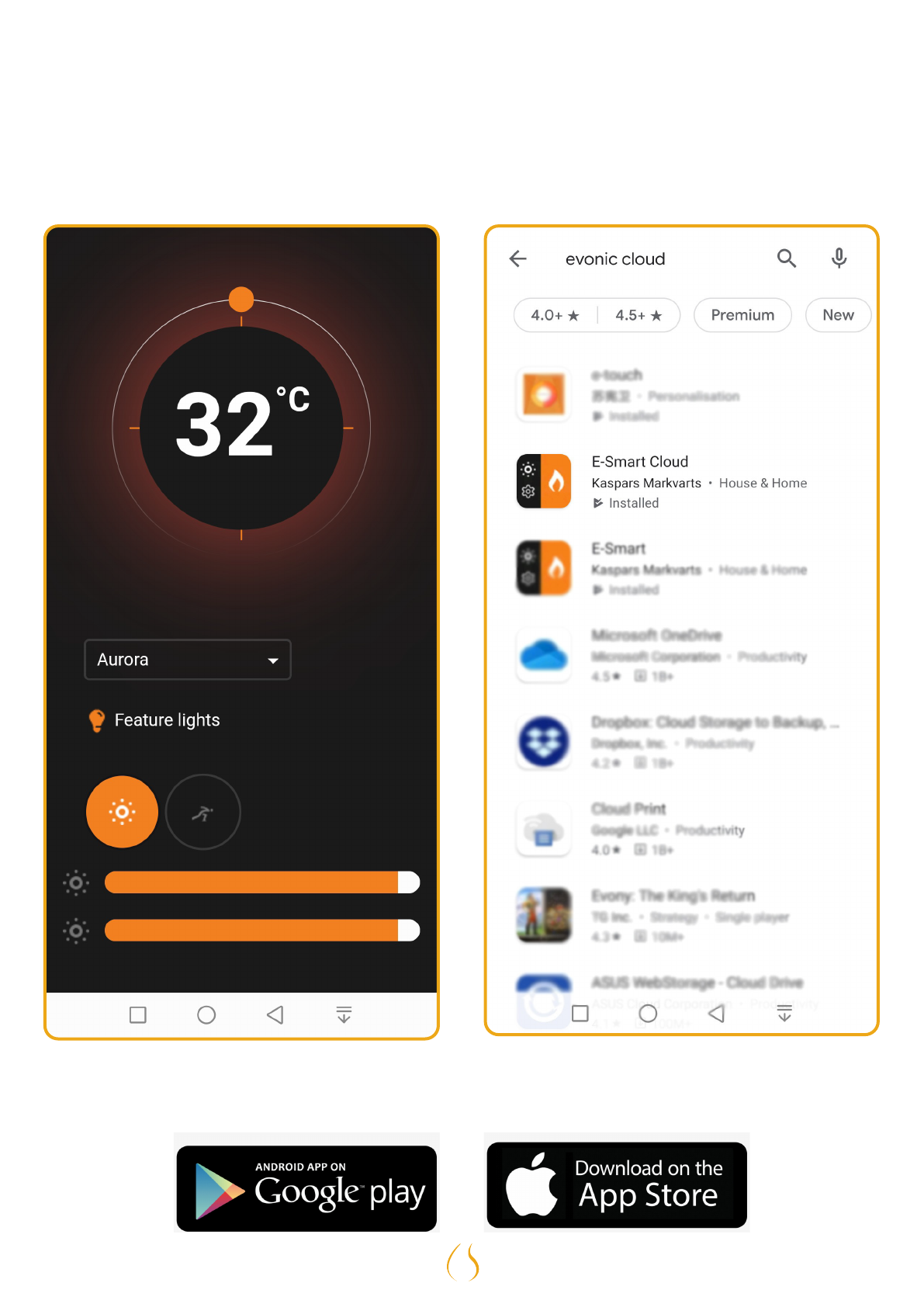

11 E-SMART CLOUD APP INTERFACE
The appliance is operated using the E-smart Cloud App.
The App Control can be used on either iOS or Android operating
systems.
To obtain the App please visit either the iOS App Store Or Google Play
and follow the on screen instructions.
Figure 11.1 | Home Screen from e-smart Cloud App Figure 1.A | Screen shot from app store
For instructions on how to connect the replace in the app see the
e-smart cloud app instruction manual that was rpovided with the
replace.

13
Chapter 12
INSTALLATION MANUAL |

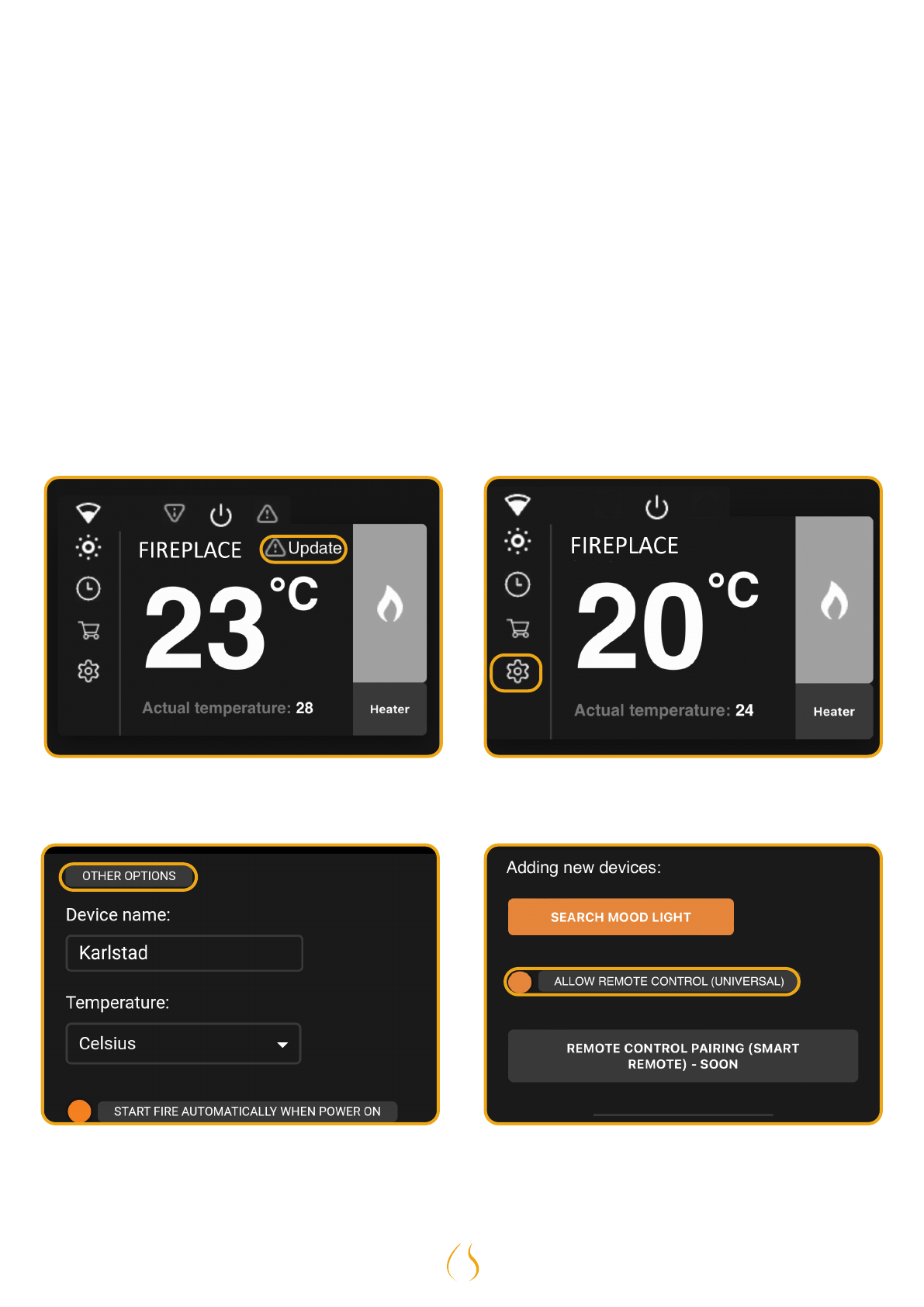

12 PAIRING THE REMOTE
In order to retro-t your remote, please ensure you follow these steps
before you attempt to use the remote control system.
• Make sure your replace is up-to-date. If you see a ' Update' icon
in the top right of the re press it. See Figure 12.1
• When the re nished updating selected the settings on the left
hand side. See Figure 12.2.
• In settings selected 'other options'. See Figure 12.3
• Scroll down to ‘allow remote control (universeel) ’ and make sure it
is selected. See Figure 12.4.
• Press 'save', You will then hear an audible beep to notify you of
the pairing.
• Turn your re OFF, then back ON with the switch on the replace.
Figure 12.1 | Make sure the fire is up to date Figure 12.2 | Press Settings
Figure 12.3 | Press ' Other options' Figure 12.4 | Select 'Allow Remote control' )

14
Chapter 12
INSTALLATION MANUAL |
13 USING THE REMOTE
Below you see the remote control and how to use it.
Top Left - Turn your re ON and OFF
Middle Left - Turn your heater ON
Bottom Left - Change the ame
animation
Top Right - Turn your feature lights ON and
OFF
Middle Right - Turn your heater OFF
Bottom Left - Adjust the brightness. The
brightness options are: 0%, 25%, 50% en
100%.
Attention: With the remote control the heater is pre-set to 28°. When the temperature inside the replace surpasses this the heater will not turn
on. If you would like to adjust the temperature, the app should be used.

15
Appendix A
INSTALLATION MANUAL |
A TROUBLESHOOTER
This troubleshooter describes possible problems that may occur with
your electric replace. Follow the owchart to see which problem
applies, what is causing it and how to solve it.
Problem Possible Cause Solution
(1) Flames not working correctly Ribbons are statically connected to glass. Spray some anti-static spray beneath the tray.
Installation airow restricted. Check the correct aperture has been adhered
to when installing
Recommended clearance is 100mm.
Blower clogged. Fan requires cleaning out.
Slow fan. Fan requires cleaning out. If problem persists,
replacement fan may be required.
(2) Heater blowing cold Possible installation gaps / Chimney not adequately
blocked o.
Chimney may not be fully blocked. Correct
aperture has not been adhered to—100mm
Fan clogged. Heater fan requires cleaning out
Faulty element. Replace element
Slow fan. Check fan placement. If problem persists
replacement fan may be required.
(3) Noisy Heater Fan unbalanced. Adjust fan to stop catching on the case. If
problem persists replacement fan unit maybe
required.
Fan catching on housing. Adjust fan to stop catching on the case
Fan clogged. Fan requires cleaning out. If problem persists a
replacement fan may be required.
Fan has come loose. Tighten fan cradle or screws holding fan onto
fan cradle.
(4) Noisy Flame Eect Fan unbalanced. Adjust fan to stop catching on the case. If
problem persists a replacement fan unit may
be required.
Fan catching on housing. Adjust fan to stop catching on the case.
Fan clogged. Fan requires cleaning out. If problem persists a
replacement fan may be required.
Fan has come loose. Tighten fan cradle or screws holding fan onto
fan cradle.
(5) Fire not turning on. Rocker switch has not been turned to the ‘ON’
position.
Double check switches are turned to the ‘ON’
position.
Remote/App not paired. Remote needs pairing. See separate pairing
instructions for guide.
Fuse blown. Replace fuse.
Unit not plugged in correctly. Check to be sure the power lead is plugged in
adequately.

16
Appendix A
INSTALLATION MANUAL |
Problem Possible Cause Solution
(6) No light Loose connection or disconnected wire. Check all connections on LED’s
LED shorting out Check location of short
Replace LED strip if necessary.
LED blown LED strip needs replacing.
Blown driver on PCB PCB needs replacing.
(7) Heater coming on randomly Timer has been accidentally set. Double check timer settings.
Thermostat faulty. Replace PCB.
(8) LED streaking LED dropped down. LED needs to be re-stuck into place.
Log positioning. Change log positioning to hide any direct
view of LED strip.
(9) Heater cutting out Build up of hot air triggering heater cut-out unit. Ensure the appliance has the required
aperture for air to circulate and prevent build-
up. Recommended 100mm

17
Appendix B
INSTALLATION MANUAL |
B MODEL DIMENSIONS
The model dimensions of your replace can be found in table and
gure below. For more detailed dimensions please refer to the
technical drawing of your specic model on the Element4 webiste.
MODEL HEIGHT (A) WIDTH (B)* DEPTH (C)*
Club 50e 609mm 494mm 301mm
Club 80He 790mm 805mm 301mm
Club 100e 568mm 1006mm 300mm
Club 125e 556mm 1254mm 301mm
Club 150e 556mm 1505mm 300mm
Club 180e 410mm 1750mm 305mm
Club 240e 631mm 2402mm 318mm
* Excl. the construction ange, to which the enclosure can be built.
For full measurements check the technical drawings.
B+30
B
C+15 A
C
Figure.B.A | Dimensions of the club-e series fireplaces

NOTES

NOTES

[email protected]
www.element4.nl
14/04/22
ELEMENT 4 B.V.
UITVOERDATUM |
