Elettrotest CPS/M 1000VA User manual
02/02/22 User Manual CPS/M 62000584_05 2
CPS/M Models covered in this manual:
Model
Code
CPS/M 1000VA
99112103
CPS/M 2500VA
99112153
CPS/M 5000VA
99110750
CPS/M 10000VA
99110755
This manual is written from CPS/M firmware version CPSX 010_.
Please check the latest manual version at www.elettrotestspa.it
To consult older manual versions, please contact our support at
02/02/22 User Manual CPS/M 62000584_05 3
Document list:
This manual is completed by a list of documents, useful to understand all the features of your
CPS/M.
Scan the QR-code or click on the link to directly download the documents.
Documents
Description
Link
QR-code
User Manual
Latest manual version
Manual
Brochure
Brochure for all the TPS-HPS-CPS models
Brochure
CPS Parameters
Describes all the machine modifiable
parameters and the start-up sequence.
CPS
Parameters
CPS protocol
Elettrotest
Describes how the Elettrotest remote
communication protocol works.
Elettrotest
Protocol
CPS protocol
SCPI
Describes how the SCPI remote
communication protocol works with your
CPS/M.
SCPI
Protocol
02/02/22 User Manual CPS/M 62000584_05 5
Elettrotest Spa
P,zza R.Riello 20/B
45021 Badia Polesine (RO)
Italy
+39 042553567
www.elettrotestspa.it
After sale support
service@elettrotestspa.it
Thank you for purchasing the CPS/M generator.
CPS/M is a high-performance variable voltage generator (amplitude and frequency) in order to
simulate and electrical line for test for different application (laboratory, test line, production line)
Responsability:
Elettrotest disclaims any responsibility for damage to people or things
caused by an improper use of its products.
Mandatory
-Verify voltage, power and frequency compatibility between CPS/M range and electrical
specification of equipment under test (EUT).
-Electrical components of the system must be suitable for the rated voltage and current of
CPS/M model (paragraph 1.2)
-The electrical components, which by construction cannot support external influences (of
the generator in all its range), can only be used on condition that adequate additional
protection has been provided with automatic disconnection protection.
Notes:
This manual lists precautions and information about operating procedure of device.
The content of this manual is subject to change without prior notice because of continuing
improvements on the instrument’s
Should you have any questions or find any error please contact us by email.
Copying or reproducing all or any part of the contents of this document is strictly
prohibited, without Elettrotest permission
Version:
This manual is written for CPS/M firmware version CPSX 010_ and higher.
To consult older manual versions, please contact our support at service@elettrotestspa.it
02/02/22 User Manual CPS/M 62000584_05 6
SAFETY WARNINGS
The manufacturer urges users to read the user manual for our products before installation.
The installation must be carried out by qualified technical staff. The non-observance of the
warnings in this manual can cause electric shocks, even fatal ones.
Please find some general safety warnings below.
•This equipment must be connected to the mains supply using the appropriate safety
devices.
•CPS/M must be connected to safety ground through the correct connections. The non-
observance or the degradation of this earth connection can lead to electric shocks, even
fatal ones. As regards the correct connection modes, please refer to the information
contained in paragraph 4.
•Disconnect CPS/M from the mains before any work on the equipment and on the
connected power loads.
•Before touching the load or the output connector make sure that the power supply on the
device has been disconnected for at least 5 minutes. This is the time necessary in order for
the capacitors inside the device to discharge. The non-observance of this discharge time
can lead to electric shocks, even fatal ones.
•Avoid heavy shocks to the equipment (especially during transport) or exposure to extreme
weather conditions.
•Any damage to the product due to transportation, incorrect installation or improper use is
not covered by the guarantee supplied by the manufacturer.
•Do not use the equipment in explosive environments or in the presence of dust, acids or
corrosive and/or inflammable gases.
•Tampering with or dismantling any component in the equipment will void the warranty
automatically.
•Do not operate or store under conditions where condensing may occur or where
conductive debris may enter in the case.
•Keep the ventilation holes on the front and rear free from obstruction.
•Do not make dielectric strengths test on the input or output of the equipment. Contact
Elettrotest if you need to do specific test
ELECTRIC RISK
There are dangerous voltages inside CPS/M and over the output connector.
The non-observance of the warnings suggest in this manual can lead to electric
shocks, even fatal ones.
OVERHEATING RISK
In the case of a ventilation system failure, the metal parts of the inverter may reach
high temperatures (in some cases higher than 70°C).
02/02/22 User Manual CPS/M 62000584_05 7
DISPOSAL
INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
In reference to European Union directive 2012/19/EU issued on 24 July 2012 and the related
national legislation, please note that:
•WEEE cannot be disposed of as municipal waste and such waste must be collected and
disposed of separately;
•the public or private waste collection systems defined by local legislation must be used. In
addition, the equipment can be returned to the manufacturer at the end of its working life
when buying new equipment;
•the equipment may contain hazardous substances: the improper use or incorrect disposal
of such may have negative effects on human health and on the environment;
•the symbol (crossed-out wheeled bin) shown on the product or on the packaging and on
the instruction sheet indicates that the equipment must be disposed of separately;
•in the event of illegal disposal of electrical and electronic waste, the penalties are specified
by local waste disposal legislation.
02/02/22 User Manual CPS/M 62000584_05 8
INDEX
1. INTRODUCTION..........................................................................................................................10
1.1 MAIN FEATURES ..................................................................................................................10
1.1.1 Output voltage .............................................................................................................10
1.1.2 Output frequency.........................................................................................................10
1.1.3 User interface...............................................................................................................11
1.2 MODELS...............................................................................................................................12
1.3 TECHNICAL SPECIFICATIONS ...............................................................................................13
1.3.1 Limitation current ........................................................................................................13
1.4 MECHANICAL DRAWINGS....................................................................................................14
1.4.1 CPS/M 1000 | CPS/M 2500 | CPS/M 5000...............................................................14
1.4.2 CPS/M 10KVA...............................................................................................................15
2. NOTES FOR USERS......................................................................................................................16
2.1 Switching ON .......................................................................................................................16
2.2 PARAMETERS PROGRAMMING MODE................................................................................16
2.3 VOLTAGE MENU ..................................................................................................................16
2.3.1 Setting Voltage.............................................................................................................17
2.3.2 RANGE SETTING ...........................................................................................................17
2.4 VOLTAGE VISUALIZATION....................................................................................................17
2.5 CONTINUOUS AND INRUSH MODE .....................................................................................19
2.6 FREQUENCY MENU..............................................................................................................19
2.6.1 Frequency setting.........................................................................................................19
2.6.2 Frequency reference setting........................................................................................19
2.7 MODE MENU.......................................................................................................................20
2.7.1 Voltage reaction...........................................................................................................20
2.7.2 Output Relay ................................................................................................................20
2.7.3 DC/AC mode.................................................................................................................20
2.8 ALARMS ...............................................................................................................................21
2.8.1Loading alarms .............................................................................................................21
2.8.2 System alarms..............................................................................................................21
2.8.3 Current alarm...............................................................................................................21
2.8.4Voltage alarm...............................................................................................................22
3. INSTALLATION............................................................................................................................23
3.1 GENERAL NOTES..................................................................................................................23
3.1.1 INSPECTION..................................................................................................................23
3.2 POWER CABLING .................................................................................................................23
3.2.1 CPS/M 1000 | CPS/M 2500 | CPS/M 5000................................................................23
3.2.2 CPS/M 10000................................................................................................................25
3.3 PROTECTION DEVICE ...........................................................................................................27
3.3.1 GENERAL DIAGRAM .....................................................................................................27
3.3.2 RCD PROTECTION.........................................................................................................28
3.3.3 MAGNETO-THERMAL PROTECTION.............................................................................28
3.3.4 LINE FUSES ...................................................................................................................28
3.3.5 ACCESSORY...................................................................................................................28
3.4 WIRING DIAGRAM...............................................................................................................29
3.4.1 2 WIRE CONFIGURATION .............................................................................................29
3.4.2 4 WIRE CONFIGURATION .............................................................................................30
02/02/22 User Manual CPS/M 62000584_05 9
4. REMOTE CONTROL.....................................................................................................................31
4.1 Control software..................................................................................................................31
4.2 RS232 serial cable................................................................................................................31
4.3EXISTENCE TABLE FOR REMOTE CONTROL .........................................................................31
5. SERVICE AND MAINTENANCE ....................................................................................................32
5.1 MAINTENANCE / CLEANING................................................................................................32
5.1.1 Scheduled maintenance...............................................................................................32
5.2 ALARMS DIAGNOSIS AND REPAIRS .....................................................................................32
5.3 BASIC TROUBLESHOOTING..................................................................................................33
5.3.1 Overvoltage/Undervoltage alarms ..............................................................................33
5.3.2 Overtemperature alarms .............................................................................................33
5.3.3 Inverter alarm ..............................................................................................................34
5.3.4 Max DV OUT alarm.......................................................................................................34
5.3.5 Limit IOUT alarm ..........................................................................................................34
6. GUARANTEE ...............................................................................................................................35
7. INDEX REVISION .........................................................................................................................35
02/02/22 User Manual CPS/M 62000584_05 10
1. INTRODUCTION
CPS/M is a power source that supplies sinusoidal stable voltage. Its output voltage is adjustable in
frequency, amplitude and phase.
1.1 MAIN FEATURES
1.1.1 Output voltage
The output voltage is guaranteed perfectly sinusoidal, with a distortion of less than 0.3%
regardless of the load. The value of output voltage is kept perfectly stable within 0.1% with linear
load and a full load.
It’s designed for harmonics and flicker test. It meets the corresponding specifications as per EN
61000-3-2 and EN 61000-3-3.
The load that CPS/M is able to drive can vary from a pure capacity to a pure inductance.
The output voltage is adjustable with continuity from zero to full scale.
CPS/M can in fact provide the nominal power at various full scales and this allows the CPS/M to
adapt himself to the disparate needs of the user, without having heavy limitations on the output
current.
Furthermore CPS/M is capable to keep the voltage stable also with time variable loads, as for
example the pulsating loads. In fact, CPS/M recovers the distortion of the waveform within 0.3 %
with linear load and the amplitude of the voltage within 0.1% in less than half period.
CPS/M can bear a short circuit for an indefinite time without suffering any consequence.
1.1.2 Output frequency
In AC configuration CPS/M allows the regulation of the output frequency from 10 to 80Hz at
maximum voltage.
This output frequency can be regulated with continuity within the above-mentioned range of
frequencies and it has a stability of 0.01% with respect to the set frequency.
CPS/M also allows to synchronize the output frequency with the frequency of the supply line; this
synchronization is obtained both in frequency and in phase with the line.
This allows a completely synchronous output with regard to the supply line.
02/02/22 User Manual CPS/M 62000584_05 11
1.1.3 User interface
TPS is intended to have a user-friendly interface.
It is also featured the possibility of a host computer control, thus allowing to perform tests
automatically.
TPS allows various usage selections: working range, wires drop compensation, working frequency,
synchronization of the output frequency with the power line.
Furthermore, CPS/M gives the user clear information on the status of the output.
It is monitored both the set voltage and the set frequency and the output voltage is read with a
precision of 0.3%.
The user is also warned in case of overcurrent obtainable by the CPS/M, or in case of high loss in
the wires, that should not exceed 5% of the set voltage.
02/02/22 User Manual CPS/M 62000584_05 12
1.2 MODELS
The following tables show all the characteristics of all the CPS/M models:
1) With resistive load
2) DC options is available
3) Dimensions with output connectors
4) You can set up 320Hz by serial command, but with derating of performance and maximum voltage
f.s. stands for full scale
s.v. stands for set value
CPS/M 1K
CPS/M 2.5K
CPS/M 5K
CPS/M 10K
Code
99112103
99112153
99110750
99110755
Power
1000VA
2500VA
5000VA
10000VA
Output
Single phase
Single phase
Single phase
Single phase
Characteristic
Not isolated
Not isolated
Not isolated
Not isolated
Voltage
Range
300V
300V
300V
300V
Accuracy
<0.5% f.s.
<0.5% f.s.
<0.5% f.s.
<0.5% f.s.
Distortion
<0.3%1)
<0.3%1)
<0.3%1)
<0.3%1)
Stability of the output voltage
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
Recovery time of the waveform
<10ms
<10ms
<10ms
<10ms
Maximum Compensated drop
5% s.v.
5% s.v.
5% s.v.
5% s.v.
Recovery-time of drop on wires
<200ms
<200ms
<200ms
<200ms
Output voltage resolution
0.025% f.s.
0.025% f.s.
0.025% f.s.
0.025% f.s.
Maximum current
RMS continuous 1)
3.3A
8.3A
16.7A
33.4 A
Inrush Current (3 seconds)1)
6.7A
16.7A
33.4A
66.8 A
Frequency
Output frequency range
DC2), 10Hz - 80Hz4)
DC2), 10Hz - 80Hz4)
DC2),10Hz - 80Hz4)
DC2), 10Hz - 80Hz4)
Range of synchronization
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
Frequency resolution
0.02Hz
0.02Hz
0.02Hz
0.02Hz
Frequency precision
100ppm
100ppm
100ppm
100ppm
Supply
Input supply
230Vac ±10% 1Ph
230Vac ±10% 1Ph
230Vac ±10% 1Ph
400Vac±10% 3N
Maximum Input current
7.5 A
18 A
35A
24A/41A neutral
Input Frequency
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
Other
Size (H : W : D)
4U : 450 : 5403)
4U : 450 : 5403)
4U : 450 : 5403)
6U : 450 : 5403)
Weight
20Kg
25Kg
25Kg
48Kg
Protections
OVP,UVP;OTP
OVP,UVP;OTP
OVP,UVP;OTP
OVP,UVP;OTP
Operation Temperature Range
0-35°C
0-35°C
0-35°C
0-35°C
RS232
YES
YES
YES
YES
RS485
OPTION
OPTION
OPTION
OPTION
LAN
OPTION
OPTION
OPTION
OPTION
Amplifier Options
99101135
99101135
99101135
99101135
DC options
99101120
99101120
99101120
99101120
RS485 Options
99101115
99101115
99101115
99101115
02/02/22 User Manual CPS/M 62000584_05 13
1.3 TECHNICAL SPECIFICATIONS

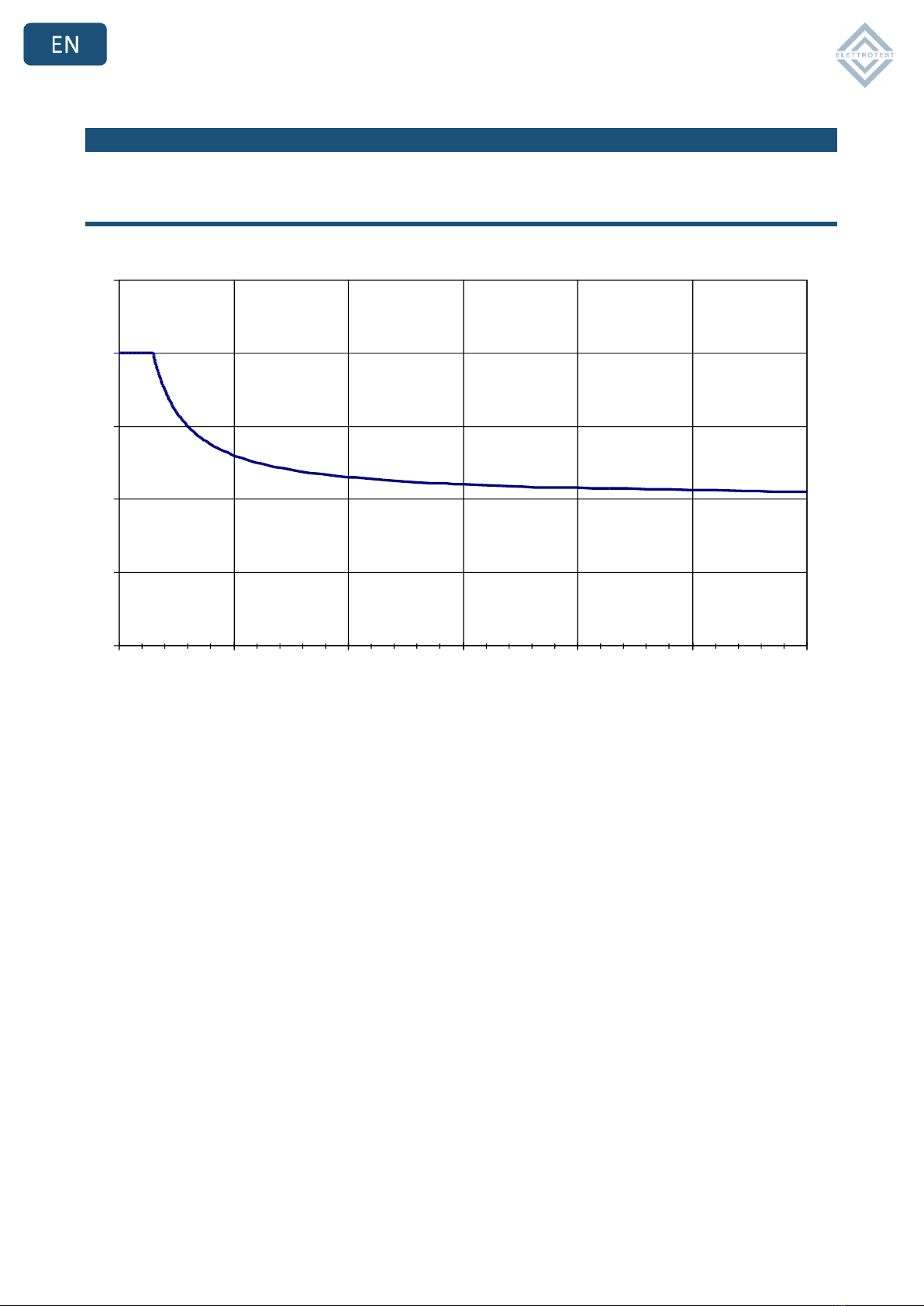

1.3.1 Limitation current
0.00
0.50
1.00
1.50
2.00
2.50
0.0 10.0 20.0 30.0 40.0 50.0 60.0
Time (sec)
I/Io
02/02/22 User Manual CPS/M 62000584_05 14
1.4 MECHANICAL DRAWINGS
1.4.1 CPS/M 1000 | CPS/M 2500 | CPS/M 5000
MAX 540mm
510mm
4U
84TE
02/02/22 User Manual CPS/M 62000584_05 15
1.4.2 CPS/M 10KVA
483
270
6U
537
507
84TE
MAX 540mm
510mm
02/02/22 User Manual CPS/M 62000584_05 16
2. NOTES FOR USERS
2.1 Switching ON
As soon as CPS/M switches on, through the switch placed on the control panel of the machine, it
makes different cycles of test, indicated by the progression of the numbers from 0 to 9 on the
displays.
In case of bad working the test stops and the machine indicates on the control panel the type of
alarm checked (see at the voice alarms).
When the test ends CPS/M is set to 0 Volt in the range 300 Volt, 50 Hertz and regulation on the
output terminals (2 wires).
After the appearing of those indications, your CPS/M is ready to work.
2.2 PARAMETERS PROGRAMMING MODE
Allows you to change various generator start parameters through the programming mode.
The programming mode allows you to configure a starting profile of the application, different from
the factory one.
The modifiable parameters and how to access the programming mode are illustrated in the
Parameters Manual, you can find it here or in the USB-Key supplied with your CPS/M.
2.3 VOLTAGE MENU
02/02/22 User Manual CPS/M 62000584_05 17
2.3.1 Setting Voltage
To set the output voltage you must use the encoder that you see on the figure, after this step the
display lamp until the output is going to the setup voltage.
2.3.2 RANGE SETTING
The CPS/M range buttons allows to make use of the full output power at different voltages.
There are two different ranges: High (300 V) and low (150 V)
The maximum output power changes according to the nature of the connected load; in case of
resistance loads the power is nominal, in case of pure inductive loads the power increases, in
case of pure capacity load the power diminishes.
To change the range, push the button corresponding to the requested range placed on the left
of the command panel under the voice RANGE.
When the range is changed, the display showing the set voltage turns off and the output voltage
goes down slowly till zero, then the output power is switched off; after about 15 seconds the
output is switched on again and the Volts display visualizes zero voltage (0.0); since that moment
CPS/M is ready to receive on the new range.
2.4 VOLTAGE VISUALIZATION
The display concerning the output voltage can visualize the set voltage or the output voltage with
four digits both.
At turn on, the display visualizes the set voltage and this is indicated by the led on the button SET
in the DISPLAY VOLT section of the panel.
In order to visualize the actual output voltage, push the corresponding button (OUT); the
visualized voltage indicates the output voltage with a precision of 0.3% at full scale range.
02/02/22 User Manual CPS/M 62000584_05 18
If the set voltage is changed, the display returns to show the set value.
In case of 4 wires operation, the display shows the voltage on the sense inputs.
02/02/22 User Manual CPS/M 62000584_05 19
2.5 CONTINUOUS AND INRUSH MODE
Through the current key you can select the Continuous (Amp) or inrush (Amp%) configurations, it
changes the limit of peak and RMS current. The change is available of until the machine is running
2.6 FREQUENCY MENU

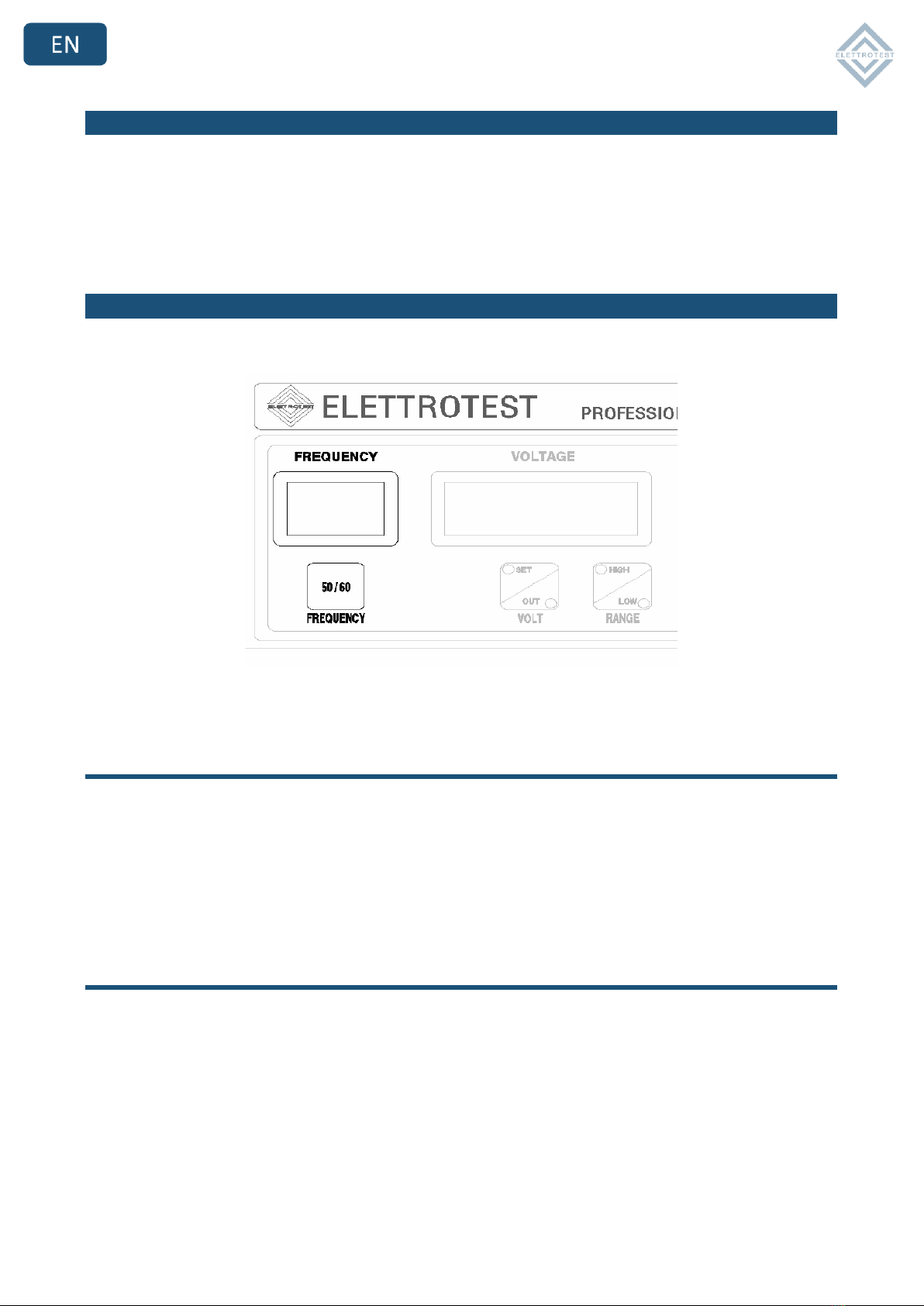

2.6.1 Frequency setting
The output frequency of CPS can be 50 or 60 hertz, the FREQUENCY display shows the set-up value
and FREQUENCY button switch the set up value.
In this case after pushing the button FREQUENCY the frequency display flashes until the output
frequency coincides with the set one.
It is possible to set the frequency between 40-80Hz only via remote control.
2.6.2 Frequency reference setting
The output frequency can have two references: the first one is a inner frequency reference with a
precision of 0.01%, the second one is the line of loading frequency.
At turn on CPS is connected to the inner reference; you can change the reference to line only with
PC remote interface.
02/02/22 User Manual CPS/M 62000584_05 20
2.7 MODE MENU
2.7.1 Voltage reaction
The stabilization of the output voltage coincides both on the CPS/M output terminals (2-wires)
and on a possible long distance outlet (4-wires) to eliminate the fall in voltage influence of the
connections.
To operate the long-distance stabilization first connect the SENSE terminals on the back of the
machine following the indications at the voice INSTALLATION.
The choice of the kind of long-distance stabilization can be operated by means of the buttons 4
wires and 2 wires at the voice SENSE.
Notice that CPS/M corrects falls in voltage on the connections until 5% of the set-up voltage to
avoid possible overheating of the line; after exceeding this limit CPS/M doesn’t guarantee that the
value of the output voltage is equal to the set-up voltage and an error signal appears (see at
voltage alarms).
2.7.2 Output Relay
If you press the button OUT you can turn-on or turn-off the output relay. Before the turn-off the
output voltage is set to 0 voltage so the relay switch with low current. Also, the turn-on is at 0
voltage and after that, the voltage goes to the setting value with an internal ramp.
The turn off of the output relay does not allow operations on the connection of the EUT.
2.7.3 DC/AC mode
By pressing the Mode button, the CPS/M switch from AC to DC and vice versa.
This manual suits for next models
7
Table of contents
Languages:
Other Elettrotest Power Supply manuals
