Elettrotest TPS/T 10kVA User manual

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 1
TPS/T 10-90kVA
USER MANUAL
Clicca qui per vedere la versione in Italiano.

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 2
TPS/T Models covered in this manual:
Model
Code
TPS/T 10kVA
99110547
TPS/T 20kVA
99110557
TPS/T 40kVA
99110585
TPS/T 60kVA
99110540
TPS/T 60kVA 50k120S
99116523
TPS/T 90kVA
99110600
This manual is written from TPS/T firmware version TPSX 09_.
Please check the latest manual version at www.elettrotestspa.it
To consult older manual versions, please contact our support at
[email protected]

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 3
Document list:
This manual is completed by a list of documents, useful to understand all the features of your
TPS/T.
Scan the QR-code or click on the link to directly download the documents.
Documents
Description
Link
QR-code
User Manual
Latest manual version
Manual
Brochure
Brochure for all the TPS-HPS-CPS models
Brochure
TPS Parameters
Describes all the machine modifiable
parameters and the start-up sequence.
TPS
Parameters
TPS protocol
Elettrotest
Describes how the Elettrotest remote
communication protocol works.
Elettrotest
Protocol
TPS protocol
SCPI
Describes how the SCPI remote
communication protocol works with your
TPS/T.
SCPI
Protocol

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 4
Documents
Description
Link
QR-code
PS Interface
Software for remote use.
PS_interface
Driver LabView
Manual and LabView Drivers for PS-
interface
Driver
LabView

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 5
Elettrotest Spa
P,zza R.Riello 20/B
45021 Badia Polesine (RO)
Italy
[phone]
www.elettrotestspa.it
After sale support
[email protected]
Thank you for purchasing the TPS/T generator.
TPS/T is a three-phase generator that provides a perfectly sinusoidal and stable voltage. The
voltage value can be adjustable either in frequency and amplitude.
TPS/T combines the advantage of the power line, the variac and the rotary converter, without
having their shortcomings.
Responsability:
Elettrotest disclaims any responsibility for damage to people or things
caused by an improper use of its products.
Mandatory
-Verify voltage, power and frequency compatibility between TPS/T range and electrical
specification of equipment under test (EUT).
-Electrical components of the system must be suitable for the rated voltage and current of TPS/T
model
-The electrical components, which by construction cannot support external influences (of the
generator in all its range), can only be used on condition that adequate additional protection has
been provided with automatic disconnection protection.
Notes:
This manual lists precautions and information about operating procedure of device.
The content of this manual is subject to change without prior notice because of continuing
improvements on the instrument’s
Should you have any questions or find any error please contact us by email.
Copying or reproducing all or any part of the contents of this document is strictly
prohibited, without Elettrotest permission
Version:
This manual is written for TPS/T firmware version TPSX 09_ and higher
To consult older manual versions, please contact our support at [email protected]

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 6
SAFETY WARNINGS
The manufacturer urges users to read the user manual for our products before installation.
The installation must be carried out by qualified technical staff. The non-observance of the
warnings in this manual can cause electric shocks, even fatal ones.
Please find some general safety warnings below.
•This equipment must be connected to the mains supply using the appropriate safety
devices.
•TPS/T must be connected to safety ground through the correct connections. The non-
observance or the degradation of this earth connection can lead to electric shocks, even fatal
ones. As regards the correct connection modes, please refer to the information contained in
paragraph 4.
•Disconnect TPS/T from the mains before any work on the equipment and on the connected
power loads.
•Before touching the load or the output connector make sure that the power supply on the
device has been disconnected for at least 5 minutes. This is the time necessary in order for the
capacitors inside the device to discharge. The non-observance of this discharge time can lead to
electric shocks, even fatal ones.
•Avoid heavy shocks to the equipment (especially during transport) or exposure to extreme
weather conditions.
•Any damage to the product due to transportation, incorrect installation or improper use is
not covered by the guarantee supplied by the manufacturer.
•Do not use the equipment in explosive environments or in the presence of dust, acids or
corrosive and/or inflammable gases.
•Tampering with or dismantling any component in the equipment will void the warranty
automatically.
•Do not operate or store under conditions where condensing may occur or where
conductive debris may enter in the case.
•Keep the ventilation holes on the front and rear free from obstruction.
•Do not make dielectric strengths test on the input or output of the equipment. Contact
Elettrotest if you need to do specific test
ELECTRIC RISK
There are dangerous voltages inside TPS/T and over the output connector.
The non-observance of the warnings suggest in this manual can lead to electric
shocks, even fatal ones.
OVERHEATING RISK
In the case of a ventilation system failure, the metal parts of the inverter may reach
high temperatures (in some cases higher than 70°C).

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 7
DISPOSAL
INFORMATION FOR USERS ON THE CORRECT HANDLING OF WASTE
ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
In reference to European Union directive 2012/19/EU issued on 24 July 2012 and the related
national legislation, please note that:
•WEEE cannot be disposed of as municipal waste and such waste must be collected and
disposed of separately;
•the public or private waste collection systems defined by local legislation must be used. In
addition, the equipment can be returned to the manufacturer at the end of its working life when
buying new equipment;
•the equipment may contain hazardous substances: the improper use or incorrect disposal
of such may have negative effects on human health and on the environment;
•the symbol (crossed-out wheeled bin) shown on the product or on the packaging and on
the instruction sheet indicates that the equipment must be disposed of separately;
•in the event of illegal disposal of electrical and electronic waste, the penalties are specified
by local waste disposal legislation.

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 8
INDEX
1. INTRODUCTION..........................................................................................................................10
1.1. MAIN FEATURES ..................................................................................................................10
1.1.1. Output voltage .............................................................................................................10
1.1.2. Output frequency.........................................................................................................10
1.1.3. User interface...............................................................................................................11
2. MODELS......................................................................................................................................12

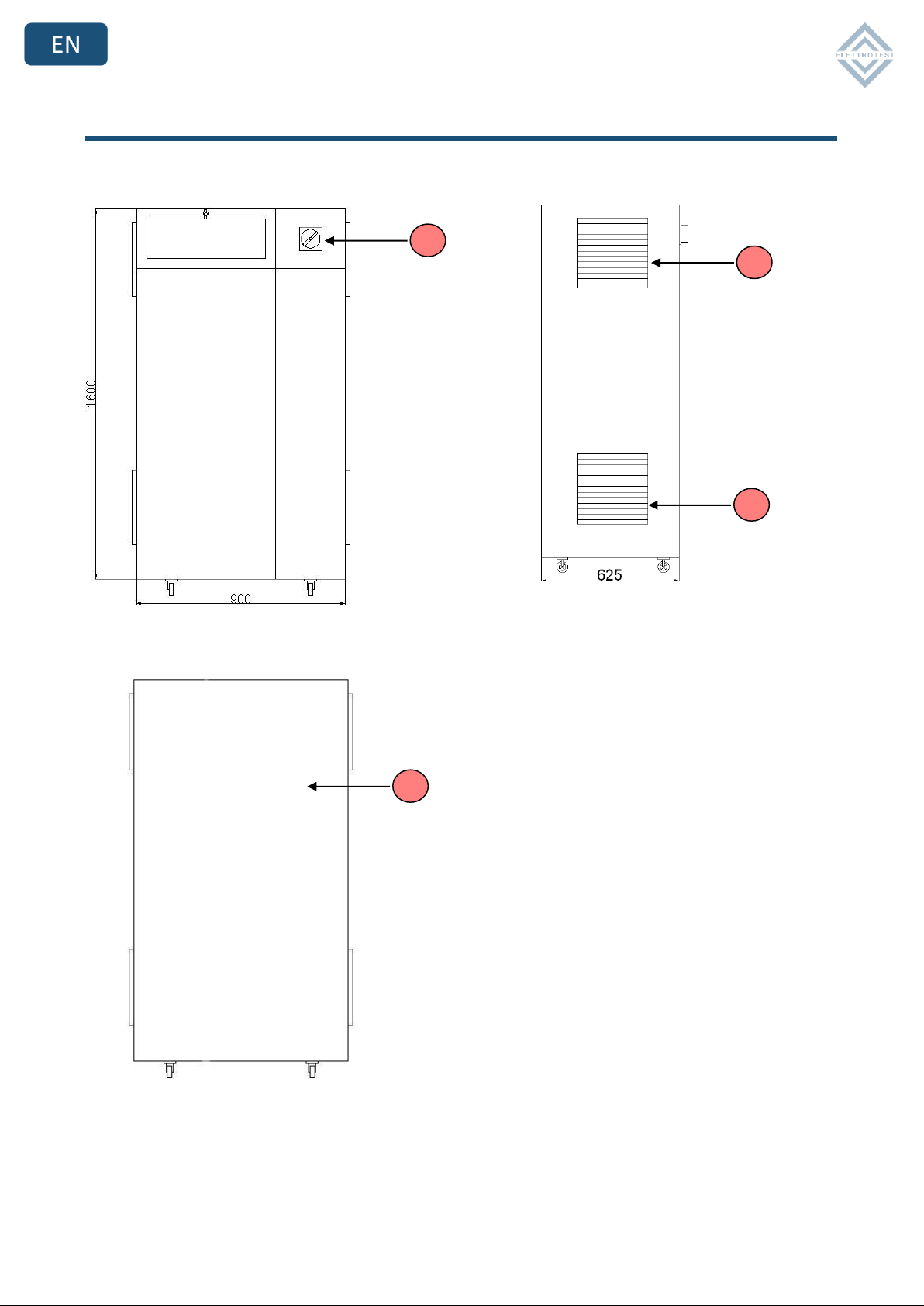

2.1. MECHANICAL DRAWINGS....................................................................................................13
2.1.1. TPS/T 10K 7.5K22.5S ....................................................................................................13
2.1.2. TPS/T 20K 15K45S | TPS/T 40K 30K60S......................................................................14
2.1.3. TPS/T 60K | TPS/T 60K 50K120S ................................................................................15
2.1.4. TPS/T 90K EVOLUTION.................................................................................................16
3. NOTES FOR USERS......................................................................................................................17
3.1. SWITCHING ON....................................................................................................................17
3.2. PARAMETERS PROGRAMMING MODE................................................................................17
3.3. VOLTAGE MENU ..................................................................................................................17
3.3.1. Setting Voltage.............................................................................................................18
3.4. RANGE SETTING...................................................................................................................18
3.5. VOLTAGE VISUALIZATION....................................................................................................19
3.6. FREQUENCY MENU..............................................................................................................20
3.6.1. Frequency setting.........................................................................................................20
3.6.2. Frequency reference setting........................................................................................20
3.7. MODE MENU.......................................................................................................................21
3.7.1. Voltage reaction...........................................................................................................21
3.7.2. Output type..................................................................................................................22
3.7.3. Continuous or INRUSH mode.......................................................................................22
3.8. ALARMS ...............................................................................................................................22
3.8.1. Supply alarms...............................................................................................................24
3.8.2. System alarms..............................................................................................................24
3.8.3. Current alarm...............................................................................................................24
3.8.4. Voltage alarm...............................................................................................................24
4. INSTALLATION............................................................................................................................25
4.1. GENERAL NOTES..................................................................................................................25
4.1.1. INSPECTION..................................................................................................................25
4.1.2. Line Connection ...........................................................................................................25
4.2. PROTECTIONS......................................................................................................................26
4.2.1. RCD Protection.............................................................................................................26
4.2.2. Magneto-Thermic protections.....................................................................................26
4.2.3. Protections Wiring Diagram.........................................................................................27
4.3. WIRING DIAGRAM...............................................................................................................28
4.3.1. 2-WIRES configuration .................................................................................................28
4.3.2. 4-WIRES configuration .................................................................................................29
4.4. INSTALLATION NOTE ...........................................................................................................30
4.4.1. TPS/T 10K 7.5K22.5S ....................................................................................................30
4.4.2. TPS/T 20K 15K45S | TPS/T 40K 30K60S......................................................................31
4.4.3. TPS/T 60K | TPS/T 60K 50K120S ................................................................................32
4.4.4. TPS/T 90K EVOLUTION.................................................................................................32
5. REMOTE CONTROl......................................................................................................................33

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 9
5.1. SERIAL REMOTE CONTROL ..................................................................................................34
5.1.1. RS232 Serial cable ........................................................................................................34
5.2. EXISTENCE TABLE.................................................................................................................34
6. ACCESSORies ..............................................................................................................................35
6.1.1. TPS/T 10K 7.5K22.5S ....................................................................................................35
6.1.2. TPS/T 20K 15K45S | TPS/T 40K 30K60S......................................................................35
6.1.3. TPS/T 60K | TPS/T 60K 50K120S ................................................................................35
6.1.4. TPS/T 90K EVOLUTION.................................................................................................36
7. inrush limit current ....................................................................................................................37
8. Service and maintenance...........................................................................................................38
8.1. MAINTENANCE / CLEANING................................................................................................38
8.1.1. Scheduled maintenance...............................................................................................38
8.2. ALARMS DIAGNOSIS AND REPAIRS .....................................................................................38
8.3. BASIC TROUBLESHOOTING..................................................................................................39
8.3.1. Overvoltage/Undervoltage alarms ..............................................................................39
8.3.2. Overtemperature alarm...............................................................................................39
8.3.3. Inverter alarm ..............................................................................................................40
8.3.4. Max DV OUT alarm.......................................................................................................40
8.3.5. Limit IOUT alarm ..........................................................................................................40
9. GUARANTEE ...............................................................................................................................41
10. REVISION INDEX ......................................................................................................................41

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 10
1. INTRODUCTION
TPS/T is a power source that supplies sinusoidal stable voltage. Its output voltage is adjustable in
frequency and amplitude.
TPS/T has an isolated output thanks to a special isolating transformer at constant power. This
transformer allows to have always the maximum power in any application, keeping the complete
insulation from the electrical line.
TPS/T can also be controlled remotely.
1.1. MAIN FEATURES
1.1.1. Output voltage
The output voltage is guaranteed perfectly sinusoidal, with a distortion of less than 0.3 %
regardless of the load.
The value of output voltage is kept perfectly stable within 0.3 % regardless of the load.
It’s designed for harmonics and flicker test. It meets the corresponding specifications as per EN
61000-3-2 and EN 61000-3-3.
TPS/T is also able to compensate for possible voltage drops on the output wires, ensuring the
exact amount of voltage you want on the load.
The load that TPS/T is able to drive can vary from the pure capacity to the pure inductance; not
only, but also up to non-symmetrical current loads, as for instance a single halfwave rectifier.
The output voltage is adjustable with continuity from zero to full scale of each range.
TPS/T can in fact provide the nominal power at various full scales and this allows the TPS/T to
adapt himself to the disparate needs of the user, without having heavy limitations on the output
current.
Furthermore TPS/T is capable to keep the voltage stable also with time variable loads, as for
example the pulsating loads.
In fact TPS/T recovers the distortion of the waveform within 0.3 % and the amplitude of the
voltage within 0.3% in less than half period.
TPS/T can bear a shortcircuit for an indefinite time without suffering any consequence.
1.1.2. Output frequency
TPS/T allows the regulation of the output frequency from 40Hz to 80Hz.
This output frequency can be regulated with continuity within the above-mentioned range of
frequencies and it has a stability of 0.01% with regards to the set frequency.

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 11
TPS/T also allows to synchronize the output frequency with the frequency of the supply line; this
synchronization is obtained both in frequency with line.
This allows a completely syncronous output, with a zero-phase error with regard to the supply
line, but with a completely insulated output and with a far superior voltage stability.
It must be remarked that, in three phase version, trough remote interface, it is possible to set a
variable phase delay on all the three outputs, this is useful for example, to study single phase
motor with starting capacitor, or in all those cases where a different phase displacement than
three phase is required.
The resolution of phase setting is 0,088° (12 bits on 360°).
1.1.3. User interface
TPS/T is intended to have an user friendly interface.
It is also featured the possibility of an host computer control, thus allowing to perform tests
automatically.
TPS/T allows various usage selections: working range, wires drop compensation, working
frequency, synchronization of the output frequency with the power line.
TPS/T gives the user clear information on the status of the output.
It is monitored both the set voltage and the set frequency and the output voltage is read with a
precision of 0.3%.
The user is also warned in case of overcurrent obtainable by the TPS/T, or in case of high loss in
the wires, that should not exceed 5% of the set voltage.
We underline again that TPS/T automatically limits the maximum allowed current, avoiding
damages to the equipment; in that in this case it is not guaranteed the precision of the output
waveform neither the accuracy of the output voltage.
The user can set the output voltage through the numeric keyboard, or he can continuously vary
the voltage through specific keys. The same possibility is valid for the setting of the frequency.
The above possibility makes the TPS/T very flexible in those applications where it is requested a
continuous variation of the two regulated magnitudes, around a given values.

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 12
2. MODELS
All TPS/T models characteristics are shown in the table hereunder.
TPS/T 7.5K22.5S (10K)
TPS/T 15K45S (20K)
TPS/T 30K60S (40K)
TPS/T 60K
TPS/T 50K120S (60K)
TPS/T 90K
Code
99110547
99110557
99110585
99110540
99116523
99110600
Configuration
Continuous
Inrush
Continuous
Inrush
Continuous
Inrush
Continuous
Continuous
Inrush
Continuous
Power
10KVA
7.5KVA/22.5KVA
20KVA
15KVA/45KVA
40KVA
30KVA/60KVA
72kVA
72KVA
50K120S
95kVA
Output
1phase / 3phase
1phase / 3phase
1phase / 3phase
1phase / 3phase
1phase / 3phase
3phase
Characteristic
Isolated
Isolated
Isolated
Isolated
Isolated
Isolated
Voltage
Range
150V/300V1)
150V/300V1)
150V/300V1)
150V/300V1)
150V/300V1)
150V/300V1)
Accuracy
<0.5% f.s.
<0.5%. f.s.
<0.5% f.s.
<0.5% f.s.
<0.5% f.s.
<0.5% f.s.
Distortion
<0.3%2)
<0.3%2)
<0.3%2)
<0.3%2)
<0.3%2)
<0.3%2)
Stability of the output voltage
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
<0.1% f.s.
Recovery time of the waveform
<10ms
<10ms
<10ms
<10ms
<10ms
<10ms
Maximum Compensated drop
5% s.v.
5% s.v.
5% s.v.
5% s.v.
5% s.v.
5% s.v.
Recovery-time of drop on wires
<200ms.
<200ms.
<200ms.
<200ms.
<200ms.
<200ms.
Output voltage resolution
0.025% f.s.
0.025% f.s.
0.025% f.s.
0.025% f.s.
0.025% f.s.
0.025% f.s.
Maximum current single phase
Configuration
Continuous
Inrush
Continuous
Inrush
Continuous
Inrush
Continuous
Continuous
Inrush
Continuous
Range
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
RMS continuous 2)
66.7A
33.3A
49.6A
24.8A
133A
66.5A
100A
50A
267A
133A
200A
100A
480A
240A
480A
240A
340A
170A
No single phase option
Inrush Current (3 seconds)2)
No Inrush
149A
74.4A
No Inrush
300A
150A
No inrush
400A
200A
No inrush capability
No inrush
960A
480A
No single phase option
Maximum current three phase
Configuration
Continuous
Inrush
Continuous
Inrush
Continuous
Inrush
Continuous
Continuous
Inrush
Continuous
Range
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
150V
300V
RMS continuous 2)
22.2A
11.1A
16.6A
8.33A
44.4A
22.2A
33.3A
16.7A
88.9A
44.5A
66.6A
33.3A
160A
80A
160A
80A
112A
56A
213A
107A
Inrush Current (3 seconds)2)
No Inrush
50A
25A
No Inrush
100A
50A
No inrush
133A
66.7A
No inrush capability
No inrush
320A
160A
No inrush capability
Frequency
Output frequency range
40Hz3) - 80Hz4)
40Hz3) - 80Hz4)
40Hz3) - 80Hz4)
40Hz3) - 80Hz4)
40Hz3) - 80Hz4)
40Hz3) - 80Hz4)
Range of synchronization
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
45Hz - 65Hz
Frequency resolution
0.02Hz
0.02Hz
0.02Hz
0.02Hz
0.02Hz
0.02Hz
Frequency precision
100ppm
100ppm
100ppm
100ppm
100ppm
100ppm
Supply
Input supply
400Vac ± 10% 3Ph
Without neutral
400Vac ± 10% 3Ph
Without neutral
400Vac ± 10% 3Ph
Without neutral
400Vac ± 10% 3Ph
Without neutral
400Vac ± 10% 3Ph
Without neutral
400Vac ± 10% 3Ph
Without neutral
Maximum Input current
20A
70A
120A
160A
250A
250A
Input Frequency
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
50Hz-60Hz
Other
Size (H : W : D)(mm)
1670 : 620 : 625
1670 : 920 : 625
1670 : 920 : 625
1800 :1200 : 800
1800 :1200 : 800
1800 :1200 : 1000
Weight
200Kg
400Kg
600Kg
960Kg
1000Kg
1200Kg
Protections
OVP;UVP;OTP
OVP;UVP;OTP
OVP;UVP;OTP
OVP;UVP;OTP
OVP;UVP;OTP
OVP;UVP;OTP
Operation Temperature Range
0-35°C
0-35°C
0-35°C
0-35°C
0-35°C
0-35°C
RS232
YES
YES
YES
YES
YES
YES
RS485
OTION
OPTION
OPTION
OPTION
OPTION
LAN
OPTION
OPTION
OPTION
OPTION
OPTION
OPTION
1) Other Range on request
2) With Resistive load
3) It is possible on remote interface to set 10Hz but the maximum possible voltage decreases
4) You can set up 320Hz by serial command, but with derating of performance and maximum voltage
f.s. stands for full scale
s.v. stands for set value

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 13
2.1. MECHANICAL DRAWINGS
2.1.1. TPS/T 10K 7.5K22.5S
(*) All measure are on mm
1 –General Switch
2 –Fans
3 –Grills
4 –Rear panel for connection
1
2
3
4

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 14
2.1.2. TPS/T 20K 15K45S | TPS/T 40K 30K60S
1
2
3
4
(*) All measure are on mm
1 –General switch
2 –Fans
3 –Grills
4 –Rear panel for connection

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 15
2.1.3. TPS/T 60K | TPS/T 60K 50K120S
1
2
3
4
(*) All measure are on mm
1 –General switch
2 –Fans
3 –Grills
4 –Rear panel for connection

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 16
2.1.4. TPS/T 90K EVOLUTION
3
4
4
1
2
2
2
2
(*) All measures are in mm
1 –General switch
2 –Input fans
3 –Output fans
4 –Rear panel for connection

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 17
3. NOTES FOR USERS
3.1. SWITCHING ON
As soon as TPS/T switches on, through the switch placed on the control panel of the machine, it
makes different cycles of test, indicated by the progression of the numbers from 0 to 9 on the
displays.
In case of bad working the test stops and the machine indicates on the control panel the type of
alarm checked (see at the voice alarms).
When the test ends TPS/T is set to 0 Volt in the range 300 Volt, 50 Hertz and regulation on the
output terminals (2 wires).
After the appearing of these indications TPS/T is ready to work.
3.2. PARAMETERS PROGRAMMING MODE
TPS/T allows you to change various generator start parameters through the programming mode.
The programming mode allows you to configure a starting profile of the application, different from
the factory one.
The modifiable parameters and how to access the programming mode are illustrated in the
Configure parameters quick guide.
3.3. VOLTAGE MENU

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 18
3.3.1. Setting Voltage

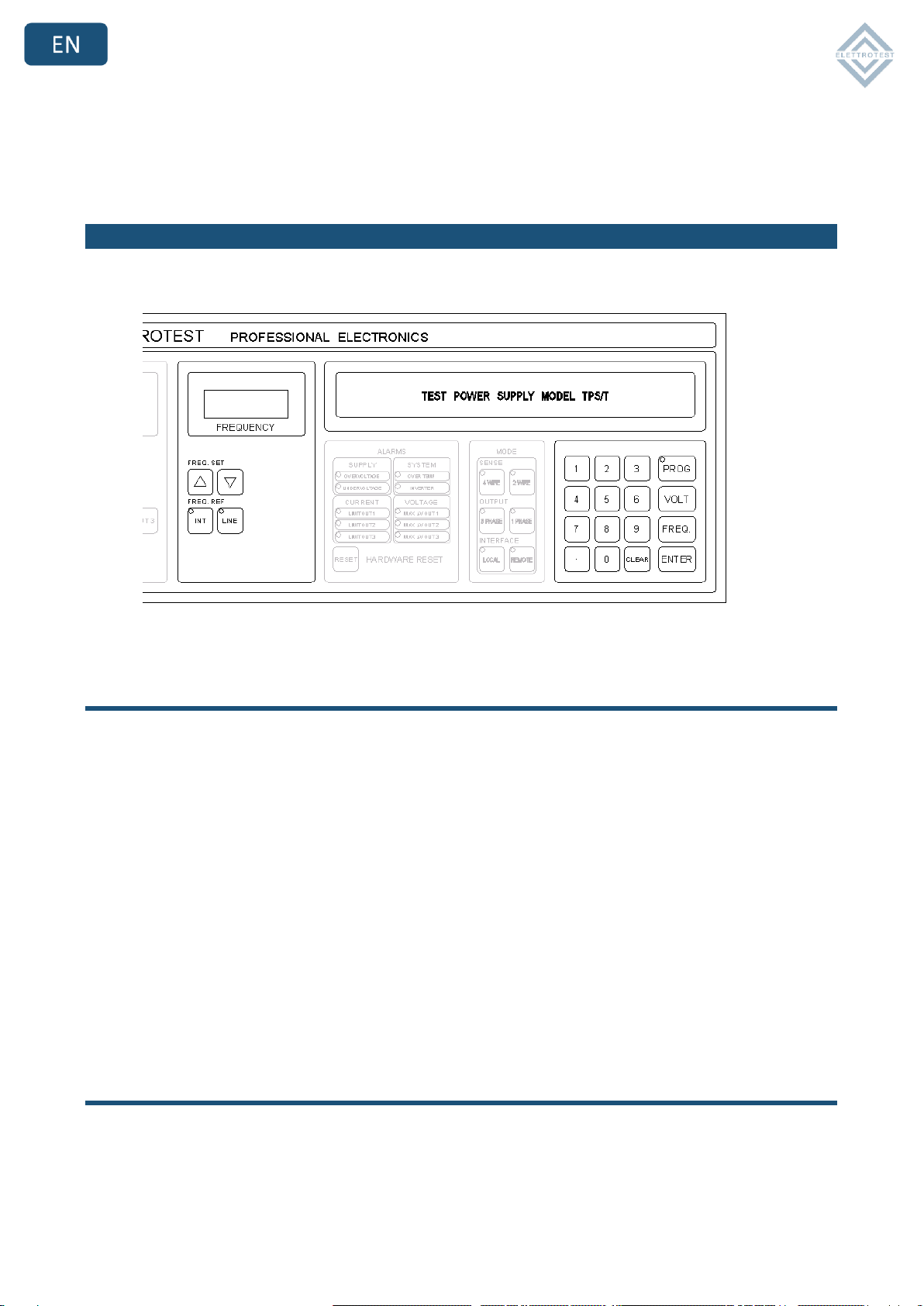

There are two ways to set the Voltage: through the appropriate buttons UP and DOWN placed on
the left on the control panel or through the numeric keyboard.
The buttons UP and DOWN, respectively indicated with a little arrow upwards and downwards,
permit a continuous variation of the output voltage; the speed of the output voltage variation
depends on time the button is pushed, as time increases, the speed of the output voltage variation
progressively increases.
Instead, if you want to set a fixed output voltage, you can use the numeric keyboard situated on
the right side of the control panel.
To set a fixed output voltage proceed in the following way:
1. Push the button PROGRAM (the corresponding led switches on)
2. Push the button VOLT (the volt display switches off)
3. Digit the required voltage through the numeric keyboard (the numbers are visualized on
the display)
4. Push ENTER.
After pushing ENTER the display begins to blink, this is to indicate the output is going to the set
voltage, as soon as the connection takes place, the display stops to flash and the PROGRAM led
shuts off.
In case of error, you can push the button CLEAR which causes the exit from the programming
routine.
The maximum voltage is equal to the set off range.
Moreover, if the set off voltage is not coherent with the set off range (for example the setting of a
voltage exceeding the range) the datum is not accepted after pushing ENTER.
3.4. RANGE SETTING

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 19
The TPS/T range buttons allows to make use of the full output power at different voltages.
There are two different ranges: 300 Volt and 150 Volt.
The maximum output power changes according to the nature of the connected load; in case of
resistance loads the power is nominal, in case of pure inductive loads the power increases, in
case of pure capacity load the power diminishes.
To change the range, push the button corresponding to the requested range placed on the left
of the command panel under the voice RANGE VOLT.
When the range is changed, the display showing the set voltage turns off and the output voltage
goes down slowly till zero, then the output power is switched off; after about 15 seconds the
output is switched on again and the Volts display visualizes zero voltage (0.0); since that moment
TPS/T is ready to receive on the new range.
3.5. VOLTAGE VISUALIZATION
The display concerning the output voltage can visualize the set voltage or the output voltage with
four digits both.
At turn on, the display visualizes the set voltage and this is indicated by the led on the button SET
in the DISPLAY VOLT section of the panel.
In order to visualize the actual output voltage, push the corresponding button (OUT); the
visualized voltage indicates the output voltage with a precision of 0.3% at full scale range.
If the set voltage is changed, the display returns to show the set value.

27/01/22 User Manual TPS/T 10-90kVA 62000560_09_ 20
In case of 4 wires operation, the display shows the voltage on the sense inputs.
3.6. FREQUENCY MENU
3.6.1. Frequency setting
The output frequency of TPS/T can change between 40 and 80 hertz.
To set the frequency proceed likewise the setting voltage through the buttons UP and DOWN
(upwards and downwards arrow) and by means of the programming numeric keyboard.
To set the frequency through the programming numeric keyboard you can proceed likewise the
voltage pushing the button HERTZ instead of the button VOLT thus indicating to TPS/T that you
want to program the frequency.
Either in this case after pushing the button ENTER the display concerning the Hertz value
visualization flashes until the output frequency coincides with the set one.
If you plan a frequency exceeding the frequency range, the input value is not accepted pushing the
button ENTER.
3.6.2. Frequency reference setting
The output frequency can have two references: the first one is an inner frequency reference with a
precision of 0.01%, the second one is the line of loading frequency.
