ELF E210 User manual

Inflatable Boat
ELF
Models:
E210, E240, E270
USER`SMANUAL
ELFE210,E240,E270 UM90011

ELF E210,E240A,E270 UM90011
2
T he inflatable motor boat of the "ELF " series relates to the category of pleasure boats and is intended for water sports, hunting and
fishing, tourism, the use as a floating means on board of launches, yachts and other vessels.
TECNICAL DATA SPECIFICATION
Model E210 E240 E270
Length m ft-inches 2.1 7'10" 2,4 7'10" 2.7 8'10"
Width m ft-inces 1.25 4' 1.25 4' 1.4 4'6"
Tube diameter max m ft-inches 0.34 1'1” 0.34 1'1” 0.37 1'2"
Number of air chambers pcs 2 2 2
Carrying capacity kg lbs 220 485 270 595 350 770
Passengers capacity pers. 2 3 3
Max. engine power kW Hp 2.5 3.4 3.0 4.0 4.5 6.0
Nominal pressure bar 0.15 0.15 0.15
Complete weight kg lbs 22 48.8 24 52.8 27 67
Package dimensions m ft-inches 0.9x0.45x0.2 2'11"x1'5"x0'8" 0.9x0.45x0.3 2'11"x1'5"x0'8" 1.05x0.45x0.3 3'5"x1'5"x1
COMPLETE SET E210 E240 E270
Model Code E210 E240 E270
Boat 1 1 1
Wooden seat with stops and brackets 1 1 1
Floor section 5 6 7
Foot pump 1 1 1
Oars 2 2 2
Maintenance kit:
- repair patches 1 1 1
- seat stops 2 2 2
Packing bag 1 1 1
User's manual 1 1 1
Rem: Technical data and complete set alternations may take place.

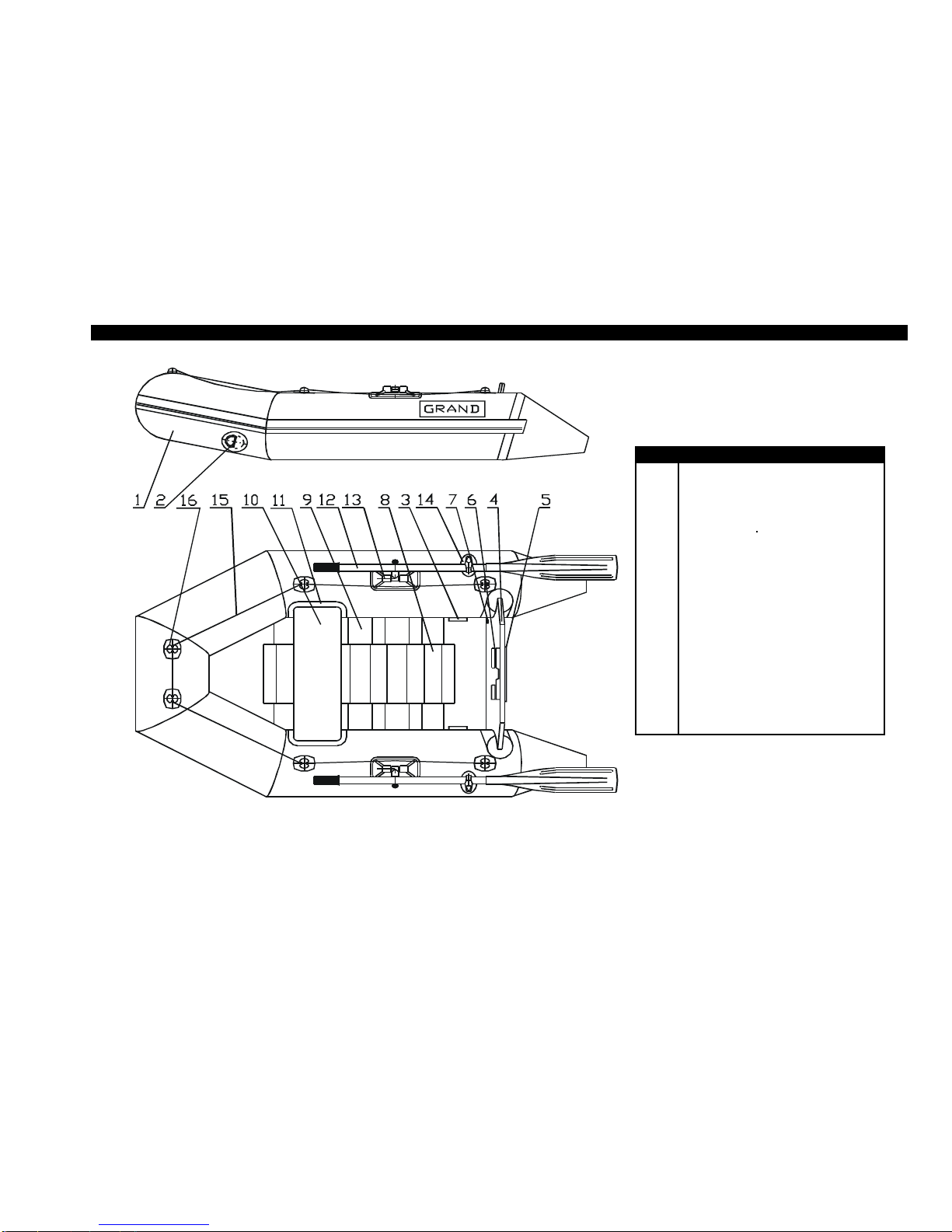

Pos Item
1 Inflatable balloon
2 Towing eye
3 Ballon inflation/deflation
valve (2 pcs)
4 Rigid transom
5 Outboard engine mounting seat
6 Motor plate
7 Drain valve
8 Floor pocket
9 Floor section
10 Wooden seat
11 Wooden seat bracket
12 Oar
13 Oar lock
14 Oar post
15 Lifeline
16 Lifeline holder
ELFE210,E240,E270 UM90011
3

5. Apply the foot pump to fill the afterbody compartments with air to
the pressure being slightly below its rated value (the balloon will be
completely straightened). Then fill the forebody compartment with
air up to the rated pressure.The rated pressure value is
0.15 bar.(see Fig.2)
6. On completion of filling close the valves with bonnets B(rotate them
clockwise)
7. Assemble the oars by entering the removable parts with blades
into the locks until the click. Use of the holes provided in the oar
handles to set the oars into the rowlock with the blades being
faced to the aft. Secure the oars in the oar post.
8. When mounting the outboard engine make sure that it is reliably
fixed to the transom. In addition, take every precaution to avoid
any contacts of the fuel with the boat surfaces.
INFORMATION!
In order to discharge air from the compartments, open the valves
(by counterclockwise rotation) and switch the valves over into
condition "OPEN”(see Fig.2).

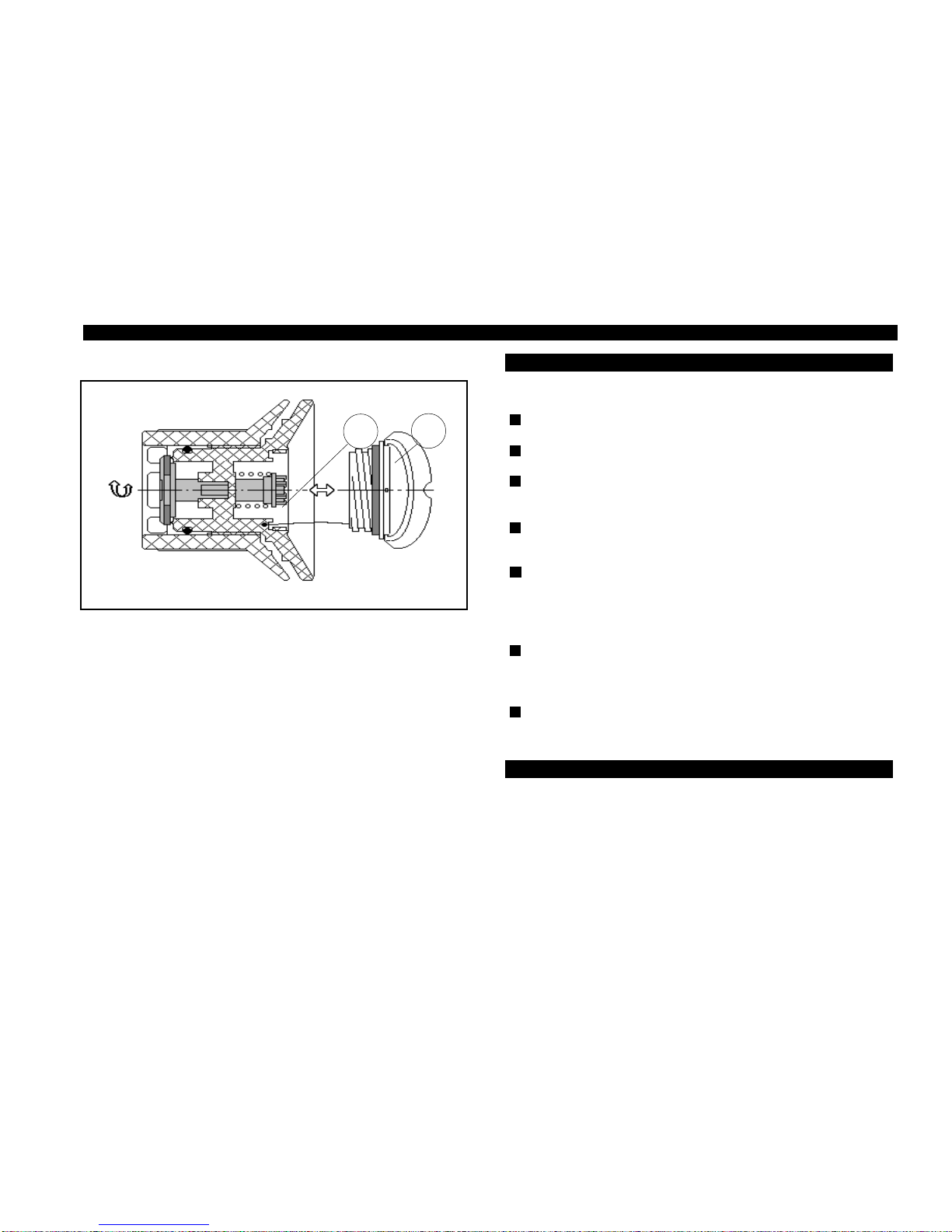

INFLATION / DEFLATION VALVES OPERATION
ThevalvehastwopositionsofslidingpartAcorrespondingtoitstwo
conditions (modes):
– sliding part A is withdrawn - operation condition of the valve
(compartment air filling mode)(see Fig.2);
– sliding part A is recessed - valve in condition "OPEN"
(compartment air discharge mode).
In order to switch the valve over from one condition to another, just
press sliding part A with your finger to turn it by 90 degrees in any
direction until it is fixed.
Prior to begin the compartment filling process set all valves in the
PREPARATIONFOREXPLOITATION
1. Unpack the boat and unfold the inflatable tube.
2. Set all valves in the operation condition (look below).
3. Insert the floor sections into the floor pocket.
4. Install the wooden seat. For that:
- insert the seat stops on the lower surface of the wooden
seats into the holes of the brackets on the tube,
- turn the stops caps to 90 degrees till they click as shown in the
figure (see Fig.1.).
Fig.1
ELFE210,E240,E270 UM90011
1
2
3
4

Avoid excessive increasing of pressure in the board,
especially from heating by the sun rays.
After exploitation take off sand and dirt from boat surface,
and carefully dry it.
Avoid the water getting into the chambers. If a fuel or an oil / gas
gets to the boat surface it is necessary to wash the soiling place by
soap water as soon as possible and dry.
Pay attention to the condition of bottom and seat surfaces. If
the coating is destroyed it is necessary to dry this element and
restore the defend ply.
After the season prepare the boat to winter keeping. Clean
boat surface from sand and dirt and make the necessary
repairs, if damages take place. If it is possible, keep the boat
in the open and slightly pumped state in air temperature 0-
25°C. The boat must be protected from the sun rays.
Insignificant boat repairing (eliminating the board punctures
or cuts) you may carry out by yourself. In this case use the
coated fabric patches from the complete set. Ask your dealer
for the correct type of glue you may use for the repair.
In case if sufficient damages of floor, tube body, partitions
or seams it is recommended to apply for professional repair
in authorised service station.
Dear user,
We thank your for your purchase and do hope that you will
have a great fun of it. However, to make your joy and
pleasure complete, we would request you to read carefully and
observethe directionsand recommendations specifiedbelow.
In order to discharge air from the compartments, open the valves
(bycounterclockwiserotation)andswitchthevalvesoverintocondition
"OPEN".
ATTENTION !
1. Boat exploitation with board pressure more than nominal
decreases boat service life.
2. Board air chambers are hermetical if they keep own form during
8 hours. In this case:
–primary pressure has to be nominal;
–input valves openings have to be tightly closed by plugs.
3. Until sailing satisfy oneself that drain opening on a transom is
closed by plag.
Main conditions of long service life is right and careful service.
AB
Fig.2
operating condition. On completion of filling close the valves with bonnets
B (rotate them clockwise).(Fig.2) MAITENANCE
OPERATINGREGULATIONS
ELFE210,E240,E270 UM90011
5

ITISSTRICTLYFORBIDDEN:
to handle the boat in the state of intoxication and without individual
rescue means being used (life-saving belts, jackets, etc.)
IT IS FORBIDDEN :
-to overload the boat above the design weight-carrying capacity;
-to use an outboard engine of power exceeding the maximum
allowable value;
-to use the boat with the wave height being above 0.5 m;
-to bring the tube pressure up to the value exceeding the rated
one ( 0.15 bar );
-to drag the boat across a rough surface.
Danger of usage of engine having insufficient or excessive
power
According to the safety regulations, each inflatable boat should be
furnished with an outboard engine having the maximum allowable
power. You will find the data on the maximum allowable power of the
engine on the manufacturer's plate with the designation of the model
type inscribed thereon. The plate is fixed in the afterbody of the boat.
However, your should choose the engine power within the allowable
range so as to ensure that you may safely reach the shore when
heading into the wind or into the current.
Observation of local shipping regulations
For each particular water area the local shipping regulations
are in force. You may apply for information to the appropriate
water transport and shipping directorate, as well as to the
water police.
Proper usage of boat equipment and accessories
Use the boat equipment and accessories only on their direct
purpose to ensure reliable service.
Availability of Oars
Even when sailing with an outboard engine you should
always have the oars available with you so that you were able
to reach the shore without outside assistance in case of any
damage to the boat.
Usage of emergency stop switch
On your request any outboard engine seller may provide your
engine with the emergency stop switch. During navigation the
switch should be connected to the wrist of your hand by means
ofacord.Incaseyou fall overboard, even if being asteersman,
the switch will cut out the engine and the propeller. This
arrangement will enable you to avoid any traumas and to reach
the boat.
Prevention of damages caused by electrolyte or fuel
leakages
Take all possible precautions against penetration of fuel or
electrolyte from the storage battery into the inflatable boat. If
it does happen wash thoroughly the fouled spots with water.
Cargo arrangement and stowing, attachment of items
and prevention of falling overboard
You should be always sure that the number of people on
board never exceeds that specified in the user's manual or on
the manufacturer's plate provided on the transom. The boat
will retain an adequate floatability and will not keel over only
provided that the load is arranged reasonably. Therefore,
do not accommodate all passengers on the same side of the
boat. Arrange the cargo to be carried uniformly inside the boat,
all items being reliable secured on the bottom of the boat. All
passengers should be accommodated inside the boat. The
occupied seats should not be left throughout the entire
sail ing time. When sailing with an outboard engine the
steersman should shift his body forward in the course of
acceleration to prevent the boat forebody from raising
under the force of upthrust waves.
Presence of sharp and pricking objects on board
Despitethe strongshellof the boatwe are recommended
to handle sharp and pricking objects being on board with
care.
ELFE210,E240,E270 UM90011
6

Forexample,itconcernsaknifeblade,fish-hookpoint,etc.
Rockyshore,mole,shoals(forexample,sandbanks,
coral reefs, rocks)
Approachrockyshores,shoals,moles,etc.carefullytoavoid
damagestotheboat.Itisstrictlyprohibitedtodragtheboat
acrossroughsurfaces(shingle,rocks,concrete,etc.).
Check at navigation
Incaseofprolongednavigationwiththeuseofanoutboard
engine, regularly check to ensure that the engine is
reliably attached to the boat. If the engine was attached
carelessly the attachment may work loose under the
action of vibration.
Besides,checkairchamberspressure atregularintervals,
since the pressure may vary under the effects of outside
air temperature and atmospheric pressure variations.
Never forget to monitor regularly the quantity of fuel in the
fuel tank. Keep always in mind that the quantity of fuel
shouldbesufficientforyouto sail to your final destination.
Availability of rescue means (life-saving jackets,
distress signals, spare parts)
If you are planning to go beyond the protected water
areas you should provide all passengers on board with
life-saving jackets. All passengers should put on life-
saving jackets under strong wind and heavy seaways
conditions. Those passengers who cannot swim should
always carry the life-saving jackets while on board! It is
also recommended to keep constantly distress signal
means on board.
Towing
At towing the towing rope length should not be at least 3
lengths of the boat, the rope being secured to both boats
in a manner ensuring its immediately, single-motion release.
ELFE210,E240,E270 UM90011
Damage to one of air chambers
Theinflatable boat is designedtoprovideanadequate stability
in case of the complete damage to one the air chambers
(balloon compartments) at the expense of the remaining air
chambers and wooden floor. Thanks to it, you will be able to
reach safely the nearest shore. Reduce the speed and shift
your body to the undamaged part of the boat. Watch changes
in stability. After this immediately head for the nearest shore.
To prevent penetration of water into the boat, pull the shell of
the damaged air chambers upwards.
Anchor and mooring fast fastening
Fix the anchor and towing ropes in the forebody of the boat to
the front towing ring. Fix the back spring on the transom via
special holes.
Danger of currents and wind
Before navigation of the boat in unfamiliar waters make detail
inquiries about local conditions and regulations! Currents,
wind, shoals, rising and falling tides, as well as weather
variations may imply serious danger!
In emergency stay in boat
In any unexpected situation (engine failure, boat damage,
etc.) do not ever leave the boat provided it is still afloat. Even
if you believe that the shore is just nearby stay in the boat,
since you will be looked for in this particular place and, most
probably, will be found. Should the boat become partially
flooded throw heavy objects (batteries, fuel tank, engine)
overboard to ensure additional floatability.
The "GRAND" Company employees would like to wish you a
pleasant and safe leisure time!
The steersman of the towed boat should be assisted by
another crew member to monitor the process of towing. In
thiscase,certaincommunicationgesturesshouldbeagreed
upon beforehand.
7

MODEL
SERIAL No.
Date of manufacture
Quality inspection stamp
inflatable boats
ELFE210,E240,E270 UM90011
