Elite Spas Platinum I User manual

Table Of Contents
Introduction
Important Safety Instructions
Choosing A Location
Power Requirements
Control System Diagram
Wiring Diagram
Specifications & Drawing
Electrical Wiring Instructions
Start-Up Instructions
Operating Instructions
Error Identification
Troubleshooting
Spa Care and Maintenance
Water Quality and Maintenance
Spa Care and Maintenance Record
Warranty
i
1-2
2
3-4
5
5a
5b
6
7-9
9-10
10
11-12
13-14
15-17
18-19
20
Page1
1 - 8 0 0 - 7 4 9 - 8 0 0 3
www.EliteSpas.com

Your choice of spa indicates that you are devoted to excellence. The manufacturerappreciates your patronage and takes
pride in the tradition of quality spas that our company represents.
In order to get the most out of your spa, we strongly suggest that you take time to read through this manual before you hook
up and operate your spa. This will acquaint you with the operating features, hook up procedures, maintenance, safety
procedures, ensuring an enjoyable experience right from the start. Manufacturerhas tried to anticipate all of your needs and
desires; however, if you need any addition information, feel free to call manufacturer.
WARNING!! This manual was written to ensure the proper use and installation your spa. Any modifications to the
procedures outlined in this manual may result in your warranty being voided. Please take the time to read this manual to
avoid any unnecessary problems with your brand new spa and equipment.
THIS MANUALAND ITS CONTENTS ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALTHOUGH WE HAVE
PREPARED THIS MANUALASACCURATEAND PRECISE AS POSSIBLE, WE WILLNOT BE LIABLE FOR LOSS,
INJURY OR DAMAGES CAUSED BYIMPROPER INSTALLATION OR USE OF SPA (IMPROPER OR OTHERWISE).
This Manual Covers The Following Model
Introduction
MANUFACTURE RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
Date Purchased:
Date Installed:
Dealer Name:
Spa Model and Serial Number:
i
Part # 7637
1 - 8 0 0 - 7 4 9 - 8 0 0 3
www.EliteSpas.com

When installing your spa and using this equipment, basic safety precautions should always be followed, to include the following:
!READ AND FOLLOW ALL INSTRUCTIONS! The following instructions are required by UL 1563 standard to be
printed as a condition of their listing this product. They contain important safety information we strongly urge you to read
and apply.
!DANGER - TO REDUCE THE RISK OF INJURY: Do not permit children to use spa unless they are closely supervised
at all times.
WARNING SIGN MUST BE POSTED
The WARNING sign (RED) above is packed with your new Elite Spa. This sign must be posted in a prominent place in close
proximity to the spa installation site immediately upon completion of spa installation.
!WARNING SIGN - It is extremely important that this sign be permanently placed in clear view of any persons using the
spa. Occasional spa users may not be aware of some of the dangers hot water poses to pregnant women, small children, and
people under the influence of alcohol. If you did not receive a warning sign or your sign has become damaged, please
contact your spa dealer or manufacturer.
!DANGER - Awire connector is provided on this unit to connect a minimum No. 8 AWG (8.4mm2) solid copper conductor
between unit and any metal equipment, metal inclosures of electrical equipment, metal water pipe, or conduit, if that item is
located within 5 feet (1.5m) of the unit.
!DANGER - RISK OF ACCIDENTAL DROWNING: Extreme Caution must be exercised at all times, to prevent
unauthorized access by children. To avoid accidents, ensure that children cannot use spa unless they are supervised at all
times. Cover spa and use safety locks to prevent accidents.
!DANGER - TO REDUCE THE RISK OF INJURY: The suction fittings in the spa are sized to match the specific water
flow created by the pump/pumps. Should the need arise to replace the suction fittings or the pump/pumps, be sure that the
flow rates are compatible.
!DANGER - RISK OF ELECTRICAL SHOCK: Install at least 5 feet (1.5m) from all metal surfaces. As an alternative, a
spa may be installed within 5 feet (1.5m) of metal surfaces if each metal surface is permanently connected by a minimum
No. 8 AWG (8.4mm2) solid copper conductor to the wire connector on the terminal box that is proved for this purpose. Do
not permit any electrical appliance, such as a light, telephone, radio or television within 5 feet (1.5m) of the spa, unless
factory installed.
!Position spa to provide proper drainage, accessibility of electrical compartments.
!For floor recessed spas, install to permit access for servicing from above or below floor.
!NEVER USE AN EXTENSION CORD!
!Consideration should be taken for water splash out. Water can ruin wood floors and some finishes.
!DO NOT use a wall switch, ground fault circuit interrupter, circuit breaker, fuse, or plugging and unplugging the spa as a
means of turning on or off your spa for normal everyday use.
!DO NOT block access door.
!Set the spa on a firm level (flat) surface. DO NOT set spa on blocks as structural damage may occur to spa.
!00
WARNING - To reduce the risk of injury. The water in a spa should never exceed 40 C (104 F). Water temperatures
0 0 0 0
between 38 C(100 F) and 40 C (104 F) are considered safe for a healthy adult. Lower water temperatures are
recommended for young children and when spa use exceeds 10 minutes.
IMPORTANT SAFETY INSTRUCTIONS
WARNINGWARNING
DURING PREGNANCY, SOAKING IN HOT TUB MAY CAUSE DAMAGE TO THE FETUS.
LIMIT USE TIME TO 10 MINUTES AT A TIME
DURING PREGNANCY, SOAKING IN HOT TUB MAY CAUSE DAMAGE TO THE FETUS.
LIMIT USE TIME TO 10 MINUTES AT A TIME
SPA HEAT SPEEDS UP EFFECTS
OF ALCOHOL., DRUGS OR MEDI-
CINE, AND CAN CAUSE UNCON-
SCIOUSNESS.
IMMEDIATELY LEAVE SPA IF
UNCOMFORTABLE OR SLEEPY.
SPA HEAT SPEEDS UP EFFECTS
OF ALCOHOL., DRUGS OR MEDI-
CINE, AND CAN CAUSE UNCON-
SCIOUSNESS.
IMMEDIATELY LEAVE SPA IF
UNCOMFORTABLE OR SLEEPY.
WATER ATTRACTS CHILDREN.
ALWAYS ATTACH A SPA COVER
AFTER EACH USE AND LOCK.
*ADDITIONAL COPIES MAY BE REQUESTED
CALL THE TOLL-FREE NUMBER IN YOUR
OWNERS MANUAL.
WATER ATTRACTS CHILDREN.
ALWAYS ATTACH A SPA COVER
AFTER EACH USE AND LOCK.
*ADDITIONAL COPIES MAY BE REQUESTED
CALL THE TOLL-FREE NUMBER IN YOUR
OWNERS MANUAL.
PREVENT DROWNINGPREVENT DROWNING PREVENT CHILD DROWNINGPREVENT CHILD DROWNING
1
C

!Since excessive water temperatures have a high potential for causing fetal damage during early pregnancy, pregnant or
00
possible pregnant women should limit water temperatures to 38 C (100 F). Before entering a spa, the user should test the
water temperature with an accurate thermometer. The tolerances of water temperature-regulating devices vary. The use of
alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning.
Persons suffering from obesity, medical history or heart disease, low/high blood pressure, circulatory system problems, or
diabetes, should consult a physician before using a spa. Persons using medication should consult a physician before using a
spa because some medications induce drowsiness while others may affect heart rate, blood pressure and circulation.
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. Adescription of the causes, symptoms, and effects of hyperthermia are
as follows:
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of
00
98.6 F (37 C). The symptoms of hyperthermia include drowsiness, lethargy, and an increase in the internal temperature of the body.
The effects of hyperthermia include.
!Unawareness of impending hazard;
!Failure to perceive heat;
!Failure to recognize the need to exit spa;
!Physical inability to exit spa;
!Fetal damage in pregnant women; and
!Unconsciousness and danger of drowning.
IMPORTANT: Because of the combined weight of the spa, water and users, it is extremely important that the base upon which the
spa rests be smooth, flat, level and capable of uniformly supporting this weight, without shifting or settling, for the entire time the spa
is in place. If the spa is placed on a surface which does not meet these requirements, damage to the skirt and/or the spa shell may
result. Damage caused by improper support is not covered under warranty. It is the responsibility of the spa owner to assure the
integrity of the support at all times. It is strongly recommended that a qualified licenced contractor prepare foundation for your spa.
Manufacturer recommends a poured, reinforced concrete slab with a minimum thickness of 4 inches (10cm). Wood decking is also
acceptable provided it is constructed so that it meets the requirements outlined above. The spa must be installed in such a manner as
to provide drainage away from the spa. Placing the spa in a depression without provisions for proper drainage could allow rain,
overflow and other casual water to flood the equipment and create a wet deck. Install so as to permit access to the equipment, either
from above or below, for servicing. Make certain that there are no obstructions which would prevent removal of the cabinet side
panels and access to the jets components, especially on the side with the equipment bay doors.
Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you take into consideration:
1. The proximity to changing area and shelter (especially in colder weather conditions).
2. The pathway to and from the spa (free of debris, dirt, leaves as not to be tracked into spa).
3. The closeness to trees and shrubbery (leaves and birds could create extra work).
4. Asheltered environment (less wind, weather exposure resulting in lowered operation and maintenance costs).
5. The overall enhancement of your environment. It is preferable not to place the spa under an unguttered roof overhang since run-off
water will shorten the life expectancy of spa cover.
Indoor Location
Be sure your spa will fit into the space you have chosen. Proper access into the home is needed to move the spa into place.
Ventilation may be needed because of the humidity from the spa. In most cases, a spa cover is sufficient. Be sure to check the load
carrying capabilities of the floor you will be installing your spa, as most homes meet the requirement of 80lbs per square foot
(manufacturer not responsible). Insure you have proper drainage in the event of a leak or water spill due to over load of spa with
people causing water damage (manufacturer not responsible.) Encase of maintenance problems, leave enough room around the spa to
work. Choose proper flooring area for spa.
IMPORTANT SAFETY INSTRUCTIONS
CHOOSING A LOCATION
2

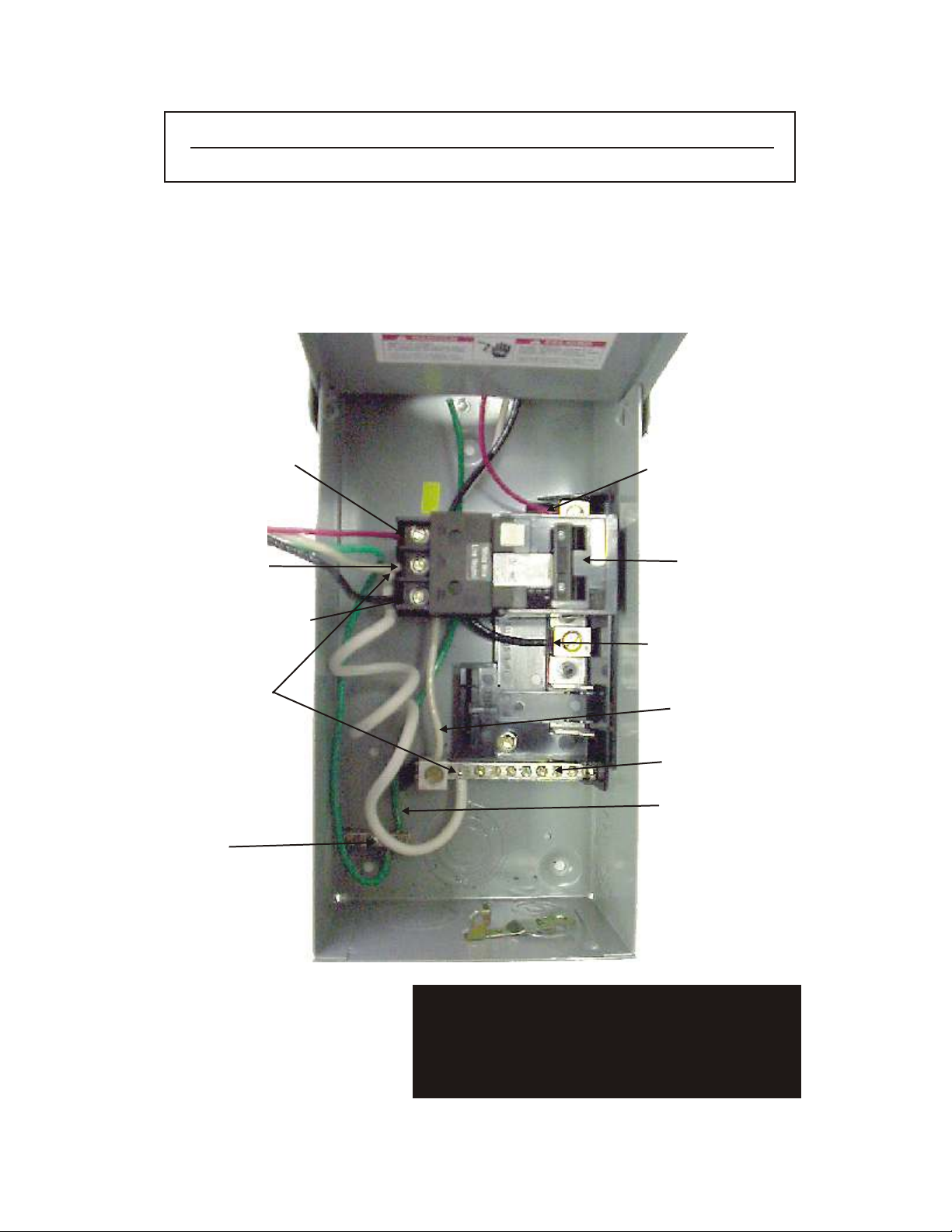

POWER REQUIREMENTS
MODEL
PLATINUM
VOLTS
240 AMPS 60
AMP
LOAD
48 MARKING
3 Wire #6 + Grd 3 APPLICATION HYDROQUIP CS6230C
Load 120 Volts (Black)
To Spa
Load 120 Volts (Red)
To Spa
Load Neutral (White)
To Spa
IMPORTANT
6 Gauge Copper Wire Must
Be Used
Pig Tail (White)
From GFCI Breaker
Going To Neutral
Bar In Box
Ground (Green) To Spa
Ground Bar
Attached To Box
(Green) Input & Out
From House To Box (Red)
Input
From House To Box (Black)
Input
Load Neutral Bar
From House To Box Neutral
(White) Input
Ground (Green)
Input
BREAKER BOX
G.F.C.I. Breaker
NOTE: The White Neutral Wire from the GFCI
MUST be connected to an incoming Line Neutral.
The internal mechanism of the GFCI requires
this Neutral connection. The GFCI WILL NOT
WORK WITHOUT IT.
WARNING - ALWAYS USEA CERTIFIED ELECTRICIANWHEN HOOKING UPYOUR NEW SPA.
3
Fig. 1

ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
NEUTRAL/GROUND
BAR
INPUTS FROM
TRANSFORMER
HOT
AHOT B
HOT
BLK
HOT
RED
WHT
GRN
GROUND
WHT (NEUTRAL)
RED (HOT)
BLK
(HOT)
GRN (GROUND)
WHT (NEUTRAL)
FROM PANEL NEUTRAL
(GFCI PIGTAIL TO LOAD POST)
G.F.C.I.
SIEMENS
1
2
SPA
120V/240V LOAD
See Page 6
G.F.C.I. HOOK-UP
CONDUIT
CONDUIT
PIGTAIL
CIRCUIT
BREAKER
PANEL
SUB PANEL
Ground GR
POWER REQUIREMENTS
An illustration showing the proper electrical connections for 240 volt service has been provided for you. Be sure
to follow these and all other instructions carefully. Be sure that all connections are tight before switching on the
circuit breaker.
CAUTION! Failure to abide by specification listed may result in damage to equipment and may void the
warranty. IF THE SPA IS WIRED INCORRECTLY, YOUR WARRANTY WILLBE VOID ON ANY
BURNED OUT ELECTRICAL EQUIPMENT.
G.F.C.I (Ground Fault Circuit Interrupter)
IMPORTANT
This service must be single phase. High voltage can seriously injure or kill. Always use a certified
electrician when hooking up your new spa.
The National Electrical Code states that a service disconnect breaker box (a G.F.C.I. can be used for this
purpose) must be located at least 5 feet away from the spa and should be conveniently located near the
equipment bay. If it is not in plain sight, keep the disconnect padlocked when in the off position.
Remember, high voltage is still accessible in the housebreaker box even though you have turned off the spa
breaker.
4
Neutral N
Red L2
Black L1
Fig. 2
CS6230S Controller
Power Terminal

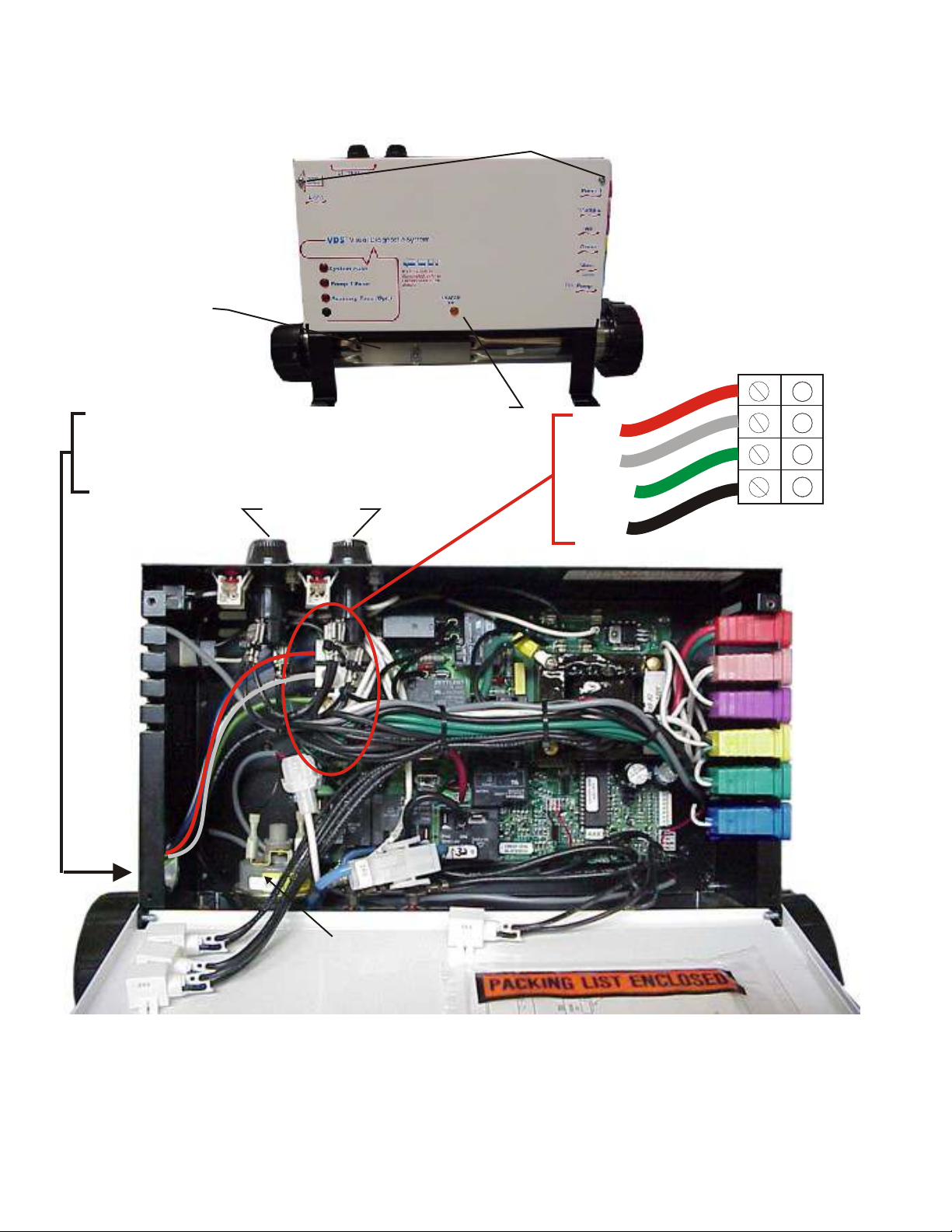

CS6230C Control Equipment Pack System Wiring Directions
Remove 2 screws from cover panel
figure 1 and open carefully.
Route the electrical wires through
conduit of the equipment pack and
attach wires as shown in figure 2 to
proper connectors.
Red L2
White N
Green GR
Black L1
Conector
Pressure
Switch
Fuses - SC-25
Fig. 4
Panel Screws
Pump 1
Pump 2
Air Jets
Ozone
Aux
Heater
Indicator Light
CONTROL SYSTEM DIAGRAM
Heater
WARNING: FILL THE SPA WITH WATER BEFORE TURNINGON THE POWER.
Once your spa has been filled with water, turn it on and test all of the circuit breakers.
5
Circ Pump
Fig. 3

WIRING DIAGRAM
5a

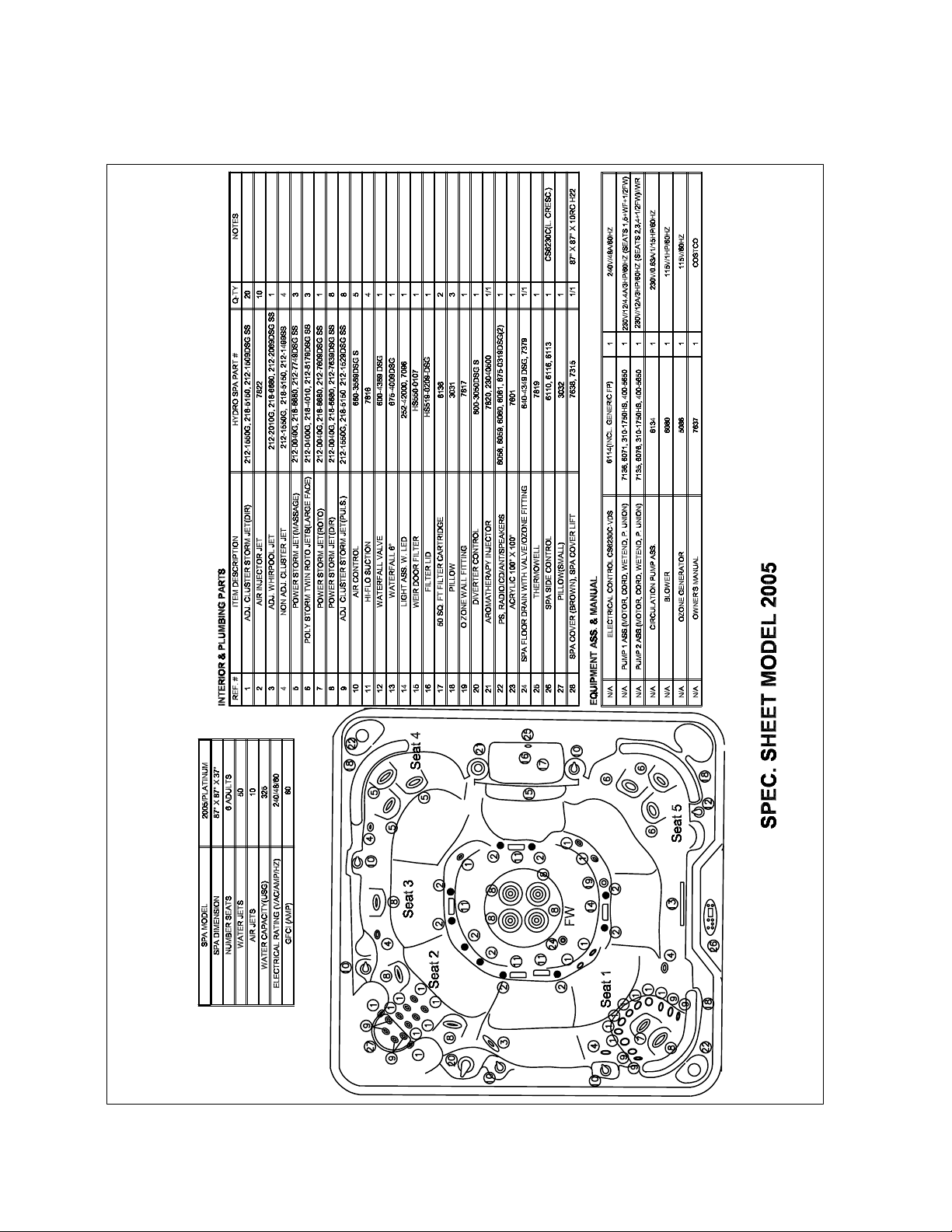

SPEC SHEET
5b

IMPORTANT NOTICE: The electrical wiring of this spa must meet the requirements of the National Electrical Code (NEC)
and any applicable state or local codes. The electrical circuit must be installed by a qualified electrician and approved by a local
building/electrical inspection authority.
1. This spa must be permanently connected (hard-wired) to the power supply. No plug-in connections or extension cords are to be used
in conjunction with the operation of this spa. Supplying power to the spa which is not in accordance with these instructions will
void both the independent testing agency listing and the manufacturer’s warranty.
2. The power supplied to this spa must be a dedicated circuit with no other appliances or lights sharing the power provided by the
circuit.
3. To determine the current and voltage and wire size required, refer to section “Power Requirements” (Pages 3,4).
Wire size must be appropriate per NEC and/or local codes.
We recommend type THHN wire
All wiring must be copper to ensure proper connections. Do not use aluminum wire.
When using wire larger than #6 (10mm2), add a junction box near the spa and reduce to short lengths of #6 (10mm2) wire to
connect to spa.
4. The electrical supply for this product must include a suitably rated circuit breaker to open all ungrounded supply conductors to
comply with Section 422-20 of the National Electrical Code., ANSI/NFPA 70. The disconnecting means shall be accessible, located
within sight from spa equipment, and shall be located at least 5 ft (1.52m) horizontally from the inside walls of the spa.
5. The electrical circuit supplied for the spa must include a suitable ground fault circuit interrupter (GFCI) as required by NEC Article
680-42.
6. To gain access to the spa’s power terminal block, remove the screws and cabinet panel on the side of the spa under control panel,
then remove the two screws from the control pack.
7. Acable inlet (grommet) is located on the left side of the spa cabinet approximately 4” - 6” from the from of the spa. Feed the power
supply cable through a cable inlet and conduit on the left side of the control box.
8. Connect wires, color to color, on terminal block. TIGHTEN SECURELY! All wires must be hooked up securely or damage
could result.
9. Secure the control box door panel with 2 screws , then re-install the cabinet panel under the control panel. Electrical installation is
now completed.
ELECTRICAL WIRINGINSTRUCTIONS
Fig. 5
Cabinet Panel
Control Electrical
Pack
Light
Spa Cabinet
6
Slide Valves
Radio-CD
Power Cable
Inlet
Control Panel
Drain On-Off Valve

START-UP INSTRUCTIONS
FILLING THE SPA
Clear all debris from inside the spa. At the factory your spa shell was cleaned and polished, but you may want to treat it with a
specially formulated spa cleaner available by phone [phone]. Make sure the spa has been installed correctly, including
electrical wiring connections as specified in the wiring diagram, and the spa is level.
Do Not Over Fill. Never fill your spa with water from a water softener, or use hot water while filling. Ensure that your spa drain is
shut off. Remove your filter lid. Place your garden hose into the filter housing and begin filling with clean water. Continue filling spa
until the water level is 2 inches above the highest water jet. Remember every person entering a spa displaces a given volume of water,
so adjust water level to number of people who will be entering spa. If your water is extremely “hard”, it is preferable to fill half-
way with hard water and the rest of the way with softened water. Or, you may fill the entire spa with hard water if you use a special
water additive available by phone [phone].
Always refill spa through one filter housing to purge any trapped air from pump intakes. Failure to do so may cause air to be trapped
in the circulation pumps intake creating an air lock, preventing pump from circulating water. Ensure both slide valves are fully open
see figure 5 (page 6 ). Make sure filter cartridge is clean before installing. See “Cleaning the Filter” for specific cleaning procedures
(see page 13 ).
Fig. 6
7
Fig. 7
Weir Door Filter
Control Panel
Waterfall
Speaker
Speaker
Air Control
Air Control
Waterfall
Control
Aromatherapy
Diverter Valve
Led Light
Dual Cartridge Filters
Pillow
Pillow
Pillow
Pillow
Air Control Filter Lid

Safety Check
Open the cabinet access door panel and check all pump unions to make sure they are hand tight. Loosening can occur during shipping
and handling. Check Slide valves and insure both are open fully, otherwise the circulation pump will not function. Fig. 5.
Turn on Power
Turn on power to spa at the circuit breaker box. The heater, circulation pump, and ozone generator will automatically activate.
Initiating Water Circulation
Depress JETS 1 topside pad on the control panel once to activate pump #1 in low speed and initiate water flow to certain jets, depress
pad second time and initiate maximum water flow.
Depress Jets 2 and Blower Pads on the control panel to activate pumps 2 and blower.
Add Start-Up Chemicals
Add the spa water chemicals as recommended. Refer to Water Quality and Maintenance.
Place Cover On Spa
Keep the insulating cover in place anytime the spa is not in use. It will reduce the time required for heating, thereby minimizing
operating cost. The time required for initial heat-up will vary depending on the starting water temperature and the capacity of your
spa. Your spa heats about 3 to 5 degrees per hour. Lock cover with safety locks when not in use.
WARNING: RISK OF INJURY. Always check water temperature carefully before entering spa.
Control Panel
Elite Spas are equipped with a main control panel, located on the side of the spa as show above (Figure 8). The main control panel
controls all of the spa functions, and uses indicator lights and an integrated LED display to aid in determining the status of the spa
Default System Operations: When power is applied, or there is a temporary lost of power, the system will initiate its default
programming. The 24 hour circulation pump and ozone generator will automatically activate. The anti stagnation cycle will begin
24-hous after the system has been powered up. The anti stagnation cycle will be active for 2-hours, and will repeat every 12-hours
The temperature will be maintained at 100 degrees F. On some spas default setting can be different. All these are user
programmable.
Pump 1 Jets 1: Press this key once to turn Pump 1 onto Low speed, press this key a second time to turn Jets 1 onto High
speed, a third press will turn the pump off. Abuilt-in timer will shut the pump off after 20 minutes of operation unless done so
manually. The Jets 1 Icon will appear while the pump is running in High speed and flash while it is in Low speed. If theAC icon
appears, an anti stagnation cycle has begun and you will not be able to turn the pump off.
Pump 2 Jets 2: Press this key once to turn Jets 2 on. Asecond press will turn it off. Abuilt-in timer will shut the pump off
after 20 minutes of operation unless done so manually. The Jets 2 Icon will appear while the pump is running in High speed.
START-UP INSTRUCTIONS

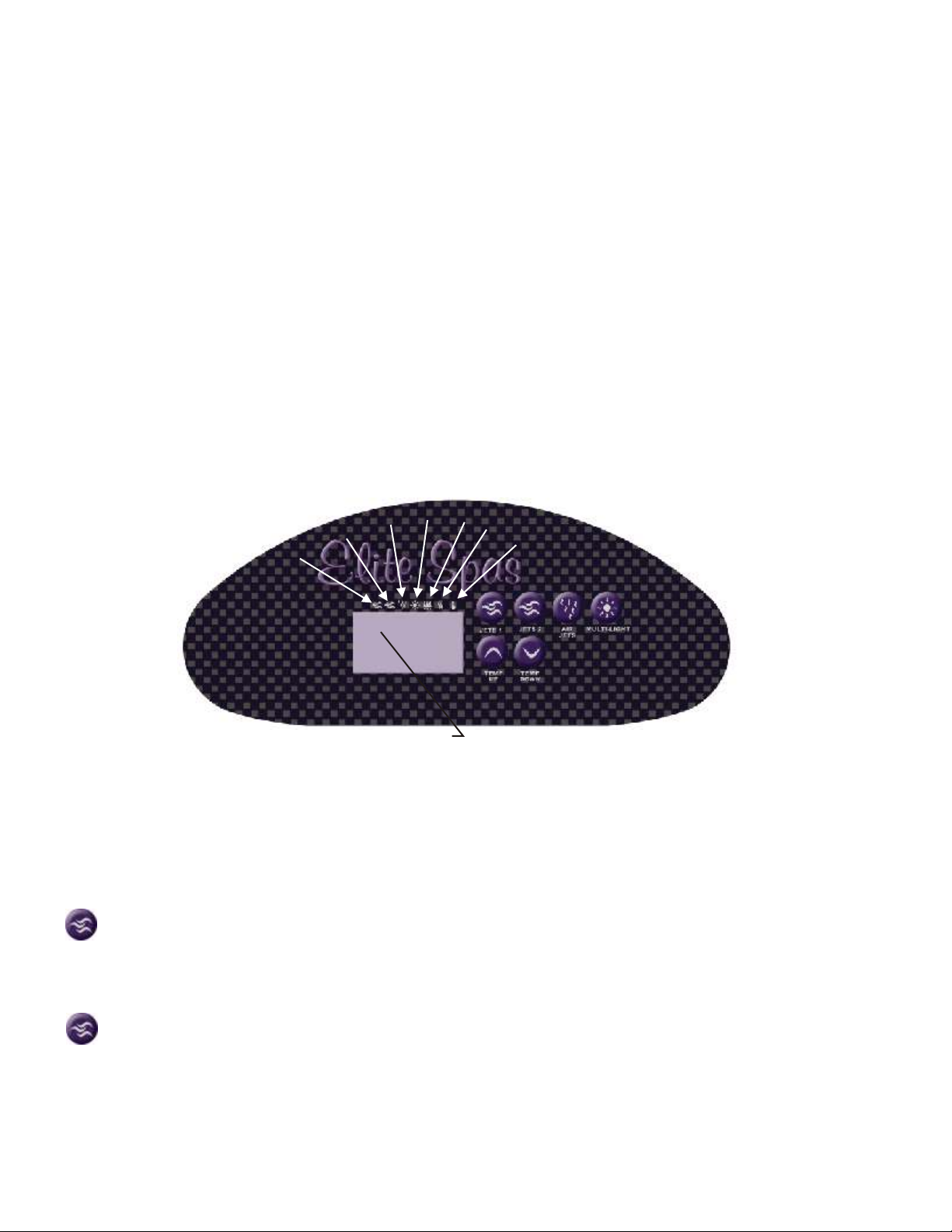

Control Panel Display
Main Control Panel
8
Fig. 8
Jets 1
Jets 2 Air Jets Heater
Light AC
Temp Set

Light Key: Press this key to turn the light on. ASecond press will turn the Light off. Spa Light is preprogrammed with
assortment of lighting effects. When you turn Light off and turn on within 5 seconds it advances to the next effect. When you turn
Light off the more than 5 seconds, it remembers that last effect you selected. The next time you turn on Light display same effect.
The Light will automatically shut off after 2 hours. The Light Icon will appear while the light is on.
Temperature Set Keys: Press the UpArrow key to increase the desired temperature. Press the Down Arrow key to
decrease the temperature. The temperature can be adjusted in 1 degree F increments from 59 degree F to 104 degree F (5 degree C to
40 degree C). The new setting will remain on the display for 5 seconds as a confirmation. During this time the Set Point icon will be
appear to let you know this is the desired and not the actual temperature. After 5 seconds the display will return to the current
temperature reading. When the temperature drops to 1 degree F below the set temperature, the heater will be turned on until the
temperature is 1 degree F above the set temperature. The heater icon will appear while the heater is on and flash when there is a call
for heat and the heater has not yet been activated.
START-UP INSTRUCTIONS
PROGRAMMINGANTI STAGNATION CYCLE
Your controls have been designed to provide best spa water quality, maximum convenience as well as economy of operation. A 24
hour circulation pump with ozone generator provide efficient, continuous spa water filtration, oxidation and sanitation. An anti
stagnation system including both pumps and blower improve even more the spa water quality providing intensive water moving in
spa, plumbing and air lines to prevent water stagnation. It is very important in cases the user seldom use the spa. The anti stagnation
cycle (AC) consists of starting Jet 2, Air Jets for 1 minute to purge water and air lines. Then Jet 1 is turned on in low speed and will
run for remainder of the AC. Low speed pump operation helps the water from becoming stagnant and improves filter skimming action
to remove debris and suspensions from the water surface, minimizing the “bathtub ring” effect.
AC frequency setting. To set frequency press and hold Jets 1 Key for 5 seconds. Use the temperature keys to setAC frequency (1,2
or 3 times a day). To save the data press the Jets 1 Key within 5 seconds after adjustment. If the Jets 1 Key is pressed second time
with in 5 seconds after adjustment the data will be saved and AC will start immediately. If the key is not pressed the data will be
saved and AC will start 12 hours later. (Default setting is twice per day).
AC duration setting. To set duration press and hold Light Key for 5 seconds. Use the temperature keys to setAC duration.(60,
120,180,480 minutes). To save the data press the Light Key within 5 seconds after adjustment. If the Light key is pressed second
time with 5 seconds after adjustment the data will saved and AC will start immediately. If the key is not pressed the data will save and
AC will start 12 hours later. (Default setting is 120 minutes). On some spas, default setting can be different.
9
Air Jets Key. Press this key to turn blower on. ASecond press will turn blower off. Blower will run for 20 minutes once
you press the blower key unless you turn it off by pressing the blower key a second time. Blower can be used to cool the spa.
Setting the water temperature
The spa's thermostat provides optimum control of water temperature. The temperature setpoint can be adjusted from 59F(15C) to
104F(40C). To raise the set temperature press the Up button.To lower the set temperature, press the Down button. Set point will be
displayed for 5 seconds. Default setting is 100F.
Activate Pumps, Blower
The Jets1, Jets2 button activates the functions of pump1(two speed) and Pump 2(single speed). By pressing Jets1 will activate pump 1
in low speed, the second press activates high speed, and third press shuts the pump off. The Jets2 button controls jets pump 2 which
only operates in high speed. Both pumps have a twenty minute default when manually activated.
The Air Jets button activatesAir blower. Blower has twenty minute default when activated manually.
Light Button. The Light button activates the spa LED Light when pressed. The Light has a two hour default.
Selecting Desired Massage Action
Your spa is equipped to allow you to customize the massage action you desire.The diverter valve allows you to customize the
massage action and performance by diverting water between various jets systems. Simply turn the diverter to divert water pressure to
various jet groups as desired pressure
Adjusting Individual jet flow
The water flow to the individual jets in your spa can be increased or decreased by rotating the outside jetface.
OPERATING INSTRUCTIONS

Waterfall Feature
The waterfall feature allows you to independently control it for customized soothing effect. The Jets1 button activates the waterfall
feature. Waterfall flow can be adjusted rotating on-off valve located near main control panel of spa.
Air Control
Certain jet systems have their own air control valve. Each control introduces air into the water lines that supply that specific jet group.
Simply rotate Air control clockwise to close and rotate counterclockwise to open. To minimize heat loss, all air controls should be
closed when the spa is not use.
Audio System
Spa equipped with audio system offer enhanced spa enjoyment. This model include a high quality AM/FM/CD stereo receiver with
two high quality speakers for unsurpassed sound quality and long life.
Two speakers located on spa corners and designed for manual exposure and retraction. To expose each speaker for audio playback,
simply press download on each enclosure to unlatch it's pop-up mechanism, then release. To retract each speaker before covering spa,
gently press downward on each enclosure you will feel a slight “click”, then release.
Caution: Never step or sit on speaker enclosure. Always retract speakers prior to covering spa.
For details see Stereo Receiver Operational Manual for Users.

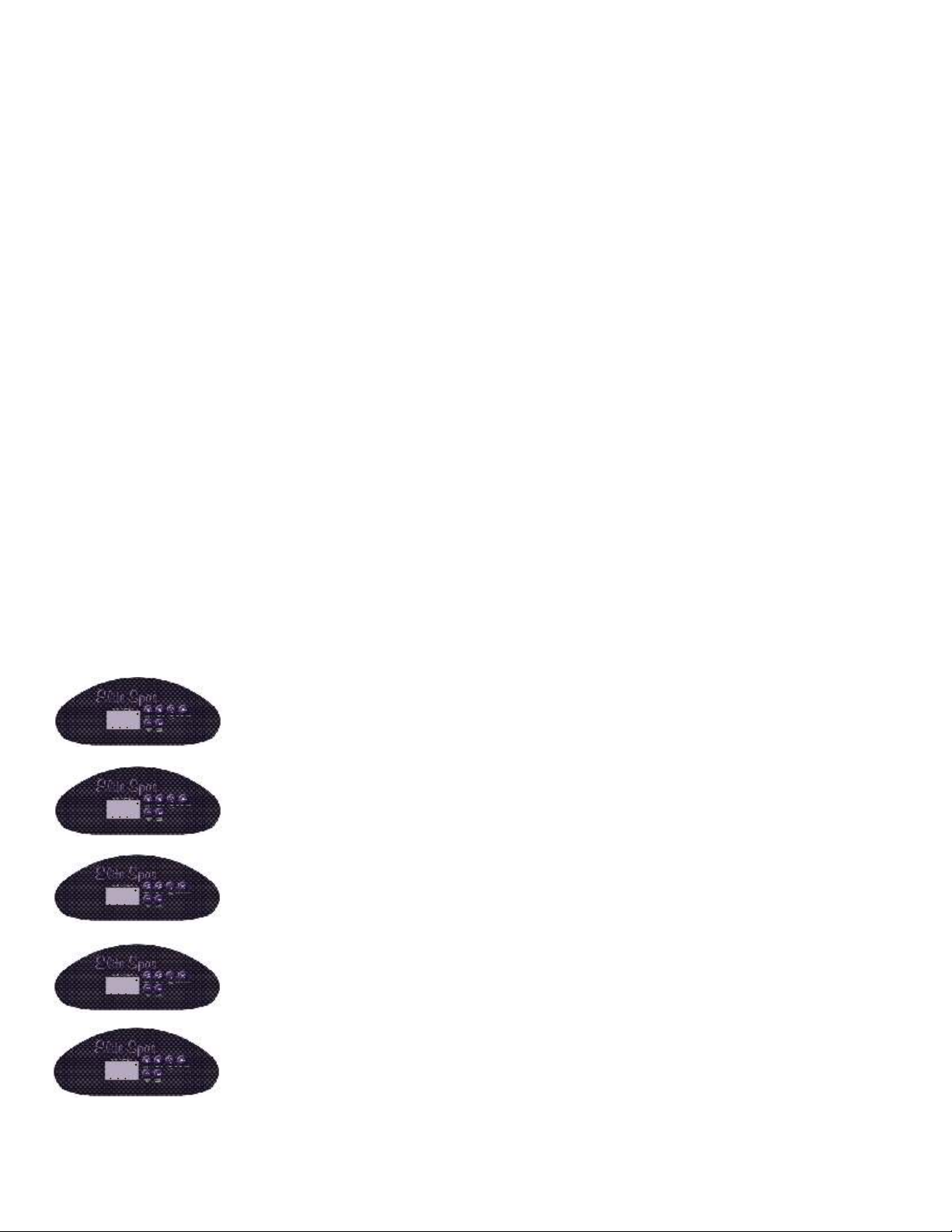

ERROR IDENTIFICATION
Three Flashing Dots with Pump Off
Pressure or Flow Switch Activated: If 3 flashing dots appear below the temperature display while there is
no pump operating, turn the pump on. If the 3 flashing dots went away this indicates that the pressure or
flow switch was activated although there was no water flow. (Contact manufacturer).
Three Flashing Dots with Pump On
Pressure or Flow Switch Not Activated: If 3 flashing dots appear below the temperature display while the
pump(s) is operating, turn the pump(s) off. If the 3 flashing dots went away this indicates that the pressure
or flow switch was not activated although there was water flow. Note: A dirty filter limiting the water
flow will also cause this error message to appear. (Contact manufacturer).
104104
104104
If the display shows a constant 32 degree F or 125 degree F and this is not the actual temperature or the
displayed temperature greatly differs from the actual spa water temperature, a problem with the water
temperature sensor has occurred. (Contact manufacturer).
High Temperature
If 3 flashing dots appear in the spa side display and the system detected the water temperature in spa
(temperature sensor located in dry well in the spa) 112F or higher the system will shut off the heater and
all other outputs will be disabled until the water temperature drops below 110F.
If 3 flashing dots appear in the spa side display and High-Limit LED indicator is illuminated on the
system circuit board, an overheat condition has been detected. It is not safe to enter the spa until the
error has been corrected. The pumps, blower and other outputs will stay active. Power must be cycled
off then back on for system to reset this error.
3232
119119
112112
10
OPERATING INSTRUCTIONS
Freeze Protection
The system is constantly monitoring the temperature of the water and ambient temperature. If inboard sensor registers an ambient
temperature below 41F the systems “Smart Winter Mode” will activate. This mode once activated, will continue for minimum period
24 hours. The system will activate any pumps connected to the system. All pumps starting for one minute at various intervals based on
the ambient temperature under the spa skirt.
During the “Smart Winter Mode” theAC indicator will flash while the pumps are running in this mode.

TROUBLESHOOTING
Nothing Operates
Main Breaker is Off - Set to On.
Sub-Panel Breaker Off - Set to On.
Equipment GFCI Off - Set to On.
Power switch in Off position - Set to On
Over or High Temperature Protection On - Refer to Error Identification (HighTemperature)
System Fuse Indicator Illuminated
Replace system fuse
If power to electrical pack is OK (check L1 & L2 power using power test switch) - Replace circuit board or pack
No, Low Or Surging WaterFlow
Air Lock in Plumbing System - “Bleed” the system.
Restricted Flow - Insure that the water slide valves are open and that suction fittings are not blocked by debris.
Dirty Filter - Clean or replace filters.
Low Water Level - Increase water level to recommended level.
No Circulation Pump
Water temperature is 4 degrees above set point - Remove spa cover. If the water temperature cools down 1 degree above set point the
circulation pump resumes operation.
Circulation pump blue cord lighted and water temperature is ok. Replace circulation pump or circ. pump blue cord.
Circulation pump blue cord not lighted and water temperature is ok. Replace electrical pack.
No Pump 1
Pump 1 cord not plugged into receptacle - Plug pump 1 into red receptacle.
Pump 1 fuse indicator illuminated - Replace Pump 1 fuse and resume normal operation.
Pump 1 red plug not lighted - Replace Circuit board.
Pump 1 red plug lighted - Replace Pump 1 or Pump 1 cord.
No Pump 2
Pump 2 cord not plugged into receptacle - Plug pump 2 into pink receptacle.
Aux. fuse indicator illuminated - Replace Aux. fuse and resume normal operation.
Pump 2 pink plug not lighted - Replace Circuit board.
Pump 2 pink plug lighted - Replace Pump 2 or Pump 2 cord.
No Air Blower Operation
Blower cord not plugged into receptacle - Plug Blower into purple receptacle
Aux. fuse indicator illuminated - Replace Aux. fuse.
Blower purple plug not lit - Replace Circuit Board.
Blower purple plug lit - Replace blower or blower cord.
No Therapy Jet Operation
Jets Not Properly Adjusted -Adjust Jets properly.
Thermal Overload Tripping - Check for restricted flow of water.
Over or High Temperature error - Off-On power to reset.
Water Leaks
Spa Overfilled - Adjust water level.
Too Many People in the Spa -Adjust water level.
Drain-Valve Left Open - Close drain valve.
Couplings or Unions Loose - Tighten or contact your local dealer, or manufacturer.
Plumbing / Connections Leaking - Contact manufacturer.
Water inAir Blower Plumbing - Contact manufacturer.
11

No Heat
Temperature Not Set Correctly -Adjust Set Point.
Over temperature error.- Off - On power to reset.
Current Limiting Jumper Is On - LC System (jumper 1 on CB is in right side pos on board.) Will not heat if High Speed or Blower is
on. Contact manufacturer.
No Power - Reset breaker at service panel.
Low Water Flow - Clean or Replace filters(s).
Pressure switch is open - Replace pressure switch with correct setting 1.5 psi.
Low Water level -Add water to spa.
Over Heat
Temperature Sensor Not in Dry-Well - Place sensor in dry-well.
Temperature Set Too High - Adjust Set Point.
High Ambient Temperature - Remove spa cover.
GFCI Trips Occasionally
Lightning or Electrical Storm, Power Surge, Extremely Humid Conditions, or Radio Frequency Interference - Reset GFCI.
NOTE: GFCI must be properly grounded and bonded.
GFCI Trips Immediately
Defective Component - Contact a qualified service technician or manufacturer for assistance.
Spa Side Control Malfunction
Spa side control cord not plugged - Plug spa side control into system circuit board.
System fuse indicator illuminated - Replace System fuse or replace spa side control.
No Ozone (Ozone generator follows the circulation pump.)
Ozone generator yellow cord not lighted (Circ. Pump on) - Replace electrical pack.
Ozone generator is off and circulation pump is on. Yellow cord lighted - Replace ozone generator.
Spa side control display show a constant 32F or 125F- Check temperature sensor connection to board. If problem is not resolved
replace the temperature sensor.
TROUBLESHOOTING
12

SPA CAREAND MAINTENANCE
Draining and Refilling Your spa
WARNING!
To prevent damage to spa's components, turn off power before draining it. Do not turn the power back on until your spa has been
refilled.
To gain access to the spa drain valve, remove the cabinet panel on the side of the spa under the control panel. Fig. 5
Select a safe suitable drainage capable of safely assimilating 325Gallons of water which may contain both unsanitary contaminants
and chemical residue that could cause harm to plants and grass.
Locate the drain valve on left side of control box.
Remove the front cap to expose underlying male hose threads.
Attach garden hose to exposed threads.
Gently rotate valve body 1/3 turn counterclockwise to unlock drain valve
Pull the valve body outward to open drain.
After spa drains, perform all steps in reverse order to close drain prior to refilling spa. After refilling spa turn on power to spa and
follow the steps under “Start Up Instruction”. Always fill your spa through both filter wall fittings.
Filter cleaning and Cartridge Replacement. Turn power off before cleaning filter cartridges.
The Filter cartridges should be checked periodically. In normal use, check them at least once a month. Keep them clean.An obstructed
filter cartridges reduce water quality and inhibit proper system performance.
Removable filter cartridges are located inside the filter well. To remove them lift the filter lid, then rotate each filter cartridge
counterclockwise to unthread from mating wall fitting.
Remove both cartridges from filter well.
Use a garden hose with straight flow nozzle to wash down the filter element. Work from the top down, holding the nozzle at 45 degree
angle, and wash all the pleats with emphasis between pleats.
Rinse until all dirt and debris is gone.
Replacement cartridges may be purchased by phone [phone]. Part # 6136.
Filter Elements
Care Of The Exterior
Spa Shell
Your spa shell is made of acrylic. Stains and dirt generally will not adhere to the surface. Using a soft rag or a nylon scrubber should
easily remove most dirt. Most household chemicals are harmful to your spa’s shell. See your dealer for the best product to use. The
only products which have passed the manufacturer’s test are Soft Towel and Windex. Sodium bicarbonate (baking soda) can also be
used for minor surface cleaning. Always thoroughly rinse off any spa shell cleaning agent with fresh water.
NOTES: Iron and copper in the water can stain the spa shell if allowed to go unchecked. Ask your Hydro Spa dealer about a stain
and scale inhibitor to use if your spa water has a high concentration of dissolved minerals.
The use of alcohol or any household cleaners other than those listed to clean the spa shell surface is NOT recommended. DO NOT
use any cleaning products containing abrasives or solvents since they may damage the shell surface. NEVER USE HARSH
CHEMICALS! Damage to the shell by the use of harsh chemicals is not covered under the warranty.
IMPORTANT: Some surface cleaners contain eye and skin irritants. Keep all cleaners out of the reach of children and use care when
applying.
Maintenance Free Cabinet
The Elite Spa consists of a rigid polymer that combines the durability of plastic with the beauty of a redwood looking cabinet. The
cabinet will not crack, peel, blister or delaminate. Cleaning consists of simply spraying the cabinet with a mild soap and water
solution to remove any stains and residue.
Pillow care
Remove and clean the headrest pillows as needed with soapy water using a cloth or soft-bristle brush. Always remove the pillows
when adding chemical shock treatment to the spa water. The pillows can be returned to the spa when sanitizer reading drops below
5ppm. Never attempt to remove the pillows by pulling on them. Grasp pillow with finger tips and gently pry outward from spa shell.
13

SPA CAREAND MAINTENANCE
SPA CAREAND MAINTENANCE
To clean and condition the vinyl cover:
!Remove the cover from the spa and gently lean it up against a wall or fence.
!Using a garden hose, spray the cover to loosen and rinse away any dirt or debris.
!Using a sponge and/or a soft bristle brush, and using a very mild soap solution (one teaspoon dishwashing liquid with
two gallons of water), or baking soda (sodium bicarbonate), scrub the vinyl top in a circular motion. Do not let the vinyl
dry with a soap film on it before it can be rinsed clean.
!Scrub the cover’s perimeter and side flaps. Rinse clean with water.
!Rinse off the underside of the cover with water only (use no soap), and wipe it clean with a dry rag.
!To condition the cover after cleaning, apply a thin film of vinyl cleaner to the surface and buff to a high luster.
!DO NOT walk or stand on top of cover (unless you own a “walk-on-cover”.
!DO remove snow buildup to avoid breakage of the foam core from the additional weight of the snow.
!DO lock cover locking straps to secure the cover when the spa is not in use.
!DO NOT drag or lift the spa cover using either of the flaps, or the cover lock straps.
Care Of Spa Cover
Important reminders:
Vacation Care Of Spa
Following these instructions to ensure that the water quality of your spa is maintained:
For Short Periods (3 to 5 days)
Adjust the pH
Sanitize the water
Lock cover for safety
For Long Periods (5 to 14 days) 0
Set temperature to its lowest level approximate water temperature of 80 F.
Adjust the pH
Sanitize the water
Lock cover for safety
Return Procedures
Sanitize the water following shock procedures
Return water temperature to original setting
Insure chlorine level had dropped below 5.0 ppm
NOTE: If you plan on not using your spa for periods exceeding 14 days, you may ask a family member or neighbor to assist with
your spa maintenance, and if not available you will need to drain or winterize spa.
Winterizing Your Spa
During the cold weather you may not wish to use your spa outside. In this case you may move it to a heated area, or leave it until the
weather warms up.
WARNING: Allowing your spa water to freeze will cause severe damage to the spa shell, equipment, and plumbing and WILL
VOID WARRANTY.
The following steps should protect your spa from freezing:
!Disconnect the spa from the power supply.
!Remove the screws holding your spa excess panel door.
!Open the valve, open the pumps plugs, and the spa will drain by gravity flow.
!Remove the filter cartridge, then clean and store in a dry place.
!Attach a wet/dry shop vac (capable of blowing air as well as vacuuming) into the filter housing.
!Turn blower on and allow it to blow out any water remaining in the plumbing lines. (Should take no more than 5
minutes).
!Reinstall the filter housing.
!Use the shop vac to remove water inside spa blown through jets.
!Use a shop vac and clean towel and remove any remaining water from bottom of spa until dry.
!Leave the drain open.
!Close the spa cover and fasten with tie down safety locks.
14

WATER QUALITYAND MAINTENANCE
Water Quality InYour Spa
The quality of the water in your spa is important and must be kept clean. Your program will vary depending on your water’s mineral
content, and how often you use your spa, and the amount of people using it.
Here are our suggested step-by-step procedures:
General Information - The three fundamental areas of water maintenance.
* Water Filtration * Chemical Balance/pH Control * Water Sanitation
Water sanitation is the owners responsibility of maintaining clean quality water in your spa, and is achieved through the regular and
periodic (daily), if necessary addition of an approved sanitizer. The sanitizer will chemically control the bacteria and viruses present
in the fill water or introduced during the use of the spa. Bacteria and viruses can grow quickly in undersanitized spa water.
The water’s chemical balance and pH control are also your responsibility. You will have to add chemicals to maintain proper levels of
TotalAlkalinity (TA), Calcium Hardness (CH) and pH. Proper water balance and pH control will minimize scale buildup and
corrosion of metals, extend the life of the spa, and allow the sanitizer to work at maximum efficiency.
Methods For Testing Spa Water
Accurate water testing and analysis are an important part of effectively maintaining your spa water. You must have the ability to test
for:
!Total Alkalinity (TA)
!pH
!Calcium Hardness (CH)
!Sanitizer
Two types of testing methods are recognized and recommended:
!Reagent Test Kitis a method which provides a high level of accuracy. They come in either liquid or tablet form.
!Test Strips are a convenient testing method used by many spa owners. Keep in mind that test strips are susceptible to
heat and moisture.
Basic Chemical Safety
When using chemicals, always read the labels carefully and follow directions. Though chemicals protect you and your spa when used
correctly, they can be hazardous in concentrated form. Observe the following guidelines:
!Allow only a responsible person to handle spa chemicals KEEP OUT OFTHE REACH OF CHILDREN.
!Accurately measure the exact quantities specified, never more. Do not overdose your spa.
!Handle all containers with care. Store in a cool, dry well ventilated place.
!Always keep chemical containers closed when not in use. Replace caps on their proper containers.
!Don’t inhale fumes, or allow chemicals to come in contact with your eyes, nose, or mouth. Wash your hands
immediately afer each use.
!Follow the emergency advice on the product label in case of accidental contact, or if the chemical is swallowed. Call a
doctor or the local Poison Control Center. If a doctor is needed, take the product container along with you so that the
substance can be identified.
!Don’t let chemicals get on surrounding surfaces or landscaping. Rinse off with fresh water if spilled.
!Never smoke around chemicals. Some of the fumes can be highly flammable.
!Don’t store chemicals in the spa equipment compartment.
Adding Spa Chemicals:
!Fold back the spa cover. Carefully remove and set aside the filter lid.
!Push the JETS1 button to turn on the pump 1 to provide high water flow.
!Carefully measure the recommended amount of chemical and slowly pour it into the filter compartment. Use care not to
splash chemicals on your hands, eyes, or on the spa shell surface or cabinet.
!Replace filter lid and run spa for 10 minutes on high speed. Re-install spa cover.
IMPORTANT: Super Cholorination/Non-Chlorine Shock Treatment - NOTE: After administering a super chlorination treatment or
non-chlorine shock to your spa, leave the cover open for a minimum of 20 minutes to allow the oxidizer gas to vent. Ahigh
concentration of trapped oxidizer gas which may exist as a result of the shock treatment (not daily sanitation) may eventually cause
discoloration or vinyl degradation to the bottom of the cover. This type of damage is considered chemical abuse and is not covered
under the terms of the limited warranty of the spa cover. 15
