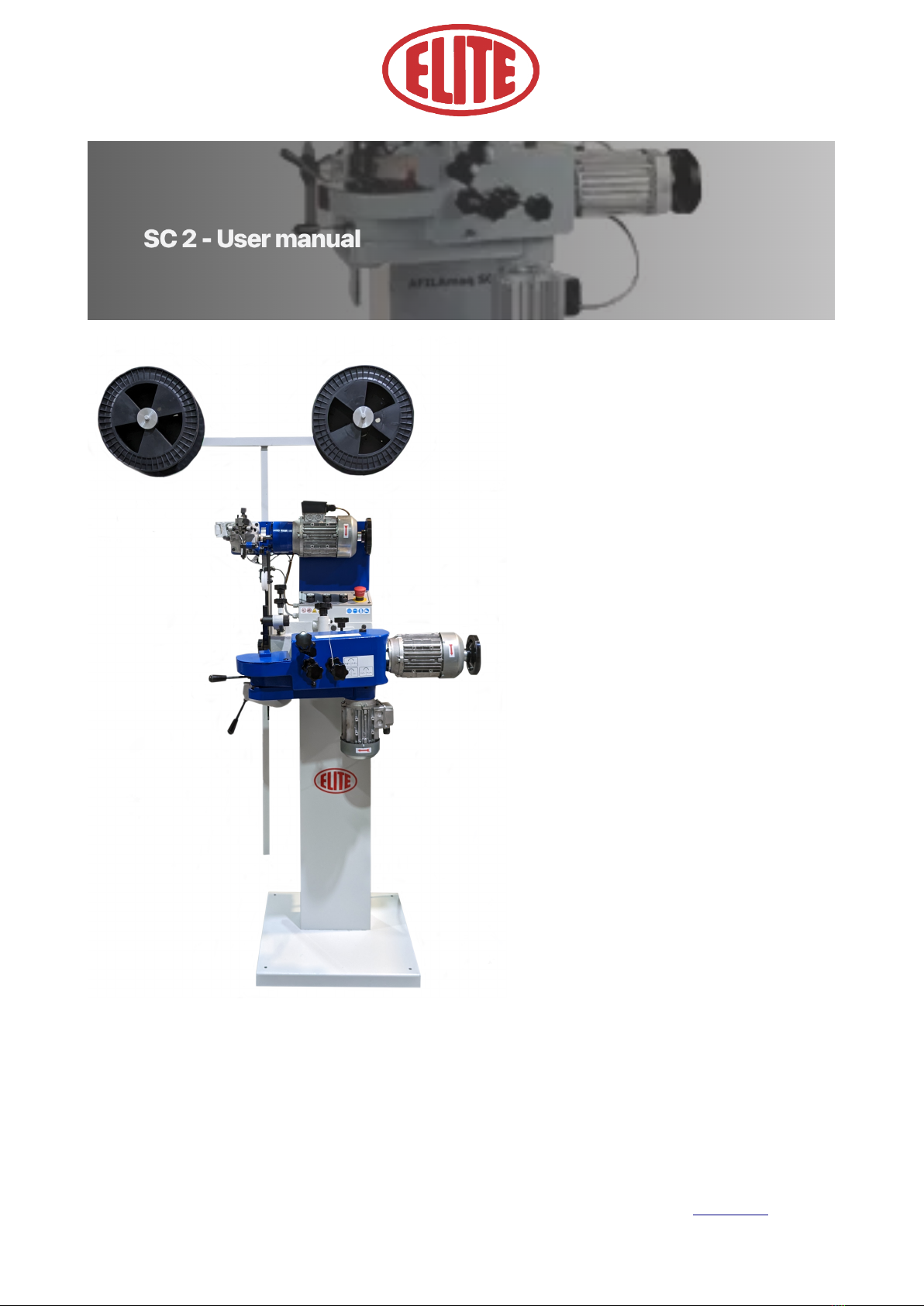

Elite SC-2 User manual

Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]
ELITE SC 2
User manual
Version(March(2023

THIS PAGE IS NOT WRITTENINTENTIONALLY
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

1.FIRST STEPS
Congratulations on your purchase of the ELITE model SC 2 bandsaw and circular saws sharpening
machine.
Read this guide before you start.
The SC 2 is a bandsaws and circular saw blade automatic sharpening machine with low maintenan-
ce. For straight tooth and spaced straight tooth sharpening and setting in band saws from 10 up to
70 mm wide (0,4" to 2-3/4")
It also allows to sharpen steel or CV circular saw blades from 110 up to 600 mm (4-1/3" to 25,5")
This manual introduces you to the main functions of the grinder in order to avoid risks to your he-
alth or that may cause a breakdown or premature wear of the machine.
In case of any doubt, please contact us or one of our authorized distributors.
Informative Note: The use described in the manual of this circular saw blade sharpening machine
described therein may present some variations in use as our machinery is subject to possible cons-
truction modifications, depending on the incorporation of technological advances in our sharpening
equipment.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

2.SAFETY
2.1.Safety regulations
Carefully observe and apply the following safety rules, not respecting these rules may cause perso-
nal injury or damage to the machine itself.
The installation and maintenance of the machine described in this manual must be carried out only
by operators who are familiar with its operation and have sufficient technical knowledge.
The ELITE sharpening machines of the SC 2 model range have been designed for the sharpening of
band and circular saw excluding any other type of operation.
DANGER HIGH VOLTAGE
DANGER OF ACCIDENT
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

DANGER DUE TO SPARK PROJECTION
WEAR PROTECTIVE SHOES
DANGER FROM SHARP TOOLS
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

USE HEARING PROTECTORS
These warnings do not include all possible risks that improper use of the machine could cause. For
this reason, the operator must proceed with prudence and observing the rules.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

2.2.Use and storage of the instruction manual
This instruction manual must be read and understood by all personnel who come into contact with
the machine.
This manual is for:
• Indicate the correct use of the machine according to the type of work to be carried out.
• Provide the necessary instructions for the transport, adjustment and maintenance of the
machine.
• Facilitate the ordering of spare parts and information of risks.
Limits of use of the manual:
The machine is intended for professional use and therefore the experience of the operator is requi-
red and of vital importance.
Importance and conservation of the manual:
This manual must be considered part of the machine and must therefore be attached to it until the
end of its use.
Additional information and clarifications:
The user, owner or maintenance person can contact the manufacturer to request any additional in-
formation on the use of the machine and possible modalities for maintenance and repair interventi-
on.
Expiration of responsibility:
The manufacturer is considered exempt from any liability in the event of:
• Improper use of the machine
• Use of the machine by untrained persons
• Serious failures in scheduled maintenance
• Unauthorized interventions or modifications
• Use of non-original spare parts.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

THIS PAGE IS NOT WRITTENINTENTIONALLY
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

2.3.Declaration of conformity
The company hereby Elite Sharpening Machines, SLU
C/Joan Oró, 27
ES-08635 Sant Esteve Sesrovires
declares that the product indicated below, based on its conception and construction, as well as the
version put on the market by our company, complies with the mandatory basic health and safety re-
quirements of the CE directive.
This declaration loses its validity in the event of unauthorized modifications to the product.
Product name: ELITE model SC 2
Product type: Automatic band and circular saws sharpening machine
Serial No.: ___________________
EC Directive Competences:
• EC Machinery Directive (2006/42/EC)
• European directive on electromagnetic compatibility (2014/30/EU)
• The protection purposes of the CE low voltage directive (2006/95/CE) were fulfilled
according to annex I, nr. 1.5.1 of the machinery directive 2006/42/EC
The technical documentation was compiled by Legal representative of the documentation:
Sergi Valls Gramunt
Joan Oró, 27
ES-08635 Sant Esteve Sesrovires
Date / manufacturer - Signature: ___________________
Signatory data: Sergi Valls Gramunt, manager
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

THIS PAGE IS NOT WRITTENINTENTIONALLY
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

3.TECHNICAL DATA
In the following information table, find the list of technical specifications of the sharpening machine
described in this manual.
TECHNICAL DATA
ELITE SC 2
Band saw width
From 10 to 70 mm. (0.39" to 2.75")
Band saw thickness
From 0.5 to 1.5 mm. (0.019" to 0.06")
Tooth pitch
From 5 to 30 mm. (0.19" to 1.18")
Tooth profile
Straight and spaced straight
Working speed
54 teeth/minute. Optionally available with electronic speed regulator
from 10 to 60 teeth/minute.
Grinding wheel RPM
Aprox. 3000 RPM
Grinding wheel motor
0.55 kW
Saw blade diameter
From 110 to 600 mm. (4.3" to 23.6")
AVAILABLE VERSIONS
Model
Packing Size
Weight
SC 2
810 x 920 x 1560 mm.
130 Kg.
SC 2 + TR 2 setting
810 x 920 x 1560 mm.
150 Kg.
SC 2 + TR 3 setting
810 x 920 x 1560 mm.
180 Kg.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

4.TRANSPORT
The SC 2 is delivered packed in a wooden crate.
During all transport and transfer, the machine must be kept in its original vertical position, any vari-
ation in this position may lead to the loss of the guarantee.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]
Machine model
Dimensions (cm)
Gross weight (kg)
SC 2
100x80x172
141,5

4.1.Instructions for unpacking and setting up
Take special care when lifting the load: The load may not be centered!
To lift or move the load, use a forklift with blades long enough to support the machine, taking into
account the width and depth of the machine for the calculation of the weights to lift.
Once the packaging has been opened, remove the fixing stops from the feet of the machine
Once the machine is moved to its final working destination, you must fix the machine to the floor by
means of the 4 screws placed in the machine base stand.
If this is not done, there is a high risk to dump the machine and to cause serious injuries to the per-
sonnel and machine itself.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

Back side description
• W Ring for transporting the machine without packing
• Z Housing of height adjustable rod for rolls
• X Main switch (yellow - red)
For unpacking, remove the frontal panel and the wooden blocking pieces. On the back side there is
a ring (W) for transporting the machine. The shape of the machine itself guarantees sufficient stabi-
lity. The base of the machine has four holes, so that it can be fixed to the floor. We therefore advice
you to constrain the machine to the floor using expansion bolts.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

Insert the rod with the rolls in its vertical place (Z) on the back side of the machine. Move the rolls
so that they can keep in place the ring of the blade during setting and sharpening operations. Block
the lower end of the support using the bolts that you can find in the housing. Each roll is used for a
specific operation.
The roll for SETTING must be positioned 3-4 cm. from the horizontal rod. The roll for SHARPE-
NING must be positioned 15-20 cm from the horizontal rod.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

5.INSTALLATION
5.1.Machine placement
Before any work make sure that the machine is well aligned and does not oscillate at any of its
ends, in which case it must be wedged to avoid movements. For its correct level it is necessary to
use a leveling tool. This check must be carried out both longitudinally and transversally.
Poorly leveling the machine can cause unwanted vibrations
and premature wear of the linear guides.
WARNING: The machine must not be used under any circumstances by unqualified or
unauthorized personnel.
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

5.2.Electrical connection
DANGER HIGH VOLTAGE!
The electrical connection of the machine must be carried out by qualified technical personnel only
at the voltage indicated in the machine order / machine identification plate.
For any doubt about the voltage, consult the manufacturer before the connection.
Any claim for an incorrect connection will be out of warranty.

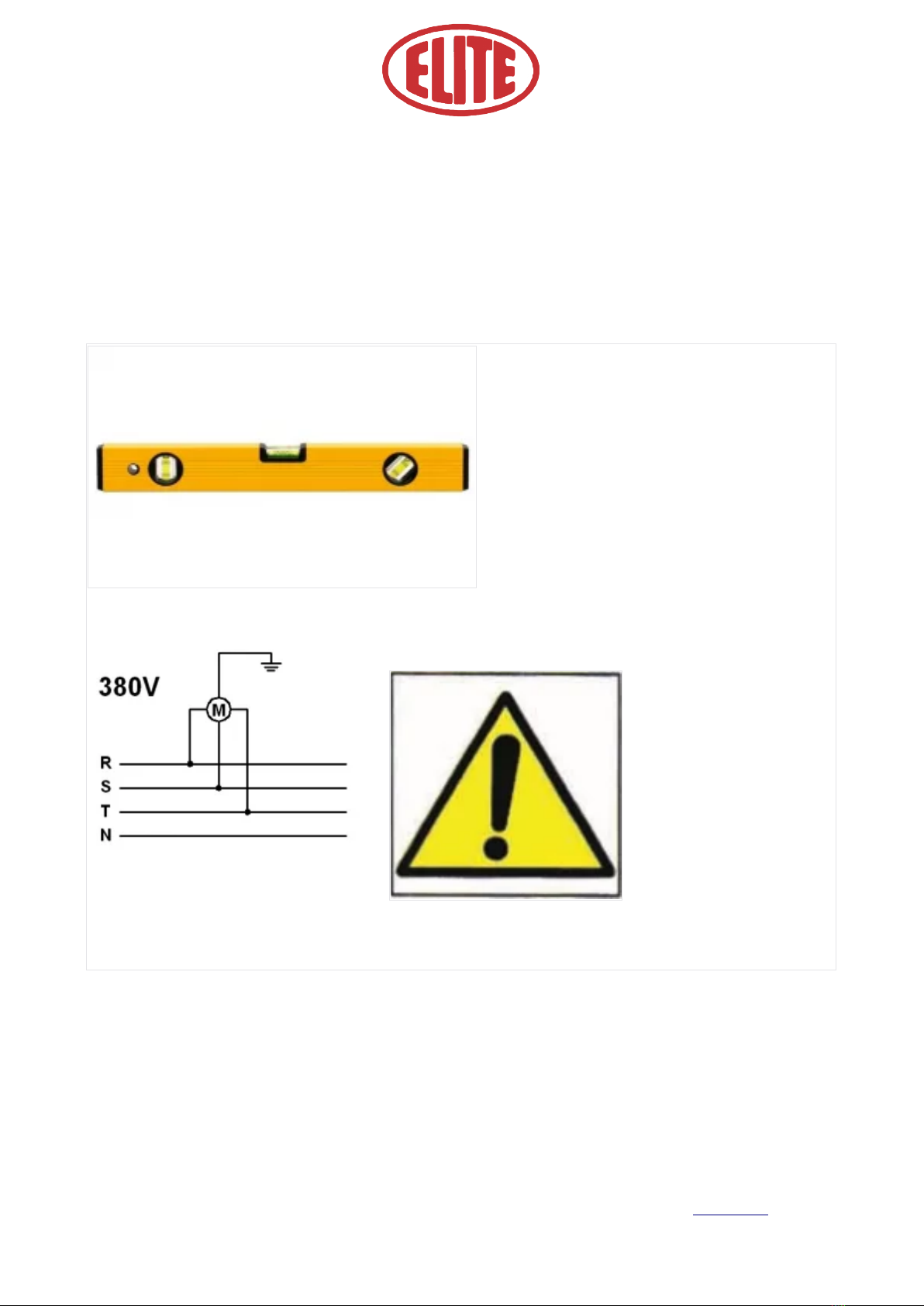

The machine is equipped with plug CE and must be connected with a three-phase network**
(380V): this is written on the label on the back side of the machine.
Only the earth cable can be connected with the yellow-green cable in the middle (earthing).
Note:
• The machine can work also with 220V three-phase. In this case you must modify the confi-
guration of the clamp set. This change can be demanded at the moment of the order.
• On request, the machine can be prearranged for being connected with a single-phase
network (220V).
**We do not assume any responsability in case of a wrong electric connection that may cause not
only a bad performance of the machine, but also damages to people, animals, things. **
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

5.3.Main components of the machine

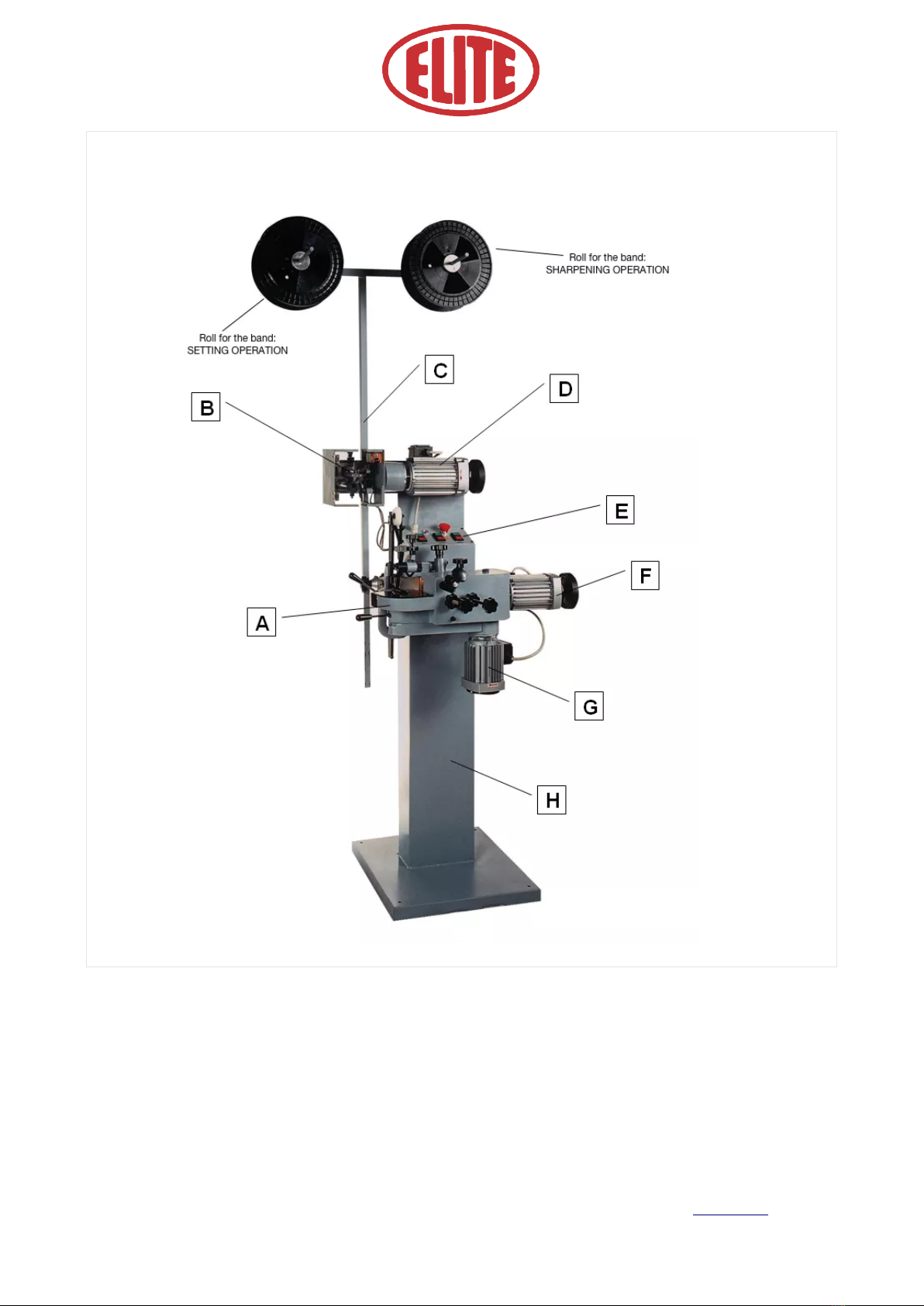

1. Grinder unit
2. Setter unit
3. Rod of rolls for bandsaw
4. Motor and reduction unit of setting machine
5. Switchboard
6. Driving motor of grinder unit
7. Motor for grinder rotation
8. Base
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

5.4.Control panel
Buttons description:
• o: Button START / STOP grinder rotation motor
• p: Lamp
• q: Emergency button
• r: Button START/ STOP feed of grinder unit blade
• s: Button START / STOP setter motor
Joan Oró, 27 Pol. Ind. Sesrovires- St. Esteve Sesrovires, BCN, España– [phone] – [email protected]

For more updated information and helpful videos on how to operate the
machine, check our website www.elite.es
