Manual Tab-Tension Pro Series –H type
Manual Pull-Down Indoor/Outdoor Projector Screen
User’s Guide –V1.0
Thank you for choosing the Manual Tab-Tension Pro projection screen! This tab-tensioned manual screen utilizes
our CineWhite®front projection material which performs best in a light controlled room environment. It has earned
the renowned ISF Certification for accurate color reproduction in a dark room.
Compatible with Ultra, Short, and Standard Throw projectors.
Product Description: The Manual Tab-Tension Pro screen is a retractable pull-down projector screen for wall,
ceiling, and suspended installations for indoor use. Due it its IP65 rating it can also be installed outdoors to bring
media room quality to your outdoor spaces. Its sleek aluminum casing beautifully accessorizes your backyard, patio,
pool deck or anywhere a gathering for evening movie time is appropriate.
Please be sure to read the precautions and operating instructions carefully before operating the screen.
Proper maintenance and handling will ensure a longer lifespan of the product.
Outdoor Projection Screen Disclaimer
Never leave your projection screen out and exposed to direct sunlight. Regardless of screen brand, prolonged
exposure to the sun’s ultraviolet radiation degrades the chemical bonds causing the material to eventually
decompose. Photo degradation first causes the material to lose its theater-grade reflective qualities. Eventually
nature will destroy even synthetic materials. For this reason, the Manual Tab-Tension Pro has a retractable design
that allows the material to be drawn up into its protective casing to be shielded from solar radiation.
Care & Use Instructions
Dust, dirt, andscratcheson the projection surface will affect the picture quality, please take note of the points
below to prevent that from occurring:
1. Do not touch the projection surface with your hands.
2. Do not write or draw on the projection surface.
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
When the screen is operated, it may cause slight waves on the left/right black masking border ends. If this
happens, open the screen to its full extent (not passed the STOP point) to allow the material to smooth out for
a few hours.
To avoid damage and injury, the screen should only be operated by adults.

V09232022DT (DS0223) www.eliteproav.com 2
Note: Wall screws included with this product are complementary andmay not be adequate for all mounting surfaces.
Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on the
viewing surface will not cause the screen case to become loose or fall. The installer must ensure that proper
mounting hardware and the fasteners used are of adequate strength and suitable for the mounting surface.
Installation Instructions
Please consult a professional installer, Elite ProAV®is not liable for faulty installations.
Flush Mount to the Wall
1. Mark the location of where the screen is to be installed, drill your holes and insert the M10 Anchors (B).
2. Install the Mounting Brackets (A) to the wall and secure with the M4x50 Screws (B).
Anchor
Hardware Parts List for Manual Tab-Tension Pro Series
A. Mounting
Bracket x2 pcs
B. M10 Anchor and
M4x50 Screw x4 pcs
C. M10 Anchor and
M5x50 Screw x1 pc
D. Suspended Ceiling Bracket
Connector
x2 pcs
E. M5x15 Screw &
Bolt x4 pcs
Mounting bracket
Clamp Slot 1
M4x50 Screw
Mounting Bracket
Clamp Slot 2
Mounting bracket
Wall
M10 Anchor

V09232022DT (DS0223) www.eliteproav.com 3
Clamp
Slot B
Ceiling
Mounting
Brackets (A)
M4x50 Screw (B)
M10 Anchor (B)
Housing Back
Clamp Slot B
Mounting
Bracket
Clamp Slot B
Screen Housing

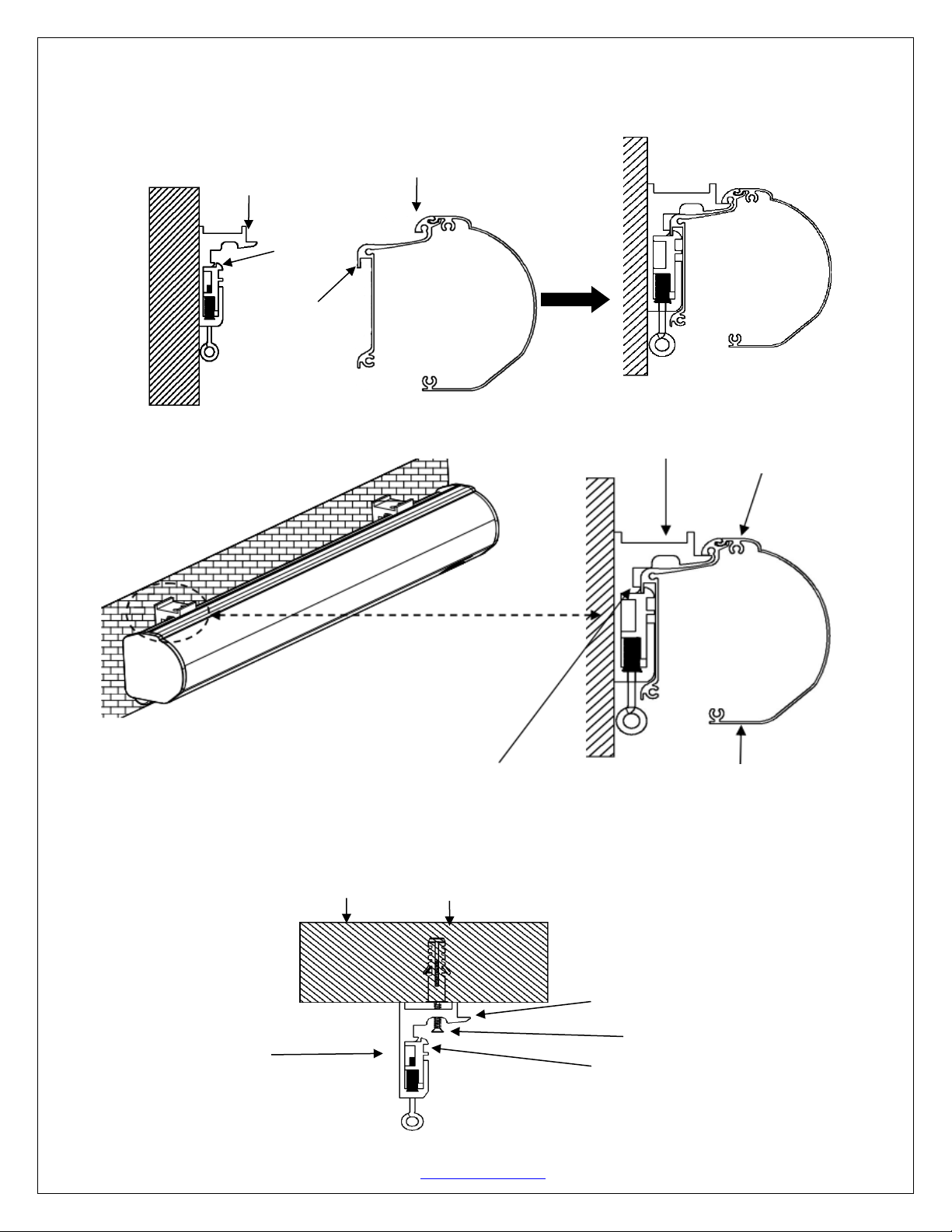

3. Insert the and attach the Top Housing Clamp Slot A to Clamp Slot A, then secure it by pushing and
clicking it in the Back Housing Clamp Slot B to Clamp Slot B. Make sure the case slots are securely
attached to the mounting brackets.
Ceiling installation
1. Mark the location of where the screen is to be installed, drill your holes and insert the M10 Anchors (B).
2. Install the Mounting Brackets (A) to the ceiling and secure with the M4x50 Screws (B).
Clamp Slot A
Top Housing
Clamp Slot A
Top Housing
Clamp Slot A
Mounting bracket
Clamp Slot 1
Mounting bracket
Clamp Slot 2

V09232022DT (DS0223) www.eliteproav.com 4
Back Housing
Clamp Slot B
3. Insert the and attach the Top Housing Clamp Slot A to Clamp Slot A, then secure it by pushing and
clicking it in the Back Housing Clamp Slot B to Clamp Slot B. Make sure the case slots are securely
attached to the mounting brackets.
Suspended Ceiling using Chains (User-supplied)
1. You can also hang the screen on a ceiling by using chains (not included).
2. Connect the Suspended Ceiling Bracket Connector (D) to the Mounting Bracket (A) and secure with
the M5x15 Screws & Bolts (E).
3. Insert chains (not included) through the loopholes of the Suspended Ceiling Bracket Connector (D).
Clamping
Slot B
Suspended Ceiling Bracket
Connector (D) Loopholes
Clamp
Slot B
Top Housing Clamp
Slot A
M5x15 Screws &
Bolt (E)
Suspended Ceiling Bracket
Connector (D)
Mounting Bracket (A)
M5x15 Screws
&Bolt (E)
Clamp
Slot A

V09232022DT (DS0223) www.eliteproav.com 5
Screen removal from the Mounting Brackets
Pull down on the Mounting Bracket Retaining Ring and remove the bottom case away from the wall/ceiling
followed by the top of the case.
Screen Operation
CAUTION: Do not let go of the handle when retracting the screen to avoid damage from slamming up.
Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to touch the
screen case when the screen goes up or comes down to avoid damaging the screen material’s projection surface.
1. Pull the screen down from the lanyard or the handle only in a 90-
degree angle. NEVER attempt to pull the screen down by the
surface or touch the screen, as it will damage the screenand void
the warranty. Pull straight down and allow the screen to come up to
lock into the desired position.
DO NOT try to pull the screen beyond the STOP label position, as
this may cause the screen material to come off the roller.
2. To retract the screen, simply pull the screen downward from the
handle or lanyard more than 2 inches (5cm) and retract the screen back
releasing it up gently. DO NOT let go of the handle until fully retracted in the housing.
NOTE: If the screen does not unlock, carefully pull the screen straight down with a little force. Always pull the
screen down at a 90-degree angle.
ATTENTION: Always retract the screen when no longer use, to avoid the screen material from deforming.
STOP
Retaining Ring
Follow the direction of the arrow to remove wall/ceiling
Correct
Incorrect
TIP: Pull the screen material down to its full extent (not passed the
stop label) to ensure maximum flatness.

V09232022DT (DS0223) www.eliteproav.com 6
Securing the weight bar location
1. Pull the screen down until you have reached the desired location.
(Suggestion: Ensure that the surface is flat)
2. Mark the drill-hole area of where the screw is to be installed, then retract the screen.
3. Drill the hole and insert an M10 Anchor (C),secure it with a M5x50 Screw (C). Allow a 1-inch gap between
the wall and screw head to allow room for the weight bar and pull handle to release freely.
4. Pull the screen down and secure it to the screw location.
5. Make any adjustments if there are any deviations.
Note: Remove the screw when not in use any longer to avoid an accident.
For more information, technical support or your local Elite ProAV®Screens
contact, please visit www.eliteproav.com
Minimum 1-inch clearance required
Mark the drill-hole area
