EliteProAV Pro Frame Thin DarkStar UST 2 Series User manual

JA07092020 www.eliteproav.com U-001581
Pro Frame Thin DarkStar® UST 2
EDGE FREE®Ceiling Ambient Light Rejecting
Fixed Frame Screen
USER’S GUIDE
Product Description:
The Pro Frame Thin DarkStar®UST 2 Series is a fixed frame projection screen that uses Elite ProAV’s
EDGE FREE®technology. The EDGE FREE®design resembles a flat panel TV display. The Pro Frame
Thin UST includes a micro-thin bezel trim to further enhance the frame appearance and absorb projector
overshoot.
The screen material included is our DarkStar®UST 2, which is an optical lens front projection material
precisely formulated for environments with minimal control over room lighting. It was designed to filter
and absorb overhead light while directing table-top mounted ultra-short throw projection. It best for family
rooms, educational facilities, conference rooms or any applications in which incident light is a factor.
Screen maintenance
Dust, dirt and scratches on the projection screen surface will affect the quality and performance of the projection
image. Follow the instructions below to properly maintain the screen.
1) The screen surface has a horizontal linear structure. DO NOT wipe the screen up and down or in a
circular motion. Wipe gently from left to right only.
2) Clean the dust on the screen surface with a soft brush or microfiber cloth. A rough/coarse towel or
cloth may damage the screen’s surface.
3) Gently wipe the screen with a lightly moistened white lint free cloth with water or with a neutral
detergent (1mL/0.33 oz) mixed with water (1000 mL/33.8 oz).
Notes: The following precautions should always be followed to avoid damaging the material, which is
not covered under warranty.
•Don’t touch the screen material to avoid leaving fingerprints.
•Use gloves when handling the material.
•Don’t scratch the material, as it will leave permanent markings on the screen’s surface.
•Don’t point to the screen material with a fingertip or other sharp objects to prevent damage to the
material.
•Don’t use acetone, benzene, alcohol and any other organic solvents to clean the screen material.
Using such chemicals will permanently damage the screen.

JA07092020 www.eliteproav.com U-001582

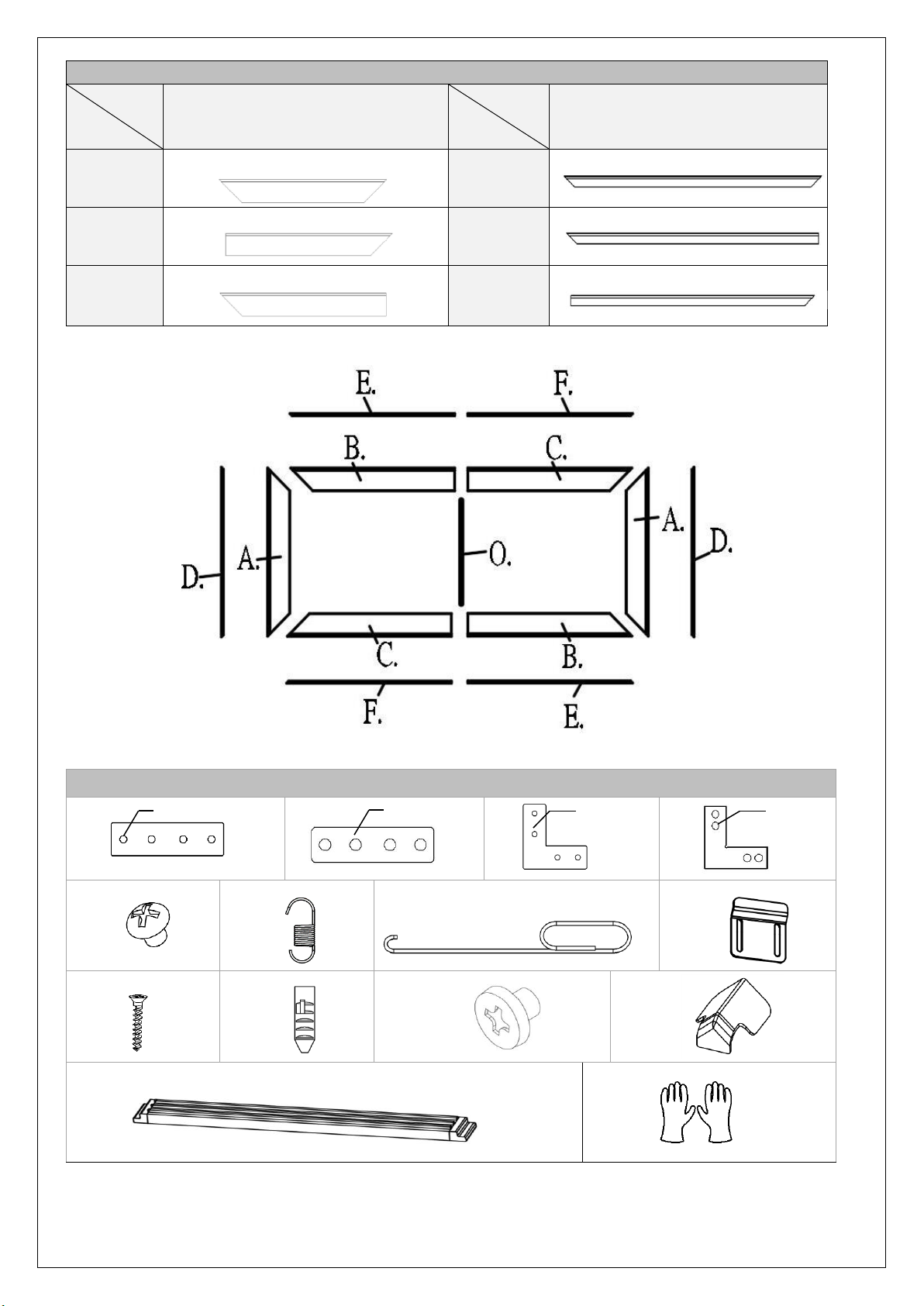

1. Frame and Edge Trim Parts List
Qty
item
2 pcs
Main Frame Parts
Qty
item
2 pcs
Edge Trim Parts
Part A.
vertical frame
Part D.
Part B.
½ horizontal frame
Part E.
Part C.
½ horizontal frame
Part F.
2. Hardware Parts List
a. M4*4
b. D5*4
c. M4*4
d. DD5*4
g.
h.
i.
j.
k.
l.
m.
n.
o.
p.

JA07092020 www.eliteproav.com U-001583

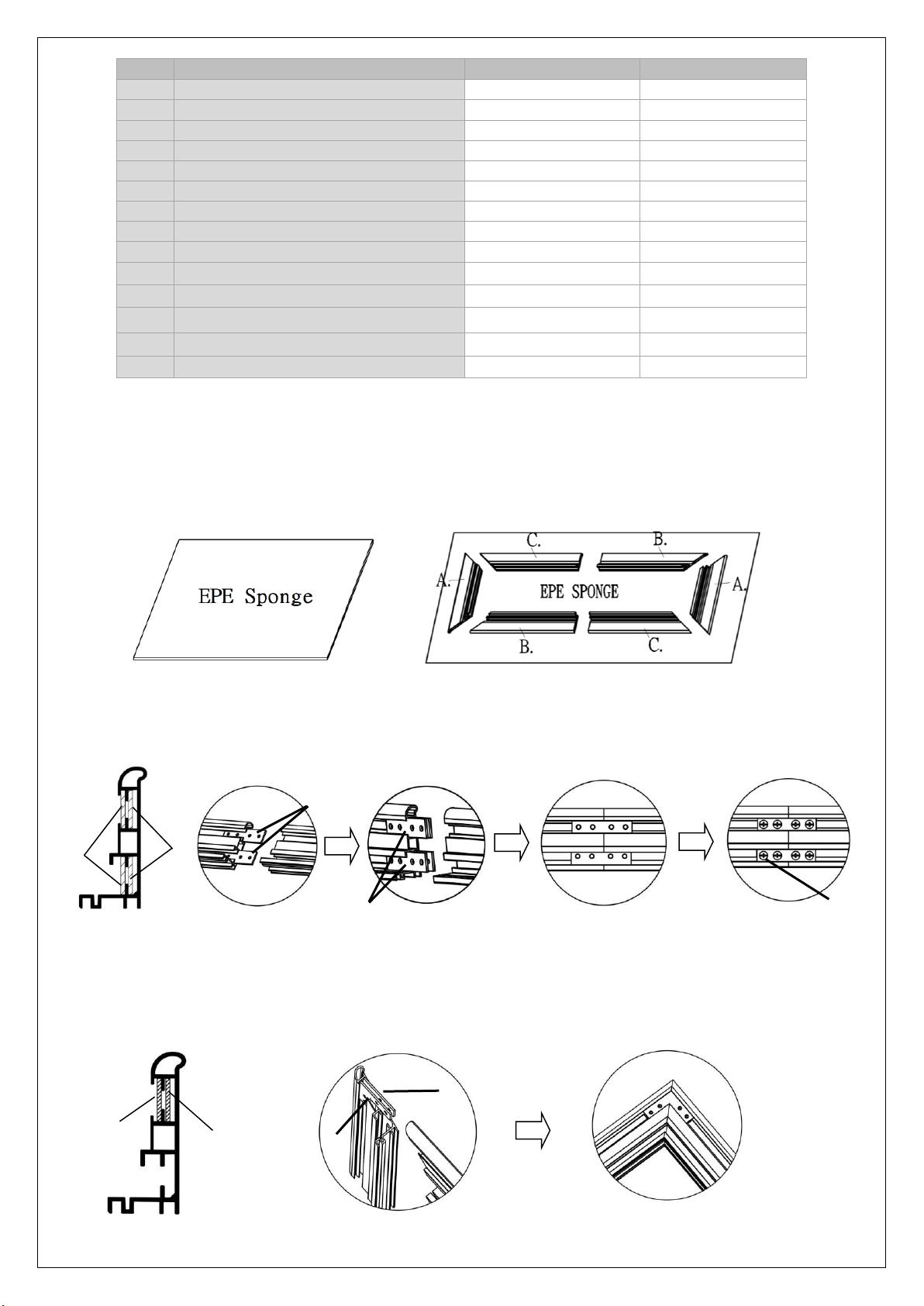

Frame Assembly
Step 1: Place the included soft padded EPE sponge sheet on a clean area where the screen will be assembled.
Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below
Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7
screws (g) as shown in the illustration below.
Tip: The center joint (b) with the larger diameter holes should be on top.
Step 4: Connect the elbow joints (c/d) to the top and bottom sections of the vertical frame. Once inserted, connect
the vertical sections to the horizontal frame sections. Make sure all holes are in alignment and the frame pieces are
flush (no gaps). They should form perfect right angles.
Tip: The elbow joint (d) with the larger diameter holes should be on top.
Item
Parts List
PTF103H
PTF123H
a.
Center Joints- M4 (bottom position)
6
6
b.
Center Joints-D5 (top position)
4
4
c.
Elbow Joints M4 (bottom position)
8
8
d.
Elbow Joints D5 (top position)
4
4
g.
M4x7 Screws
32
32
h.
Spring
94
110
i.
Spring Hook
2
2
j.
Top/Bottom wall brackets
4
4
k.
Φ5x50 Wall Screws
8
8
l.
Hollow Wall anchors
8
8
m.
M4x4 Screws
24
24
n.
Angle cover
4
4
o.
Center Support Bar
1
1
p.
White gloves
2
2
b.
a.
c.
d.
g.
…
b.
a.
d.
c.

JA07092020 www.eliteproav.com U-001584

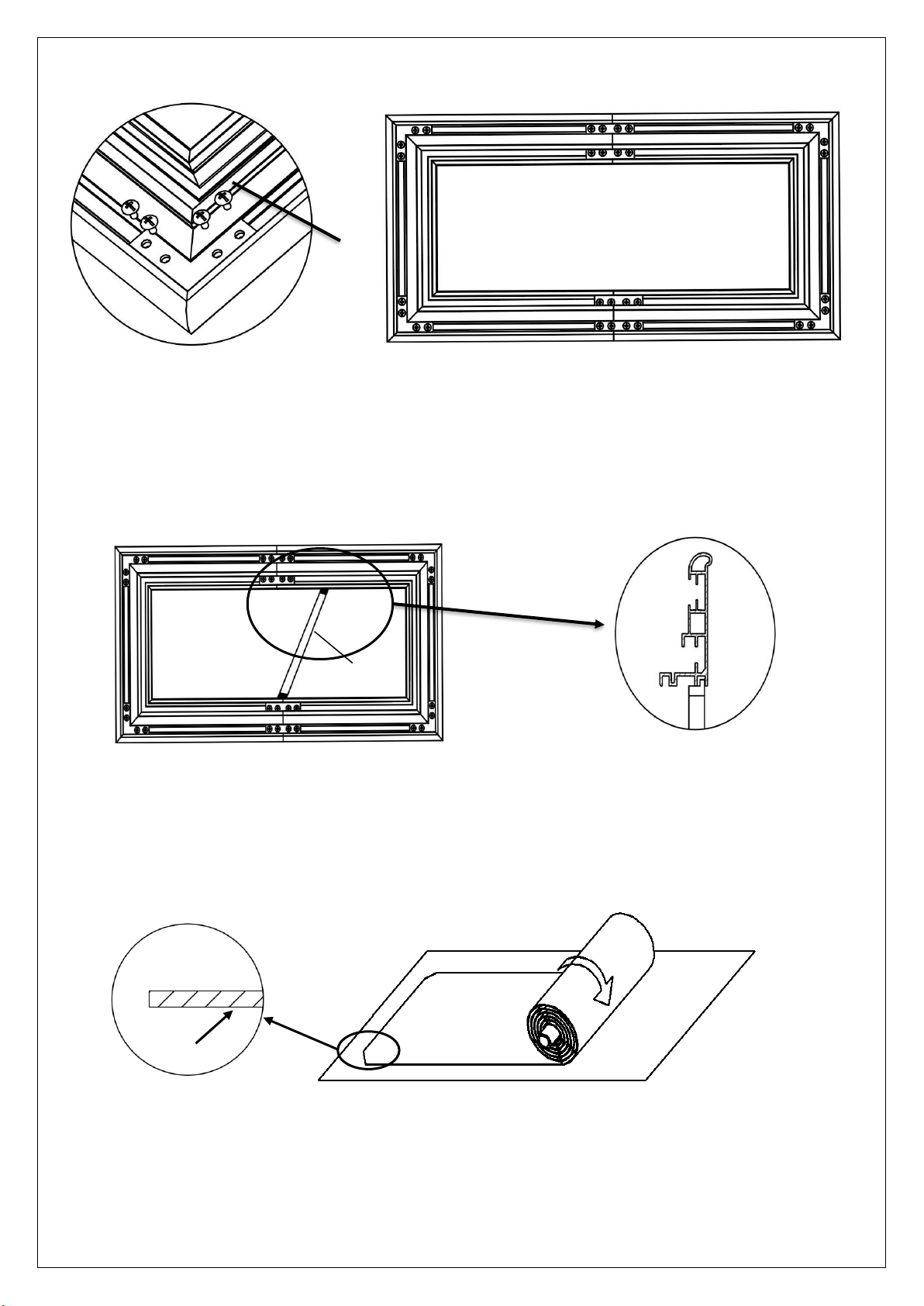

Step 5: Secure the elbow joints by fastening them with M4x7 screws ( g) , 4 at each corner.
Center Support Bar
Step 6: Insert the Center Support Bar (o) into the upper top groove on the back of the frame with the bottom end
near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in
alignment with the groove.
Screen Material
Step 7: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the
other side as shown below. The back side of the screen material should be placed upwards.
2. Hardware Parts List
a.
b.
c.
d.
e.
f.
g.
h.
i
j.
k.
l.
m.
Back side
Back Side
g.
Front
o

JA07092020 www.eliteproav.com U-001585

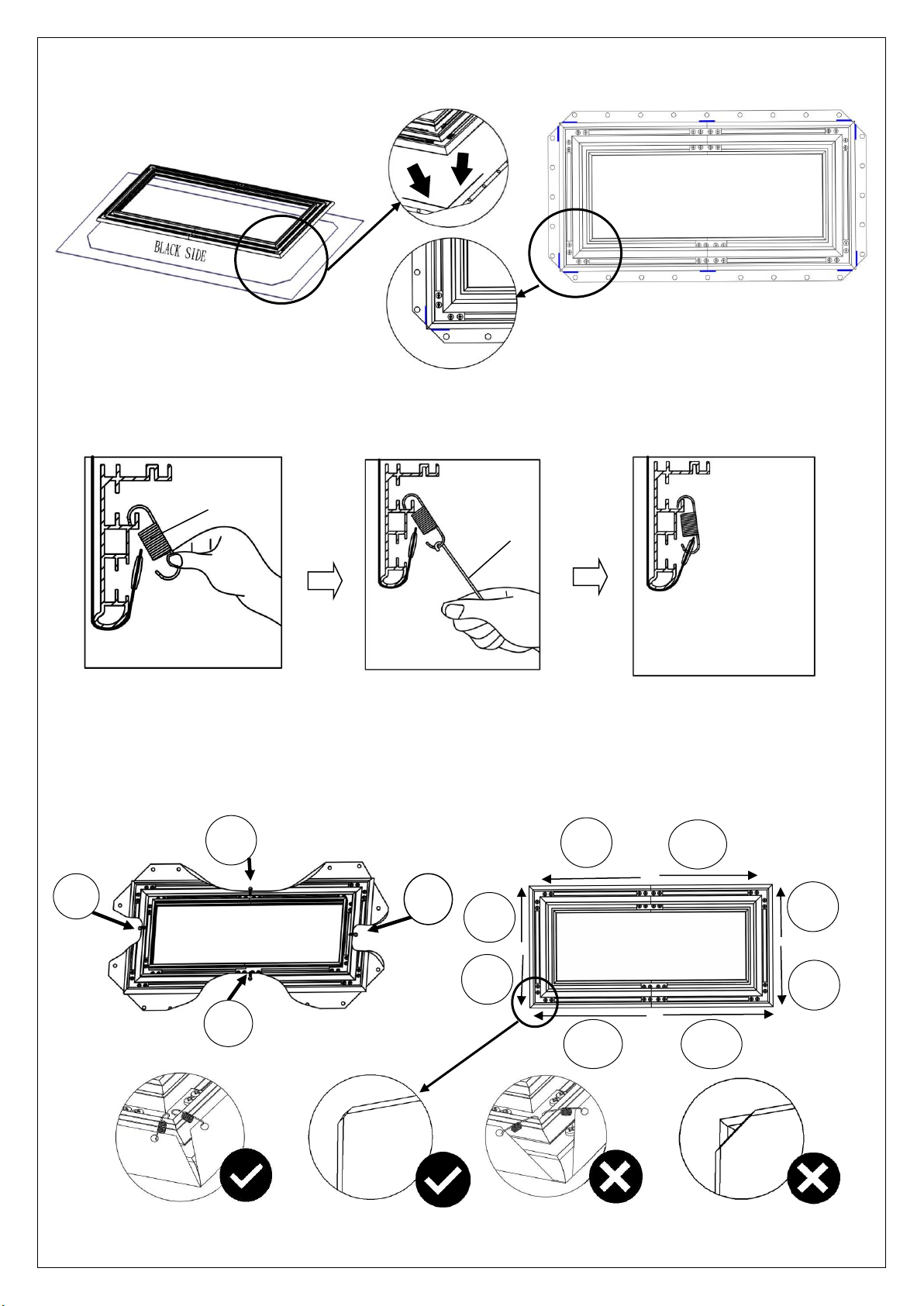

Step 8: Carefully and gently place the assembled frame on top of the screen material in the marked areas as shown
below. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to
avoid puncturing it.
Step 9: Hook one end of the spring and secure inside the groove of the frame, use the spring hook (i) to attach the
spring to the hole located on the screen material’s outer edge in the following order.
Begin by first attaching the center points on both vertical (left/right) sides, steps 1-2. Then the center points on both
horizontal (top/bottom) sides, steps 3-4. Once all center points have been secured, make sure the screen material is
still within the marked areas before proceeding to attach the next springs.
Continue attaching the rest of the springs to the material in the following order in steps 5-12.
h.
i.
*Make sure the frame corners are positioned in
the marked areas of the material.
5
6
7
8
9
11
10
12
1
2
3
4

JA07092020 www.eliteproav.com U-001586
Note (after all springs have been attached):
Correct material installation –Corners of the screen material are properly wrapped around the corner edges of the
frame and material is evenly tensioned and flat, creating a nicely taut surface.
Incorrect material installation –The corners of the screen material are not properly wrapped along the edge of the
frame leaving the material with unbalanced tension and an uneven finish. To correct, detach springs from material at
the corner(s) where material does not lie flat along the edge of the frame, reposition the material so that it lies flat
and wraps along the edge of the frame, and reattach springs to the material.
Edge Trim Installation
Step 10: Place the edge trim frame pieces over each end of the frame.
Connect edge trim frames (E/F) together using the Center Joints- M4(a) and secure with four of the M4x4 Screws(m)
as show in Step 1. Repeat for other side.
Once both top and bottom edge trim frames have been connected, attach the vertical (left/right) sides edge trim
frames (D) using the Elbow Joints M4 (c) and secure with four M4x4 screws (m) on all corners, Step 2.
Step 11: Install the angle cover (n.) on each corner of the frame using the double-sided tape.
To avoid ripples forming in the material it is imperative that all of the corners are properly wrapped around the
edges as illustrated in the check mark diagrams.
c.
a.
m.
2.
1.
Tear off the double-sided tape.
m.
1.
2.
2.
Attention: The back of the material has labels indicating the TOP and BOTTOM. The top edge trim piece with
the logo should be installed at the top. The material is directional so it will not properly reflect if bottom side is
projected on.
m.

JA07092020 www.eliteproav.com U-001587
Step 12: Install the springs (h) in each middle area to further support the bezel trim edge frame.
Notice to Installer:
Material Tip: Proper Projector Placement for DarkStar®UST 2
The DarkStar®UST 2 is exclusively for table-mounted ultra-short throw projectors.
Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent
layer deflecting light that is not aligned with its reflective angle.
1.
2.
2.
1.
2.
screen
screen
h.

JA07092020 www.eliteproav.com U-001588
Wall Installation
Step 13: Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall
brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not
installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a
screwdriver. Make sure the brackets are leveled.
Step 14: Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of
the top of the frame to secure.
Model/Size
X = Wall bracket
distance
X1 = Bracket hole
distance
Y = Top/Bottom Wall
Bracket Height
PTF103H
1200mm (47.24”)
30mm (1.18”)
1090mm (42.92”)
PTF123H
1400mm(55.12”)
30mm(1.18”)
1340mm(52.76”)
Don’t lock the screw to the bottom.
k.
j.
For Technical Support or an Elite ProAV contact in your area, visit
www.eliteproav.com
