Elkay LKAV4061CR Operating instructions

SAVE FOR CONSUMER
Screwdriver
Groove joint pliers (2) 1/2 in Supply Lines Wrench Sealant Tape Plumber's Putty
OPTIONAL 2.2GPM FLOW
REGULATOR
INSTALLATION / OWNER'S MANUAL
You choose the flow rate!
This faucet ships with an
eco-friendly 1.5GPM flow regulator
installed.
If you desire higher flow rate, a
2.2GPM flow regulator has also
been included in the box.
Switching the flow regulator is
simple! See the "Flow Regulator
Replacement" section for details.
Important!
Single Handle Kitchen Faucet
Model # LKAV4061

Make connections to water lines with 3/8" female
compression supply hoses (1).
If additional hose length is needed, attach included 1/2"
MIP thread adaptors (2) to supply hoses (1). Use 1/2"
I.P.S. faucet connections (3) or use coupling nuts (5)
with 3/8" O.D.ball-nose riser (4) to make connections to
water lines. Use wrenches to tighten connections. Do
not overtighten.
Shut off water supply at angle stop. Clean sink surface
in preparation for new faucet.
WARNING: Please carefully read and properly follow the instructions for installation found in this manual.
3
2
1
STEPS:
Important: after installation is completed, turn
on hot and cold water supplies, check for leaks. Pull the
hose assembly out of the spout and remove the spray
head by unscrewing it from the hose counterclockwise.
Be sure to hold the end of the hose down into the sink
and turn the faucet on to the warm position where it
mixes hot and cold water. Flush water lines for one
minute. Check for leaks. Re-tighten any connections if
necessary, but do not overtighten. Reinstall spray head
by hand tightening it back onto the spray hose.
4
5
Insert supply hose assembly through hole of sink. From
underneath sink, secure faucet with plastic washer (1),
metal washer (2) and nut (3). Firmly tighten retaining nut.
Do not overtighten.
3
1
2
Ø 1 3/8" (Ø35mm)

FLOW REGULATOR REPLACEMENT
CARE AND CLEANING INSTRUCTIONS
FOR CARE AND MAINTENANCE:
·The water in certain areas of the world can be very caustic -
standing water around the product can cause damage. Be
sure to remove standing water with a dry, soft cloth as soon
as possible.
·For polished brass finishes, as often as once a week, you
can apply a paste wax or special, non-abrasive, brass
coating (DO NOT APPLY POLISH).
·Before applying a protective coating, gently brush the entire
fixture using a soft tooth brush. This will remove any dirt or
deposit build-up.
·These simple steps will add temporary protective coating to
your faucet and extend the life of the finish.
Failure to follow care and cleaning will void your warranty.
For additional information, please visit elkayusa.com .
This faucet ships with a 1.5 GPM flow restrictor installed.
An optional 2.2 GPM flow restrictor is also included in the
box.
To switch the flow rate of the faucet:
1. Loosen the hand spray (1). Unscrew the 1.5GPM flow
regulator (2) from hose (3).
2. Replace 1.5GPM flow regulator (green) with the 2.2
GPM flow regulator.
3. Reinstall the hand spray.
1
Congratulations on your purchase of an Elkay product.
Although your product is extremely durable, attention should
be given to the care, cleaning and maintenance of this
product. Cleaning agents and abrasives may cause damage,
which may result in oxidation and discoloration.
By following these simple guidelines for proper care and
cleaning, it will give you years of enjoyment:
TO CLEAN: Simply wipe gently with a damp cloth and blot dry
with a soft towel. A common rule of thumb is: when you dry off,
dry off your product.
·Avoid build-up of soap, toothpaste or mineral deposits, as
these tend to have an adverse effect on the appearance of
the product.
·NEVER use cleaning products of any kind on this product -
especially those containing ammonia, bleach or alcohol - or
those with any form of abrasive.
Shut off water supply. With valves in "closed"
position. Remove handle (1), loosen the set screw
(2). Remove handle seat (3) from valve stem (4).
Loosen the screw (5) from valve stem (4) and
unscrew the cap (6) from the cartridge nut (7).
4
2
3
6
7
53
Loosen cartridge nut (1) by turning it
counter-clockwise and lift out the cartridge (2). Insert
new cartridge. Reinstall the handle.
21
CARTRIDGE REPLACEMENT
21

What is not covered:
1. Damage caused by accident, negligence, misuse, abuse, improper
installation or operation or failure to follow care or installation instructions
enclosed with your product.
2. Damage occurring during shipment of the product (claims must be
presented to the carrier).
3. Normal wear and tear.
4. Labor charges, costs of removal and reinstallation, and any damages
to other property.
5. All industrial, commercial and business use whose purchasers are
hereby extended a limited lifetime on mechanical parts and 5 years on
finish.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW
OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT
BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN
INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR
OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED
WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE
MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT
OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT
LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY
DAMAGE OR OTHER MONETARY LOSS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply. This
warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
This warranty covers product installed in the United States and Canada.
P51004* Hand Spray
Note: Hand spray includes
aerator assembly
P05142 1.5GPM Flow Regulator
P35308 Washer
P05140* Aerator Assembly
P05141 2.2GPM Flow Regulator
Elkay
elkayusa.com
©2011 Elkay
Model # LKAV4061
P99356 (Rev. date: 04/2011)

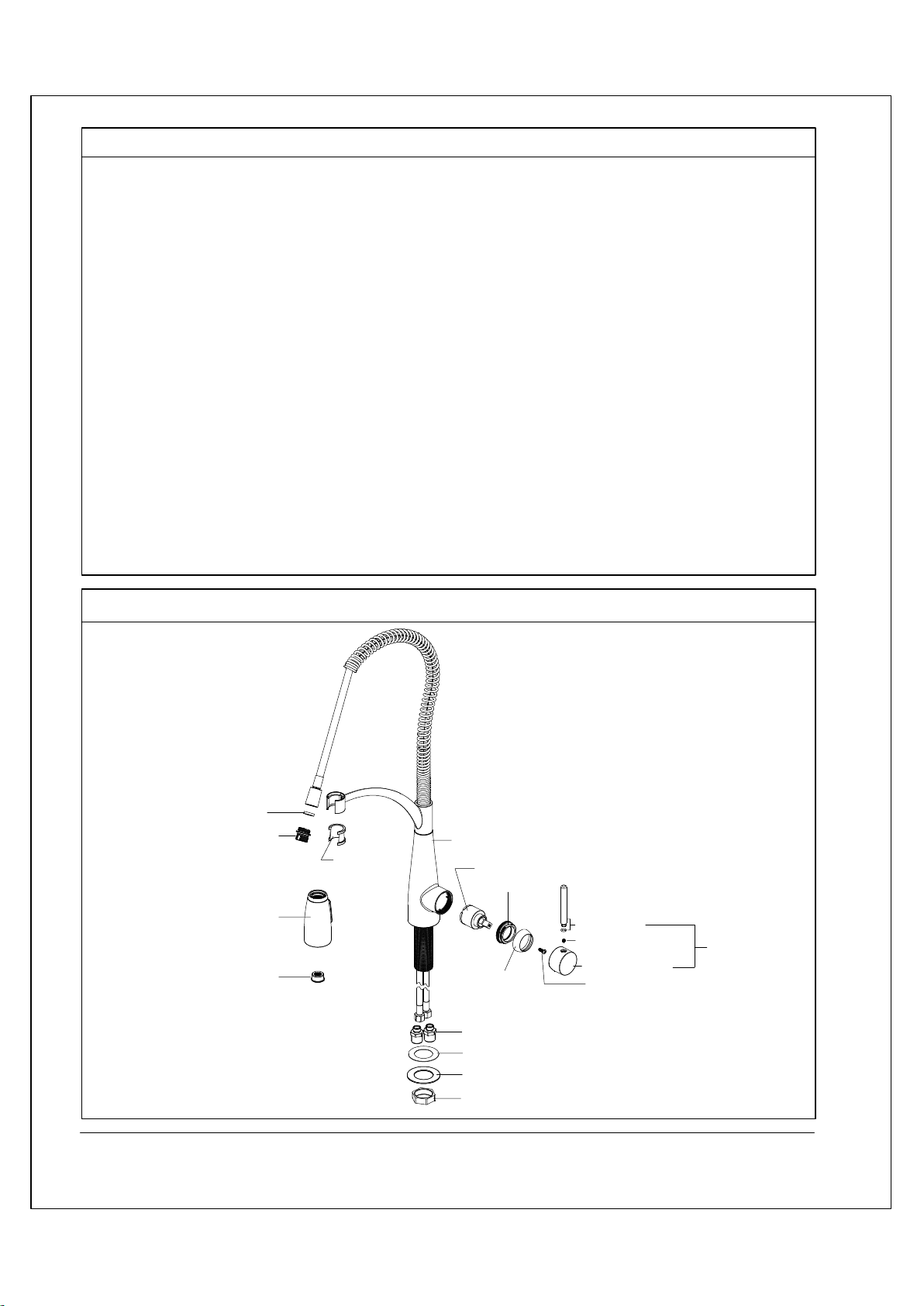

REPLACEMENT PARTS
P01310* Handle Kit
P29247 Cartridge
RP70304 Cartridge
Nut
RP80132* Cap
P35296 Plastic Washer
P35295 Metal Washer
P36169 Nut
Spout Base
P46472 Adaptor
RP64162 Insert
P36163 Screw
P01314* Handle Seat
P38111 Set Screw
P01315* Handle
ELKAY LIMITED LIFETIME WARRANTY
Elkay warrants that all parts and finishes of the Elkay Residential brand
faucets are free from defects in materials and workmanship for the life of
the product, if purchased after 1996. This warranty covers the
original consumer purchaser of the product only.
If the product should leak or drip during normal use, Elkay will provide,
free of charge, a replacement cartridge. For other defects in material or
workmanship, Elkay will, at its option, supply replacement parts (or if no
longer available a comparable product). Elkay reserves the right to
examine product in question and its installation prior to replacement.
WARRANTY
What you must do to obtain warranty service:
Either write to Elkay, attention Customer Care, 2222 Camden Court,
Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of
purchase and installation, description of nature of the defect, and
model number or description of model and/or component part.
ELKAY LIMITED LIFETIME WARRANTY
