Ella's DELUXE SOAKING WALK IN TUB User manual





DELUXESOAKING
WALKINTUB
OWNER’SMANUAL









ReceivingandInspecting3
Unpacking    4‐6
SafetyInstructions7
Specifications8
SoakingTubDrawings   9

InstallationProcedures
Drain10
PreparingtheSubfloor   10
ServiceandVentilation   11
DoorandSeal11
TestingtheTub   11
FinishingInstallation12
ExtensionKit13
OperationInstructions14
CleaningandMaintenance14
Warranty     15
E
L
L
A
S
TABLEOFCONTENTS
WarrantyActivation  16‐17



2



INSPECTION,RECEIVING,ORREFUSINGTHEPACKAGEANDPRODUCT

Pleasemakesuretoinspectthepackageandcrateforanypossibledamages.In
caseofanydamagetothepackageorcrate,immediatelynotifyyourshipping
agentandrecordthedamagesonthebilloflading,andmakesuretorecordthe
shippingagent’ssignatureandretainacopyofthebillofladingforproof.Ifatall
possible,documentandtakephotosofanydamagetothecrateorproduct.In
theeventthatthereisdamage,youmustrefusetheshipmentandcallElla’s
Bubblesat800‐480‐6850orplaceofpurchaseimmediately,aswellase‐mailthe
photosofthedamageto:[email protected]oryourplaceofpurchase.
Thiswillhelpusexpediteyourproductexchangeorreplacementassoonas
possible.Pleasemakesuretokeepthesignedcopyofthebillofladingfromthe
shippingagent.AnyshippingdamagesmustbereportedtotheshipperandElla’s
immediately.SendacopyofthebillofladingtoElla’sBubblesforimmediate
claimprocessing.Thedamagesmustbenotedinthebillofladinguponreception
oftheproduct;otherwise,productdamagesandreplacementcostswillbethe
customer’sresponsibility.

Ifthecrateisingoodconditionorwithminorimperfectionsandthereisa
suspicionthatthematerialinsidemaybedamaged,pleaserecorditonbillof
ladingandasktheshippingagenttosignit.Youmustkeepacopyofthebillof
lading.Inmostcases,theminordamagestothesurfaceofthepackagingmaynot
affecttheproduct,butanysignsofdefectsmustberecordedwiththeshipping
agentpresent.Allproductdamagesmustbereportedwithin24hoursofreceipt
fromElla'sBubblesoritsVendor.ClaimsWILLNOTbeprocessediftheproofof
thedamageisnotreportedwithin24hours.




3



UNPACKINGANDINSPECTINGTHEPRODUCT


1. Removescrewsandnailsfromthewoodcratewithcaresothecardboardpackingisnot
damaged.Pleaseretainthewoodcrateandpartsuntilsatisfactoryinspectionofthe
producthasbeendonebytheinstaller.

2. Removethecardboardpackingwithcare.Retainthecartonandbubblewrappacking
untilsatisfactoryinspectionoftheproducthasbeendonebyinstaller.Theoriginal
packingisrequiredincaseofreturnsorexchanges.Becarefulnottoscratchthe
surfaceofthebathtubonexposedstaples,nails,oranytools.


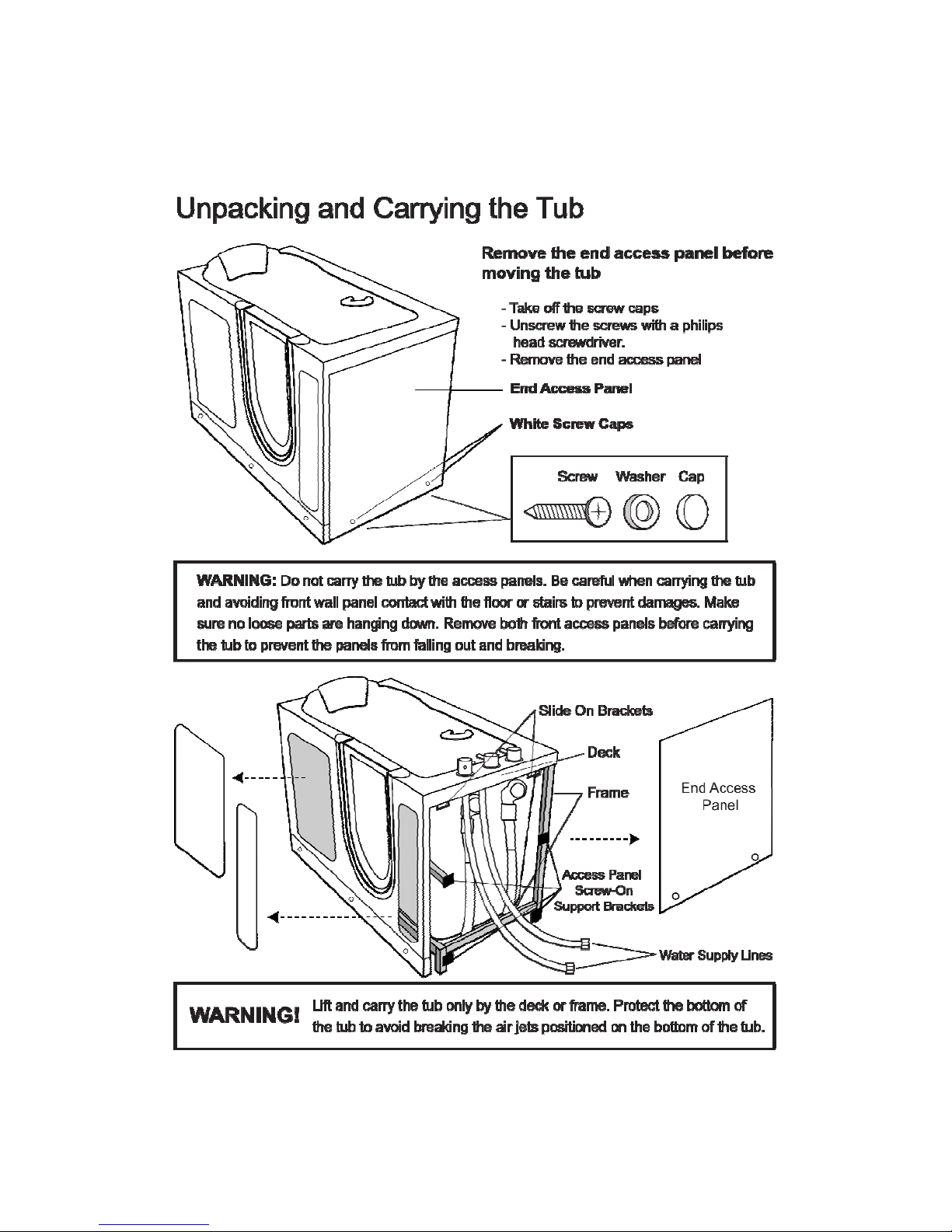

3. Removetheendaccesspanelbeforeremovingtheproductfromthecrate.Removethe
screwsfromthetublegssupportingthetubframetodetachthetubfromthecratebase
‐neverliftthebathtubbytheplumbingfixturesorparts!Liftingorpullingplumbing
partswillresultinproductdamageandwaterleakageandwillvoidyourwalk‐inbathtub
warranty.Liftthetubonlybytheframeorbathtubshell.Donotliftthetubbythewall
panelsoranypartstoavoiddamage.Also,makesurenottodamagethepartslikedrain
onthebottomofthetubwhilecarryingthetub(someofthesepartsareonthebottom
ofthetub,andwillbeexposed).

4. Inspecttheshellandbathtubcomponents.Ifanydefectsordamagesarefoundonthe
acrylicfinishofthetub,orifthereisvisibledamagetothecomponents,donotinstall
thebathtub.Damagesordefectstothefinishclaimedafterthewalk‐inbathtubis
installedarenotcoveredbytheElla’sBubbleswarranty.


Ella’sBubblesassumesallresponsibilitiesforanydamagestotheproductpriorto,and
throughoutdelivery,andwillceaseuponreceptionofthewalk‐inbathtub.Referanyclaims
forthedamagestothecarrier.Forwarrantydetails,refertothewarrantyinformation
locatedattheendofthismanual.
READTHESEIMPORTANTSAFETYINSTRUCTIONSCOMPLETELYBEFOREINSTALLINGANDUSING
YOURPRODUCT.YOUMUSTFOLLOWALLINSTRUCTIONSINTHISMANUAL.FAILURETODOSO
WILLRESULTINYOURASSUMPTIONOFLIABILITYTHATMAYOCCURBYSAIDINSTALLER.
FAILURETOCOMPLYWITHALLINSTRUCTIONSCANRESULTINPRODUCTDEFECTAND
PERSONALINJURYTOTHEHOMEOWNERAND/ORINSTALLER.
4



5



6


IMPORTANTSAFETYINSTRUCTIONS

WARNING
Whenusingthisproduct,basicprecautionsshouldalwaysbefollowed.Readandfollowallinstructionspertaining
toriskoffire,electricshock,and/orinjury.

Usethisunitforitsintendedpurpose,orasdescribedinthemanual.Useonlythepartsandattachments
provided,orasrecommendedbythemanufacturer.

Temperatureinexcessof100.4F(38Celsius)maybeharmfultoyourhealth.Checkandadjustthetemperature
beforeuse.

Avoidtheuseofalcohol,drugs,ormedicationwhileusingyourwalkintub.

Consultyourphysicianbeforeusingthewhirlpool/airsystemifyouarepregnantand/orhaveaheartcondition.
Peopleusingmedications,herbalremedies,sleepaids,and/orhavingadversemedicalhistoryshouldconsulta
physicianbeforeusingthisproduct.

DANGER:Toreducetheriskofinjury,donotpermitchildrenorpersonswithdisabilitiestousethisproductunless
theyarecloselysupervisedatalltimes.Toavoidinjury,exercisecautionwhenenteringorexitingthewalk‐intub.
Neverdroporinsertanyobjectsintoanyopenings.

Riskofelectricshock:Donotpermitelectricappliances(suchasahairdryers,lamps,telephones,radios,
televisions,etc)within3feet(1.5m)ofthetub.

Tractionenhanced,texturedbathtubfloormustremaincleantominimizeslippage.

TheElla’sWalk‐Intubisnotintendedforanyoutdooruse.Installtheunitinaccordancewiththeinstructions
includedinthismanual.

Pleaseusealicensedcontractorandplumberforinstallation.

Avoidusingyourheatedtubafterstrenuousorexcessiveexercise.

Astheinstallationmanualdetails–donotuseabrasivematerialstocleanElla’sacrylictubfinish.

Donotsubmergebodyinheatedtubforextendedperiodsoftimetoavoidhyperthermia;Thesymptomsof
hyperthermiaincludeanincreaseinbodytemperaturewhichcanresultindizziness,lethargy,drowsiness,and
fainting.

Womenwhoarepregnantshouldnotuseheatedwalkintubsduetoriskofpossiblefetalharm.

Toavoidanyaccidents,exercisecautionwhenenteringandexitingthetub.

Thoroughlyreadandcompletetheinstructionmanualbeforebeginninginstallation.
7

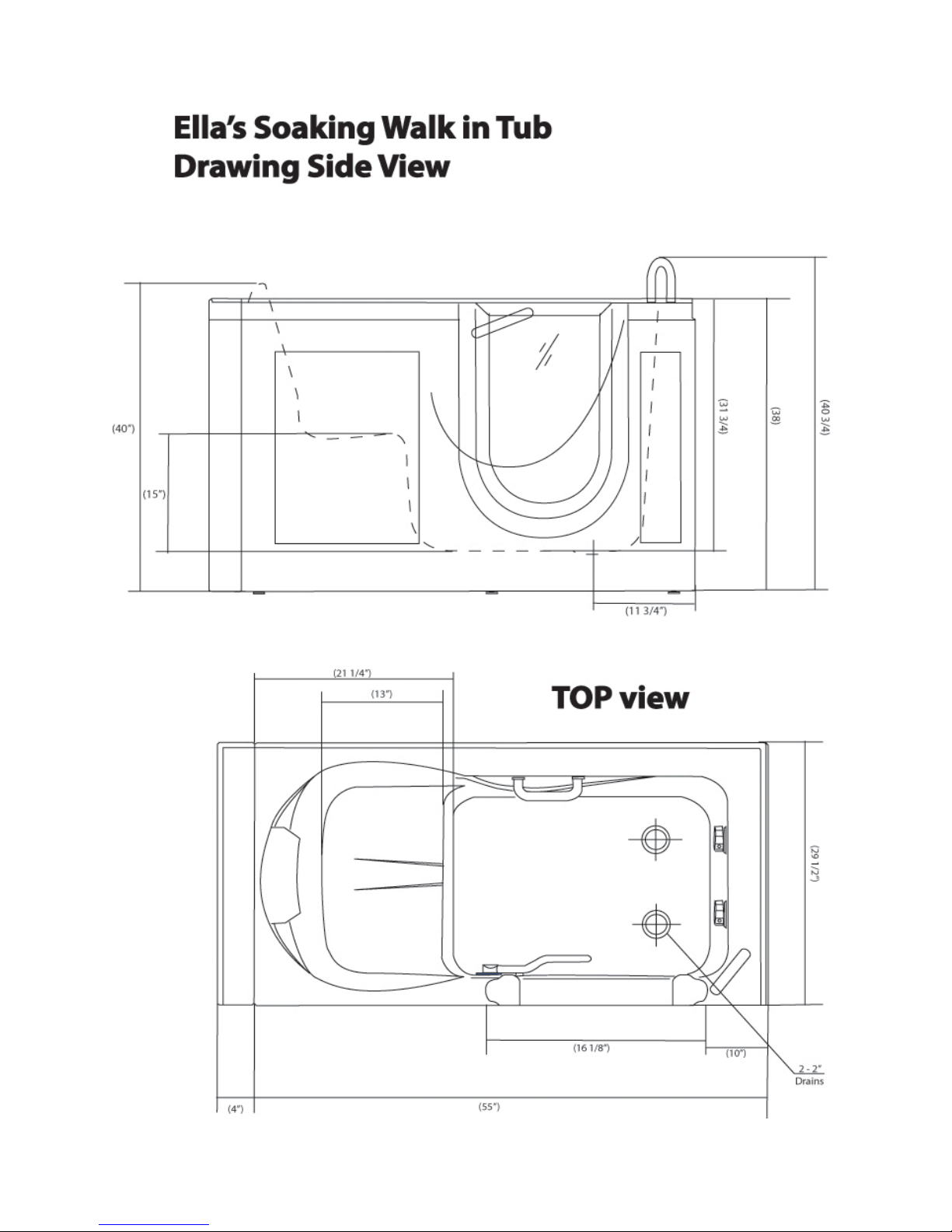

SPECIFICATIONS
ActualSize:29½”Wx55”(ext.59”)Lx40½”H
NetWeight:145lbs.

ShippingSize(InCrate):32”Wx60”Lx48”H
ShippingWeight:255lbs.

WaterCapacity:Approx.75gallons

Ella’sSoakingFeatures:

1. AcrylicTubshell:
•HighqualitycastacrylicgradeA;
•Excellentcoloruniformity;
•5mmcastacrylicsheet;
•Easy‐to‐clean,glossfinish(white);
•Fiberglassgelcoatreinforced.

2. Lowthresholdstepin.

3. Sevenadjustablestainlesssteelheavydutylevelinglegs.

4. Stainlesssteelandtemperedglassdoor,doorframe&rubberseal.

5. Twobuiltinsafetygrabbars.

6. Wallextensionkittofitinstandard60”opening(extendsto59inches).

7. Two(2)frontandonesideremovableaccesspanels.

8. Removablewhiterubberbacksupport.

9. Wallextensionkittofitstandard60”opening(extendsto59inches).

Plumbing:

•Twostainlesssteelbraided¾”watersupplylines,4feetlongconnectedtovalve;
•Two2”copper&brassfloordrainswith2handlesoperatedbystainlesssteelcables;
•Two(2)copperoverflows;
•Drainagetimeapproximately80sec.forunoccupiedfulltubtooverflow.

AvailableOptions:
 Leftorrighthandsidedoor/drain

Warranty:
•Lifetimelimitedwarrantyonstainlesssteelframe,door,doorseal,andtubshell;
•Fiveyearreplacementwarrantyonparts.
8


9


DRAIN‐SUBFLOOR‐DOOR‐SEAL
PROTECTINGTHETUB:
Coverandprotectthebathtubshellandfixturesfromscratchesorotherdamagesduringthetestsand
installation.
DRAIN:
Insurethatthedrainroughhasbeenplacedattheproperlocation.Seespecificationsanddrawings.
ThedualdraincanbeconnectedwithaTorYconnectorinto2”or1½”ofexistinghousedrain.
Materialsmustbeusedbasedonlocalplumbingcoderequirements.Notethatflexibledrainsarenot
allowedinsomestates.Thecustomerandcontractorareresponsibleforusingtheappropriate
materialspercode.
SUBFLOOR:
Preparethesubfloorforthedrainandensurethatareaislevel.Thesupportingsubfloormustbeableto
supportthetotalweightofthebathtub,batherandwater.
Usealevelerandmakesurethatthesubfloorbelowthetubisleveled.Ifthefloorisnotperfectlylevel,
adjustall7levelinglegstorealignthetubtoaperfectlevel.Itisimportantthatall7levelinglegsare
completelysupportingthetub(touchingthefloor)andthetubisleveledforthedoorsealtowork
properly.Ifthetubisnotperfectlyleveled,itcouldresultinwaterleakageandvoidthewarranty.
Adjustthelegsandlowerthetubtothefloorbase,towithin1/16thifaninchwithinabovetheflooror
tiling.Lowerthetubasmuchaspossibleandsealwithacaulking,ifappropriate.Ifthesubfloordoes
notsupportthetotalweightofthebathtub,bather,andthewater,itcanresultinwarpingoftheshell,
misalignmentofthedoor,and/orcreateleaksordamagestothebathtuband/orthebuildingstructure.
10

DRAIN‐SUBFLOOR‐DOOR
–
SEALcont…
SERVICEACCESSANDVENTILATION:
Itistheresponsibilityoftheinstallerorownertoprovideaccessforservicerequired,percode.Ella’s
Bubblesisnotresponsibleforanycostsrelatedtoobtainingaccessforrepair.Theownershallassume
responsibilityforsuchcosts,andifappropriate,mustseekrecoveryfromtheinstaller.
DOORANDSEAL:
Pleasekeepinmindthatthedoorhasbeenclosedforanextendedperiodoftimethroughoutshipping
andthetubhasbeenstoredinvarioustemperatures.Whenthetubisreceived,thedoorsealmustbe
reformedandadjusted,asitmayhavepossiblystucktotheframethroughoutstorageandshippingin
varioustemperatures.Incasessuchasthese,thedoorsealmustbereleasedandrestedwiththedoor
open.Itcanbedonebysqueezingthesealwithyourfingertipsandpullingitawayfromthedoorframe
toregainitsflexibilityandoriginalform.Itishighlysuggestedthatthedoorbekeptintheopenposition
whilethetubisnotinusetoincreasethelifetimeofthedoorsealandmaintainitsflexibility.


TESTINGYOURWALKINTUB

Allwalk‐inbathtubsarefactorytestedforproperoperationandwatertightconnectionspriorthe
packingandshipping.However,theunitmustberetestedbyinstallerpriortoinstallation.Ella’sBubbles
isnotresponsibleforanydefectthatcouldhavebeendiscovered,repaired,oravoidedbyfollowingthis
inspectionandtestingprocedure.
1.Placethewalk‐inbathtubonalevelsurfacenearappropriatewaterandelectricalsupplyand
drainage.Itcanbedoneinhomeowner’sdrivewayorinthebathroom,aswell.
2.Ifthetubcomeswithaflexdrain,connectittotheexistinghomedrain.Ifnot,runatemporarydrain.
Fillupthewater2inchesbelowtooverflowhole.
3.Donotinstallthebathtubifleaksaredetected.
Caution:Ifwalk‐inbathtubisnotrestingonallsixlevelingfeet,waterwillnotdrainproperlyandmay
causethedoortoleak.Neverallowtheweightofthetubtobesupportedbywoodsupportstringersas
thiswillresultinproductfailureandvoidthewarranty.Verifytheproductiscompletelylevelby
checkingthetubdecksurfaceandensureall7levelingfeetaretouchingtheground.
Everytubis100%watertestedatthefactorywithallpumpsinworkingcondition.However,
transportingorcarryingthetubmaycauseloosefittings,possibledamages,orleaks.Itisthe
contractor’sresponsibilitytowatertestthebathtubwithallpumpsrunningpriortofinishingthetub
andwallinstallation.Thecontractormustmakesurethatallfittingsbythepumpsareretightenedand
thetubisleakproof.Anywaterorairjetscanberetightenedtostoptheleaks.
11

FINISHINGINSTALLATION
AlmostanyPVCpipeleakscanbeeasilyfixedwithplumbingepoxyputtysoldatanyhardwarestoreif
needed.

Aftertheallwatertestingiscompleted,andallfixturesarechecked,thetubcanbeinstalledtothe
surroundingwall,orwalls.Ella’swalkintubscomeawithlowrisetileflangewhichallows2wallorone
wallinstallations.Theextensionpanelofthetubcanbeinstalledasneededfor60”openings.




Thetubcanbefinishedandtiledoverasshowninimages.Caulkingmustbeappliedtojointsasneeded
afterthetubisinstalled.
Note:Theshowercurtainandraiserodforthehandmixercanbeinstalledpercustomer’sresponsibility.
Anyalterationsorinstalledadditionsaretheresponsibilityoftheinstaller.Ella’sBubblesisnot
responsibleforanydamagetotheunitorforwaterdamagewhichmightoccurduetoimproper
installation.





12

EXTENSIONKIT
Dimensions:4½”Wx29½”Lx38”H

Parts:
(3)“L”StainlessSteelBrackets
(7)1”Bolts
(7)½”Nuts
(15)MedWashers
(14)SmallWashers
(1)48”RubberSealStrip


EXTENSIONINSTALLATION(OPTIONAL)

13


1. Enterthewalkintub,closethedoorandsecurethesafetychromeleverinthedownpositionto
ensuretheclosureofthedoor.Thedoorcanlockedwiththehandlefromaseatedorstanding
position.Donotapplyanybodyweightonthedoorwhenenteringandexitingthetub.The
doorandthedoorhingesarewellbuiltandareverydurable.However,leaningonorapplying
usersweightonthedoormaydamagethedoorbychangingthealignmentofthedoorand
creatingwaterleaks.Suchdamagesarenotcoveredbythewarranty.Itisrecommendedto
leavethedoorintheopenpositionwhenthetubisnotusedtoextendthelifeoftheseal.

2. Tofillupthebathtubwithwater,adjustdesiredtemperatureofthewater.

3. Fillwalkintubasdesiredor2”inchesbelowtheoverflowholesinsidethewalkintubs.

4. Toexitthewalkintubsimplyopenthedualdrainoverflowswitchesandyourtubshalldrainin
80secorless.

5. Oncethewalkintubiscompletelyemptyyouaresafetoexitthewalkintub.

6. Therearenouserserviceablepartslocatedunderthetub(behindtheremovableaccesspanels).

7. Usually,amilddetergentwillremoveconstructiondebris.Morestubborndebrismaybe
removedwithdenaturedalcohol,orCloroxSoftScrubcleaner.Lightscratchesanddulledareas
mayberestoredtooriginallusterbyrubbingwithafinegradeautomotivetypecleaningand
polishingcompound.



OPERATINGINSTRUCTIONS
CLEANINGANDMAINTENANCE

Itisrecommendedthatonceamonth,unscrew(counterclockwise)thesuctioncoverandclean
awayanyhair,lintordebrisfromthecoverandhousing‐Thenremountthecoverinplace.
Neveroperatetheunitwiththesafetysuctioncoveroff.Donotuseabrasivecleaners,asthey
willscratchanddullthesurfaceoftheacrylic.Plastercanberemovedusingawoodenedge.
DONOTUSEMETALSCRAPER,WIREBRUSHES,ORWATER



*Tocleanyourbathtub,useamildnonabrasiveliquiddetergentsolution.
14


WARRANTY
•Thebathtubshell,frameandfinisharecoveredbya
limitedlifetimewarranty.
•Thedooriscoveredbyalimitedlifetimewarranty
undernormaluseandconditions.
•Allsupportingequipment,doorseal,wasteand
overflowarecoveredbyalimitedfive(5)year
Warranty.
•Thiswarrantyisnontransferableandappliesonlyto
theoriginalowner.
•Additionalservicingisnotwarrantedbythefactory
(manufacturer).Additionalservicingi.e.(servicesthat
extendorarenotincludedinthemanufacturer’s
(5)yrwarranty).

CONTACTINFORMATION
•TollFree1‐800‐480‐6850
•www.ellasbubbles.com
•[email protected]
15

WARRANTYACTIVATIONREPORT Page1
MODEL: Ella’s Soaking SERIAL # _______________
PURCHASE DATE:________________ PURCHASE PRICE:____________________
PLACE OF PURCHASE:___________________________________________________________
CONTACT NAME:______________________ PHONE NUMBER:_____________________
Upon the complete installation of the Ella’s Walk In Bathtub, the following Warranty Report
must be completed and returned to Ella’s Bubbles, LLC. in order for the Warranty to be
activated (faxed, scanned and emailed or hard copy mailed).
The Warranty Report MUST be signed by both the Installer and the Customer/Home Owner. ____
You inspected and verified the overall condition of Ella’s walk in tub at the time of delivery? ____
Does the waste/overflow plumbing work correctly? Check to assure that the drain stopper
raises to the proper level and that the stopper is properly seated/adjusted and back-nut secured. ____
Have you checked to make sure that the Walk in bathtub is leveled (top of the bathtub)? ____
Are all of the bathtub 7 leveling feet touching the floor and completely supporting bathtub? ____
Has the door seal and the door jam been thoroughly cleaned with rubbing alcohol to remove
dust and other foreign materials? ____
Has the door been water tested, i.e. fill the bathtub with water to just below the drain overflow
then allow the water to stand for 15 minutes? Inspect around the door. ____
Is the bathtub frame grounded? ____
16

WARRANTYACTIVATIONREPORT Page2
OWNER’S INFORMATION:
_____________________________________________________________________________
Name
_____________________________________________________________________________
Address City State
____________________________ _________________________________________
Telephone E-mail
___________________________ _________________________________________
Date Signature
INSTALLER’S INFORMATION:
_____________________________________________________________________________
CompanyName Installer’sName
_____________________________________________________________________________
Address City State
____________________________ _________________________________________
Telephone E-mail
___________________________ _________________________________________
Date Signature
To activate manufacturer’s warranty please use one of the options below:
Via mail: Ella’s Bubbles, LLC. ATTN: Warranty Dept. 2101 S. Carpenter St. Chicago, IL60608
Via fax: [phone]
Via e-mail: [email protected] 

17
