Wellis Olympus User manual

USER MANUAL FOR HOT TUB
/CONTROL SYSTEMS /KE YPADS /ACCESSORIES /

REDUCE THE RISK
OF ELECTROCUTION
— Never place an electric appliance within 5 feet of hot tub.
REDUCE THE RISK OF CHILD
DROWNING
— Supervise children at all times.
— Attach hot tub cover after each use.
REDUCE THE RISK
OF OVERHEATING
— Check with a doctor before use if pregnant, diabetic, in poor health, or under
medical care.
— Exit immediately if uncomfortable, dizzy, or sleepy. Hot tub heat can cause hy-
perthermia and unconsciousness.
— Hot tub heat in conjuction with alcohol, drugs, or medication can cause uncons-
douress.
WHEN PREGNANT, water temperature before entering.
Soaking in hot water for long periods can harm your fetus. Measure
— Exit immediately if uncomfortable, dizzy, or sleepy. Hot tub heat can cause hy-
perthermia and unconsciousness.
— Hot tub heat in conjuction with alcohol, drugs, or medication can cause uncons-
douress.
WARNING

Introduction … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 4
Safety instructions … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 5
Safety instructions - Canada … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 12
Important safety instructions … … … … … … … … … … … … … … … … … … … … … … … … … … … … 15
Controls … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 16
Initial installation … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 17

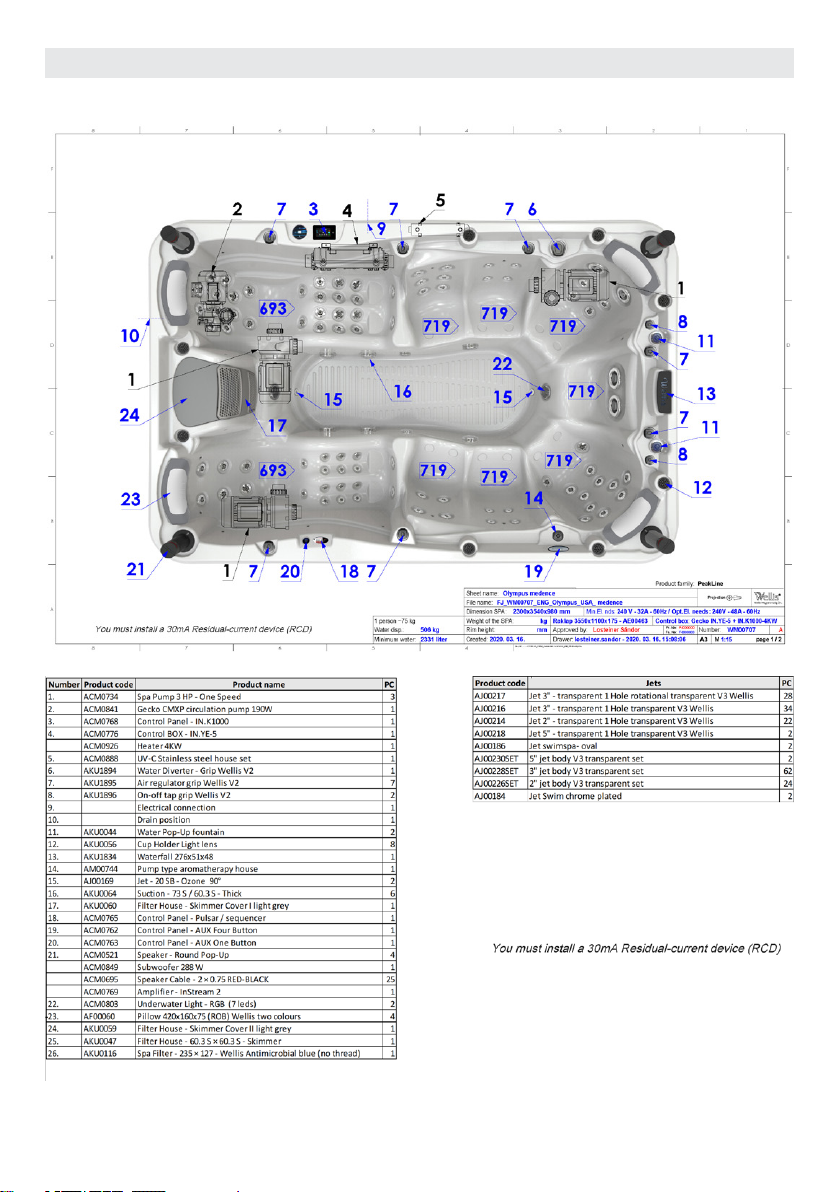

Major components of the product … … … … … … … … … … … … … … … … … … … … … … … … … … 19
User interface
Easy 4 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 37
Easy 7 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 40
Smart Touch … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 53
4 and 1 single button panel … … … … … … … … … … … … … … … … … … … … … … … … … … … 77
Optional accessories
Aquasoul Pro … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 78
My Music… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 82
in.clear … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 83
in.clear (in Smart Touch) … … … … … … … … … … … … … … … … … … … … … … … … … … … … 91
UV-C / Ozone … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 97
in.grid… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 98
in.touch 2 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …101
Sand filter system … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …124
Water treatment basics … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …125
Maintenance … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …126
Wiring diagram
W2000 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …127
W3000 & W5000 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …132
W8000 … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …136
Breaker setting … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … …139
Frequently asked questions … … … … … … … … … … … … … … … … … … … … … … … … … … … … …141
3
TABLE OF CONTENTS

Congratulations on your new product!
Outside work and family the enjoyment of quality life and calm moments plays an important role in the life of a 21st century
man. An evening bath in the hot tub or tub alone or in company can give you the opportunity to lose track of time and your
body and soul can relax. From the world of rationality we get into the world of senses where the cosseting atmosphere of the
water provides the perfect conditions for relaxation.
Our design engineers utilised the experiences of the ancient Eastern massage culture and the modern findings of Western
hydrotherapy to create hot tubs providing the perfect massage experience.
Develop a peaceful space for relaxation with your product in your home and join the group of the few who seek a positive
impact on their environment by establishing internal harmony.
Dive into your hot tub and enjoy the gently flowing water!
The user manual is available at http://www.wellis.com/catalogue.
INTRODUCTION
Aeware®, Gecko®, and their respective logos are Registered Trademarks of Gecko Alliance Group.
in.yt™, in.ye™, in.yj™, in.touch™, in.stream 2™ , DJS ™, in.k110™, in.k120™, in.k361™, in.k1001™, in.clear™,
and their respective logos are Trademarks of Gecko Alliance Group.

All other product or company names that may be mentioned in this publication are tradenames, trademarks or registered trademarks
of their respective owners.
4

IMPORTANT
SAFETY
INSTRUCTIONS
1. READ AND
FOLLOW ALL
INSTRUCTIONS.
2. WARNING – To reduce the risk of
injury, do not permit children to use
this product unless they are closely
supervised at all times.
3. A wire connector is provided on this
unit to connect a minimum 8 AWG
(8.4 mm2) solid copper conductor
between this unit and any metal equip-
ment, metal enclosures of electrical
equipment, metal water pipe, or con-
duit within 5 feet (1.5 m) of the unit.
4. (For cord-connected/convertible units)
DANGER – Risk of injury.
a) Replace damaged cord immediately.
b) Do not bury cord.
c) Connect to a grounded, grounding
type receptacle only.
5. DANGER – Risk of Accidental Drown-
ing. Extreme caution must be exercised
to prevent unauthorized access by
children. To avoid accidents, ensure that
children cannot use this hot tub unless
they are supervised at all times.
6. DANGER – Risk of Injury. The suction
fittings in this hot tub are sized to match
the specific water flow created by the
pump. Should the need arise to replace
the suction fittings or the pump, be sure
that the flow rates are compatible.
Never operate hot tub if the suction
fittings are broken or missing. Never
replace a suction fitting with one rated
less than the flow rate marked on the
original suction fitting.
7. DANGER – Risk of Electric Shock. In-
stall at least 5 feet (1.5 m) from all metal
surfaces. As an alternative, a hot tub
may be installed within 5 feet of metal
surfaces if each metal surface is per-
manently connected by a minimum 8
AWG (8.4 mm2) solid copper conductor
to the wire connector on the terminal
box that is provided for this purpose.
8. DANGER – Risk of Electric Shock. Do
not permit any electric appliance, such
as a light, telephone, radio, or televi-
sion, within 5 feet (1.5 m) of a hot tub.
9. WARNING – To reduce the risk of injury:
a) The water in a hot tub should never
exceed 40°C (104°F). Water tempera-
tures between 38°C (100°F) and 40°C
are considered safe for a healthy
adult. Lower water temperatures are
recommended for young children and
when hot tub use exceeds 10 minutes.
b) Since excessive water temperatures
have a high potential for causing
fetal damage during the early months
of pregnancy, pregnant or possibly
pregnant women should limit hot tub
water temperatures to 38°C (100°F).
c) Before entering a hot tub, the user
should measure the water tempera-
ture since the tolerance of water tem-
perature-regulating devices varies.
d) The use of alcohol, drugs, or medi-
cation before or during hot tub use
may lead to unconsciousness with
the possibility of drowning.
e) Obese persons and persons with a
history of heart disease, low or high
blood pressure, circulatory system
problems, or diabetes should consult
a physician before using a hot tub.
f) Persons using medication should
consult a physician before using a
hot tub since some medication may
induce drowsiness while other med-
ication may affect heart rate, blood
pressure, and circulation.
SAFETY INSTRUCTIONS
5

13. SAV E T H ESE
INSTRUCTIONS.
Audio/video components
 a)″CAUTION–RiskofElectric
Shock. Do not leave compartment
dooropen″;
 b)″CAUTION–RiskofElectric
Shock. Replace components only
withidenticalcomponents″;and
 c)″Donotoperatetheaudio/video
controlswhileinsideinthehottub″.
 d)″WARNING–PreventElectrocu-
tion. Do not connect any auxiliary
components (for example cable,
additional speakers, headphones,
additional audio/video components,
etc.)tothesystem″.
e) These units are not provided with an
outdoorantennae;whenprovided,
it should be installed in accordance
with Article 810 of the National
Electrical Code, ANSI/NFPA 70.
f) Do not service this product yourself
as opening or removing covers may
expose you to dangerous voltage or
other risk of injury. Refer all servic-
ing to qualified service personnel.
g) When the power supply connections
or power supply cord(s) are dam-
aged;ifwaterisenteringtheaudio/
video compartment or any electrical
equipmentcompartmentarea;ifthe
protective shields or barriers are
showingsignsofdeterioration;or
if there are signs of other potential
damage to the unit, turn off the unit
and refer servicing to a qualified
service personnel.
h) This unit should be subjected to
periodic routine maintenance (for
example, once every 3 months) to
make sure that the unit is operating
properly.
FOR YOUR SAFETY PLEASE AL-
WAYS PERFORM THE FOLLOW-
ING PRECAUTIONS. IF YOU DO
NOT FOLLOW THE WARNINGS
AND INSTRUCTIONS, ITEMS MAY
GET DAMAGED, YOU MAY GET
INJURED, OR YOU MAY SUFFER
FATAL INJURY. IMPROPER IN-
STALLATION AND OPERATION
INVALIDATES THE WARRANTY.
AVOIDING THE RISK TO CHIL-
DREN
• To reduce the risk of injury, lower water
temperatures are recommended for
young children. Children are especially
sensitive to hot water.
• Extreme caution must be exercised to
prevent unauthorized access by children.
To avoid accidents, ensure that children
cannot use a hot tub unless they are
supervised at all times.
DO:
• Make sure you always lock the child
resistant locks after using the hot tub for
your children’s safety.
• Test the water temperature with your
hand before allowing children to enter
the hot tub to be sure that it’s comfort-
able. Children are especially sensitive to
hot water.
• Remind children that wet surfaces can
be very slippery. Make sure that children
are careful when entering or exiting the
hot tub.
• Do not allow children to climb onto the
hot tub cover.
• Do not allow children to have unsuper-
vised access to the hot tub.
SAFETY INSTRUCTIONS
6

AVOIDING THE RISK
OF ELECTROCUTION
DANGER - RISK
OF ELECTROCUTION
Initial safety warnings
• The hot tub must be powered through
a residual current device (rCD) with a
current release not exceeding 30mA.
• The devices and parts which contain
active parts – except those which are
powered from protective extralow
voltage not exceeding 12V – must be
inaccessible from the hot tub.
• Connect only to a grounded source.
• Do not bury the power cord. A buried
power cord may result in death, or seri-
ous personal injury due to electrocution
if direct burial-type cable is not used, or
if improper digging occurs.
WA R N I NG
• To reduce the risk of electrical shock, re-
place a damaged cord immediately. Fail-
ure to do so may result in death or serious
personal injury due to electrocution.
• Your hot tub must be connected to a
Ground Fault Circuit Interrupter (GFCI)
for user and equipment protection. To
ensure proper operation of this import-
ant safety device, test according to the
following instructions per electrical
configuration.
• Cord-Connected 115 volt, 20 amp
models: The GFCI is located at the end
of the power cord. Before each use, with
the unit operating, push the TEST but-
ton. The unit should stop operating and
the GFCI power indicator will go out.
Wait 30 seconds and then reset the GFCI
by pushing the RESET button. The GFCI
power indicator will turn on, restoring
power to the hot tub. If the interrupter
does not perform in this manner, there
may be an electrical malfunction and
with it, the possibility of an electric
shock. Disconnect the power until the
problem has been corrected.
• 2x120 volt, permanently connected or
converted models:
• A ground terminal is provided on the
terminal block (TB-1, system ground ter-
minal) located inside the control box. To
reduce the risk of electric shock, connect
this terminal to the grounding terminal
of your electrical service or supply panel
with a continuous green, insulated cop-
per wire. The wire must be equivalent in
size to the circuit conductors supplying
the equipment. In addition, a bonding
terminal (pressure wire connector) is
provided on the outside of the control
box for bonding to local ground points.
To reduce the risk of electric shock, this
connector should be bonded with a No.
8 AWG (8.4 mm²) solid copper wire to
any metal ladders, water pipes, or other
metal within 5 feet (1.5 m) of the hot tub
to comply with local requirements. The
means of disconnection must be readily
accessible, but must be installed at least
5 feet (1.5 m) from the hot tub.
• Your hot tub is provided with a suitably
rated circuit breaker to open all un-
grounded supply conductors.
• Your hot tub uses ground fault circuit
interrupters in the electrical subpanel.
Before each use of the hot tub and with
the unit operating, push the TEST button
on each breaker. The switch should
click over to the “Trip” position. Wait
30 seconds and reset each GFCI breaker
by switching it completely off and then
completely on.
The switch should then stay on. If either
of the interrupters does not perform in this
manner, it is an indication of an electrical
malfunction and the possibility of an elec-
tric shock. Disconnect the power until the
fault has been identified and corrected.
SAFETY INSTRUCTIONS
7

SAFETY INSTRUCTIONS
IMPORTANT: Failure to wait 30 seconds
before resetting the GFCI may cause the
hot tub’s Power Indicator (on the control
panel) to blink. If this occurs, repeat the
GFCI test procedure.
DANGER - RISK
OF ELECTRIC SHOCK
• A wire connector is provided on this unit
to connect a minimum 8 AWG
(8.4 mm2) solid copper conductor be-
tween this unit and any metal equipment,
metal enclosures of electrical equipment,
metal water pipe, or conduit within 5 feet
(1.5 m) of the unit.
• Install at least 5 feet (1.5 m) from all
metal surfaces. As an alternative, a hot
tub may be installed within 5 feet of
metal surfaces if each metal surface is
permanently connected by a minimum 8
AWG (8.4 mm2) solid copper conductor
to the wire connector on the terminal
box that is provided for this purpose.
• Do not permit any electric appliance,
such as a light, telephone, radio, or tele-
vision, within 5 feet (1.5 m) of a hot tub.
Failure to maintain a safe distance may
result in death, or serious personal injury
due to electrocution, if the appliance
should fall into the hot tub.
• Install your hot tub in such a way that
drainage is away from the electrical
compartment and from all electrical
components.
• CAUTION — Risk of Electric Shock.
Do not leave compartment door open
• CAUTION — Risk of Electric Shock.
Replace components only with identical
components
• Do not service this product yourself as
opening or removing covers may expose
you to dangerous voltage or other risk
of injury. Refer all servicing to qualified
service personnel.
DO:
• Be sure your hot tub is connected to the
power supply correctly - use a licensed
electrical contractor.
• Disconnect the hot tub from the power
supply before draining the hot tub or
servicing the electrical components.
• Test the Ground Fault Circuit Interrupt-
er(s) before each use.
• Do not use the hot tub with the equip-
ment compartment door removed.
• Do not place electrical appliances within
5 feet (1.5m) of the hot tub.
• Do not use an extension cord to connect
the hot tub to its power source. The
cord may not be properly grounded and
the connection is a shock hazard. An
extension cord may cause a voltage drop,
which will cause overheating of the jet
pump motor and motor damage.
• Do not attempt to open the electrical
control box. There are no user service-
able parts inside.
RISKS TO AVOID
DANGER - RISK OF INJURY
• To reduce the risk of injury to persons,
DO NOT remove suction fittings (filter
standpipes) located in the filter compart-
ment.
• There is a danger of slipping and falling.
Remember that wet surfaces can be very
slippery. Take care when entering or
exiting the hot tub.
• Never operate hot tub if the suction
fittings are broken or missing.
• People with infectious diseases should
not use the hot tub.
• Keep any loose articles of clothing, long
hair, or hanging jewelry away from ro-
tating jets or other moving components.
8

SAFETY INSTRUCTIONS
• Water treatment should be carried out
with caution. Improperly chemically
treated water may cause skin irritation.
• Do not remove any suction sealing.
• Do not operate the hot tub if the suction.
sealing is broken or missing.
• Keep your clothes and jewellery away
from rotating jets and moving parts.
• Effects of overheating: you cannot assess
emergency situations, do not feel the
temperature, do not feel the need to get
out of the hot tub, cannot get out of the
hottub;riskoffetaldamageinpregnant
women, loss of consciousness, suffoca-
tion.
• Do not use the hot tub alone.
• Do not use the hot tub immediately after
strenuous sport.
INCREASED SIDE EFFECTS OF
MEDICATION
• The use of drugs, alcohol may cause
unconsciousness with the possibility of
drowning.
HEALTH PROBLEMS AFFECTED
BY HOT TUB USE
• Pregnant women should consult a physi-
cian before using hot tub.
• Obese persons and persons with a his-
tory of heart disease, low or high blood
pressure, circulatory system problems,
or diabetes should consult a physician
before using a hot tub.
AVOIDING THE RISK OF HYPER-
THERMIA
Prolonged immersion in hot water can
result in HYPERTHERMIA, Hyperther-
mia occurs when the internal temperature
of the body reaches a level several degrees
above the normal body temperature of
98.6°F. The symptoms of hyperthermia
include an increase in the internal tem-
perature of the body, dizziness, lethargy,
drowsiness, and fainting. The effects of
hyperthermia include failure to perceive
heat;failuretorecognizetheneedtoexit
hottuborhottub;unawarenessofimpend-
inghazard;fetaldamageinpregnantwom-
en;physicalinabilitytoexitthehottubor
hottub;andunconsciousnessresultingin
the danger of drowning.
WA R N I NG
The use of alcohol, drugs, or medication
before or during hot tub use may lead to
unconsciousness with the possibility of
drowning.
TO REDUCE THE RISK
OF INJURY
• The water in a hot tub should never ex-
ceed 40°C (104°F). Water temperatures
between 38°C (100°F) and 40°C are
considered safe for a healthy adult. Low-
er water temperatures are recommended
for young children and when hot tub use
exceeds 10 minutes. Extended use can
cause hyperthermia.
• Since excessive water temperatures have
a high potential for causing fetal damage
during the early months of pregnancy,
pregnant or possibly pregnant women
should limit hot tub water temperatures
to 38°C (100°F).
• Pregnant or possibly pregnant women
should limit hot tub water temperatures
to 100°F (36°C). Failure to do so may
result in permanent injury to your baby.
• Do not use hot tub immediately follow-
ing strenuous exercise.
• Obese persons and persons with a his-
tory of heart disease, low or high blood
pressure, circulatory system problems,
or diabetes should consult a physician
before using a hot tub.
9

SAFETY INSTRUCTIONS
AVOIDING THE RISK OF SKIN
BURNS
• Before entering a hot tub, the user should
measure the water temperature since the
tolerance of water temperature-regulating
devices varies.
• To reduce the risk of injury, before
entering a hot tub the user should measure
the water temperature with an accurate
thermometer.
• Test the water with your hand before
entering the hot tub to be sure it’s comfort-
able.
PRODUCT SAFETY AND MAINTE-
NANCE
For units intended for use in other than
single-family dwellings, a clearly labeled
emergency switch must be provided as
part of the installation. The switch must be
readily accessible to the occupants and must
be installed at least 5 feet (1.52 m) away,
adjacent to, and within sight of, the unit.
When the hot tub is not in use, cover the
hot tub with the cover to prevent ultraviolet
radiation causing damage to the product.
Do not remove any suction sealing. Do not
operate the hot tub if the suction sealing is
broken or missing.
Keep your clothes and jewellery away
from rotating jets and moving parts.
Test the residual current device before use.
Disconnect the hot tub from the power
supply before servicing its electrical parts.
(This operation can only be performed by
qualified professionals).
It is strictly prohibited to use the hot tub
in a not completely assembled state (e.g.
detached side panel)
Chemical treatment of water can only be
performed by per- sons under the age of 18
under parental supervision.
Maintenance can only be performed by
trained professionals.
The user should check the electrical wiring
every 3 months. It is required to perform a
check by a professional every 3 years.
Mains fuses / circuit breakers may be acti-
vated because of power outages.
Installation and wiring of the hot tub,
replacement of power cord, and any repairs
must be performed by qualified profes-
sion- als.
It is required to build in an isolating device
to the fixed wiring.
PLUG’N’PLAY SAFETY WARN-
INGS BEYOND THE PREVIOUS
WARNINGS, PLEASE ALSO PAY
ATTENTION TO THE UNDER-
MENTIONED ONES.
ATTENTION! The electrical receptacle
must be located at least 2.5 meters from
the hot tub so that bathers in a sitting po-
sition cannot reach it from the water. The
plug can only be connected to a receptacle
equipped with 2.5mm 2 diameter cables.
ATTENTION! RISK OF ELECTRIC
SHOCK. The connector with residual
current device must be inspected before
every use.
ATTENTION! Only place the RCD plug in
a receptacle equipped with RCD.
ATTENTION! Before you insert the plug
into the socket ensure that the current of
the socket and the fixed wiring is appro-
priate for the properties of the hot tub.
The hot tub must be equipped with an
isolation transformer or powered through
a residual current device with a release
current not exceeding 30mA.
This product is equipped with a ground
fault circuit breaker (GFCI) in the
connector. GFCI must be tested before
each use.
If the power cable is damaged, it must
immediately be re- placed by the manufac-
turer or a service professional in order to
minimize danger.
10

SAFETY INSTRUCTIONS
To minimize the risk of electric shock
do not use extension leads to connect the
product to the power supply.
Ensure that the receptacle is properly
located.
Parts of the equipment cannot be placed
above the hot tub during usage.
Parts under electrical power – except those
operating with voltage not exceeding 12V -
must be inaccessible for persons in the hot
tub. The grounded device must be connected
to a fixed socket with fixed wiring. Electrical
parts – except remote controllers – must be
positioned so as not to fall into the hot tub.
The electrical installation must meet the
local standard requirements.
To avoid electric shock do not use the hot
tub in rain.
Water attracts children. Always place and lock
the cover on the hot tub after each usage.
Do not bury cables into the ground! Place
the cables so that lawnmowers, trimmers,
and similar devices will not reach them.
Do not force push the control panel up nor
down and do not place heavy objects on it
after installation.
Keep pets away from the hot tub to avoid
damage.
Do not use the device if there is the slight-
est chance of water in the hot tub being
frozen.
Only use accessories approved by us. The
use of accessories not approved by us may
void the warranty.
Choking hazard. Particular attention need
to be paid to children during usage. To
avoid accidents only allow children to use
this hot tub under adult supervision.
To prevent damage to the pump the hot tub
can only be operated if it has been filled
with water.
If you feel uncomfortably or sleepy, leave
the hot tub immediately.
Never add water to the chemicals. Always
be cautious when adding chemicals to the
hot tub water to avoid inhaling vapors
and possible effects of inhaling undiluted
chemicals and splatters.
Only place the hot tub on a surface that
can support its weight.
Inspect the unit before use. contact the ser-
vice provider stated in this manual if any
of the parts were damaged or missing upon
purchase. Ensure that the parts of the unit
are those which you intended to buy.
In.clear safety warnings
Beyond the previous warnings, please also
pay attention to the undermentioned ones
read this manual carefully, always follow
its instructions, and retain it. This manual
contains important information about the
installation, operation, and safety recom-
mendations of the in.clear unit. Safe instal-
lation and usage is your responsibility.
The in.clear unit must be connected to a
network protected by a ground fault circuit
interrupter (GFCI) of the maximal nominal
fault current value of 30mA.
Ensure that the entire power supply is turned
off before the in.clear unit is installed.
If the power cord is damaged, it must be
replaced by the manufacturer, an autho-
rized service provider, or qualified profes-
sionals to avoid emergencies.
Always use a proper electric cable for sup-
ply of current to the in.clear unit.
When installing the in.clear Automatic
Bromine Generator local and international
electrical regulations must be com- plied with.
Clean or replace the filter cartridge at
regular intervals, otherwise part of the bro-
mine produced by the in.clear unit will be
consumed by oxidation of contamination
accumulated in the filter.
11

SAFETY INSTRUCTIONS  CANADA
DO NOT pour any other chemicals into the hot
tub than the recommended sodium bromide.
DO NOT use any ozone or UV disinfectant.
Operating the in.clear unit on lower sodium
bromide level shortens the life of the cells.
Keeping sodium bromide and bromine lev-
els above the recommended level may lead
to corrosion of the hot tub components and
cause damage to the hot tub accessories.
Donotopenthein.clearunit;itdoesnot
contain serviceable parts
Product disposal: the in.clear unit must
be disposed of in accordance with local
disposal regulations in force.
This device is not intended for use by per-
sons (nor children) with limited physical,
sensory, or mental capabilities except if
these persons have received appropriate
instruction on use of the device from the
person responsible for their safety.
The in.clear unit cannot be applied to
in-ground sunken hot tubs as it may affect
materials used in the construction.
The shut-off device must have fixed wiring
in accordance with the cabling regulations.
Showering is compulsory before each hot
tub use.
The user is responsible for regular moni-
toring of the hot tub water to ensure that
enough bromine is available to reach the
appropriate cleaning level. Intensive hot tub
use may require higher bromine intake to
always maintain appropriate bromine level.
Always check the expiry date of the test
kit, because after this date the test results
may be inaccurate.
For proper disinfection hot tubs must
periodically be completely drained. The
advised time period between full drains
given in days is calculated by dividing
the capacity of the hot tub in litres by the
tenfold of the average daily users.
The in.clear unit is applicable for indoor
hot tubs, but NOT for swimming pools.
THIS UNIT SHOULD BE SUB-
JECTED TO PERIODIC ROUTINE
MAINTENANCE (FOR EXAMPLE,
ONCE EVERY 3 MONTHS) TO
MAKE SURE THAT THE UNIT IS
OPERATING PROPERLY.
SAVE THESE
INSTRUCTIONS
WA R N I NG: CHILDREN SHOULD NOT
USE HOT TUBS OR HOT TUBS WITH-
OUT ADULT SUPERVISION
AVERTISSEMENT : NE PAS LAISSER
LES ENFANTS UTILISER UNE CUVE
DE RELAXATION SANS SURVEIL-
LANCE
WA R N I NG: DO NOT USE HOT TUBS
OR HOT TUBS UNLESS ALL SUCTION
GUARDS ARE INSTALLED TO PRE-
VENT BODY AND HAIR ENTRAP-
MENT
AVERTISSEMENT : POUR ÉVITER
QUE LES CHEVEUX OU UNE PARTIE
DU CORPS PUISSENT ÊTRE ASPIRÉS,
NE PAS UTILISER UNE CUVE DE RE-
LAXATION SI LES GRILLES DE PRISE
D'ASPIRATION NE SONT PAS TOUTES
EN PLACE
WA R N I NG: PEOPLE USING MEDI-
CATIONS AND/OR HAVING AN AD-
VERSE MEDICAL HISTORY SHOULD
CONSULT A PHYSICIAN BEFORE
USING A HOT TUB OR HOT TUB
AV E RT I S SE M E N T : LES PERSONNES
QUI PRENNENT DES MÉDICAMENTS
ET (OU) ONT DES PROBLÈMES DE
SANTÉ DEVRAIENT CONSULTER UN
MÉDECIN AVANT D'UTILISER UNE
CUVE DE RELAXATION
WA R N I NG: PEOPLE WITH INFEC-
TIOUS DISEASES SHOULD NOT USE
A HOT TUB OR HOT TUB
AV E RT I S SE M E N T : LES PERSONNES
ATTEINTES DE MALADIES INFEC-
12

SAFETY INSTRUCTIONS  CANADA
TIEUSES NE DEVRAIENT PAS UTI-
LISER UNE CUVE DE RELAXATION
WA R N I NG: TO AVOID INJURY, EX-
ERCISE CARE WHEN ENTERING OR
EXITING THE HOT TUB OR HOT TUB
AVERTISSEMENT : POUR ÉVITER
DES BLESSURES, USER DE PRUDENCE
EN ENTRANT DANS UNE CUVE DE
RELAXATION ET EN SORTANT
WA R N I NG: DO NOT USE DRUGS OR
ALCOHOL BEFORE OR DURING THE
USE OF A HOT TUB OR HOT TUB TO
AVOID UNCONSCIOUSNESS AND
POSSIBLE DROWNING
AVERTISSEMENT : POUR ÉVITER
L'ÉVANOUISSEMENT ET LA NOYADE
ÉVENTUELLE, NE PRENDRE NI
DROGUE NI ALCOOL AVANT D'UTI-
LISER UNE CUVE DE RELAXATION
NI QUAND ON S'Y TROUVE
WA R N I NG: PREGNANT OR POSSI-
BLY PREGNANT WOMEN SHOULD
CONSULT A PHYSICIAN BEFORE
USING A HOT TUB OR HOT TUB
AV E RT I S SE M E N T : LES FEMMES
ENCEINTES, QUE LEUR GROS-
SESSE SOIT CONFIRMÉE OU NON,
DEVRAIENT CONSULTER UN
MÉDECIN AVANT D'UTILISER UNE
CUVE DE RELAXATION
WA R N I NG: WATER TEMPERATURE
IN EXCESS OF 38 °C CAN BE INJURI-
OUS TO YOUR HEALTH
AV E RT I S SE M E N T : IL PEUT ÊTRE
DANGEREUX POUR LA SANTÉ DE SE
PLONGER DANS DE L'EAU À PLUS DE
38 °C
WA R N I NG: BEFORE ENTERING THE
HOT TUB OR HOT TUB, MEASURE
THE WATER TEMPERATURE WITH
AN ACCURATE THERMOMETER
AVERTISSEMENT : AVA N T D ' U T I-
LISER UNE CUVE DE RELAXATION,
MESURER LA TEMPÉRATURE
DE L'EAU À L'AIDE D'UN THER-
MOMÈTRE PRÉCIS
WA R N I NG: DO NOT USE A HOT TUB
OR HOT TUB IMMEDIATELY FOL-
LOWING STRENUOUS EXERCISE
AVERTISSEMENT : NE PAS UTI-
LISER UNE CUVE DE RELAXATION
IMMÉDIATEMENT APRÈS UN EXER-
CICE FATIGANT
WA R N I NG: PROLONGED IMMER-
SION IN A HOT TUB OR HOT TUB
CAN BE INJURIOUS TO YOUR
HEALTH
AVERTISSEMENT : L'UTILISATION
PROLONGÉE D'UNE CUVE DE RE-
LAXATION PEUT ÊTRE DANGERE-
USE POUR LA SANTÉ
WA R N I NG: DO NOT PERMIT
ELECTRIC APPLIANCES (SUCH AS
A LIGHT, TELEPHONE, RADIO, OR
TELEVISION) WITHIN 1.5 M OF THIS
SPA OR HOT TUB
AV E RT I S SE M E N T : NE PAS
PLACER D'APPAREIL ÉLECTRIQUE
(LUMINAIRE, TÉLÉPHONE, RADIO,
TÉLÉVISEUR, ETC) À MOINS DE
1.5 M DE CETTE CUVE DE RELAX-
ATION
CAUTION : MAINTAIN WATER
CHEMISTRY IN ACCORDANCE WITH
MANUFACTURER'S INSTRUCTIONS
ATTENTION: LA TENEUR DE L'EAU
EN MATIÈRES DISSOUTES DOIT
ÊTRE CONFORME AUX DIRECTIVES
DU FABR ICANT.
WA R N I NG: THE USE OF ALCOHOL
OR DRUGS CAN GREATLY INCREASE
THE RISK OF FATAL HYPERTHER-
MIA IN HOT TUBS AND SPAS
LA CONSOMMATION D'ALCOOL OU
DE DROGUE AUGMENTE CON-
SIDÉRABLEMENT LES RISQUES
D'HYPERTHERMIE MORTELLE DANS
UNE CUVE DE RELAXATION.
13

SAFETY INSTRUCTIONS  CANADA
WA R N I NG: RISK OF ACCIDENTAL
DROWNING. EXTREME CAUTION
MUST BE EXERCISED TO PREVENT
UNAUTHORIZED ACCESS. ENSURE
THAT CHILDREN CANNOT USE THIS
PRODUCT UNLESS THEY ARE SU-
PERVISED AT ALL TIMES
AVERTISSEMENT : RISQUE DE
NOYADE. PRENDRE TOUTES LES
PRÉCAUTIONS NÉCESSAIRES POUR
INTERDIRE L'ACCÈS AUX PER-
SONNES NON AUTORISÉES. S'ASSUR-
ER QUE LES ENFANTS NE PUISSENT
PAS UTILISER CE PRODUIT SANS
SURVEILLANCE CONSTANTE
WA R N I NG: RISK OF ACCIDENTAL
DROWNING. THE USE OF ALCOHOL-
IC BEVERAGES OR DRUGS BEFORE
OR DURING SPA USE CAN LEAD TO
UNCONSCIOUSNESS WITH THE POS-
SIBILITY OF DROWNING
AV E RT I S SE M E N T : RISQUE DE
NOYADE. TOUTE PERSONNE QUI
PREND DE LA DROGUE OU DE L'AL-
COOL AVANT D'UTILISER UNE CUVE
DE RELAXATION OU PENDANT
QU'ELLE S'Y TROUVE RISQUE L'ÉVA-
NOUISSEMENT ET LA NOYADE
WA R N I NG: RISK OF ACCIDENTAL
DROWNING DUE TO HYPERTHER-
MIA. CONSULT THE INSTRUCTIONS
PROVIDED WITH THIS UNIT FOR
A DESCRIPTION OF THE CAUSES,
SYMPTOMS, AND EFFECTS OF HY-
PERTHERMIA
AV E RT I S SE M E N T : RISQUE DE
NOYADE PAR SUITE D'HYPERTHER-
MIE. LIRE LA NOTICE QUI ACCOM-
PAGNE
CETAPPAREIL;ELLEDÉCRITLES
CAUSES, LES SYMPTÔMES ET LES
EFFETS DE L'HYPERTHERMIE
WA R N I NG: RISK OF ELECTRIC
SHOCK. DO NOT PERMIT ANY ELEC-
TRIC APPLIANCE (SUCH AS A LIGHT,
TELEPHONE, RADIO, OR TELEVI-
SION) WITHIN 1.5 M OF A SPA
AV E RT I S SE M E N T : DANGER
D'ÉLECTROCUTION. NE PAS PLACER
D'APPAREIL ÉLECTRIQUE (LUMI-
NAIRE,TÉLÉPHONE, RADIO, TÉLÉV-
ISEUR, ETC) À MOINS DE 1.5 M DE
CETTE CUVE DE RELAXATION
WA R N I NG: THIS MARKING SHALL
BE REMOVED BY THE END USER OF
THIS PRODUCT ONLY
AVERTISSEMENT : SEUL L'UTILI-
SATEUR DE CE PRODUIT PEUT EN-
LEVER CE MARQUAGE.
14

When using this electrical equipment,
basic safety precautions should always be
followed, including the following:
A) READ AND
FOLLOW ALL
INSTRUCTIONS.
B) A GREEN COLOURED TERMINAL
OR A TERMINAL MARKED G, GR,
GROUND, GROUNDING, OR THE
SYMBOL IS LOCATED INSIDE
THE SUPPLY TERMINAL BOX OR
COMPARTMENT. TO REDUCE THE
RISK OF ELECTRIC SHOCK, THIS
TERMINAL MUST BE CONNECT-
ED TO THE GROUNDING MEANS
PROVIDED IN THE ELECTRIC
SUPPLY SERVICE PANEL WITH
A CONTINUOUS COPPER WIRE
EQUIVALENT IN SIZE TO THE
CIRCUIT CONDUCTORS SUPPLY-
ING THIS EQUIPMENT.
C) AT LEAST TWO LUGS MARKED
“BONDING LUGS” ARE PROVIDED
ON THE EXTERNAL SURFACE OR
ON THE INSIDE OF THE SUPPLY
TERMINAL BOX OR COMPART-
MENT. TO REDUCE THE RISK OF
ELECTRIC SHOCK, CONNECT
THE LOCAL COMMON BONDING
GRID IN THE AREA OF THE HOT
TUB OR SPA TO THESE TERMI-
NALS WITH AN INSULATED OR
BARE COPPER CONDUCTOR NOT
SMALLER THAN NO. 6 AWG.
D) ALL FIELD-INSTALLED METAL
COMPONENTS SUCH AS RAILS,
LADDERS, DRAINS, OR OTHER
SIMILAR HARDWARE WITHIN
3 M OF THE SPA OR HOT TUB
SHALL BE BONDED TO THE
EQUIPMENT GROUNDING BUS
WITH COPPER CONDUCTORS NOT
SMALLER THAN NO. 6 AWG.
E) SAV E T H ESE
INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
15

CONTROLS
16
WATER FLOW REVERSER
With water reversing you share
the jets in each seat. If you turn
the water reverser to the right, it
will operate the jets on its right
seats. if you turn it to the left, it
will operate the jets on its left
seats. In center position all the
jets controlled by water reversing
will operate. In this case the effi-
ciency of the massage is reduced
(it splits among the seats).
ENRICHMENT:
With the enrichment tool addi-
tional air is introduced to the jets,
which strengthens the effect of
the massage.
Open to the right, close to the left.
TAP
The tap has an opened and a
closed position. When it's open, it
can operate the waterfall nozzle,
the one-hole fountain, or the neck
massage unit. The tap opens to
the left, (3, 2/3 rewind) and closes
to the right
(3, 2/3 rewind).

INITIAL INSTALLATION
SITE PREPARATION
When choosing a site for the hot tub take into account that
its maintenance and repair works must be carried out behind
the sidewalls, so accessibility and hot tubce to walk around
the hot tub must be ensured.
1. INDOOR/BASEMENT INSTALLATION
If you place your hot tub indoors, be aware of some special
requirements:
Water may accumulate around the hot tub, so the flooring
material must have a proper runoff to avoid accumulation of
water. When building a new room for the hot tub, construct-
ing a floor drain is required, or damages may occur due to
overflow, overfilling, or technical failure. Our company does
not take responsibility for any damage in absence of floor
drainage.Humidity will naturally increase in the room where
the hot tub is located and the evaporated water condenses.
For this reason ensure that the area has proper ventilation.
We recommend installing a dehumidifier in the room.
2. OUTROOR AND PATIO INSTALLATION
A solid horizontal foundation is necessary for installation of
the hot tub. We advise using a reinforced concrete founda-
tion at least 10-15cm thick.
Ensure that your deck or foundation will support your hot tub.
You must know the maximal load capacity of the foundation.
Consult a qualified building contractor or structural engineer.
To find out the weight of your hot tub, its contents and
occupants please refer to the hot tub specification chart. This
weight must not exceed the structure’s rated capacity per
square meter, otherwise serious structural damages could
result. If you install the hot tub outdoors, we recommend a
reinforced horizontal concrete pad at least 10-15cm thick.
Install floor drains around your hot tub to lead water away
even in heavy rain.
When constructing the water drain it is advised to form a
10-15cm deep sloping ditch around the hot tub which directs
water to the drain. Water from the drain must be directed to
the canal or a drainage with enough capacity.
Warning: Do not expose the hot tub to direct sunlight (not
even empty) without proper coverage. The insulated hot tub
cover preserves the water temperature and provides protection
from sunlight and rain. When exposed to sunshine for a longer
period it may damage the surface of the hot tub and the hot tub
equipment.
Acrylic rapidly absorbs heat from sun rays, thus reaches a very
high surface temperature which may damage the hot tub.
In case of sealed design, if the hot tub was placed between
glass structures, prevent the sun rays from reaching the hot
tub directly through the glass as the temperature may get
too high.
3. IN-GROUND / SUNKEN HOT TUB
In case of sinking the hot tub into the ground you must
make sufficient space for walking around the hot tub. For
completion of maintenance works a minimum of 60cm wide
inspection pit must be built around the hot tub.
The inspection pit’s bottom must be under the bearing pont
of the hot tub so that water can flow into the pit in case of
water leakage. A floor drain or sump pump should be used at
the bottom of the pit to ensure continual water drainage.
In case of sinking the hot tub only the portion below the hot
tub’s acrylic edge can be sunk. The air of the inspection pit
steams up. To prevent unpleasant odors proper ventilation
must be provided (e.g. installing ventilators). The costs of
pulling the hot tub out of the ground are borne by the user.
If the aforementioned conditions are not present, setting up
the hot tub may fail.
First filling of the hot tub
Proper filling of the hot tub is an important task both tech-
nically and chemically. We advise installation and periodic
maintenance by the servicing professionals, which includes
inspection and refilling of hot tub water. Hot tubs do not con-
tain water softener and hard water damages the equipment.
Improper filling of the hot tub may bring air into the system,
which damages the heating wire and engines. Repairs after
such failures are not covered by warranty.
Filling process
Remove the hot tub cover. First remove the cover staves,
then remove the side covers by unscrewing the bottom
screws. During transportation the flare fittings of engines
may dislocate. Check these connections before installation. If
necessary, tighten the flare fittings.
In hot tubs equipped with air engine the flare fitting must be
connected before running the hot tub for the first time.
Before filling the hot tub check that the ratchets are not in
a closed state (lever is pulled out and fixed with the safety
lock).
Next fill the hot tub with water to the sign indicated on its
sidewall.
Filling must be done through the filter housing. Improper
filling can damage the engines and heating element.
Insert the filter or filter cartridges when proper water level
is reached. Be cautious, because when replacing the filter
cartridge air bubbles may remain in the cartridge. To avoid
this the filter cartridges must be tilted in the water to remove
air from them, and only then fitted to their place.
17

INITIAL INSTALLATION
18
Electrical preparations:
A clearly labeled emergency switch shall be provided as part of the installation. The switch shall be readily accessible to the
occupants and shall be installed at least 5 feet (1.52 m) away, adjacent to, and within sight of, the unit.
Before installation the hot tub, the ellectrical system has to be prepared, as detailed in the below table.
Applicable cable:
Copper 90°C (194°F)
THHN/THWN
Ampere rating of the supply circuit
overcurrent protective device
AWG rating of the supply conductor
Olympus 50 A 4
Mont Blanc (Elbrus 230) 50A 6
Monte Rosa (Kilimanjaro) 50A 6
Monte Bianco (Discovery) 40A 6
Paris (Elbrus 2018) 40A 6
London (Malaga 2018) 40A 6
Milan (Palermo 2018) 40A 6
Berlin (Marbella 2018) 35A 6
Rome (Manhattan2018) 35A 6
Taurus (Kilimanjaro) 40A 6
Libra 40A 6
Hercules 35 A 6
Leo P&P 15A 6
Leo Scandi pack 30 A 6
Orion P&P 15A 6
Orion Scandi pack 30 A 6
Rio Grande W-Flow swim space: 55 A 6
hot tub space: 45 A 6
Amazon W-Flow 65 A 6
Danube W-Flow 65 A 6

MAJOR COMPONENTS OF THE PRODUCT
19
OLYMPUS

MAJOR COMPONENTS OF THE PRODUCT
20
MONT BLANC (ELBRUS 230)
