Elmo Rietschle 2BH1002-*AB32 series User manual

G-Serie
G-Series
Seitenkanal
Side Channel
Edition: 04.2010 · 610.44431.40.000 Original Operating Instructions · English
Operating Instructions G-BH10

2BH10 02-.AB32
2BH10 02-.AB22
2BH10 02-.AA53

Table of Contents
© 2010 Gardner Denver Deutschland GmbH · Industriestraße 26 · 97616 Bad Neustadt · Deutschland
Replication, distribution and / or editing of this document and the use and distribution of its content is
prohibited unless explicitly permitted. Violation obligates compensation for damages.
All rights reserved in case of the issue of a patent, utility patent or design patent.
Table of Contents
1Safety and Residual Risks.......................................................................................................... 3
2Intended Use .............................................................................................................................. 5
3Technical Data............................................................................................................................ 6
3.1 Nominal and Limiting Values Pump ......................................................................................... 6
3.2 Nominal and Limiting Values Motor and Electronics ............................................................... 7
4Transport and Handling .............................................................................................................. 9
5Installation and Commissioning................................................................................................ 10
5.1 Mounting ................................................................................................................................ 10
5.2 Connection ............................................................................................................................. 11
5.2.1 Electrical Connection (Motor)............................................................................................ 11
5.2.2 Pipe/ hose connections (pump) ........................................................................................ 17
5.3 Commissioning....................................................................................................................... 18
6Operation .................................................................................................................................. 19
7Servicing ................................................................................................................................... 20
7.1 Maintenance........................................................................................................................... 20
7.1.1 Cleaning............................................................................................................................ 20
7.1.2 Inspection.......................................................................................................................... 21
7.1.3 Lubrication......................................................................................................................... 21
7.2 Repair/ Troubleshooting.........................................................................................................22
8Shutting Down and Measures for Prolonged Standstill............................................................ 23
EC Declaration of Conformity................................................................................................................ 24

Safety and Residual Risks
© Gardner Denver Deutschland GmbH 3 / 30 610.44431.40.000
Before beginning to work on the G-
BH100 or the system carry out the
following steps for both the G-BH100
and the entire system
–switch off electricity,
–lock against restart,
–ensure absence of electricity,
–ground and short-circuit instal-
lation,
–cover or bar adjacent live
parts,
–depressurise both pipes and
pump.
Do not wear long, loose hair! Use a
hair net! Never wear wide, loose
clothes!
Transport and handling as well as
assembly and disassembly may be
carried out by trained and responsi-
ble personnel only!
Operation of the G-BH100 only
–with the gases as indicated in
section 2, "Intended Use"!
–with the values as indicated in
section 3, "Technical Data"!
Check pipes/hoses and vessels for
sufficient strength!
Check pipe / hose connections for
tightness!
Operation of the G-BH100 only when
completely assembled and securely
fastened to the mounting surface!
Check fasteners for secure fixing at
regular intervals!
After loosening clampings and fas-
tening elements some parts and
components are only held in place
by their centrings or seatings or are
no longer held in place at all so that
they might fall down.
Take the necessary care during dis-
assembly and assembly!
Operation of the G-BH100 only with
the pump lid assembled!
Disassembly of the pump lid only
after the impeller has come to a
complete standstill!
Consider impeller run-out!
Operation of the G-BH100 only with
the pipes / hoses connected to the
suction and delivery branches!
WARNING!
In case of operation with open suc-
tion or delivery branches (drawing-in
of gases from or discharge of gases
into the surroundings) a piece of
pipe or hose with a length of at
least 120 mm must by all means be
connected to the branch in question
in order to prevent the impeller from
being reached by fingers!
Disassembly of the pipes / hoses
connected to the suction and deliv-
ery branches only after the impeller
has come to a complete standstill!
Consider impeller run-out!
Do not reach into the G-BH100
through open suction or delivery
branches!
Do not insert any objects into the G-
BH100 through the openings!
Operation of the G-BH100 only with
the motor cap assembled!
Disassembly of the motor cap is
prohibited.
Work on electrical installations may
be carried out by trained and author-
ised electricians only!
The electrical connections must be
surrounded by a housing which is
proof against foreign bodies, humid-
ity, etc.!
Consider the life expectancy of the
seals and gaskets!
Ensure that no foreign bodies, hu-
midity, etc. enter the motor interior!
For heat dissipation and cooling pro-
vide a minimum distance of 15 mm
on each side except for the pump lid
side on which a smaller distance of
at least 2 mm is permissible!
Burning and scalding hazard due to
hot surfaces of the G-BH100!
Do not touch during operation! Let
the unit cool after shut-down!
Provide a guard against accidental
contact!
1 Safety and Residual Risks

Safety and Residual Risks
610.44431.40.000 4 / 30 © Gardner Denver Deutschland GmbH
i
The motor of the G-BH100 including
its connecting leads must be pro-
tected against electrostatic dis-
charge (ESD).
Do not remove the ESD-prevention
bag surrounding the lead ends until
right before carrying out the electri-
cal connection (attaching the con-
nector, connecting to a terminal strip,
or the like)!
Carry out the electrical connection
using the appropriate ESD-
prevention equipment!
Residual Risks
Danger zone:
Hot surface.
Hazard:
Burning / scalding hazard.
Protective measures:
Attach warning sign "Warning of hot
surface".
Danger zone:
Impeller of the pump can be rea-
ched through open suction or deliv-
ery branches.
Hazard:
Severing of limbs.
Drawing-in and entanglement of
hair.
Protective measures:
Operation only with the pipes /
hoses connected to the suction
and delivery branches!
In case of operation with open
suction or delivery branches
(drawing-in of gases from or dis-
charge of gases into the sur-
roundings) a piece of pipe or ho-
se with a length of at least 120
mm must by all means be con-
nected to the branch in question!
Use a hair net!
Danger zone:
The vicinity of the unit during opera-
tion with open suction or delivery
branches (drawing-in of gases from
or discharge of gases into the sur-
roundings)
Hazard:
Injuries due to contact with pres-
surised fluids or due to sudden
acceleration of parts.
Injuries due to parts thrown out of
the unit.
Protective measures:
Ensure that fluids discharged into
the surroundings are not expelled
close to people (e.g. work sta-
tions on machines)!
During work on or near the unit
wear personal protective equip-
ment!

Intended Use
© Gardner Denver Deutschland GmbH 5 / 30 610.44431.40.000
These operating instructions
must be completely read and understood by
all operating and servicing personnel before
beginning to work with or on the G-BH100,
must be strictly observed,
must be available at the site of operation of
the G-BH100,
applies to Side channel blowers of the
G-Series G-BH100,
contains instructions bearing on transport and
handling, installation, commissioning, opera-
tion, servicing, shut-down, and storage of the
G-BH100.
The operating and servicing personnel working
with or on the G-BH100:
must be trained and authorised for the work to
be carried out.
Work on electrical installations may be carried
out by trained and authorised electricians
only.
The G-BH100
are single-stage gas-ring vacuum pumps /
compressors
are machines used to generate vacuum or
overpressure
are used to extract, to deliver and to com-
press the following pumped gases:
- air,
- other gases, which are not explosive,
flammable, aggressive or toxic
- The pumped gases must not contain any
solid bodies or impurities; those must be
separated before entering the unit by
means of a filter.
exist in six fundamental designs1:
- 2BH10 02-0AB32:
hose connection with enclosed motor
and integrated electronics
- 2BH10 02-0AB22:
hose connection with enclosed motor
and integrated electronics
- 2BH10 02-0AA53:
hose connection with enclosed motor
external electronics
- 2BH1002-1….: flange connection
are intended for industrial applications.
are designed for continuous operation; in case
of increased turn-on frequency or increased
intake and ambient temperature the limiting
overtemperature of the winding and the bear-
ings must not be exceeded
(operation only according to "Fig. 3", page 9).
1In order to determine the design of your G-BH100
refer to the type number (MLFB) on the rating plate.
When operating the G-BH100 it is imperative to
observe the limiting values given in section 3,
"Technical Data".
Foreseeable Misuse
It is prohibited:
to use the G-BH100 in applications other than
industrial applications,
to use the G-BH100 in areas where explosive
atmosphere might occur,
to extract, to deliver and to compress explo-
sive, flammable, aggressive or toxic fluids,
to operate the G-BH100 with values other
than those given in section 3, "Technical
Data".
Any unauthorised modifications of the G-BH100
are prohibited for safety reasons.
Maintenance work is only allowed to the extent
described in these operating instructions.
Any further maintenance work as well as repair
work may only be carried out by companies
authorised by the manufacturer (please contact
your sales engineer).
i
IMPORTANT!
The G-BH100 is a component
intended to be incorporated in a
machine or system. It is delivered
for this purpose to manufacturers
of such machinery or systems
(OEMs) only.
i
IMPORTANT!
The installation of the G-BH100 in
your machine or system must be
carried out in keeping with the
requirements on electromagnetic
compatibility according to the
EMC Directive.
2 Intended Use

Technical Data
610.44431.40.000 6 / 30 © Gardner Denver Deutschland GmbH
3.1 Nominal and Limiting Values Pump
G-BH100 with enclosed motor and
integrated electronics external electronics
2BH10 02-_AB32 2BH10 02-_AB22 2BH10 02-_AA53
Weight 1.2 kg [2.65 lbs] 1.5 kg [3.31 lbs]
Dimensions see Fig. 1 & Fig. 2, page 8
Sound level248 dB(A) 51 dB(A) 55 dB(A)
max. permissible total
differential pressure3at +15°C:
- vacuum pump operation4100 mbar 105 mbar 185 mbar
- compressor operation5105 mbar 105 mbar 190 mbar
max. permissible differential
pressure between pump interior
and surroundings
0.15 bar
max. permissible intake and
ambient temperature + 40°C [+104°F]
max. permissible speed69,500 min-1 12,000 min-1 15,000 min-1
bearing life L10720,000 h
electrical data see section 3.2, "Nominal and Limiting Values Motor and Electronics",
page 7, and section 5.2.1, "Electrical Connection (Motor)", page 11
Max. permissible dynamic load of the G-BH100 due to vibrations from outside:
Vibration frequency Vibration value
< 6.3 Hz Vibration displacement s ≤0.16 mm
6.3 Hz ... 63 Hz Vibration velocity veff ≤4.5 mm/s
> 63 Hz Vibration acceleration a ≤2.55 m/s²
2Surface sound pressure level (EN ISO 3744), measured at a distance of 1 m [3.28 ft] at an operating point of ap-
prox. 2/3 of the permissible total differential pressure with the pipes / hoses connected and without vacuum or
pressure limiting valve.
3Permitted only with: unobstructed cooling,
an operating voltage of 24 V,
a speed reference value of 10 V and
left-handed rotation of the G-BH100.
The indicated temperature refers to the gas intake temperature. It is assumed that the gas intake tem-
perature equals the ambient temperature of the G-BH100.
IMPORTANT: For the max. permissible total differential pressure at temperatures other than +15°C
[+59°F]see "Fig. 3", page 9.
In case of increased throttling inside the suction or delivery pipe a pressure relief valve must be provided.
In case of reduced speeds by means of a lower speed reference value the max. permissible total differ-
ential pressures change as well.
4Vacuum operation: extraction of air
having the indicated temperature at the suction branch and a pressure of 1013 mbar
at the delivery branch.
5Compressor operation: compression of air
having the indicated temperature at the suction branch and a pressure of 1013 mbar
at the delivery branch.
6Max. permissible speed due to the mechanical components and the design of the unit.
7For: operation within the permissible operating range,
the max. permissible dynamic load due to vibrations from outside and
fastening by means of rubber / metal elements (available as accessories).
3 Technical Data

Technical Data
© Gardner Denver Deutschland GmbH 7 / 30 610.44431.40.000
3.2 Nominal and Limiting Values Motor and Electronics
G-BH100 with enclosed motor and
integrated electronics external electronics
2BH10 02-0AB32 2BH10 02-0AB22 2BH10 02-0AA53
Voltage range 14...28 V DC 38...52 V DC
Nominal voltage 24 V DC 48 V DC
Max. input current 4.5 A 5.2 A 7.0 A
Nominal speed 9,500 min-1 11,500 min-1 15,000 min-1
Speed control range 1,000 - 9,500 min-1 1,000 - 12,000 min-1 1,000 - 15,000 min-1
Rated power 90 W 115 W 300 W
Internal resistance at desired
speed 70
Permissible ambient temperature -10…+40°C [+14…+104°F]
Relative humidity max. 95 %
Due to the PWM control of the electronics the power supply unit is loaded with short, high current pul-
ses. For this reason the supply voltage must be blocked or filtered by means of a capacitor (low ESR
type, suitable type for high frequencies, high current switching, > 1000 µF) for noise suppression.
Usually this capacitor is part of the power supply unit. Switch-mode power supplies, however, are of-
ten provided with a capacitor of only very small capacitance at the output so that this kind of pulses
result in interference. In this case an additional capacitor must be connected as close to the motor as
possible.

Technical Data
610.44431.40.000 8 / 30 © Gardner Denver Deutschland GmbH
Fig. 1: Dimensions of the 2BH1002-0…. (hose connection)
Fig. 2: Dimensions of the 2BH1002-1…. (flange connection)
Hose connection B B1B2C D d1d2E F G G1K R2
2BH1002-0AB32 145 133 121 95 72 20 19 53 72 11 1 450 4.2
2BH1002-0AB22 145 133 121 95 72 20 19 53 72 11 1 450 4.2
2BH1002-0AA53 145 133 121 95 72 20 19 53 92 11 1 450 4.2
Flange connection
2BH1002-1AB32 145 133 121 95 60 20 19 53 72 11 1 450 4.2
2BH1002-1AB22 145 133 121 95 60 20 19 53 72 11 1 450 4.2
2BH1002-1AA53 145 133 121 95 60 20 19 53 92 11 1 450 4.2

Transport and Handling
© Gardner Denver Deutschland GmbH 9 / 30 610.44431.40.000
Fig. 3: Permissible total differential pressure / conversion factor
For the permissible total differential pressure at an intake and ambient temperature of +15°C [+59°F]
see the table in section 3.1, "Nominal and Limiting Values Pump", page 6.
In order to calculate the permissible total differential pressure for other intake and ambient tempera-
tures proceed as follows:
Find out your system-dependent gas intake and ambient temperature.
Establish the conversion factor valid for these conditions by means of the above diagram.
(In order to do so mark your intake and ambient air temperature on the temperature axis. Draw a
vertical line from this value to the point of intersection with the curve. Now draw a vertical line from
the point of intersection to the conversion-factor axis where you can read the conversion factor
then.)
Multiply the established conversion factor with the max. permissible total differential pressure at
15°C as given in the table in section 3.1, "Nominal and Limiting Values Pump", page 6.
The result will be a pressure value. This is the max. permissible total differential pressure valid
for your G-BH100 at your system-dependent intake and ambient temperature.
Packaging:
On delivery the G-BH100 is packed up in a card-
board box. When there is no connector attached
to the electrical connecting cable the lead ends
are surrounded by an ESD-prevention bag.
i
IMPORTANT!
The motor of the G-BH100 includ-
ing its connecting leads must be
protected against electrostatic
discharge (ESD).
Do not remove the ESD-
prevention bag surrounding the
lead ends until right before carry-
ing out the electrical connection
(attaching the connector, connect-
ing to a terminal strip, or the like)!
4 Transport and Handling
0.91
0.92
0.93
0.94
0.95
0.96
0.97
0.98
0.99
1
1.01
-20 -10 010 20 30 40 50
Gas intake and ambient temperature t [°C]
Conversion facto
r

Installation and Commissioning
610.44431.40.000 10 / 30 © Gardner Denver Deutschland GmbH
5.1 Mounting

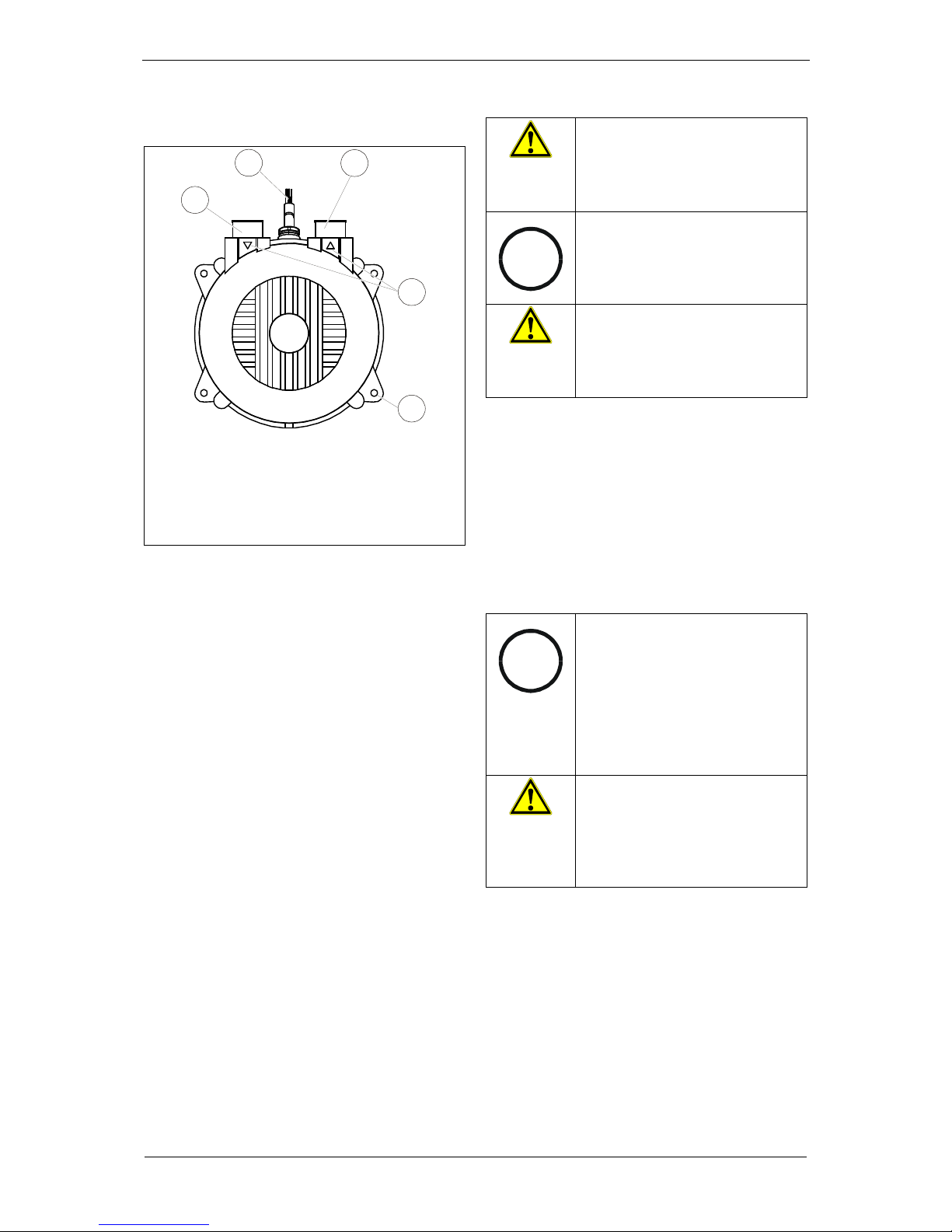

General view G-BH100 (pump side)
1. Delivery branch
2. Arrows indicating delivery direction
3. Fixing lugs for fastening to a mounting surface
4. Suction branch
5. Electrical connecting cable
Fig. 4: General view G-BH100
For the arrangement of the G-BH100 and its
components see
- Fig. 4: .
For the space required and the arrangement of
the mounting holes required for fastening the
G-BH100 to the mounting surface please refer to
- Fig. 1: , page 8,
The G-BH100 must be mounted as follows:
- the shaft being in any position,
- such as not to exceed the vibration values
given in section 3, "Technical Data",
- for heat dissipation and cooling
provide a minimum distance of 15 mm on
each side
except for the pump lid side on which a smal-
ler distance of at least 2 mm is permissible
(in case of mounting using rubber / metal
elements, see page 10).
CAUTION!
Choose the place of installation /
the mounting surface of the
G-BH100 so that there is no haz-
ard of tripping or bumping!
i
IMPORTANT!
Do not install theG-BH100 close
to heating surfaces! No direct in-
solation!
CAUTION!
Lay the electrical connecting cable
so that it might not be damaged
by outer influences and is free
from tensile stress!
Sound and vibration attenuation:
In order to reduce sound emission fasten the
G-BH100 only to parts or components that do
not conduct or emit sound easily (e.g. thin
walls, plates).
Provide sound-absorbing shims, termed
rubber / metal elements (available as acces-
sories). These are rubber pads placed be-
tween the four fixing lugs and the mounting
surface and used to absorb vibrations.
i
IMPORTANT!
During operation the surface of the
G-BH100 might have high tem-
peratures of more than 100°C!
Temperature-sensitive parts or
components, e.g. electrical wires
or cables or electronic compo-
nents must not be in contact with
or fastened to these surfaces!
CAUTION!
Burning and scalding hazard due
to hot surfaces of the G-BH100
during operation!
Provide a guard against acciden-
tal contact.
Place the rubber / metal elements (rubber pads)
between the fixing lugs (Fig. 4, # 6) and the
mounting surface.
Fasten theG-BH100 to the mounting surface via
the fixing lugs using four suitable bolts or nuts.
Property class of the bolts or nuts: 8.8 according
to ISO 898.
Secure the four fixing bolts against unintentional
loosening due to vibrations.
5 Installation and Commissioning
5
4
1
2
3

Installation and Commissioning
© Gardner Denver Deutschland GmbH 11 / 30 610.44431.40.000
5.2 Connection
5.2.1 Electrical Connection (Motor)
WARNING!
Work on electrical installations may
be carried out by trained and author-
ised electricians only!
WARNING!
Before beginning any electrical work
on the G-BH100 or the system carry
out the following steps for both the
G-BH100 and the entire system
–switch off electricity,
–lock against restart,
–ensure absence of electricity,
–ground and short-circuit instal-
lation,
–cover or bar adjacent live
parts.
WARNING!
The connecting terminals
–must be installed such that
they cannot be touched during
operation!
–must be surrounded by a
housing which is proof against
foreign bodies, humidity, etc.!
Consider the life expectancy of
the seals and gaskets!
–must be separated by suffi-
cient distances (mind protrud-
ing wire ends)!
WARNING!
Ensure that no foreign bodies, hu-
midity, etc. enter the motor interior!
The G-BH100 is operated using an electronics for
speed and direction of rotation control.
Depending on where this electronics is located
(inside or outside the G-BH100), two types of the
G-BH100 are distinguished
for external electronics (see section 5.2.1.1,
page 11):
- 2BH10 02-0AA53
for integrated electronics (see sec-
tion 5.2.1.2, page 15):
- 2BH10 02-0AB32
- 2BH10 02-0AB22
In order to determine the type of your G-BH100
refer to the type number (MLFB) on the rating
plate.
i
IMPORTANT!
The motor of the G-BH100 including
its connecting leads must be pro-
tected against electrostatic discharge
(ESD).
Do not remove the ESD-prevention
bag surrounding the lead ends until
right before carrying out the electrical
connection (attaching the connector,
connecting to a terminal strip, or the
like)!
Carry out the electrical connection
using the appropriate ESD-
prevention equipment!
5.2.1.1 G-BH100 for external electronics
With this type the electronics is located outside
the G-BH100. It is connected via the electrical
connecting cable.
i
IMPORTANT!
The main or operating direction of
rotation of the G-BH100 is the coun-
ter-clockwise rotation, given by the
arrow indicating the direction of rota-
tion on the pump lid
(see Fig. 4, # 5, page 10).
Only with the counter-clockwise rota-
tion the nominal values will be
achieved.
Clockwise rotation is only permissible
in special cases.
In this instance the G-BH100 will not
achieve its full output.
i
IMPORTANT!
The connecting cable between the
G-BH100 and the external electron-
ics must have a length of at maxi-
mum 0.5 m!
i
IMPORTANT!
When switching off the G-Bh100 or
rapidly reducing its speed a current
feed into the mains might occur.
This can be prevented by inserting a
diode (Schottky diode, size 10A) in
the 48-V supply lead (+UB)
i
IMPORTANT!
Provide good cooling of the sur-
roundings of the motor and the ex-
ternal electronics (e.g. mounting on
a good thermal conductor, sufficient
ventilation)! In case of temperatures
of > 50°C, measured at the surface
of the external electronics (Drivecon-
trol VT-D), the output power of the
pump might be reduced.

Installation and Commissioning
610.44431.40.000 12 / 30 © Gardner Denver Deutschland GmbH
Purchasing the external electronics (Drive-
control VT-D) along with the G-BH100
For the order no. of this option please refer to our
catalogue.
The design of the external electronics (Drivecon-
trol) is as follows:
Fig. 5: External electronics: block diagram of the control principle
external electronics
(commercial component)
Colours of the connecting leads of the motor:
L1 brown RLG1 green GndHall black
L2 violet RLG2 white +VHall red
L3 yellow RLG3 grey
Supply voltage / control signal
connection (X3)
External electronics:
Block diagram of the control principle
MOTOR
PWM-generation
Speed controller
Speed
evaluation
Commutation-
logic
internal
signal processing
Output stage
Current
measurement
Mode of operation
Rotor position detecto
r
RLG1, RLG2, RLG3
GndHall
+VHall
L1
L2
L3
+-
Motor connection (X4)
Gnd
IST
(MF-PIN)
nSoll
+UB
A
B

Installation and Commissioning
© Gardner Denver Deutschland GmbH 13 / 30 610.44431.40.000
Supply voltage/ control signal connection side:
The connector for supply voltage / control signal connection (connector X3) is shown in Fig. 7,
page 14.
On the supply voltage / control signal connection side the assignment is as follows:
Symbol Description Lead colour Pin
A Mode of operation States:
1 (High): 5…24 V
0 (Low): < 0.5 V
white Pin 1
+UB+ Operating voltage 38 ... 52 V red Pin 2
- Not used violet Pin 3
nSoll (S+) Speed reference value Control voltage: 0…10 V
Reference value of the desired speed of the
G-BH100.
green Pin 4
B Mode of operation States:
1 (High): 5…24 V
0 (Low): < 0.5 V
grey Pin 5
IST Actual speed (optional) Open Collector output
Here the rotor speed can be read
yellow Pin 6
Gnd - Operating voltage 0 V black Pin 7
S -Ground Set Value input 0 V brown Pin 8
Via the digital control inputs A and B the direction/mode of operation is determined.
The following states are possible:
Level A Level B Mode of operation
0 0 Output stage disabled (no current).
0 1 Counter-clockwise rotation
(according to the arrow indicating the direction of rotation on the pump lid):
Main / operating direction of rotation of the G-BH100!
1 0 Clockwise rotation
(opposed to the arrow indicating the direction of rotation on the pump lid):
1 1 Breaking
Please take also note of the following data:
Wire cross section of the connecting cable 0.5 mm²
Control current on the supply voltage /
control signal connection side max. 9 A
Motor connection side:
The connector for motor connection (connector X4) is shown in Fig. 7, page 14.
On the motor connection side the assignment is as follows:
Symbol Description Lead colour Pin
L1 Motor phase 1 brown Pin 6
L2 Motor phase 2 violet Pin 5
L3 Motor phase 3
Terminals of the motor windings.
Operating voltage: 48 V against electronics
max. winding peak current: 13 A
max. winding temperature: 115°C yellow Pin 1
RPD1 Hall signal 1 green Pin 4
RPD2 Hall signal 2 white Pin 3
RPD3 Hall signal 3
Rotor position detectors.
Hall ICs with open collector output.
They must be wired to an external pull-up
resistor. grey Pin 8
+VHall Hall supply red Pin 2
GndHall Hall supply
Feeder line of the hall ICs.
black Pin 7

Installation and Commissioning
610.44431.40.000 14 / 30 © Gardner Denver Deutschland GmbH

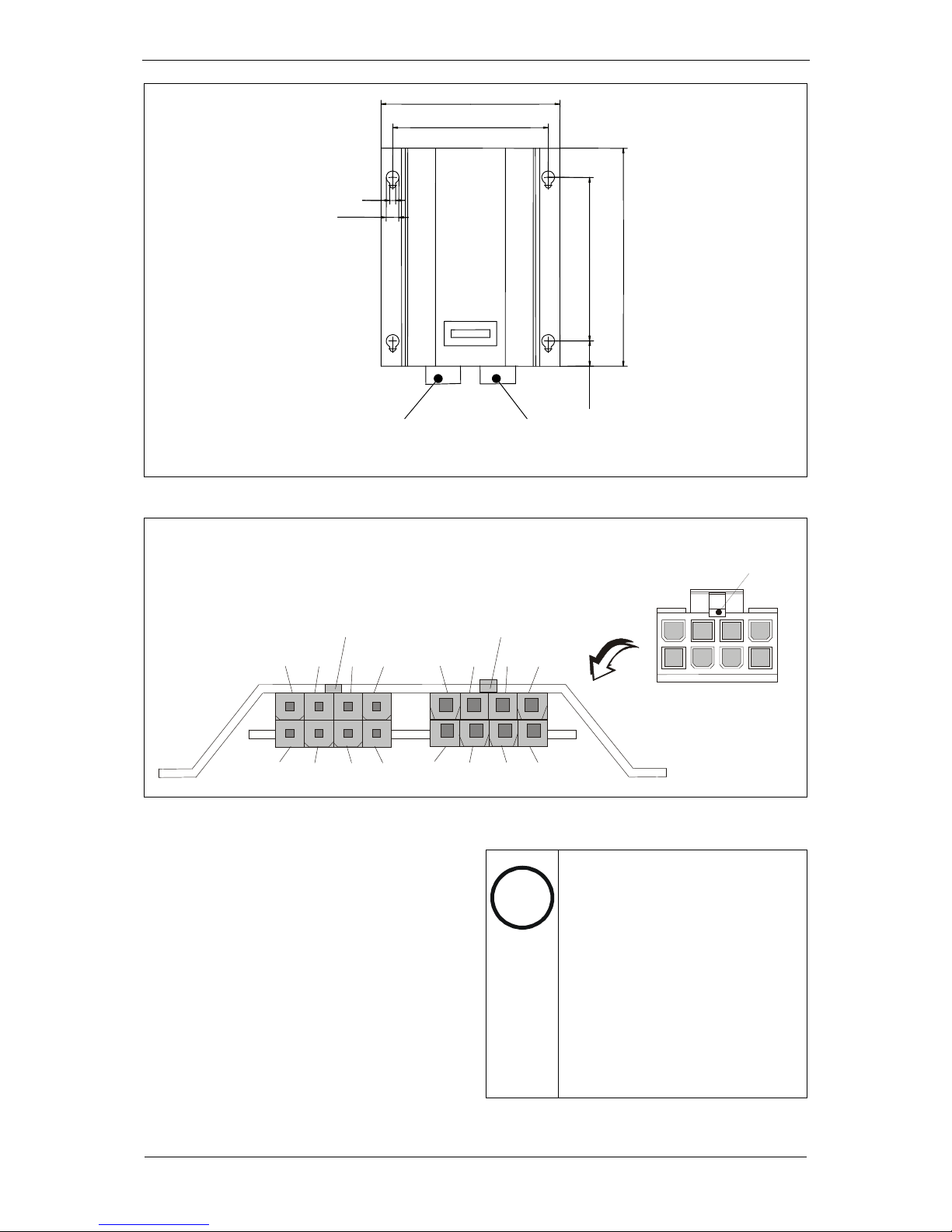

Fig. 6: External electronics
Fig. 7: Connector pin assignment and mating connector
If there is no connector (mating connector to the
external electronics) connected to the motor ca-
ble of the G-BH100, the loose lead ends are sur-
rounded by an ESD-prevention bag. In this case,
the socket connector must first be connected to
the motor cable.
i
IMPORTANT!
The motor of the G-BH100 including
its connecting leads must be pro-
tected against electrostatic dis-
charge (ESD).
Do not remove the ESD-prevention
bag surrounding the lead ends until
right before carrying out the electri-
cal connection (attaching the con-
nector, connecting to a terminal strip,
or the like)!
Carry out the electrical connection
using the appropriate ESD-
prevention equipment!
92
80
3
6,5
84
112
13
Control sig-
nal connector
(X3)
Motor-
connector
(X4)
PAPST Drivecontrol VT-D Gardner Denver Deutschland GmbH-Ident.-Nr.: 519_00082_01_000
S +Not
used +Ub
8765
4321
S- Gnd IST B
Slot for lug
A
8 7 65
4321
RLG3 Gnd L1 L2
Slot for lug
RLG1 RLG2 +U Hall L3
Control signal connections
(X3)
Mating connector type:
MOLEX - 39-01-2085
Moto
r
connections
(X4)
Mating connector type:
MOLEX - 39-01-2085
432
1
8
765
lug
Mating connector
(connected to motor cable)

Installation and Commissioning
© Gardner Denver Deutschland GmbH 15 / 30 610.44431.40.000
The scope of supply of the external electronics
(Drivecontrol VT-D) includes a connector with a
300 mm wiring harness to connect the Drivecon-
trol to the supply voltage and control voltage.
In order to meet the requirements bearing on
electromagnetic compatibility a suitable EMI
filter (e.g. CORCOM, Type 6ET1, 10A) must be
connected in series with the external-electronics.
The connecting cable between the EMI filter and
the G-BH100 must have a length of at maximum
0,3 m.
5.2.1.2 G-BH100 with integrated electronics
With this type the electronics is located inside the
motor.
i
IMPORTANT!
With the integrated-electronics type
G-BH100 the electronics is particu-
larly sensitive to overheating!
It is imperative to ensure sufficient
heat dissipation and cooling!
On delivery the integrated-electronics type G-
BH100 is not equipped with a connector at the
connecting cable. In this instance the operator
can, according to the requirements of the system,
connect a connector at his option, connect the
terminals to a terminal strip, etc.
The electrical connection is to be carried out:
according to the applicable national and local
laws and prescriptions
according to the applicable system-dependent
prescriptions and requirements
according to the applicable prescriptions of
the utility company
Via the motor connecting cable the supply volt-
age as well as the different control signals are
applied to the integrated electronics.
For the assignment of the leads or strands please
refer to Fig. 8 as well as the following table.
Lead colour Assignment
Cable
old version
Cable
new version
pink red +VCC
yellow black Gnd
green green ndes
white white A
grey grey B
blue blue nIst
brown -- not connected
red -- not connected

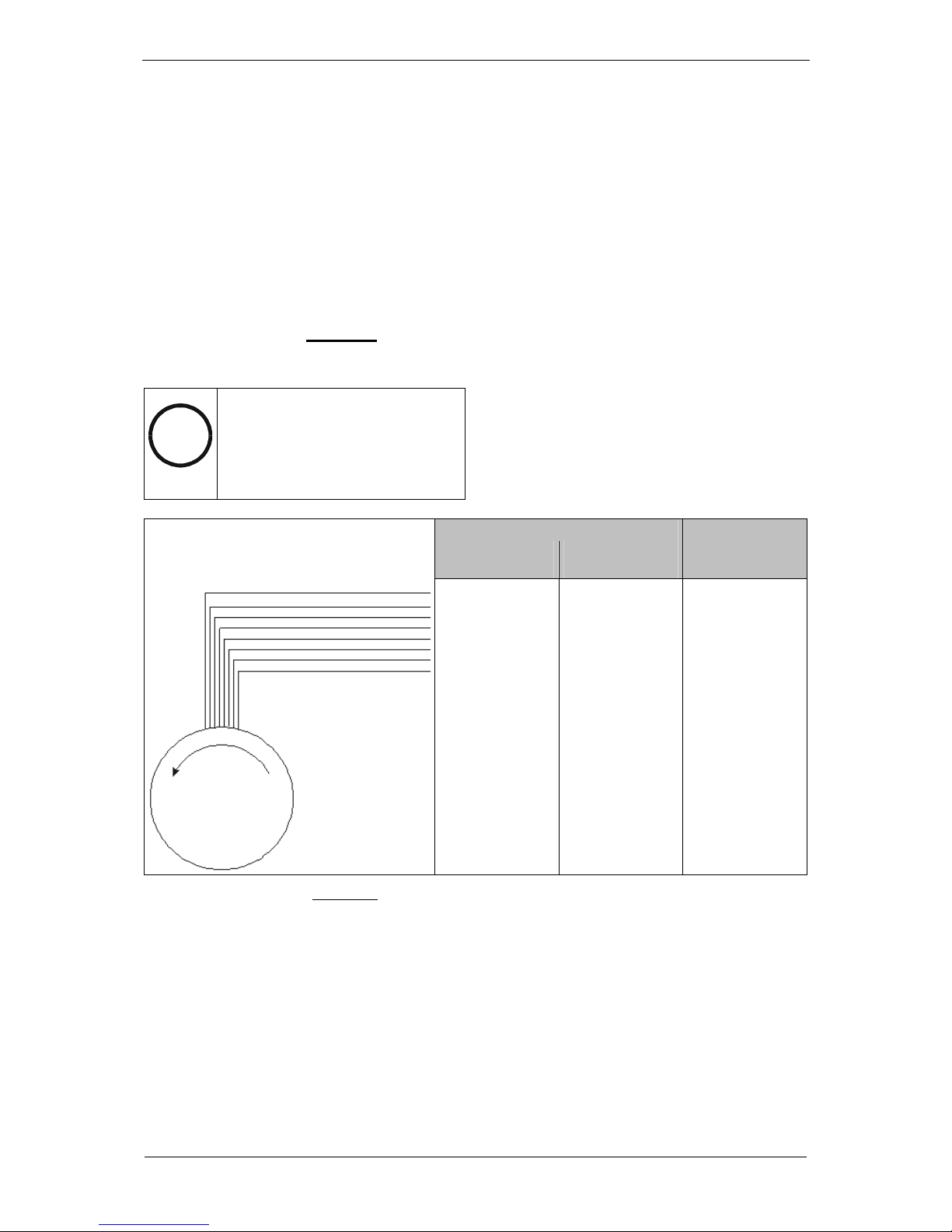

Fig. 8: Connection of the integrated electronics type
G-BH100

Installation and Commissioning
610.44431.40.000 16 / 30 © Gardner Denver Deutschland GmbH
Lead colourSymbol Description Level
Cable
old version
Cable
new version
+UBDC operating voltage 24 V (max. 28 V) pink red
Gnd DC operating voltage,
reference potential for all signals
0 V yellow black
ndes Speed reference value:
Reference value of the desired speed of
the G-BH100.
0 ... 10 V DC green green
nact Frequency output representing the actual
speed:
open collector signal which must be wired
to an external pull-up resistor.
Output frequency / motor speed ratio:
1 Hz = 10 min-1
Open collector
max. 24 V / 10 mA
blue blue
A white white
B
Control signals A and B are digital inputs.
Broad voltage-range input compatible with
TTL / PLC signals.
In all four possible combinations:
A B Function
0 0 Motor disabled (no current)
0 1 CCW rotation
1 0 CW rotation
1 1 Motor disabled
Low (0): < 0.5 V DC
High (1): > 4 V DC
max. 30 V DC grey grey
-- not connected -- brown --
-- not connected -- red --
In order to meet the requirements bearing on
electromagnetic compatibility an EMI filter
from Messrs CORCOM, Type 6ETI F7003, 6A,
must be connected in series with the integrated-
electronics type G-BH100. The connecting cable
between the EMI filter and the G-BH100 must
have a length of at maximum 0.5 m.
i
IMPORTANT!
The main or operating direction of
rotation of the G-BH100 is the
counter-clockwise rotation, given
by the arrow indicating the direction
of rotation on the pump lid.
Only with the counter-clockwise rota-
tion the nominal values will be achie-
ved.
Clockwise rotation is only permissi-
ble in special cases.
In this instance the G-BH100 will not
achieve its full output.
i
IMPORTANT!
The connecting cable between the
G-BH100 and the external electron-
ics must have a length of at maxi-
mum 0.5 m!
i
IMPORTANT!
When switching off the G-BH100 or
rapidly reducing its speed a current
feed into the mains might occur.
This can be prevented by inserting a
diode (Schottky diode, size 6A) in
the 24-V supply lead (+UB).

Installation and Commissioning
© Gardner Denver Deutschland GmbH 17 / 30 610.44431.40.000
5.2.2 Pipe/ hose connections (pump)
On delivery the suction and delivery branches of
the G-BH100 are sealed up in order to prevent
foreign bodies from entering the pump.
Do not remove the seals until right before con-
necting the pipes/ hoses.
i
IMPORTANT!
The G-BH100 must not be operated
with the suction or delivery branches
sealed up or jammed!
For the arrangement of the branches see Fig. 4,
page 10.
The operating direction of the G-BH100 is indi-
cated by means of arrows:
The direction of rotation is indicated by an
arrow on the pump casing.
The delivery direction is indicated by arrows
on the suction and delivery branches.
i
IMPORTANT!
The main or operating direction of
rotation of the G-BH100 is the coun-
ter-clockwise rotation, given by the
arrow indicating the direction of rota-
tion on the pump lid.
Only with the counter-clockwise rota-
tion the nominal values will be
achieved.
Clockwise rotation is only permissible in
special cases. In this instance the G-
BH100 will not achieve its full output.
The pumped gases / vapours are taken in via the
suction branch and are expelled via the delivery
branch.
The suction branch (see Fig. 4 # 4, page 10) is
indicated by an arrow pointing into the pump.
Connect the suction pipe to this branch.
The delivery branch (see Fig. 4 # 1, page 10) is
indicated by an arrow pointing out of the pump.
Connect the delivery pipe to this branch.
i
IMPORTANT!
These instructions apply to the coun-
ter-clockwise rotation!
In case of clockwise rotation the suc-
tion and delivery branches are ex-
changed!
Make sure to connect the pipes / hoses so that
the G-BH100 will not be subject to any stress or
strain.
WARNING!
Rotating impeller - hazard of sever-
ing limbs!
In case of operation with open suc-
tion or delivery branches (drawing-in
of gases from or discharge of gases
into the surroundings) a piece of
pipe or hose with a length of at
least 120 mm must by all means be
connected to the branch in question
in order to prevent the impeller from
being reached by fingers!
i
IMPORTANT!
The pipes/ hoses must be attached
in a secure and tight fashion.
They must be locked against unin-
tentional loosening e.g. due to vibra-
tions, thermal expansion, etc.
WARNING!
Check pipes/ hoses and vessels for
sufficient strength!
WARNING!
Check pipe/ hose connections for
tightness!
i
IMPORTANT!
Provide a shut-off device and / or a
means for depressurisation in both
the suction and the delivery pipes.

Installation and Commissioning
610.44431.40.000 18 / 30 © Gardner Denver Deutschland GmbH
5.3 Commissioning
WARNING!
Operation of the G-BH100 only:
with the pump lid assembled
with the pipes/ hoses connected to
the suction and delivery branches
or
in case of operation with open
suction or delivery branches
(drawing-in of gases from or dis-
charge of gases into the surround-
ings)
with a piece of pipe or hose hav-
ing a length of at least 120 mm
connected to the branch in ques-
tion
with bearing end housing
WARNING!
Do not reach into the G-BH100
through open suction or delivery
branches!
Do not insert any objects into the G-
BH100 through the openings!
i
IMPORTANT!
The G-BH100 must not be operated
with the suction or delivery branches
sealed up or jammed!
WARNING!
Before start-up
check pipes / hoses and vessels
for sufficient strength!
check pipe / hose connections for
tightness!
check fasteners for secure fixing
Proceed as follows:
Make sure
- that the suction and delivery pipes are cor-
rectly connected,
- that in case of operation with open suction
or delivery branches (drawing-in of gases
from or discharge of gases into the sur-
roundings)
a piece of pipe or hose having a length of
at least 120 mm is connected to the
branch in question in order to prevent the
impeller from being reached by fingers.
- that the suction and delivery pipes are not
jammed,
- that all fasteners are properly tightened,
- that the correct voltage and current are
applied.
Set the control voltage serving as speed ref-
erence and applied to ndes to 0 V at first.
Turn on the indicated operating voltage.
Now increase the control voltage serving as
speed reference and applied to ndes (0 to
10 V) to your desired value or the value given
on the data sheet. By means of this speed
control the operating point of the G-BH100 is
adapted to the operating point of the system.
Check the connections for tightness (ensure
that there is no fluid leakage).

Operation
© Gardner Denver Deutschland GmbH 19 / 30 610.44431.40.000
WARNING!
Operation of the G-BH100 only:
with the pump lid assembled
with the pipes / hoses connected
to the suction and delivery bran-
ches or
in case of operation with open suc-
tion or delivery branches (drawing-
in of gases from or discharge of
gases into the surroundings) with
a piece of pipe or hose having a
length of at least 120 mm con-
nected to the branch in question
with the bearing end housing
i
IMPORTANT!
The G-BH100 must not be operated
with the suction or delivery branches
sealed up or jammed!
CAUTION!
Burning and scalding hazard due to
hot surfaces of the G-BH100!
Do not touch during operation!
WARNING!
Before start-up and at regular inter-
vals
check pipes / hoses and vessels
for sufficient strength!
check pipe / hose connections for
tightness!
check fasteners for secure fixing
Speed control:
During operation the speed of the G-BH100 can
be modified. This allows to adapt the operating
point of the G-BH100 to changes in the operating
point of the system.
In order to do so adjust the control voltage ap-
plied to ndes within a range of 0 to 10 V.
6 Operation

Servicing
610.44431.40.000 20 / 30 © Gardner Denver Deutschland GmbH
WARNING!
Before beginning to work on the G-
BH100 or the system carry out the fol-
lowing steps for both the G-BH100 and
the entire system
switch off electricity,
lock against restart,
ensure absence of electricity,
ground and short-circuit installation,
cover or bar adjacent live parts,
depressurise both pipes and pump.
WARNING!
Disassembly of
the pump lid
the pipe / hose connections
the guard in front of the motor
only after the impeller and the rotor
have come to a complete standstill!
Consider run-out!
Disassembly of the bearing end hous-
ing is prohibited!
CAUTION!
Burning and scalding hazard due to hot
surfaces of the G-BH100!
Let the unit cool after shut-down!
WARNING!
Do not reach into the G-BH100 through
open suction or delivery branches!
Do not insert any objects into the G-
BH100 through the openings!
CAUTION!
After loosening clampings and fasten-
ing elements some parts and compo-
nents are only held in place by their
centrings or seatings or are no longer
held in place at all so that they might
fall down.
WARNING!
Before recommissioning
completely re-assemble the G-
BH100
check if all fasteners have been re-
assembled and tightened
check pipes / hoses and vessels for
sufficient strength
check pipe / hose connections for
tightness
WARNING!
Work on electrical installations may be
carried out by trained and authorised
electricians only!
7.1 Maintenance
7.1.1 Cleaning
Exterior:
In case of lint or dust on the pump:
Clean the entire surface of the G-BH100 wip-
ing it with a wet cloth.
Interior:
See also Fig. 9, page 21
Disassemble pump lid (# 3).
In order to do so loosen the four bolts (# 1)
and carefully pull off the lid in axial direction
(see arrow) so that the pin is not bent.
i
IMPORTANT!
Don not detach the impeller nut
(# 4)!Do not disassemble the impel-
ler (# 4)!
Otherwise, inside the motor the rotor
would be displaced by a spring re-
sulting in the G-BH100 having to be
completely disassembled and re-
assembled!
Remove lint using e.g. a pair of tweezers.
i
IMPORTANT!
Do not use compressed air in order
to clean the pump interior since this
might result in dirt entering the motor
interior.
Re-assemble pump lid (# 3).
In order to do so carefully set the lid to the
pump so that the pin is inserted in the hole
and thus the lid is aligned. Carefully place the
lid on the pump in axial direction (see arrow)
so that the pin is not bent.
Screw in the bolts (# 1)
securing them using Loctite 243.
Fastening torque of the bolts:
Tf= 2 Nm 0.2
7 Servicing
